TIKSCIENCE LS Gen 3 ECM Bench Harness for GM LS1/Gen III PCM — 12V Power, OBD-II Programming & Diagnostics

The TIKSCIENCE LS Gen 3 ECM Bench Harness is a plug-and-play programming and diagnostic harness that powers and communicates with Gen III GM PCM/ECMs (1999–2007) via OBD-II for out-of-vehicle tuning and testing.

This bench-top harness reproduces the vehicle power and OBD-II connections needed to program, read, and diagnose Gen III GM ECUs outside the car. Built with new Delphi/Aptiv components, 18 AWG TXL automotive wiring, a high-temperature nylon loom, and a dedicated 12V power supply, it supports Blue/Red and Blue/Green LS1/Gen III modules and is compatible with popular tuning suites like EFI Live, HP Tuners, and Tuner Cats.

How does the harness let me program an LS1/Gen III ECM off the vehicle?

By recreating the essential power and communication circuits, the harness supplies regulated 12V to the ECU and presents an OBD-II interface for tuning software to connect. It avoids the need to wire into a donor vehicle and provides a stable bench environment for flashing, reading, and troubleshooting ECUs.

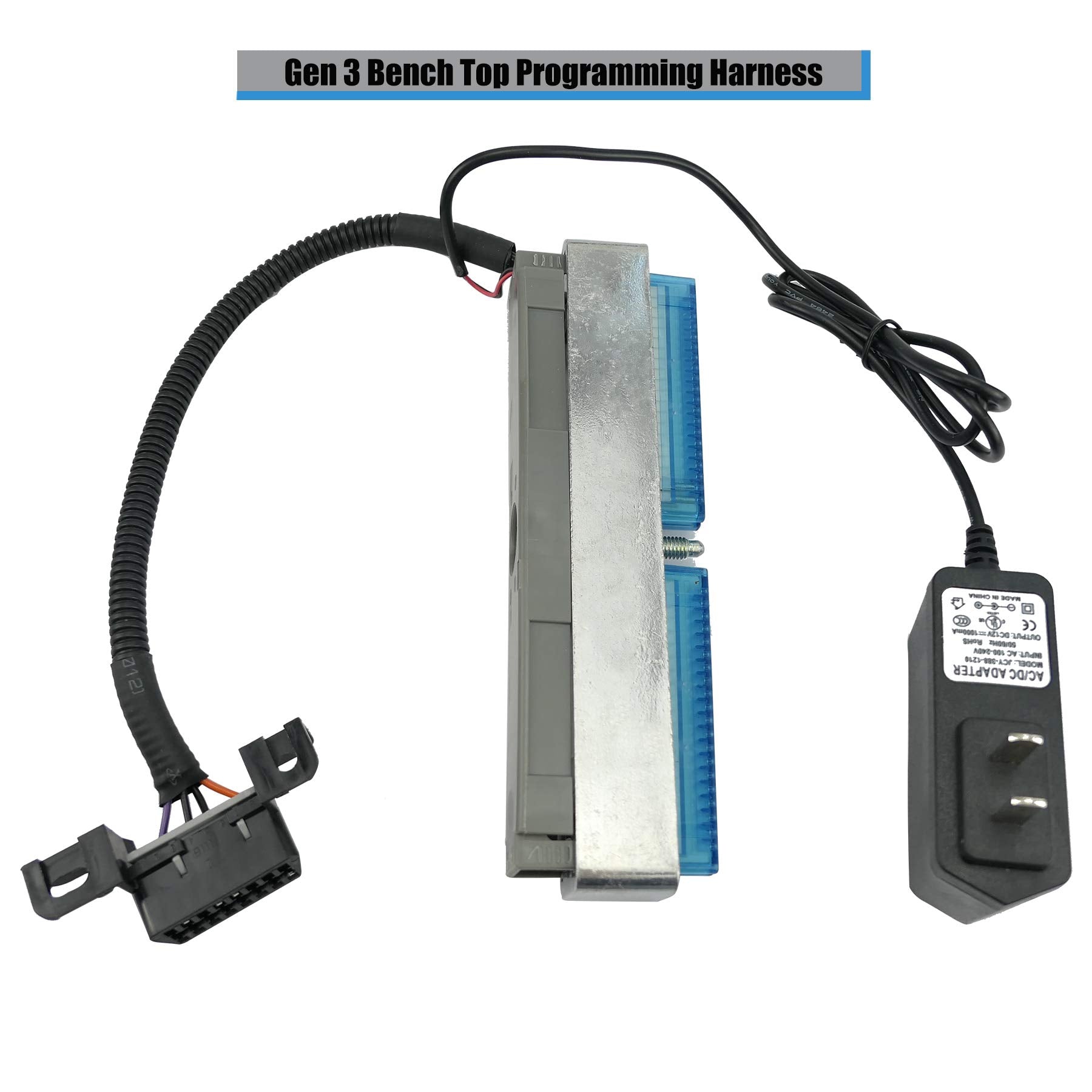

• Includes a dedicated 12V wall power supply that feeds the BLUE PCM connector and OBD-II port.
• New Delphi/Aptiv connectors and 18 AWG TXL wiring for reliable electrical contact.

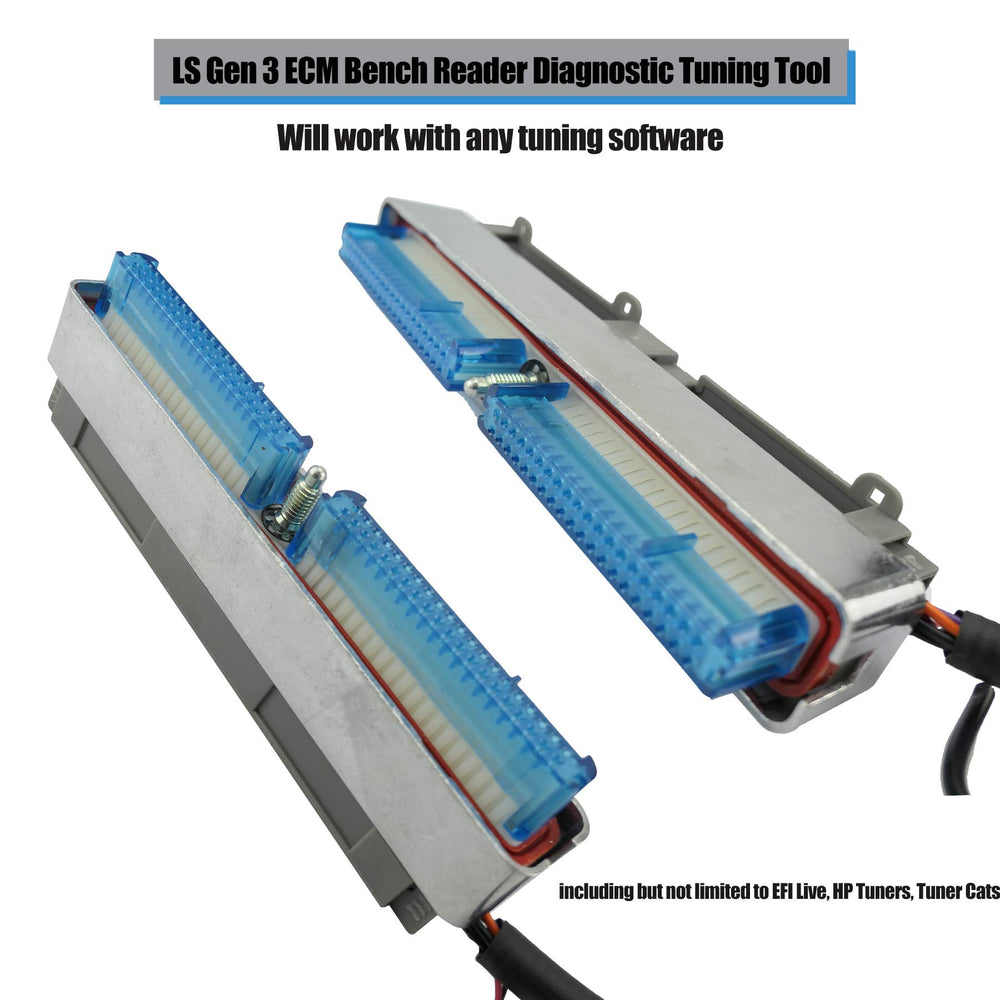

• Works with EFI Live, HP Tuners, Tuner Cats, and OBD-II based programming tools.

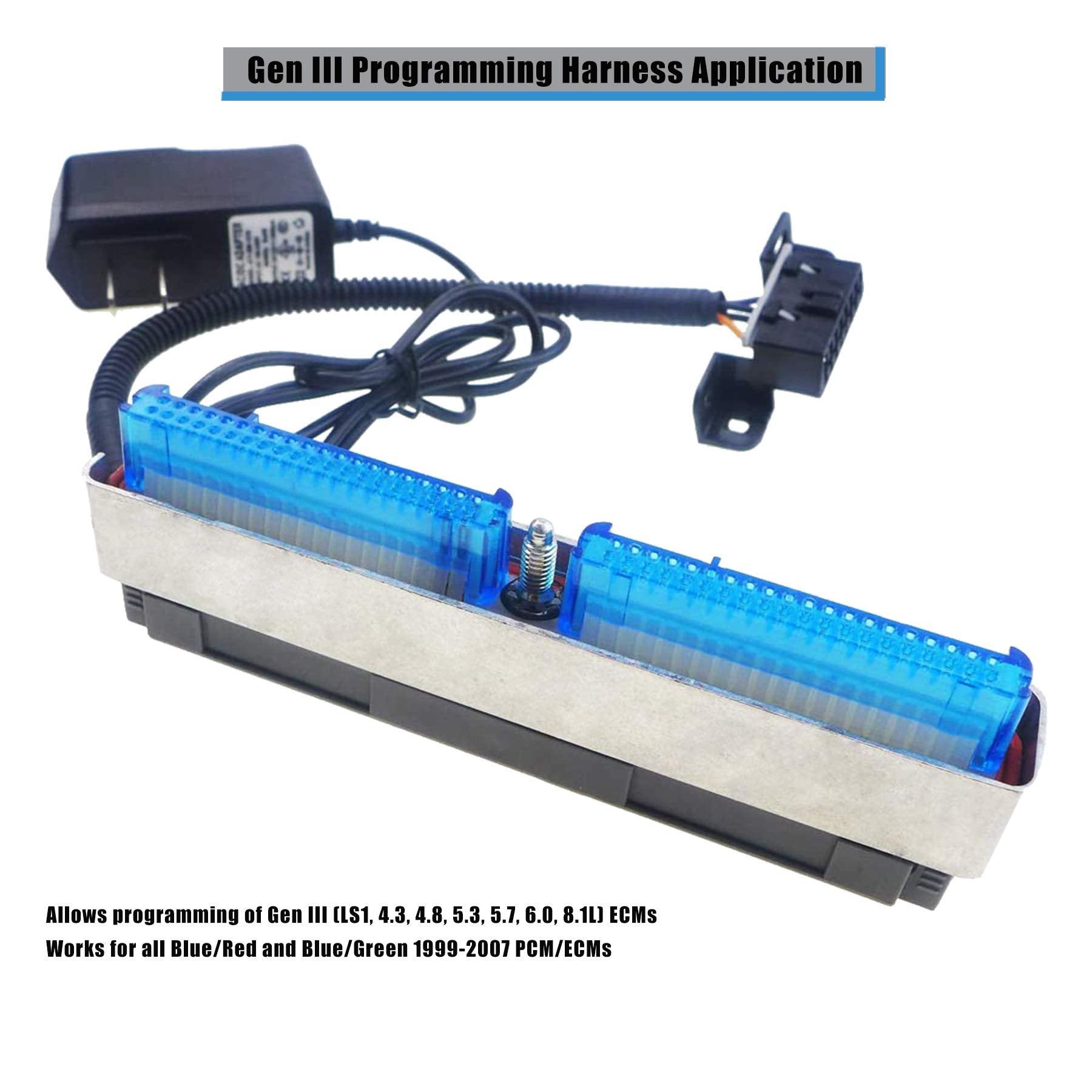

• Compatible with 1999–2007 Gen III/LS1, 4.3, 4.8, 5.3, 5.7, 6.0 and 8.1L ECMs.

What diagnostics and ECU functions can I access with this bench harness?

The harness enables standard OBD-II communications so software can perform scans, clear codes, and run live-data streams just as if the ECU were installed in a harnessed vehicle. That unlocks fault code reads, sensor and actuator monitoring, and re-flashes for calibration or replacement ECUs.

• Read and clear stored fault codes and freeze frame data through OBD-II tools.
• Monitor live parameters such as fuel trims, ignition timing, and sensor voltages.
• Flash replacement or modified tunes using supported tuning applications.

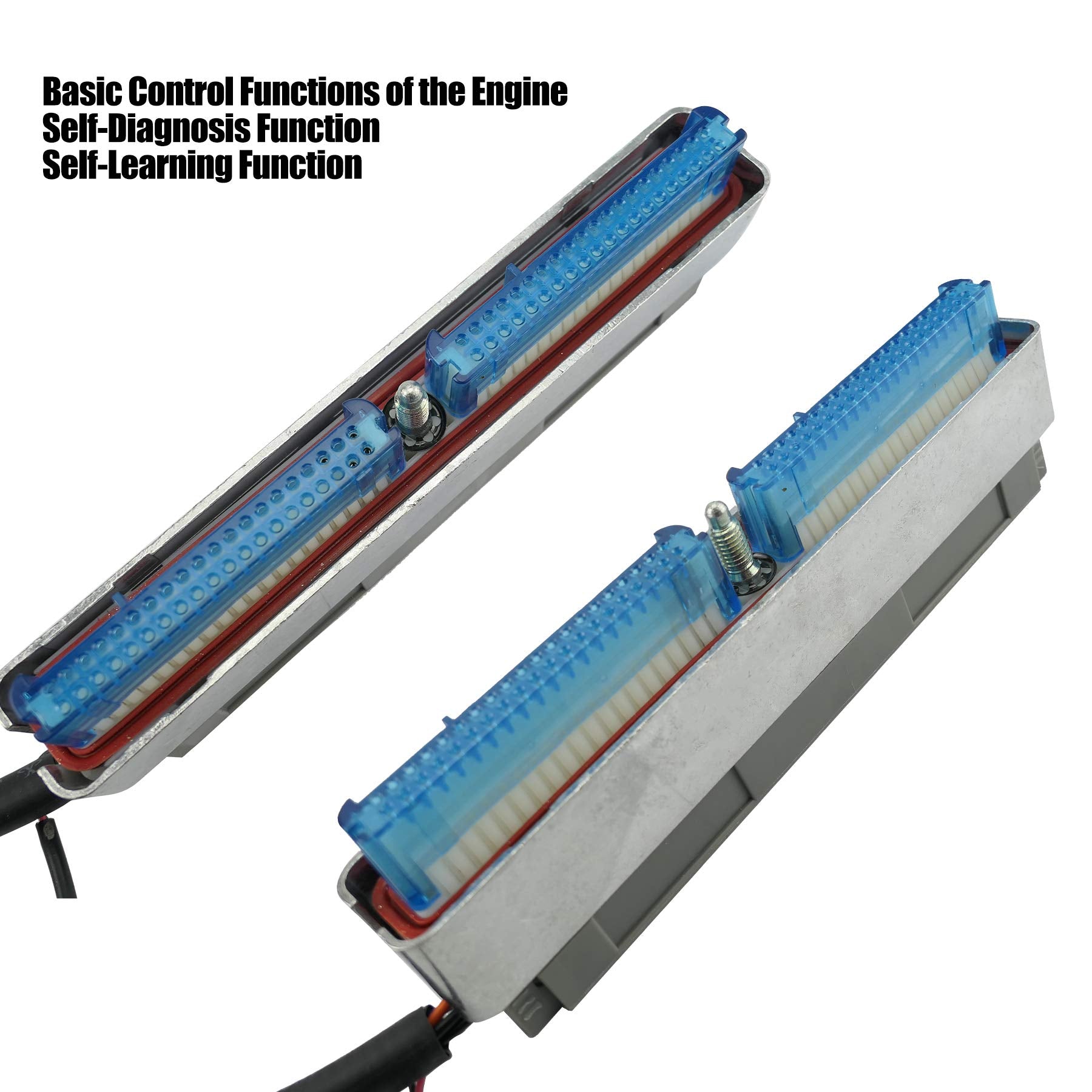

• Use bench testing to validate ECU self-diagnostics and learning behavior.

Is the harness easy to install and safe for repeated bench use?

Yes—the unit is designed for simple plug-and-play operation and includes a ruggedized housing, high-temp loom, and secure connectors to withstand repeated ECU swaps. Each harness is bench-tested before shipping to ensure clean connections and consistent performance during programming sessions.

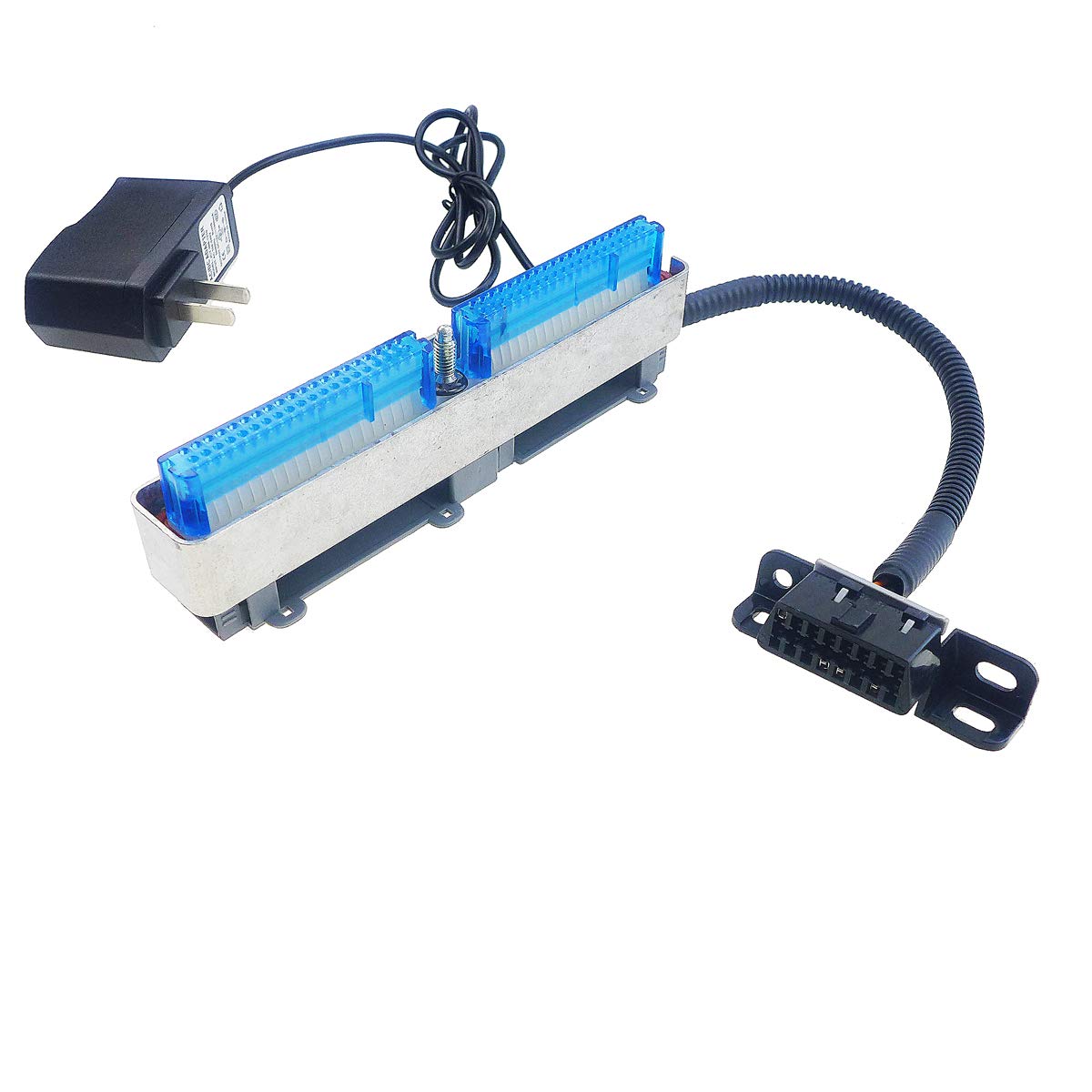

• Plug-and-play design: connect the BLUE PCM connector, OBD-II port, and 12V adapter.

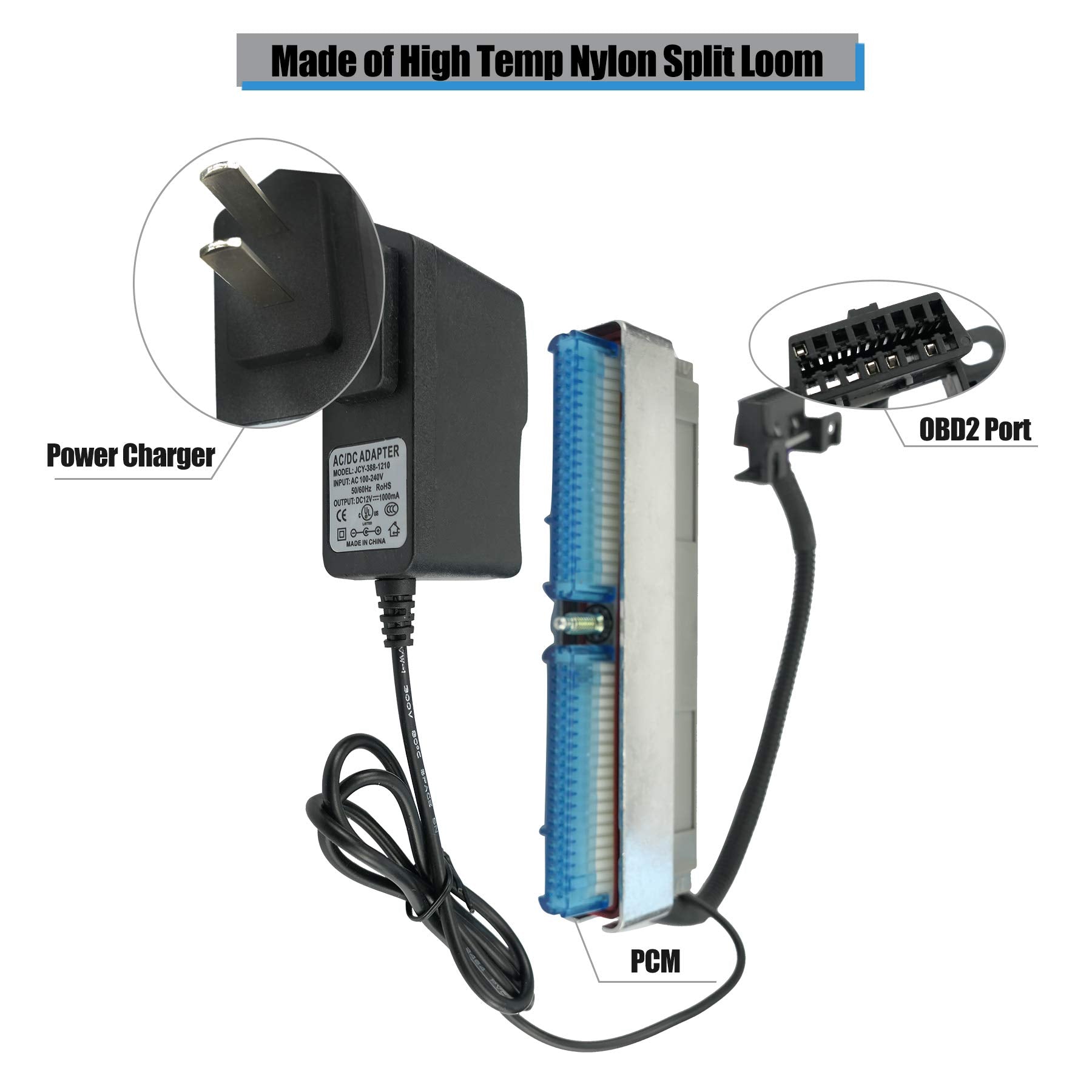

• High-temperature nylon split loom protects wires during bench work.
• Durable Delphi/Aptiv parts and 18 gauge TXL wiring for longevity.
• Comes with the required power supply and mounting hardware for stable testing.

Which tuning software and ECU types are supported by this harness?

The harness presents a standard OBD-II interface and direct power to the Gen III PCM, making it compatible with virtually any software or tool that communicates over OBD-II for GM Gen III ECUs. It covers both Blue/Red and Blue/Green PCM variants from 1999–2007.

• Compatible with EFI Live, HP Tuners, Tuner Cats, and most OBD-II scan/program tools.
• Designed for GM LS Gen III ECUs: LS1, 4.3, 4.8, 5.3, 5.7, 6.0, and 8.1L modules.
• Blue PCM connector supported; green/red side not required for most tuning workflows.

Who is this for: Technicians, performance tuners, engine builders, salvage yard ECU bench technicians, and DIY enthusiasts who need a reliable, repeatable bench solution for programming, flashing, and diagnosing Gen III GM ECUs. If you frequently read or write PCM files, validate replacement modules, or want a safer way to develop and test tunes away from a vehicle, this harness provides the necessary power and OBD-II access in a compact, serviceable package.
