Toolwiz Spark Plug Gap Tool with 32-Blade Feeler Gauge, Red — Precise 10–16mm Gap Reduction

Toolwiz Spark Plug Gap Tool with 32-blade feeler gauge is a compact hand tool that lets you precisely reduce and set spark plug electrode gaps for most standard 10mm–16mm plugs.

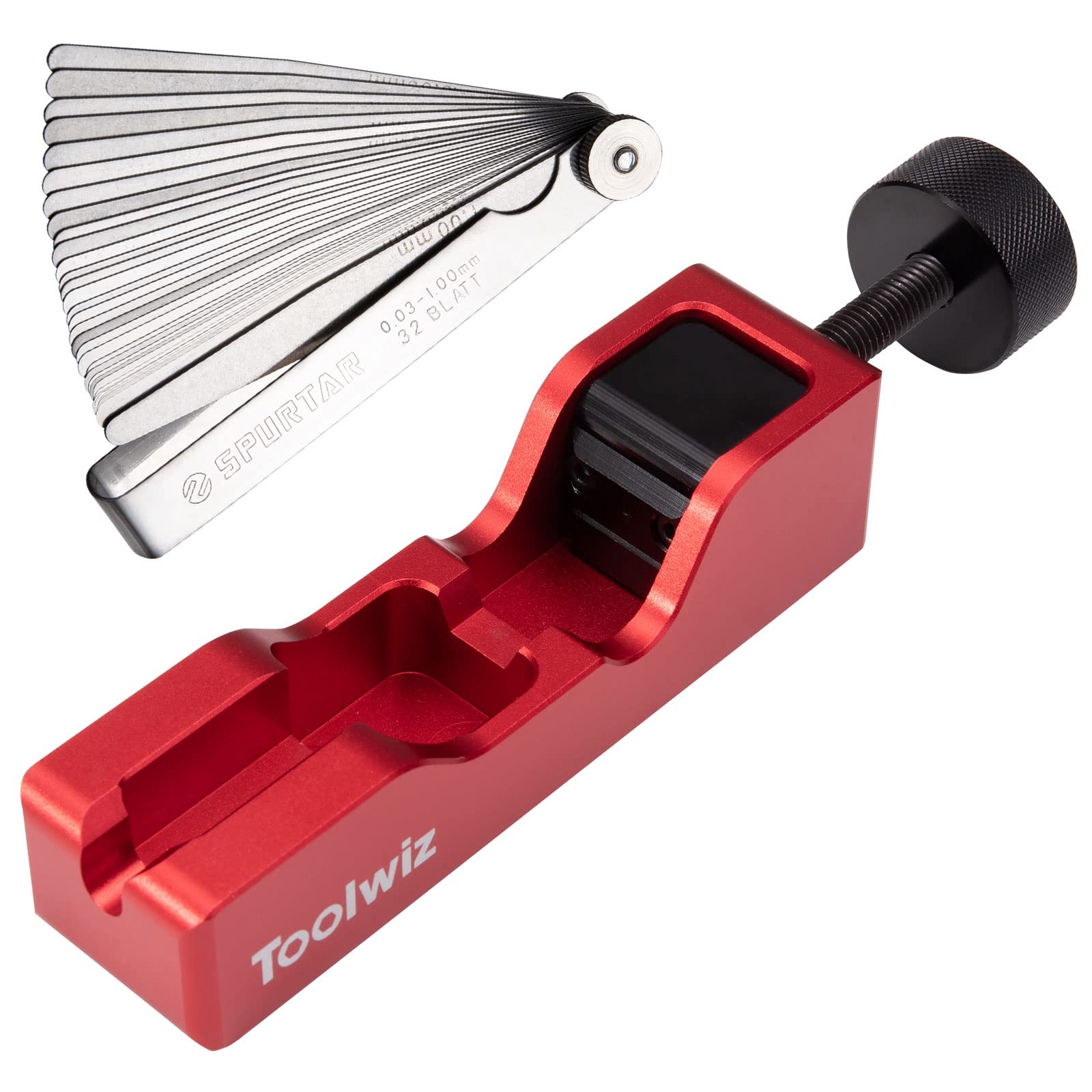

If you need a simple, mechanical way to seat and close spark plug electrodes before installation, this Toolwiz kit provides a red gapper and a dual-marked 32-blade feeler gauge. The tool is built to compress electrode tips predictably and works with a wide range of standard thread diameters; it’s not intended for 18mm threads, long- or short-reach specialty plugs, or to increase an existing gap. The included gauge helps you measure in both imperial and metric units so you can target the manufacturer’s spec with confidence.

How does the Toolwiz gapper change spark plug gaps?

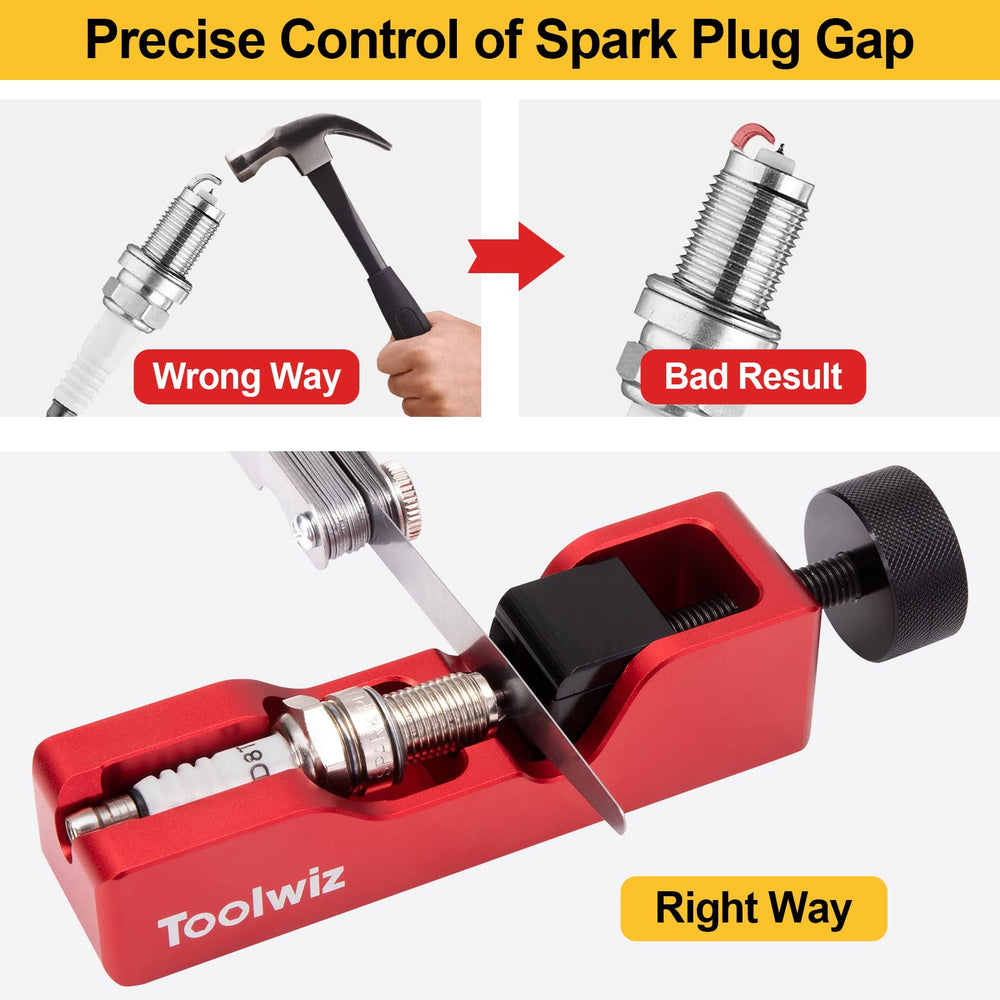

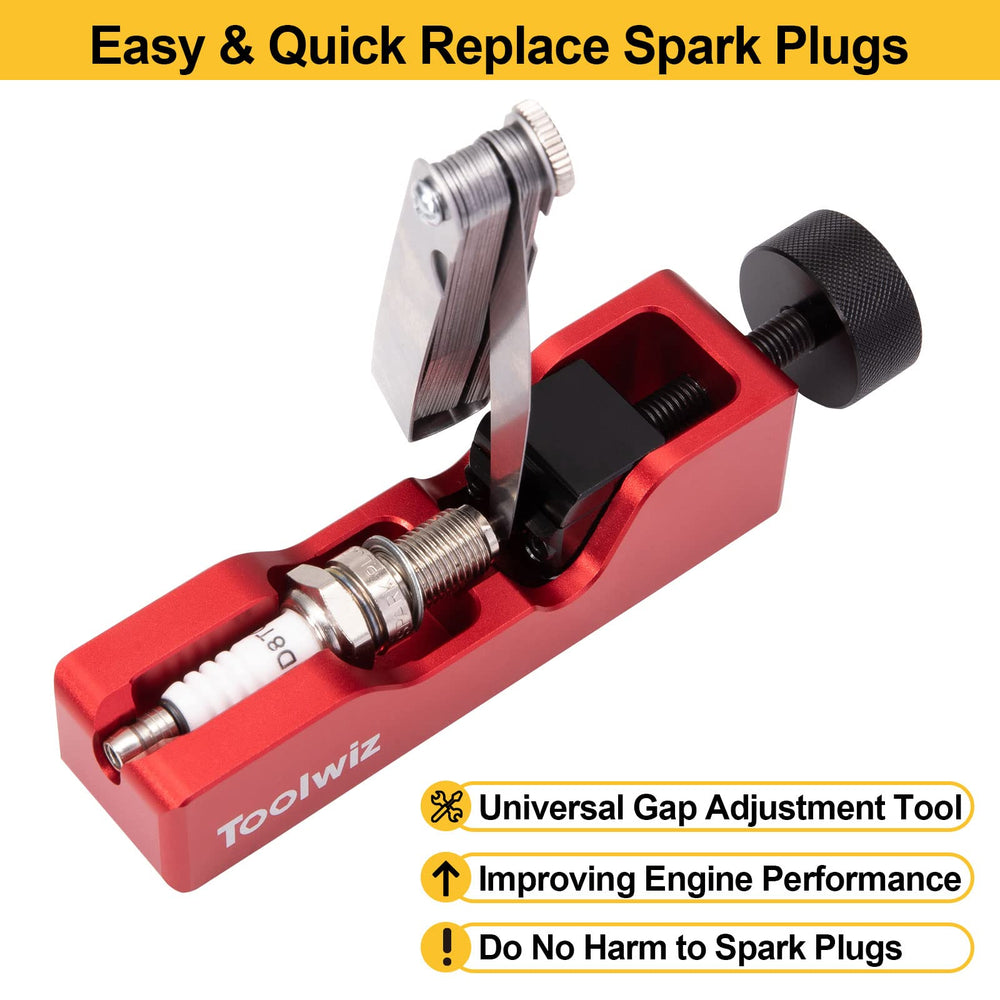

The Toolwiz gap tool uses a screw-actuated plunger to press the electrode toward the center and reduce the distance between the center and ground electrode. You place the plug in the cradle, slide in the chosen feeler blade, and slowly tighten the knob until the electrode compresses to the feeler’s thickness. Because the tool only compresses, it cannot widen a gap; you must start with a gap equal to or slightly larger than the target.

• Cradle holds 10mm–16mm standard thread spark plugs securely
• Turn knob to incrementally compress the ground electrode
• Tool function: gap reduction only — does not enlarge gaps
• Works for plugs without preset gaps; iridium/platinum often don’t need adjustment

What measurement accuracy can I expect when using the included feeler gauge?

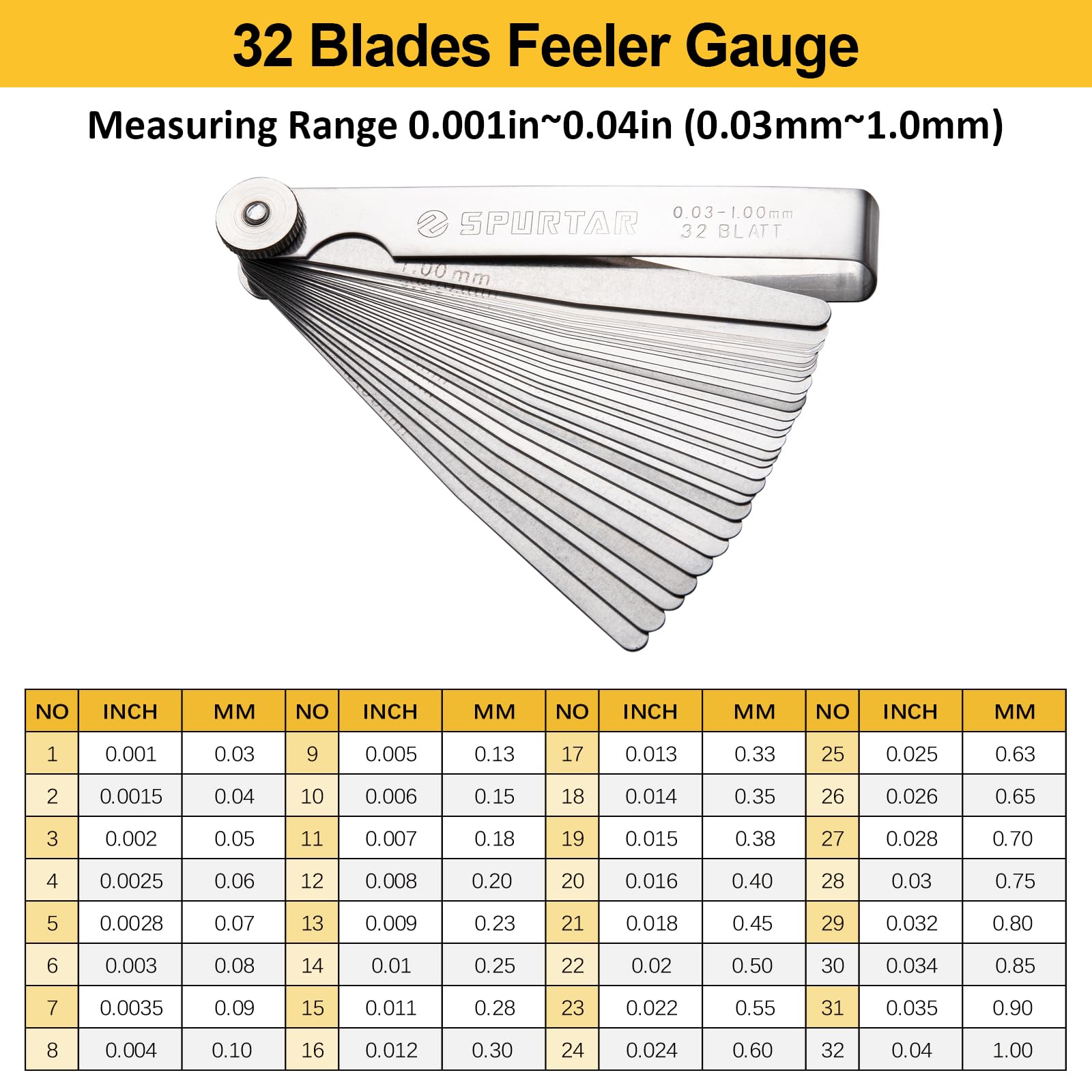

The set includes a 32-blade steel feeler gauge, dual-marked in inches (0.001"–0.040") and millimeters (0.03–1.0 mm), for precise selection of your target gap. The blades are hardened and polished to resist wear, which helps maintain consistent thicknesses over repeated uses. For best results, select a blade slightly smaller than your target gap to allow for electrode spring-back when you release the tool.

• 32-blade range covers common spark plug specifications
• Hardened 65 manganese steel construction for durability
• Dual imperial/metric marking simplifies cross-referencing specs
• Recommendation: use a blade ~0.002" smaller to compensate for spring-back

Which spark plugs are compatible with this Toolwiz kit?

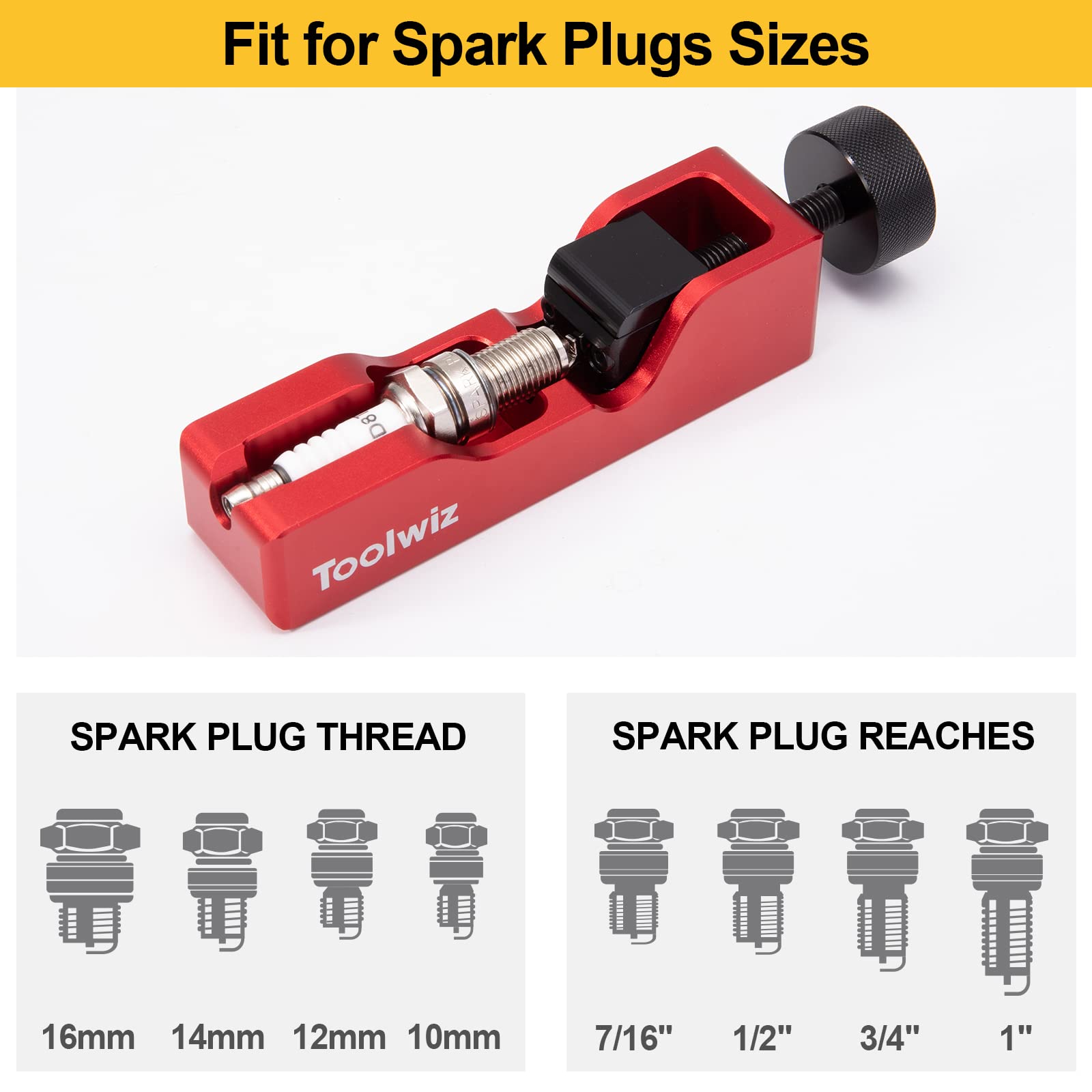

This gap tool is designed for most standard automotive and small-engine spark plugs with 10mm, 12mm, 14mm, or 16mm threads. It does not fit 18mm plugs or specialty long-reach and short-reach designs. Also note that many iridium or platinum plugs come pre-set and typically do not require mechanical gap adjustment.

• Compatible: standard 10mm, 12mm, 14mm, 16mm thread plugs
• Not compatible: 18mm-thread, long-reach, or short-reach specialty plugs
• Best for: non-preset electrode plugs that accept mechanical adjustment
• Not for enlarging an existing gap — only reduces gap distance

How do I use the Toolwiz gapper safely and get repeatable results?

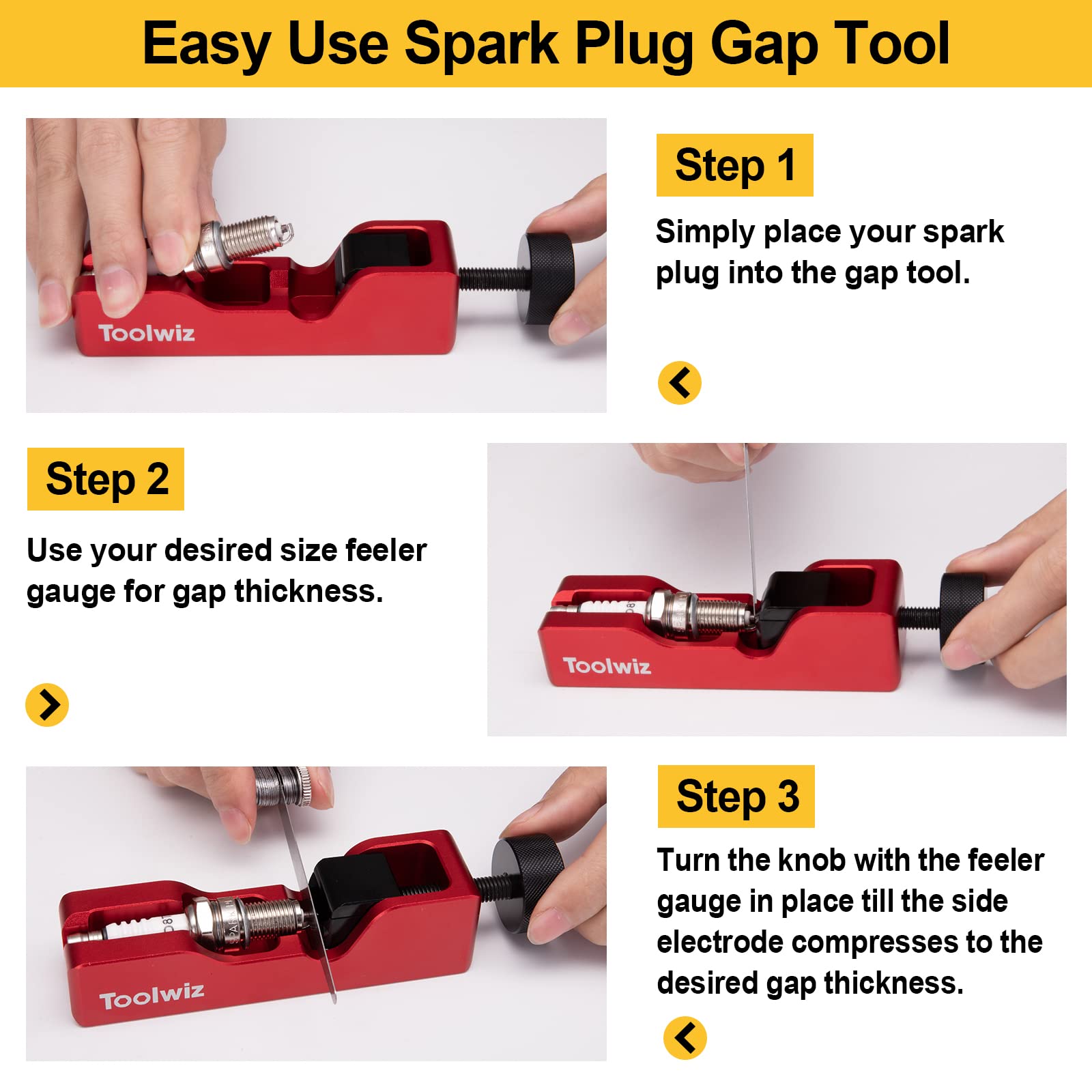

Begin by cleaning the plug and visually inspecting the electrode for damage. Seat the plug in the tool’s cradle, insert the measured feeler blade, and turn the knob slowly until the electrode compresses to the blade’s thickness. Release and recheck with the feeler gauge; repeat if necessary but avoid over-tightening which can deform or crack the electrode.

• Inspect plug and electrodes for wear before adjusting
• Use a slightly smaller blade when allowing for electrode spring-back
• Do not force excessive pressure to avoid damaging the electrode
• Re-measure after releasing the tool to confirm the final gap

Who is this for: The Toolwiz Spark Plug Gap Tool with 32-blade feeler gauge is aimed at DIY mechanics, home maintenance enthusiasts, small engine users, and professional technicians who need an affordable, portable method to set or reduce spark plug gaps for most standard plugs. If you service cars, motorcycles, lawn mowers, or go-karts and require consistent, mechanical control when closing electrode gaps, this kit provides a simple solution. It’s not the right choice when working with 18mm or specialty reach plugs, or when you need to increase a gap rather than reduce it.
