Tupo TRX420 Top End Rebuild Kit — 86.5mm Cylinder Piston Rings Gaskets for 2009–2013 Honda Rancher 420

The Tupo TRX420-86.5 Cylinder Top End Rebuild Kit is a complete replacement set that refreshes the top-end of Honda Rancher 420 engines with a correctly sized 86.5mm cylinder, piston, rings, gaskets, and pin.

This top-end rebuild kit is engineered as a direct-fit replacement for common Honda Rancher 420 models from 2009–2013, giving you the core components needed to restore compression and eliminate top-end wear without sourcing individual parts. All pieces are matched and packaged together so installation is more straightforward, and the kit replaces several OEM part numbers for easier cross-referencing during repair or maintenance.

What components are included and why do they matter?

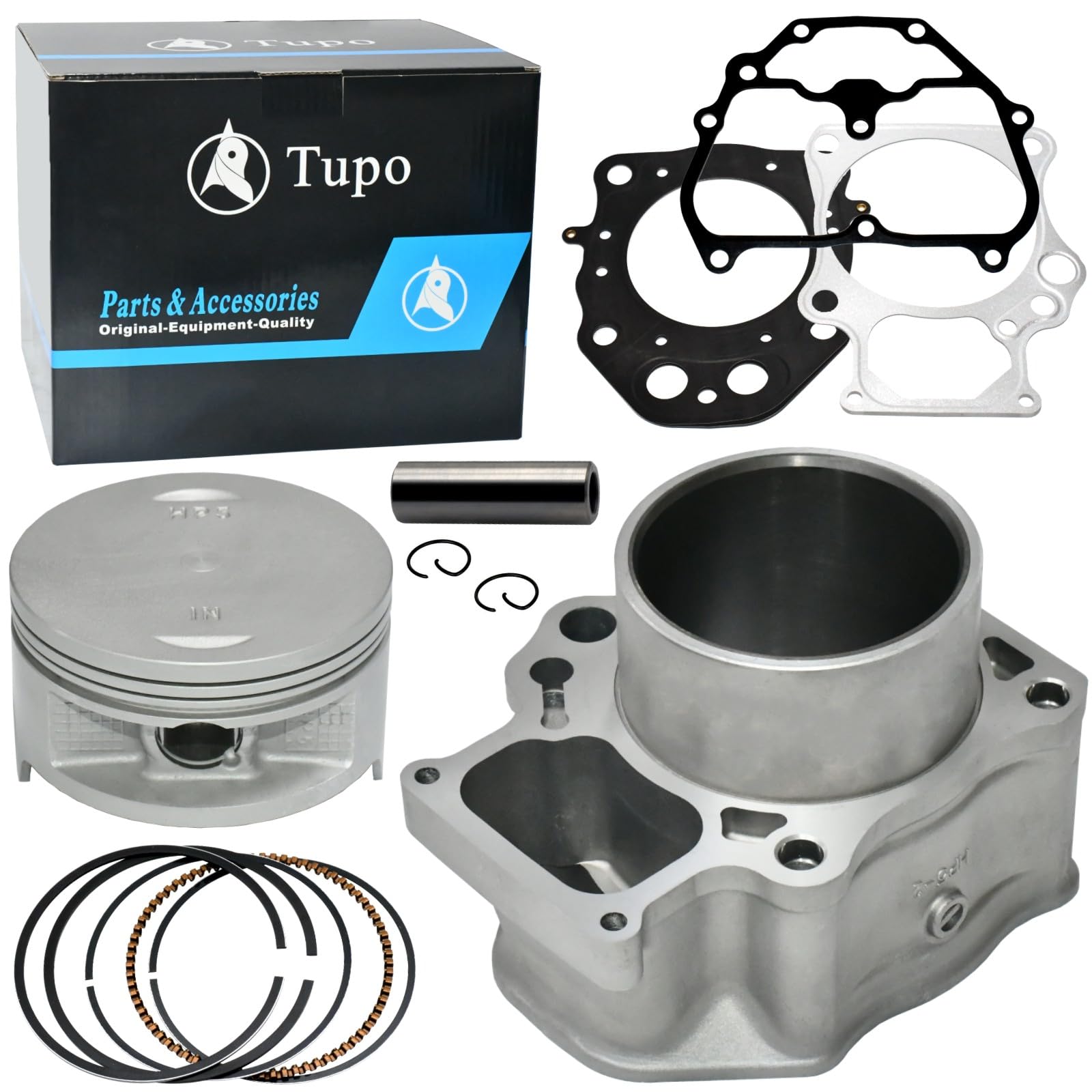

The kit contains the cylinder, a piston kit, a piston ring set, a piston pin, and three gaskets. Each component addresses a specific failure point in the top end—cylinder scoring, worn rings, and sealing surfaces—so replacing them together reduces the chance of mismatched wear causing repeated problems.

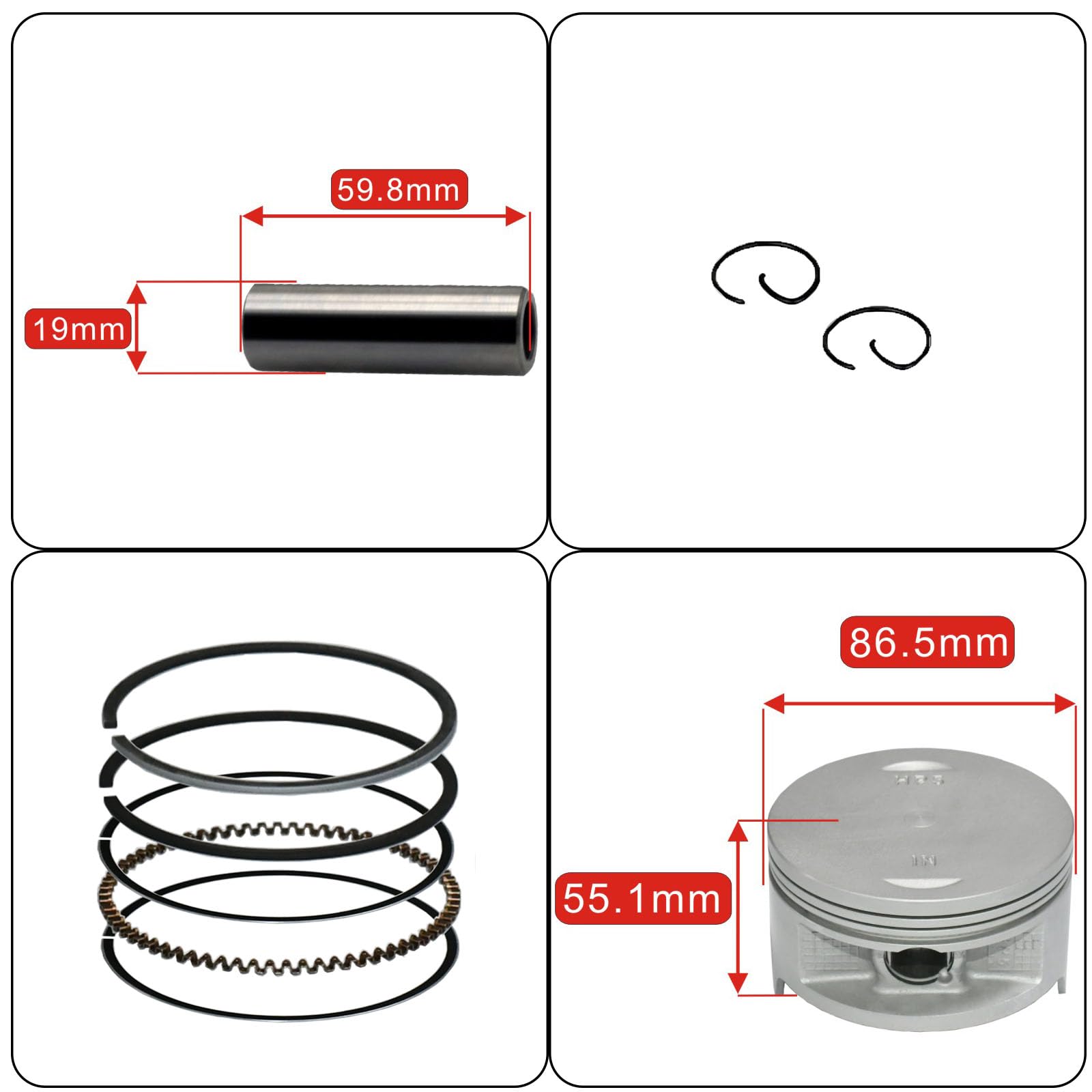

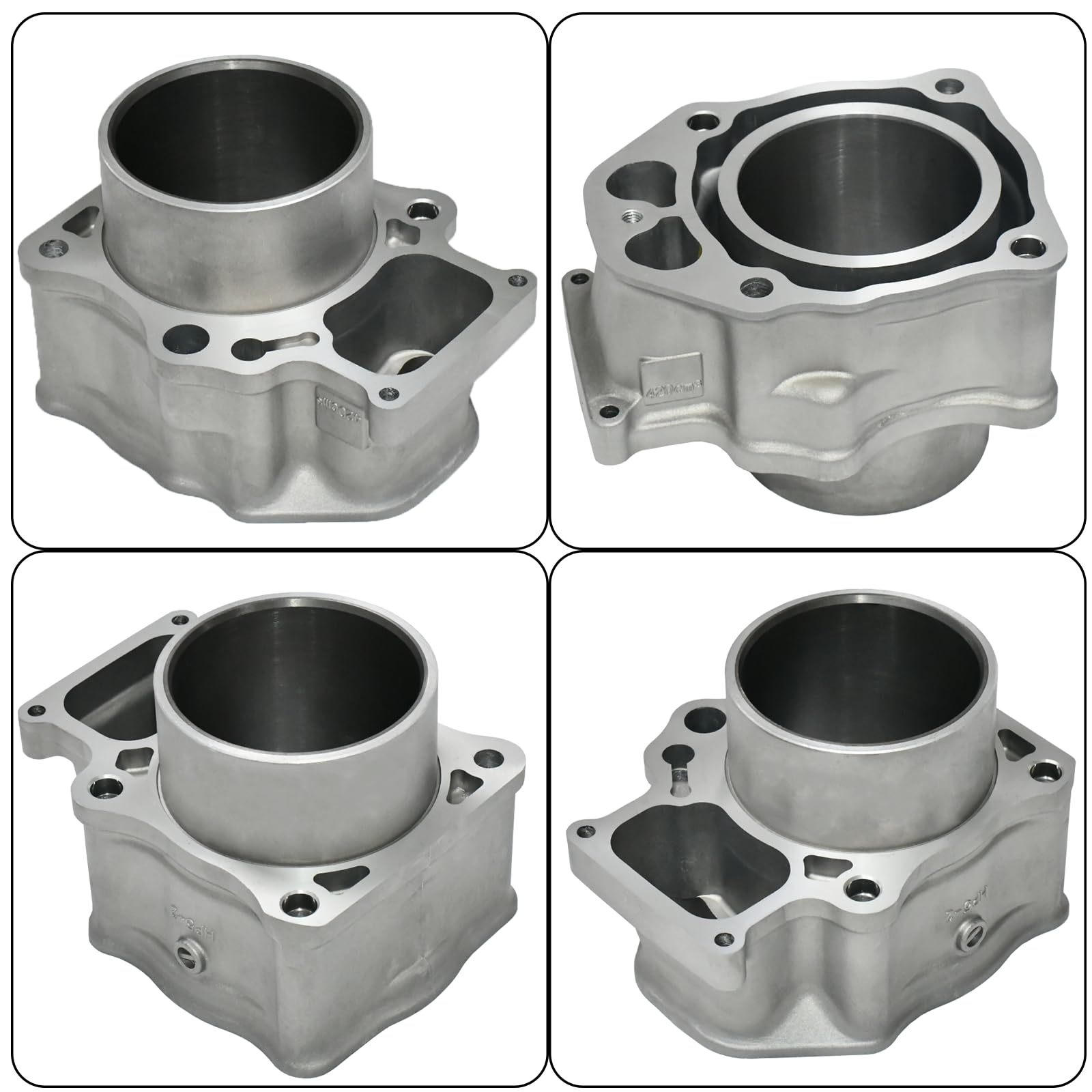

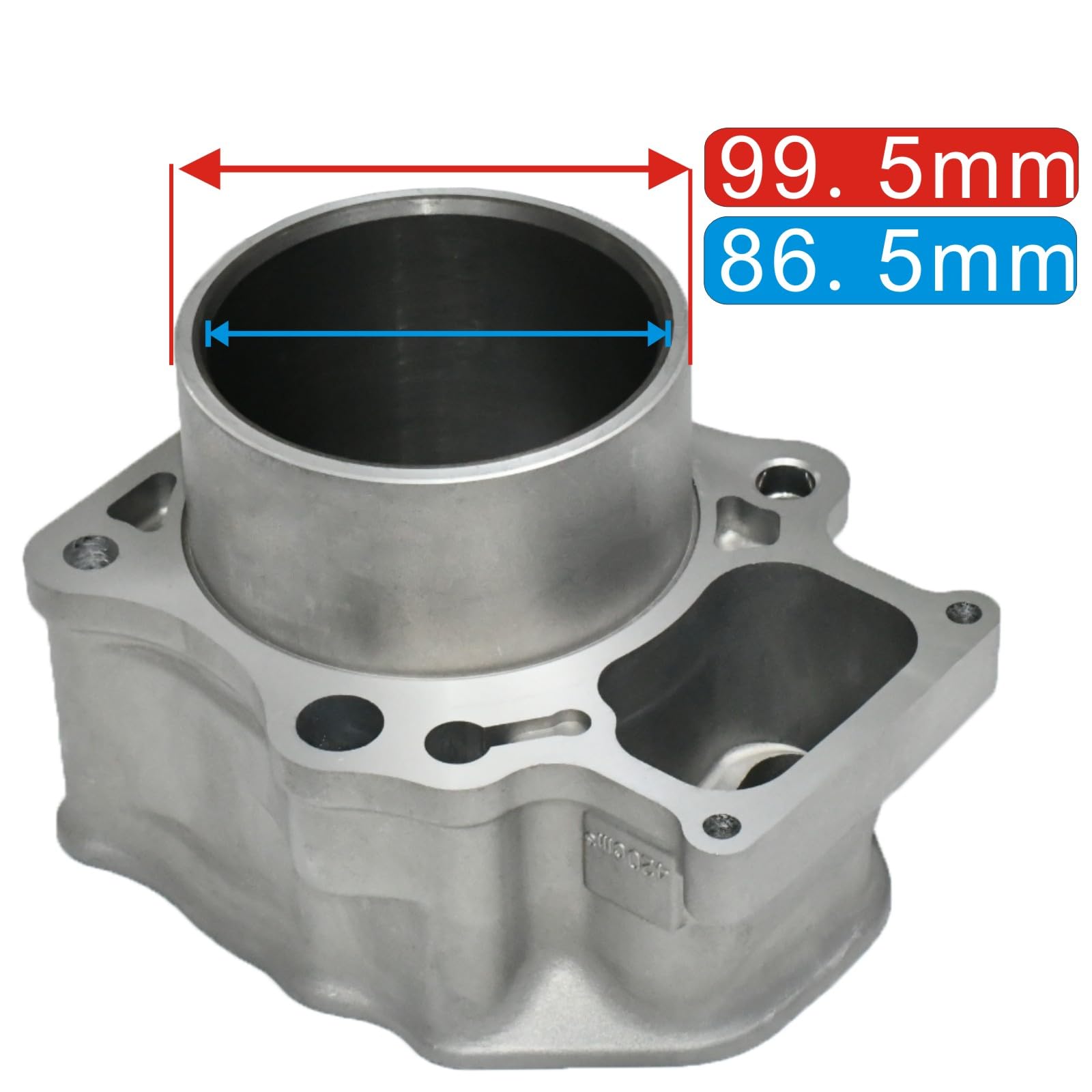

• Cylinder (86.5mm) matched to piston for correct clearance and compression
• Complete piston kit including pin for accurate wrist-pin fit

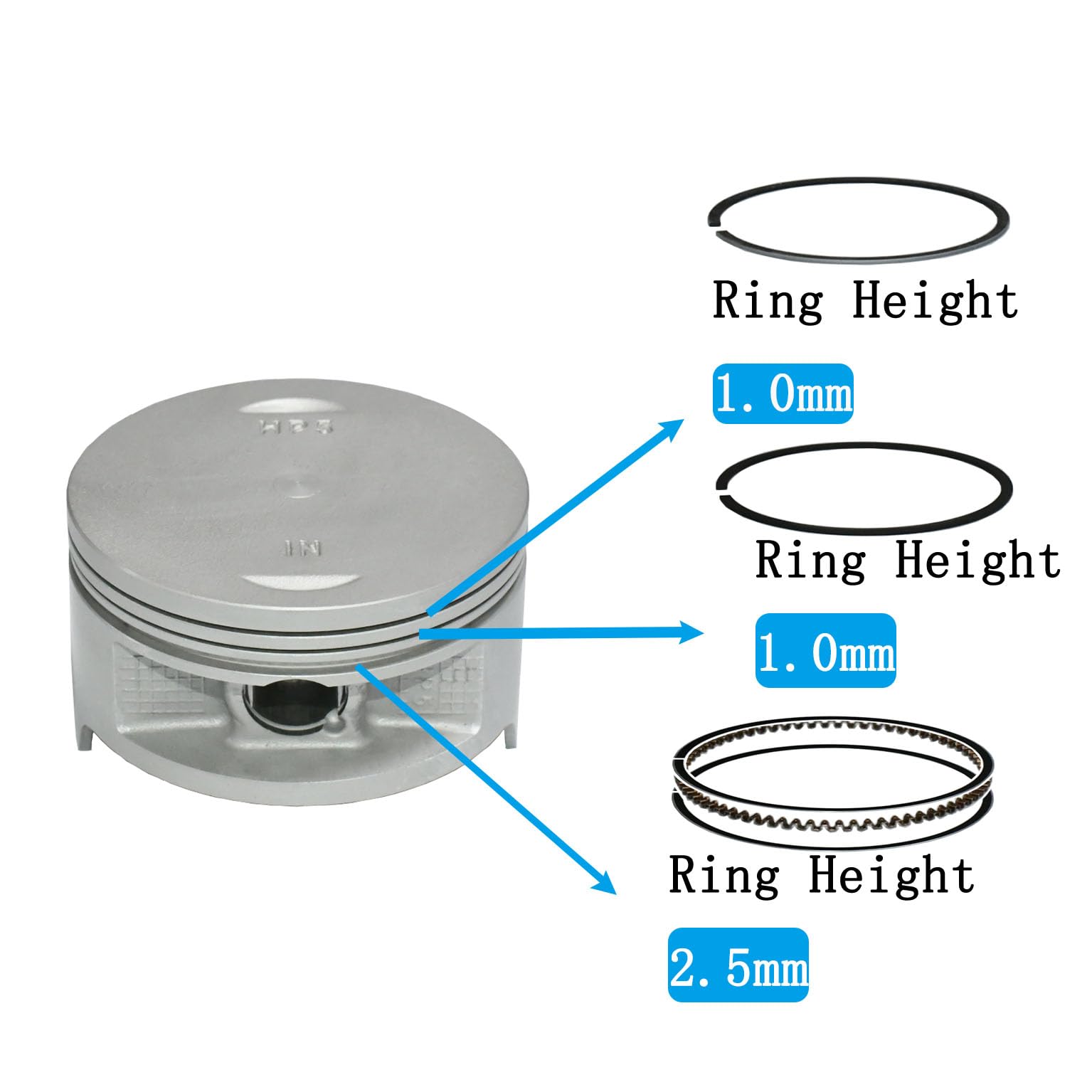

• Piston rings to restore compression and oil control

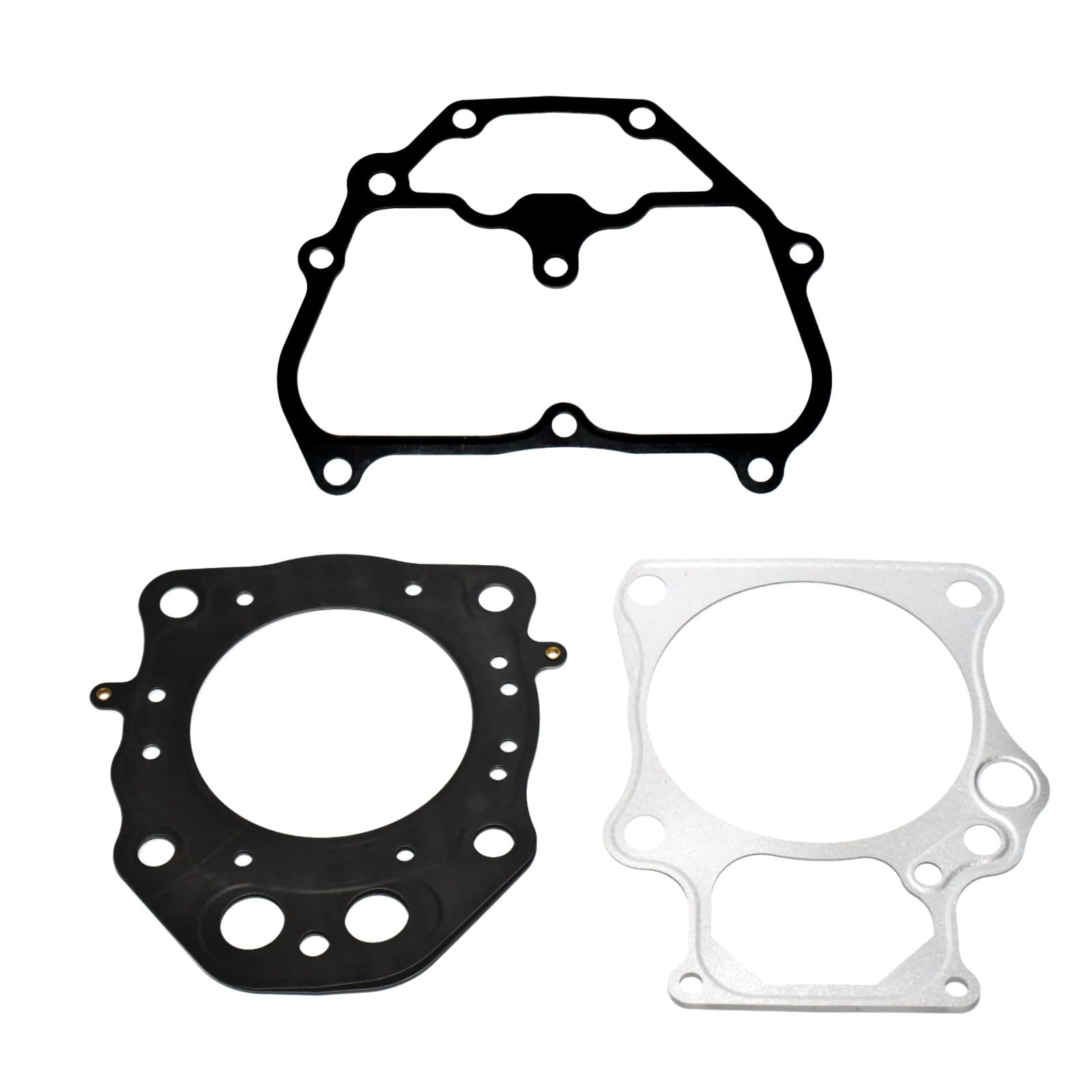

• Three gaskets to ensure proper seals between mating surfaces

Which Honda models and years is this kit compatible with?

This Tupo kit is intended for Honda Rancher TRX420 variants produced between 2009 and 2013. Compatibility covers multiple factory trims so you can replace the top end on a variety of Rancher 420 models without purchasing different kits.

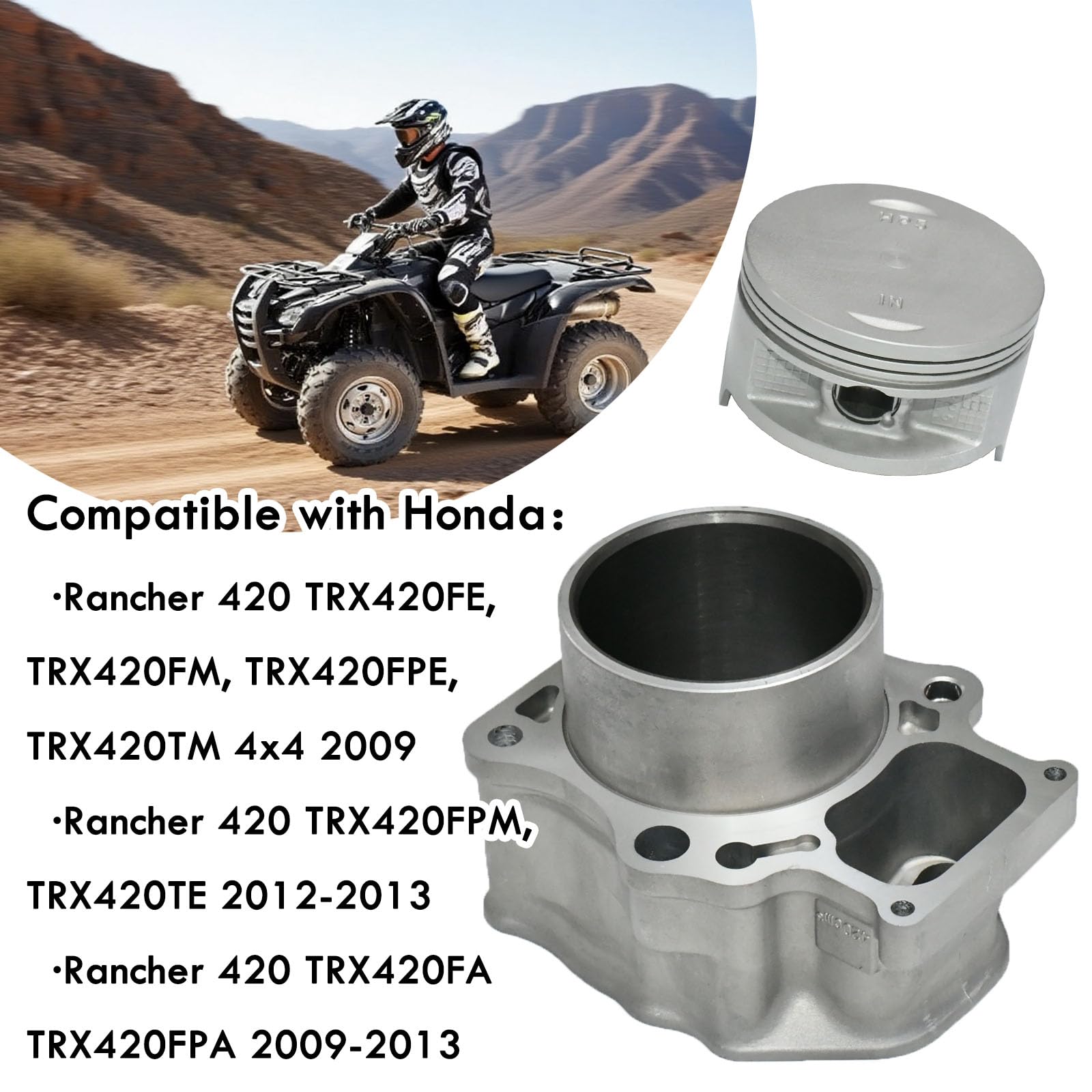

• Fits TRX420FE, TRX420FM, TRX420FPE, TRX420FPM, TRX420TE, TRX420TM 4x4 (2009–2013)
• Also fits TRX420FA and TRX420FPA (2009–2013)

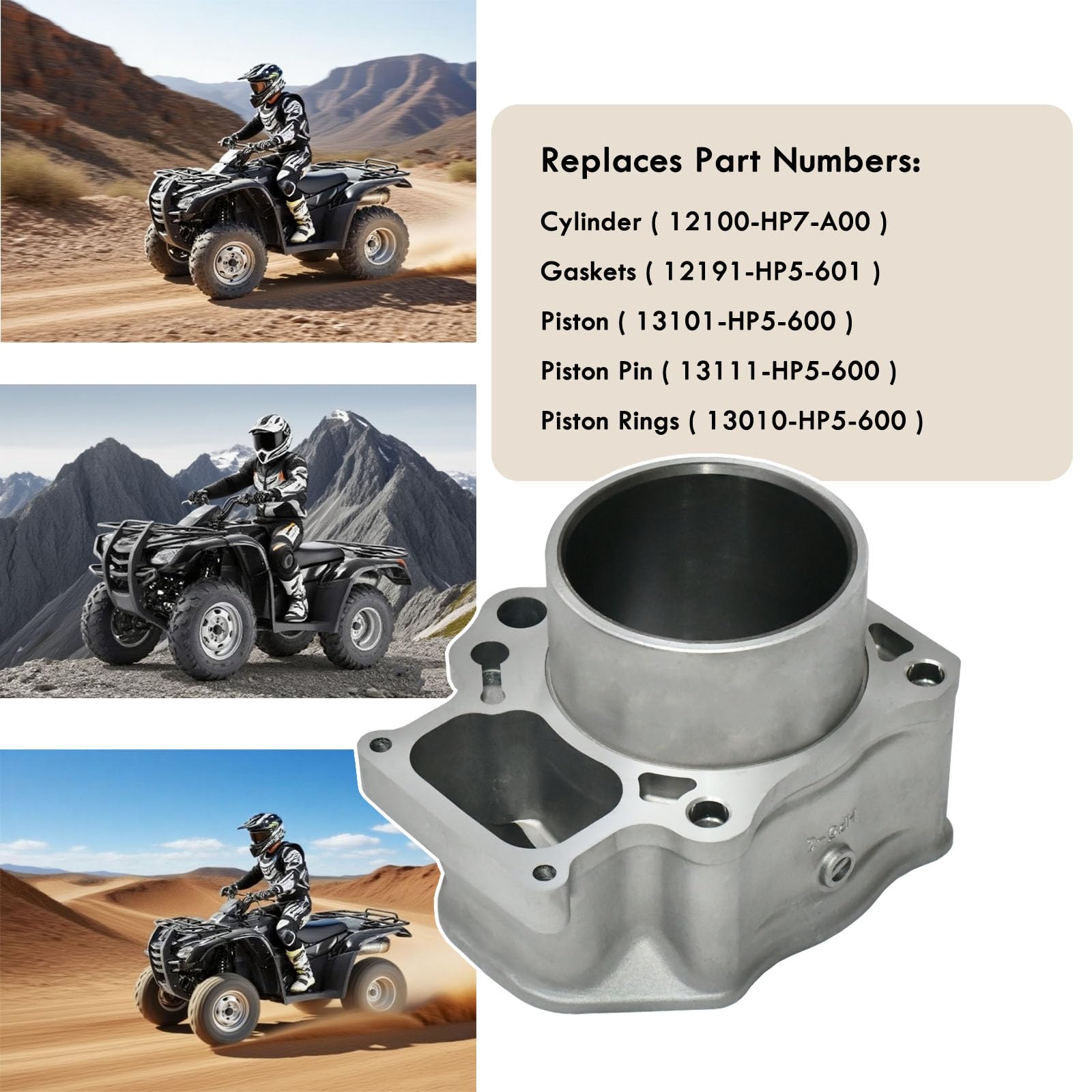

• Replaces OEM part numbers for cylinder, piston, rings, pin, and gaskets for easier verification
• Verify your model and year before ordering to ensure correct fit

How does this kit simplify a top-end rebuild compared with sourcing parts separately?

Buying a matched rebuild kit removes the guesswork of matching piston diameter, ring end-gap, and gasket set, which can save time and reduce the risk of improper fit. Since the parts are grouped and sized together, you avoid delays and the potential for repeated disassembly due to incompatible components.

• Single package contains all essential top-end parts for quicker turnaround
• Pre-selected piston and ring sizes minimize measurement adjustments
• Gaskets included to replace all seals disturbed during disassembly
• OEM cross-reference numbers provided to confirm compatibility

What should I check before installing this kit?

Before installation, confirm the engine model and service history, inspect the crankcase and connecting rod for damage, and measure the bore if you suspect wear beyond the provided size. Proper torque, clean mating surfaces, and correct ring orientation are also essential to ensure long service life.

• Match kit to the exact Honda model and year listed
• Inspect crank, rod, and bearings for additional wear or damage
• Clean surfaces and use correct torque specs during assembly

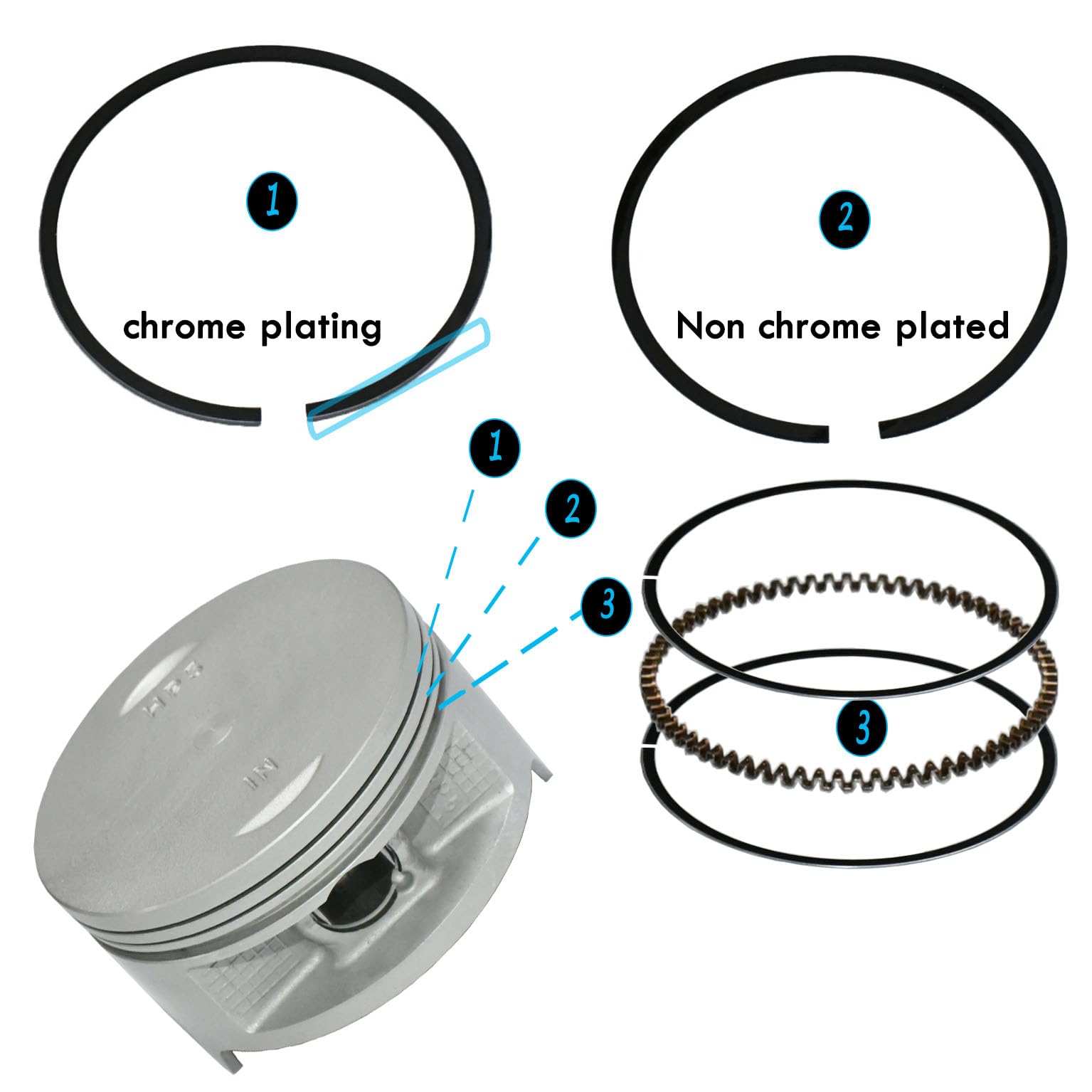

• Check piston ring end-gap and orient rings per service manual

Who is this for: The Tupo TRX420-86.5 Top End Rebuild Kit is for DIY mechanics, ATV technicians, and Rancher 420 owners who need a reliable, matched replacement for a worn or damaged top end. If you want to restore compression and reduce oil burning without hunting down individual OEM parts, this kit provides the essential components for a professional-seeming top-end rebuild—just verify your model and follow Honda service procedures during installation.
