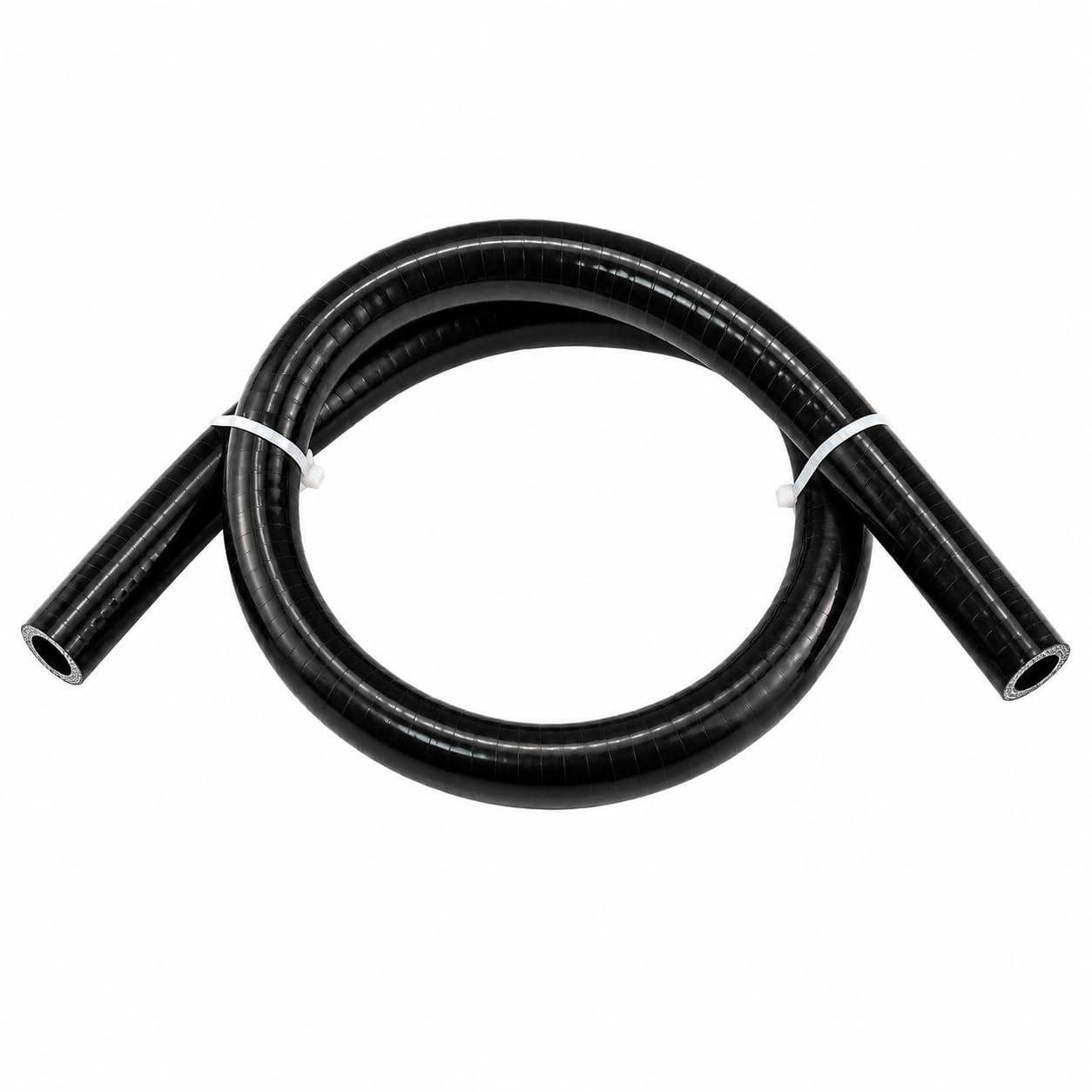

Ucreative Silicone Reinforced Vacuum Hose 1m (16mm ID) — 4-Ply, 200 PSI, -60°C to 260°C

The Ucreative 3.2FT reinforced silicone vacuum hose is a 16mm inner-diameter, 1m-long silicone tube built with 4-ply polyester reinforcement for high-temperature and high-pressure air and water applications.

Compact and engineered for durability, this hose combines flexible silicone with a multi-layer polyester braid to resist heat, ozone, UV and mechanical stress. It is designed specifically for air and water transfer — not for fuels or oils — and carries a 200 PSI maximum pressure rating. The hose’s wall thickness and material construction give consistent performance across extreme temperatures, making it suitable for many workshop, lab and hobby tasks.

How hot or cold can this hose handle without failing?

The Ucreative silicone hose maintains dimensional stability across a broad range of temperatures. It is rated from -60 °C up to 260 °C (-76 °F to 500 °F), so it resists softening at high heat and stays flexible in deep cold.

• Temperature range: -60 °C to 260 °C (-76 °F to 500 °F)
• Material resists thermal degradation and retains elasticity
• Suitable for ovens, engine compartments and cold-storage environments (air/water only)

What are the exact dimensions and pressure limits I should know?

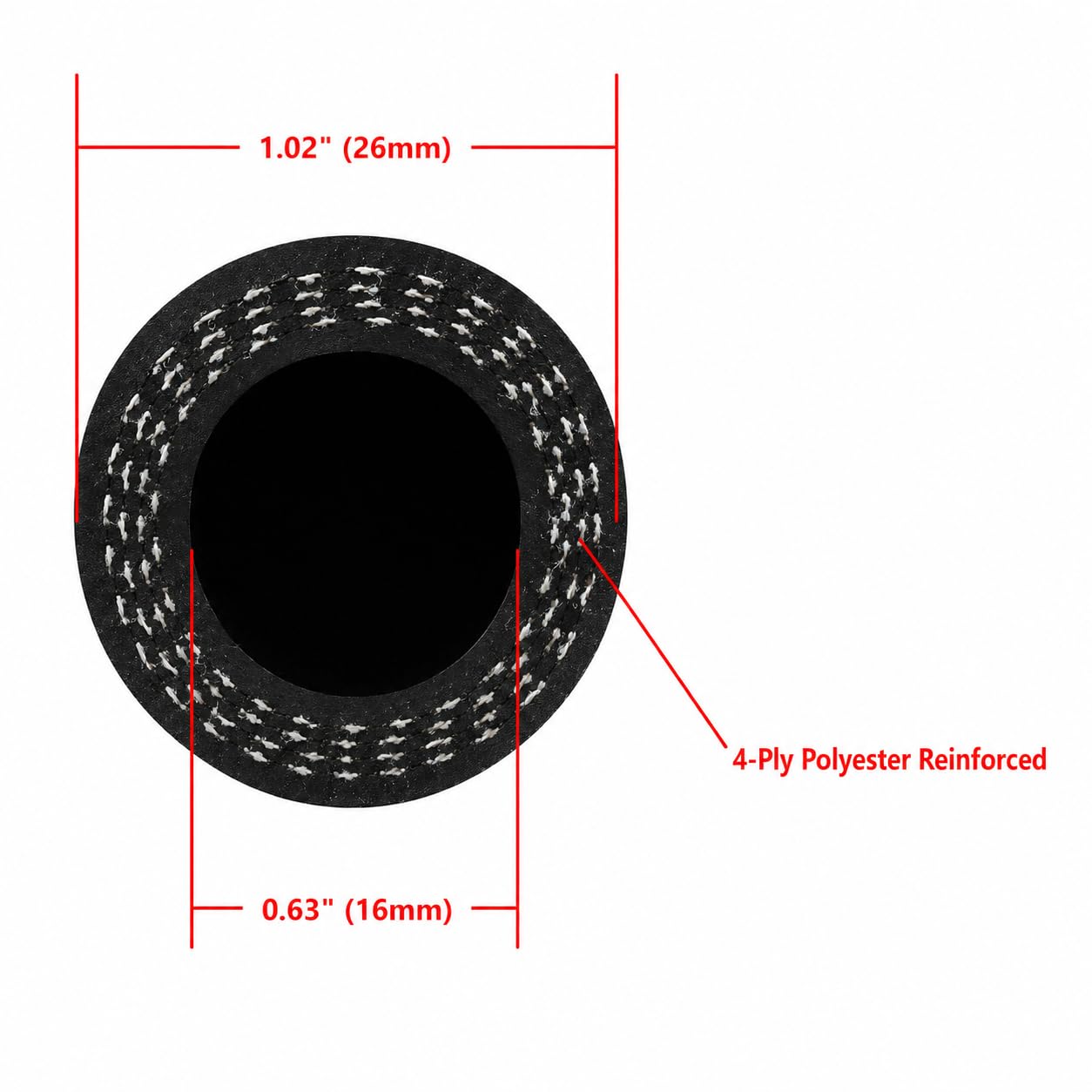

This hose is specified for precise fit and predictable flow. Inner diameter measures 0.63 inches (16 mm), outer diameter about 1 inch with a 0.197-inch (5 mm) wall thickness, and the total length is 3.2 feet (1 meter). The reinforced construction allows a maximum working pressure up to 200 PSI under appropriate conditions.

• Inner diameter (ID): 0.63 in (16 mm)
• Outer diameter (OD): 1 in (approx.) with 5 mm wall thickness
• Length: 3.2 ft (1 m); Maximum working pressure: 200 PSI

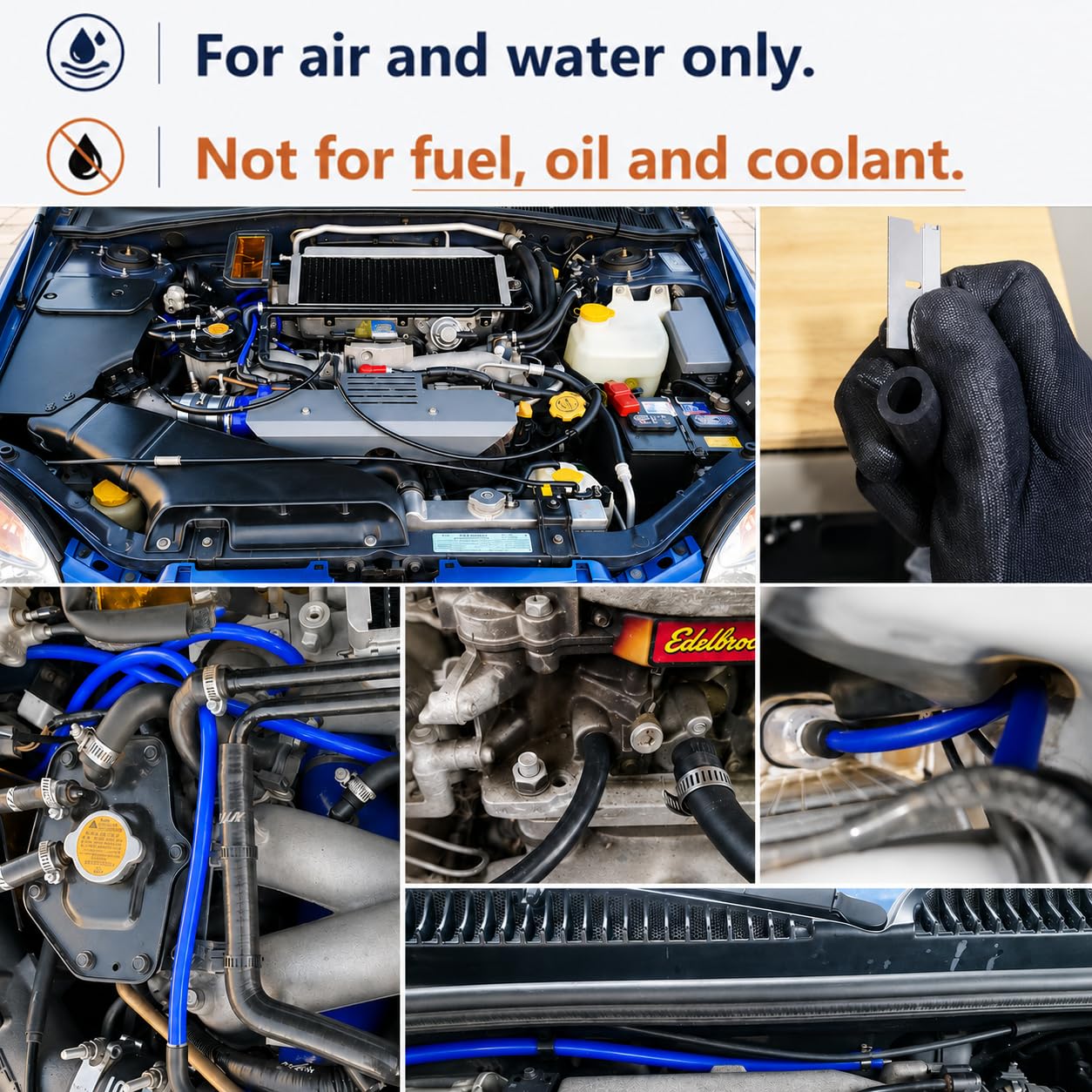

Which fluids and applications is this silicone hose suitable for?

Designed for air and water systems, this hose performs well in pneumatic lines, coolant loops, aquarium systems, and steam or hot-water transfer where silicone is acceptable. It must not be used with gasoline, oil, or other hydrocarbon fuels — those fluids can degrade silicone and void intended performance.

• Approved for compressed air, coolant, potable water and similar fluids
• Not rated for gas, oil, or fuel lines
• Common uses: workshop pneumatic setups, laboratory tubing, automotive coolant bypasses (non-fuel), hobbyist rigs

How does reinforcement improve longevity and flexibility?

The hose incorporates a 4-ply polyester braid that balances strength with bendability. Reinforcement prevents overexpansion at high pressure, reduces kinking, and extends service life under cyclical loading.

• 4-ply polyester reinforcement increases burst resistance and pressure stability
• Prevents excessive stretching under pressure and reduces permanent deformation
• Maintains flexibility for tight routing without compromising strength

Who this is for: The Ucreative 3.2FT silicone vacuum hose is aimed at technicians, makers, hobbyists and small-facility operators who need a compact, heat-tolerant line for air or water transfer. If you require a short, rugged hose that stays flexible in extreme temperatures and holds up to repeated pressurization, this product fits well. Avoid using it with fuels or oils; for hydrocarbon applications, choose a hose designed for those fluids.
