USA Standard Gear Spartan Locker Dana 30 27-Spline Automatic Mechanical Locker — 9310 Steel, Direct-Fit Traction

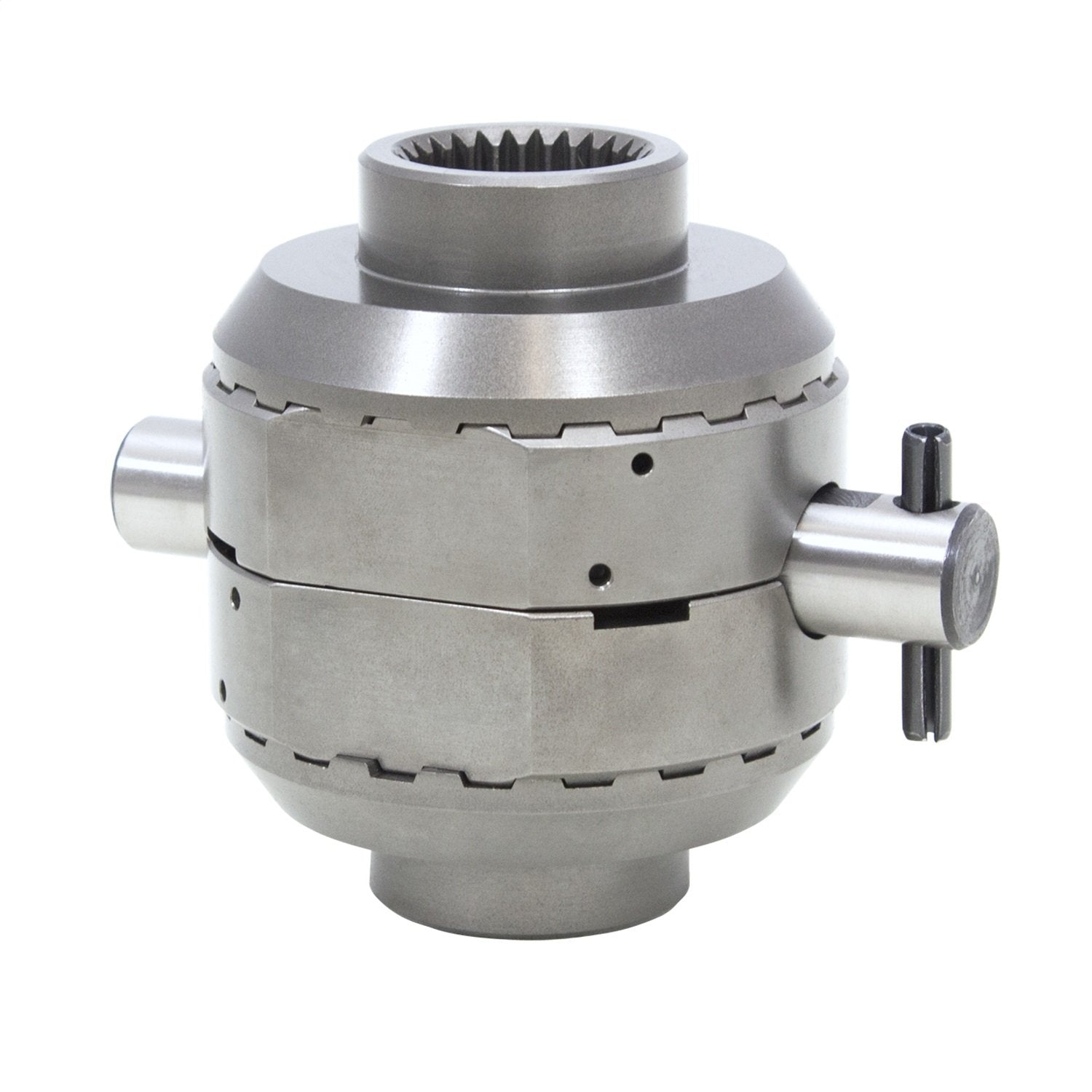

USA Standard Gear’s Spartan Locker SL D30-27 is an automatic mechanical locker that replaces the spider gears in a Dana 30 carrier to provide reliable, full lock traction when needed while preserving differential action during turns.

The Spartan Locker for Dana 30 (27 spline) is a compact, cost-effective axle upgrade engineered to give trucks and off-road vehicles improved traction without modifying the factory carrier case. Built from 9310 steel, this kit substitutes the factory spider set with a spring-and-pin driven system that automatically locks both axle shafts under load and allows smooth ratcheting for cornering, minimizing tire scuffing and drivetrain shock.

How does the Spartan Locker engage and release during driving?

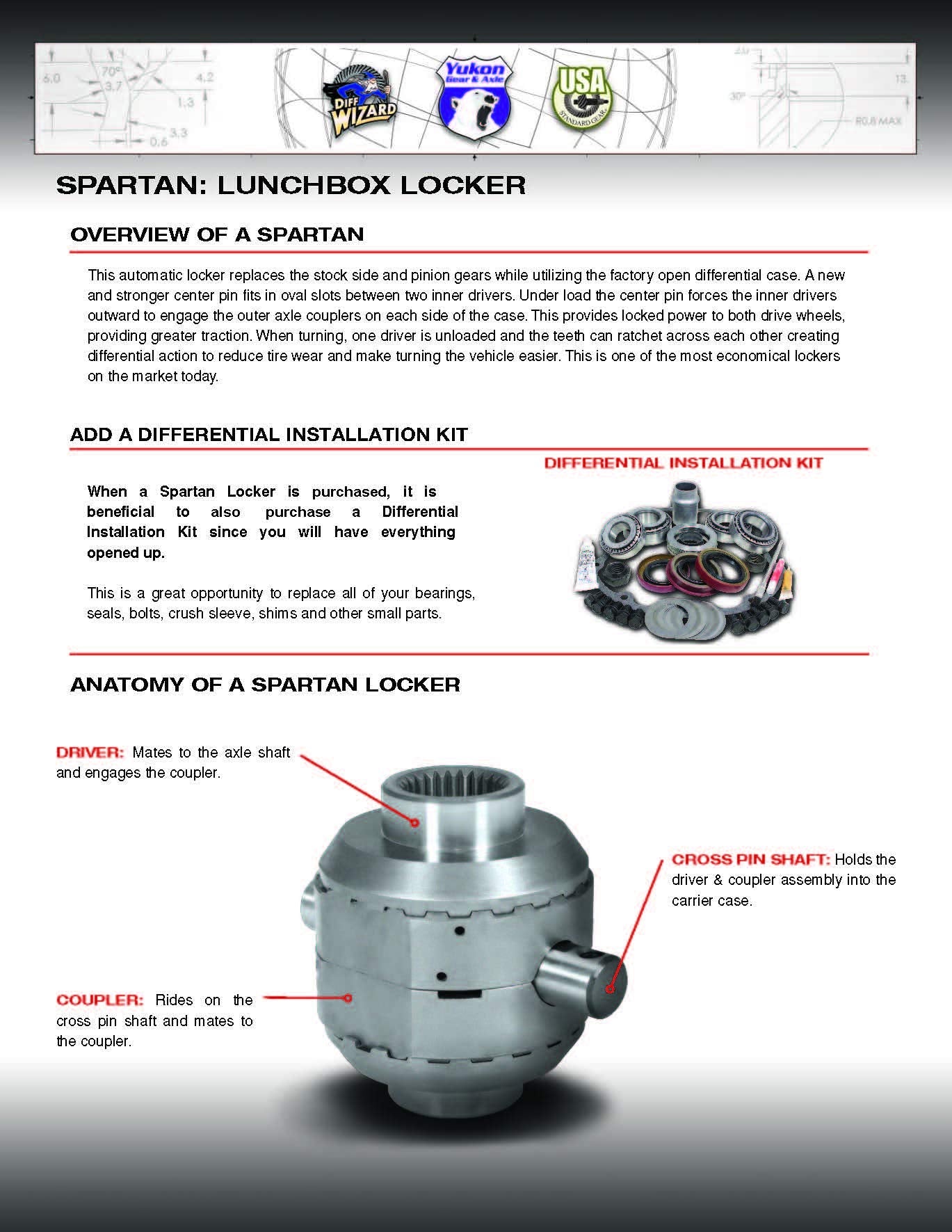

Engagement is automatic: a central pin and paired inner drivers react to torque. When both wheels encounter resistance, the center pin forces the inner drivers outward to mesh with the outer axle couplers, creating a positive lock. During turns the unloaded side lets the teeth ratchet so the locker free-differentiates, allowing controlled wheel speed differences and easier cornering.

• Automatic spring-and-pin actuation under torque for immediate lockup.
• Ratcheting tooth design permits smooth differential action while cornering.
• Replaces spider gears without modifying the original carrier case.

What parts are included and what materials are used?

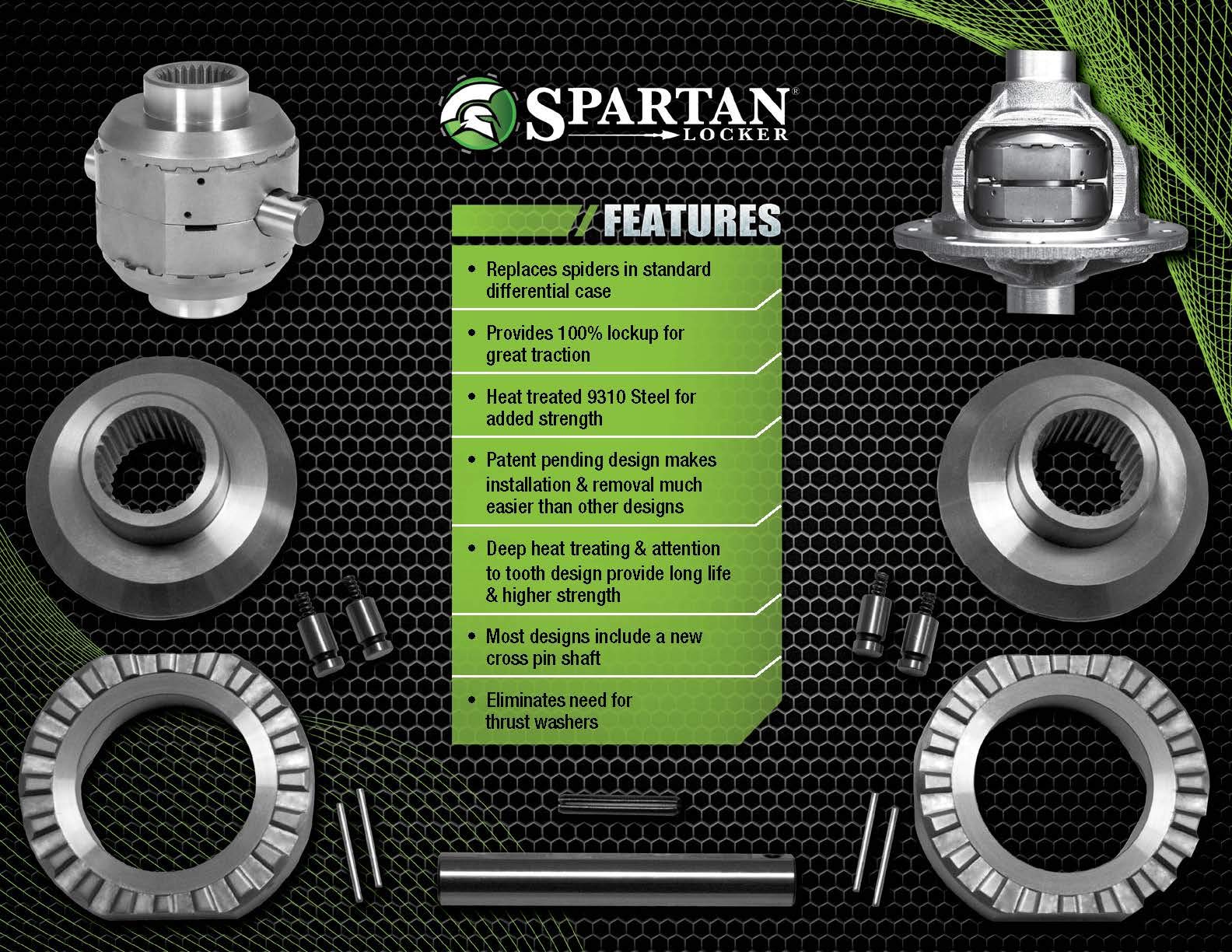

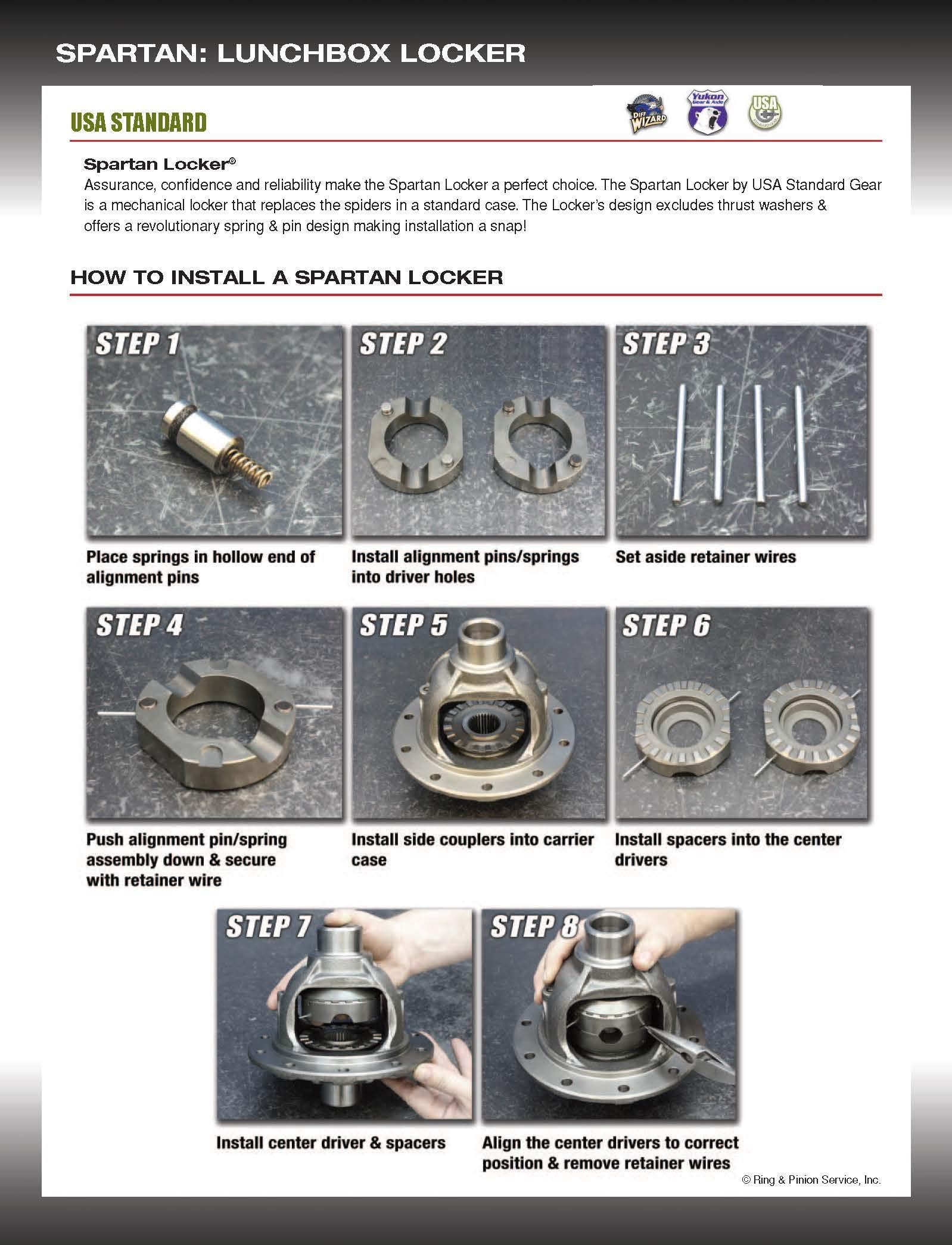

The locker kit replaces the stock spiders and center pin with a hardened kit made from 9310 steel for long-wear strength. It uses a new, larger center pin that slides in oval slots between two inner drivers, plus springs and related hardware needed for installation. The design omits thrust washers for a simplified, more robust assembly.

• 9310 steel drivers and components for improved durability.
• New center pin sized for oval-slot engagement with inner drivers.
• Spring and pin hardware included for tool-assisted installation.

Will this locker fit my vehicle and how difficult is installation?

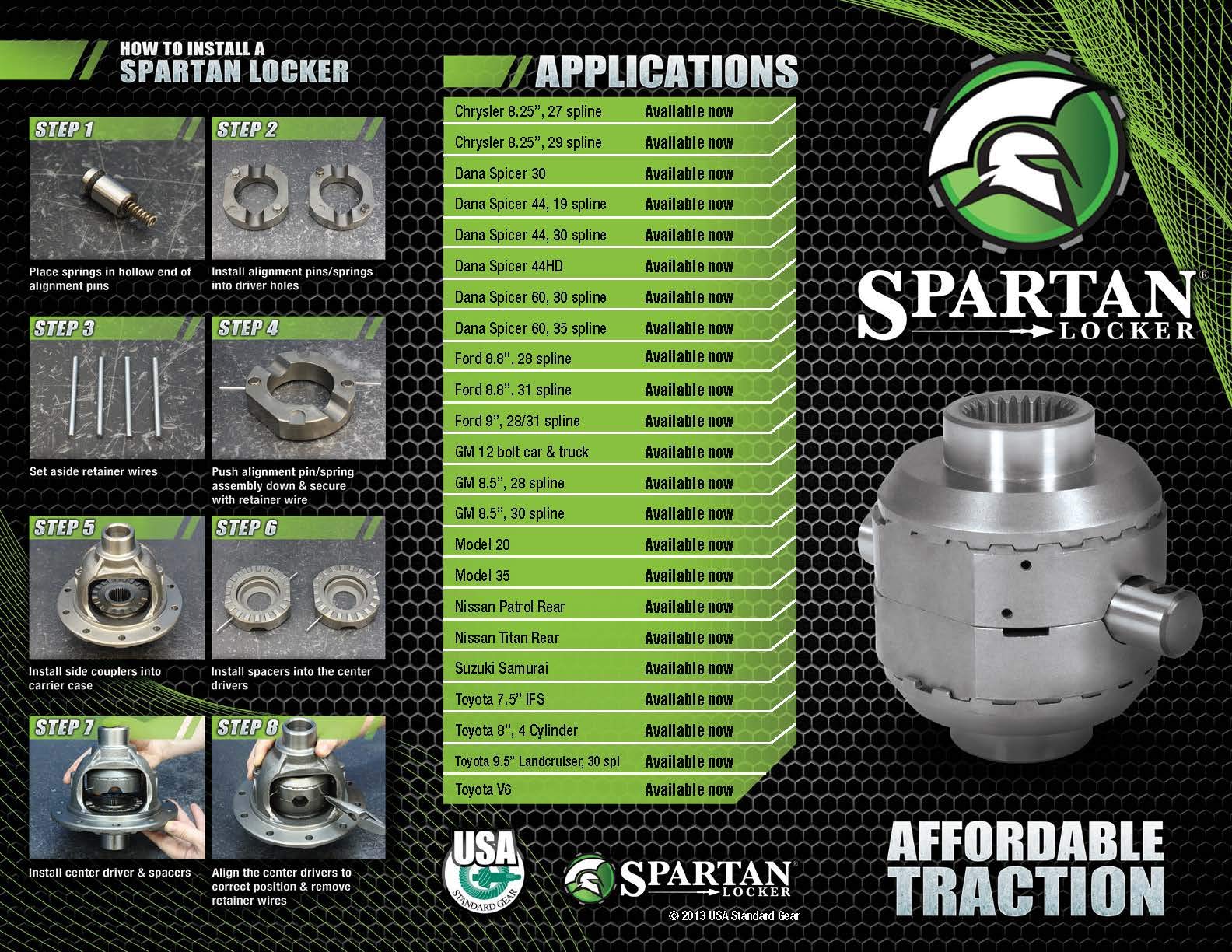

The Spartan SL D30-27 is sized for Dana/Spicer 30 carriers that use 27-spline axle shafts; it installs into a stock carrier without replacing the case. Installation requires removal of the carrier and internal spider gears and basic differential assembly skills or a qualified mechanic. Because the unit replaces the internal spider set and omits thrust washers, installation is streamlined versus many other lockers.

• Compatible with Dana/Spicer 30 carriers using 27-spline axles.
• Direct-fit into factory open carrier — no aftermarket carrier required.
• Installation needs differential disassembly tools and torque knowledge.

What driving conditions benefit most from this locker?

The Spartan Locker shines in off-road, low-traction, or utility towing situations where one wheel frequently loses traction. It provides dependable 100% lockup under load for climbing, rock crawling, or pulling through mud and snow, while still allowing normal street driving thanks to its ratcheting release during turns. This makes it a versatile, economical choice for mixed-use trucks and SUVs.

• Improved traction for rock, mud, snow, and steep climbs.
• Useful for towing or hauling where wheel slip is common.
• Maintains reasonable on-road manners due to automatic differential action.

Who is this for: The USA Standard Gear Spartan Locker SL D30-27 is intended for owners of Dana 30-equipped trucks and SUVs with 27-spline axles who want an affordable, durable automatic locker. It suits off-road enthusiasts, work trucks, and weekend adventurers who need dependable traction without the complexity or cost of carrier swaps or air-activated systems. If you have the skills and tools for differential work or access to a competent installer, this locker offers a strong balance of performance and value.
