UView Combustion Leak Tester Kit 560000 — Dual‑Chamber handheld tester with 16 oz color‑change fluid for gas & diesel engines

The UView 560000 Combustion Leak Tester Kit is a handheld, dual-chamber tool with color-changing fluid that quickly reveals combustion gas leaks in gasoline and diesel engines.

When a head gasket, cylinder head or engine block leak is suspected, the UView 560000 delivers a clear, visual test without expensive teardown. Its dual-chamber construction filters alkaline particulates that can cause false positives, while the included 16 oz. tester fluid changes color to indicate the presence of combustion gases. The kit is designed for technicians, DIY mechanics and fleet maintenance teams who need a fast, reliable way to confirm combustion leaks before committing to repairs.

How does the dual-chamber system improve test reliability?

The two-stage chamber separates contaminants from combustion gases so the reactive fluid only responds to combustion byproducts. This reduces false readings that can occur when alkaline residues or coolant deposits interfere with the indicator. The design gives technicians greater confidence in pass/fail results and helps avoid unnecessary repairs.

• Inner chamber isolates combustion gases for a cleaner reaction
• Outer chamber provides a barrier against alkaline particles
• Minimizes false positives caused by residue or coolant contamination

What do the color changes mean for gasoline and diesel engines?

The kit’s 16 oz. tester fluid uses distinct color shifts to differentiate engine types and combustion gas presence. In gasoline engines the fluid shifts from blue to yellow when combustion gases are detected; in diesel engines it shifts from blue to green. These visual cues let you confirm leaks quickly without specialized sensors.

• Blue to yellow indicates combustion gases from gasoline engines
• Blue to green indicates combustion gases from diesel engines
• Consistent, visible colors make interpretation straightforward in-shop or roadside

How do you use the UView 560000 kit safely and effectively?

Testing is simple when you follow the included instructions: warm the engine to operating temperature, attach the tester to the coolant system or specified test port, and introduce the tester fluid into the chamber. Observe the fluid color and follow the manual’s guidance on interpreting gradual or immediate changes. Proper connection and warm engine conditions provide the most reliable results.

• Warm engine to normal operating temperature before testing
• Attach tester to radiator, overflow tank or designated test port per instructions
• Watch the fluid color change and compare against gasoline/diesel indicators

What components come with the kit and what maintenance is needed?

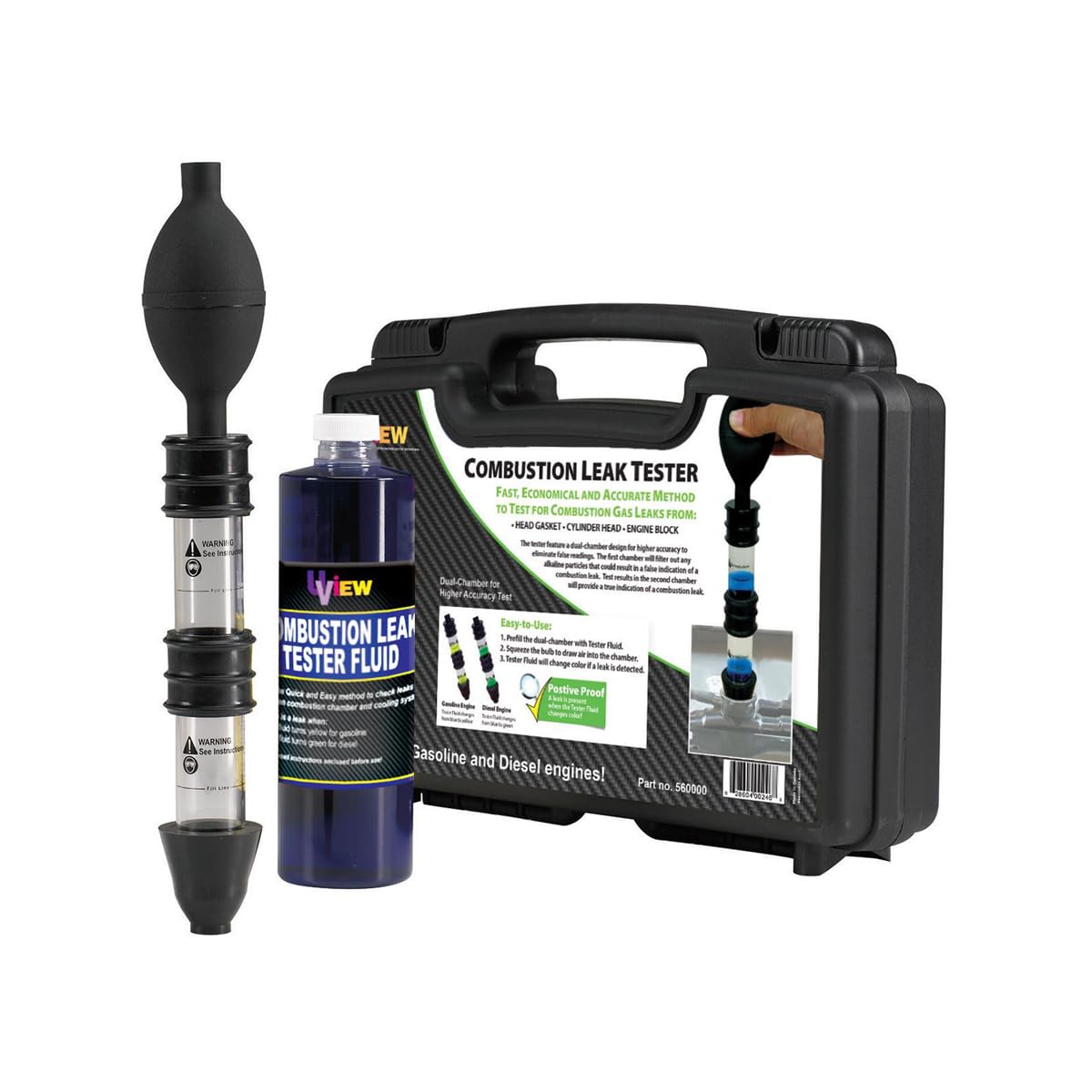

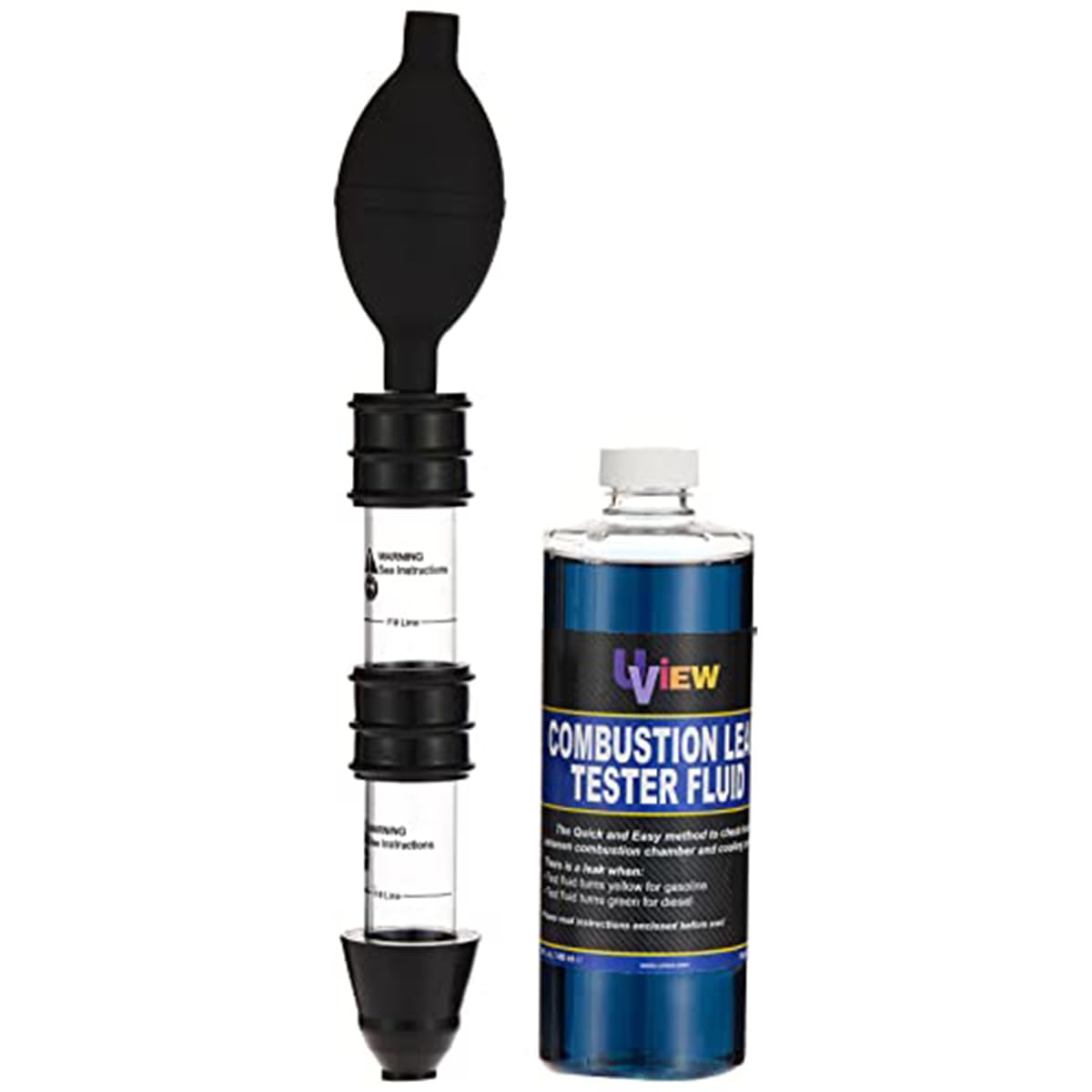

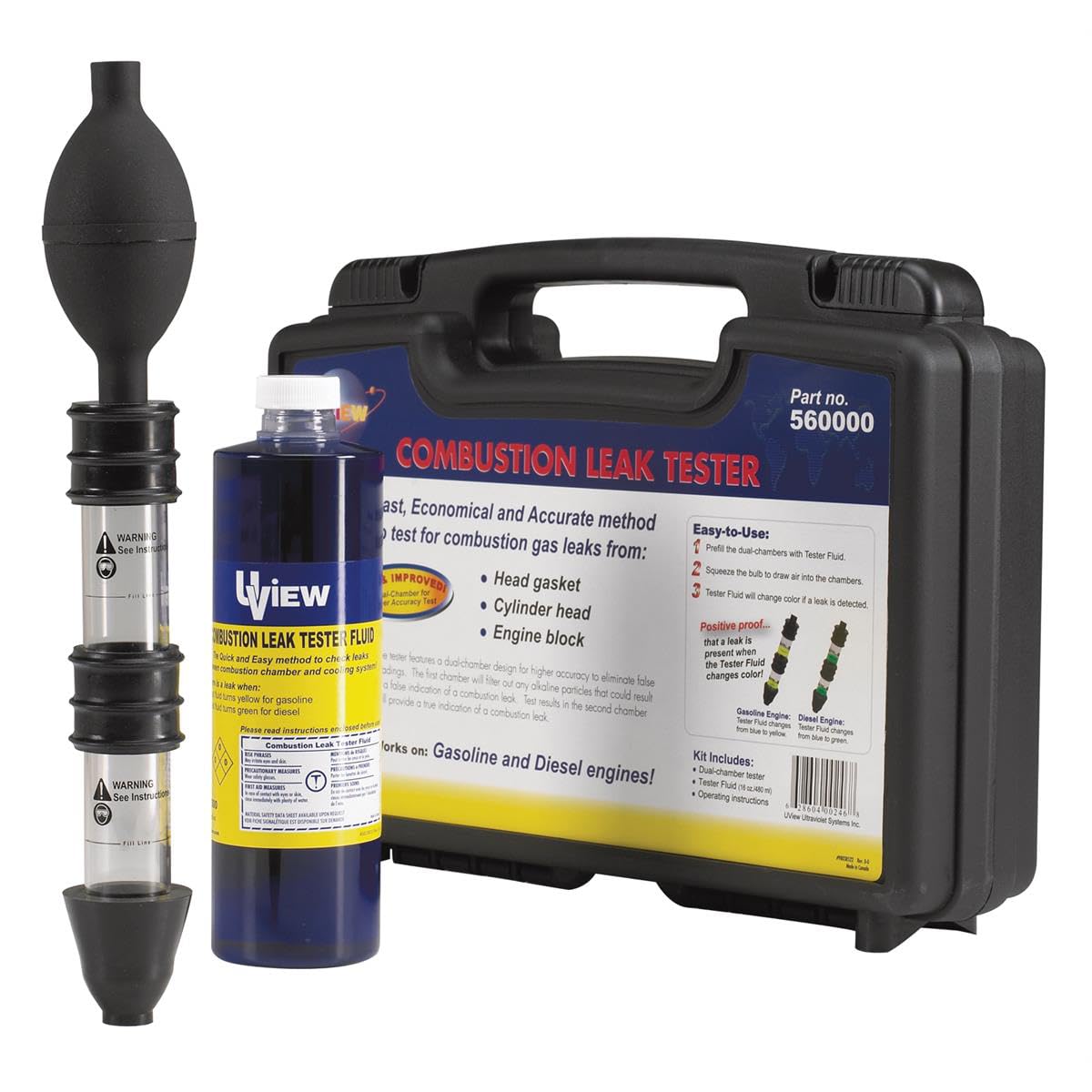

The UView 560000 kit arrives ready to use and requires minimal upkeep between uses. It includes the dual-chamber tester, a 16 oz. bottle of color-changing tester fluid, and clear operating instructions. After testing, rinse and store the tester according to the manual to maintain accuracy for future checks.

• Dual-chamber leak tester for reliable filtering and sampling
• 16 oz. color-changing fluid included for both gasoline and diesel diagnosis
• Simple cleaning and dry storage keeps the tester accurate over repeated uses

Who is this for: The UView 560000 is intended for auto technicians, mobile mechanics, fleet maintenance staff, and informed DIYers who need a fast, low-cost method to detect combustion leaks in gasoline and diesel engines. It’s useful when diagnosing head gasket failures, suspected cylinder head cracks, or engine block leaks before committing to disassembly or costly parts replacement. The kit’s clear visual indicators and dual-chamber filtering make it especially helpful in busy shops and field service scenarios where accurate, repeatable results matter.
