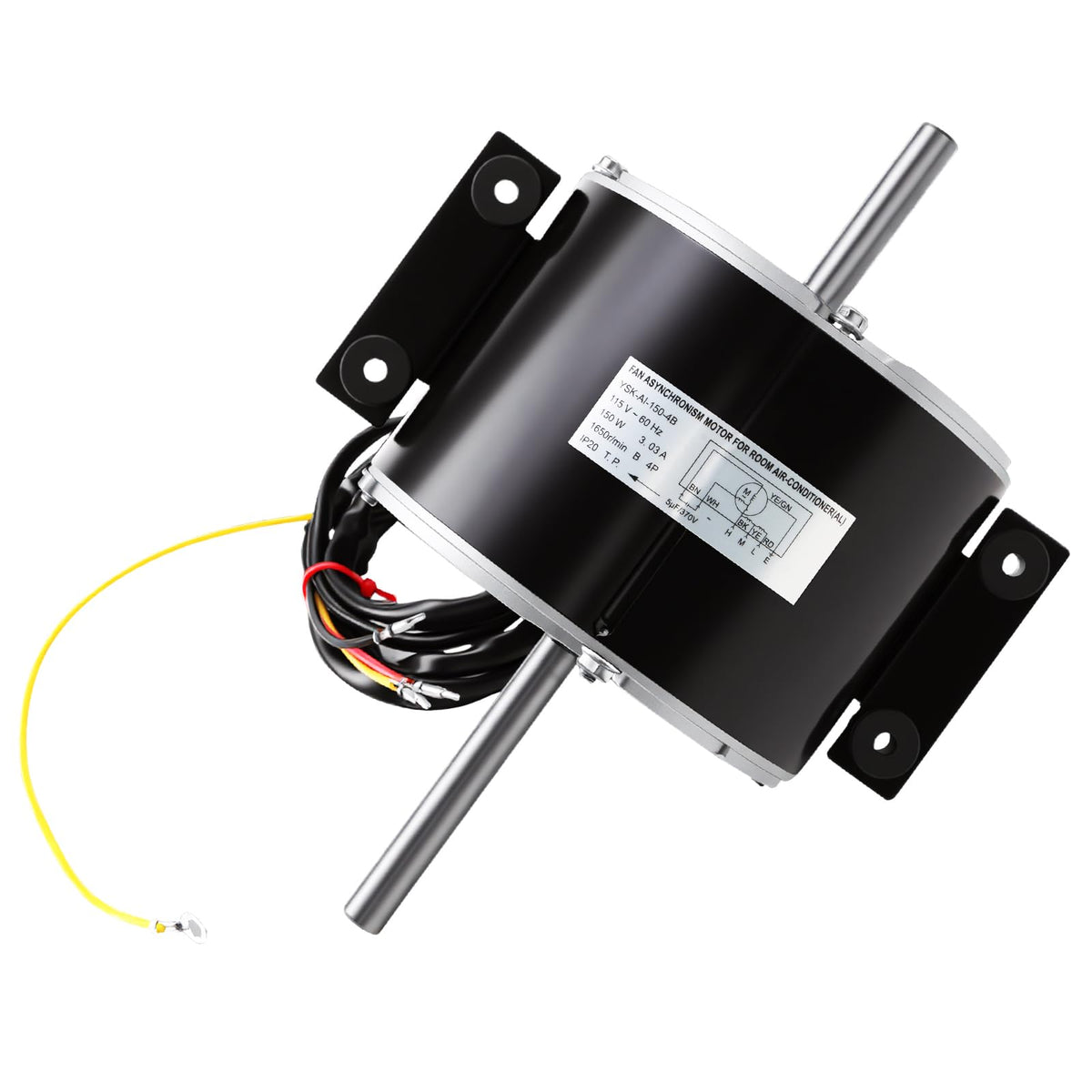

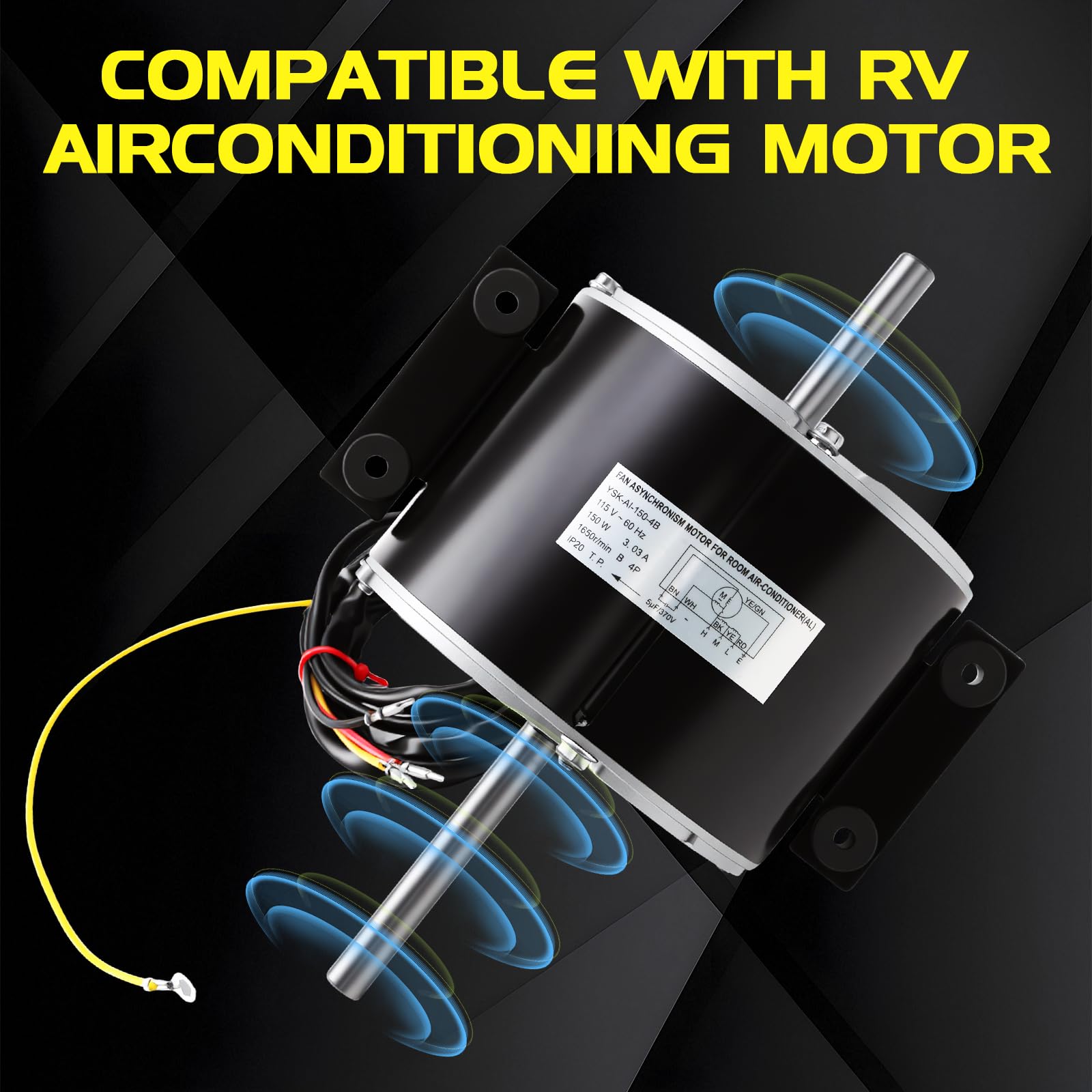

VATTCEEL RV Condenser AC Fan Motor Replacement 3315332.005 — 1/5 HP 3-Speed Direct-Fit for Dometic

VATTCEEL 3315332.005 is a direct-fit replacement 1/5 HP 3-speed RV air conditioner condenser fan motor designed to work with Dometic Brisk Air II and compatible units.

This motor replaces Dometic part numbers like 3315332.005-1 and is built to restore airflow and cooling performance in rooftop RV AC units. It matches common mounting dimensions and electrical specifications so you can swap it into units that originally used the Genteq F48AF70A61-style motor. The design emphasizes reliable continuous operation, three-speed control, and energy efficiency for long summer trips.

Will this motor fit my Dometic Brisk Air II model?

Yes — the VATTCEEL 3315332.005 is manufactured to align with mounting and electrical details used in many Brisk Air II condensers. Confirm the mount hole spacing and motor body size against your existing unit before ordering to ensure a correct fit.

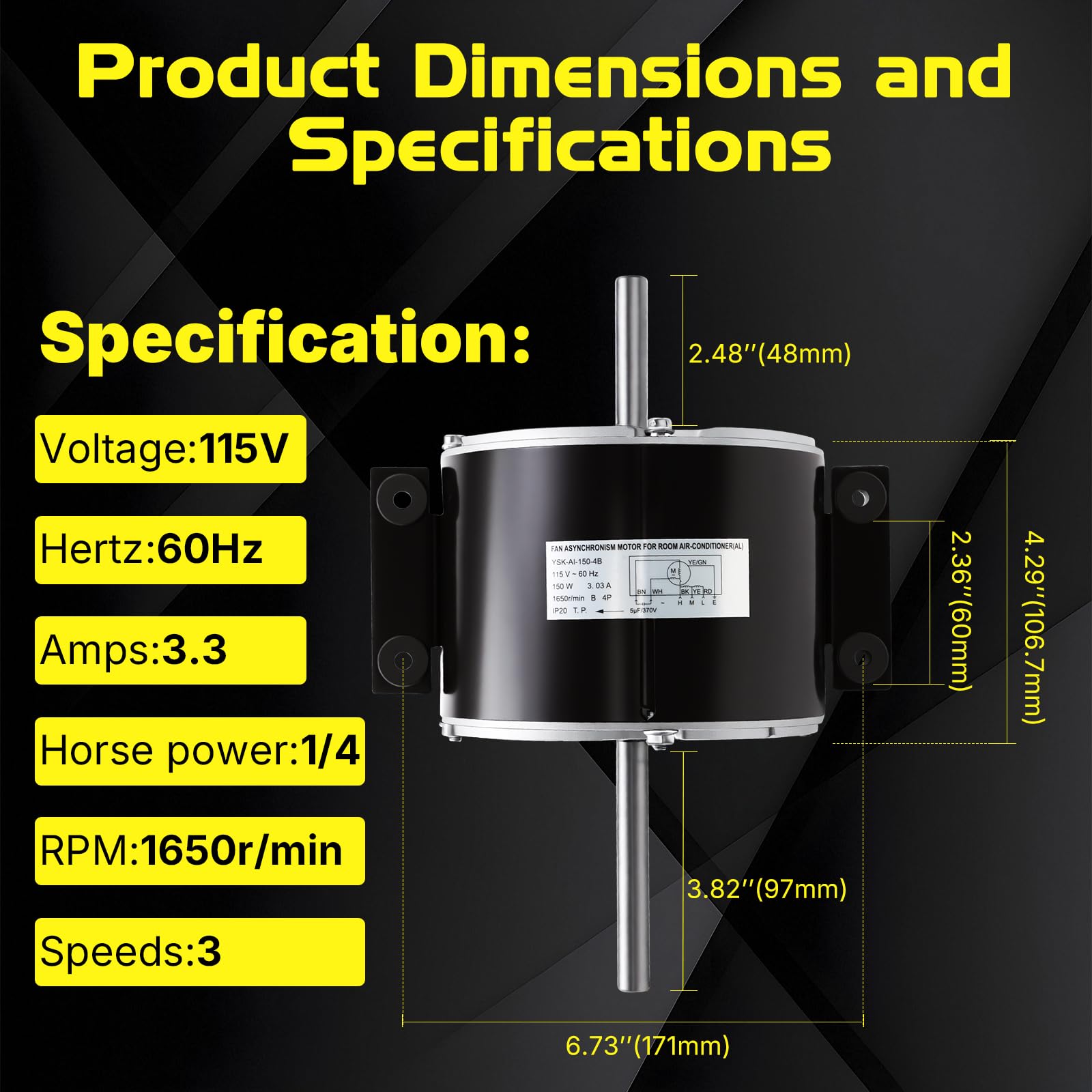

• Mounting bracket holes spaced 2-3/8" apart
• Motor body diameter 5-5/8" and thickness 4-3/8"
• Specifically compatible with Brisk Air II models such as B59530, B57915, B59516, B59146, B59186, B59196
• Designed as a like-for-like replacement for Genteq F48AF70A61 style motors

What are the electrical and performance specifications?

The motor runs on standard RV rooftop AC power and provides consistent airflow across three speed settings. Its 1/5 horsepower rating and 1,650 RPM deliver adequate condenser ventilation while keeping current draw modest for typical rooftop installations.

• Voltage: 115 V, Frequency: 60 Hz
• Current draw: 2.5 amps
• Horsepower: 1/5 HP, Speed: 1,650 RPM
• Three-speed operation for flexible airflow and quieter low-speed running

How durable and energy-efficient is this replacement motor?

VATTCEEL builds this motor with quality materials and subjects units to factory inspections to promote long service life in the demanding rooftop environment. The motor’s engineering focuses on sustained high-speed operation with an energy-saving design to reduce unnecessary power consumption during runs.

• High air-volume design for improved condenser cooling
• Engineered for extended continuous operation
• Energy-saving construction to lower electrical load compared with older, less efficient motors
• Factory quality checks and a 12-month support window

What should I check before installation?

Before installing, confirm physical fit, wiring compatibility, and that your AC unit uses a compatible motor layout. If you’re replacing a Genteq F48AF70A61 or a Dometic 3315332.005-1 motor, this unit is intended as a straightforward swap, but basic tools and safety precautions are required.

• Compare mount hole spacing (2-3/8") and motor body dimensions (5-5/8" x 4-3/8")
• Verify your unit’s voltage and frequency are 115 V / 60 Hz

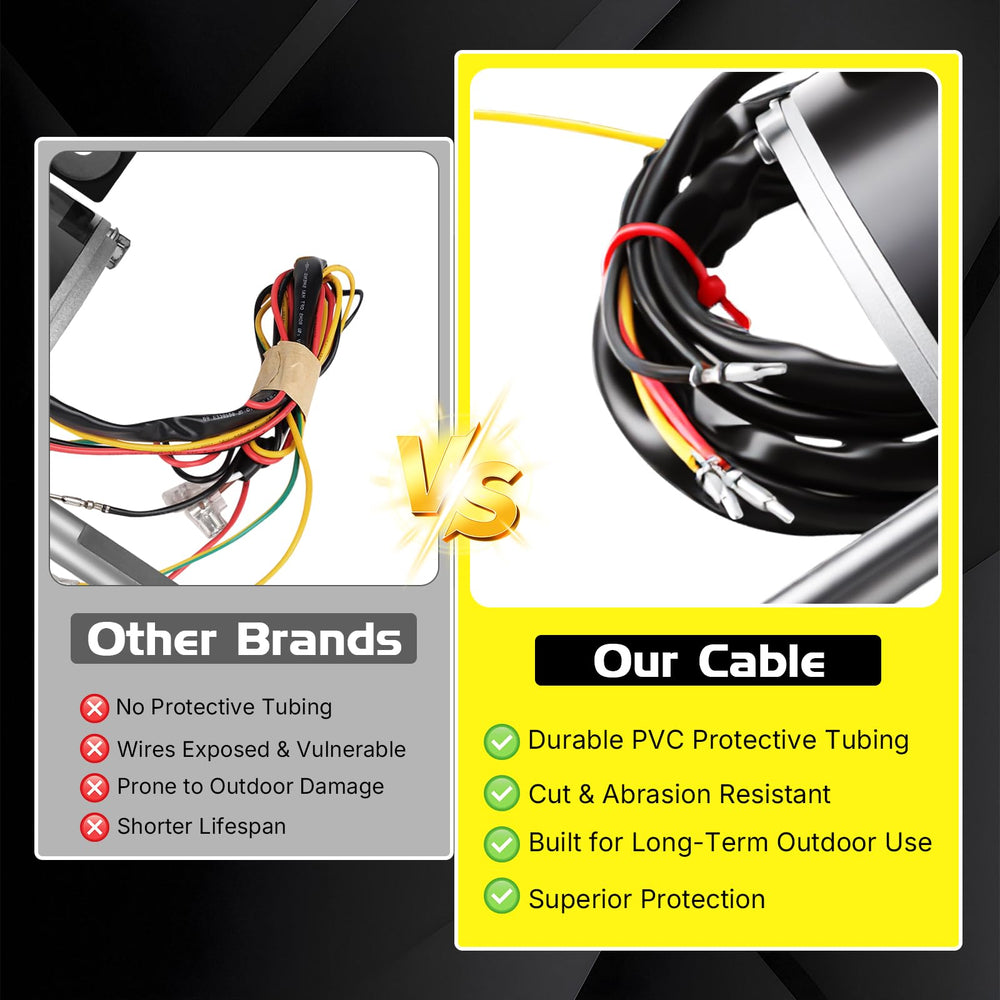

• Match wiring color-codes or terminal arrangement before powering up
• Use proper rooftop safety gear and follow manufacturer removal instructions

Who is this for? RV owners, mobile technicians, and fleet managers who need a dependable condenser fan motor replacement for Dometic Brisk Air II and similar rooftop air conditioners will find the VATTCEEL 3315332.005 appropriate. It’s intended for anyone seeking a cost-effective, like-for-like motor that restores airflow and cooling performance while offering three-speed control and a tested build quality. If you’re unsure about fitment, compare your existing motor’s mounting and electrical specs or consult a qualified RV HVAC technician for confirmation.
