VECKYJL 496 Fuel Tank Filter Assembly — 30 Micron Water Separator with 1" NPT Top Cap, Clear Bowl & Drain Valve

VECKYJL 496 Fuel Tank Filter Assembly is a replaceable diesel and gasoline transfer tank filter with a 30-micron element, hyaline bowl with drain valve, and 1" NPT top cap for reliable water and particle separation.

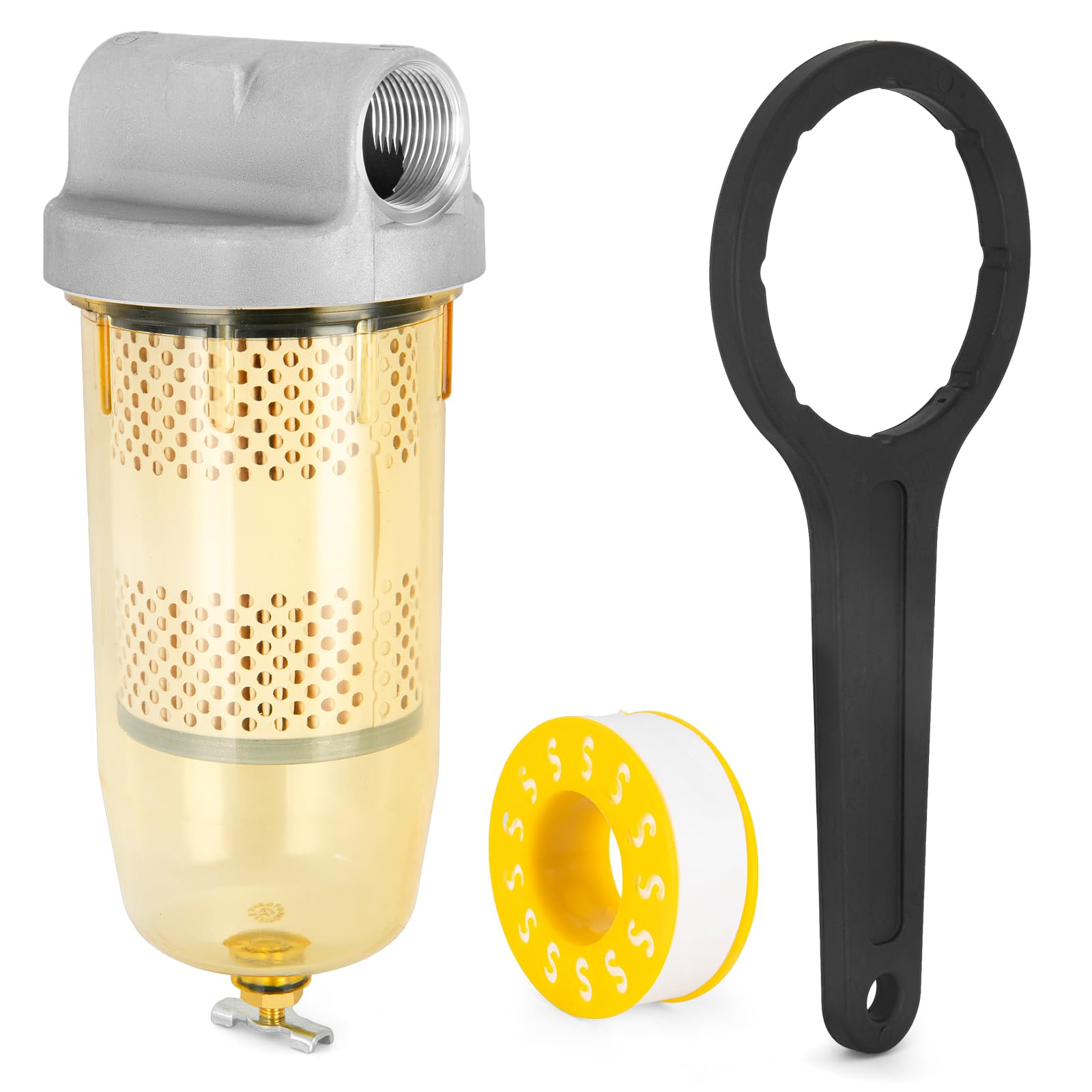

This compact filter assembly is designed for transfer tanks and refueling setups where removing water and debris from fuel is essential to maintaining downstream equipment. The kit includes the filter head, a transparent bowl for visual inspection, a replaceable 30-micron element, a wrench and Teflon tape — everything required for a quick installation and straightforward maintenance. Built to withstand pressures up to 150 psi and flow rates up to 25 gallons per minute, the 496 balances high flow capacity with effective filtration for diesel, gasoline and blended fuels.

How does the 496 filter protect engines and fuel systems?

By trapping particulates and separating free water from fuel before it reaches pumps and injectors, the 496 reduces the load on fuel system components and lowers the risk of clogging or corrosion. The translucent bowl and drain valve make it simple to spot and remove accumulated water, helping prevent contamination-related wear.

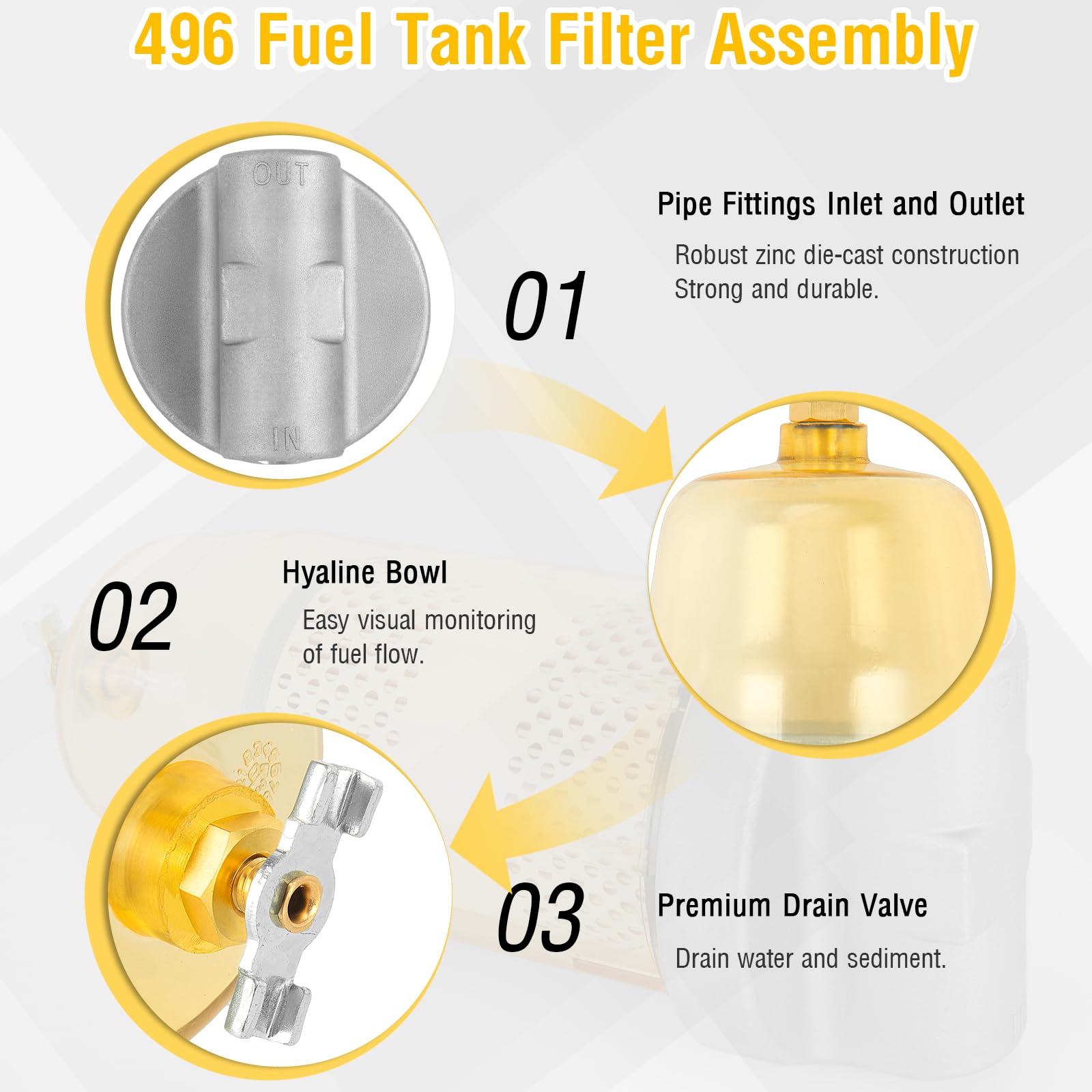

• 30-micron replaceable filter element with protective sheet to resist deformation
• Hyaline (clear) bowl for visual monitoring of contaminants and water
• Drain valve lets you purge separated water without disassembling the unit
• Corrosion-resistant materials reduce long-term degradation in fuel environments

What are the installation steps and plumbing connections?

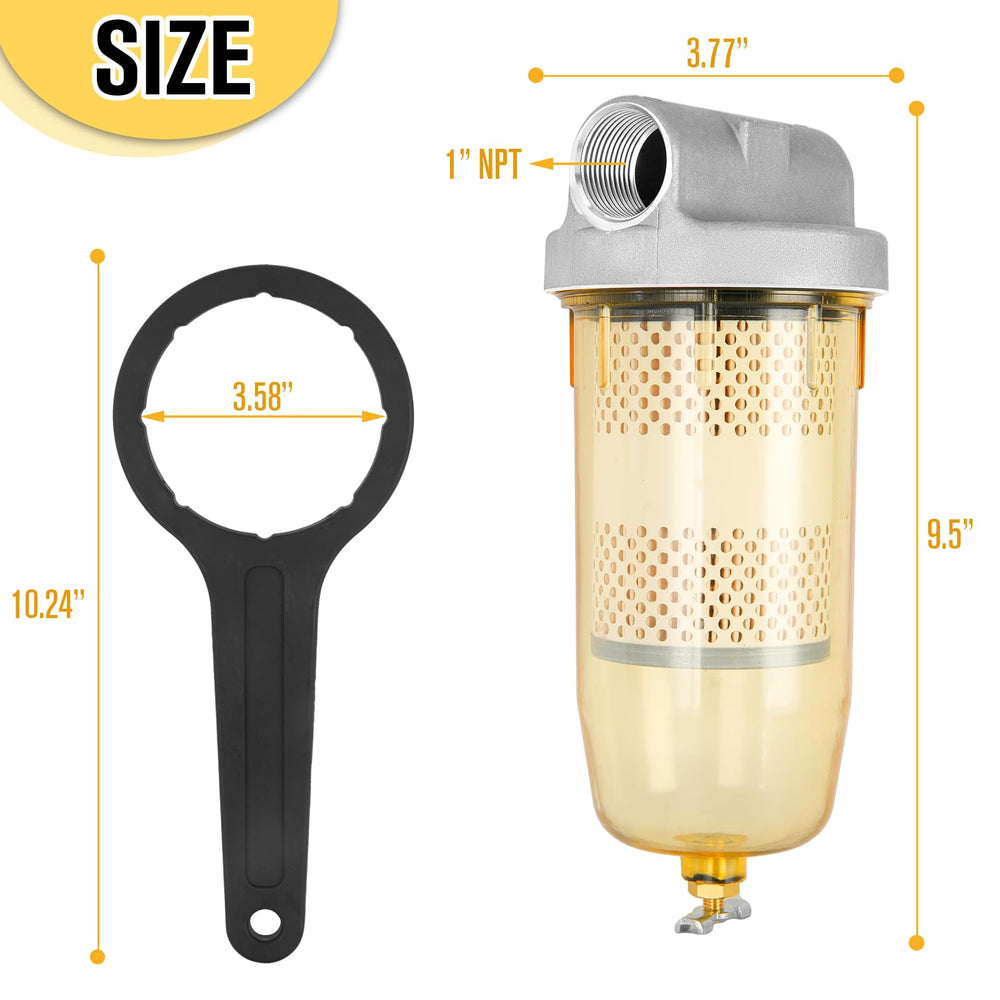

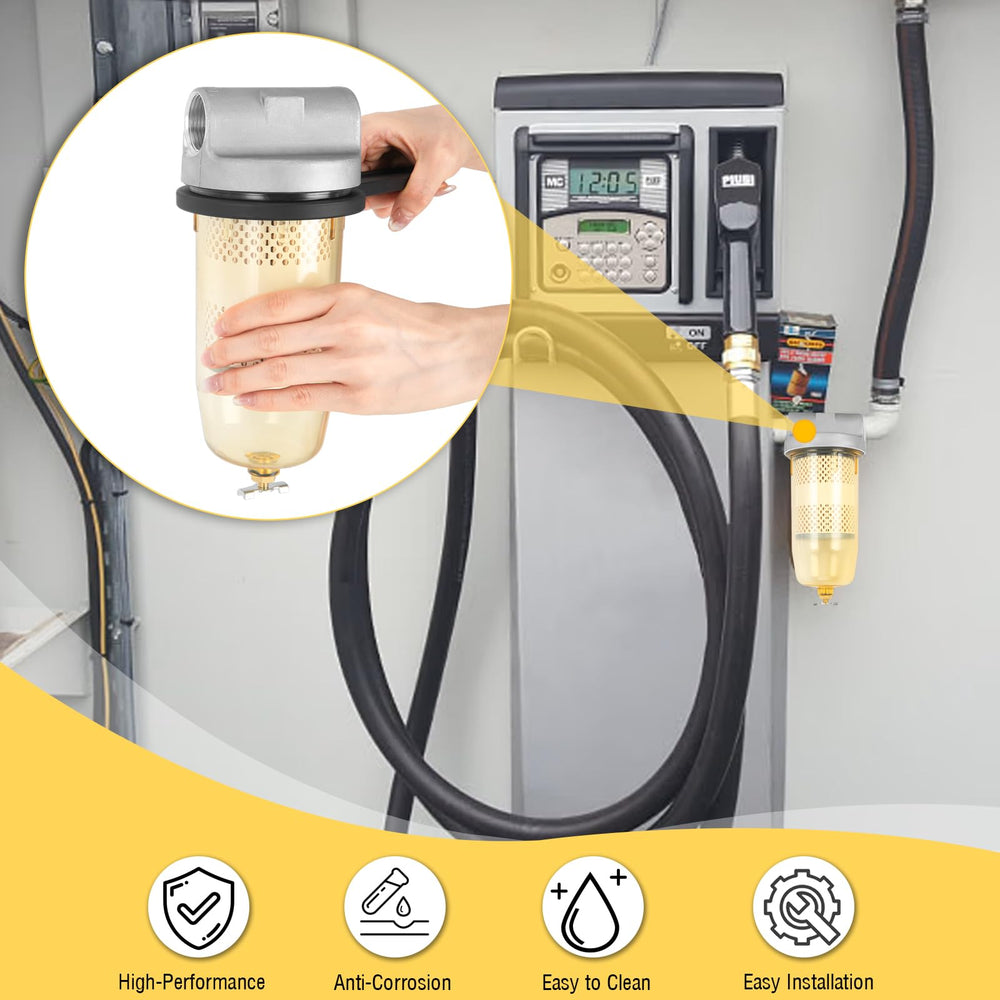

Installation is straightforward and intended for hand-tightening to ensure later serviceability. The top cap has 1" NPT threads that match common transfer hose fittings; attach the IN side to the tank valve and the OUT side to your hose or nozzle, then check for leaks after a test flow.

• Attach 1" NPT top cap to tank valve on the port labeled IN
• Connect hose/nozzle to the OUT port using the included Teflon tape for thread seal
• Lubricate gaskets lightly when inserting the element and bowl to ensure a proper seal

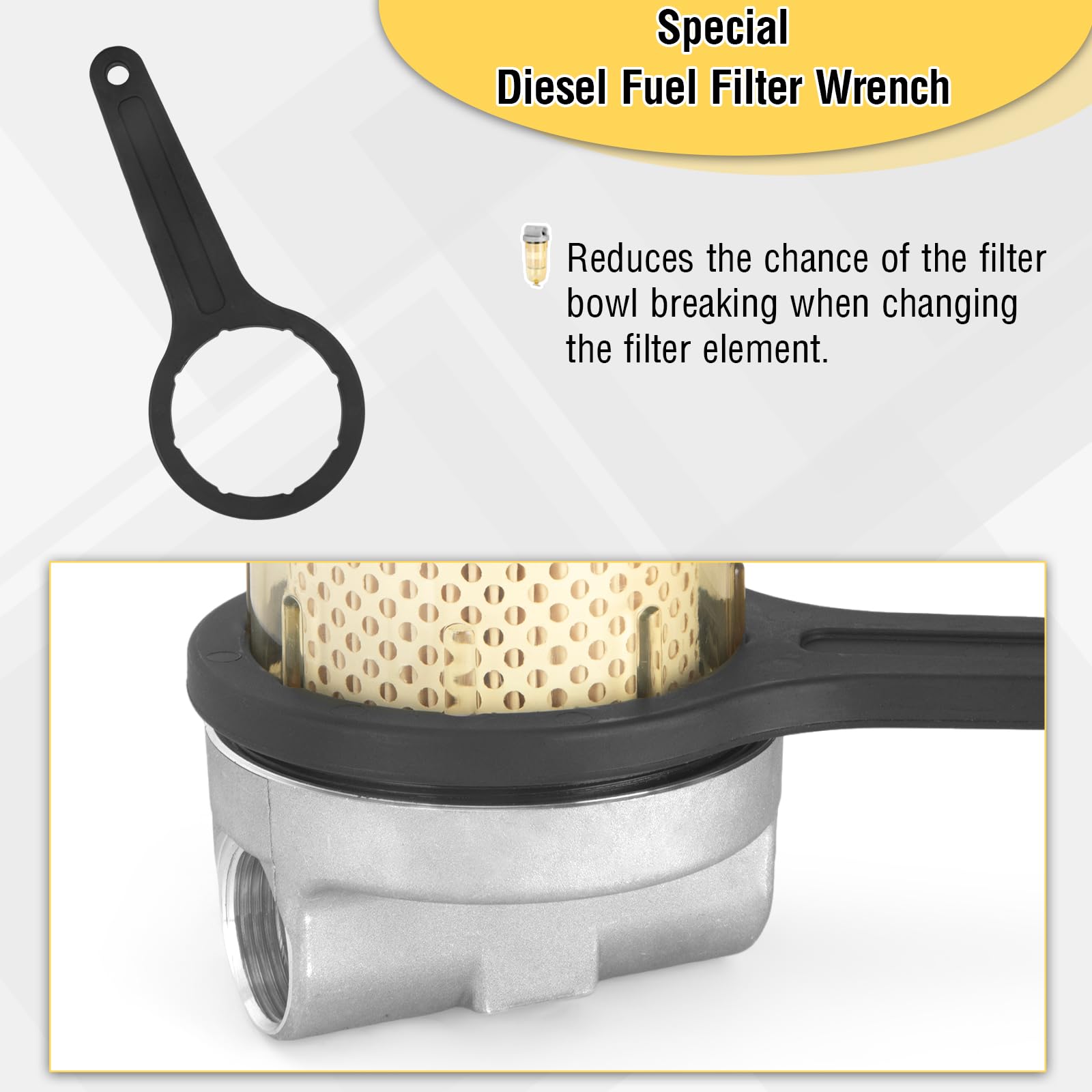

• Hand-tighten the bowl only; use the supplied wrench sparingly to avoid over-tightening

Which fuels and operating conditions does this filter support?

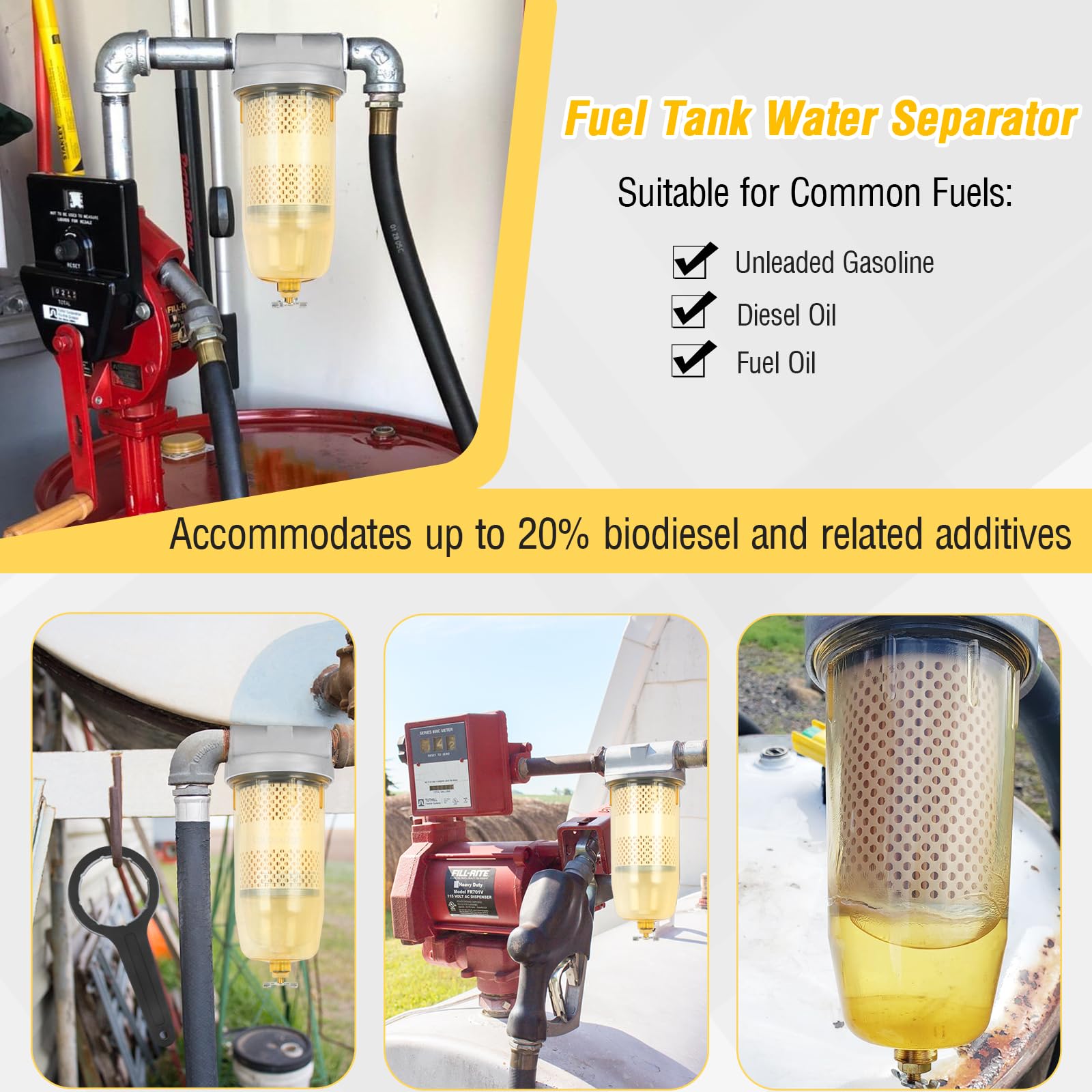

The 496 is built for common liquid fuels including unleaded gasoline, diesel, and fuel oils, and is compatible with moderate biodiesel blends (up to manufacturer-stated limits). It performs across a wide temperature range and can handle peak operating pressures up to 150 psi, with gravity flow characteristics for slower fill applications.

• Suitable for gasoline, diesel, fuel oil, and compatible biodiesel blends

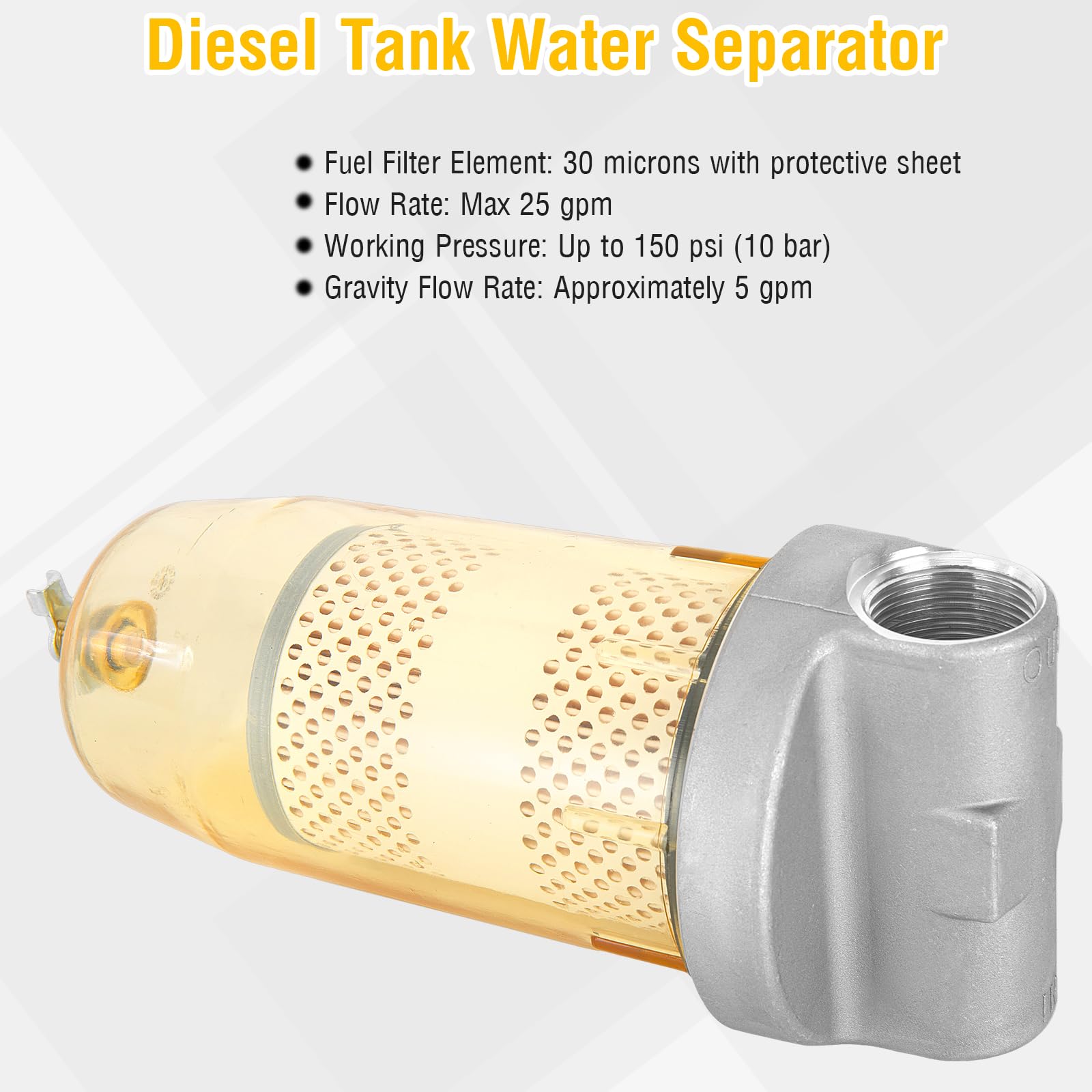

• Maximum working pressure: 150 psi (10 bar)
• Maximum flow rate: up to 25 GPM; gravity flow about 5 GPM

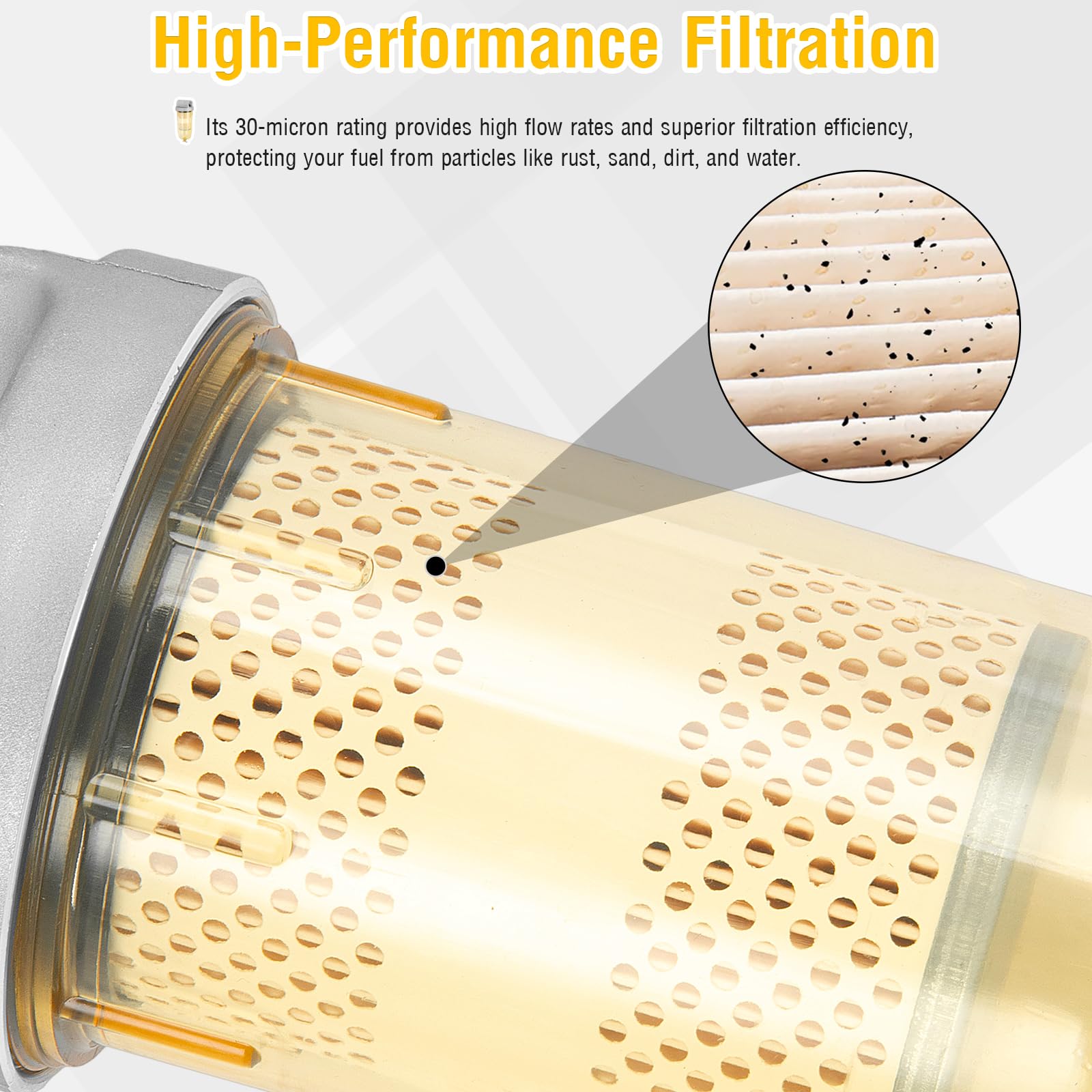

• Filter element rating: 30 microns with protective backing sheet

How do I service and replace the filter element?

Routine maintenance is simple: monitor the bowl for debris or water, drain using the bottom valve as needed, and replace the filter cartridge when flow slows or contamination appears. Regular element replacement keeps filtration effective while lowering long-term operating costs compared with replacing entire housings.

• Visually inspect the clear bowl; drain water using the valve when present
• Replace the 30-micron element periodically or when flow decreases noticeably
• Apply a thin coat of oil to gaskets during reassembly for better sealing
• Hand-tighten components; avoid excessive torque to ease future removal

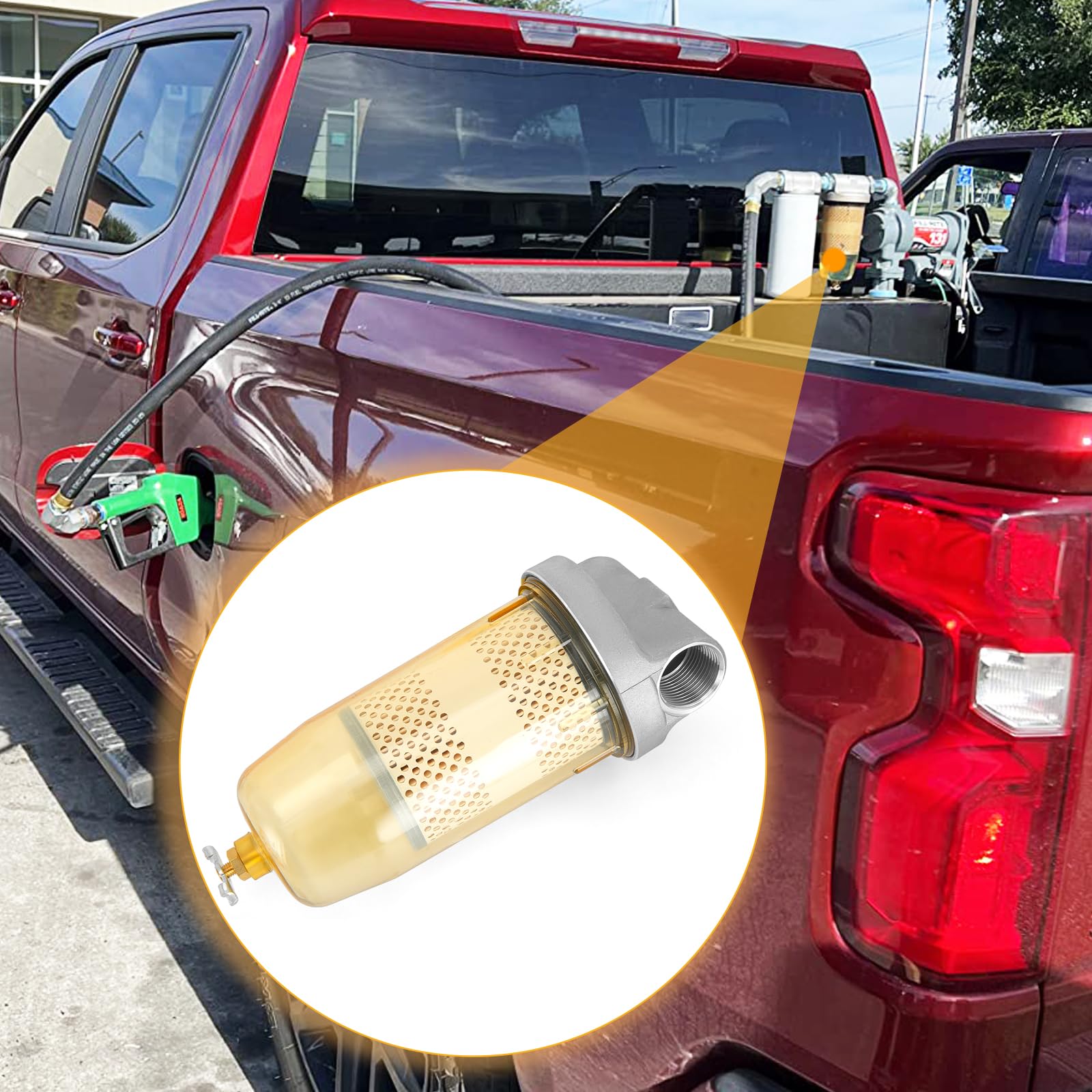

Who is this for: The VECKYJL 496 Fuel Tank Filter Assembly is aimed at fleet operators, contractors and equipment owners who need a durable, easy-to-service transfer tank filtration solution. It suits anyone refueling remote equipment, maintaining service trucks, or caring for machinery where fuel cleanliness prevents downtime — especially when visual monitoring and straightforward maintenance are priorities.
