Victron Energy BatteryProtect 12/24V 65A battery disconnect — automatic deep-discharge protection with selectable voltage threshol

Victron Energy BatteryProtect 12/24-Volt 65 amp is an automatic battery disconnect device that protects batteries from deep discharge and preserves starting power by disconnecting non-essential loads.

Designed for boats, recreational vehicles, off-grid systems and mobile applications, the BatteryProtect 65A from Victron Energy monitors battery voltage and isolates loads before the battery reaches a damaging low level. It automatically detects whether your system is 12 V or 24 V and can be configured to engage or disengage at a choice of voltages shown on the built-in display. With a high continuous current rating and a short-duration peak capability, it keeps house loads from draining the starter or service battery while giving you clear control over when devices are cut off.

How does the BatteryProtect prevent a dead starter battery?

The unit continuously measures battery voltage and disconnects designated non-essential circuits when voltage drops to a pre-set threshold, ensuring enough charge remains for engine cranking or critical systems. You can adjust the disconnect and reconnect voltages so the system matches your battery type and usage patterns.

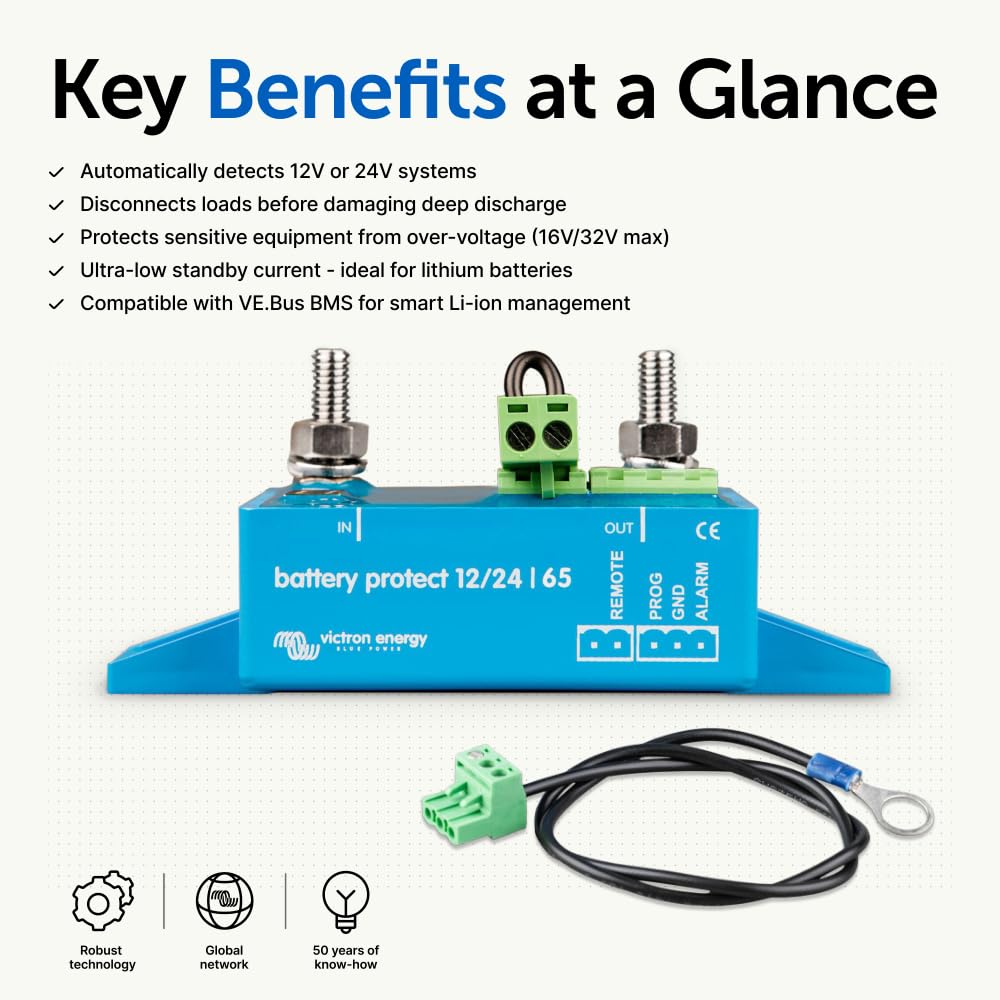

• Automatic 12/24 V detection for correct operation in both systems
• Selectable disconnect/reconnect settings displayed on seven-segment readout
• Protects starter or service batteries from deep discharge
• Restores loads automatically once battery voltage recovers

What electrical loads and currents can it handle safely?

The BatteryProtect is rated for a maximum continuous load current of 65 A and can withstand brief surge currents up to 250 A for 30 seconds, making it suitable for many inverters, lighting, pumps and auxiliary devices. For long runs or higher continuous demands, choose appropriate cabling and fusing to match the current rating.

• 65 amp continuous rating for typical house and accessory circuits
• 250 amp peak capacity for short start-up or inrush events
• Install with proper fuses and cable sizes to maintain safety
• Not intended as a primary inverter disconnect for loads over rating

How is the unit configured and installed?

Configuration is done via the device’s seven-segment display which shows the chosen disconnect voltage and related settings. Installation should follow electrical codes and ideally be done by a qualified technician; incorrect wiring can be hazardous and may void warranties.

• Seven-segment display indicates selected voltage thresholds
• Selectable engage/disengage voltages to suit battery chemistry
• Mount in a dry, ventilated location close to the battery bank
• Follow manufacturer wiring diagrams and use recommended fuses

What limitations and safety points should I know?

The BatteryProtect is a load disconnect device, not a battery charger or maintainer. It helps prevent harmful deep discharge but does not replace proper battery management, periodic testing or ventilation requirements for some battery chemistries.

• Does not charge batteries—use with an appropriate charger or alternator system
• Consult a licensed professional for installation to avoid hazards
• Ensure cable and fuse sizing match the 65 A rating and peak current needs
• Keep firmware/installation guidance from Victron for best results

Who is this for: The Victron Energy BatteryProtect 12/24-Volt 65 amp is aimed at boat owners, RV users, solar installers and mobile system builders who need a reliable automatic way to protect starter and service batteries from deep discharge. It’s best for systems requiring up to 65 A continuous load with occasional short-duration surges, and for anyone who wants configurable disconnect thresholds and simple, robust protection in 12 V or 24 V installations.
