VIVOHOME 2-Stage HVAC Vacuum Pump 5 CFM 1/2 HP — A2L Compatible Sparkless Explosion-Resistant

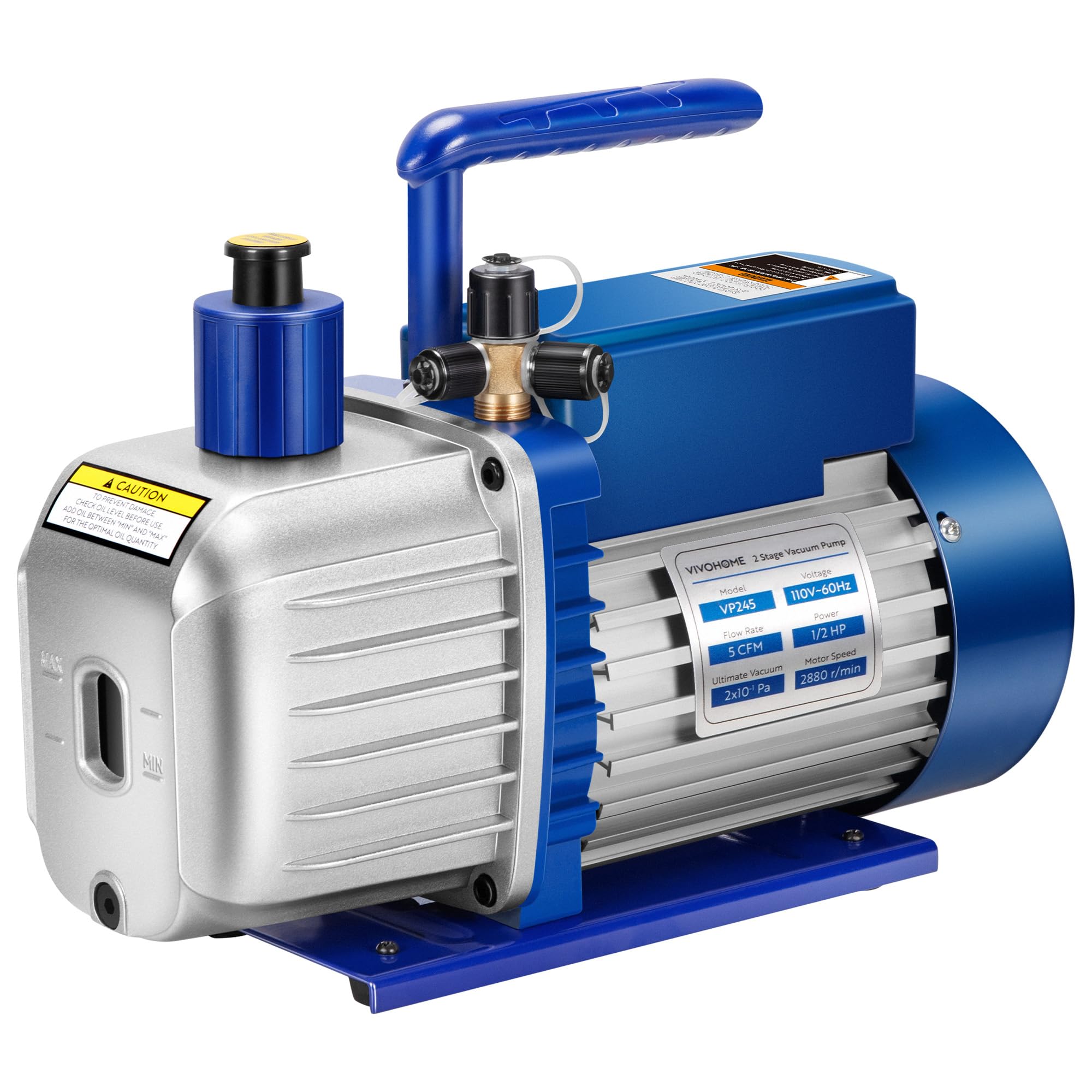

The VIVOHOME A2L 1/2 HP 5 CFM 2-stage HVAC vacuum pump is a sparkless, explosion-resistant unit engineered to evacuate refrigerant systems down to deep microns while supporting modern A2L and legacy refrigerants.

Designed for HVAC technicians, automotive AC professionals and refrigeration specialists, this two-stage vacuum pump pairs a high-torque 1/2 HP copper motor with an explosion-proof build so it can safely work with newer low-GWP A2L refrigerants (like R32, R1234yf and R454B) and a wide range of conventional refrigerants. It combines portability, durable materials and service-friendly features to speed evacuations and reduce maintenance time.

How fast and deep can this pump evacuate a system?

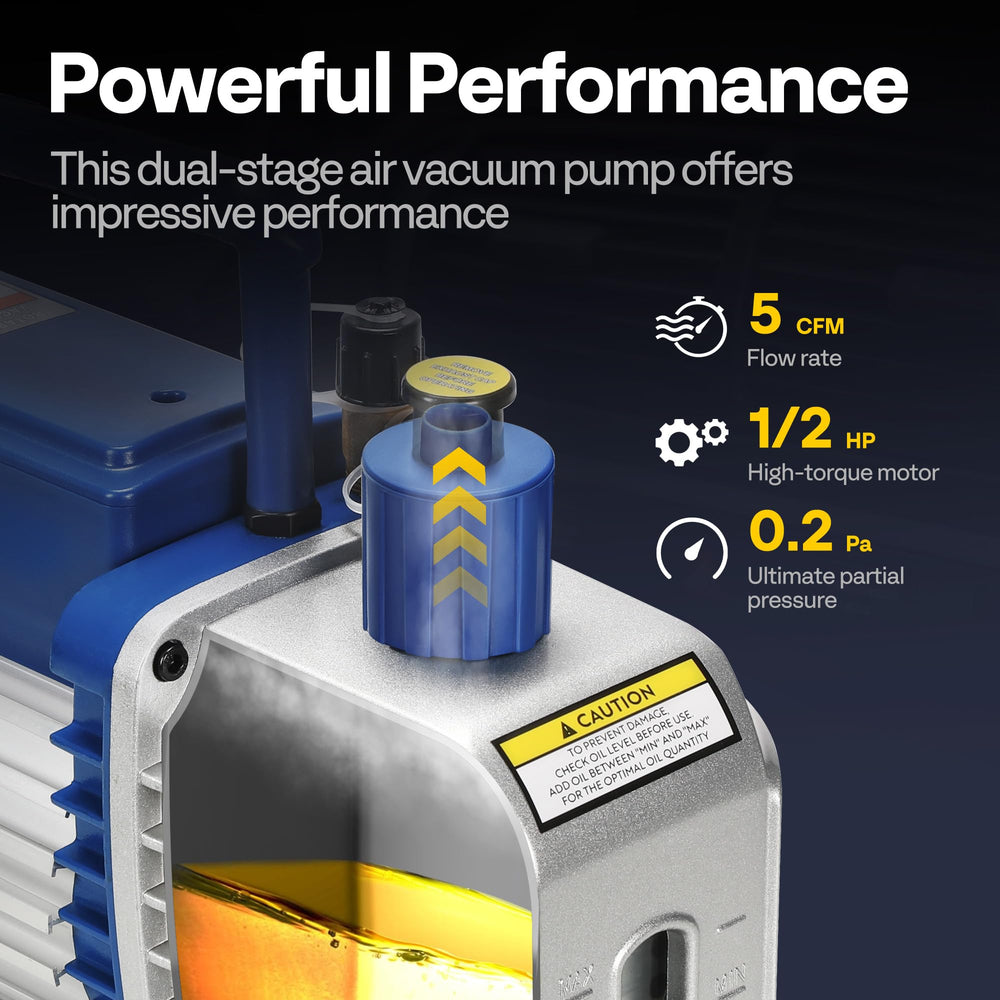

The dual-stage design and 5 CFM displacement let the pump pull strong vacuums and reach deep levels required for proper system dehydration. With appropriate connections and procedure it can draw systems down into the micron range suitable for most HVAC and refrigeration jobs.

• Performance: two-stage vacuum architecture for deeper vacuum levels
• Flow rate: 5 CFM for efficient evacuation of typical systems
• Ultimate vacuum: capable of reaching around 15 microns (0.2 Pa) under ideal conditions
• Filtration: intake filter helps keep dust out of the pump cavity

Is this pump safe to use with A2L refrigerants and other common refrigerants?

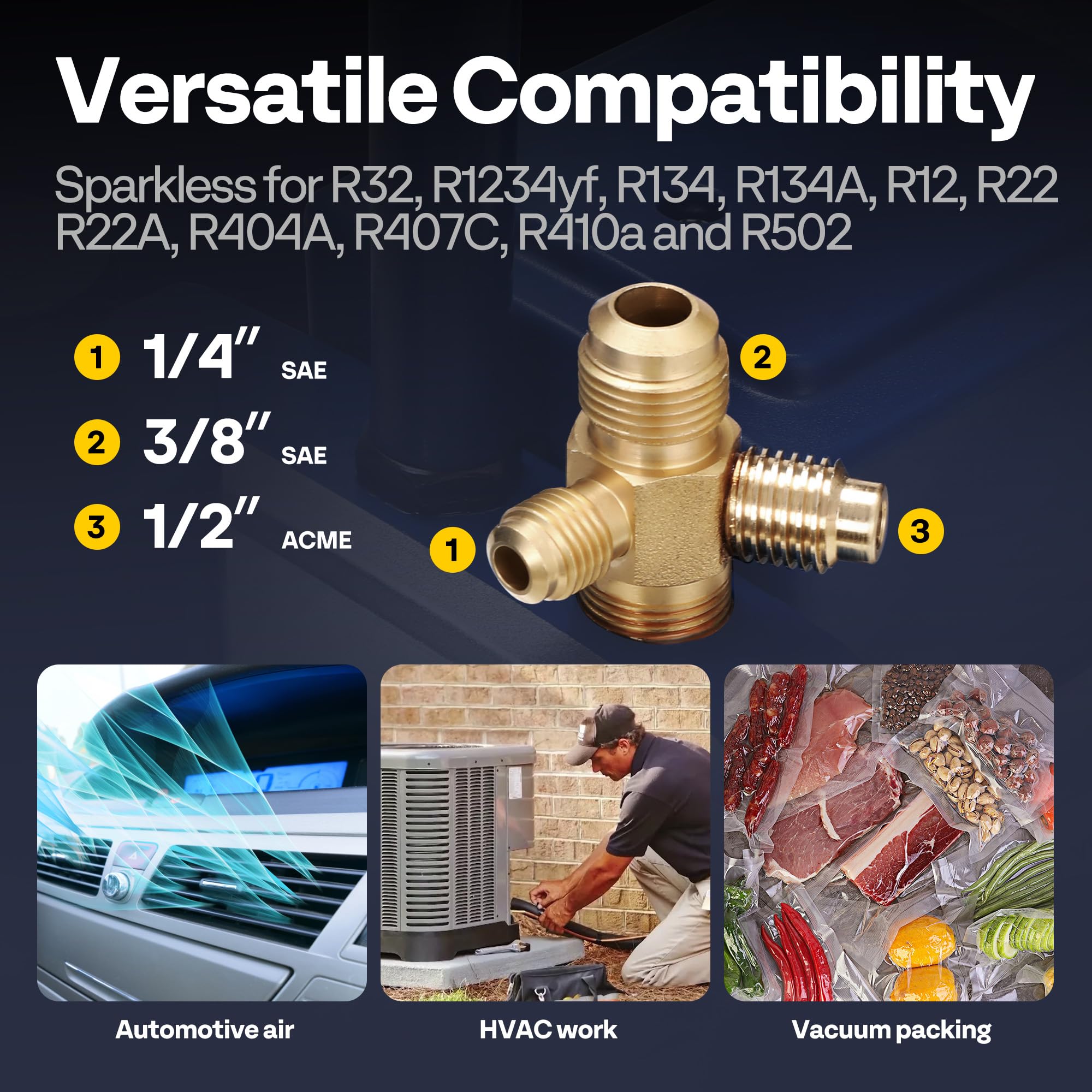

The pump is engineered with an explosion-resistant, sparkless motor to be compatible with A2L-class refrigerants as well as many traditional refrigerants. It includes multiple inlet fittings for easy connection across automotive and HVAC service ports.

• A2L compatibility: suitable for R32, R1234yf, R454B
• Legacy refrigerants: works with R410a, R134a, R12, R22, R502, R404A, R407C
• Fittings: 1/4" SAE, 1/2" ACME and 3/8" SAE included for flexible hookups
• Explosion-proof design: sparkless motor for safer handling of flammable refrigerants

What features make it easy to operate and maintain?

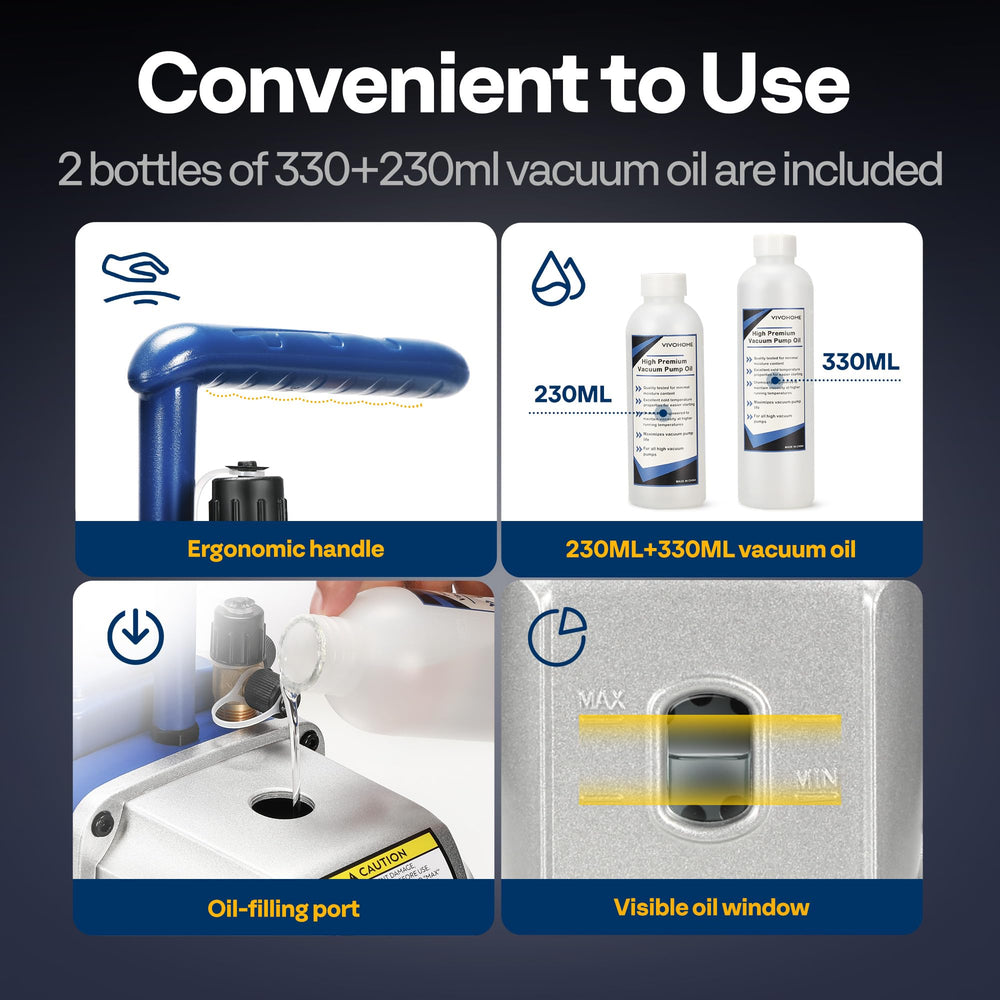

The VIVOHOME pump includes service-minded touches such as a clear oil sight window, simple oil fill port and a bottom drain valve for cleaner, faster oil changes. Portability and stability were also considered so technicians can move the unit on site and operate it securely.

• Oil management: visible oil window and convenient filling port
• Drainage: bottom drain valve speeds oil changes and reduces mess
• Included supplies: two bottles of vacuum oil (330ml and 230ml) are provided

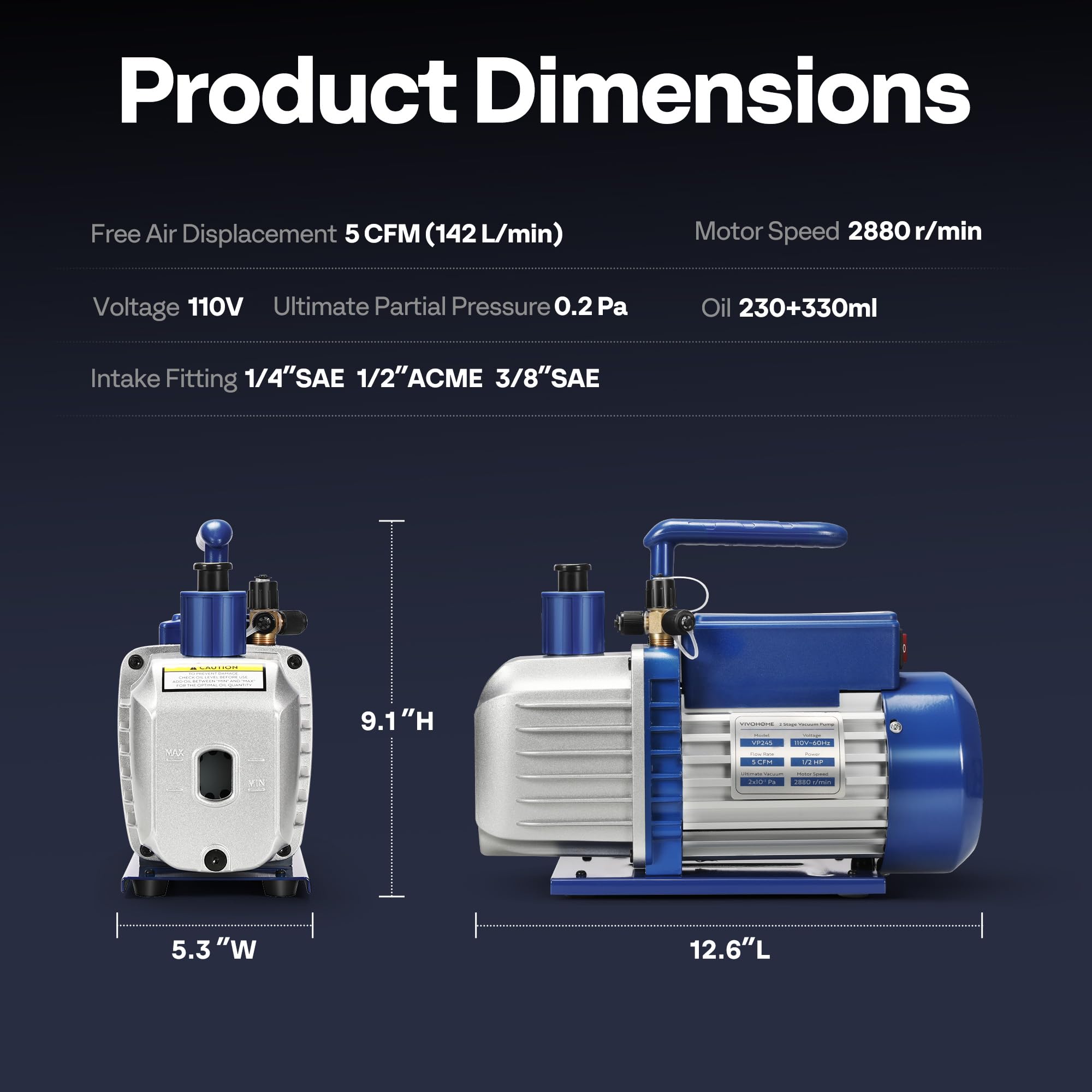

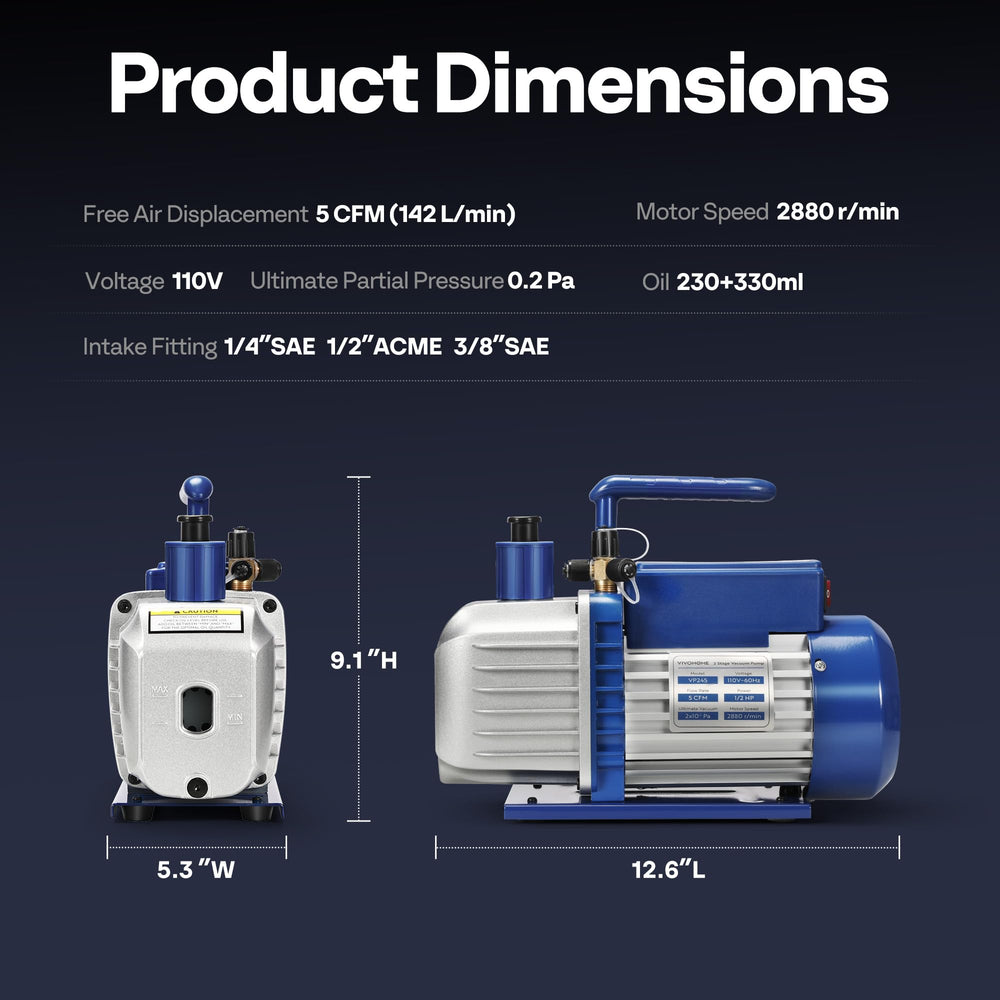

• Portability: ergonomic handle and lightweight design for easy transport

How durable and quiet is the pump during regular use?

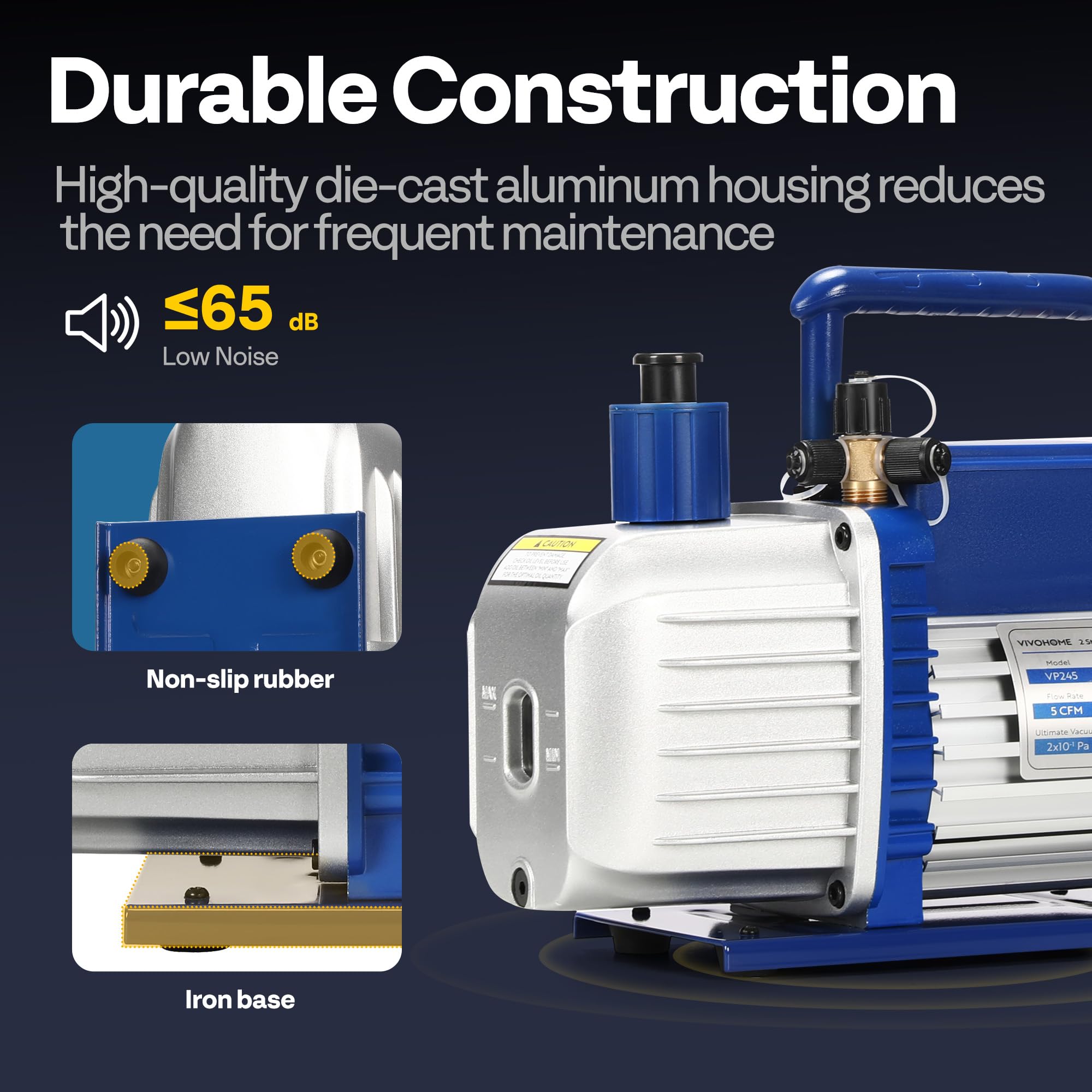

Built from die-cast aluminum with a non-slip rubber base, the unit resists wear while staying steady during operation. Cooling features and thermal protection reduce overheating risk and help maintain quieter, longer service life.

• Housing: durable die-cast aluminum construction
• Stability: rubber base to prevent slipping and vibrations

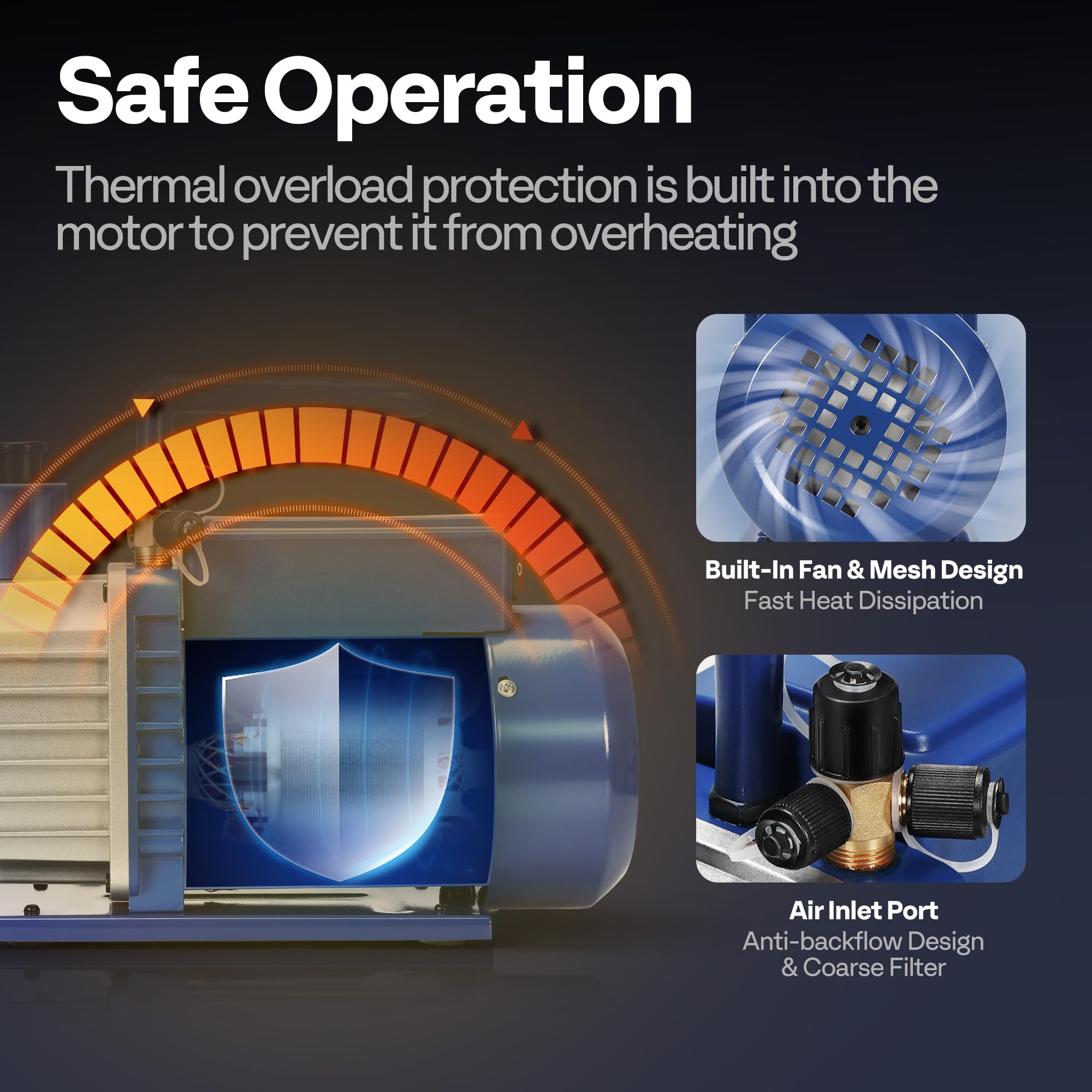

• Thermal safeguards: thermally protected motor and cooling fan
• Heat control: T-shaped motor fins and mesh vents for effective dissipation

Who this is for: technicians who service residential and commercial HVAC systems, automotive air conditioning specialists, and refrigeration pros who need a reliable, portable vacuum pump compatible with A2L refrigerants and conventional gases. If you require a sparkless, service-friendly 5 CFM two-stage pump that balances deep evacuation performance with practical maintenance features, the VIVOHOME A2L 1/2 HP pump is designed to meet those needs.
