Wadoy Single Engine Key Switch Panel for Yamaha 12V — 10‑Pin Harness, On‑Off‑Start

Wadoy’s single engine key switch panel is a drop-in 12V replacement that restores On‑Off‑Start control for Yamaha-compatible outboards using a 10‑pin harness.

Designed for boat owners and marine technicians who need a straightforward ignition replacement, this Wadoy key switch panel fits control boxes that use the Yamaha 704 series 10‑pin connector. It’s built to replace worn or damaged panels and returns basic ignition functions—no complex rewiring required. The unit includes the switch, a keyed ignition, a 10‑pin wire harness and mounting screws so you can reinstall quickly.

How do I know this panel will fit my Yamaha control box?

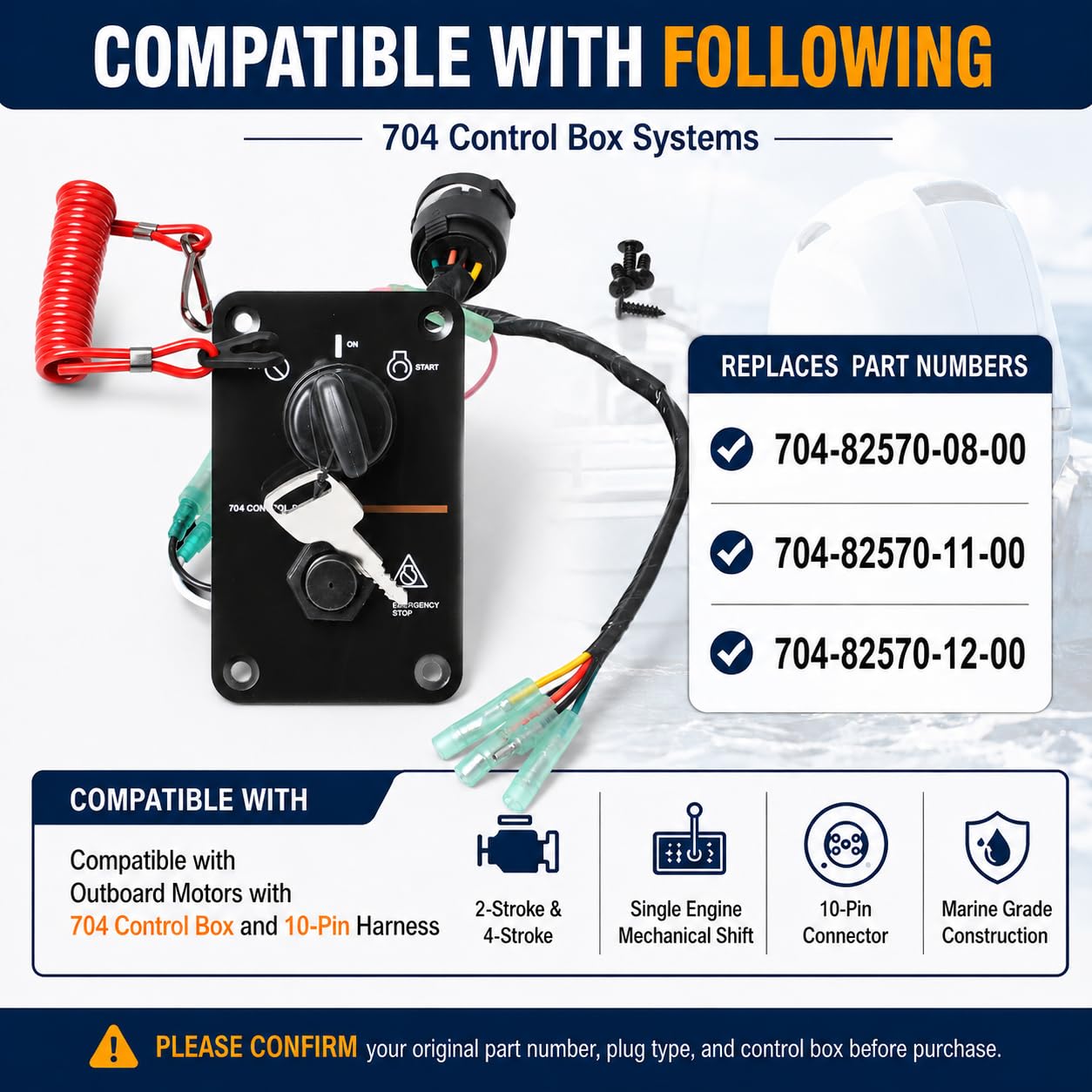

Confirm fitment by checking your existing part number or the connector type. This Wadoy panel is made to match the Yamaha 704 control boxes that use a 10‑pin plug and aligns with several OEM part numbers.

• Compatible with Yamaha 704 control box systems that use a 10‑pin wiring harness.
• Intended replacements include part numbers 704‑82570‑08‑00, 704‑82570‑11‑00, and 704‑82570‑12‑00.
• Fits many 2‑stroke and 4‑stroke mechanical shift outboards—verify your original plug before purchase.

What functions does the Wadoy ignition panel provide?

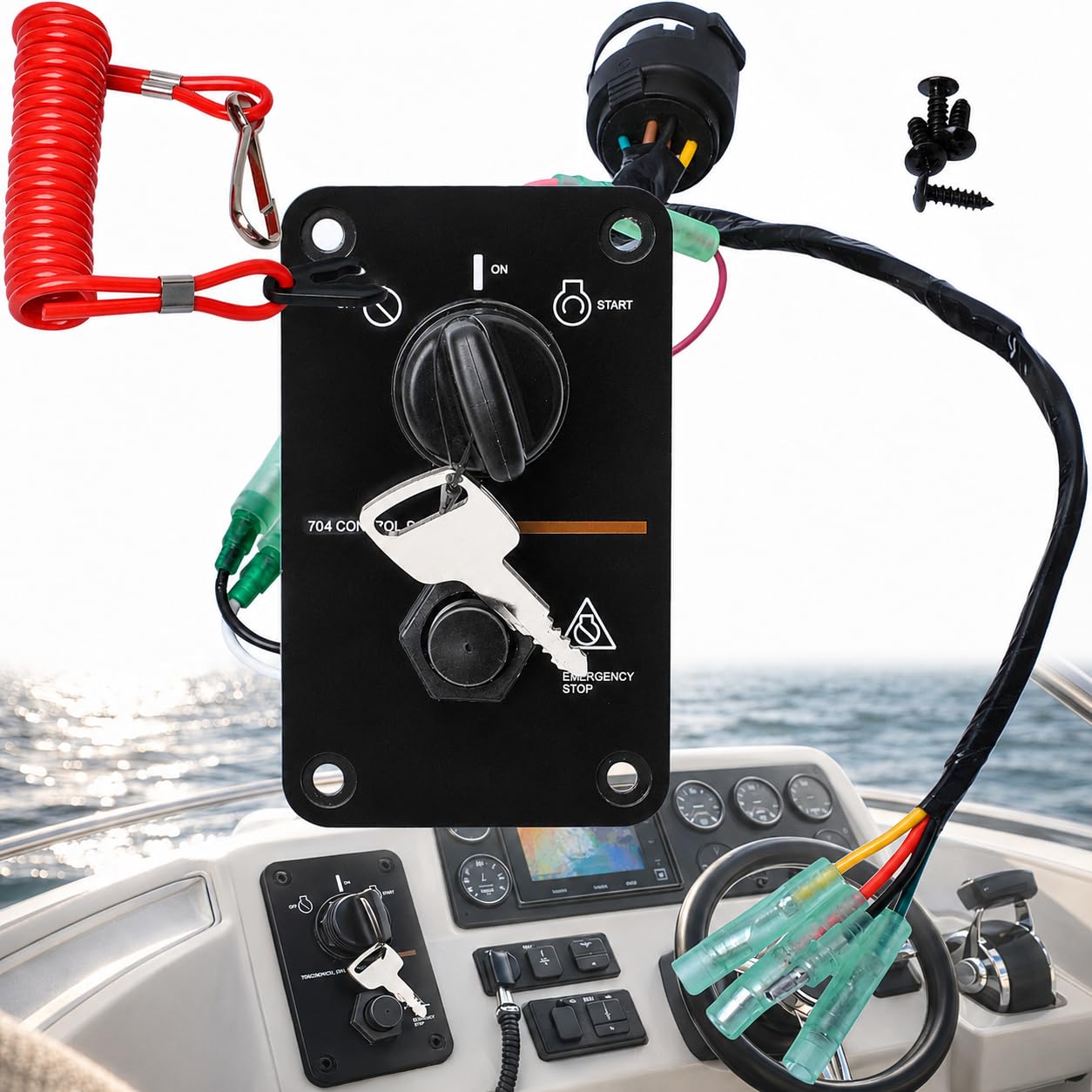

The panel supplies the standard On‑Off‑Start key operation required for single‑engine setups. It restores the basic electrical control so you can start, stop, and secure the engine like the original switch panel did.

• Key positions: On, Off, Start for straightforward engine control.
• Single‑engine configuration—designed only for one outboard engine.
• Includes a keyed ignition to replace lost or damaged keys and reduce tampering.

How difficult is installation and what’s included in the package?

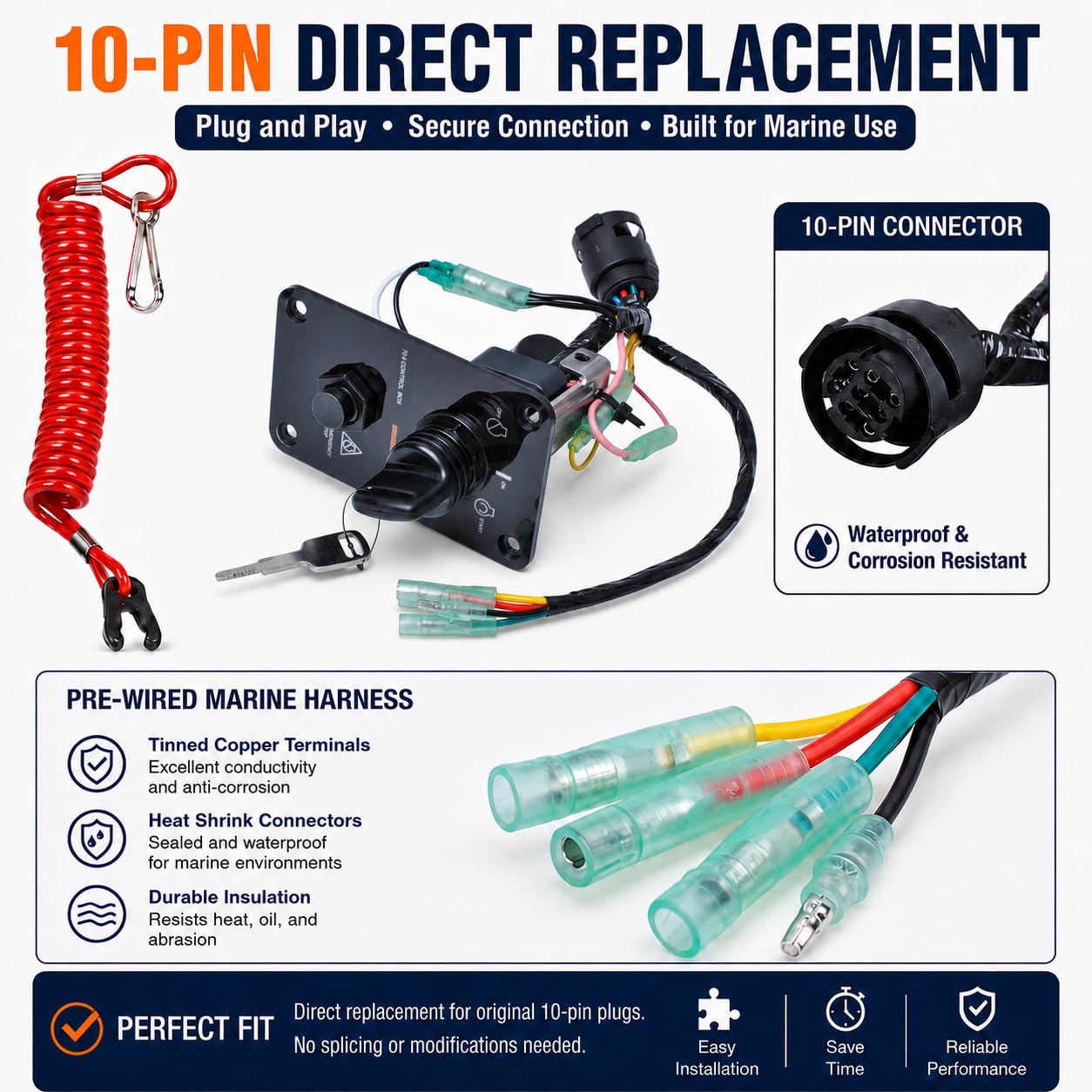

Installation is intended to be simple: the panel arrives with a prewired 10‑pin harness, mounting screws, and a key, so you can swap it into the dash without extensive rewiring. Pre‑drilled mounting holes match common dash layouts to speed the process.

• Package contents: 1 key switch panel, 1 key, 1 wire harness (10‑pin), and 4 mounting screws.
• Pre‑drilled mounting holes and included screws simplify replacement.
• 10‑pin plug design keeps wiring straightforward—retain original connector orientation where possible.

Will this unit match OEM quality and safety expectations?

This Wadoy component is manufactured as a compatible aftermarket replacement and is intended to restore normal ignition operation; it is not an original Yamaha part. It’s built to meet the practical demands of marine use, but always confirm electrical compatibility before installation.

• Aftermarket replacement designed to be functionally equivalent to the OEM panel.
• Use original wiring diagrams or consult a marine technician if unsure about electrical connections.
• Inspect seals and mounting to maintain water resistance and safe operation after installation.

Who is this for? This Wadoy single engine key switch panel is aimed at boat owners, marina technicians, and DIYers who need a reliable, economical replacement for a failed or damaged ignition panel on Yamaha‑compatible 12V outboard control boxes. It’s especially useful when the original panel is cracked, unresponsive, or missing a key and you want a quick, plug‑and‑play style swap that restores basic engine start/stop functionality without a full control‑box overhaul.
