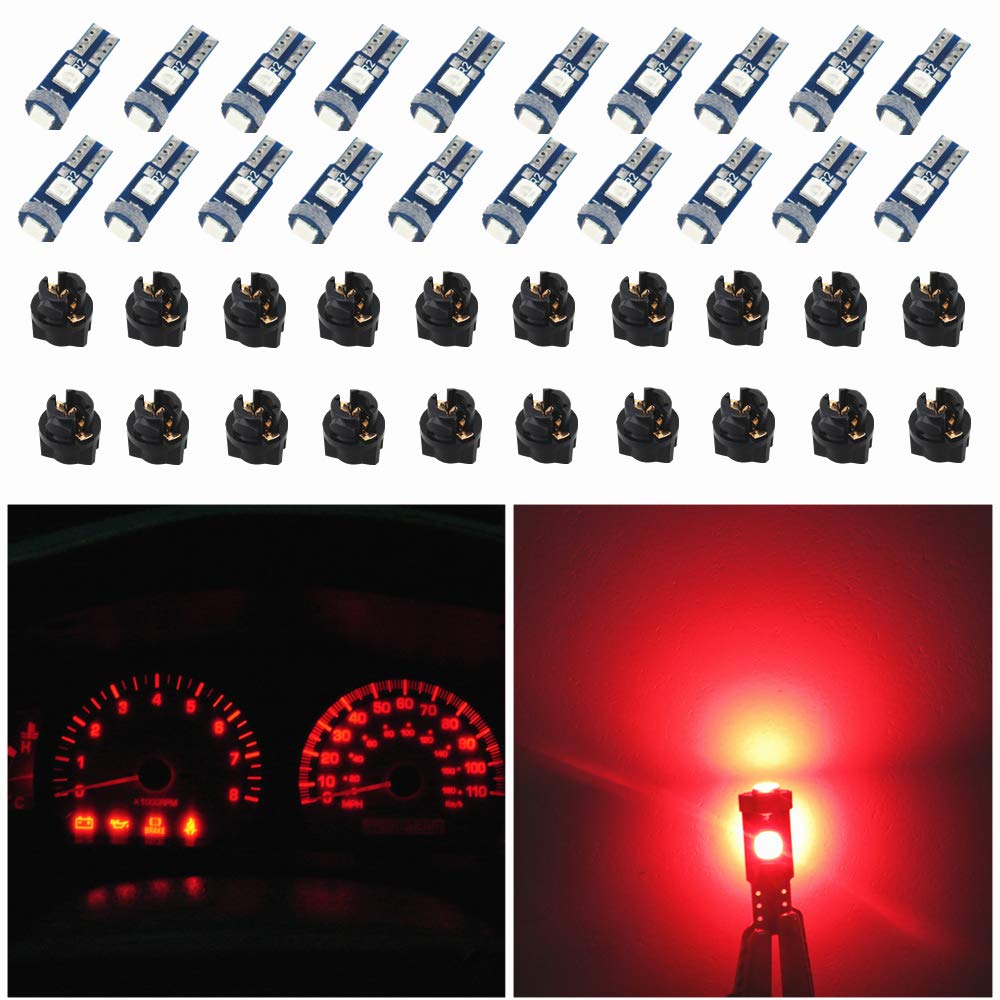

WLJH 74 T5 LED Dash Bulbs Red Pack of 20 — 100 lm, Dimmable Instrument Panel Replacement

WLJH 74 LED T5 red dash bulbs are compact, dimmable replacement lights designed to refresh instrument panels, indicator lamps and interior gauge clusters with bright, even red illumination.

These WLJH bulbs use three 3030 SMD LEDs arranged to cast light upward and to the sides for a wider, more uniform glow than common small-chip LEDs. Rated for 12V systems and sold in a convenient pack of 20, they are sized to fit many wedge-style sockets used in automotive and motorcycle dash applications (74 / T5 equivalents). They are polarity-sensitive and designed for simple swap-in replacement of incandescent or older LED bulbs when socket type and orientation match.

How bright and dimmable are these bulbs for dashboard use?

The WLJH 74 bulbs deliver about 100 lumens using higher-output 3030 SMD chips, producing strong but controllable red light for instruments and indicators. They support dimming behavior through factory dash dimmer circuits in most vehicles, giving you flexible visibility day or night.

• 100 lumen output per bulb with one top-facing and two side-facing LEDs
• Works with dash dimmer controls in many vehicles—reduces glare at night
• Brighter and more even than older 5050 / 2835 style chips

Which sockets and applications do these 74 T5 bulbs fit?

These bulbs are engineered to replace common wedge-style bulbs labeled 74, 2721, 37, 85, 286 and similar T5 family sizes found in instrument clusters, status indicators and small interior lamps. They’re suitable for cars, trucks and motorcycles when the socket and physical dimensions match.

• Compatible sizes: T5 family including 17, 18, 24, 27, 37, 58, 70, 73, 74, 79, 85, 86, 206, 207, 286, 306–308, 406–407, 2721
• Common uses: dash gauges, shift indicator, radio and clock backlighting, ashtray and glovebox lights
• Check socket type and bulb length before purchase to ensure fit

How easy is installation and what should I watch for?

Installation is straightforward: remove the old bulb from the wedge socket, insert the WLJH LED, then rotate the socket back into the dashboard. Because these LEDs are polarity sensitive, if the bulb does not light immediately, remove it, rotate 180° and reinsert.

• Do not pull the LED out of its socket once installed—rotate the socket instead
• If it doesn't illuminate, swap bulb orientation to correct polarity
• Confirm 12V system and socket compatibility before installation

Will these bulbs work reliably and what are best-practice tips?

When matched to the correct socket and vehicle system, these LEDs offer consistent performance and longer life than incandescent bulbs. Follow simple checks—size, socket type, and polarity—to avoid fit or function issues and maintain stable dash illumination.

• Verify physical fit and electrical compatibility before finalizing installation
• Use in clusters that accept wedge T5/74 style bulbs for best results
• Pack of 20 provides spares for multiple fixtures or future replacements

Who is this for? Drivers, mechanics, restorers and DIYers who want crisp red backlighting for instrument panels, indicator lamps and small interior fixtures will find this WLJH 74 LED pack useful. It’s ideal for people replacing dim, yellowed incandescent bulbs or upgrading to a more consistent LED glow across multiple dash indicators. Make sure your vehicle uses compatible T5/74 wedge sockets and a 12V supply before buying.
