XTOOL TS100 PRO TPMS Tire Pressure Sensor 315/433MHz Dual-Frequency Metal Valve — Programmable OEM Replacement, 0–900 kPa

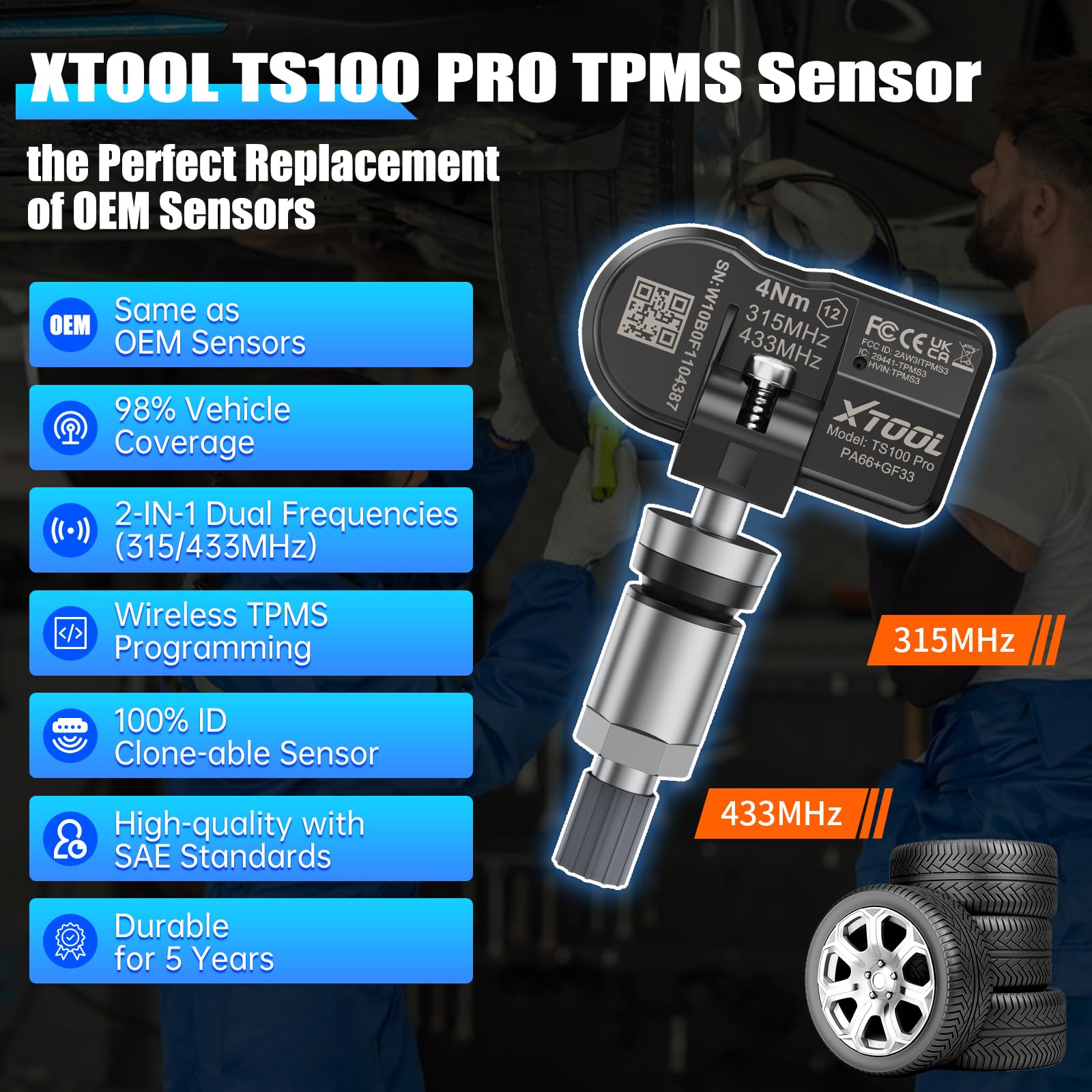

The XTOOL TS100 PRO TPMS Sensor is a dual-frequency (315/433MHz) metal-valve tire pressure sensor designed as a direct-fit, programmable OEM replacement for most passenger vehicles when used with XTOOL TPMS programming tools.

The TS100 PRO brings a compact, durable sensor option intended to replace factory units without expensive dealer visits. Lightweight at 12 g and built for wide temperature extremes, this sensor supports a 0–900 kPa pressure range and up to five years of battery life. It’s sold as a 2-in-1 solution—able to operate on either 315 MHz or 433 MHz bands—so it covers the majority of international vehicle TPMS systems, but note programming must be performed with compatible XTOOL TPMS tools such as the TP150 or IP819TP.

How does the TS100 PRO ensure compatibility with my vehicle?

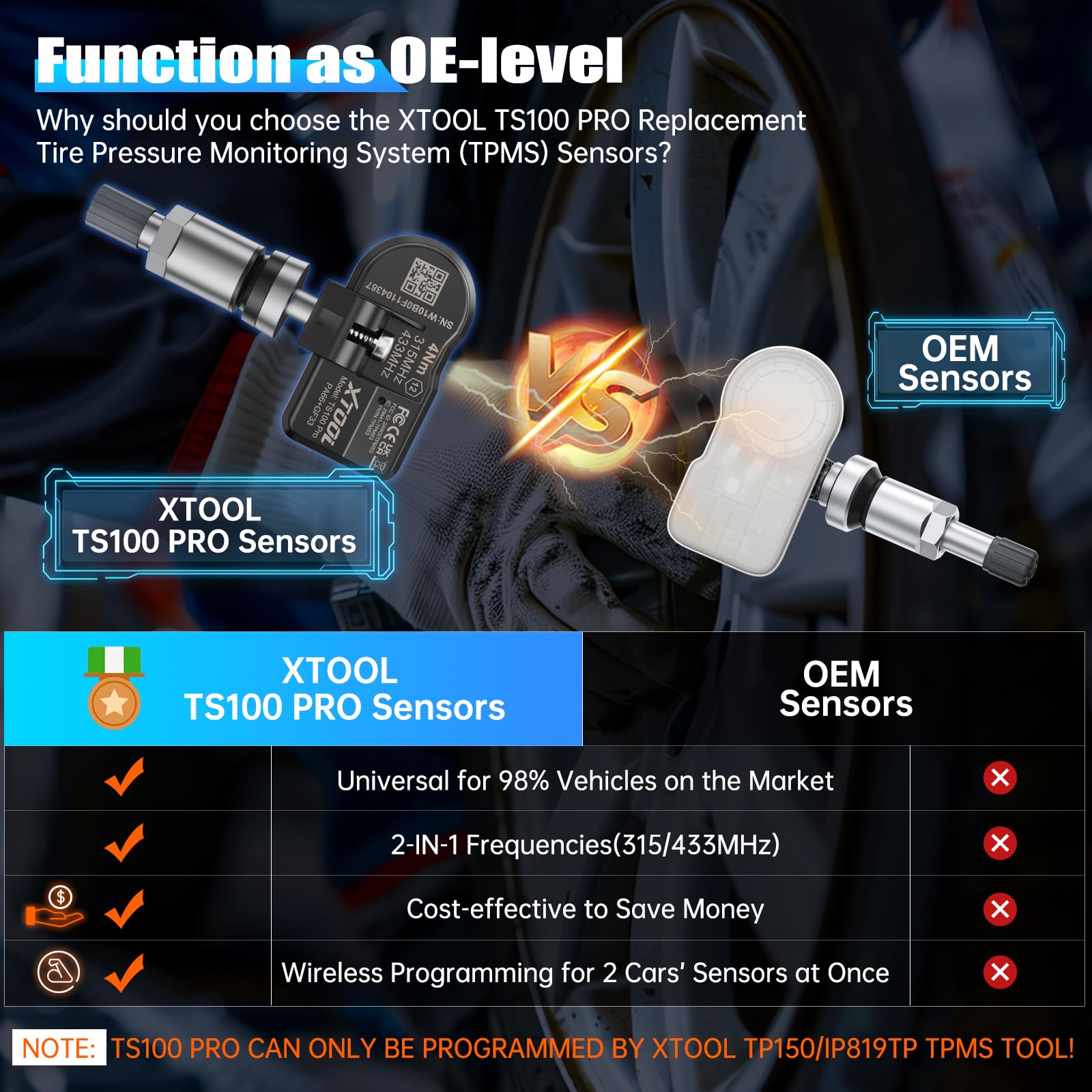

The TS100 PRO was engineered to match the form and function of many original equipment sensors. With a metal valve stem and support for both 315 MHz and 433 MHz frequencies, it adapts to a broad set of OE mounting types and signal standards.

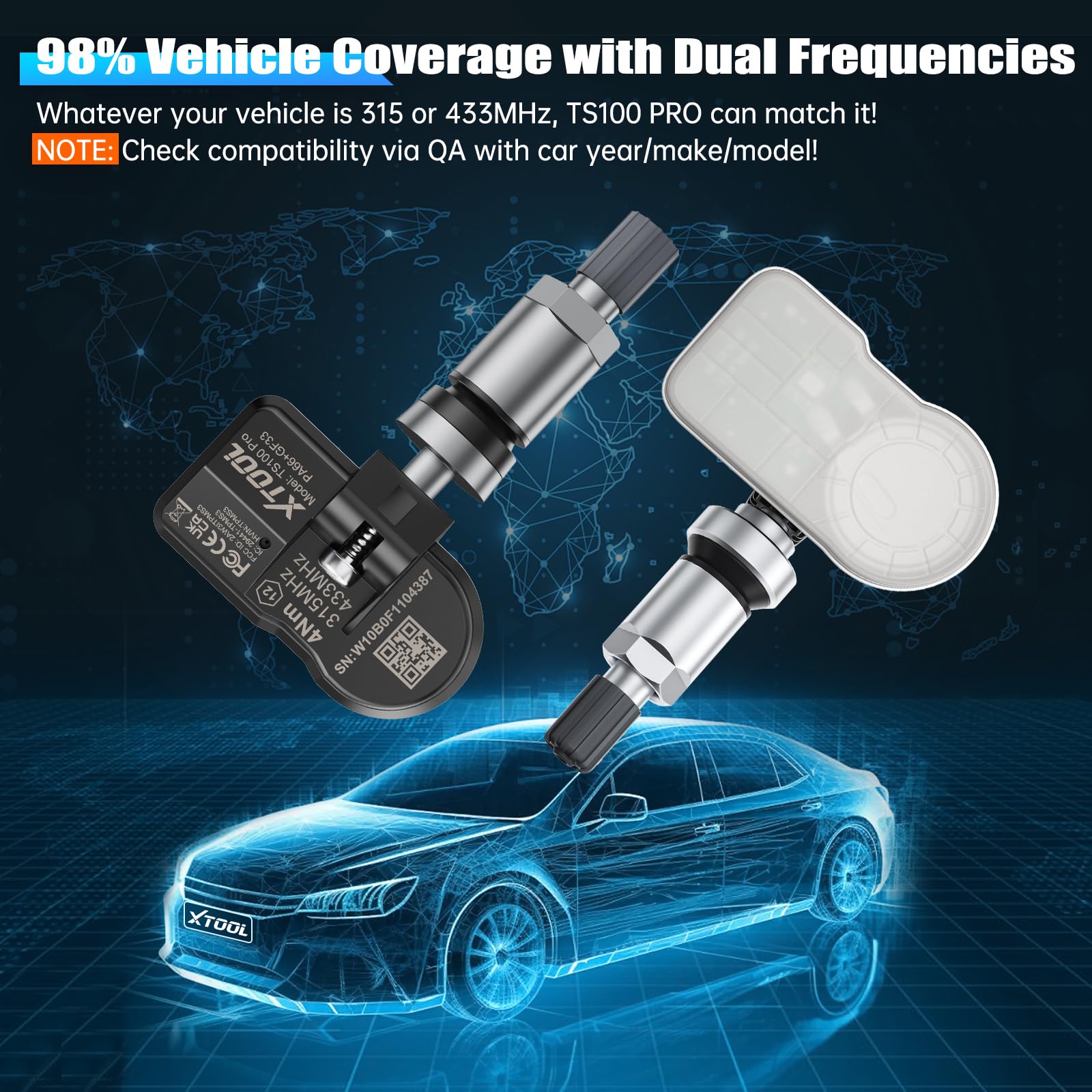

• Dual-frequency design covers the most common global TPMS bands (315/433 MHz).
• Metal valve construction matches OE valve durability and sealing requirements.
• Advertised fitment for about 98% of vehicle models with appropriate programming.
• Requires XTOOL TPMS tool programming to write the correct IDs and frequency settings.

What are the performance and durability specifications?

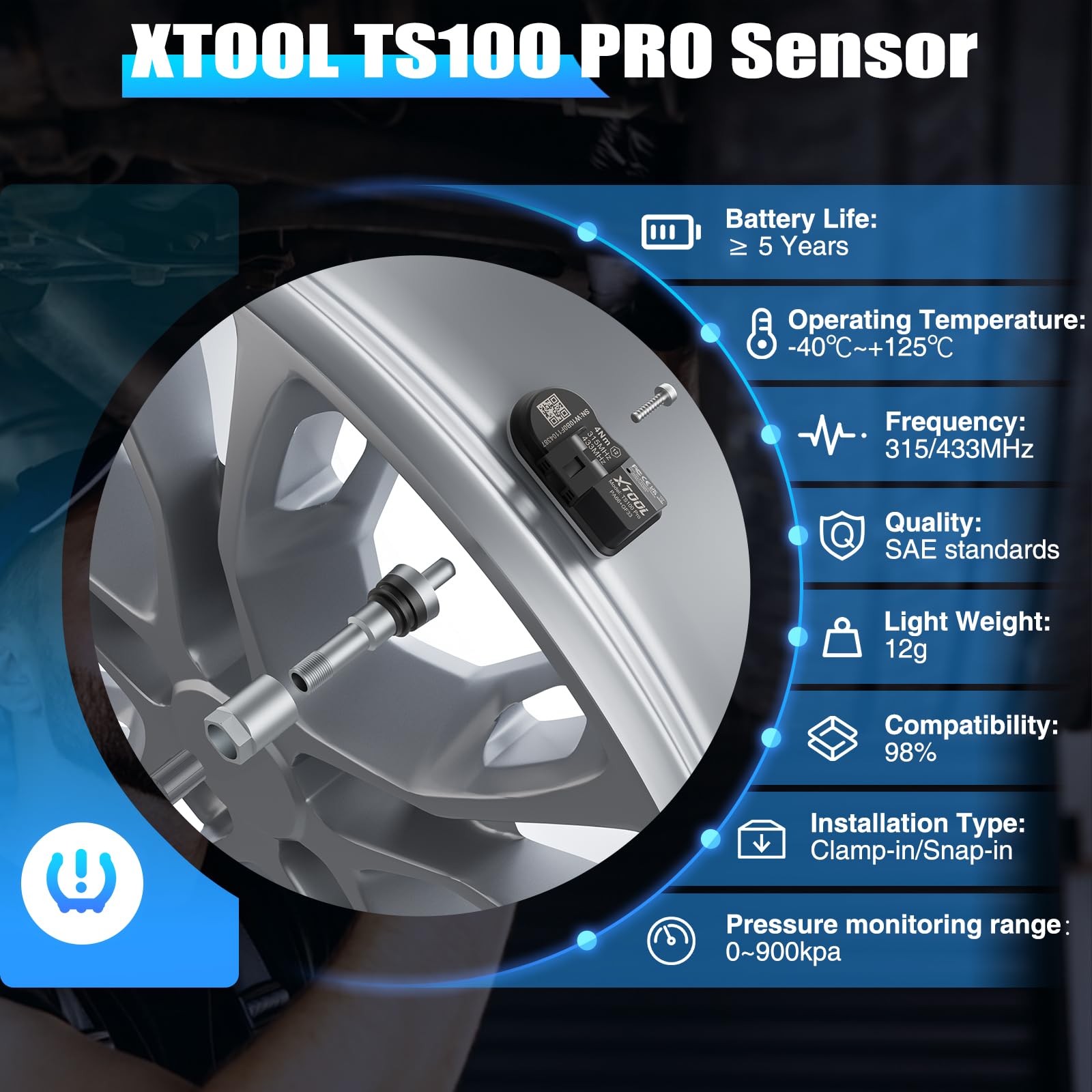

Performance focuses on long-term reliability in harsh conditions: the TS100 PRO measures pressures from 0 to 900 kPa and is rated for extreme temperatures. Its internal battery and low weight allow consistent reporting while minimizing added unsprung mass on the wheel.

• Pressure measurement range: 0–900 kPa for passenger tires.
• Operating temperature span: -40 °C to 125 °C to tolerate winter cold and hot environments.
• Lightweight design: approximately 12 g per sensor for reduced rotational impact.
• Battery life: up to 5 years depending on usage and driving conditions.

How is the TS100 PRO installed and programmed?

Installation follows a straightforward five-step process, after which the sensor is programmed and relearned into the vehicle using XTOOL’s dedicated TPMS tools. The sensor must be activated and written with the correct ID and frequency via an XTOOL programmer.

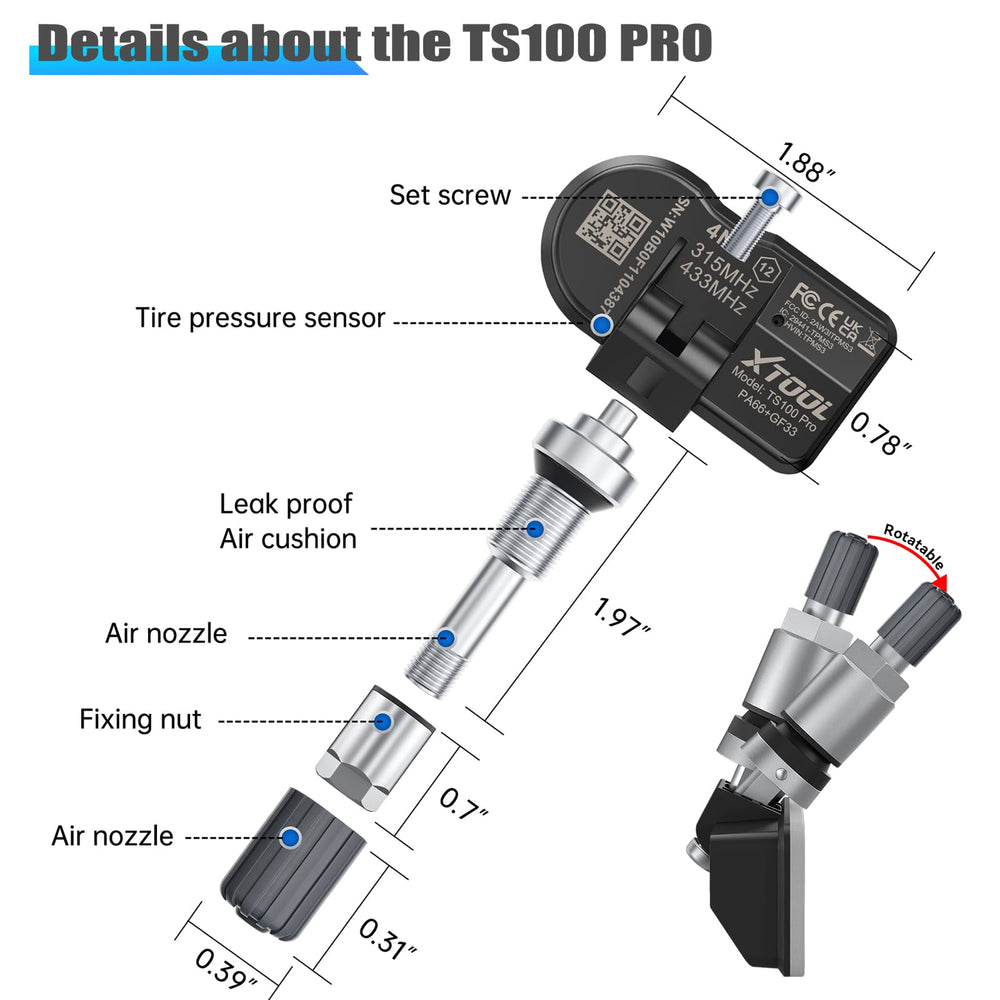

• Five-step physical installation: remove old valve, mount metal valve, torque to spec, seat with new sensor, check leak-tightness.

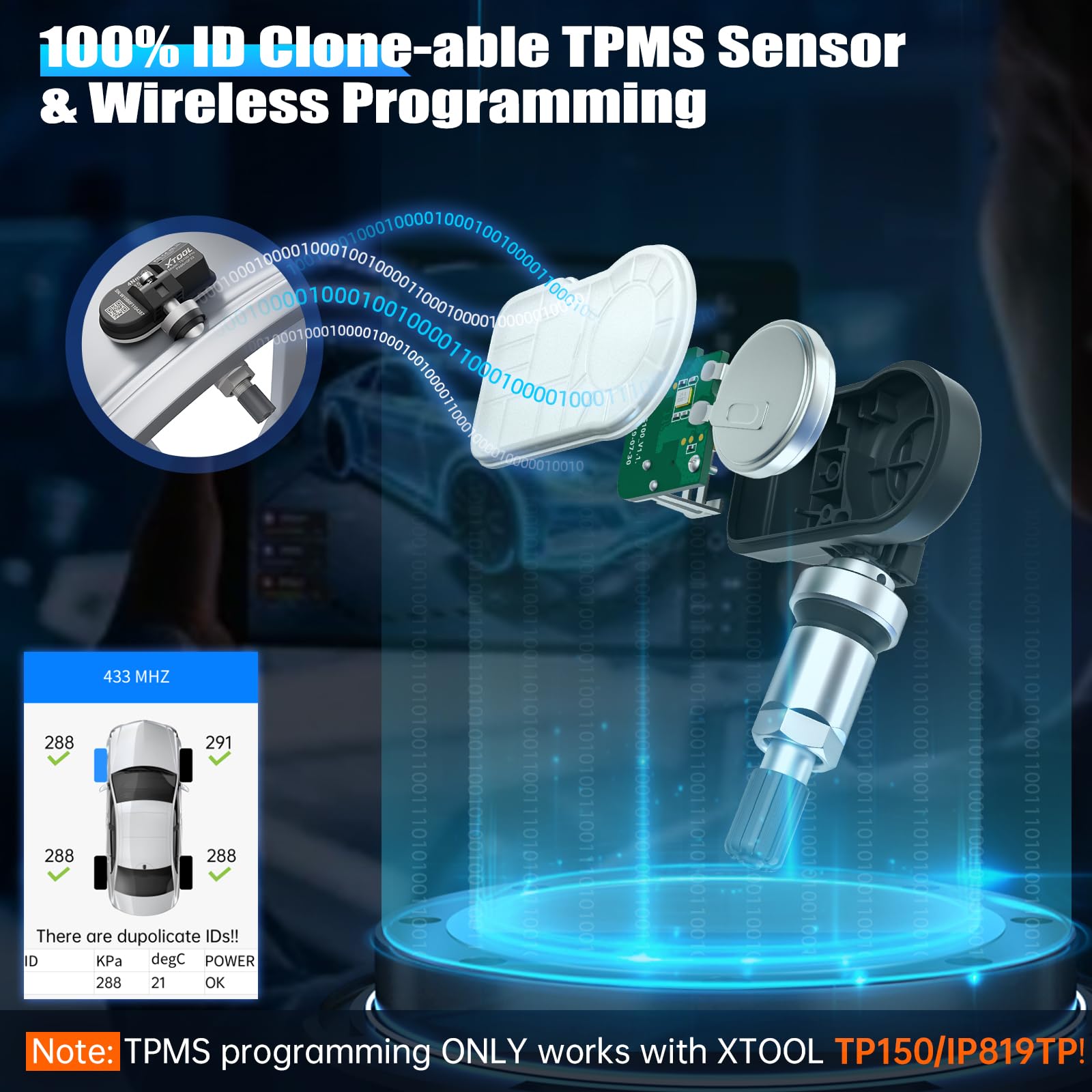

• Program and activate with XTOOL TPMS tools (e.g., TP150, IP819TP).
• Use diagnostic/relearn functions on the tool to sync sensor IDs with the vehicle ECU.
• Quality checks include mechanical, temperature, and performance validations before shipping.

Will the TS100 PRO integrate with my existing TPMS toolset?

The sensor itself is compatible with common vehicle systems, but programming and activation require XTOOL TPMS tools. Other brands’ TPMS programmers cannot write the TS100 PRO—this is important to plan for when replacing sensors.

• Works seamlessly with XTOOL TPMS tools for programming and diagnostics.
• Not programmable by non-XTOOL TPMS brands—use TP150 or IP819TP for setup.
• After programming, supports standard relearn and diagnostic routines used by technicians.
• Documentation and firmware updates are available through XTOOL support channels.

Who is this for? The XTOOL TS100 PRO TPMS Sensor is aimed at professional technicians, independent repair shops, and knowledgeable DIYers who need a cost-effective, OEM-style replacement sensor for a wide range of vehicles. Choose the TS100 PRO if you have access to XTOOL TPMS programming tools, require a durable metal-valve sensor, and want a reliable dual-frequency option that simplifies inventory across different vehicle models.
