YELLOW JACKET Refrigerant Charging Scale 220 lb — Ultra-Large LCD, High-Precision 5 g Resolution

YELLOW JACKET Refrigerant Scale is a rugged, high-precision 220 lb electronic charging scale built to weigh recovery tanks and refrigerant cylinders accurately in the field.

This refrigerant charging scale combines a large, easy-to-read LCD, durable aluminum construction, and precise sensing to streamline HVAC refrigerant charging, recovery, and inventory tasks. It supports four weight units and multiple display modes, offers a non-slip 9" x 9" platform to stabilize different tank sizes, and ships with a waterproof hard case and a DV 9V battery so you can begin work immediately. Built protections and straightforward controls make it practical for technicians who need reliable in-vehicle tools or portable site gear.

How accurate is this scale for HVAC refrigerant charging?

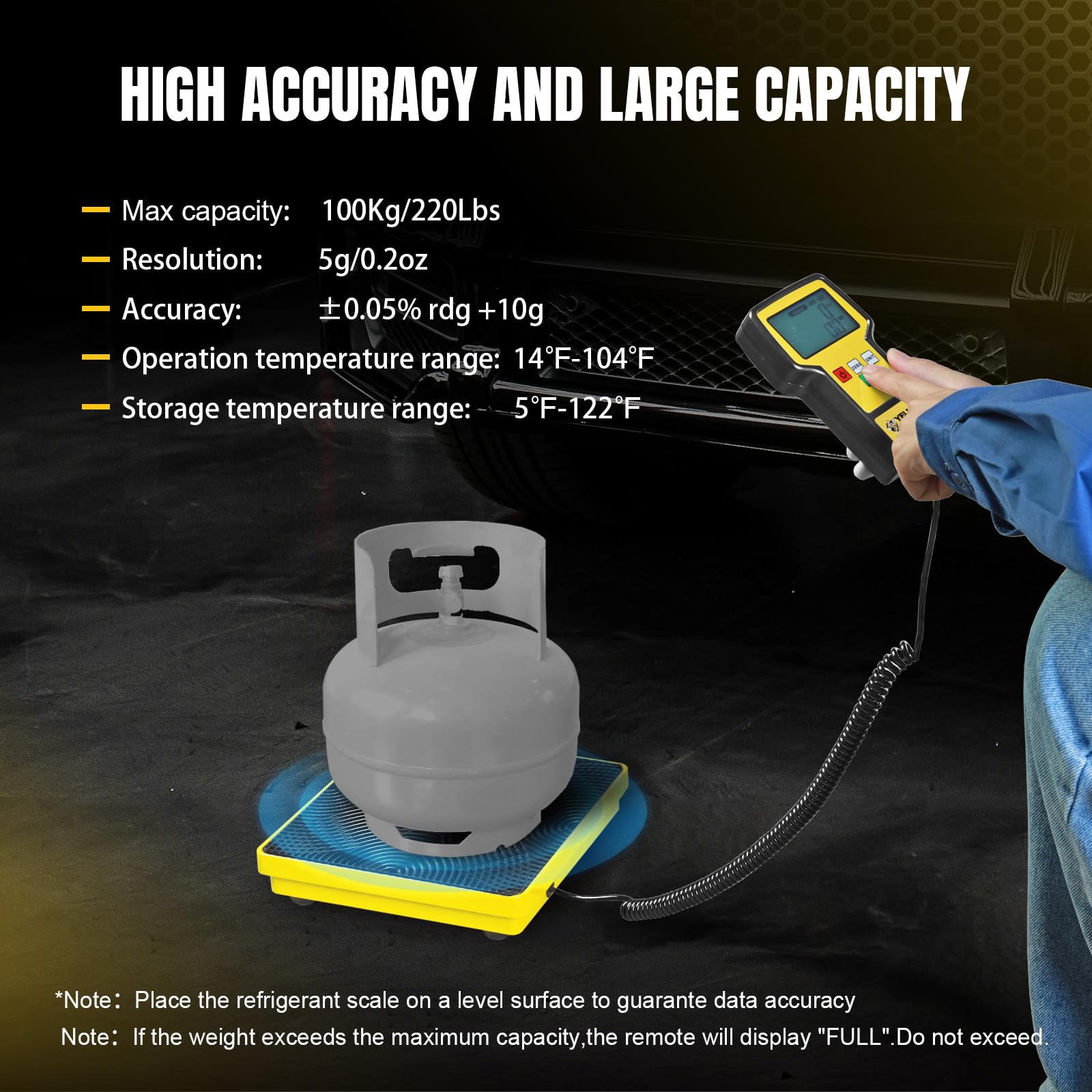

The YELLOW JACKET scale delivers high-precision readings up to a 220 lb (100 kg) maximum capacity. Typical accuracy is ±0.05% plus 10 g, with resolution down to 5 g (0.2 oz), so it can meet demanding measurement requirements for charging and recovery.

• Max capacity: 220 lb (100 kg).
• Accuracy: ±0.05% + 10 g; resolution: 5 g / 0.2 oz.
• Four display units: g, kg, oz, lb and switchable display modes.

What makes the display and controls user-friendly on the job?

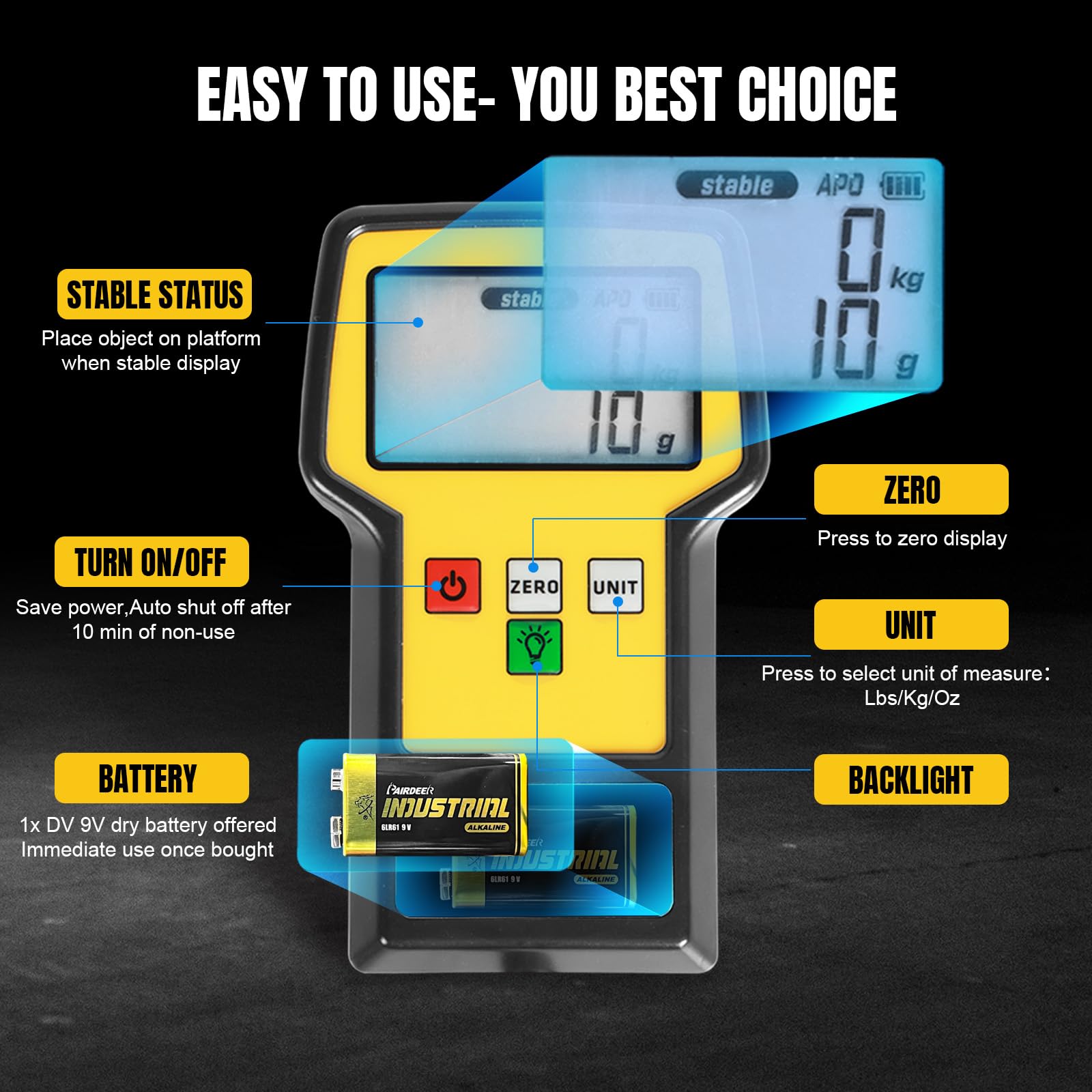

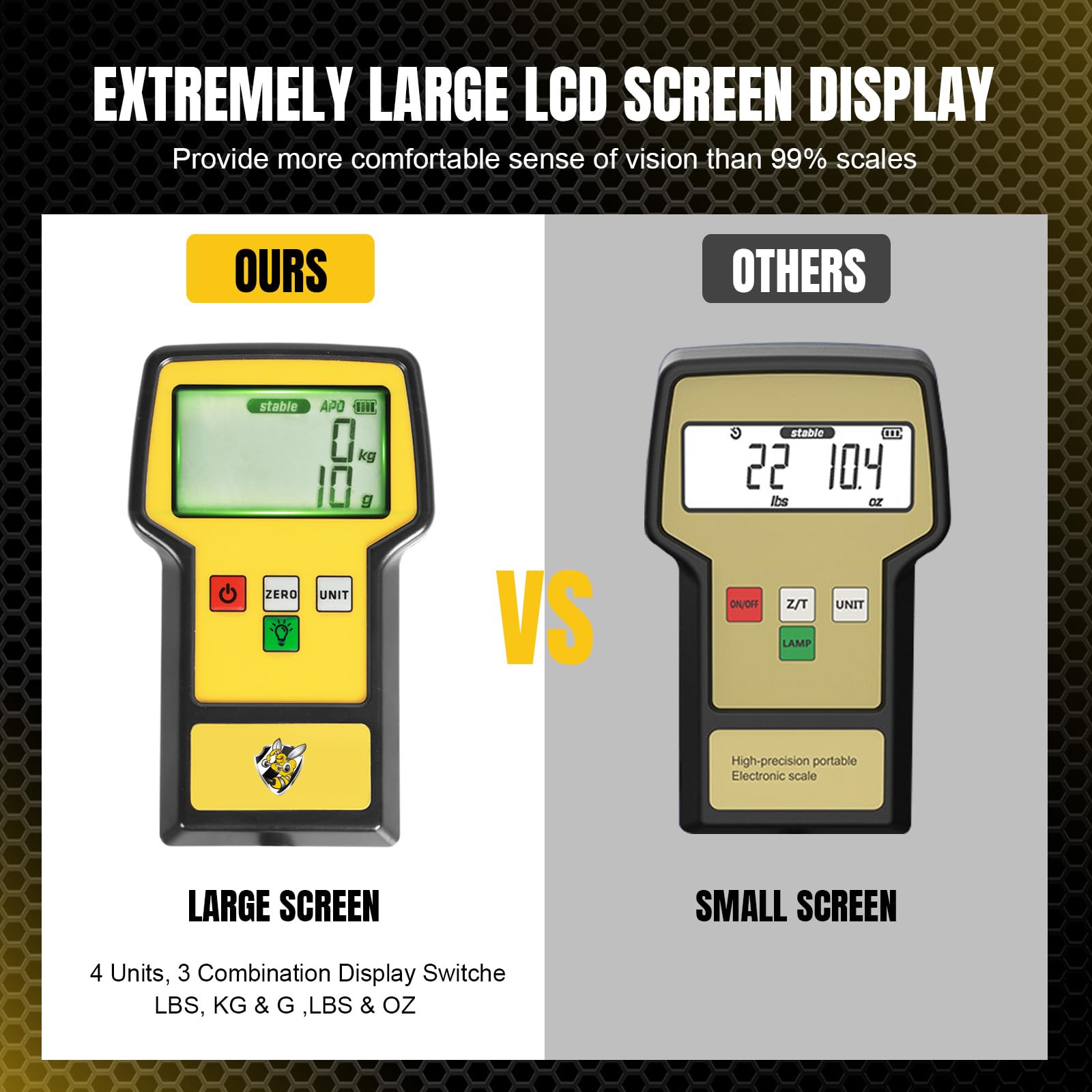

This model features an ultra-large LCD screen that remains legible in low light and includes a 110° bracket so you can angle the display for easy viewing while the scale sits on the floor or a workbench. A four-button control panel simplifies unit changes, tare, and backlight behavior.

• Large backlit LCD for quick, clear reads at a glance.
• 110° adjustable bracket and four-button interface for one-handed use.
• Backlight auto-off after 10 seconds; hold button for constant backlight.

Is the build durable and suitable for fieldwork?

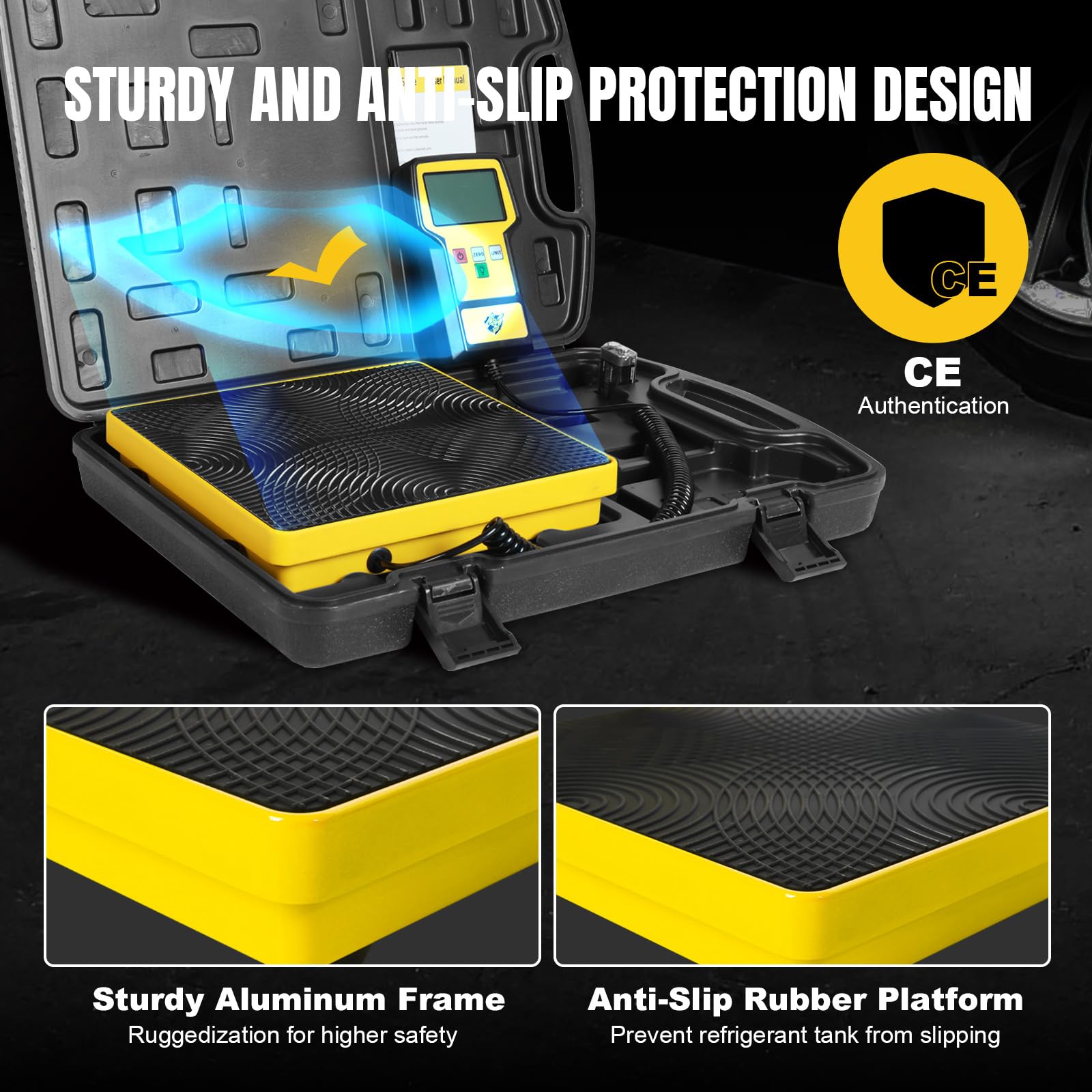

The scale uses a sturdy aluminum-alloy frame and a 9" x 9" platform fitted with non-slip rubber pads to secure tanks during weighing. It includes overload protection that signals "FULL" on the display to prevent sensor damage and a timed auto-shutoff to conserve battery life.

• Rigid aluminum construction for stable, long-lasting service.
• Non-slip 9" x 9" platform accommodates various tank diameters.
• Overload warning, 10-minute auto-off, and backlight timeout functions.

How portable and ready-to-use is this refrigerant scale?

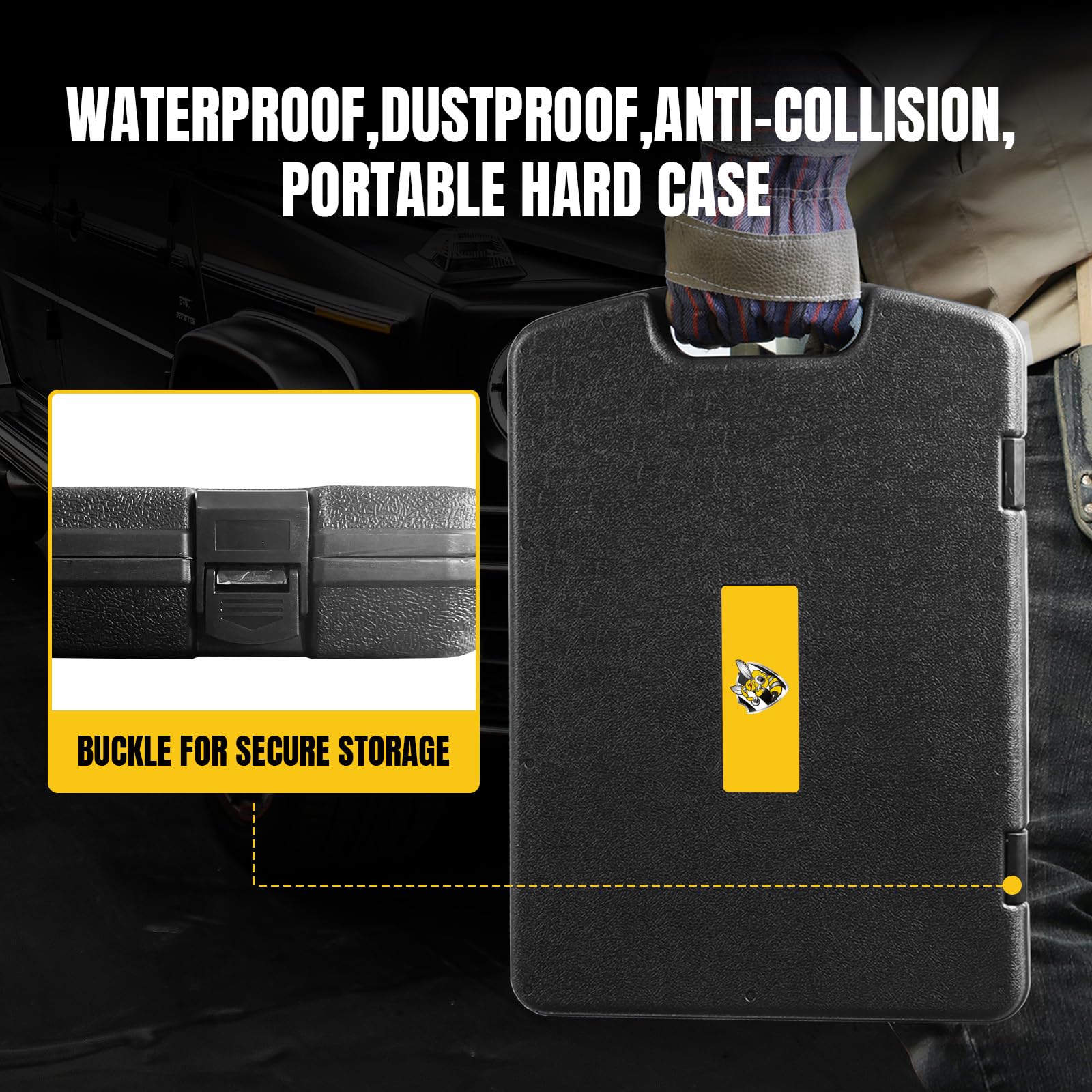

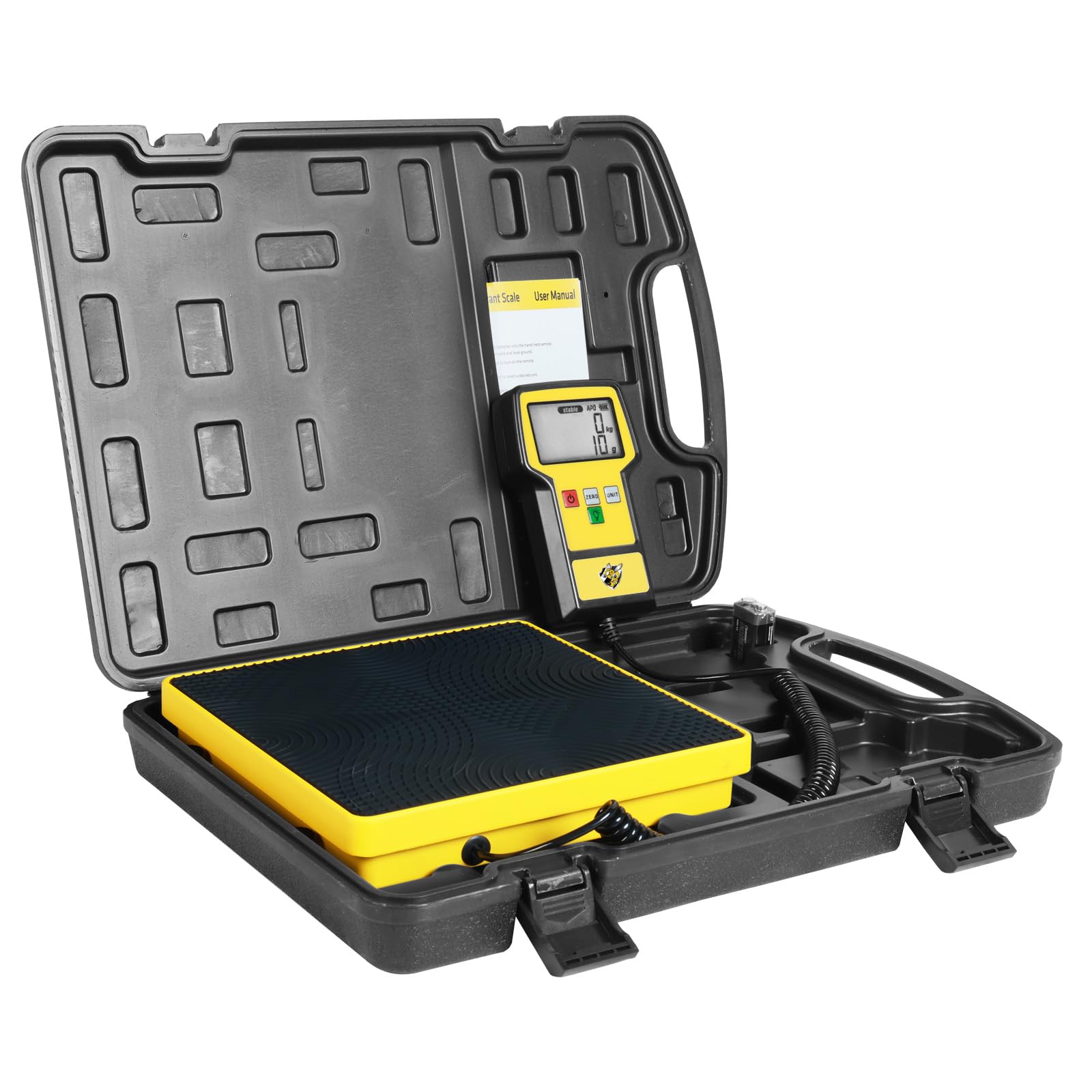

The package arrives ready for immediate field use with a DV 9V dry battery providing up to about 40 hours of operation. A waterproof, dustproof hard case protects the scale during transport and storage, making it a practical tool for service vans and job-site carts.

• Includes DV 9V battery; approximately 40 hours run time.
• Waterproof, dustproof hard case for transport and storage protection.
• Compact footprint and light weight for easy carrying between jobs.

Who is this for: HVAC technicians, refrigeration service professionals, and facilities maintenance teams who need a dependable, precise refrigerant charging scale that’s portable and built for everyday field use. The YELLOW JACKET 220 lb scale is suited to those who require accurate dosing and recovery of all common refrigerants, a rugged platform that secures tanks, and a clear display that speeds up on-site workflow without complicated setup.
