YOOREAL Battery Meter & Hour Gauge 12/24/36/48/72V — 10-LED Charge Indicator, 0–999,999h Log

Keep track of your golf cart or other lead-acid powered vehicle’s charge and runtime with a compact gauge that fits a 43×39mm panel cutout (φ50 mounting). Designed for use on 12V, 24V, 36V, 48V, and 72V lead-acid systems (excluding Trojan batteries), this meter combines a clear color-coded LED state-of-charge display with a digital hour counter and simple snap-in installation.

How does the LED battery indicator show remaining charge?

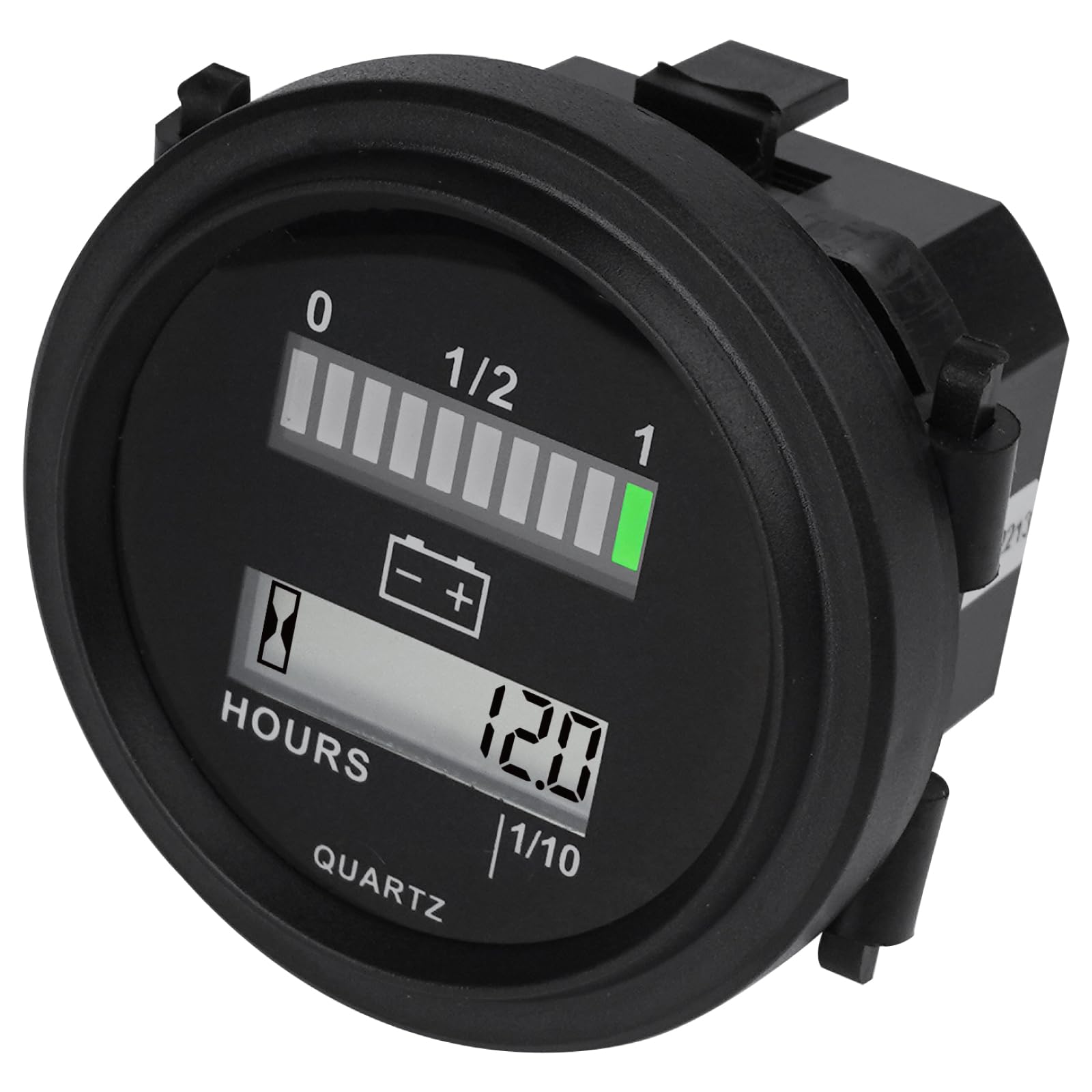

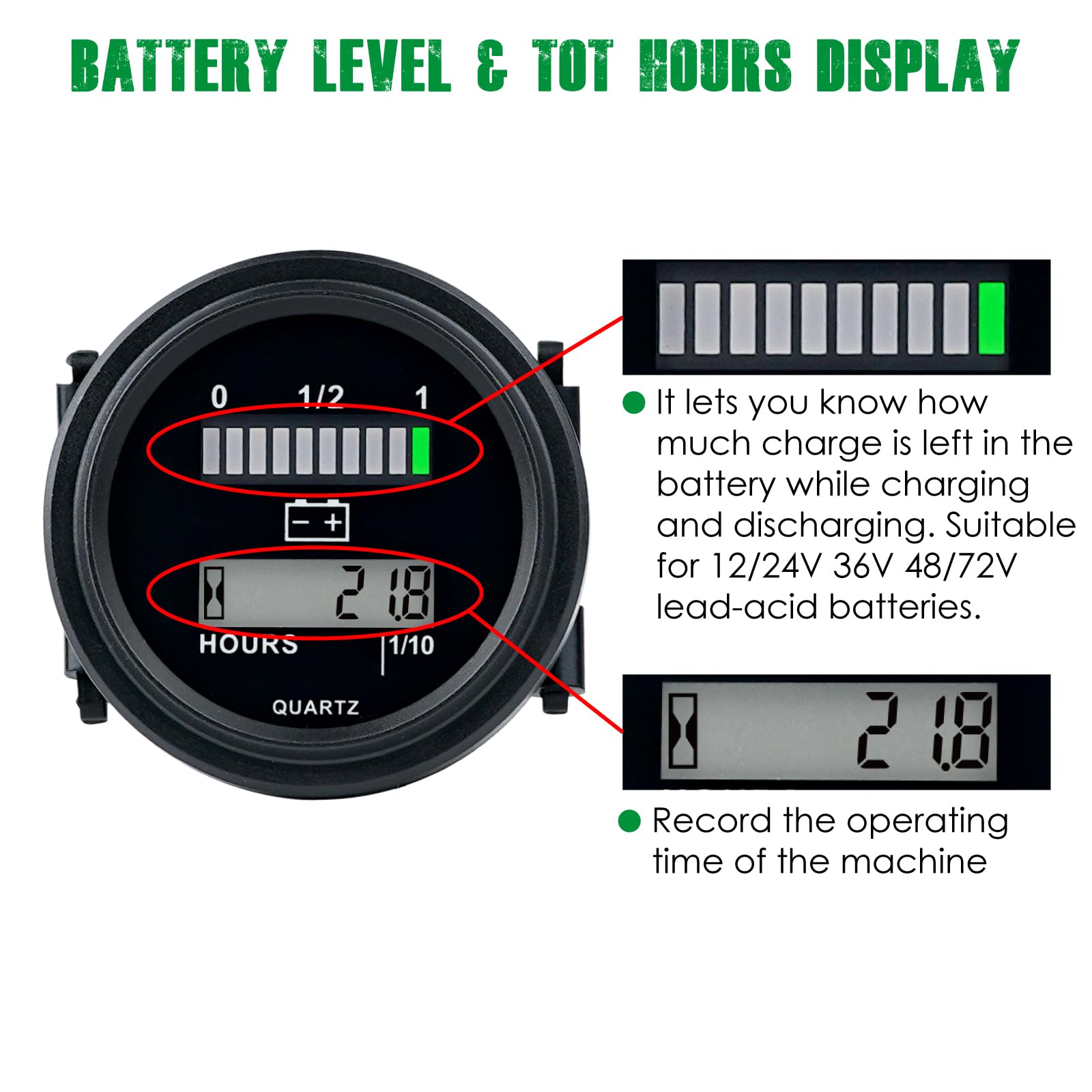

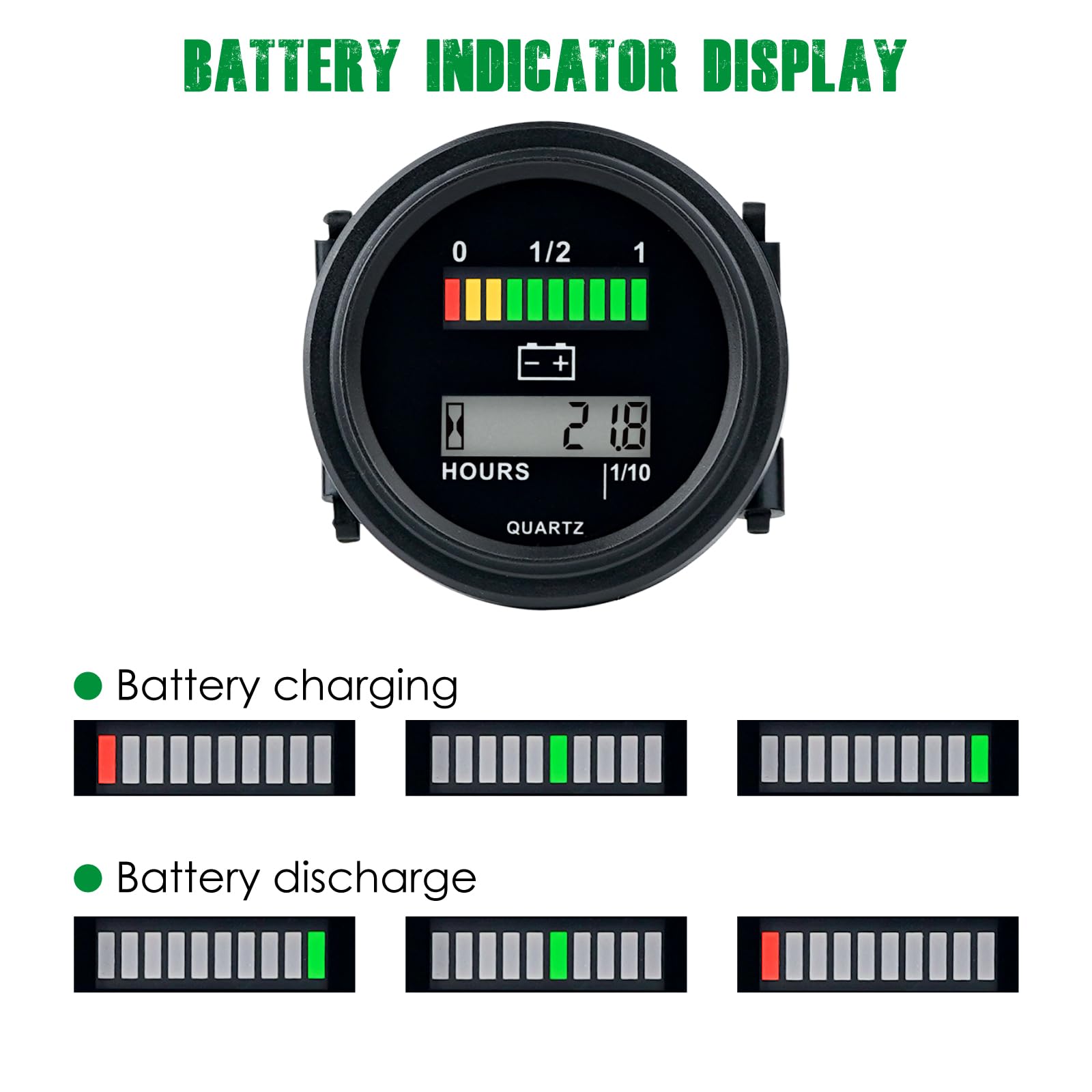

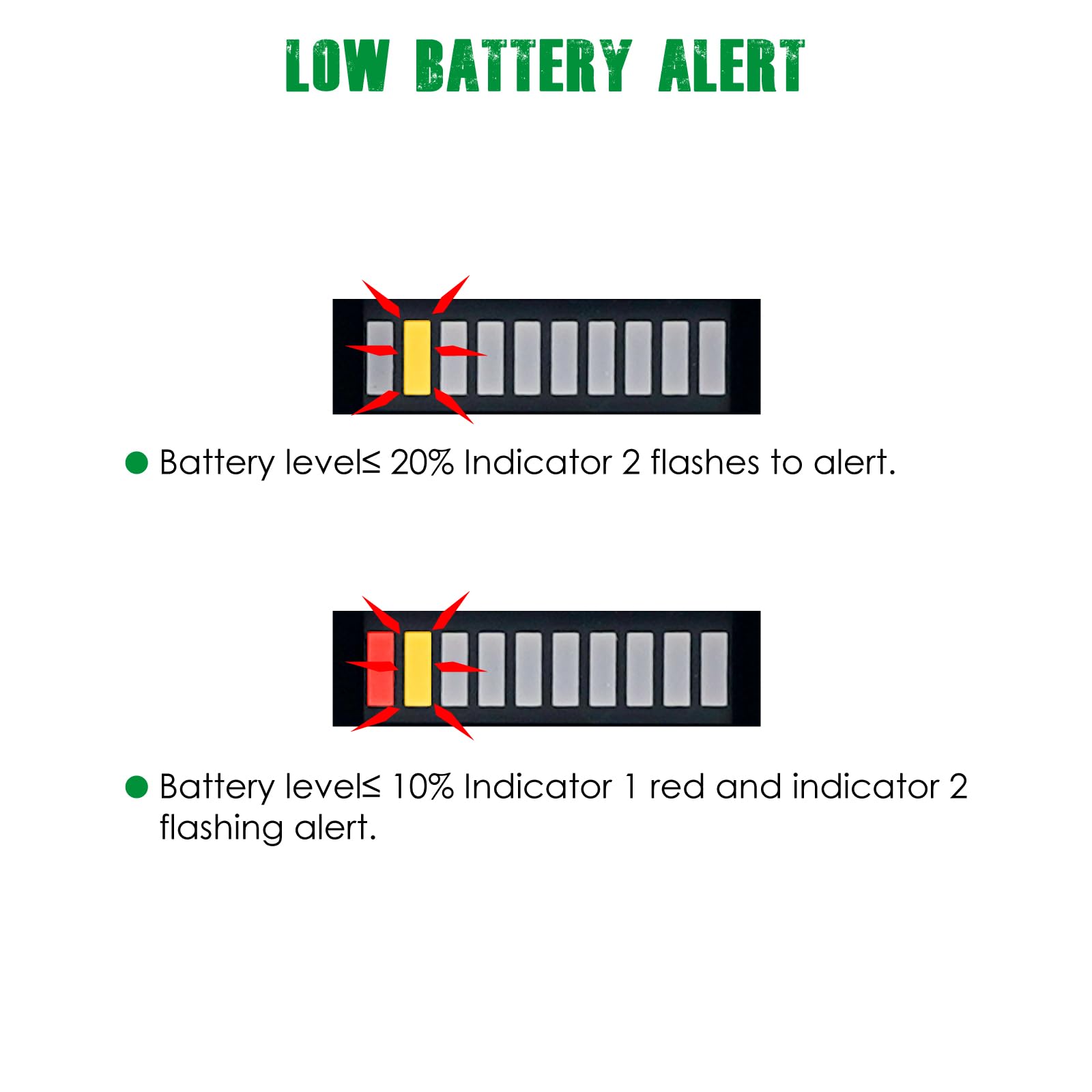

The meter uses a 10-segment LED bar with three colors to communicate battery condition at a glance. Green LEDs indicate healthy charge, yellow signals moderate discharge, and red warns of low battery—visible during daytime and at night thanks to bright LEDs.

• 10-LED single display: 7 green, 2 yellow, 1 red
• Color-coded state-of-charge for quick checks
• Works across 12/24/36/48/72V lead-acid systems (not for Trojan brand)

What does the hour meter record and how do I reset it?

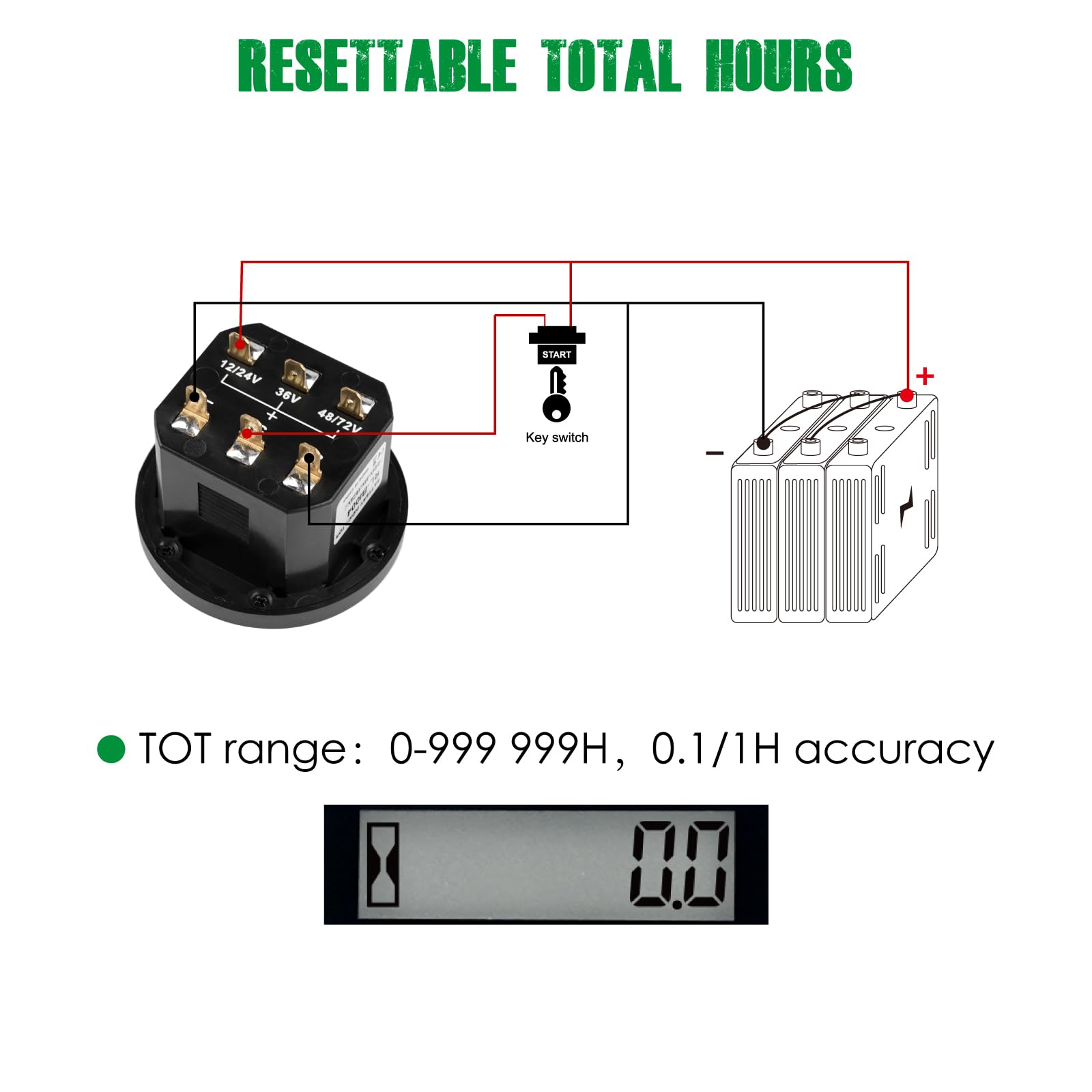

The integrated hour counter logs cumulative run time from 0 up to 999,999 hours so you can schedule maintenance and track usage. Resetting historical data is possible by connecting the "-" and "R" terminals together, which clears the stored hours when servicing or transferring the gauge to another machine.

• Records total operating hours: 0–999,999
• Reset option via "-" and "R" terminal connection
• Useful for maintenance intervals and rental fleet tracking

How easy is installation and what wiring options exist?

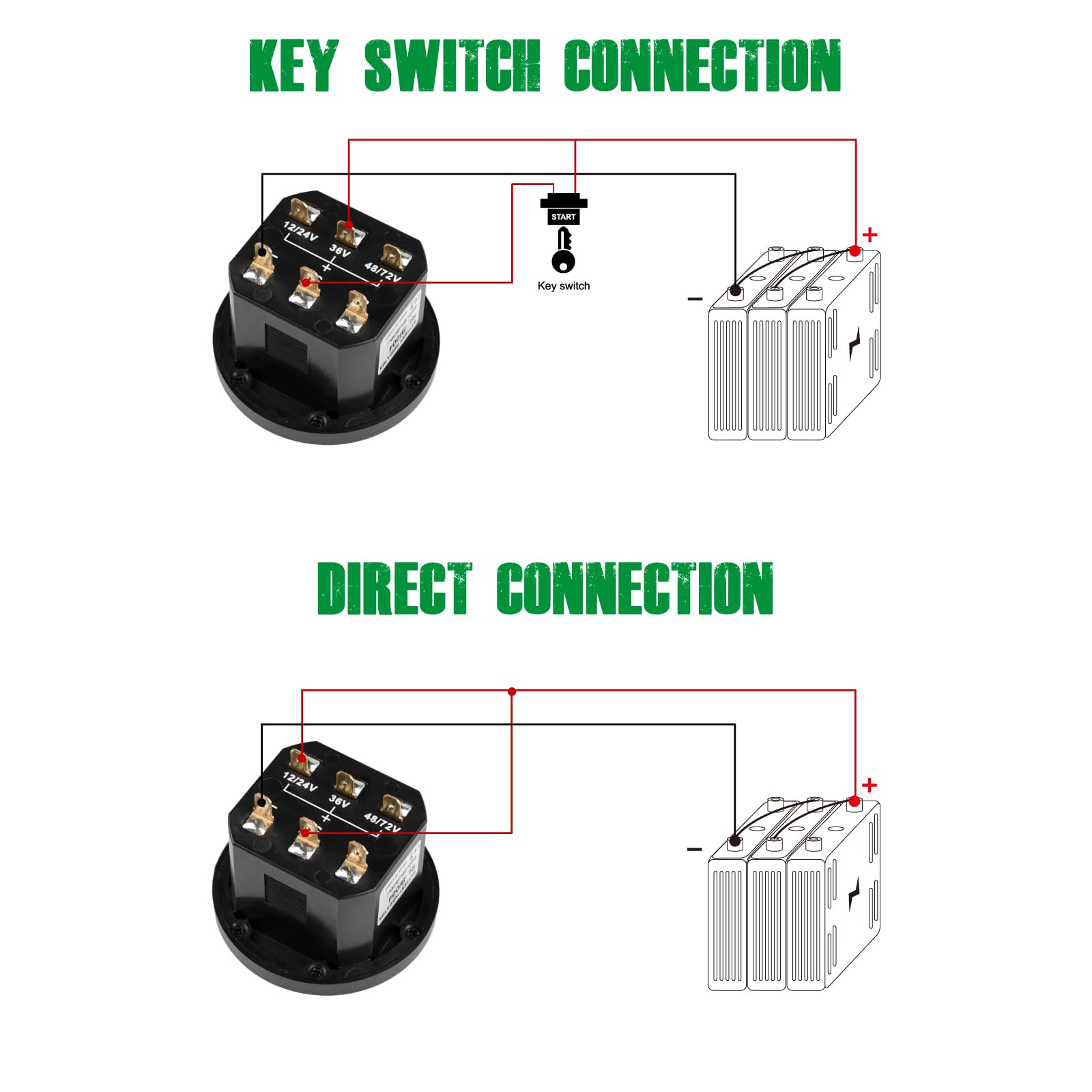

Installation is designed to be straightforward: the meter snaps into a panel cutout (approx. 43×39mm) and accepts either switched or direct power connections. You can wire it to a keyed switch so the display only powers with ignition, or hardwire it to the battery for constant monitoring.

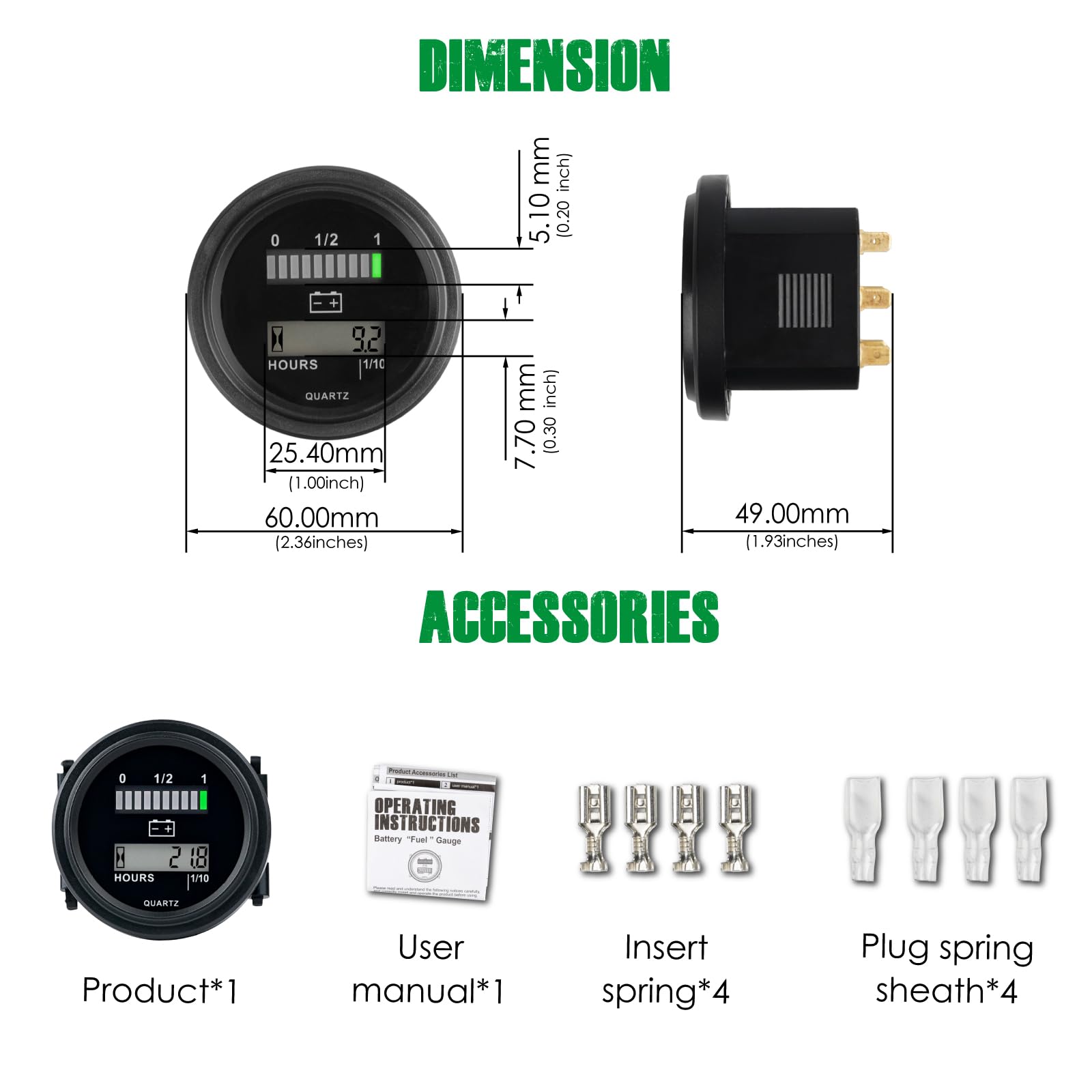

• Panel cutout size: approx. 43×39mm, φ50 mounting
• Snap-in panel mount for fast installation
• Connects to key switch or direct battery line depending on preference

What limitations and support should I know about?

This gauge is intended for lead-acid battery systems and should not be used with Trojan-branded batteries. YOOREAL provides two-year after-sales support and an unconditional return policy for product issues, plus online customer service for technical help.

• Compatible only with lead-acid batteries (excluding Trojan)
• 2-year after-sales and technical support from YOOREAL
• Unconditional returns for product problems

Who is this for: The YOOREAL battery meter and hour gauge is appropriate for golf cart owners, landscapers, small electric vehicle users, rental fleets, and maintenance teams who need a reliable, easy-to-read state-of-charge indicator plus runtime tracking on 12–72V lead-acid systems. It’s best for users who want quick visual battery information and an hour log without complex setup or smartphone apps.
