Yoursme Exhaust Manifold Bolt Removal Kit for Dodge 5.7L Hemi — 71500 Template, Guided Drill & Extractor

The Yoursme 71500 Exhaust Manifold Template Removal Tool Set lets you remove broken exhaust manifold bolts from Dodge 5.7L Hemi engines without damaging the cylinder head.

Built specifically for the 5.7L Hemi platform, this kit provides a guided drilling and extraction workflow so technicians and home mechanics can extract snapped studs and bolts cleanly. The set combines a precision drill template, tapered mounting studs, slip-fit bushings and a stud extractor with drill depth control so you can preserve the cooling jacket and maintain head integrity while restoring bolt threads.

How does this tool stop damage to the cylinder head?

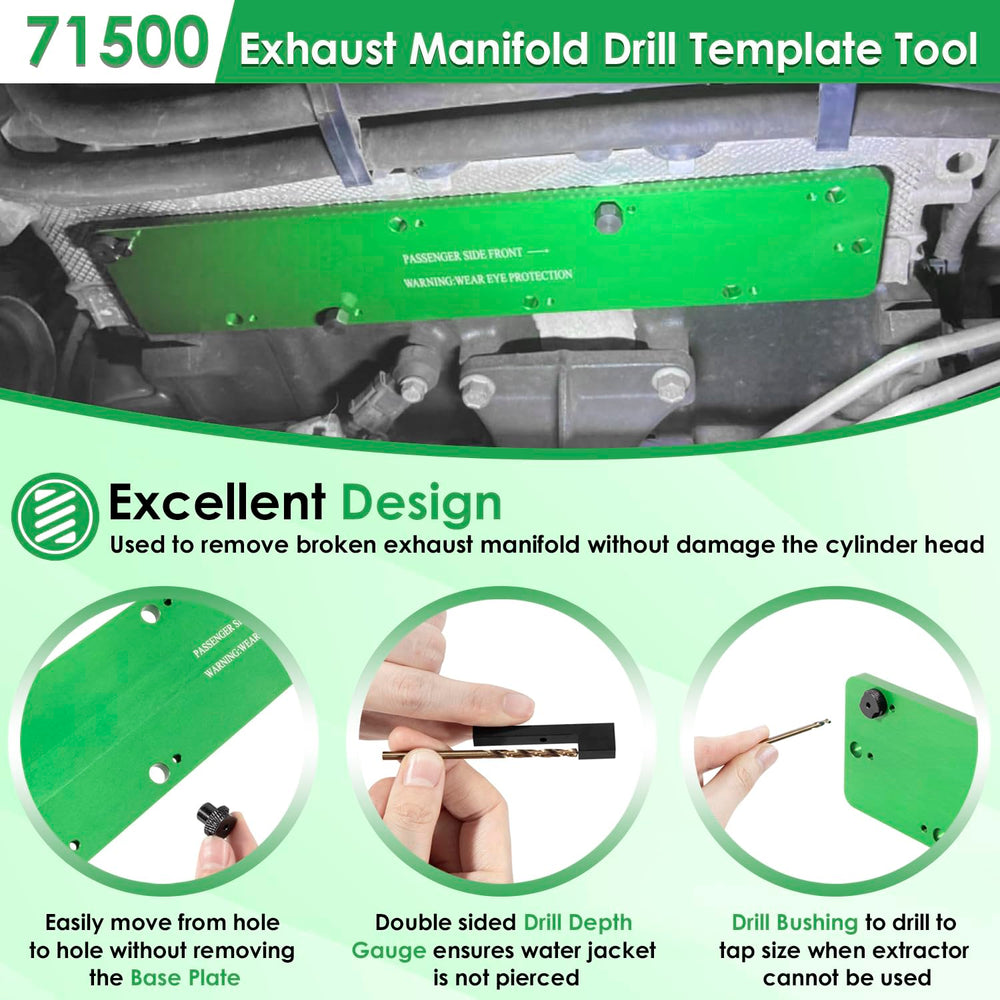

The kit includes a double-sided drill depth gauge and a purpose-built drill plate that keeps drill bits centered and limits penetration depth. These features prevent accidental entry into the water jacket and minimize heat-affected areas during extraction.

• Double-sided drill depth gauge for two drilling orientations
• Slip-fit bushings that align bits precisely with broken bolt center
• Drill plate mounts with tapered bolts to stabilize the work area
• Included cobalt drills sized for guided extraction and tapping

What parts come in the 71500 kit and why they matter?

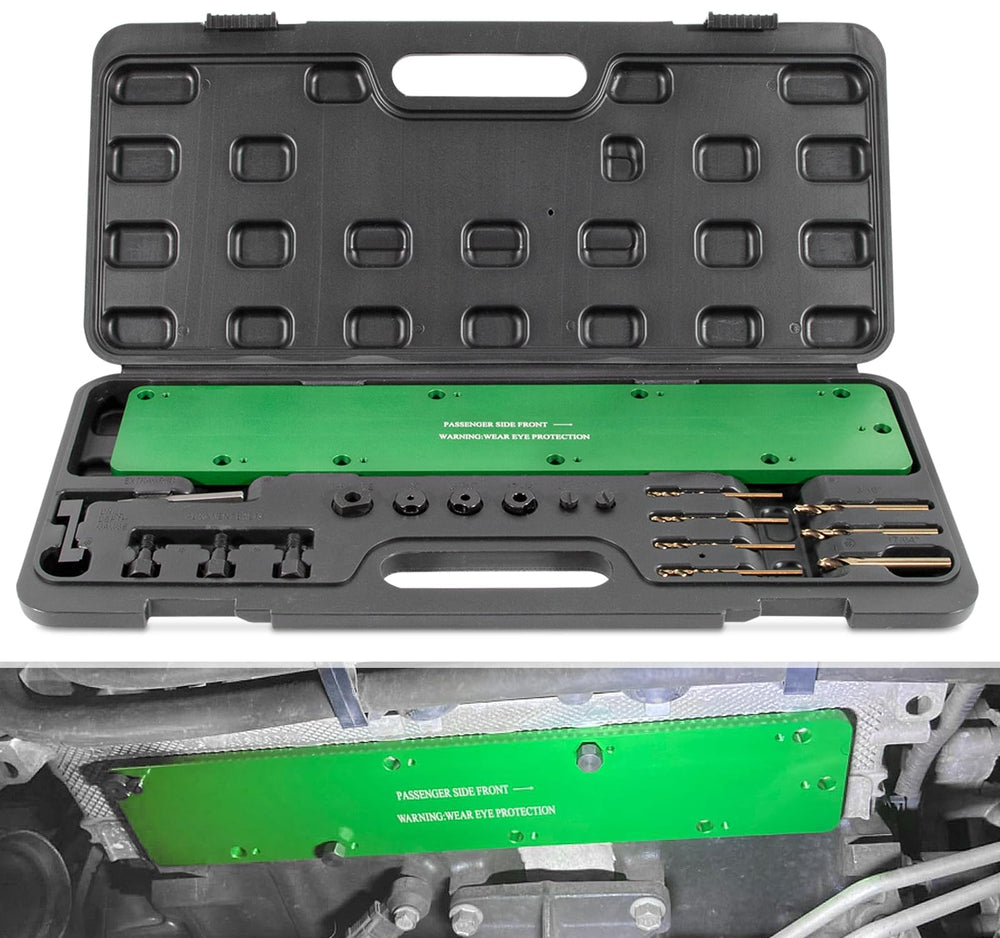

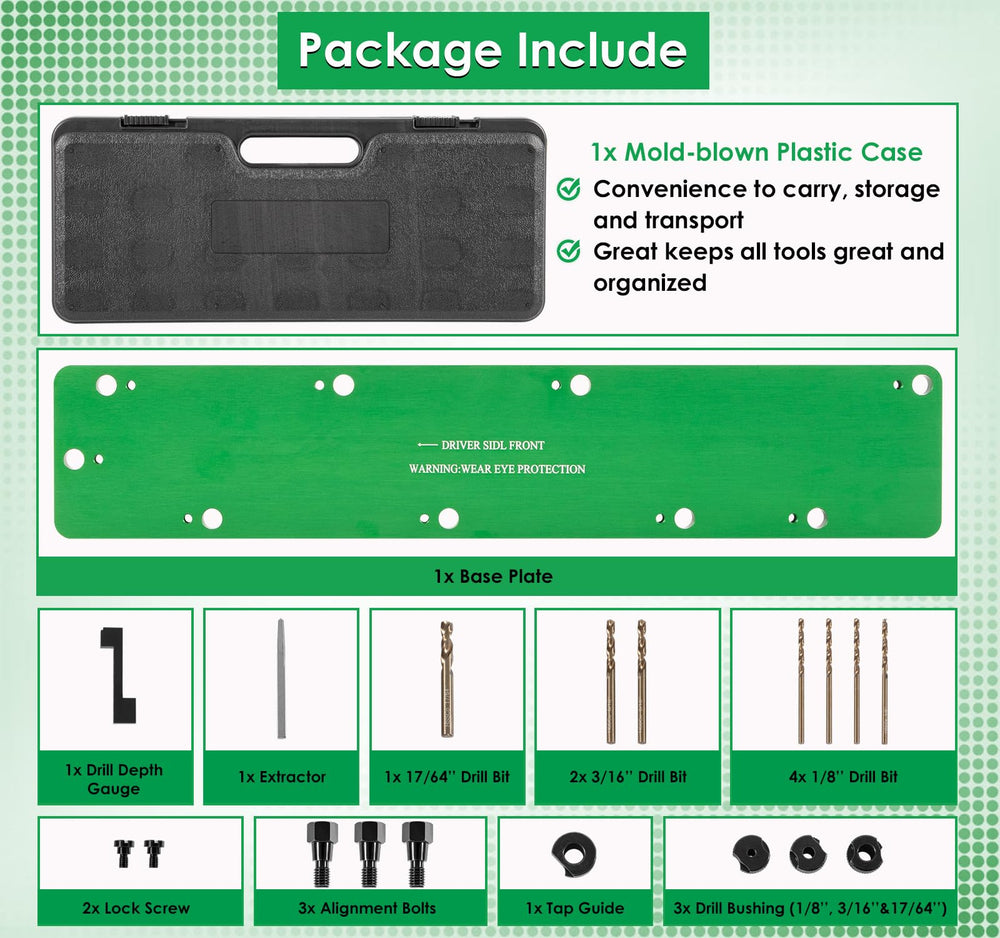

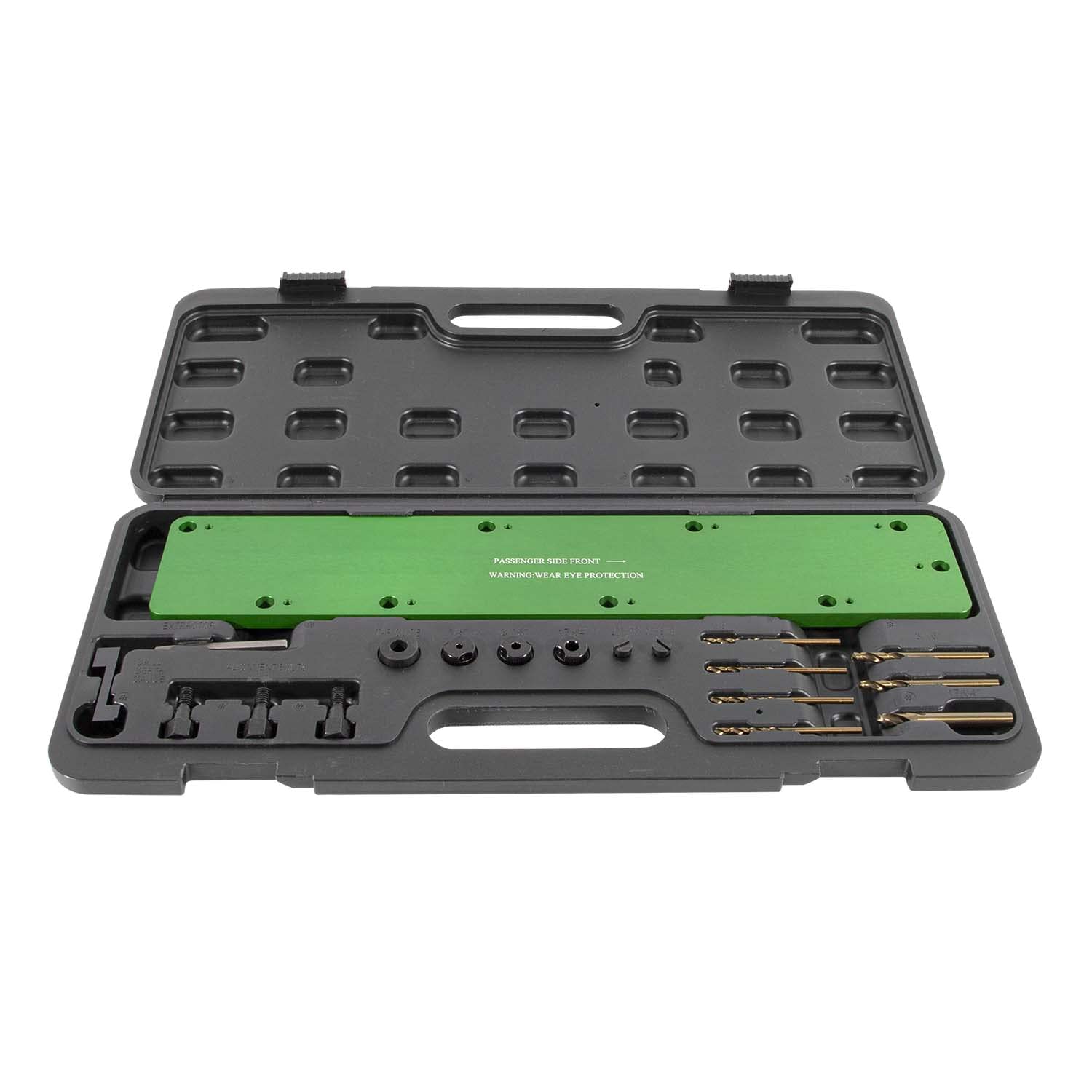

The kit ships in a blow-molded case containing the drill plate, stud extractor, depth gauge, alignment bolt and a set of bushings, drills and an 8mm tap aligner. Having all components matched to the template saves time and ensures compatibility with Dodge 5.7L Hemi bolt locations.

• Drill plate and alignment bolts for repeatable positioning

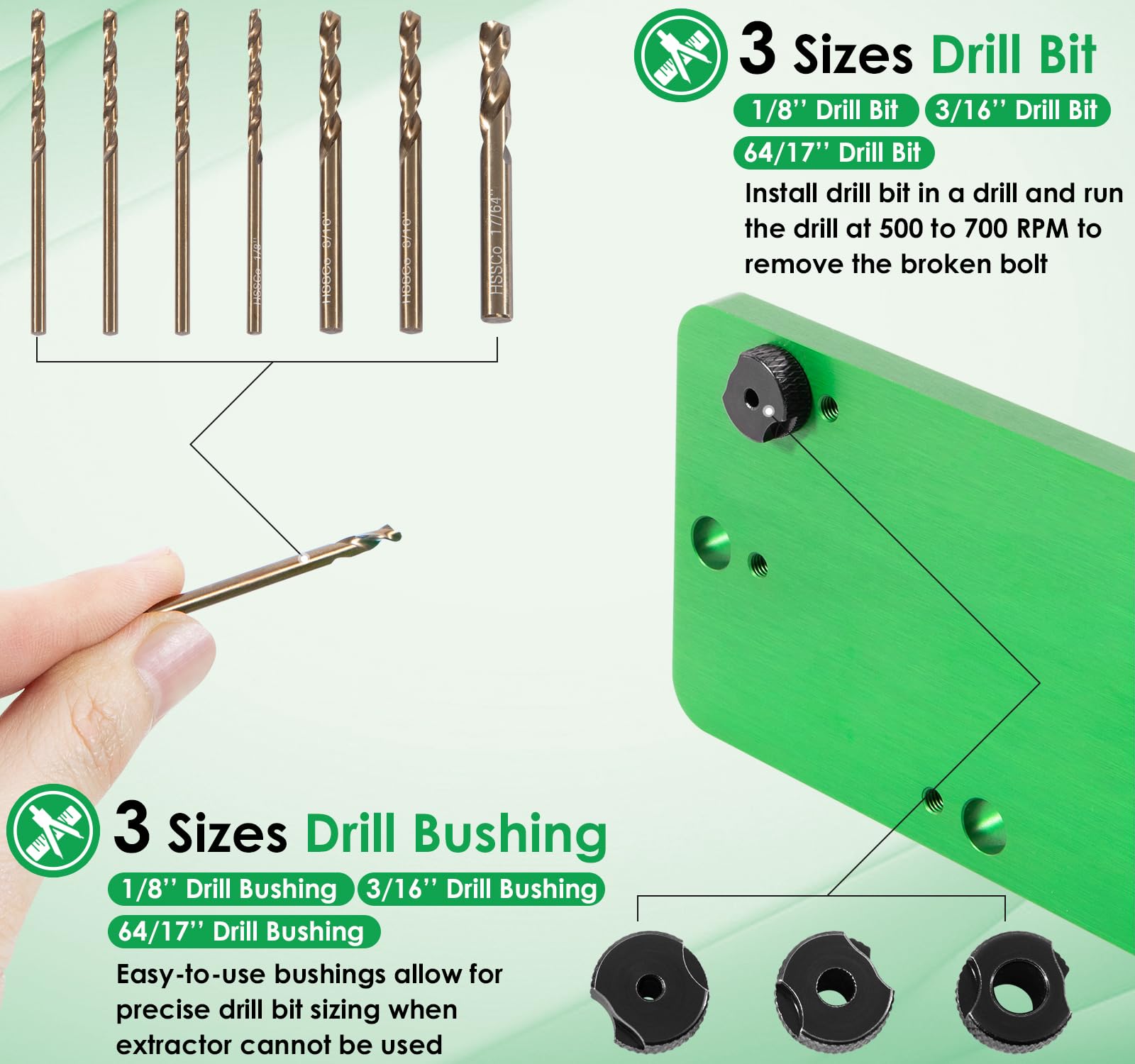

• Slip/fix bushings (1/8", 3/16", 17/64") for correct bit guidance
• Cobalt drills (1/8", 3/16", 17/64") for hard fastener work
• Stud extractor and tap aligner for clean thread restoration

How do you use the template tool set during an extraction?

Mount the base plate using the tapered bolts, install the appropriate slip bushing for the bolt size, then use the guided cobalt drill to center and remove the fastener material. If the extractor can engage, use it to back out the stud; otherwise drill to tap size and restore threads with the included aligner.

• Secure drill plate with tapered mounting studs
• Place correct slip-fit bushing and set depth gauge
• Drill with the supplied cobalt bit, then use extractor or tap
• Verify threaded hole alignment before installing new fastener

Will this kit fit every broken bolt scenario on a 5.7L Hemi?

It is engineered for common exhaust manifold stud and bolt failures on Dodge 5.7L Hemi engines, but extremely corroded or unusually modified studs may require supplemental tools or professional machine work. The kit covers typical sizes and provides alignment aids to reduce the need for additional jigs.

• Designed to match factory bolt hole pattern on 5.7L Hemi manifolds
• Includes bushing sizes for the most common bolt diameters
• Extraction method avoids unnecessary rework when used correctly
• Severe damage may still need a machine shop intervention

Who is this for: The Yoursme 71500 kit is aimed at professional mechanics, independent shops and confident DIYers working on Dodge 5.7L Hemi engines who need a dependable, repeatable way to remove broken exhaust manifold bolts without risking cylinder head damage. If you frequently service Hemi exhausts or want to avoid costly head repairs, this kit organizes the drilling and extraction steps into a compact, vehicle-specific solution.
