YTFRL Tire Pressure Monitoring System with 4 External Sensors — Solar & USB Charging, Color LCD Real-Time Display

The YTFRL Tire Pressure Monitoring System is a real-time tyre safety accessory that displays pressure and temperature for four tyres via external sensors, powered by solar or USB with six alarm modes.

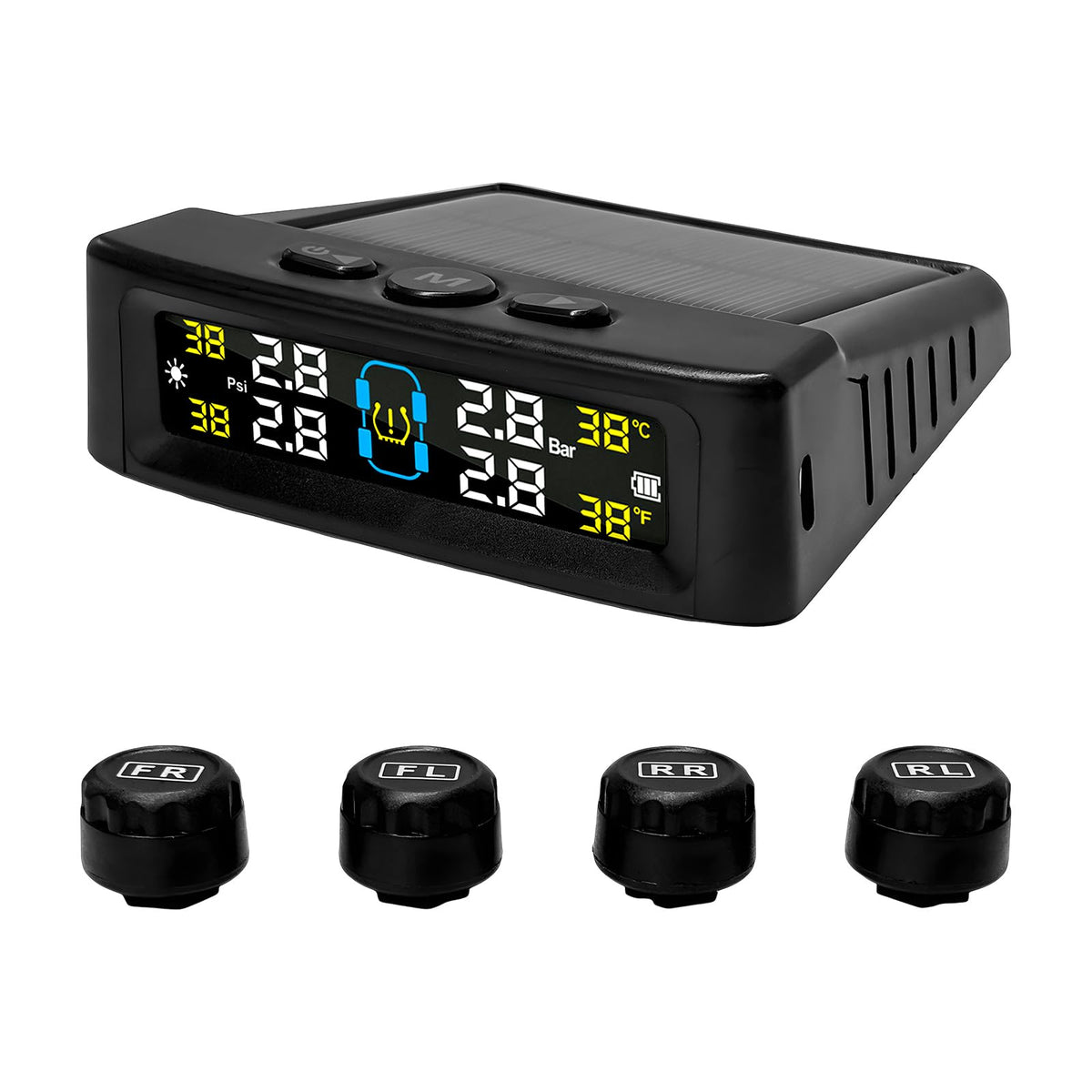

This compact monitoring kit combines a color LCD display and four screw-on external sensors to give continuous tyre pressure and temperature readings while you drive. Built from durable ABS and a wear-resistant PC screen, the monitor turns on automatically when the vehicle starts and charges via the integrated solar panel or the included USB cable. It’s engineered for quick installation with no special tools and supports a broad range of vehicles with tyre pressures up to 5 bar.

How does the YTFRL monitor keep track of all four tyres in real time?

The system uses four external sensors that screw onto each tyre valve and transmit live pressure and temperature data to the dashboard display. Readings update continuously so you can spot pressure drops or temperature rises before they become a problem.

• Four independent external sensors for each wheel
• Real-time display of pressure and temperature on a color LCD

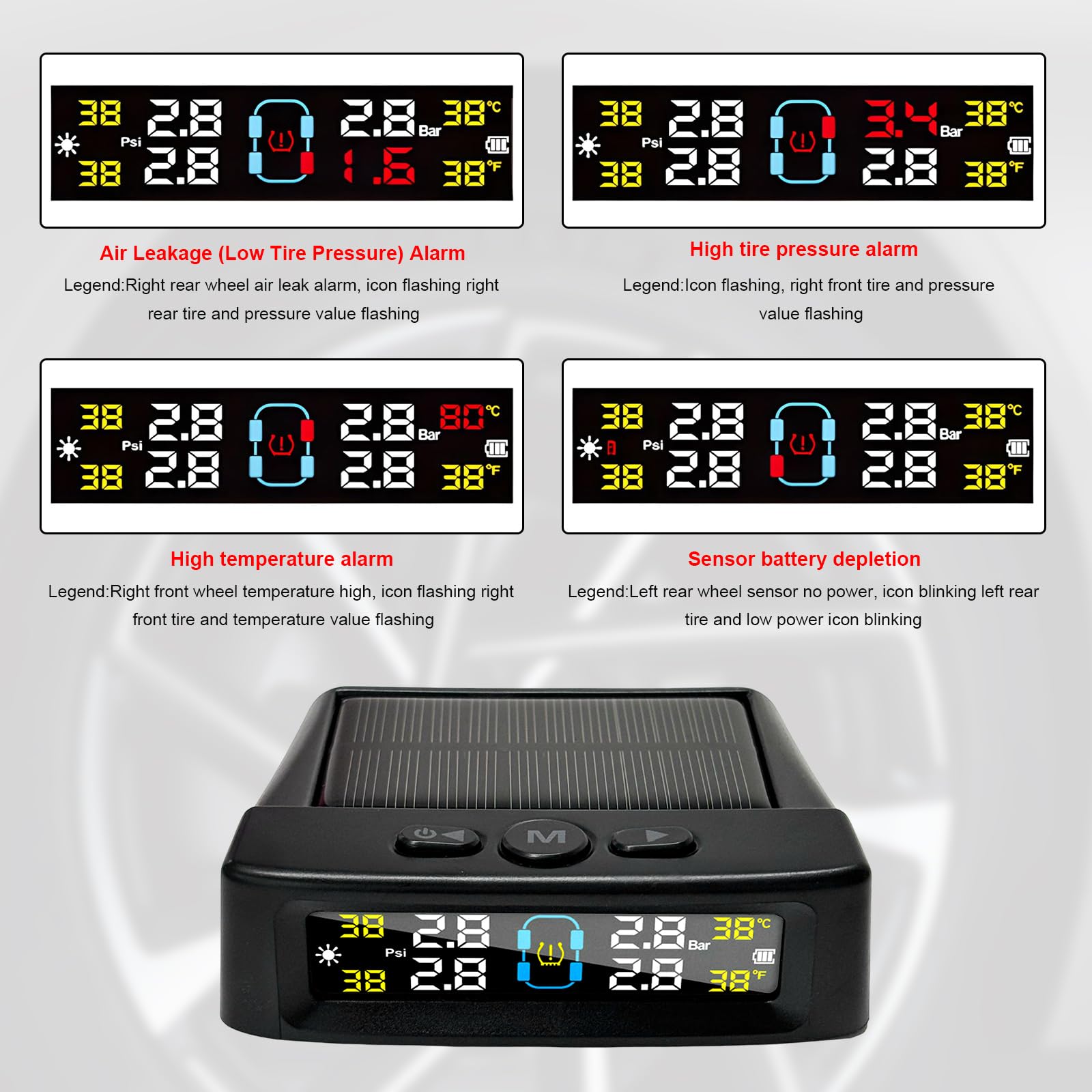

• Zero-delay voice alarm for six abnormal conditions
• Pressure range suitable up to 5 bar for common vehicles

What are the power options and how does the unit manage energy?

You can power the monitor two ways: the built-in solar panel provides continuous trickle charging during daylight, and a USB input accepts DC 5.1V for reliable backup charging. The device automatically powers on when the vehicle starts and powers off after parking to conserve energy.

• Solar charging for daytime use and battery prolonging
• USB DC 5.1V input for guaranteed charging when solar is insufficient
• Auto on at engine start and auto off after parking for energy efficiency
• 3.7V working voltage suited to vehicle electronics

How accurate and durable is the YTFRL tyre monitor?

The monitor housing is molded from sturdy ABS and the display uses wear-resistant PC for high transparency and durability. The external sensors are designed to form a tight, secure seal on the valve stem, and the unit issues both visual and voice warnings across six alarm types to quickly identify issues.

• ABS construction protects internal electronics from impact and moisture
• PC LCD face with high transparency for clear daytime and night viewing
• Six alarm modes with voice alerts to identify specific tyre issues
• External sensors tightened onto valves for reliable, continuous readings

How straightforward is installation and what vehicles will it fit?

Installation is designed to be simple and tool-free: clean the valve, screw on each external sensor, and place the monitor in the cabin using the included mount. The system’s sizing and pressure range make it compatible with a wide variety of vehicles, from sedans and SUVs to vans and RVs, as long as tyre pressure falls within the 5 bar limit.

• Quick, tool-free setup—sensor screws directly onto valve stem
• Monitor can be mounted on dash or other cabin surface
• Compact monitor dimensions: 3.7 × 3.4 × 1.1 inches
• Suitable for sedans, off-road vehicles, business vehicles, vans, and RVs

Who is this for: Drivers who want continuous, visible tyre pressure and temperature feedback without professional installation—ideal for daily commuters, families, small business vehicles, and recreational RV owners who need a dependable, low-effort monitoring solution that combines solar convenience with USB backup charging.
