Yuesstloo Coil Spring Compressor Tool 2,700 lb Capacity, 19 mm Hex Drive, Dual‑Lock Safety

The Yuesstloo Coil Spring Compressor Tool is a heavy‑duty, dual‑lock spring compressor set designed to safely compress and remove coil springs with a maximum load rating of 2,700 lb (1,225 kg).

Built for garages, hobbyists, and professional mechanics, this compressor set combines a double secure locking design with a 19 mm hex socket drive for controlled, even compression. Constructed from heat‑treated 45# carbon steel, the kit handles a broad range of coil diameters and jaw widths so you can tackle struts, shocks, and spacers across cars, motorcycles, ATVs and light trucks.

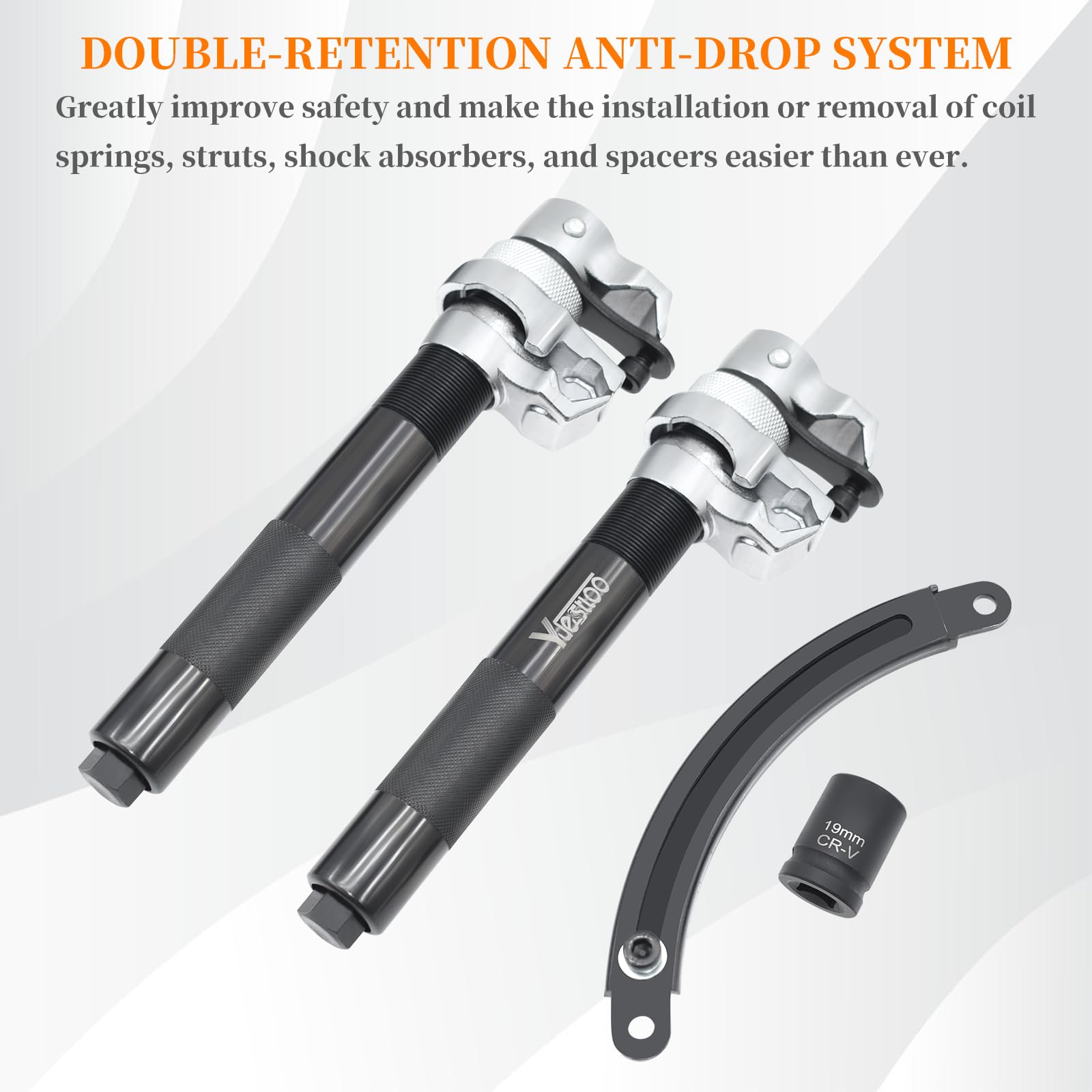

How does the double secure locking design improve safety?

The tool uses interlocking claws plus a stable locking mechanism to prevent accidental release under load. An adjustable bracket keeps the jaws aligned and helps maintain parallel compression, reducing slip risk during use.

• Dual interlocking claws that engage the coil for extra grip
• Stable locking mechanism to hold compression at set positions

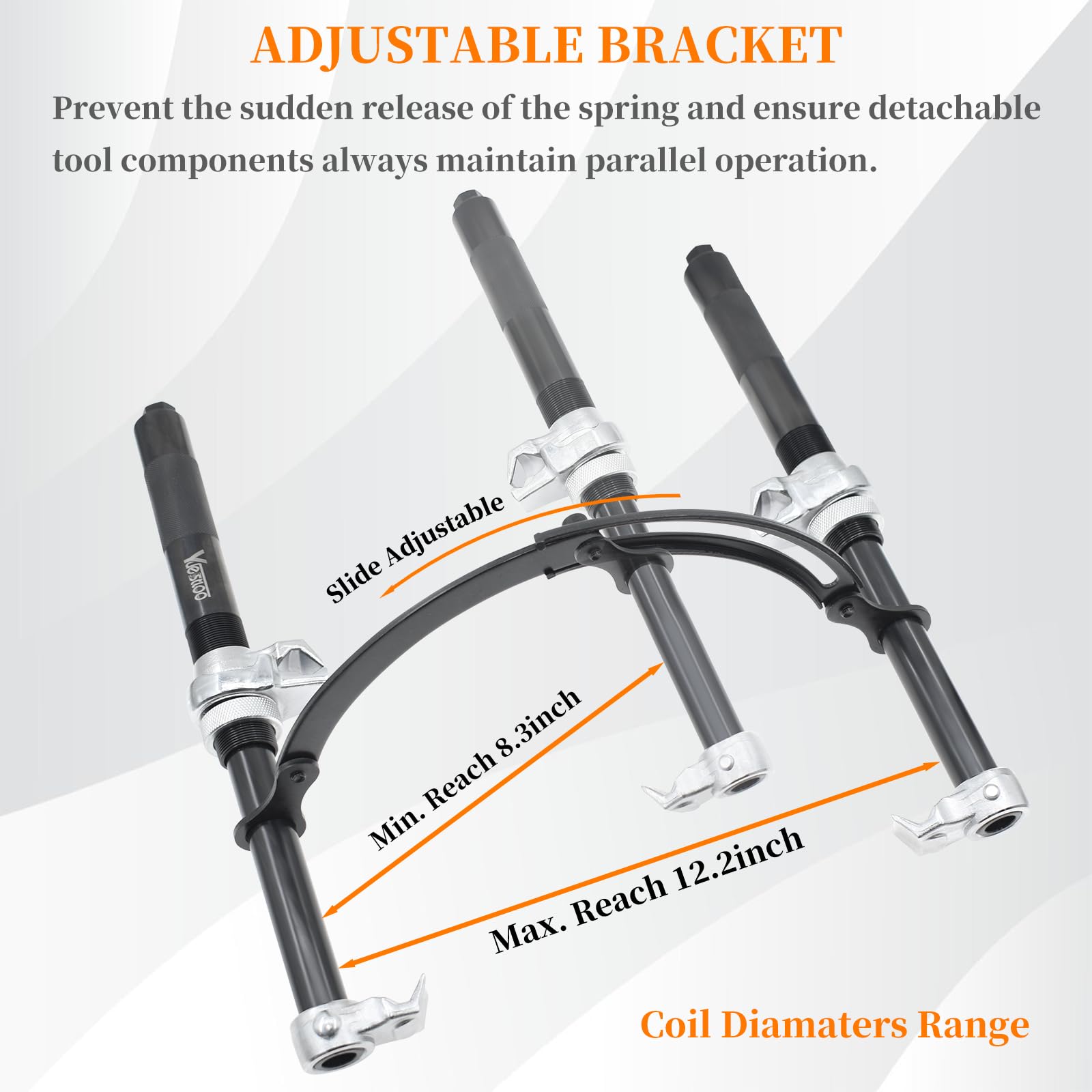

• Adjustable bracket that prevents uneven movement and improves alignment

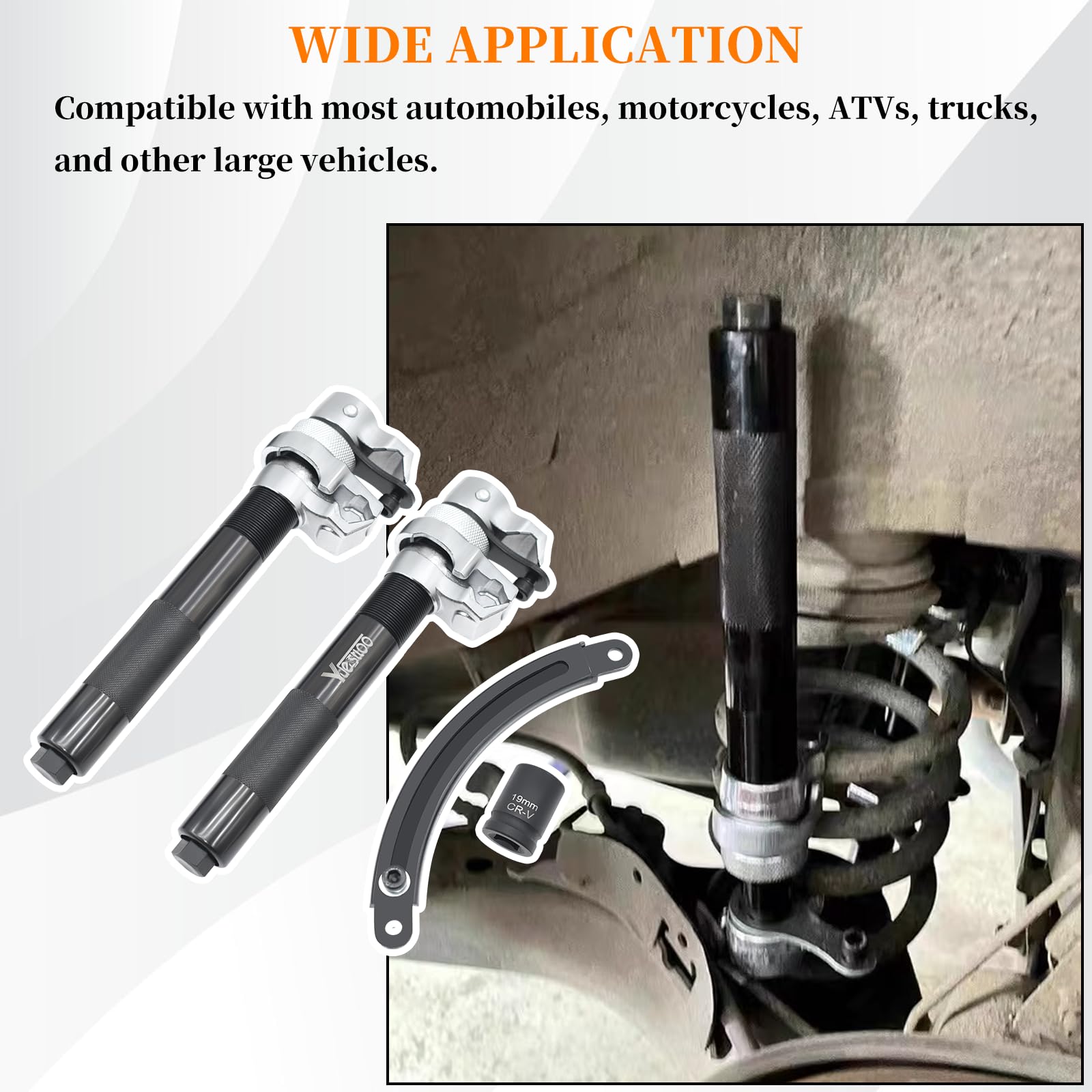

What vehicle springs and sizes will this compressor fit?

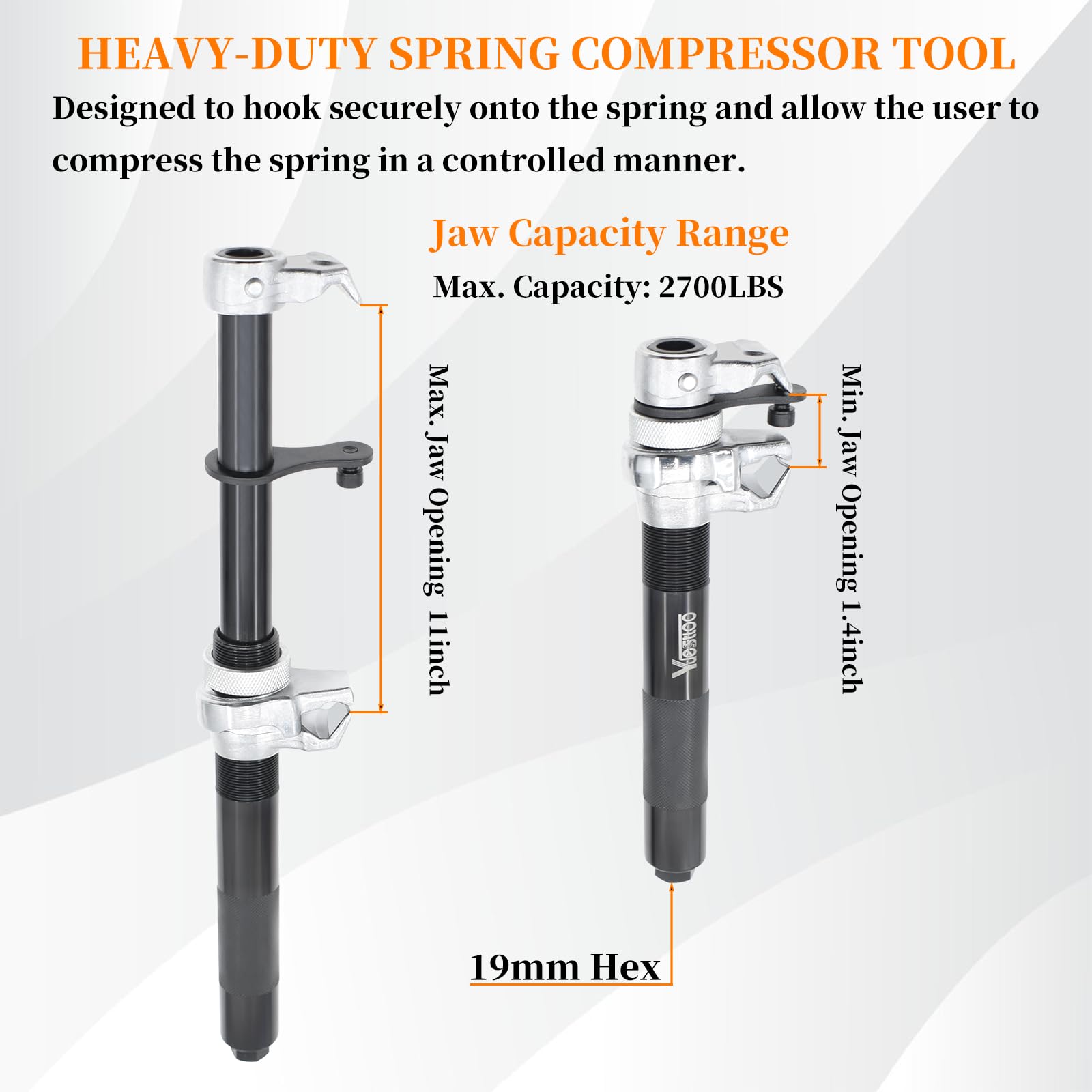

This set is compatible with many passenger cars, motorcycles, ATVs and light trucks. It fits coil wire diameters from 0 to 0.8 inches (0–20 mm), a jaw capacity of 1.4–11 inches (35.6–279.4 mm), and an adjustable holder for coil diameters about 8.3–12.2 inches (210.8–309.9 mm).

• Wire diameter range: 0–0.8 in (0–20 mm)
• Jaw opening: 1.4–11 in (35.6–279.4 mm)
• Holder adjusts for coil diameters: 8.3–12.2 in (210.8–309.9 mm)
• Tip: measure your spring before use to confirm fit

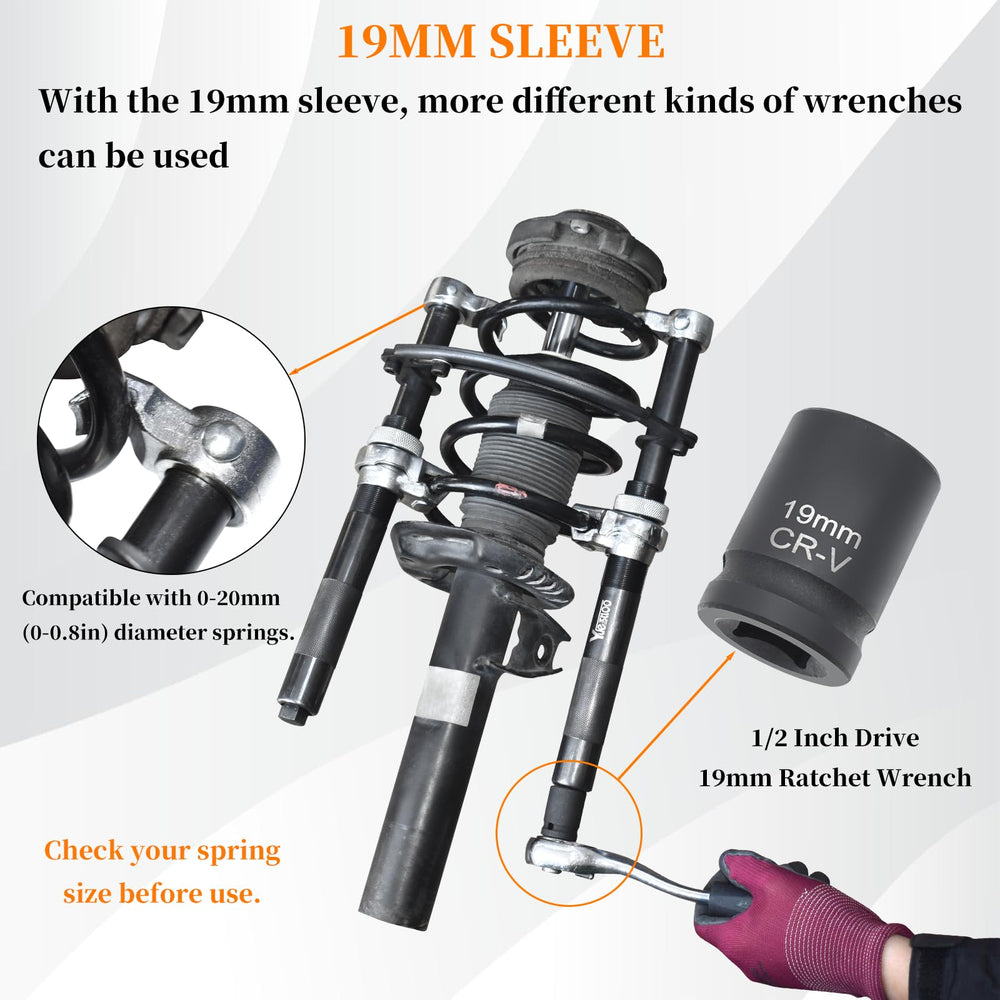

How do I operate the 19 mm hex socket and ensure even compression?

The compressor uses a 19 mm hex socket on the sleeve so you can apply torque smoothly with a ratchet or breaker bar. Work both compressors simultaneously and alternate turns to maintain uniform force distribution across the spring.

• Use a 19 mm socket and matching drive for controlled turning

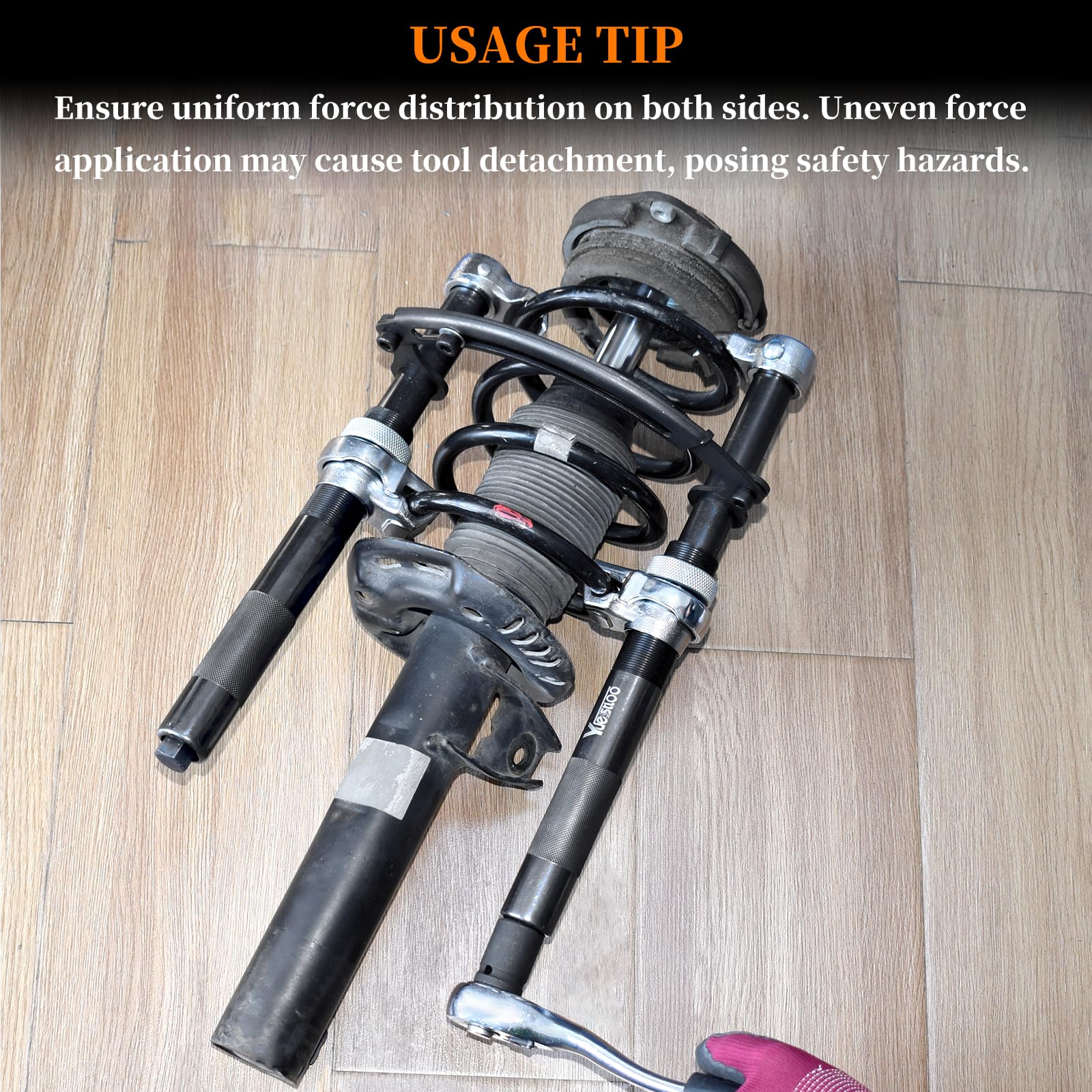

• Compress both sides in small, alternating increments
• Verify parallel alignment and locking engagement after each adjustment

What materials and construction give this tool its load capacity?

Yuesstloo manufactures the set from heat‑treated 45# carbon steel to deliver high hardness and resistance to deformation under load. The robust build, combined with the dual locking design, supports a maximum rated load of 2,700 lb (1,225 kg) per set when used correctly.

• Heat‑treated 45# carbon steel for strength and durability
• High‑hardness finish resists damage under heavy compression
• Engineered components sized to withstand rated load safely

Who is this for: The Yuesstloo Coil Spring Compressor Tool is intended for experienced DIYers, independent mechanics and professional shops that need a rugged, reliable compressor for routine suspension tasks. It’s ideal when you require a high‑capacity, safety‑focused tool for removing and installing struts, shocks and springs across a wide range of vehicles. Always follow safety practices, confirm spring dimensions before use, and use matched pairs for balanced compression.
