ZKTOOL Bushing and Bearing Press Kit 40-Piece Universal Alloy-Steel Set — Sleeves & Spindles

The ZKTOOL 40-piece Universal Pull and Press Sleeve Kit is a complete alloy-steel bushing and bearing removal/installation set designed to fit a wide range of outer and inner diameters for cars and light commercial vehicles.

This professional-grade kit puts a broad assortment of sleeves, pulling spindles and stop plates at your fingertips so you can remove or install bearings, seals and bushings without deforming housings. Forged from alloy steel with corrosion-resistant properties and rated for high load performance, the set covers many common sizes so mechanics and DIYers can match parts precisely instead of improvising with hammers and chisels.

What parts are included and which sizes do they cover?

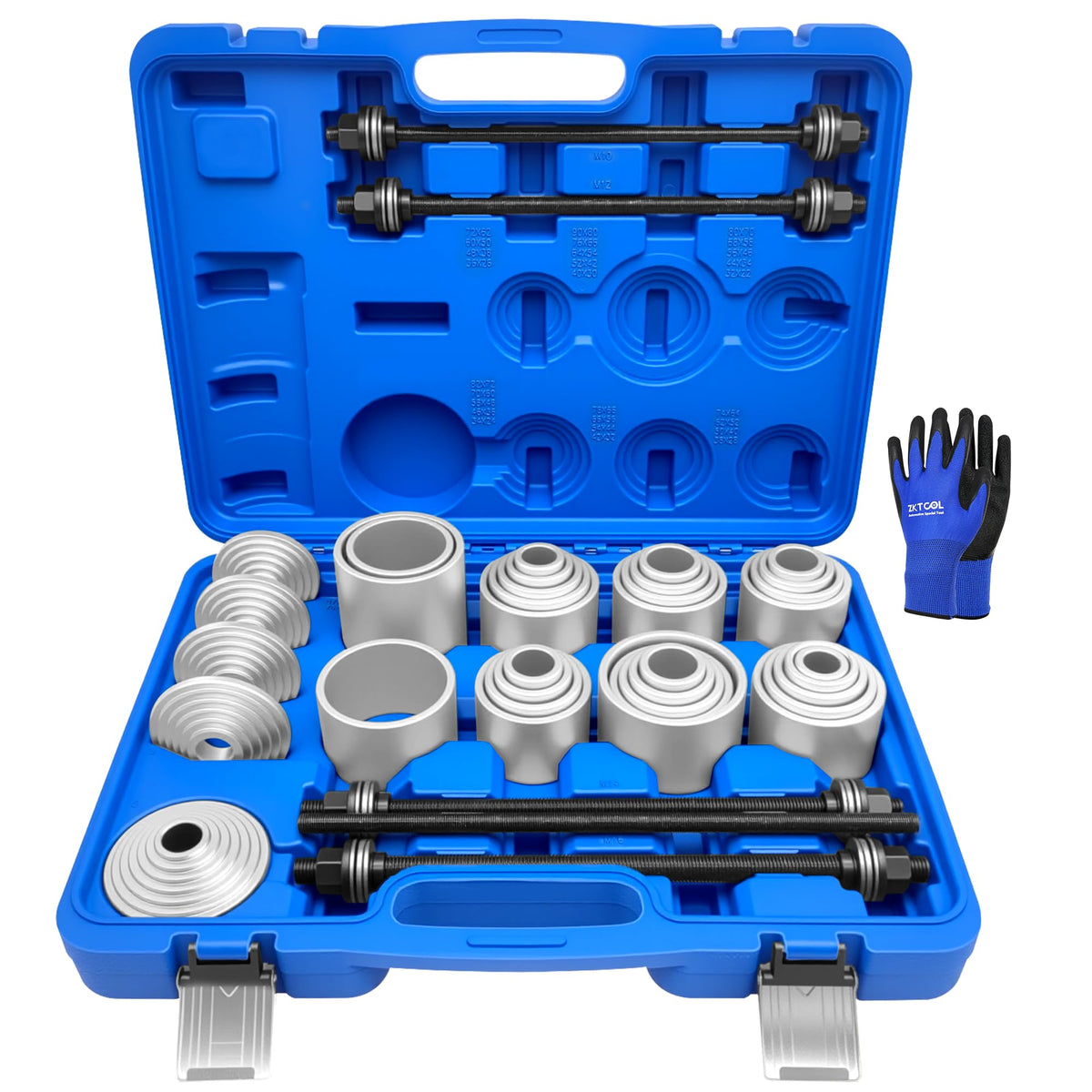

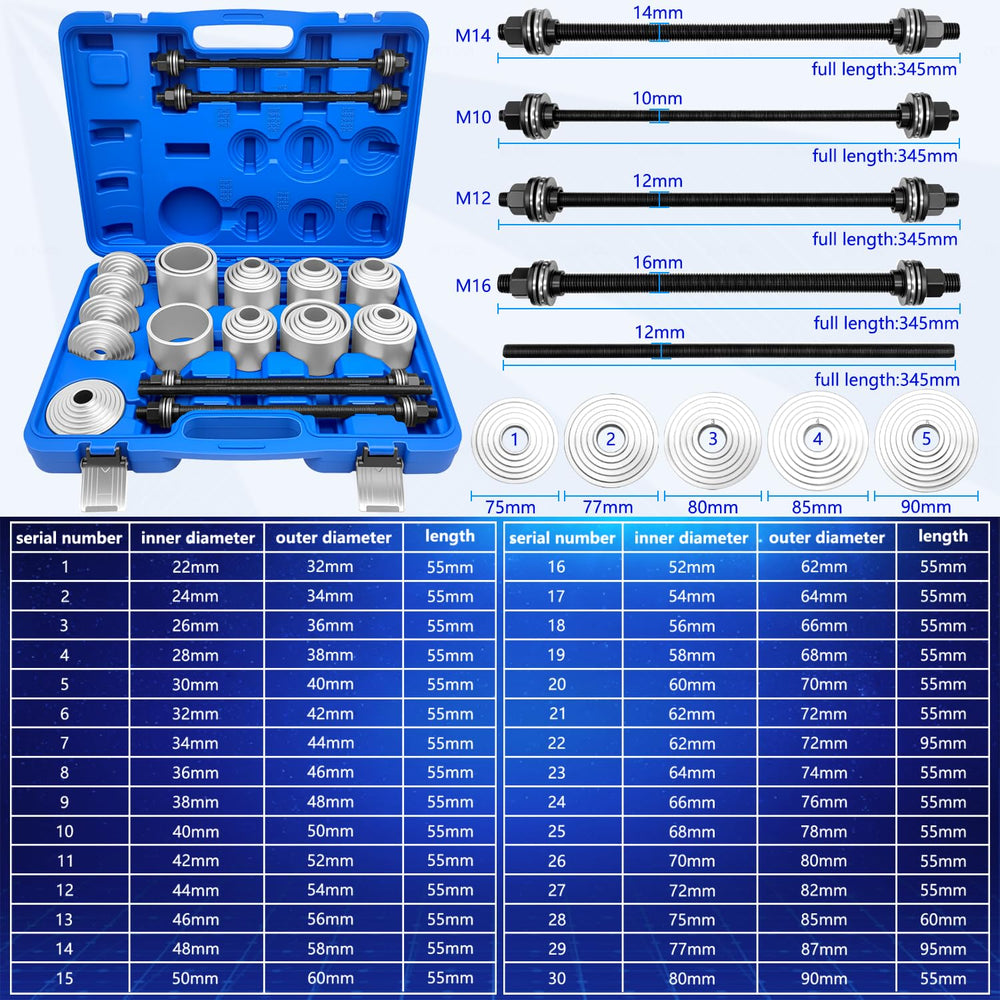

The kit contains 30 precision sleeves, five pulling spindles (M10, M12, M14, M16) and five stop plate adapters, giving you adaptable combinations for press or pull tasks. Sleeve outside/inside diameter pairs span from 32/22 mm up to 90/80 mm, with many intermediate sizes included for close fits.

• 30 sleeves across 32/22 through 90/80 mm size pairs
• Pulling spindles: M10, M12, M14, M16 for threaded extraction
• Five stop plate adapters to center load and protect housings
• Compatibility aimed at automobiles and light commercial vehicles

How durable and reliable is the tool material?

Every metal component is forged from an alloy steel blend chosen for strength and corrosion resistance. The construction handles heavy loads during pressing or pulling operations while minimizing deformation of sleeves and plates.

• Forged alloy-steel construction for long service life
• Rated to withstand forces up to approximately 3500 N
• Corrosion-resistant finish for workshop environments
• Engineered to resist bending and premature wear under repeated use

How does this kit make bushing and bearing work easier?

The system lets you match sleeve diameters to parts being pressed or pulled so force distributes evenly and protects the surrounding housing. Using proper-sized sleeves and stop plates reduces the risk of scoring, ovalizing or cracking parts compared with makeshift methods.

• Even force transfer via matched sleeve sizes prevents part distortion
• Stop plates center loads and keep pressure aligned
• Multiple spindle sizes allow threaded extraction without special adapters
• Saves time by eliminating trial-and-error with unsuitable tools

What should I know before using the kit?

Familiarity with safe press and pull procedures is important: choose a sleeve slightly larger than the shaft or inner diameter being pressed, secure the assembly on a stable press or bench, and check alignment before applying force. ZKTOOL provides an instructional video as a reference and offers customer support for questions.

• Select matching sleeve inner and outer diameters for a snug fit
• Use appropriate personal protective equipment and a stable press
• Follow torque and load limits; avoid exceeding rated force
• Consult the included video or contact ZKTOOL support for guidance

Who is this for: The ZKTOOL 40-piece Pull and Press Sleeve Kit is aimed at professional mechanics, independent workshops and experienced home mechanics who frequently service suspension components, wheel bearings, seals and bushings on cars and light commercial vehicles. It’s especially useful when correct sizing and non-destructive removal/installation matter—shops that prefer purpose-built tools over improvised solutions will find this kit a practical, long-lasting addition to their tool inventory.
