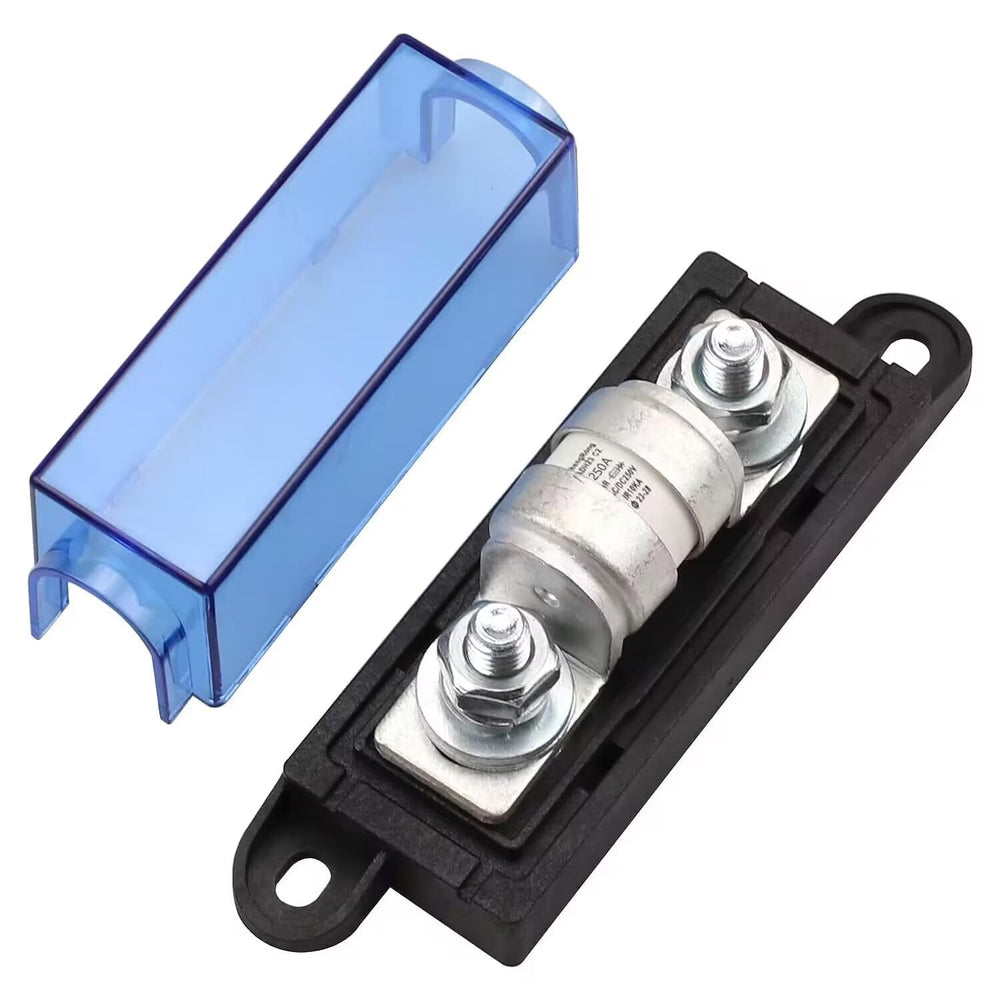

ZOOKOTO 250A Class T Fuse Block 250V AC/DC — Heavy-Duty 5/16" (M8) Studs, V0 ABS for Marine & RV

ZOOKOTO 250A Class T fuse block is a heavy-duty, V0-rated fuse holder engineered to protect high-current inverters and power appliances up to 250A at 250V AC/DC.

Built for demanding mobile and marine electrical systems, this Class T fuse holder combines a durable ABS polymer shell with 5/16" (M8) terminal studs and an IR10kA interrupting rating. It positions the fuse close to the positive battery terminal for maximum circuit protection, leaving ample room around terminals for large cable bundles. The block is compatible with Class T 250A fuses and is intended for use in boats, cars, trucks, RVs and other high-power installations where reliable overcurrent protection is essential.

How does the ZOOKOTO fuse block protect my inverter or high-power appliance?

The holder secures a Class T fuse designed to blow quickly under extreme current surges, isolating the faulty circuit and preventing damage to wiring and equipment. The ABS enclosure resists heat and flames to maintain integrity if a fault occurs.

• 250A capacity at 250V AC/DC for heavy loads
• IR10kA interrupting rating to clear high fault currents
• V0-rated ABS shell for improved fire resistance
• Mounts close to the battery to protect the entire downstream circuit

What are the physical specs and installation details I need to know?

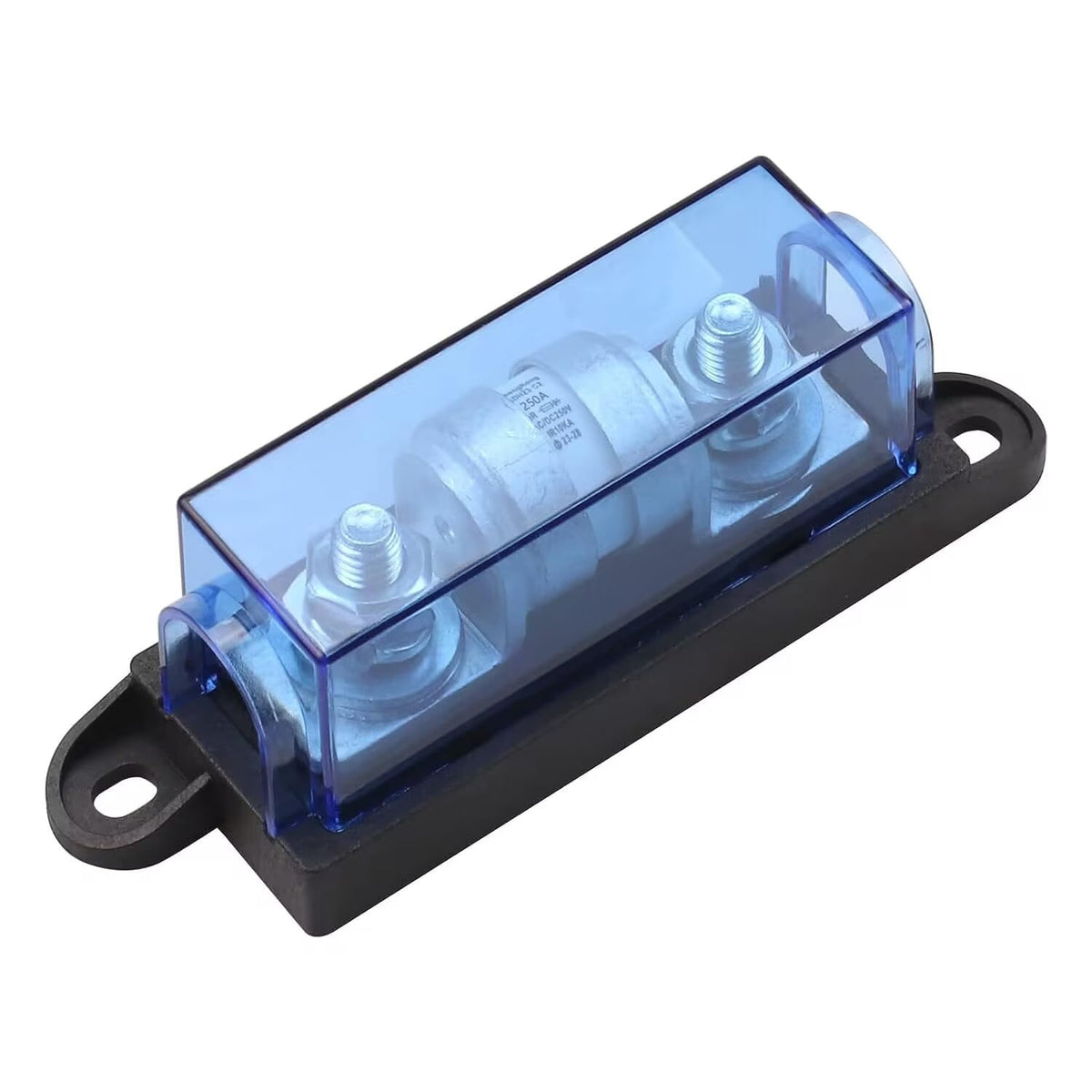

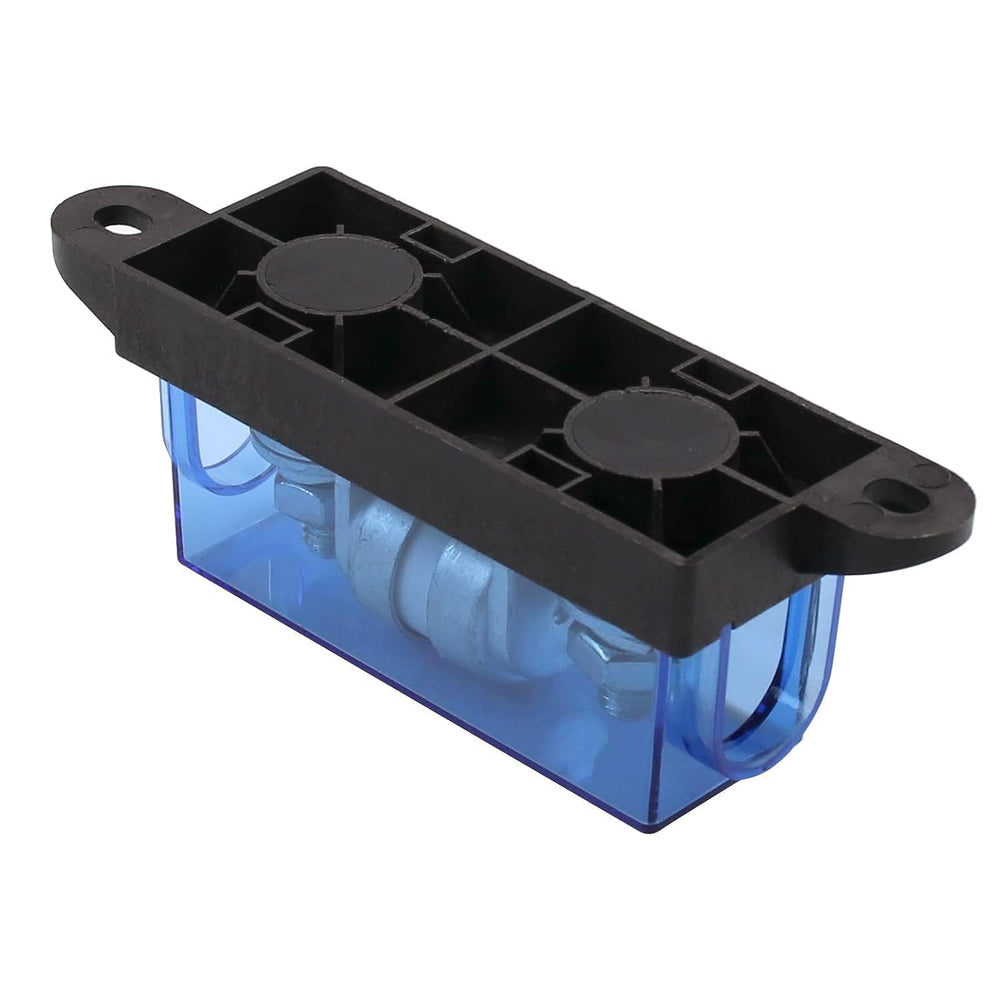

The fuse block uses 5/16" (M8) studs for secure cable termination and fits standard Class T fuses. Its design leaves generous clearance around the studs so you can route thicker cable bundles without crowding the mounting area.

• Terminal stud size: 5/16" (M8) for heavy gauge cables
• Spacious layout to accommodate large cable packs
• Robust mounting points suitable for marine and vehicle vibration environments
• Compatible with 250A Class T fuse cartridges (not included)

Will this fuse block work in marine and vehicle environments?

Yes — materials and layout were chosen with mobile and marine use in mind. The ABS polymer shell meets V0 flame-retardant criteria, and the high interrupting rating handles the types of short-circuit conditions commonly encountered in automotive and marine systems.

• Designed for boats, cars, trucks and RV electrical systems
• Corrosion-resistant hardware options when combined with appropriate fasteners
• Keep installed near the battery positive terminal for best protection
• Suitable for inverter feed and other high-current circuits

How can I maintain and replace the fuse safely?

Always isolate the battery or power source before servicing the fuse block. Use the correct Class T 250A fuse size and torque the studs to recommended specifications; inspect periodically for corrosion or loose connections.

• Disconnect battery before fuse replacement
• Use only Class T fuses rated 250A for this holder
• Inspect terminals regularly and retorque as needed
• Replace the fuse block if the ABS housing shows heat damage

Who is this for: The ZOOKOTO 250A Class T fuse block is aimed at installers, boat owners, RV enthusiasts and mechanics who need a compact, high-current fuse holder for inverters and other high-power equipment. If you run large battery banks, high-capacity inverters, or heavy accessory loads and want a V0-rated enclosure with room for thick cable runs, this fuse block provides a robust, serviceable solution to keep your electrical system protected.
