8TEN Starter Motor for Kohler Engines 32-098-04 Replacement — 10-Tooth, Counter-Clockwise Rotation

The 8TEN starter motor replaces Kohler part 32-098-04 (3209810S) to deliver reliable electric starting for lawn and garden equipment equipped with compatible Kohler engines.

This direct-fit starter is engineered to match the original Kohler specification for power, gear teeth, and rotational direction so you can return your mower, garden tractor, or compact utility machine to dependable starting performance. It’s built for machines that originally used Kohler OEM numbers 3209808S, 32-098-04, and 32-098-04S and is suited for a wide range of models from New Holland, Cub Cadet, and Toro.

Which machines will this 8TEN starter motor work with?

This starter is compatible with many zero-turn mowers, garden tractors, and lawn tractors that use Kohler Courage twin engines. Review the equipment list and OEM part numbers before ordering to ensure a match with your vehicle’s original starter.

• New Holland: G4030 (All Kohler), G4035 (Kohler), G4050 (Kohler)
• Cub Cadet: i1046/i1050 zero-turns and LT/SLT compact tractors from 2005–2006 with 20HP Courage Twin
• Toro: multiple TimeCutter, Titan, GT and LX models from 2006–2009 as listed by OEM fitment

How does this starter match the original Kohler unit?

The 8TEN unit mirrors the key mechanical and electrical characteristics of the OEM starter so it can mount and engage correctly. Its specifications are chosen to replicate the original performance without altering your machine’s starting system.

• Brush type: carbon, for consistent contact and wear characteristics
• Torque: 3.5 Nm to deliver appropriate cranking force for specified engines
• Cycle rating: 8000 cycles for long service life under normal use

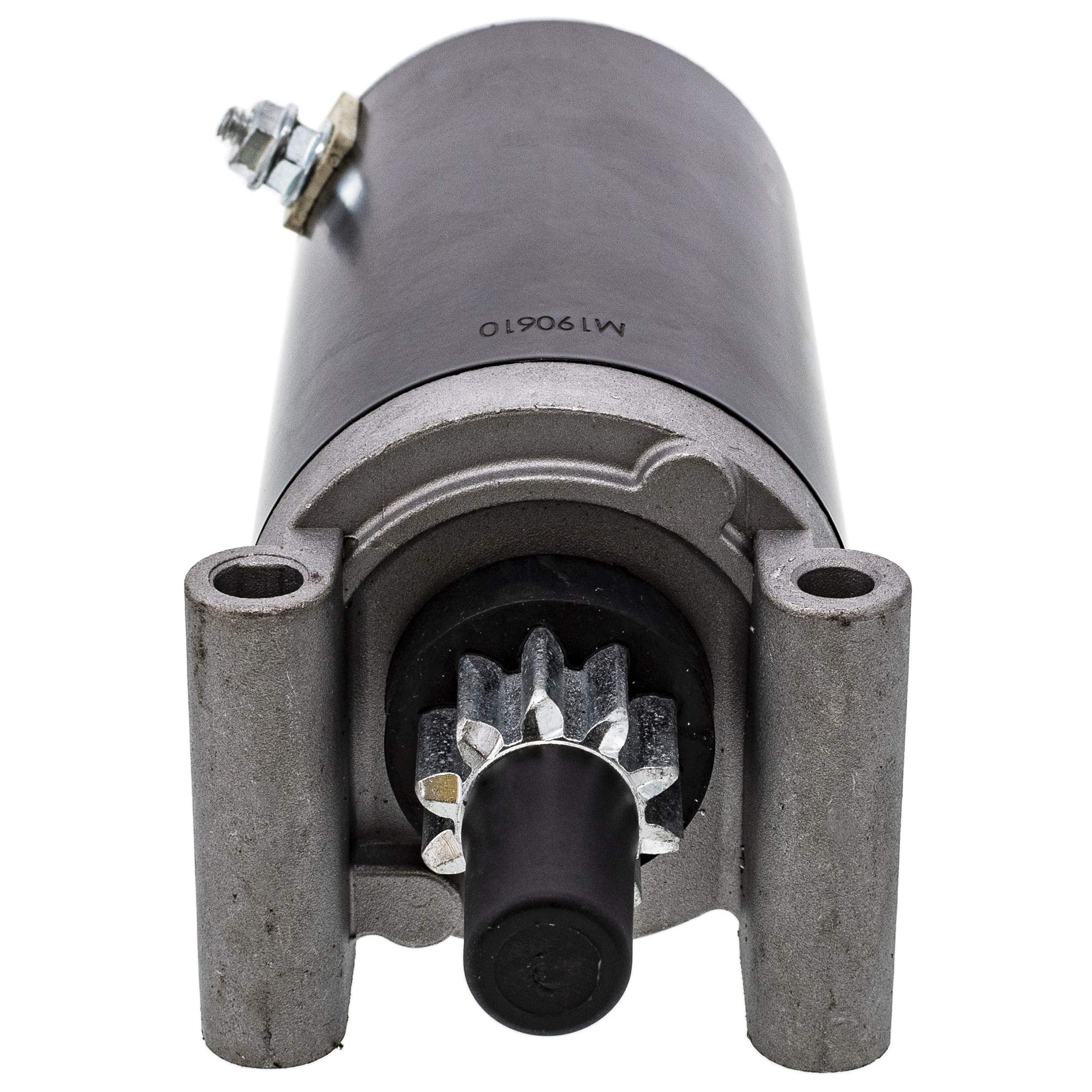

• Teeth: 10 teeth on the drive gear to mesh with the flywheel
• Rotation: counter-clockwise to match Kohler flywheel engagement

What should I check before installing this replacement starter?

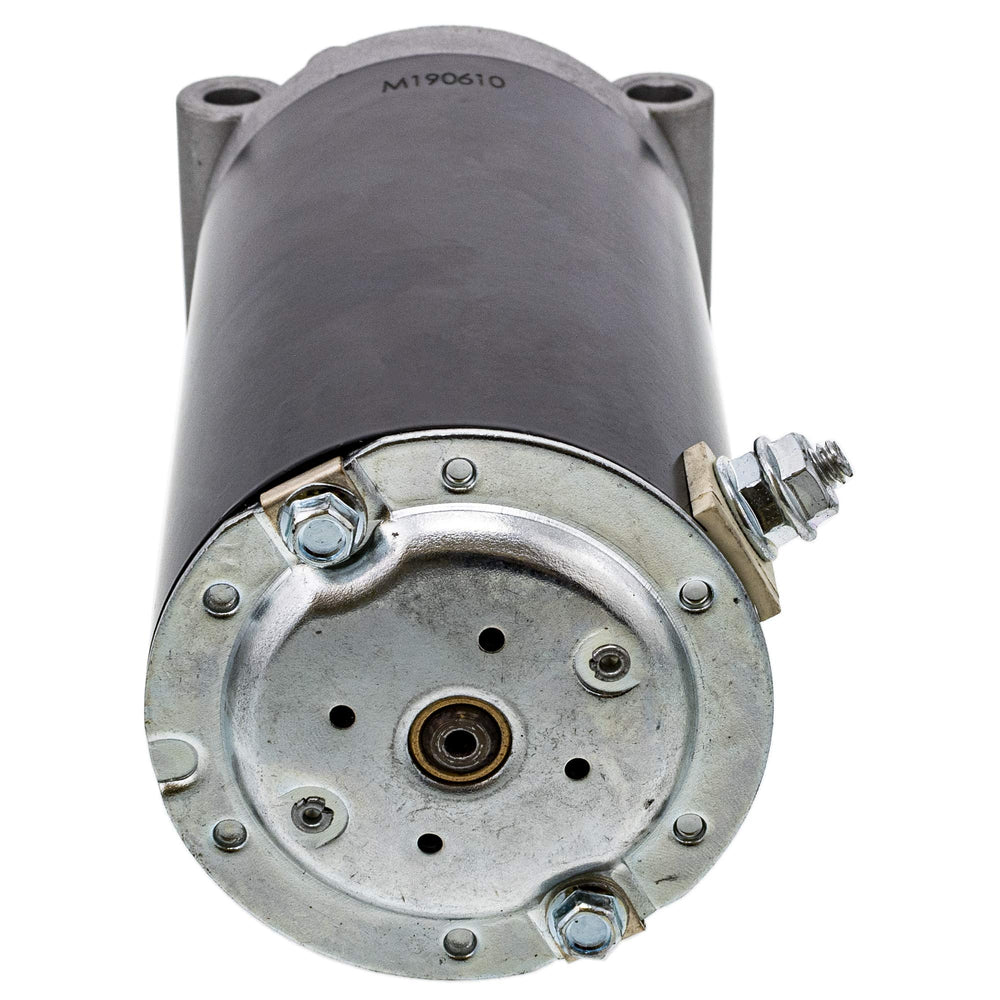

Confirm physical fit and electrical compatibility to avoid installation issues. Inspect mounting bolt pattern, electrical terminal orientation, and flywheel tooth count, and verify your mower’s OEM part number matches one of the listed equivalents.

• Compare OEM part numbers: 3209808S, 32-098-04, 32-098-04S

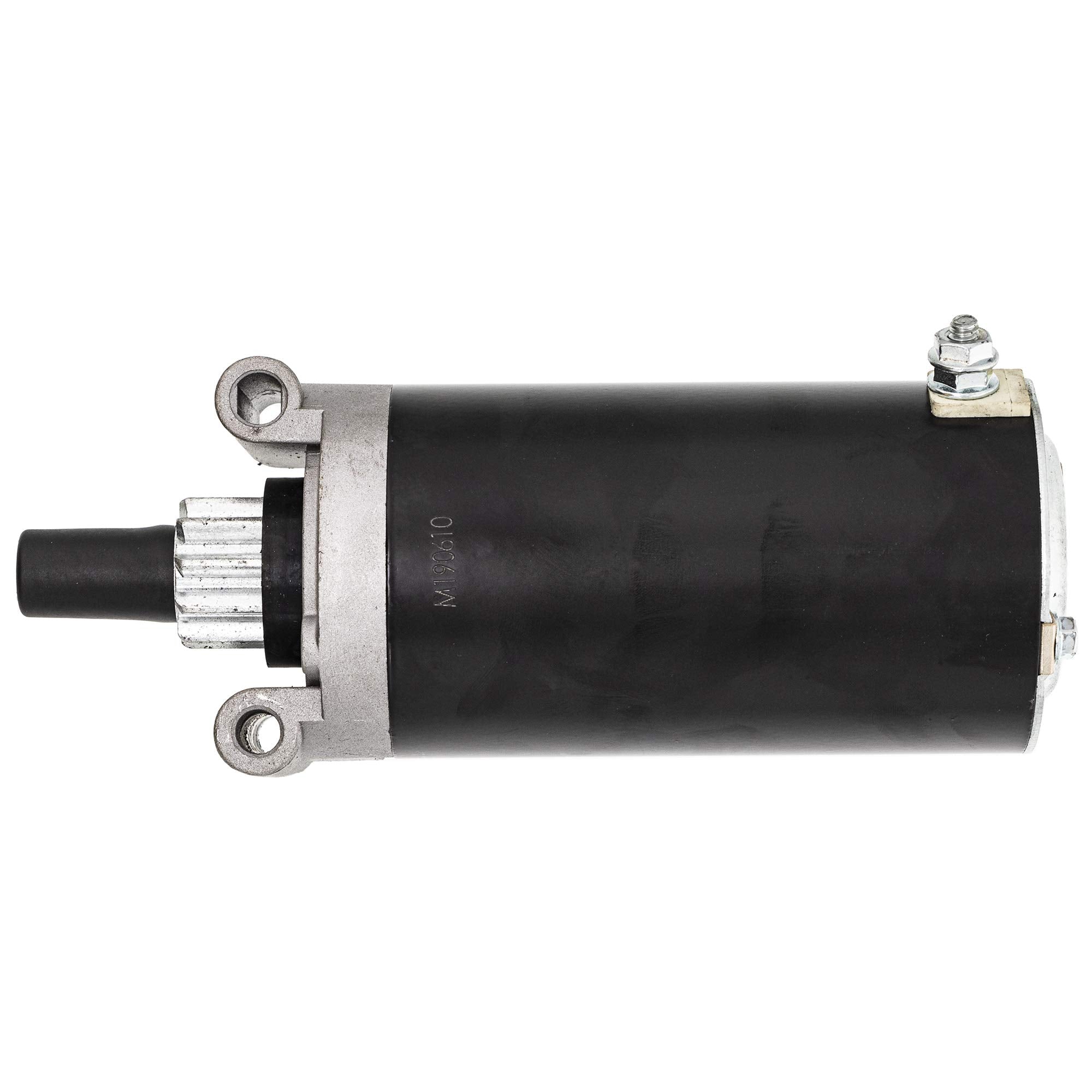

• Measure mounting bolt spacing and shaft alignment for a direct replacement
• Ensure battery health and wiring are in good condition to support starter draw
• Note rotational direction (counter-clockwise) and gear tooth count (10) for compatibility

Will this starter require any modifications to fit my mower?

Most installations are bolt-on replacements when the OEM numbers and physical alignment match. Minor adjustments to wiring routing or fastener torque may be needed, but no machining or custom adapters are typically required when fitting compatible Kohler engine applications.

• Designed as a direct-fit for listed Kohler OEM numbers
• No special adapters generally necessary for New Holland, Cub Cadet, or Toro listed models
• Standard hand tools and basic mechanical skills are sufficient for installation

Who this is for: This 8TEN starter motor is aimed at owners and technicians who need a dependable, OEM-fit replacement for Kohler engine starters on zero-turn mowers, compact tractors, and lawn tractors from the model years and makes listed. Choose this unit if you want a replacement that mirrors Kohler’s original specs—brush type, torque, tooth count, rotation—and restores reliable starting without complex modifications.
