ABN Pneumatic Spark Plug Cleaner — Sandblaster Plug Cleaner Kit, Universal with Abrasive & Collection Bag

The ABN Pneumatic Spark Plug Cleaner is a compact air-powered sandblaster kit designed to remove carbon and deposits from spark plugs quickly and safely.

If your engine’s spark plugs are fouled by carbon, oil, or deposits, cleaning them can restore consistent spark performance and extend plug life. The ABN unit uses a controlled abrasive swirl inside a chamber to strip buildup from electrodes and ceramic insulators. It ships as a kit with a fabric collection bag, abrasive media, a clamp, and the main housing, and it mounts to a wall or post for repeated garage or shop use. Note: an air compressor, fittings, and mounting hardware are not included.

How does the ABN cleaner remove carbon without damaging the plug?

The cleaner uses a gentle, circulating abrasive that abrades deposits from metal and ceramic surfaces while the plug is held stationary. Its chamber and rubber seal keep grit contained and let the operator move the plug to expose all angles of the electrode. The design avoids aggressive impact or high heat that can warp components when used per instructions.

• Uses a controlled abrasive media designed for spark plug cleaning

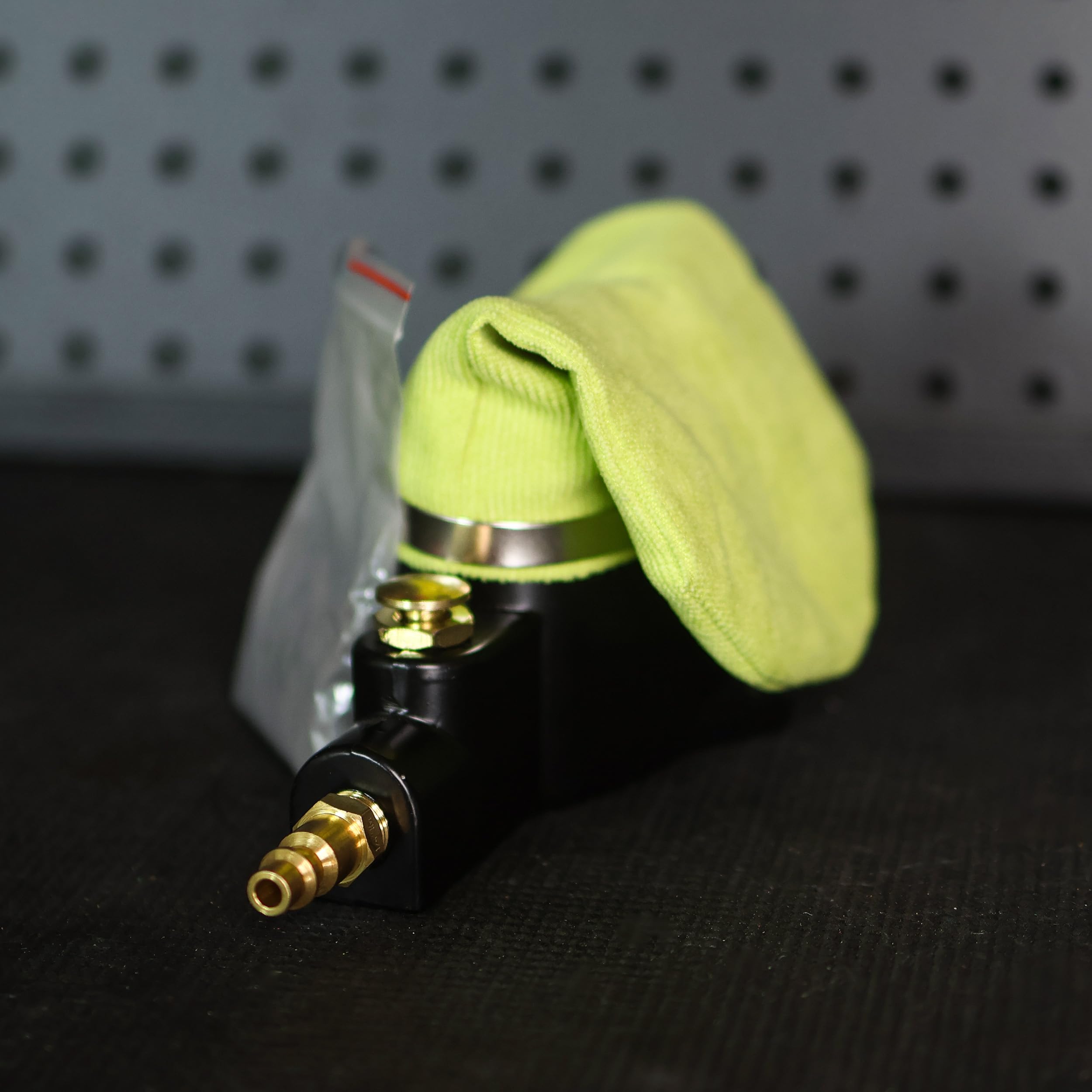

• Rubber top seal supports the plug and limits media escape
• Operator moves plug in circular motions to clean electrodes evenly
• Low-heat pneumatic action reduces risk of thermal stress

What comes in the kit and what else will I need?

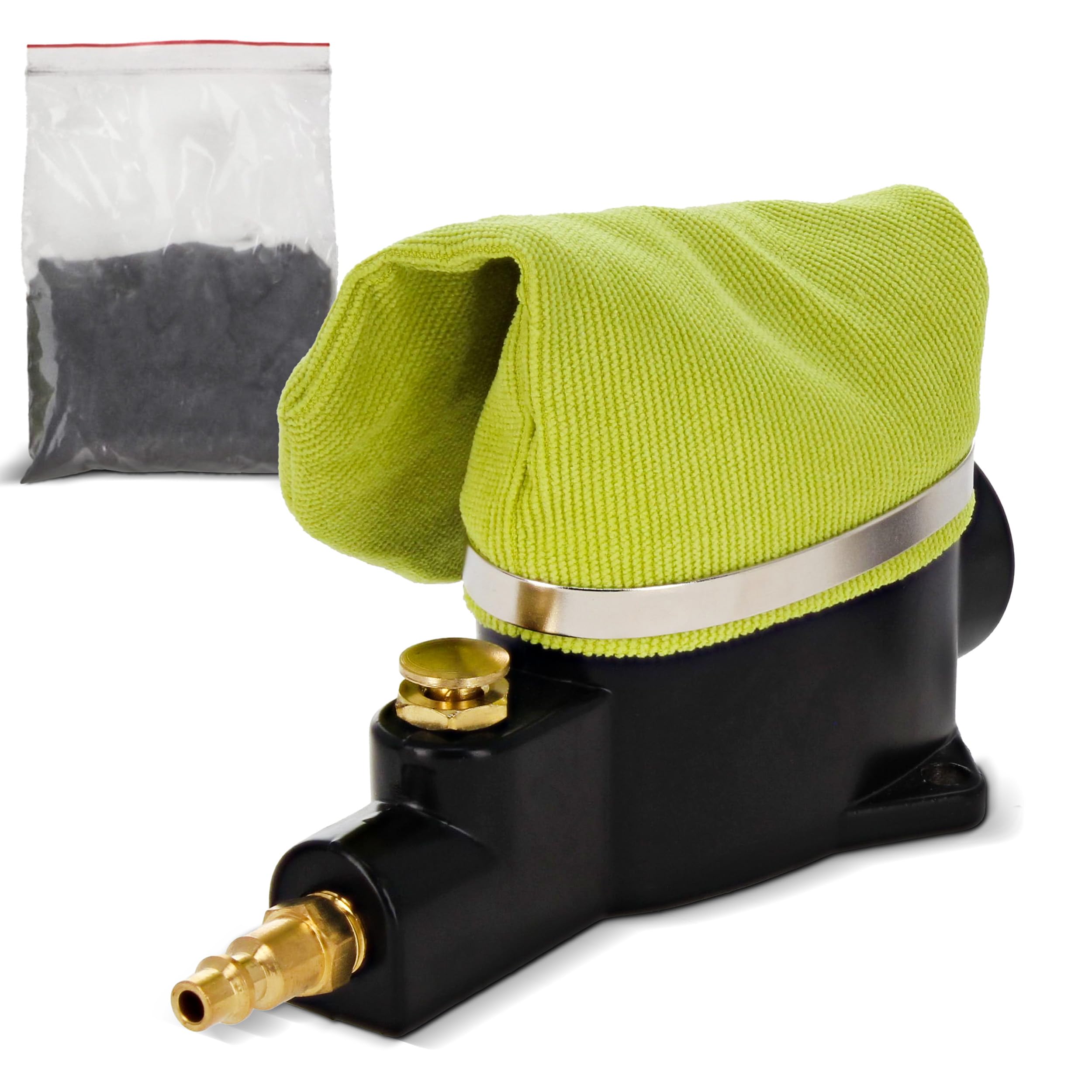

The package includes the plastic base unit with brass fittings, a steel clamp, a fabric collection bag, and a small packet of abrasive material. It does not include the compressor, mounting screws, or air hose union fitting, which you must supply to operate the tool. The tool uses a 1/4-inch NPT inlet and fits a 3/8-inch air hose with the proper barb.

• Included: cleaner housing, fabric bag, clamp, 1.7 oz abrasive, instructions
• Required separately: air compressor, mounting hardware, union fitting, air hose
• Air specs: ~7.7 CFM consumption, recommended up to 90 PSI

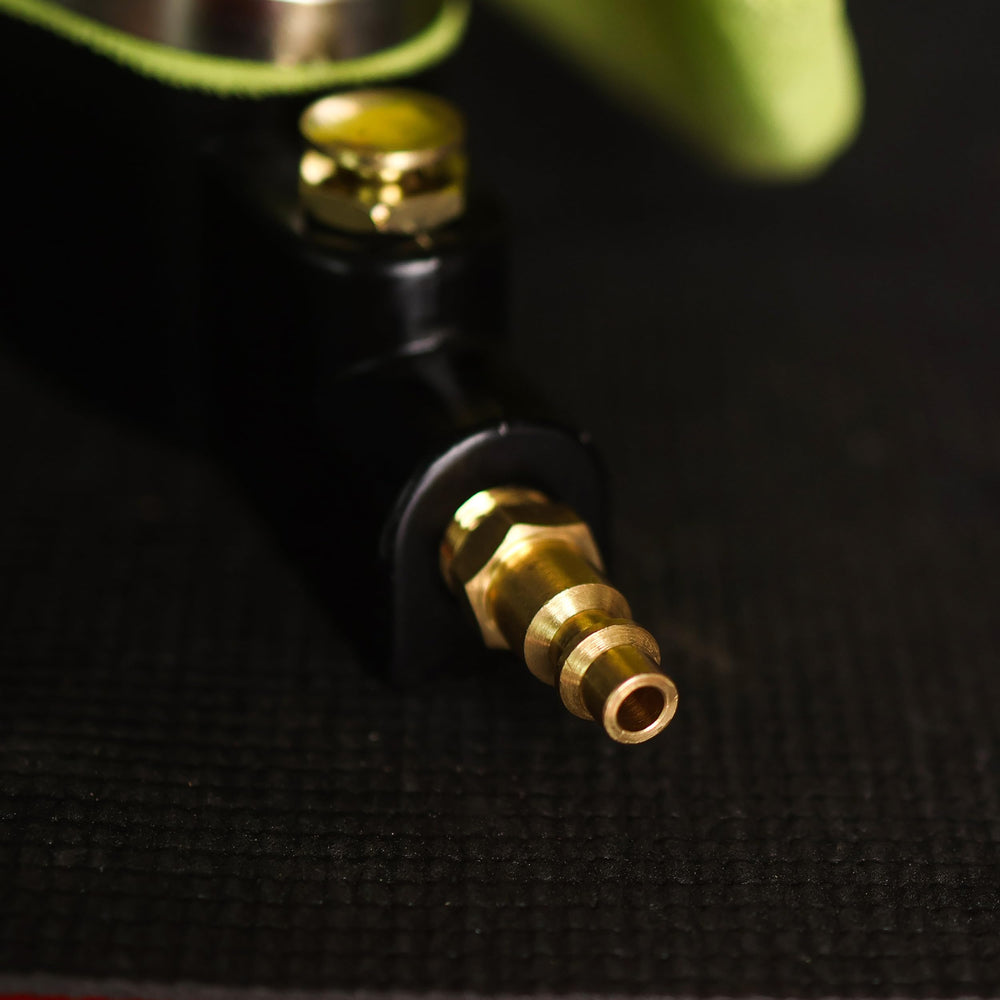

• Inlet: 1/4" NPT with hose barb for 3/8" hose

How do I set it up and operate the spark plug sandblaster safely?

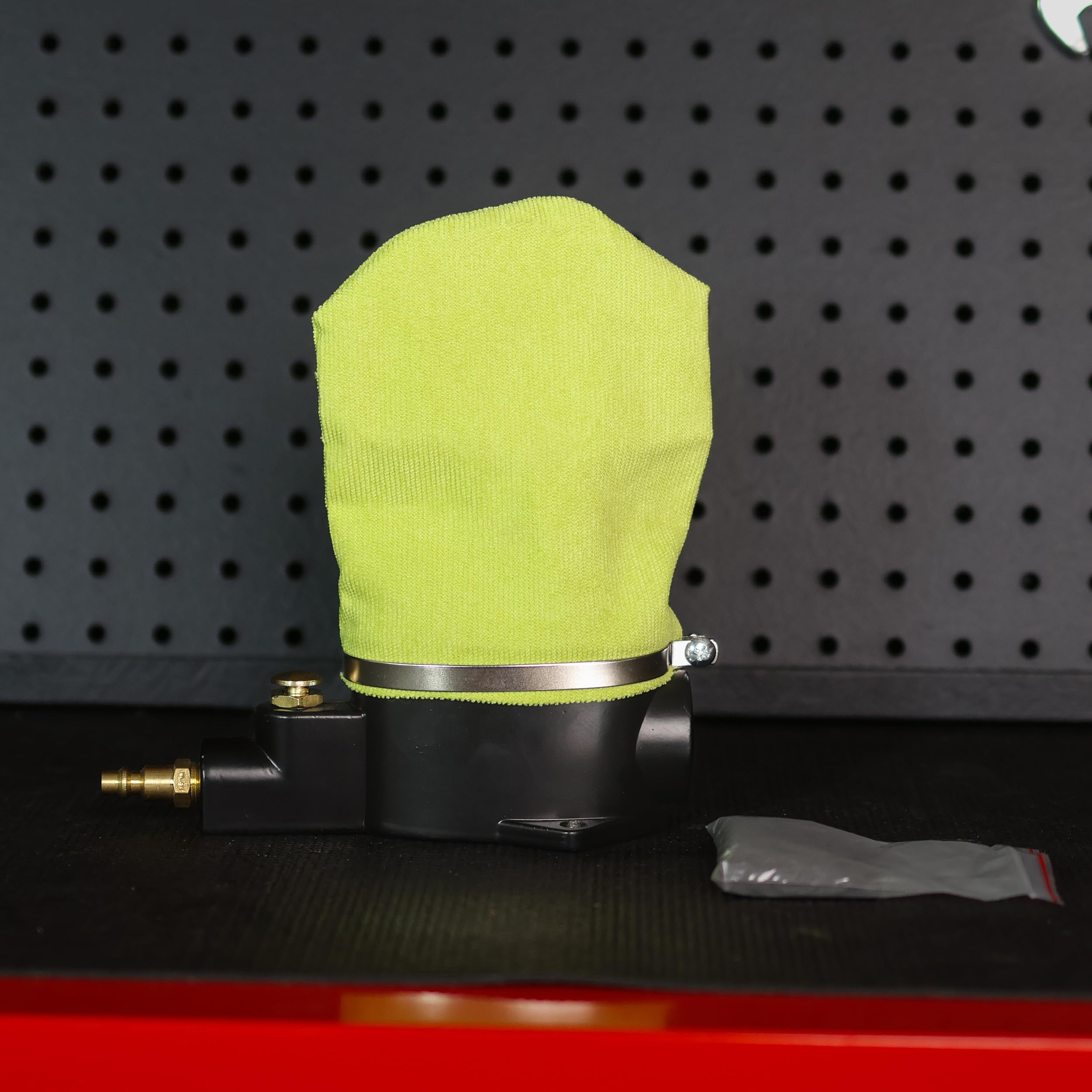

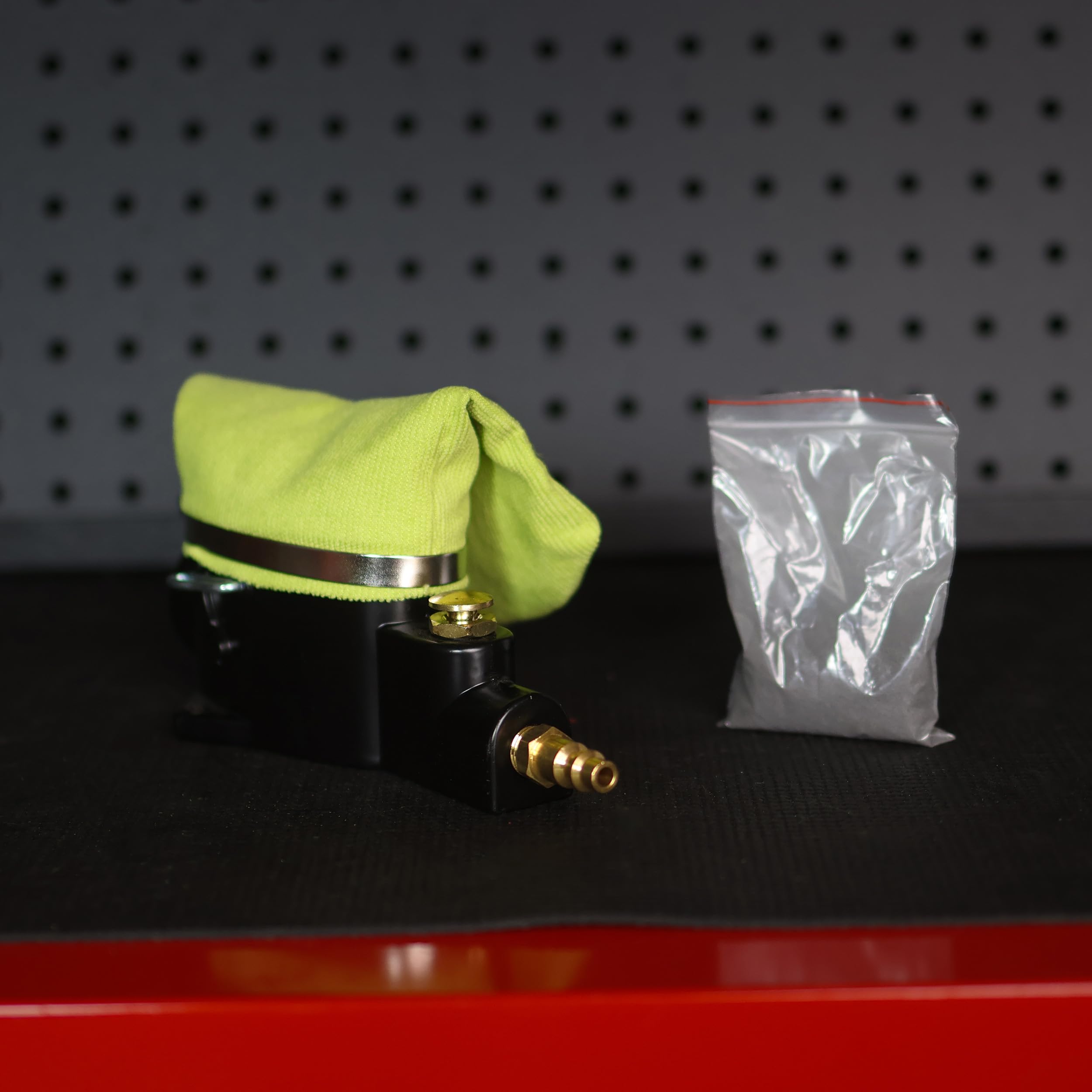

Mount the unit vertically using the two flanges so the plug opening faces upward. Fill the chamber with the supplied abrasive, secure the cover with the clamp, connect your compressor, insert the plug electrode-down into the rubber opening, and run the compressor while flipping the tool’s switch. Always use eye protection, gloves, and a dust mask when operating, and clear remaining grit from the plug before reinstalling it in an engine.

• Mount vertically with plug insertion facing up for safe dust capture
• Secure cover with the included clamp before pressurizing
• Insert plug electrode-down and move it in slow circles for even cleaning
• Wear protective eyewear, gloves, and a respirator; brush off grit post-cleaning

Will this work with different spark plug types and engines?

The ABN cleaner is compatible with a broad range of spark plugs used in motorcycles, lawn mowers, small engines, and many automotive applications. Its universal rubber sealing top accepts most plug sizes while the abrasive action targets carbon and light deposits rather than altering electrode geometry. Avoid using on iridium or platinum plugs if manufacturer guidance advises against abrasive cleaning.

• Suitable for common copper, nickel, and standard electrode plugs
• Works on small-engine, motorcycle, and many automotive plugs
• Avoid aggressive cleaning on precious-metal tip plugs unless approved
• Always check plug manufacturer guidance before abrasive cleaning

Who is this for: The ABN Pneumatic Spark Plug Cleaner is built for hobbyists, motorcycle and small-engine mechanics, and garage owners who want a repeatable, shop-mounted method to remove carbon from spark plugs. It’s best for users who already have an air compressor and basic mounting hardware and who understand basic safety precautions when working with abrasive media and compressed air.
