ABN Spark Plug Thread Repair Kit 14mm M14x1.25 — Complete HSS Taps & Inserts, Metal Case

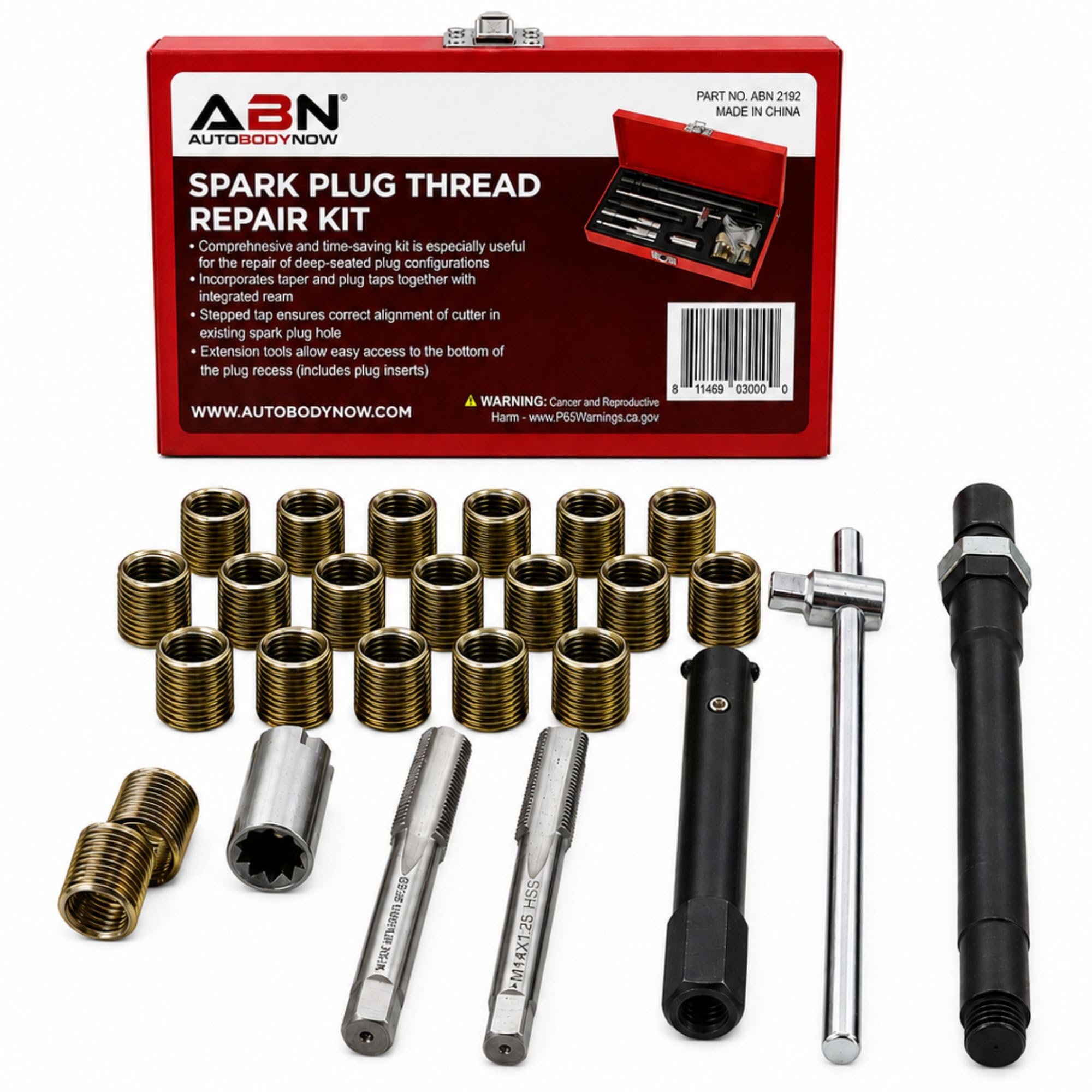

ABN's 14mm Spark Plug Thread Repair Rethreading Set is a complete kit engineered to restore stripped or damaged 14mm spark plug threads, using taps, inserts, and installation tools to rebuild a reliable threaded seat.

This rethreading kit is designed for mechanics, hobbyists, and DIYers who need a dependable way to repair damaged spark plug ports without replacing cylinder heads. The set includes both taper and lug-style taps, a stepped tap for alignment, installation tools, assorted inserts, and an organized metal case for secure storage. Components are made from high-speed steel (HSS) and sized for M14x1.25 spark plugs found on many lawn mowers, motorcycles, cars, and small engines.

How does the kit restore stripped spark plug threads?

The kit enlarges and rethreads the damaged hole, then installs a threaded insert that provides new, factory-like threads for the spark plug to seat into. The process avoids costly head replacement by creating a solid internal thread using the included taps and insert tools.

• Use the stepped or taper tap to cut a clean, correctly aligned hole.
• Screw the correct-sized insert into the prepared hole with the installer tool.
• Expand or seat the insert using the wedge/expander for a secure fit.
• Reinstall the spark plug into the new insert threads.

What parts are included and what materials are they made from?

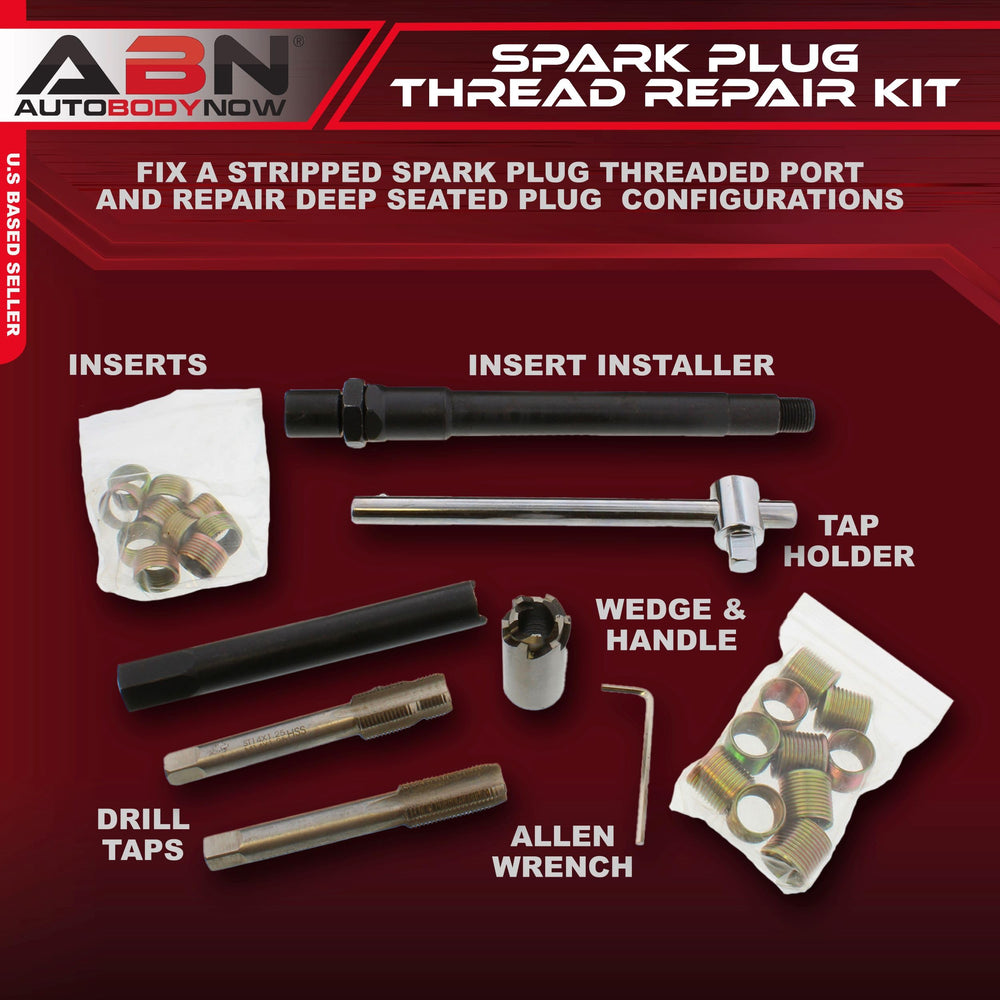

The kit contains HSS drill taps and installation hardware specifically sized to 14mm M14x1.25 threads plus accessories for convenient use and storage. All cutting tools are high-speed steel to maintain edge life during repeated use.

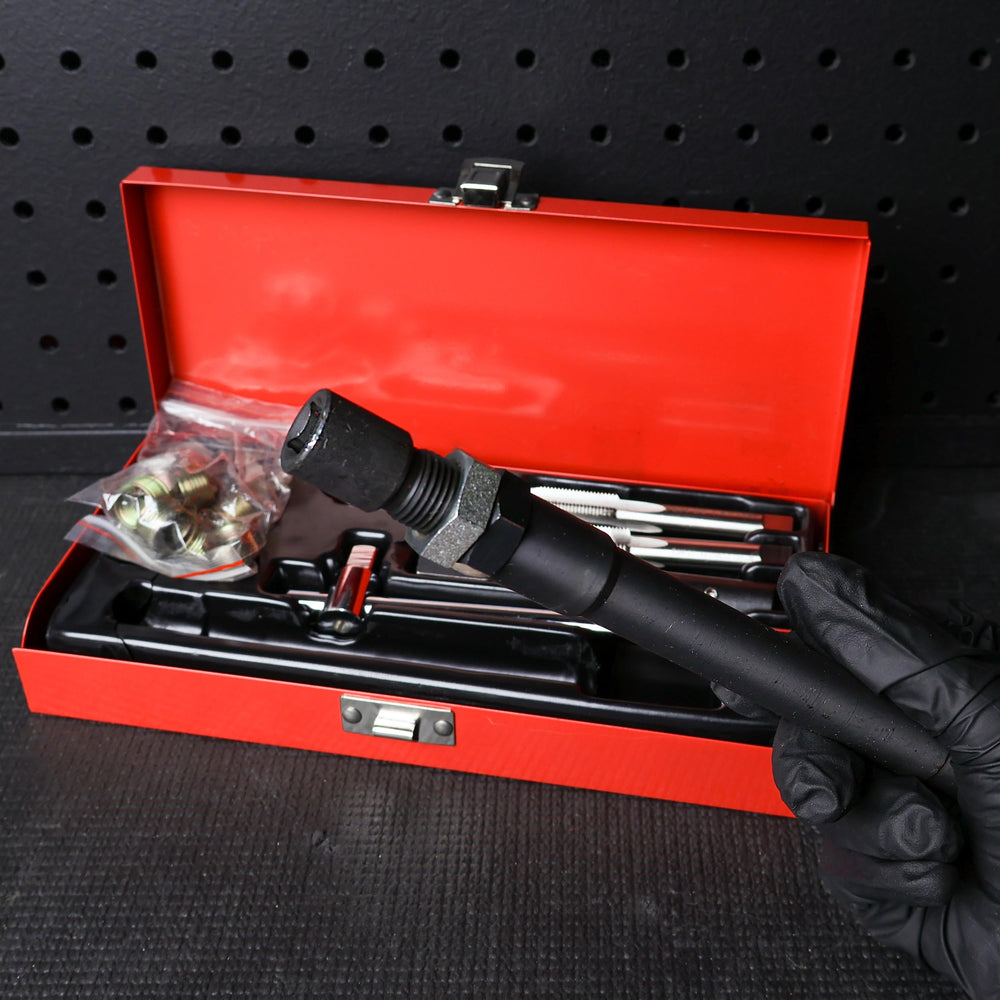

• HSS drill taps sized for M14x1.25 thread repair.

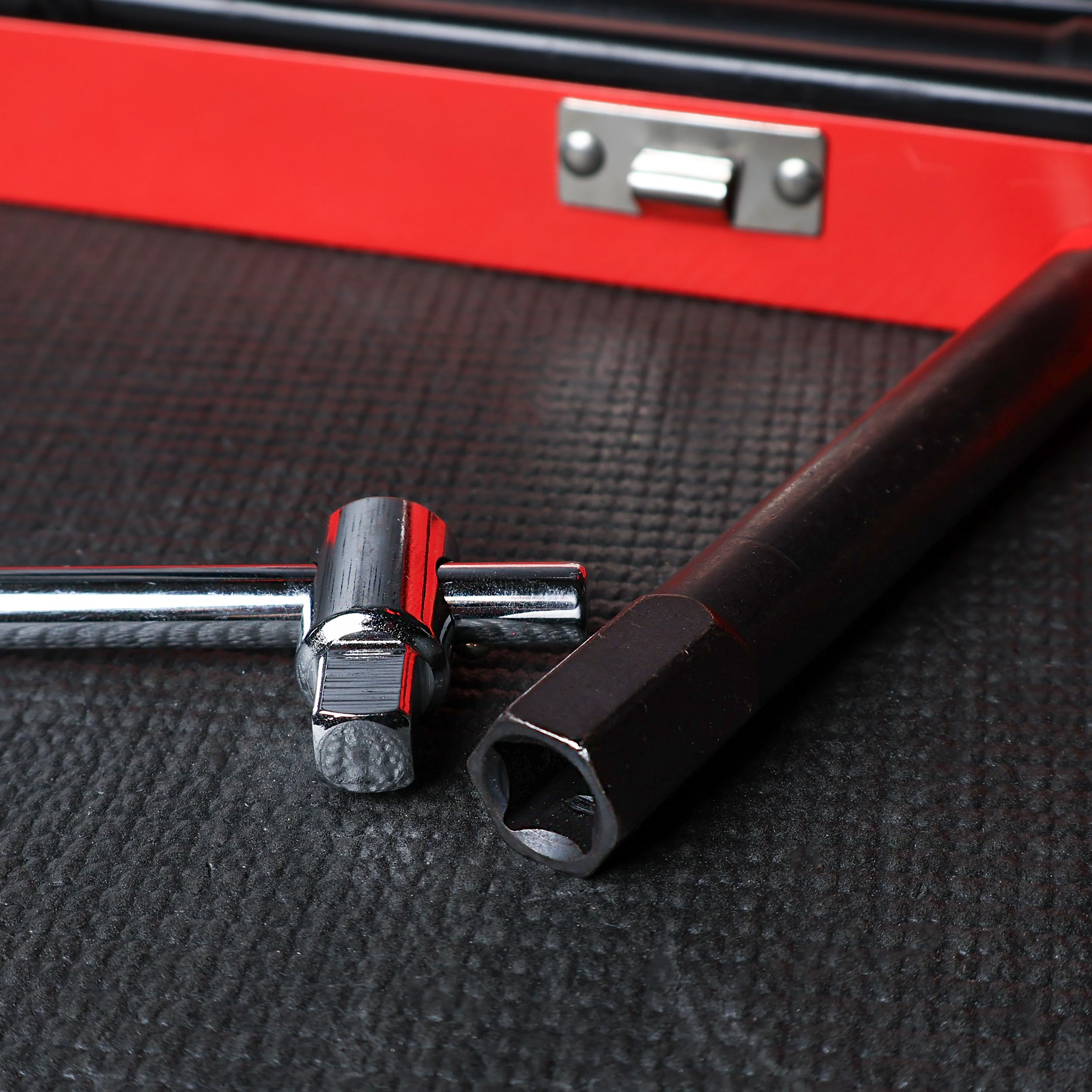

• Tap holder, insert installer, expander wedge, and handle for safe installation.
• Multiple threaded inserts and an Allen hex key for final adjustments.

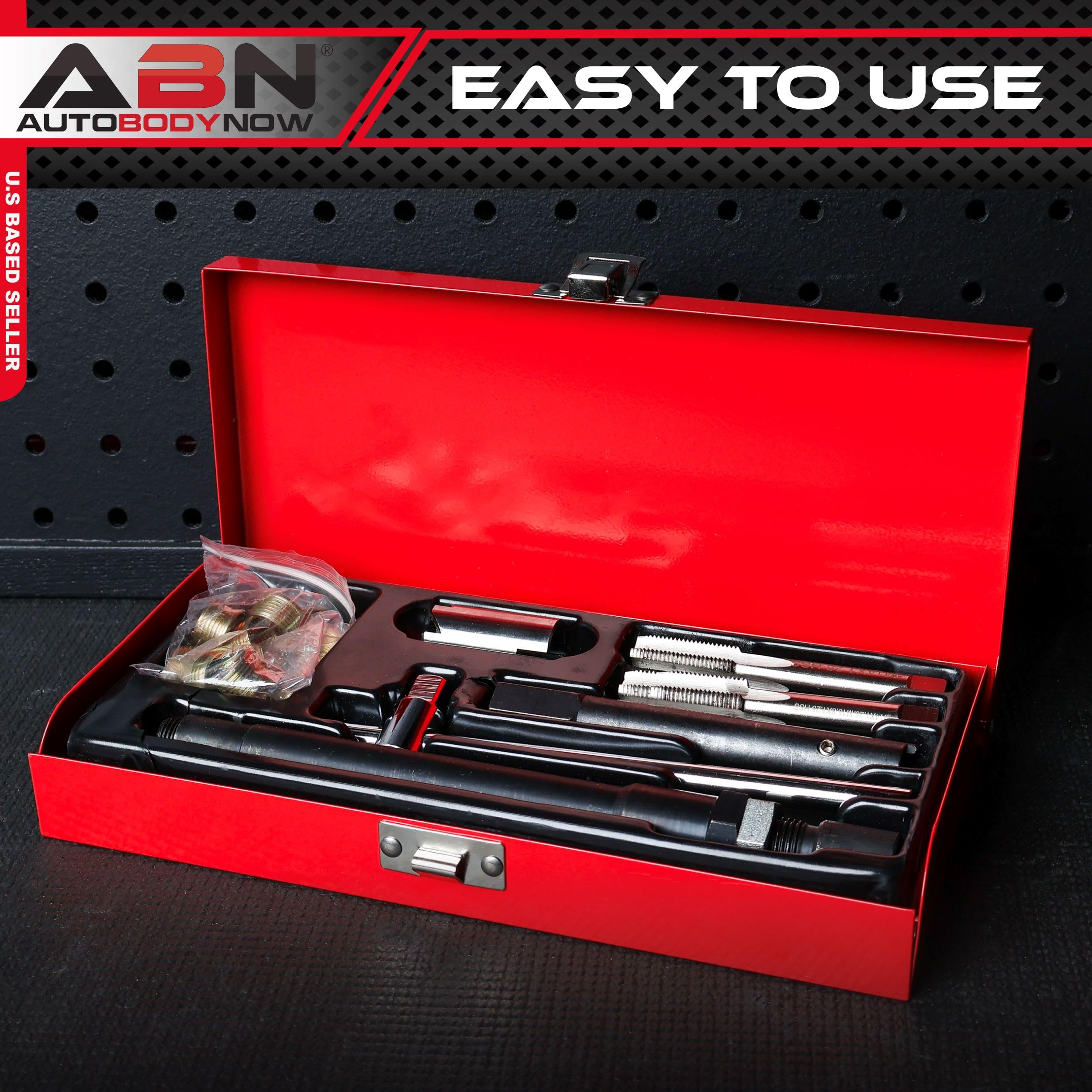

• Durable metal carrying case with molded plastic tray for organization.

How do I use the kit safely and avoid problems like carbon buildup?

Follow step-by-step reaming, tapping, and insert installation while keeping the work area clean. Use grease or cutting fluid on tool flutes to collect chips, and vacuum out debris before inserting the new threaded sleeve to avoid cross-threading or blocked seating.

• Apply grease or cutting fluid to the tap to trap metal shavings.
• Clean the port thoroughly and vacuum shavings before insert placement.
• Choose an insert that overlaps the maximum length of original plug threads to reduce carbon intrusion.
• Tighten and seat the insert carefully—over-seating can make removal difficult.

Will this kit reach deep-seated spark plug recesses and odd positions?

Yes — included extension and installer tools allow access to recessed spark plugs and deeper ports typical of some heads and small engines. The stepped tap and extension pieces help maintain alignment so the insert seats straight even in tight or recessed locations.

• Extension tools reach the bottom of deep plug recesses.
• Stepped tap holds correct cutter alignment in the existing hole.
• Installer and wedge tools allow controlled seating even in narrow spaces.
• Metal case keeps extensions organized and protected.

Who is this for: The ABN 14mm Spark Plug Thread Repair Rethreading Set is suited to automotive and small-engine mechanics, lawn and garden maintenance technicians, and DIY enthusiasts who need a practical, lower-cost repair option for damaged spark plug threads. If you regularly work on M14x1.25 spark plug engines — cars, motorcycles, ATVs, lawn mowers, or generators — and prefer to repair rather than replace cylinder heads, this kit supplies the taps, inserts, and tools to get the job done with durable HSS components and compact storage.
