DPTOOL 12mm Spark Plug Thread Repair Tool M12x1.25 — Back Tap Thread Chaser, 42CrMo Alloy

The DPTOOL 12mm back tap spark plug thread repair tool (M12x1.25) safely restores damaged spark plug threads without removing the cylinder head.

If a spark plug hole has been cross-threaded, stripped, or worn, this M12x1.25 thread chaser is built to recut and clean the internal threads so you can reinstall a plug or insert. Made from 42CrMo alloy steel, the tool is designed for strength and repeated use; its expanding back-tap action traps metal shavings so debris can be removed with the tool instead of falling into the combustion chamber. The kit is intended for mechanics and DIYers who need a reliable way to repair spark plug threads quickly and with minimal engine disassembly.

How does this tool remove damaged threads without dropping metal shavings into the cylinder?

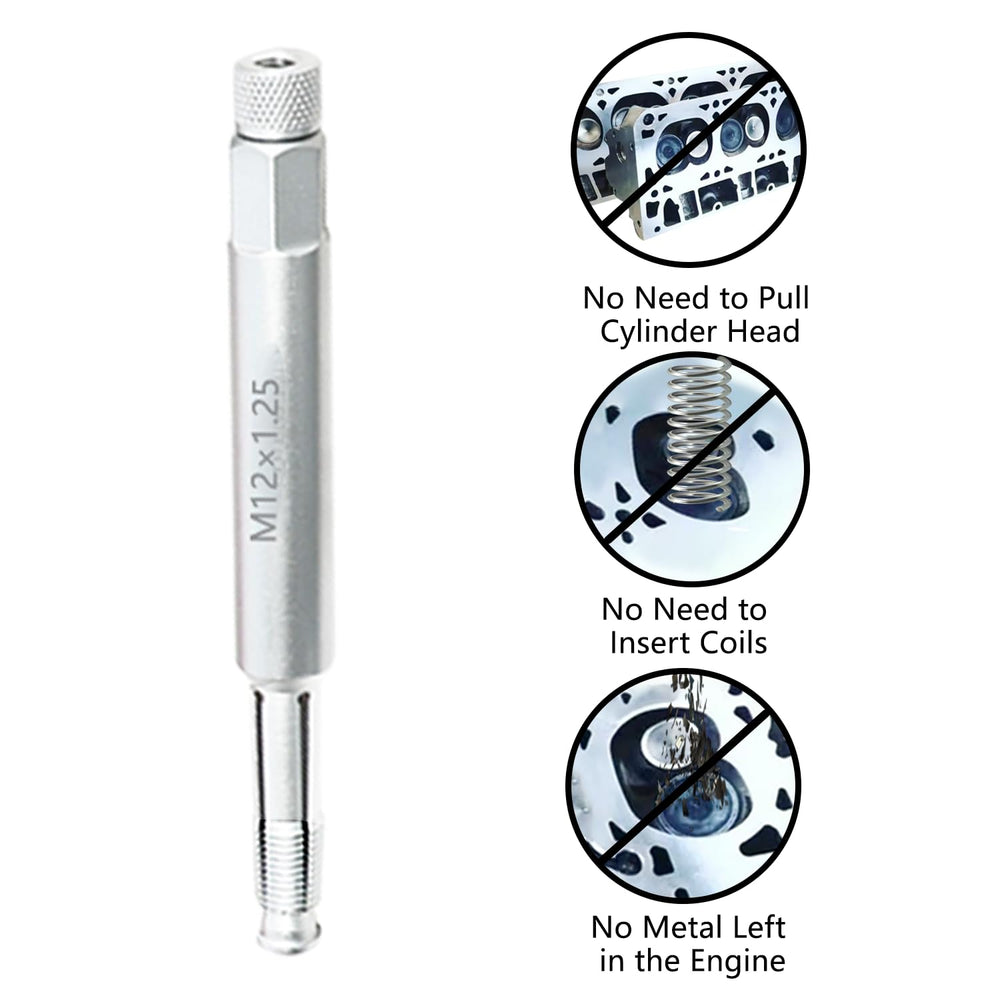

The DPTOOL back tap expands inside the spark plug bore and cuts while retaining the filings in the tool’s threaded cavity. Grease is applied before use to help capture swarf, and when the tool is withdrawn it brings trapped debris out of the hole rather than letting it fall into the engine.

• Expanding back-tap design captures shavings internally
• Use grease on the thread to trap metal fragments
• Withdraws debris with the tool for cleaner repairs
• Eliminates need to pull the cylinder head in many cases

What materials and build quality can I expect from the DPTOOL M12x1.25 thread chaser?

This tool is manufactured from 42CrMo steel, a high-strength alloy comparable to 4140 that offers good toughness and wear resistance. Heat-treated and tempered, it resists breakage during repeated tapping and is suited for the forces involved in cleaning spark plug threads.

• 42CrMo alloy construction for impact resistance
• Quenched and tempered for durability under load
• Precision-machined cutting surfaces for accurate thread form
• Engineered to withstand repeated workshop use

How should I use the back tap to safely repair a spark plug thread?

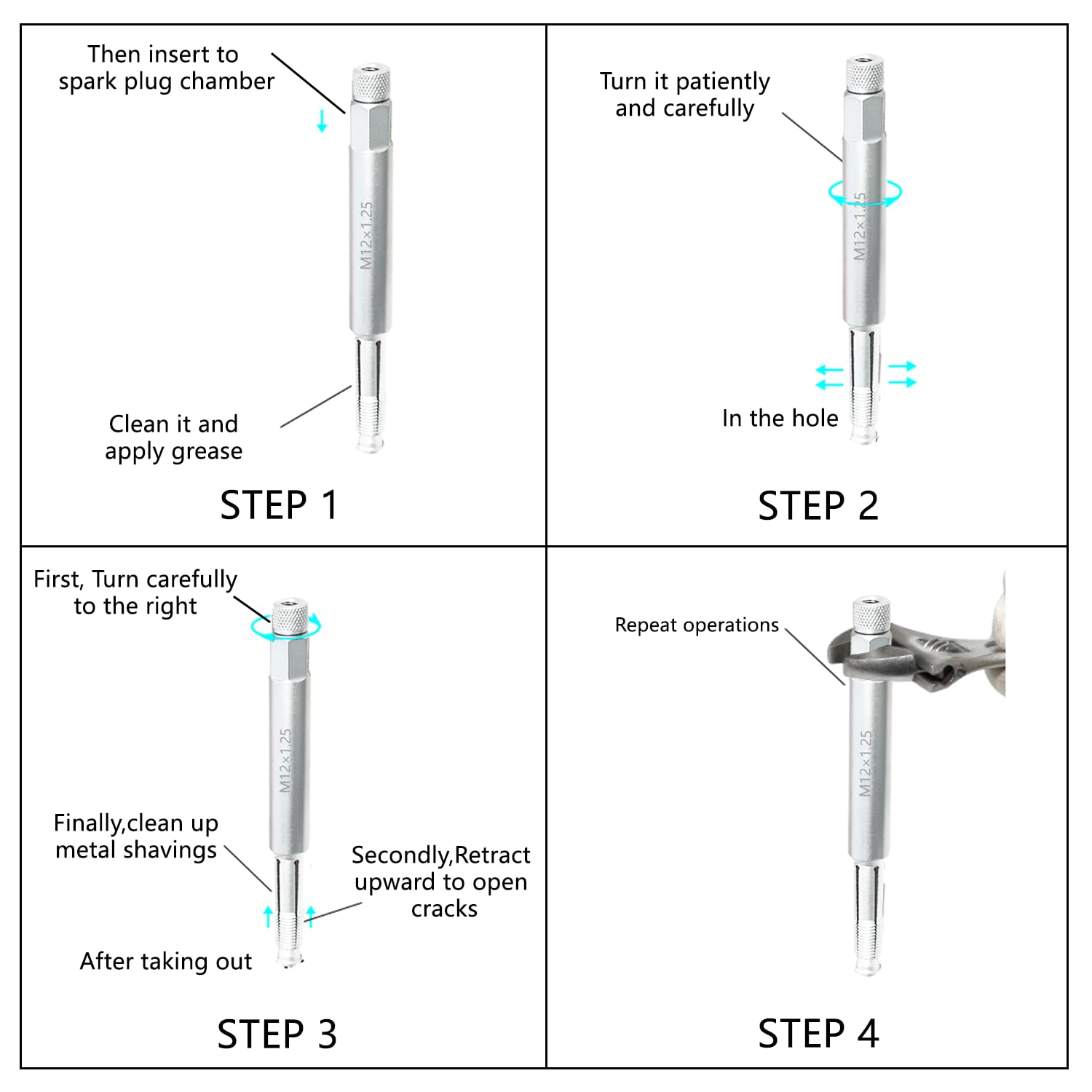

Insert the tool straight into the spark plug hole, expand it, and rotate forward 3–5 times to cut; reverse occasionally to clear chips and ease the process when resistance grows. Go slowly, back the tool slightly when you meet a dense patch, and repeat until the thread profile is restored. Following this method helps prevent tool breakage and avoids pushing debris into the cylinder.

• Insert straight, expand, and turn forward 3–5 rotations
• When resistance increases, back off slightly and resume
• Rotate from side to side periodically to clear and cut cleanly
• Apply grease beforehand to trap shavings inside the tool

Will this fix every stripped spark plug hole and what are the limits?

The DPTOOL thread chaser works well for cross-threaded or partially stripped spark plug holes where the cylinder head can remain installed. It cleans and re-forms existing threads but is not a substitute for a helicoil or time-insert if the cylinder head has severe material loss. For heavily damaged bores or cracked heads, more invasive repairs may still be required.

• Effective for mild to moderate thread damage
• Not a replacement for heli-coil in extensively eroded holes
• Helps avoid head removal in many typical workshop repairs
• Inspect thread integrity after use to decide if an insert is needed

Who is this for: mechanics, mobile technicians, and home mechanics who need a compact, sturdy tool to restore M12x1.25 spark plug threads efficiently. It’s especially useful when you want to avoid removing the cylinder head and need a durable, reusable tool that limits debris contamination inside the combustion chamber. The DPTOOL back tap is a practical addition to engine repair kits for light-vehicle maintenance and small-engine service.
