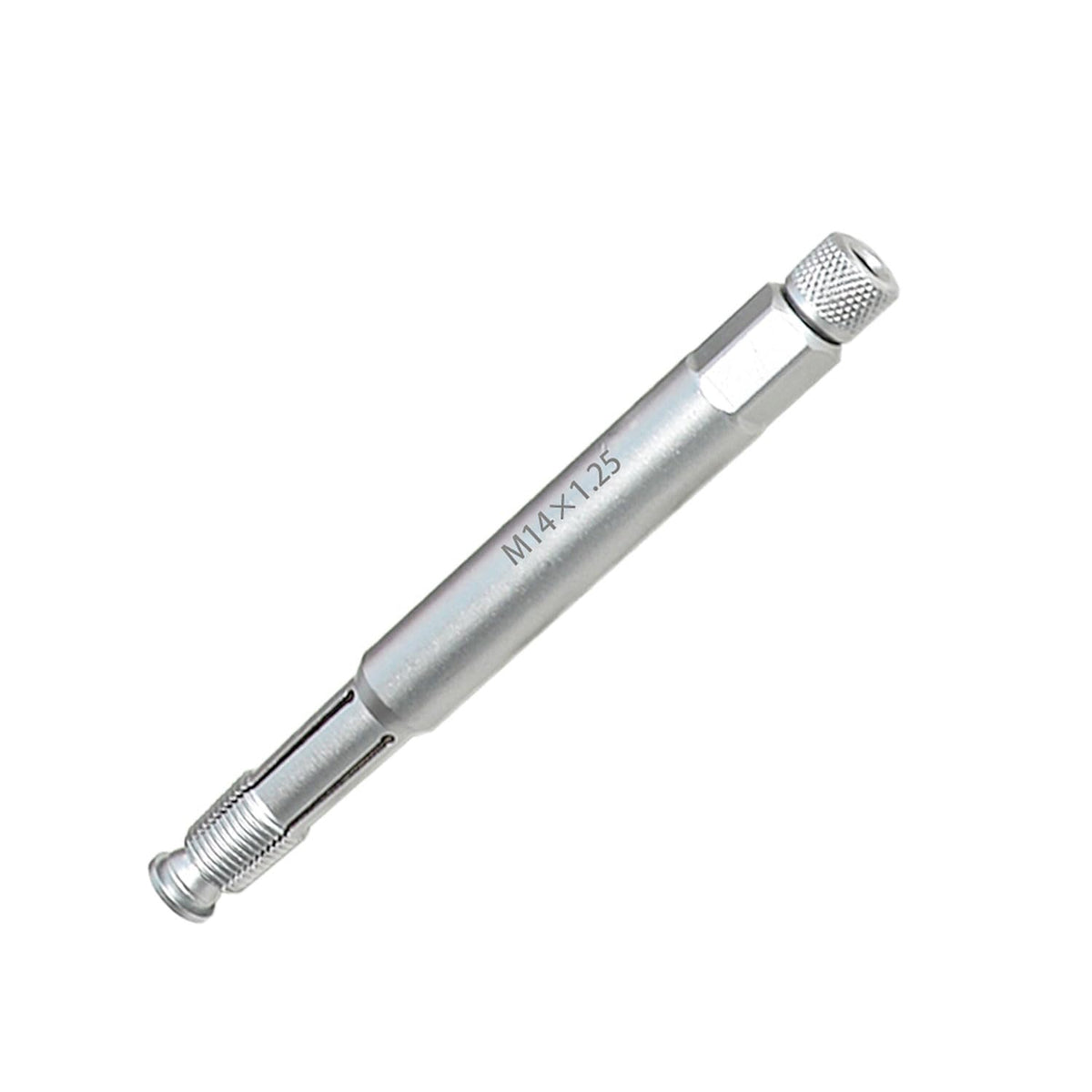

DPTOOL 14mm Back Tap Spark Plug Thread Repair Tool M14x1.25 — 42CrMo Steel Thread Chaser, Reforms Threads Without Head Removal

DPTOOL 14mm Back Tap Spark Plug Thread Repair Tool M14x1.25 is a heavy-duty thread chaser designed to restore damaged spark plug threads from the combustion chamber side without removing the cylinder head.

If a spark plug thread is cross-threaded or partially stripped, this M14x1.25 back tap lets you clean and reform the thread from inside the bore so you can reuse the original spark plug size. The tool is machined from 42CrMo alloy steel (comparable to 4140) for toughness and wear resistance. It is intended to recover threads while minimizing metal debris falling into the cylinder by trapping shavings in grease on the tool.

How does the back tap repair threads without removing the cylinder head?

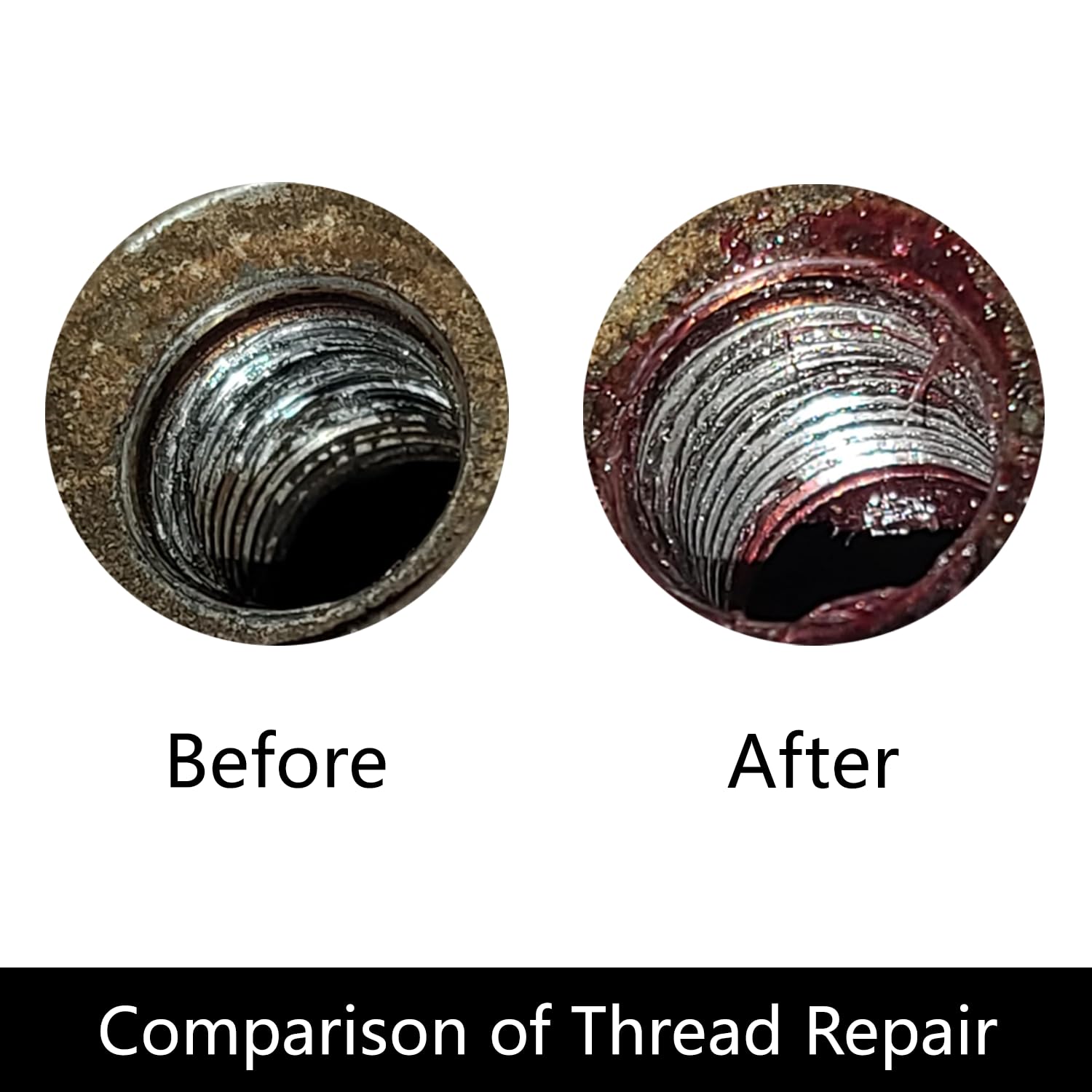

This back tap is inserted through the spark plug bore and expanded to engage the damaged thread teeth, allowing the tool to chase and reform the original M14x1.25 profile from the chamber side. That avoids the labor and cost of head removal or installing a helicoil insert when minor-to-moderate damage is present.

• Insert straight through spark plug hole, expand to engage threads
• Work back and forth slowly to cut and reshape the damaged thread
• Designed for M14x1.25 spark plug thread sizes common in many engines

Will using this tool leave metal shavings inside my cylinder?

When used as recommended, the tool captures most metal debris by coating the threaded section with grease before starting. The trapped shavings stick to the grease and are withdrawn with the tool instead of dropping into the combustion chamber.

• Apply grease to the tool threads to trap filings
• Withdraw the tool periodically to remove captured material
• Follow slow, controlled motions to reduce loose particles

What materials and durability features does this DPTOOL thread chaser have?

The repair tool is manufactured from high-grade 42CrMo steel, offering excellent strength, toughness and fatigue resistance after heat treatment. That makes it sturdy enough for repeated use and resistant to chipping or premature wear while reforming damaged threads.

• 42CrMo alloy steel construction (similar performance to 4140)
• Heat treated for high fatigue limit and impact resistance
• Built to withstand multiple repair cycles without breaking

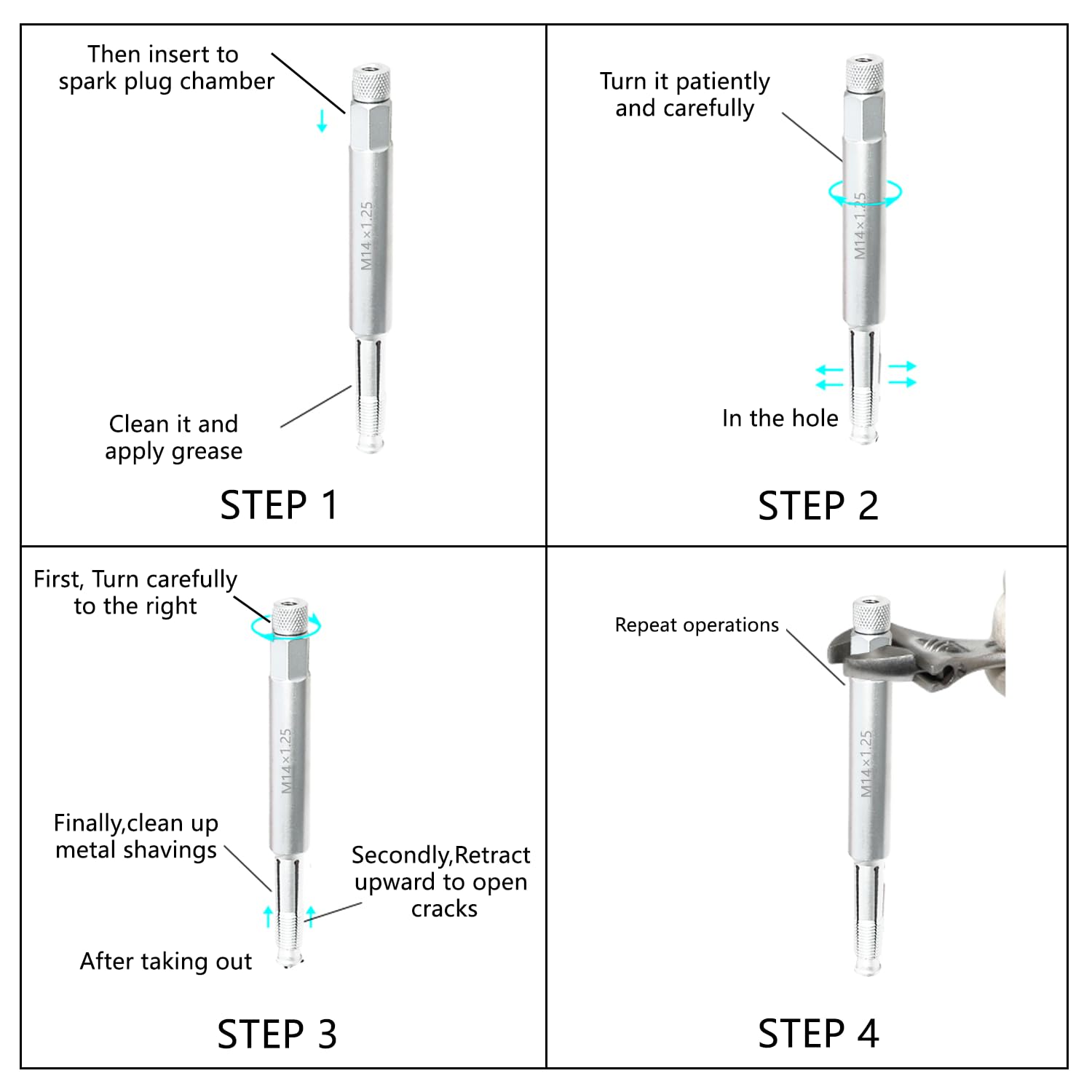

What is the correct technique to use the back tap safely and effectively?

Work slowly and deliberately: pass the tool through, expand it to engage the thread, then rotate forward and backward several times. If resistance rises, back off slightly and proceed; repeat the open/close and rotate sequence until the thread reforms cleanly.

• Push tool straight, expand, then chase threads 3–5 times
• Alternate forward and reverse turns and occasionally rock side-to-side
• Remove and clean trapped material frequently for best results

Who this tool is for: DPTOOL's 14mm back tap is aimed at mechanics, backyard enthusiasts and restoration shops that need a cost‑effective way to recover M14x1.25 spark plug threads without expensive head work. It’s suitable when the thread damage is repairable by chasing rather than requiring a helicoil or full re-tap, and for users comfortable working slowly and carefully to avoid pushing debris into the cylinder. The product includes a 12‑month warranty against manufacturing defects, with refund or replacement options if quality issues arise. Follow the tool tips and safety practice to maximize repair success and protect the engine internals.
