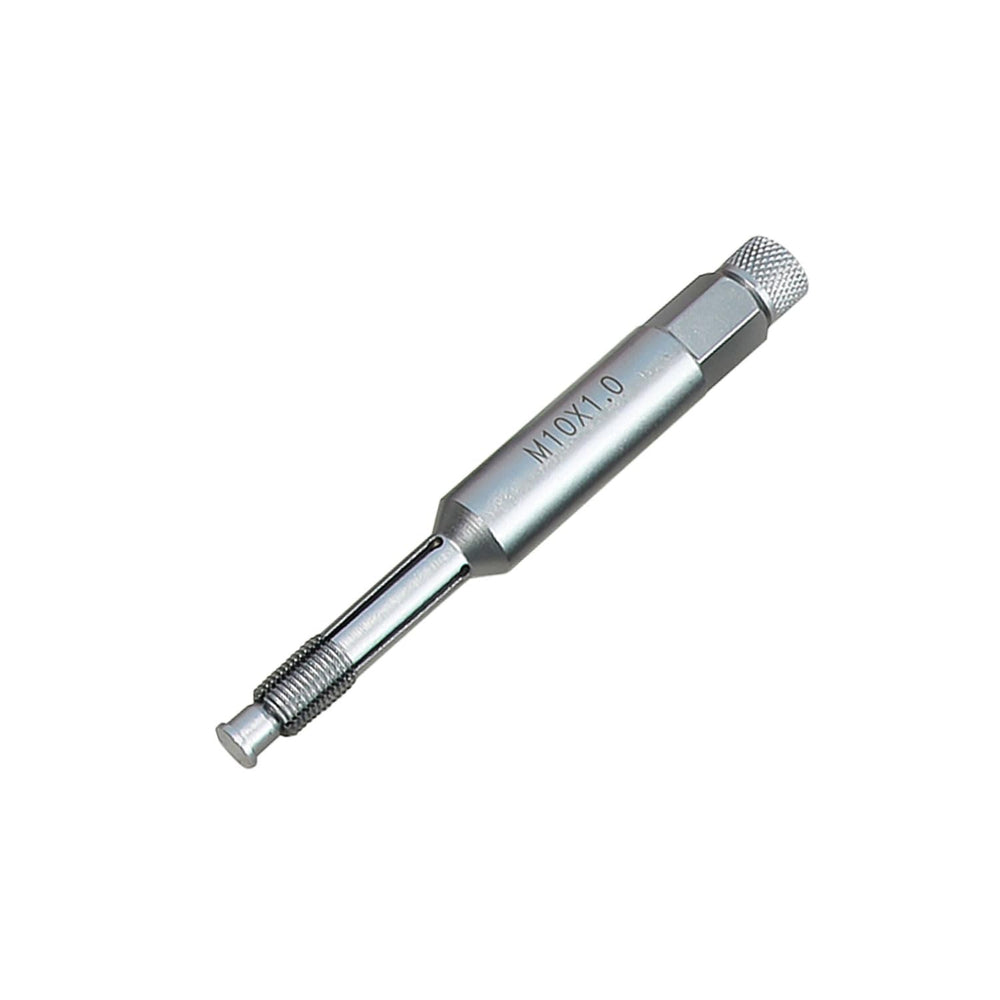

DPTOOL 10mm Spark Plug Thread Repair Back Tap M10x1.0 — Heat‑Treated 42CrMo Chaser, Grease Debris Trap

DPTOOL's 10mm back tap is a heavy-duty M10x1.0 thread chaser designed to restore damaged spark plug threads quickly and without removing the cylinder head.

If a spark plug thread in an aluminum or steel cylinder head has been cross‑chased, overtightened, or partially stripped, this DPTOOL back tap lets you clean and re‑form the thread in place. The tool traps metal shavings with grease so debris is pulled out when you extract it, reducing the risk of foreign material dropping into the combustion chamber. Built from heat‑treated 42CrMo (4140‑equivalent) steel, the chaser is made to resist wear and impact so it remains precise through repeated use.

How does this tool repair badly damaged spark plug threads?

The tool expands inside the damaged M10x1.0 hole to re‑form and chase the original thread profile, removing burrs and reshaping flattened sections. Because it’s a back tap, you don’t need to remove the cylinder head or install a coil insert unless the thread is beyond repair.

• Insert straight into the spark plug bore and expand to engage the thread.
• Back‑thread 3–5 rotations, reversing and working slowly on tight spots.
• Repeat until the thread cleans up and the plug can be seated securely.

Will metal shavings fall into the cylinder during use?

No — the recommended procedure uses grease on the tool’s threads so shavings adhere to the chaser and are withdrawn with it. That containment method minimizes the chance of loose metal entering the combustion chamber, keeping internal components safer during repair.

• Coat the tool threads with grease before insertion to trap debris.
• Withdraw the device slowly to pull out trapped filings.
• Inspect and clean the bore after each pass to ensure no loose material remains.

Is the DPTOOL chaser durable enough for repeated shop use?

Yes — manufactured from 42CrMo steel (equivalent to 4140), the tool is quenched and tempered for high fatigue resistance and toughness. That material choice delivers impact resistance and reduced brittleness, so it stands up to the stresses of professional or DIY use.

• Quenched and tempered 42CrMo (4140‑equivalent) construction.
• High strength, good hardenability, and low‑temperature impact toughness.
• Designed to resist wear and remain precise through multiple repairs.

How do I use the tool safely and effectively?

Work slowly and deliberately: push the chaser straight into the hole, expand, then back‑thread a few rotations. When you meet resistance, back off slightly, rotate laterally, and proceed; repeated gentle passes remove remaining material without overcutting.

• Align the tool straight with the spark plug bore to avoid cross‑angle damage.
• Turn forward and reverse, 3–5 times per pass, easing on tight spots.
• Clean and inspect the bore between passes and use grease to trap filings.

Who this is for: mechanics, home enthusiasts, and restoration professionals who need an economical way to rescue M10x1.0 spark plug threads without head removal. It’s ideal when threads are cross‑chased or partially stripped but the head and surrounding metal remain reusable. If the thread wall is missing entirely or the hole requires a helicoil, this tool may be a preparatory step or not sufficient alone. DPTOOL backs the product with a 12‑month warranty for peace of mind.
