ALFOCI 8-Pin Deutsch DT Waterproof Connector Kit — 2-Set Pre-Wired 16AWG with Heat-Shrink and IP67 Nylon

ALFOCI's 8-pin Deutsch connector kit provides two complete male/female DT wiring sets with pre-crimped 16AWG leads and adhesive-lined heat-shrink for fast, weatherproof automotive and marine splicing.

This kit supplies everything needed to build reliable, sealed 8-pin Deutsch DT connections without sourcing parts separately. Each kit contains two mating housings (DT04-8P and DT06-8S), 16 pre-wired 5.5-inch 16AWG leads, and 32 adhesive-lined heat-shrink tubes in red and black. Components are built from PA66 nylon and meet IP67-level protection, making them suitable for exposed electrical junctions on vehicles, boats, and off-road equipment.

How does this kit keep electrical connections waterproof?

The housings are molded from PA66 nylon with factory tolerances that form a tight seal when latched. Adhesive-lined heat-shrink tubing melts and bonds to insulation during shrinking, creating an extra moisture barrier around each crimped joint.

• IP67-rated DT housings that resist dust and immersion.
• Adhesive-lined heat shrink seals insulation and prevents water ingress.
• Crimp-ready 16AWG conductors for common automotive loads.

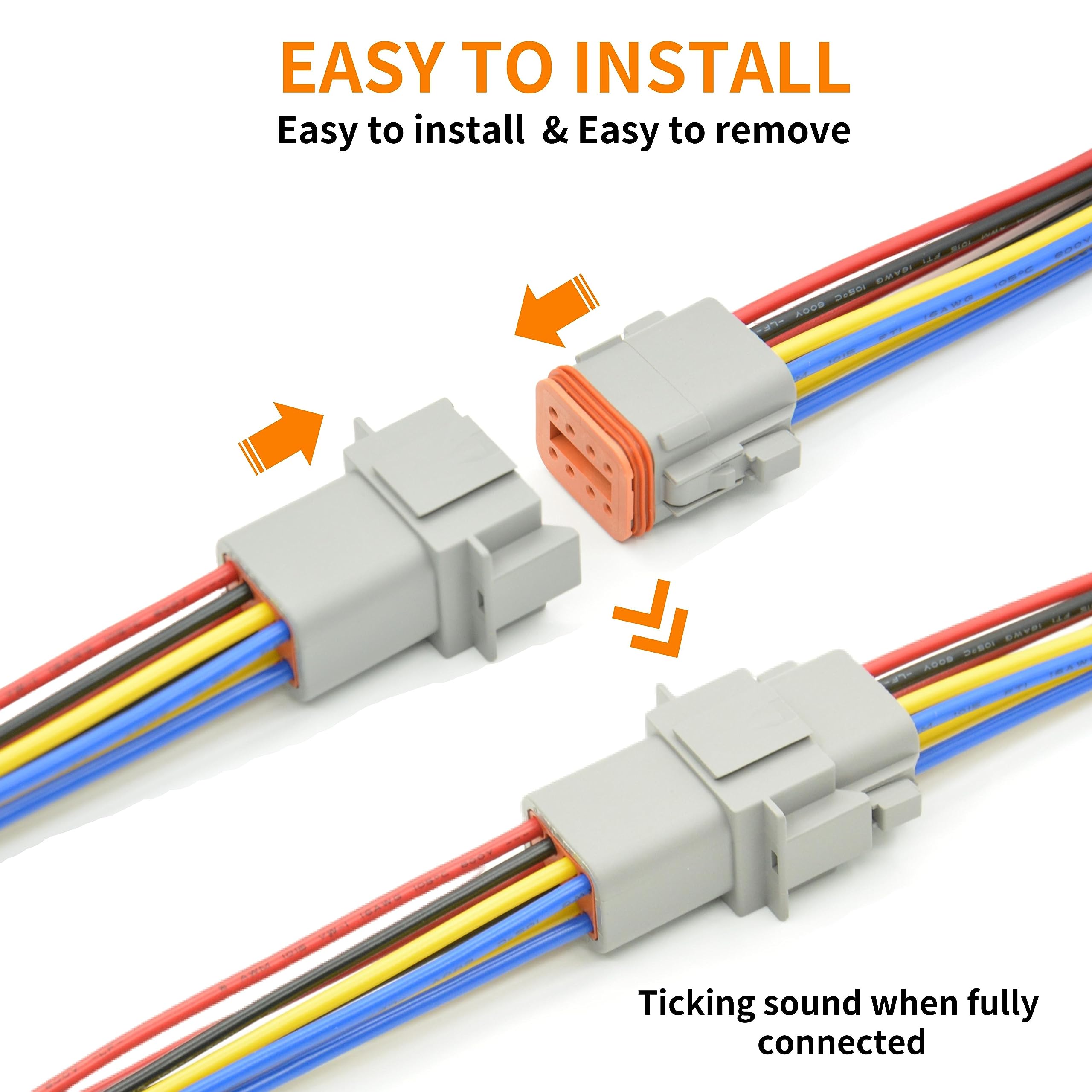

• Secure latch design ensures stable mated connections under vibration.

What parts are included and how do they simplify installation?

The kit arrives ready-to-assemble with matched male and female housings, pre-cut 16AWG leads, and color-coded heat-shrink sleeves. This reduces parts hunting and speeds up soldering or crimping tasks, so installers can finish a sealed splice in minutes.

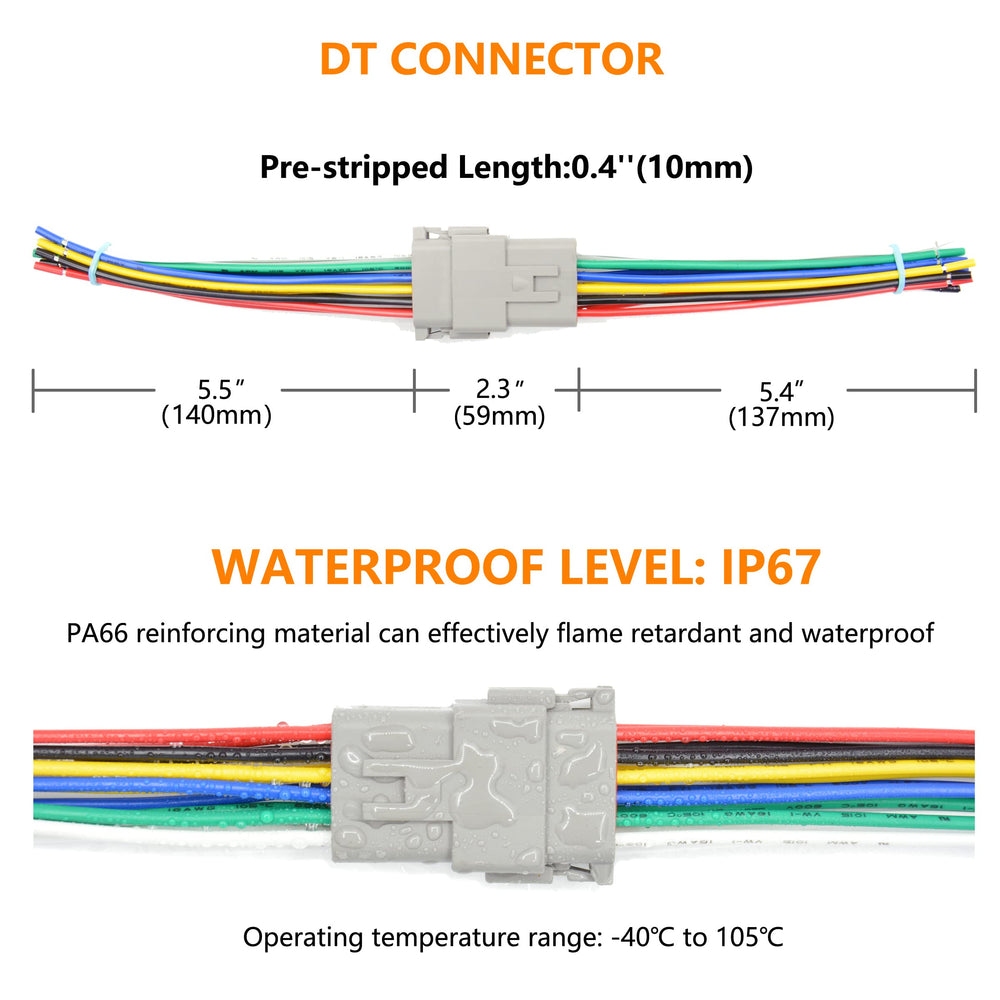

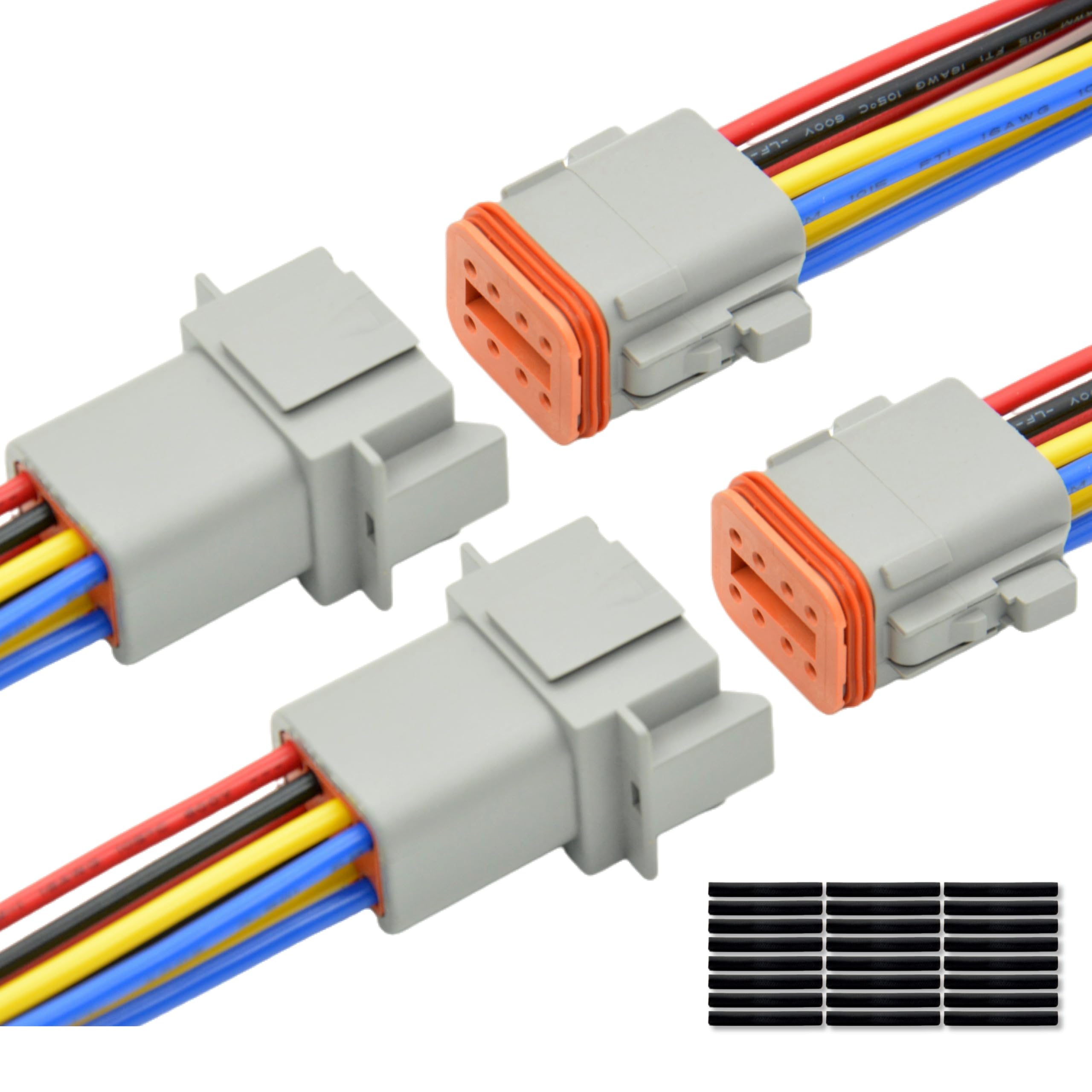

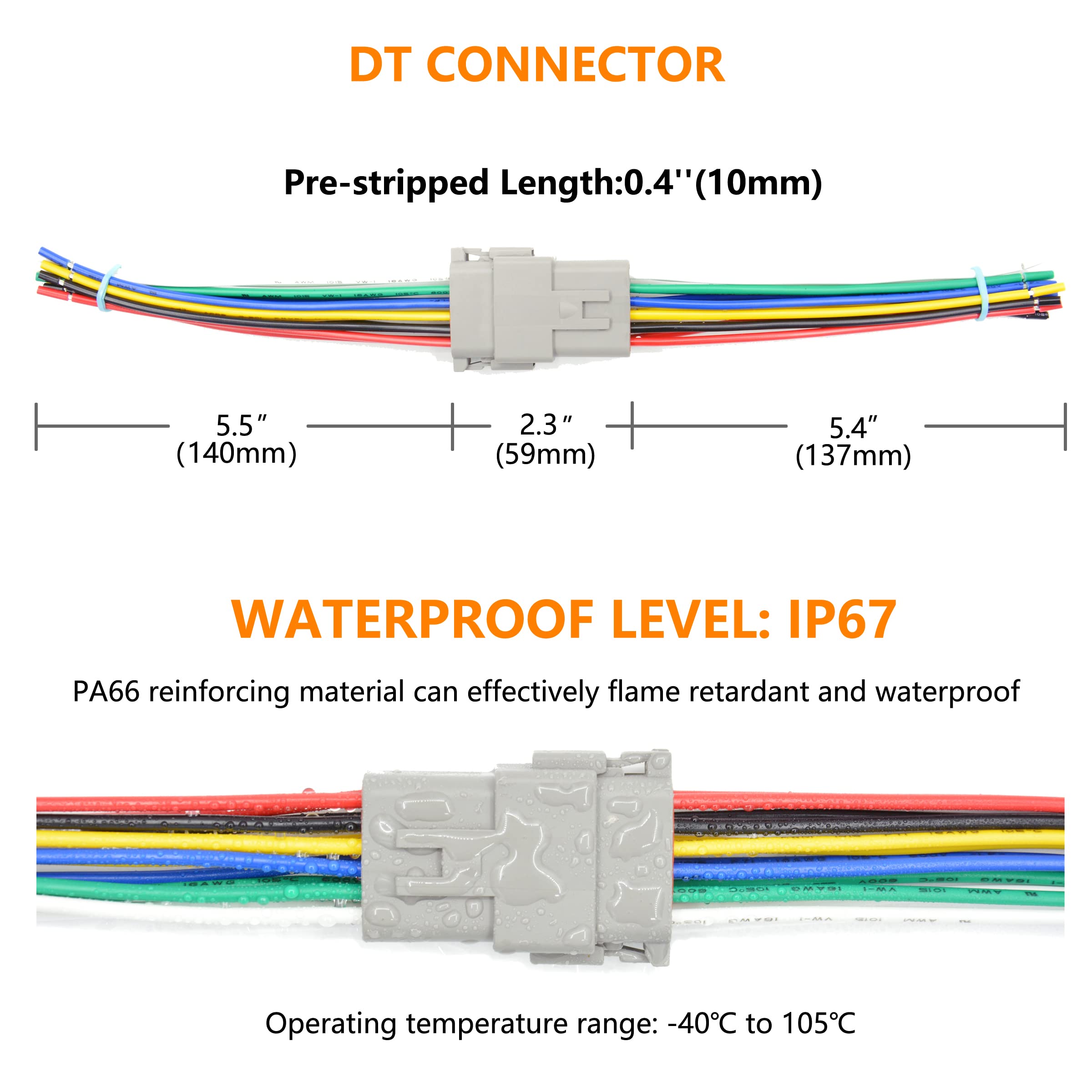

• Two housings: DT04-8P (male) and DT06-8S (female).
• 16 wires (8 per set) at 5.5 inches, pre-cut for convenient routing.

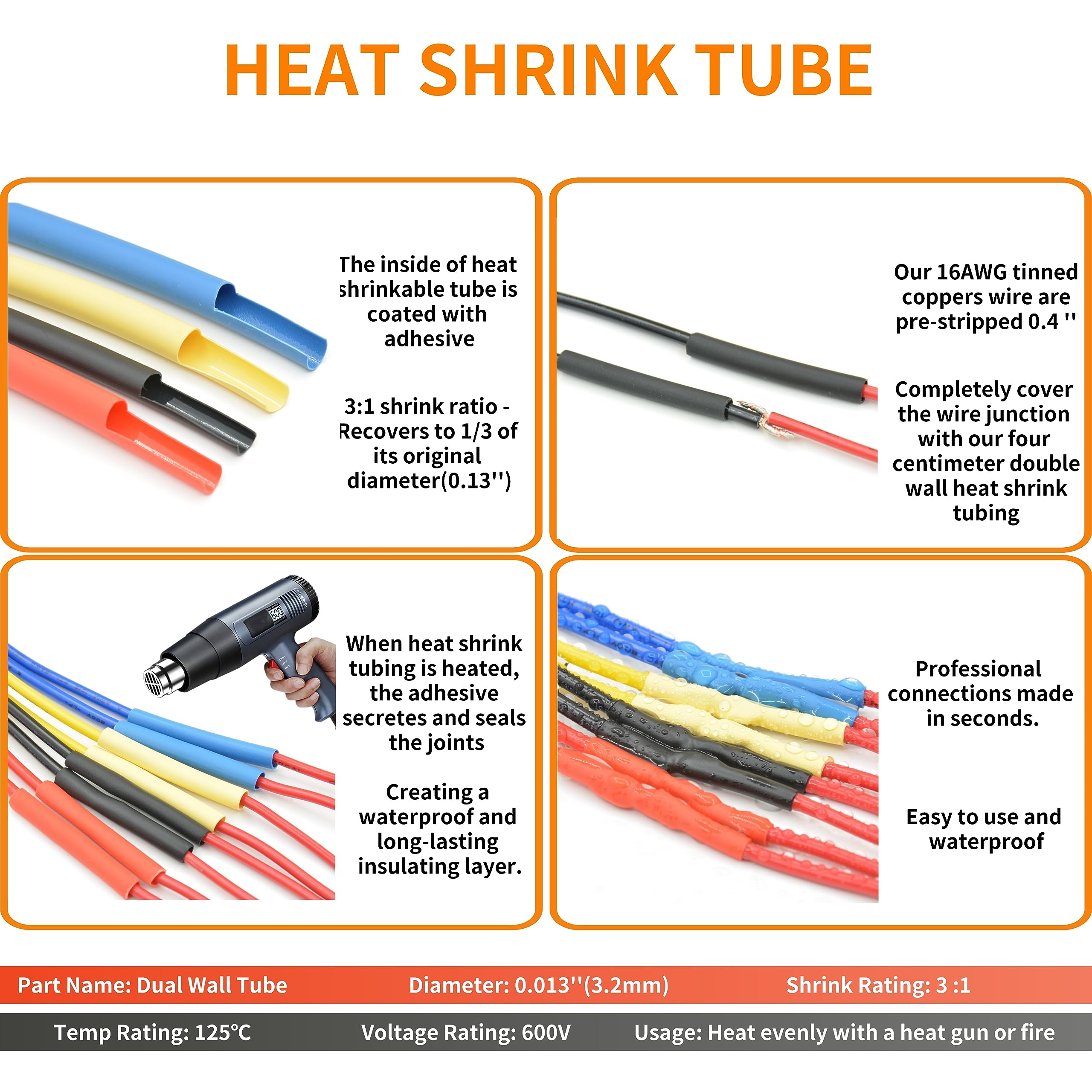

• 32 adhesive-lined heat-shrink tubes (red and black) for polarity marking.
• Works with standard crimp tools or light soldering before shrinking.

What electrical and environmental specs should I expect?

Wires are 16AWG, suitable for many accessory circuits, and the assembled connectors tolerate wide temperature swings. The housing material and rated range help the connector survive under-hood heat or marine exposure without degrading rapidly.

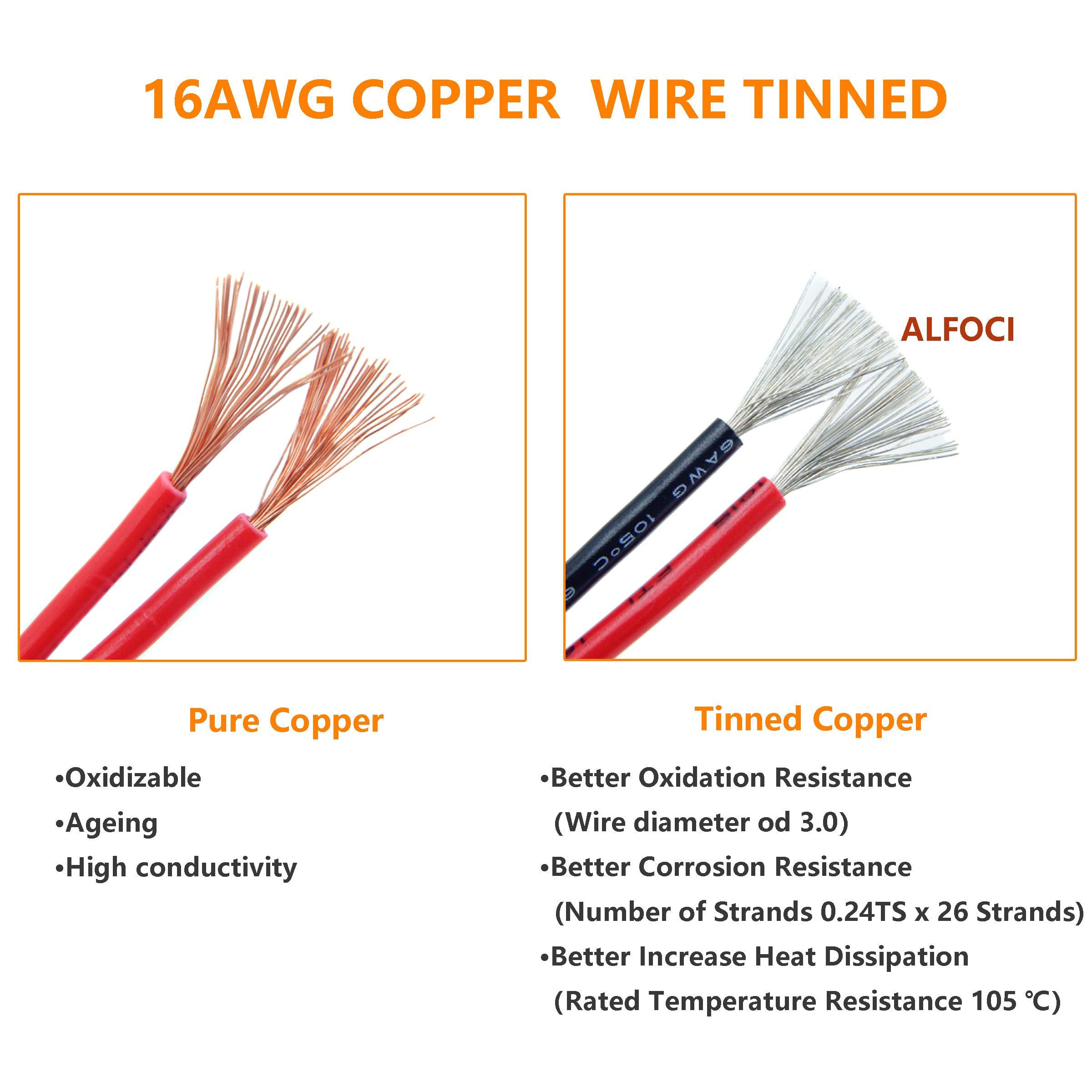

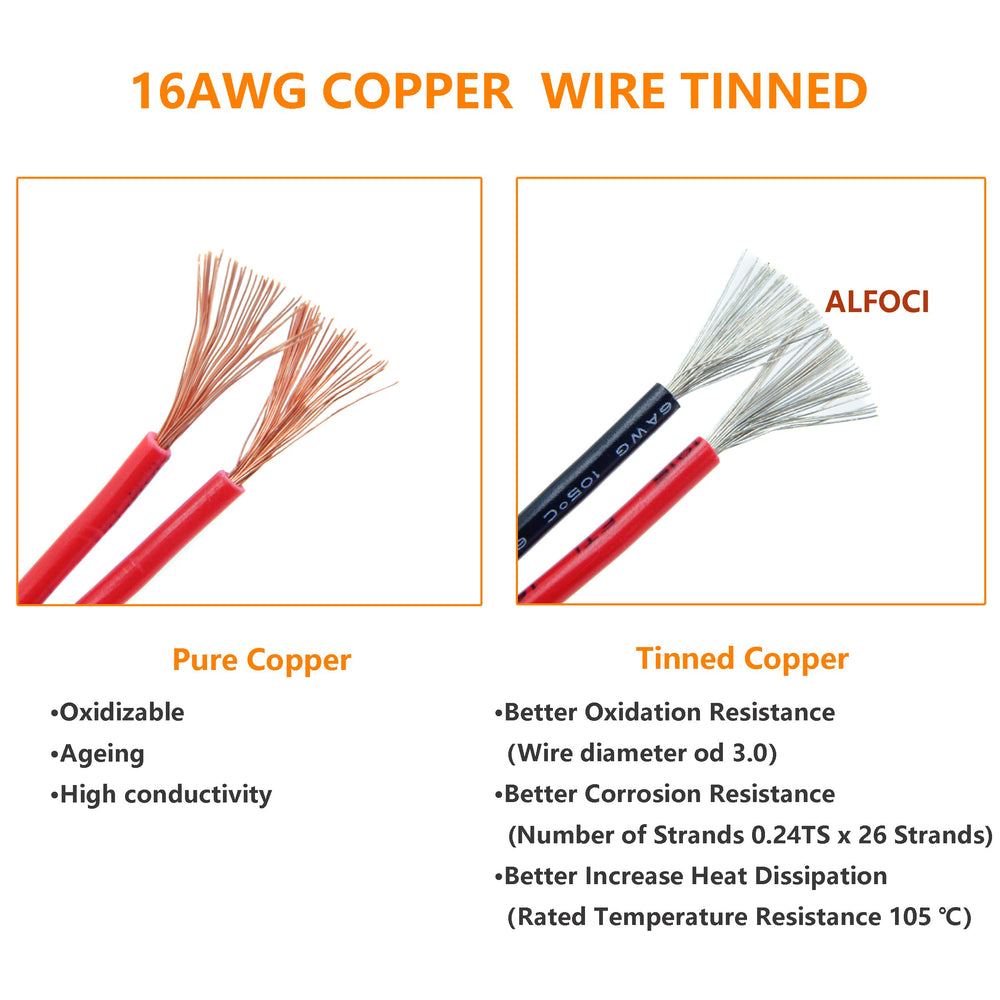

• Wire gauge: 16AWG for typical lighting and accessory loads.
• Rated temp range: -40℃ to 105℃ for varied climates.
• Voltage tolerance up to 600V (per component rating).
• Durable PA66 nylon construction for mechanical wear resistance.

Who is this kit for? ALFOCI's 8-pin Deutsch connector set suits DIY mechanics, marine technicians, electricians working on RVs or trucks, and hobbyists building wiring harnesses for ATVs, trikes, or aftermarket LED systems. If you need compact, sealed multi-pin connections that resist moisture and vibration—and you prefer having matched housings, pre-cut conductors, and adhesive-lined shrink sleeves included—this kit streamlines assembly and reduces the chance of field failures from poorly protected splices.
