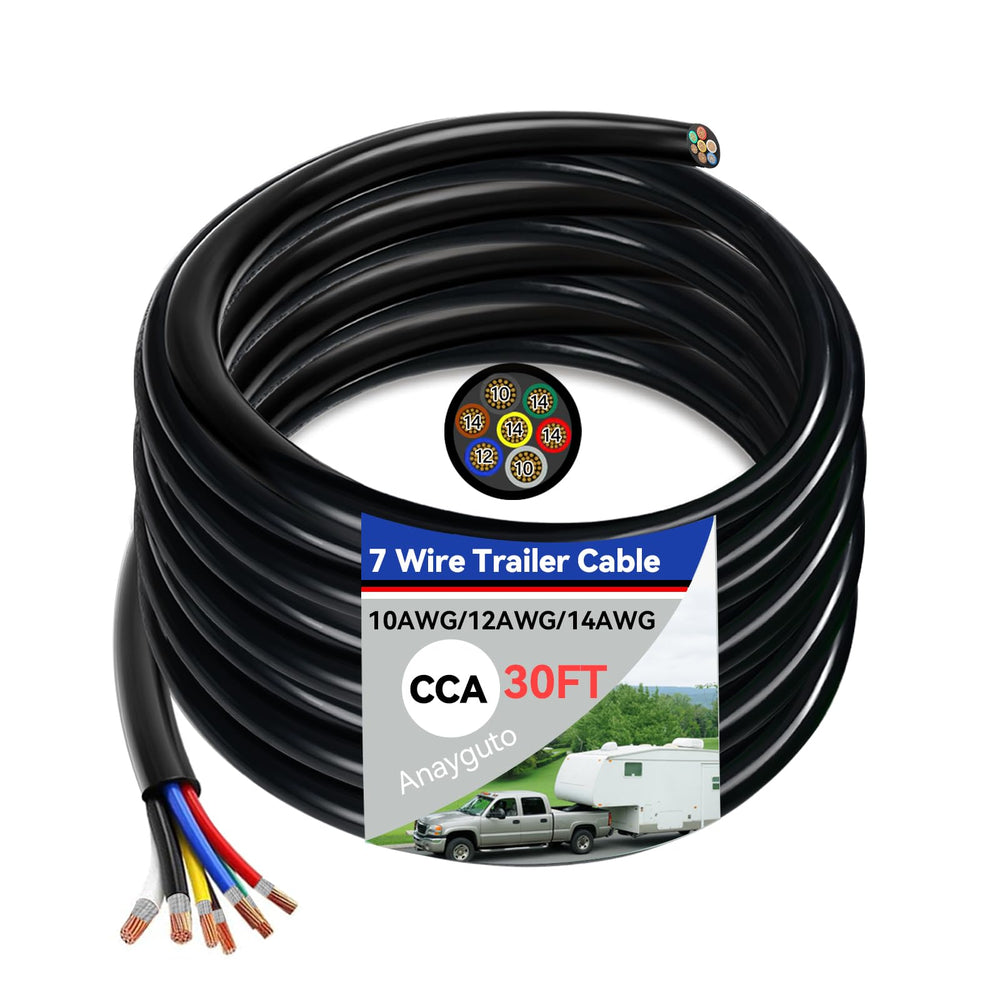

Anayguto 7-Wire Trailer Cable 30FT — Heavy-Duty CCA 14/12/10AWG Multi-Gauge, Weather-Resistant

This 30FT Anayguto cable combines three conductor sizes within a single 7-core assembly to match common trailer circuits while keeping weight and cost down with copper-clad aluminum (CCA) conductors. The outer PVC jacket resists weather and abrasion, and each colored conductor is individually insulated so you can identify and hook up tail lights, turn signals, brakes and auxiliary feeds quickly. Available in longer lengths as well, this harness is intended for aftermarket trailer wiring, repairs, and DIY installations.

How is the wiring configured and why use multiple gauges?

The harness uses three different AWG sizes to match current demands for distinct trailer circuits: #10 for high-current feeds, #12 for moderate loads, and #14 for lighting circuits. That lets you size conductors where they are needed most without unnecessary bulk for low-draw wires.

• White and black conductors are 10 AWG for ground and heavy power runs.
• Blue is 12 AWG for auxiliary or intermediate loads.
• Red, green, brown, yellow are 14 AWG for turn signals, tail lights, and reverse lights.

What materials and environmental protection does the cable provide?

The cable uses copper-clad aluminum (CCA) stranded conductors to balance conductivity and weight, each insulated with PVC and wrapped in a durable outer jacket. The sheath tolerates a wide temperature range and resists moisture, making it suitable for exterior trailer exposure.

• Stranded CCA conductors for flexible installation.
• Individual PVC insulation around each colored wire for simple identification.
• Outer black PVC jacket engineered to resist corrosion and weathering.
• Rated to perform in cold and hot conditions commonly encountered on the road.

Which trailer systems can this 7-wire harness support?

This harness addresses standard 7-way trailer wiring needs: ground, tail/marker lights, left and right turn/brake circuits, reverse light, and an auxiliary feed. It suits most trailers, campers, food trucks and RVs that use conventional 7-pin wiring layouts.

• Tail lights, brake lights, and turn signals on single-axle and multi-axle trailers.
• Reverse light and auxiliary power (e.g., fridge, charging systems).
• Compatible with LED and incandescent trailer lamps when properly fused and connected.
• Useful for new installs, replacements, and custom rewiring projects.

How do I choose length and install this cable correctly?

Anayguto offers this multi-gauge 7-core cable in 30-, 50-, and 100-foot lengths so you can pick the run that fits your trailer-to-tow vehicle distance. For installation, plan routing to avoid sharp edges and heat sources, secure the cable with clamps, and match each colored conductor to the corresponding pin or socket on your 7-way connector.

• Measure trailer routing path before cutting or terminating.
• Use proper connectors, heat-shrink, and dielectric grease on terminals.
• Secure cable every few feet to prevent chafing or strain on terminals.
• Check continuity and fuse sizes after wiring to confirm correct operation.

Who is this for: This Anayguto 30FT 7-wire CCA harness is made for DIYers, mechanics, and fleet operators who need a weather-resistant, color-coded trailer wiring solution that balances conductor sizing with practical weight and cost. Choose this cable if you want a ready-to-install multi-gauge assembly for standard 7-pin trailer systems, and select a longer length if your application requires extra slack or routing distance.
