ASPL 12-LED Surface Mount Strobe Lights 8pcs — Ultra Slim, IP67, 17 Flash Patterns

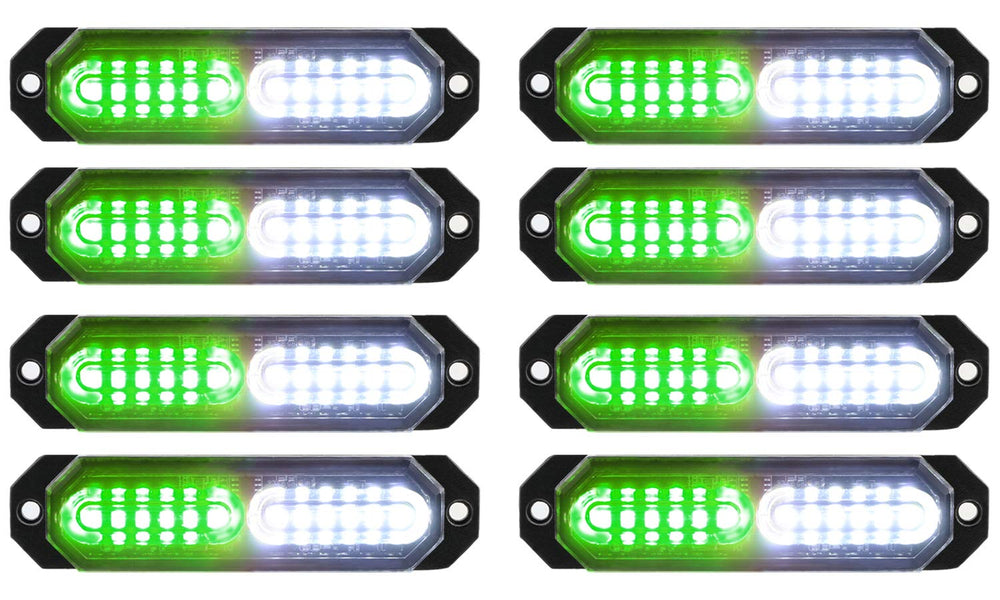

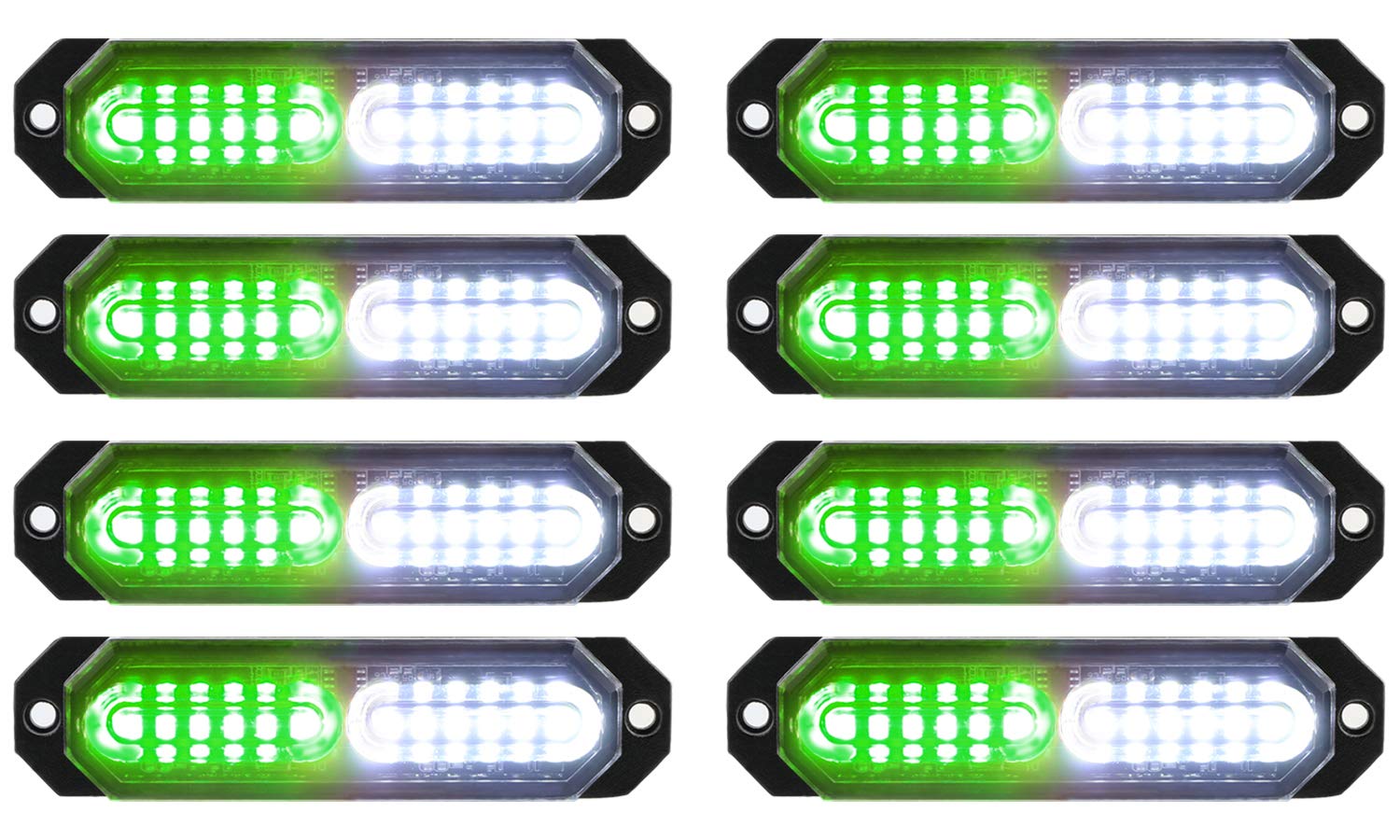

ASPL 8pcs Ultra Slim 12-LED Surface Mount Flashing Strobe Lights are compact, high-intensity vehicle warning lamps with 12 LEDs each, 17 selectable flash patterns, and IP67 weather protection.

These low-profile strobes combine a thin aluminum case with an ABS magnifying lens to deliver strong, directional light that improves vehicle visibility at a distance. Each kit includes eight matching modules designed for 12–24V systems, simple surface mounting hardware, and user-friendly wiring for pattern selection and optional synchronization. Built for rough conditions, the lights are moisture and vibration resistant with a long service life.

How bright and visible are these thin strobe modules?

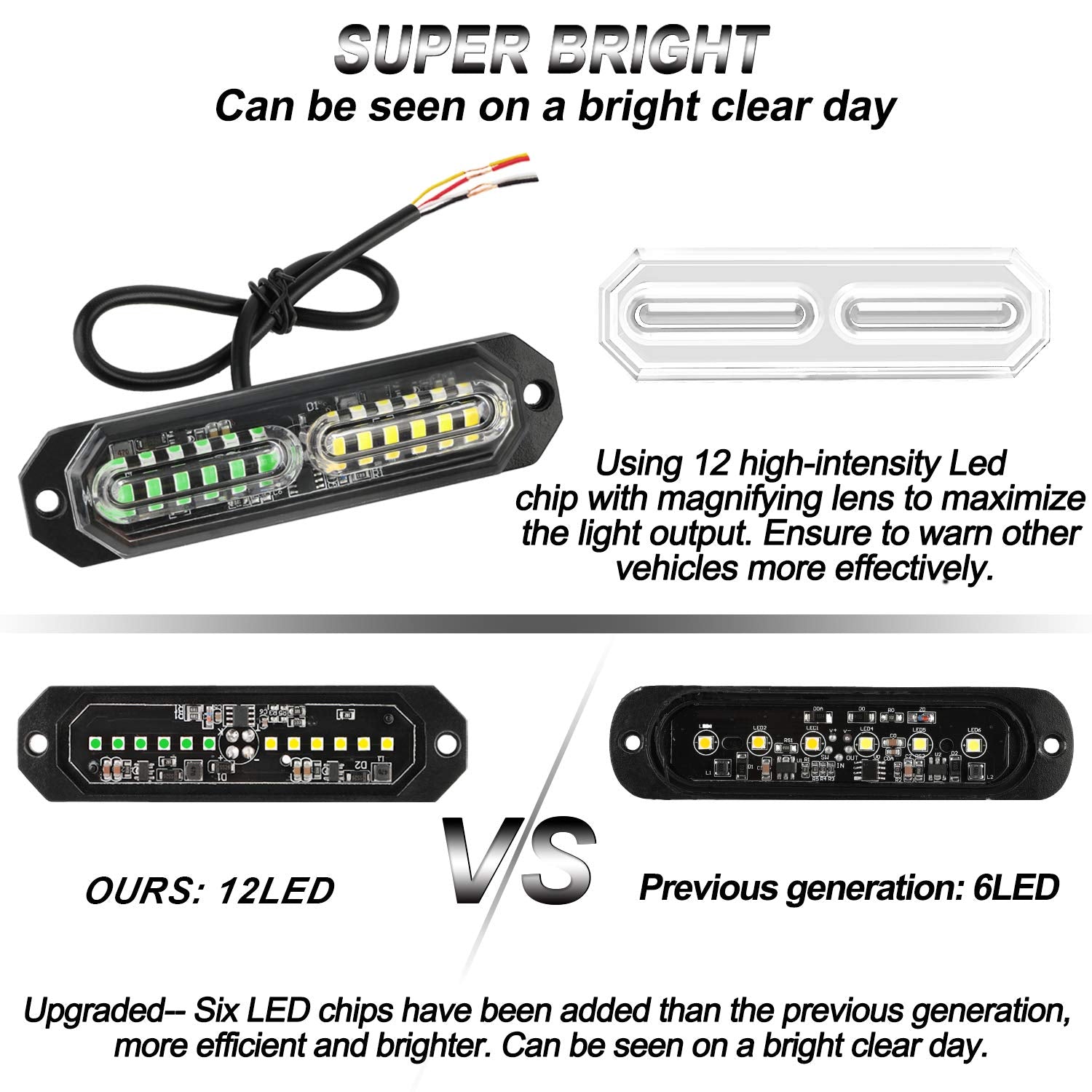

The 12 LEDs per module plus the magnifying lens create a focused beam intended to be seen from hundreds of feet under open conditions. The aluminum housing helps dissipate heat so the LEDs maintain consistent output.

• 12 high-intensity LED chips per light for concentrated illumination
• ABS lens amplifies and directs light for longer visible range
• Aluminum alloy housing for heat management and durability

Can these strobes handle bad weather and heavy use?

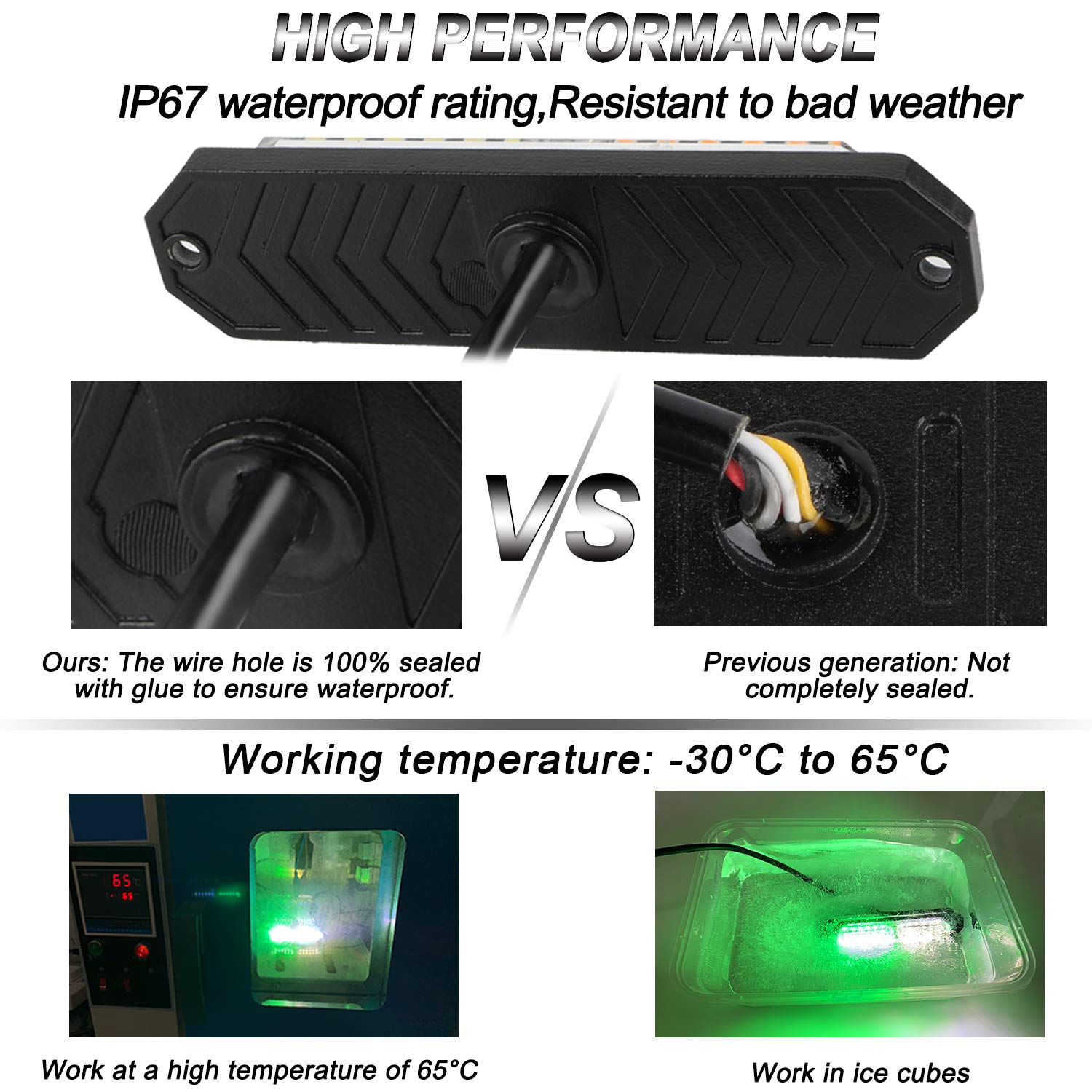

Yes — the units are built to withstand wet and dusty environments and designed for daily outdoor use. An IP67 rating protects internal components from water immersion and debris, while robust construction reduces failures from vibration.

• IP67-rated for dust-tight and temporary submersion protection
• Corrosion-resistant housing and sealed lens assembly
• Rated for over 50,000 hours of LED service life in normal conditions

How do I wire and synchronize the eight lights?

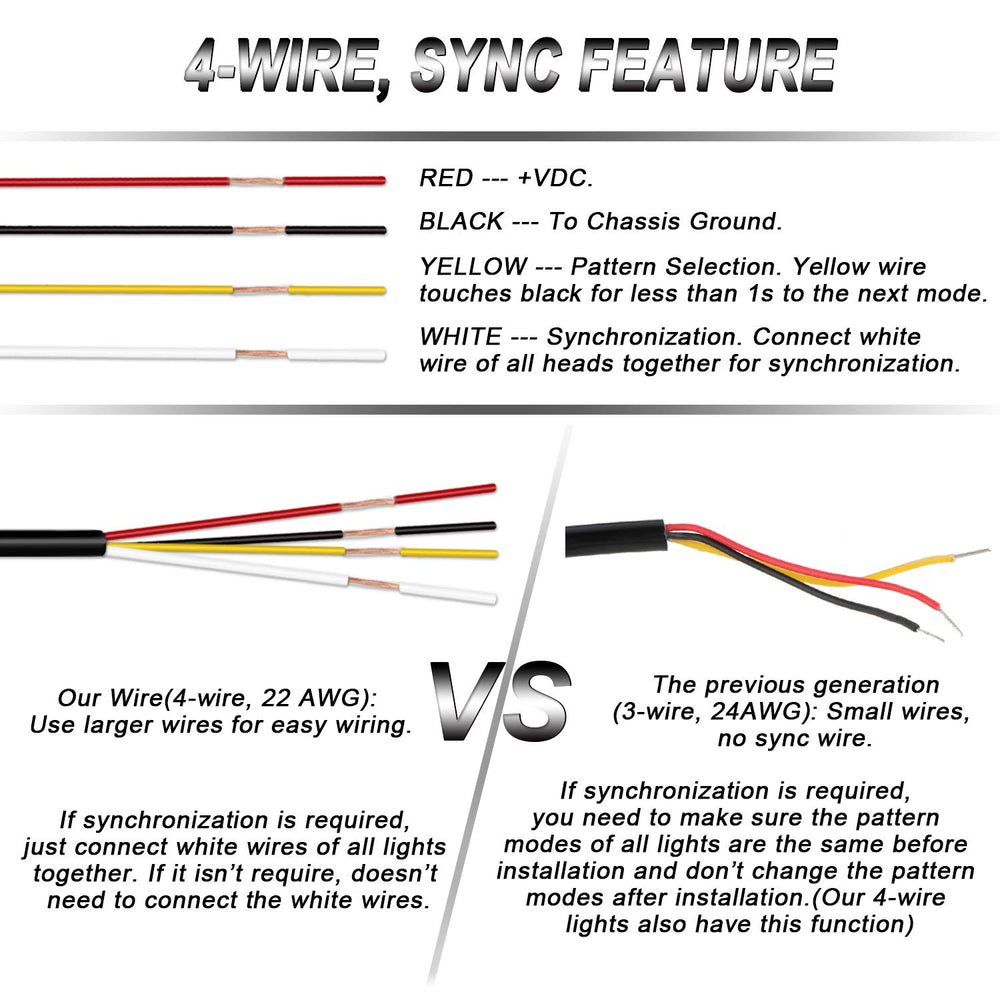

Wiring is straightforward: red to positive, black to chassis ground, and yellow controls pattern selection. For synchronization across multiple modules, connect the white wires together so all units follow the same pattern automatically.

• Red = +VDC, Black = ground, Yellow = pattern change input
• Touch yellow to black briefly to advance patterns (memory recall saves last mode)
• Connect white wires of each module to enable synchronized flashing

Where and how easily can these slim strobes be mounted on a vehicle?

The ultra-thin profile allows installation in tight locations like grilles, bumpers, or under mirrors without protruding. Each kit comes with screws and gaskets for secure surface mounting; they fit 12–24V systems, making them compatible with most cars, trucks, and utility vehicles.

• Surface-mount design with included gaskets and stainless screws
• Low-profile form factor fits discreet mounting points
• Universal 12–24V compatibility for wide vehicle support

Who this is for: technicians, fleet managers, and vehicle owners who need compact, durable warning lights that deliver configurable flash patterns and reliable weather resistance. Ideal for emergency responders, service trucks, tow vehicles, utility crews, or anyone wanting enhanced roadside visibility without large fixtures. These lights suit installers who value easy mounting, simple wiring, and synchronized operation across multiple modules.
