Autel TPMS MX-Sensor 315+433MHz Dual-Frequency Programmable OE-Quality Universal Fit

Autel MX-Sensor is a programmable, OE-quality tire pressure monitoring sensor that supports both 315MHz and 433MHz frequencies for broad vehicle compatibility.

Designed by Autel for professional shops and DIY mechanics, the MX-Sensor is a single-sensor solution that replaces most factory TPMS units. It pairs with Autel’s TPMS programming tools and diagnostic scanners, offers a newer-generation 88 chip for faster, more reliable wireless programming, and supports both rubber and metal valve stems for quick installation. Backed by a two-year quality warranty and tested to SAE standards, the MX-Sensor aims to simplify TPMS repairs while matching OE performance in battery life and temperature tolerance.

Which vehicles and sensors does the Autel MX-Sensor replace?

The MX-Sensor is engineered as a universal replacement covering roughly 98% of TPMS-equipped vehicles. Its dual-frequency capability (315MHz and 433MHz) and full cloning support allow it to mimic most OEM sensor IDs, so one SKU can serve many makes and models.

• Dual frequencies: 315MHz + 433MHz for broad compatibility
• Interchangeable rubber and metal valve stems for different wheels
• 100% clone-able to reuse original sensor IDs when needed
• One sensor SKU reduces inventory needs in repair shops

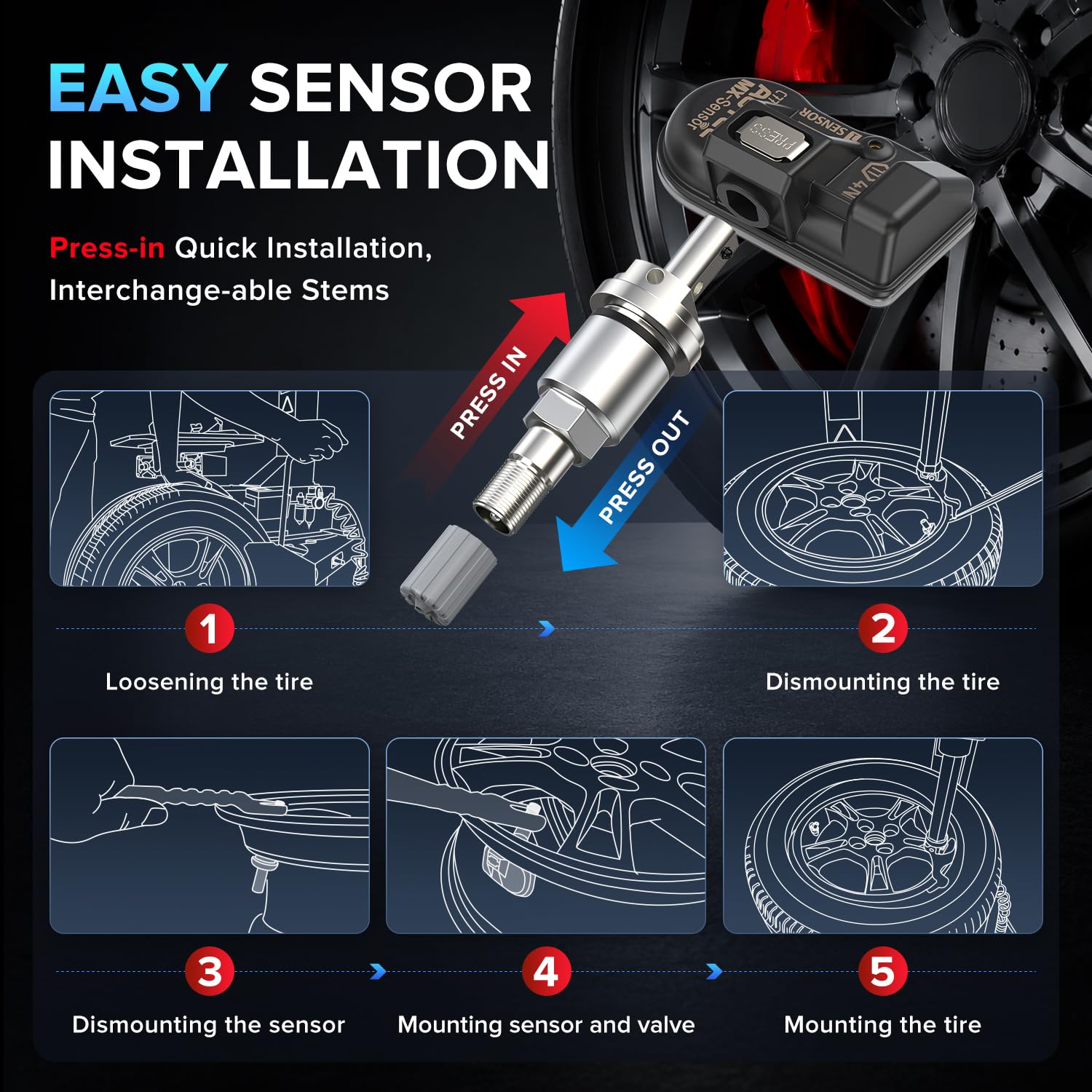

How do I program and install an MX-Sensor with Autel tools?

Autel MX-Sensors must be programmed using supported Autel TPMS tools or compatible Autel diagnostic scanners. Programming is typically quick—especially with the updated 88 chip—and Autel’s tools guide you through the process to create or clone sensor IDs before press-in installation.

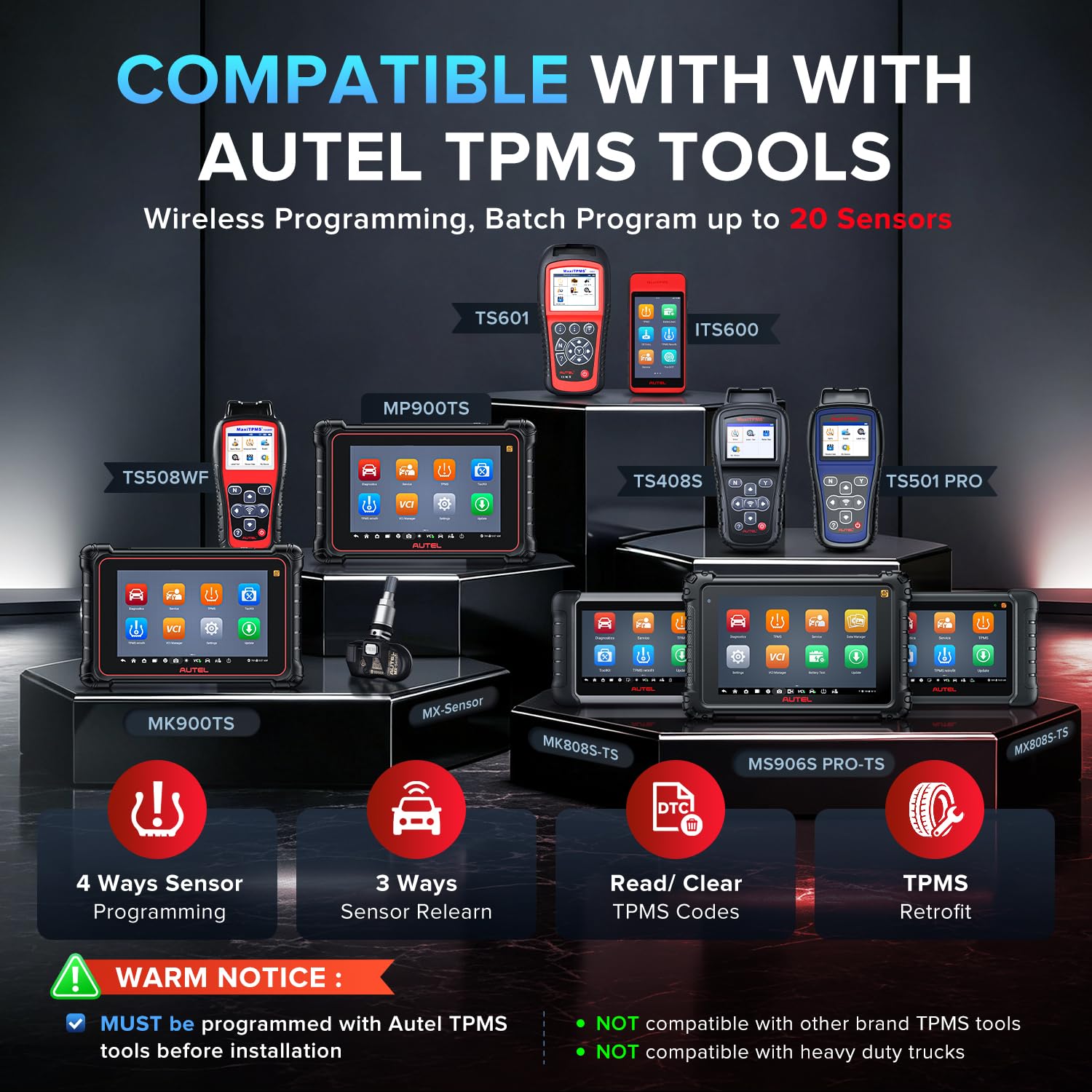

• Use Autel tools like TS408/TS508/TS601 series or MX-enabled scanners
• Update tool software to the latest version before programming
• Keep original sensors 50 m (165 ft) away to avoid interference during programming
• Select “Auto Create” on the tool to program new MX-Sensor IDs

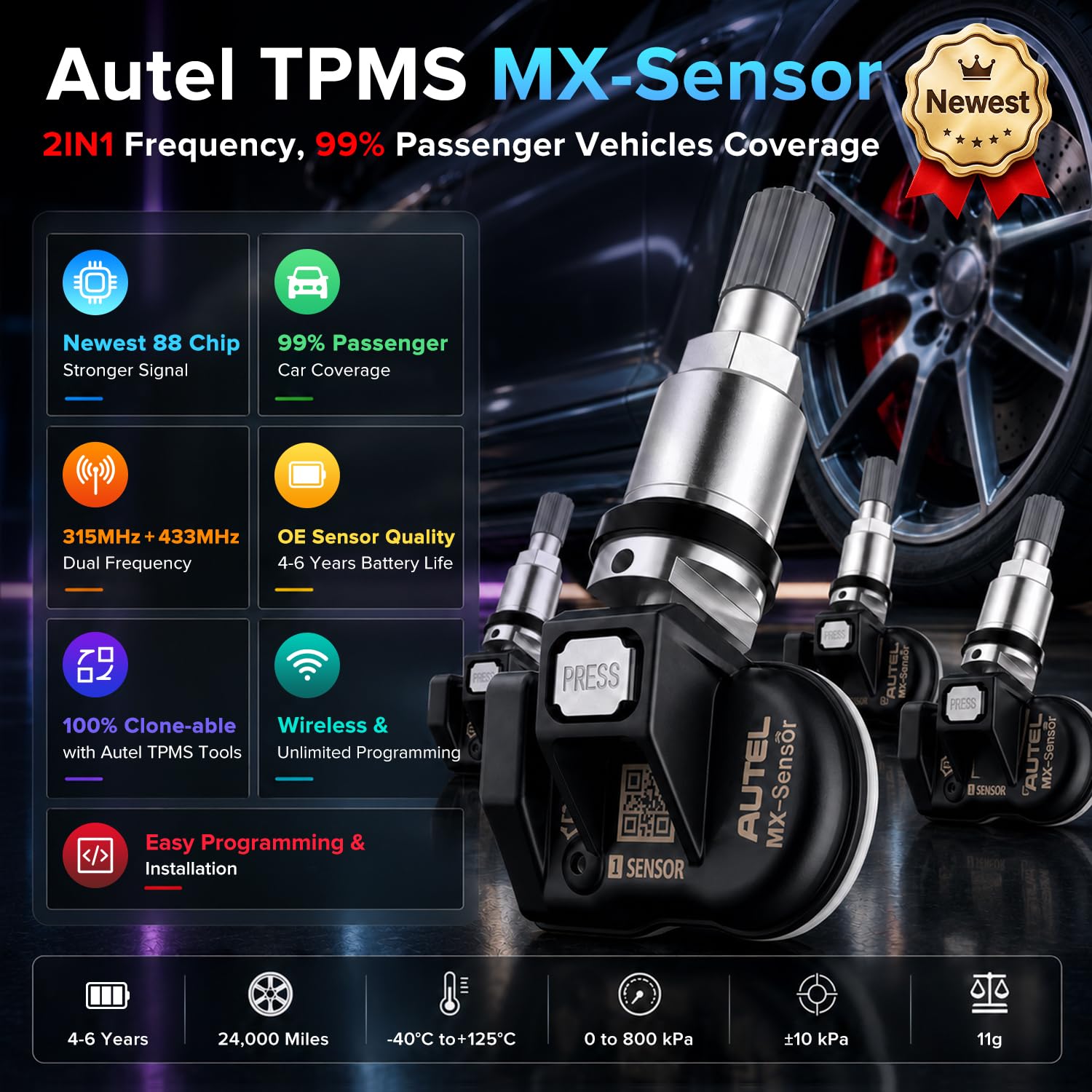

What are the performance and durability specifications to expect?

The MX-Sensor is built to OE-quality standards with a lightweight body, extended battery life, and wide operating temperature range. It meets SAE J1205/J1206 testing criteria and is designed to work reliably under typical driving conditions.

• Battery life: estimated 4–6 years or around 24,000 miles
• Operating temperature: -40°C to 125°C for extreme conditions
• Pressure range: 0–800 kPa with ±10 kPa accuracy
• Sensor weight: approximately 11 g for reduced wheel imbalance

Why choose the MX-Sensor instead of other replacement sensors?

The MX-Sensor consolidates multiple sensor types into one product, reducing part complexity and inventory cost. Its improved chip gives faster, stronger wireless programming signals and the ability to program up to 16 sensors per session with compatible Autel tools, streamlining shop workflows.

• New 88 chip improves wireless programming speed and stability
• Supports cloning—no relearn needed when using same-position cloned IDs
• One sensor covers most vehicles, lowering stocking and ordering needs
• Backed by a 2-year quality warranty and Autel technical support

Who is this for? The Autel MX-Sensor is ideal for automotive technicians, independent repair shops, and informed DIYers who want an OE-grade, programmable TPMS replacement that minimizes parts variety and maximizes compatibility. If you use Autel TPMS programmers or scanners—or plan to—this sensor offers a straightforward, durable option for restoring TPMS function across a wide range of cars, SUVs, and light trucks. For any programming help or product concerns, Autel’s support contact is available to assist you directly.
