Blue Ox Patriot BRK2022 Flat Tow Brake — All‑Electric, Compact Design with Continuous Pressure Monitoring

The Blue Ox BRK2022 Patriot flat tow brake is an all‑electric supplemental braking unit designed to deliver faster, more responsive stops for flat‑towed vehicles while fitting a wider range of car profiles.

Built to improve braking responsiveness and simplify setup, the Patriot BRK2022 replaces bulkier legacy units with a smaller, lighter housing that slides into more vehicle footwells. It continuously monitors and adjusts brake pressure during transit, includes an in‑coach RF controller with extended range, and uses a supercapacitor-style lifetime backup to keep break‑away functionality reliable.

How does the Patriot deliver quicker, more responsive stops?

The unit accelerates the extension of the braking action so the towed vehicle begins braking sooner when the coach applies its brakes. Faster actuation helps the towed car match the coach’s deceleration more rapidly, improving stop coordination without altering the coach’s brake system.

• All‑electric actuator optimized for speed of extension
• Continuous brake‑pressure monitoring to adjust response in real time
• Designed for faster engagement than previous Patriot models

Will the smaller profile fit my towed car?

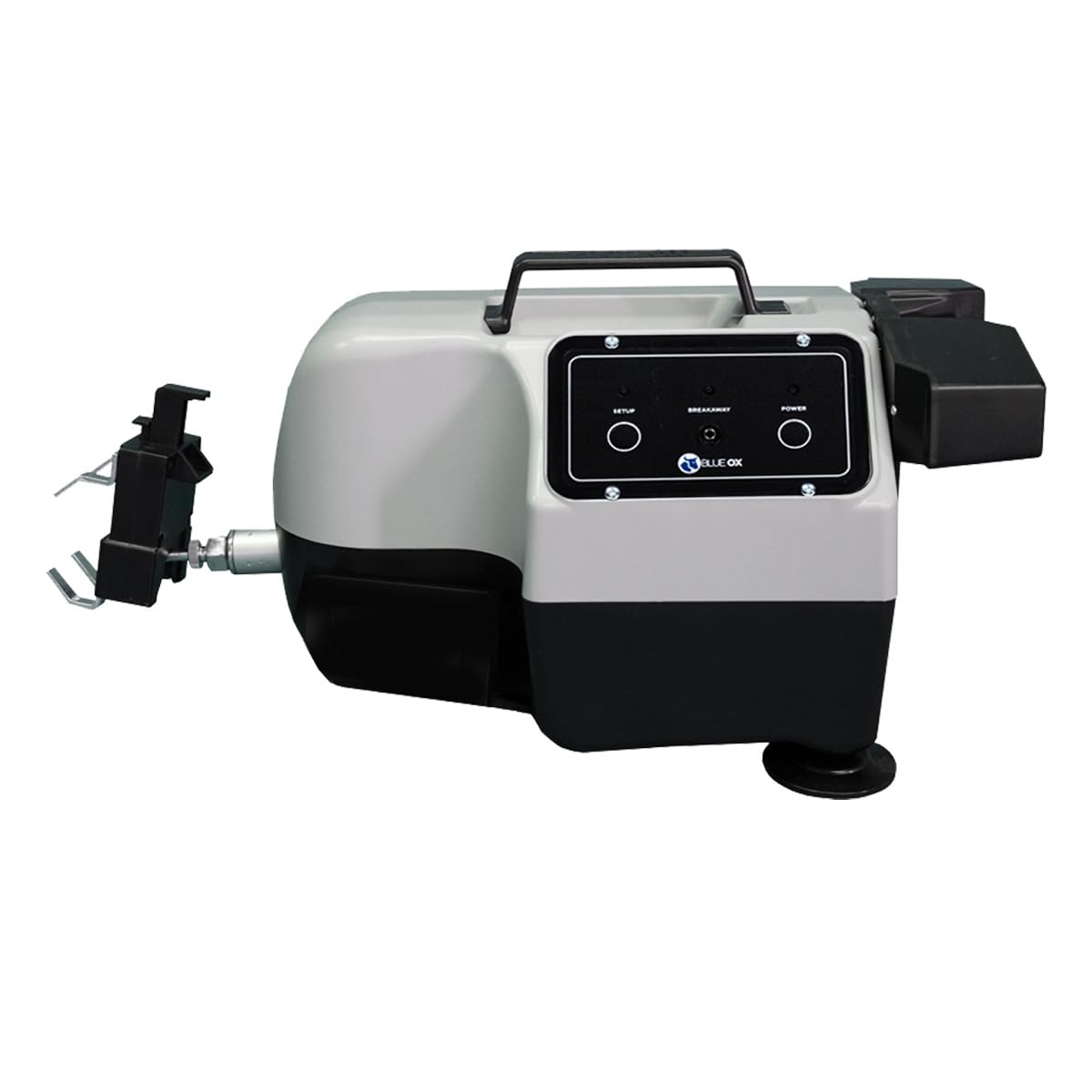

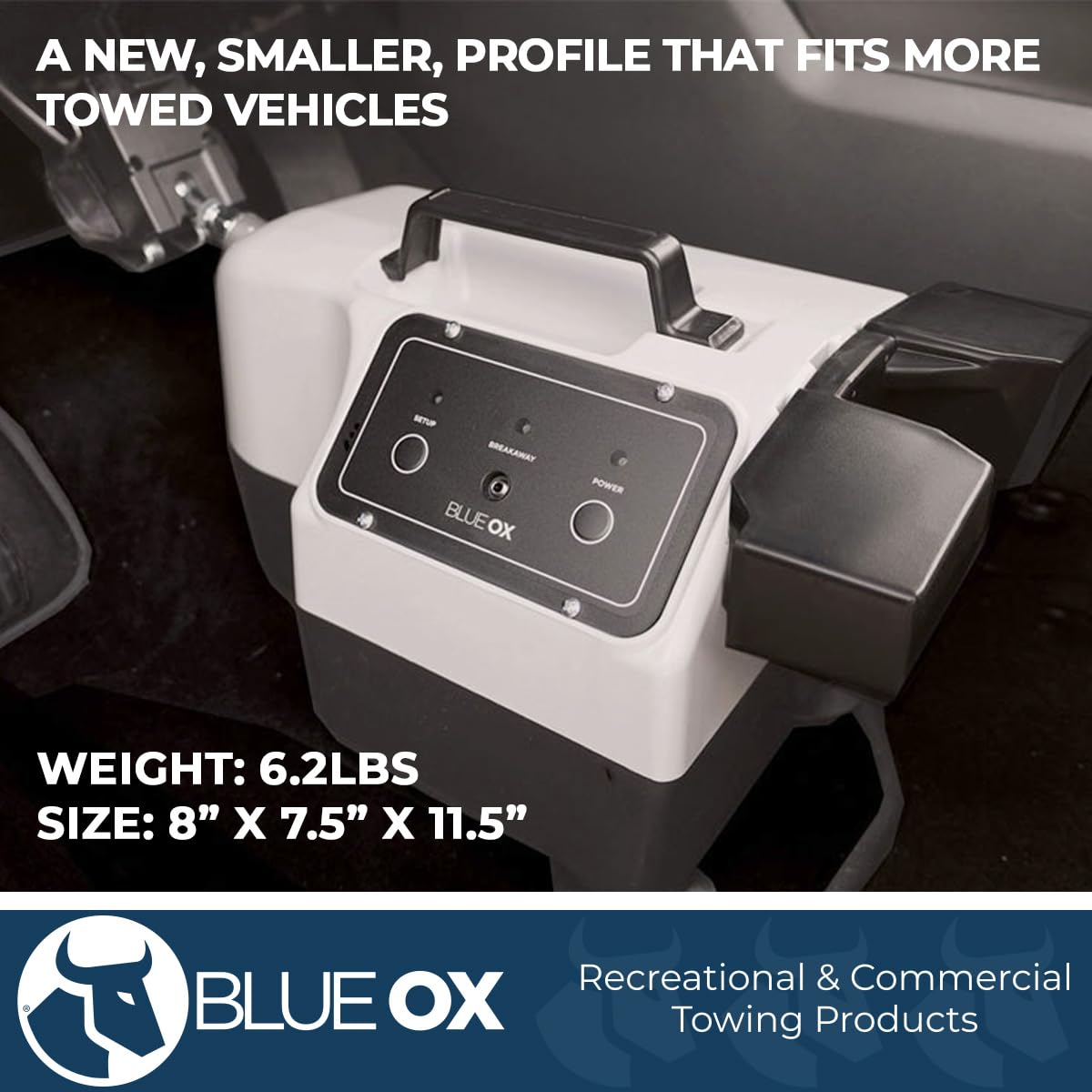

The BRK2022 was redesigned with a more compact footprint (approximately 8" x 7.5" x 11.5") and reduced weight (about 6.2 lbs) to accommodate tighter pedal wells and vehicles with limited space. It fits many modern cars and hybrids, but excludes certain designs—most notably the Fiat 500—where pedal geometry prevents safe installation.

• Compact dimensions to clear more pedal wells and footwells
• Reduced weight compared with earlier Patriot models
• Compatibility list should be checked for specific vehicle makes and models

What setup and monitoring features help keep towing safe?

Setup is simplified by an automatic brake‑pressure check during initial installation, and the system continues to monitor pressure while towing to detect changes or faults. An in‑coach RF controller provides remote adjustment and status feedback, and a break‑away kit is included for emergency stopping if the tow coupling separates.

• Automatic brake‑pressure verification during setup
• Continuous pressure monitoring while towing
• In‑coach RF controller with extended range for easy access

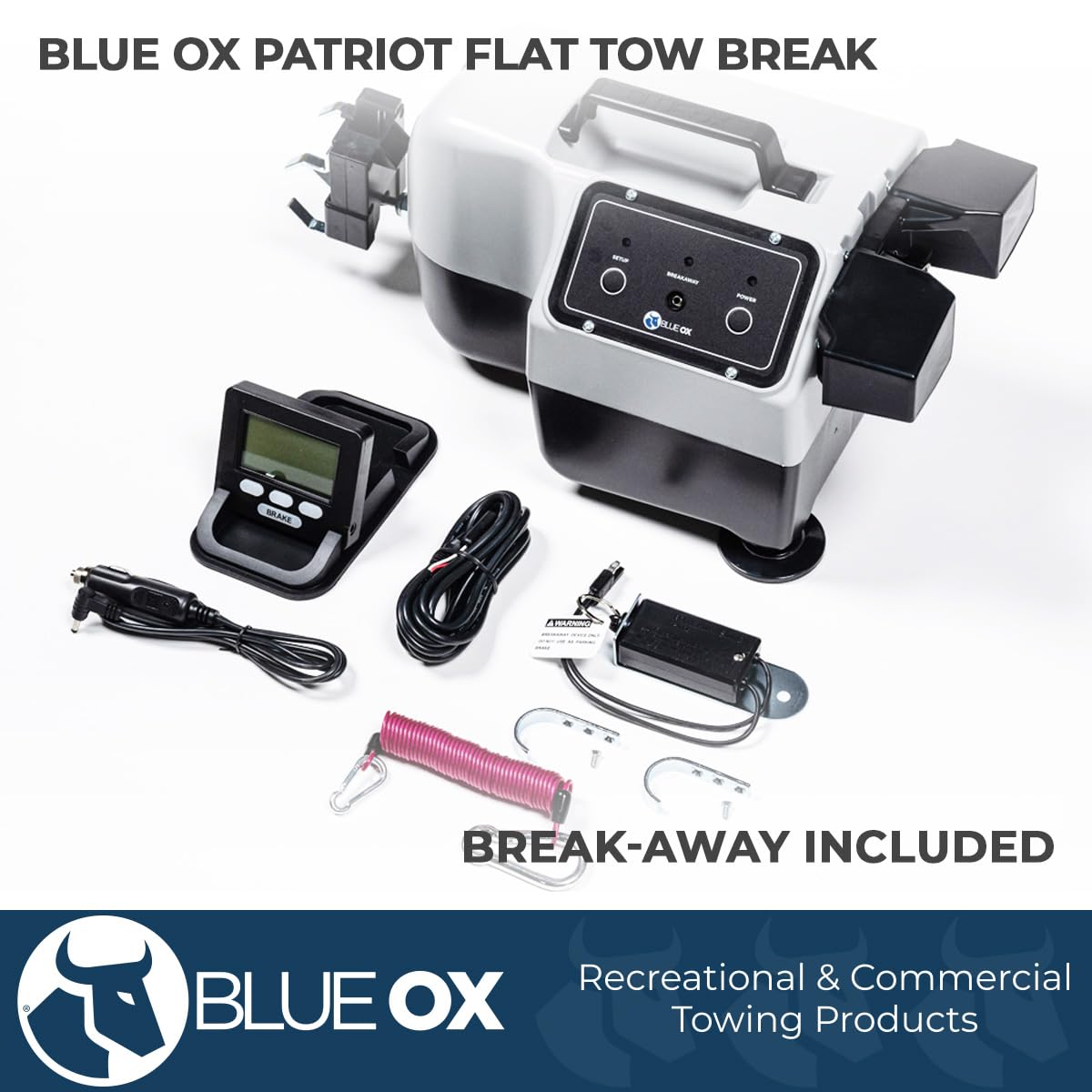

• Included break‑away unit and supercapacitor lifetime backup

Can I use this on hybrid vehicles or cars with special brake systems?

The Patriot BRK2022 is compatible with virtually all conventional and hybrid vehicles because it applies supplemental braking independent of most factory systems. However, installation depends on pedal layout and available space; always confirm fitment for unique pedal geometries.

• Works with hybrid drivetrains and most conventional cars
• Independent, all‑electric operation avoids interference with many factory systems
• Not suitable for vehicles with nonstandard pedal shapes like the Fiat 500

Who is this for? The Blue Ox Patriot BRK2022 is aimed at RV owners and tow‑vehicle pairs who want a compact, faster‑acting flat‑tow brake that fits tighter footwells and provides automatic setup checks and continuous monitoring. Choose this model if you need a lighter, space‑efficient brake unit with reliable remote control and built‑in safety features, and verify vehicle compatibility before purchase.
