CURT Echo Mobile Bluetooth Trailer Brake Controller, 7‑Way 1–2 Axles — Portable App-Controlled Smooth Braking

The CURT Echo 51180 is a portable Bluetooth trailer brake controller that plugs into a 7‑way RV socket to let you monitor and control proportional trailer braking from your smartphone.

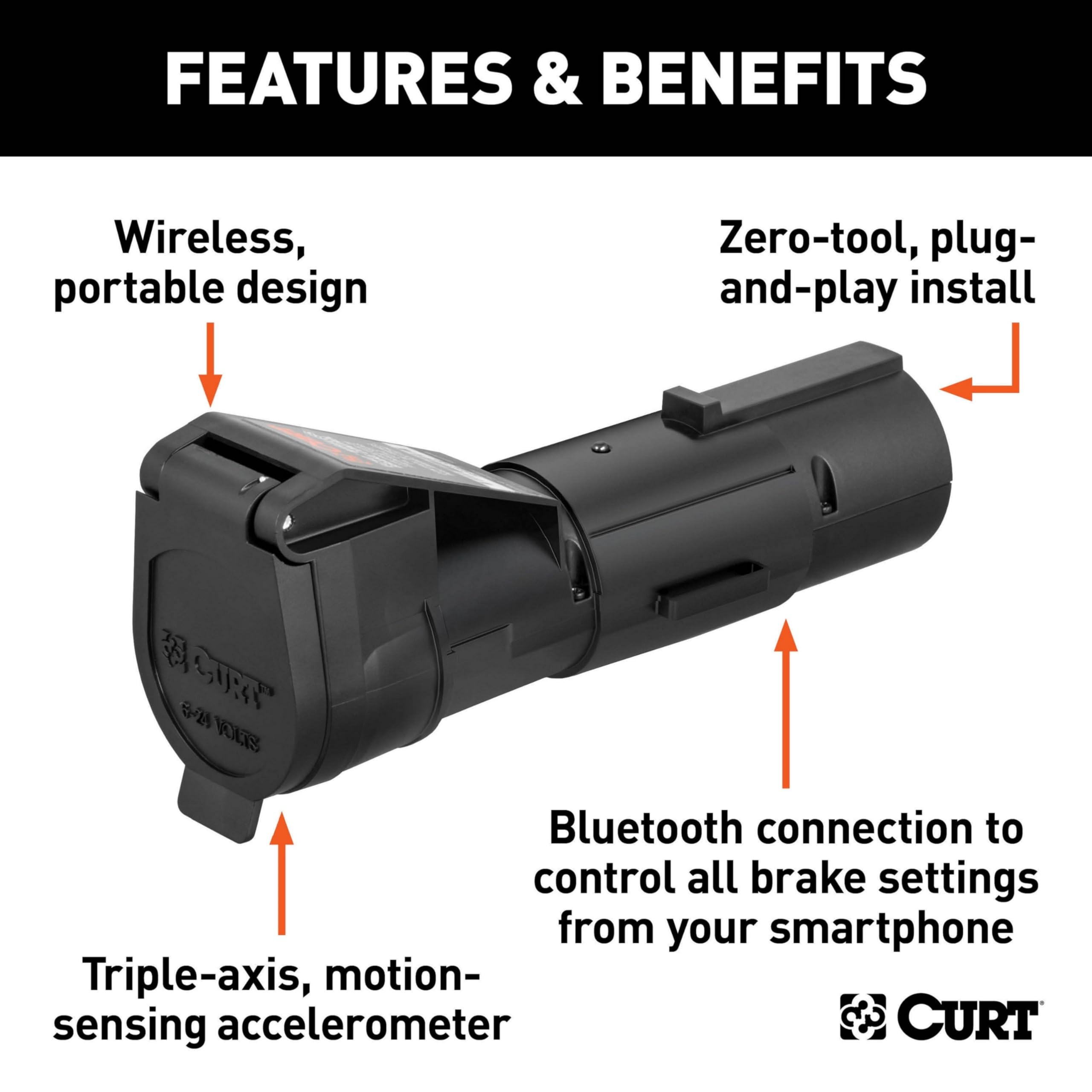

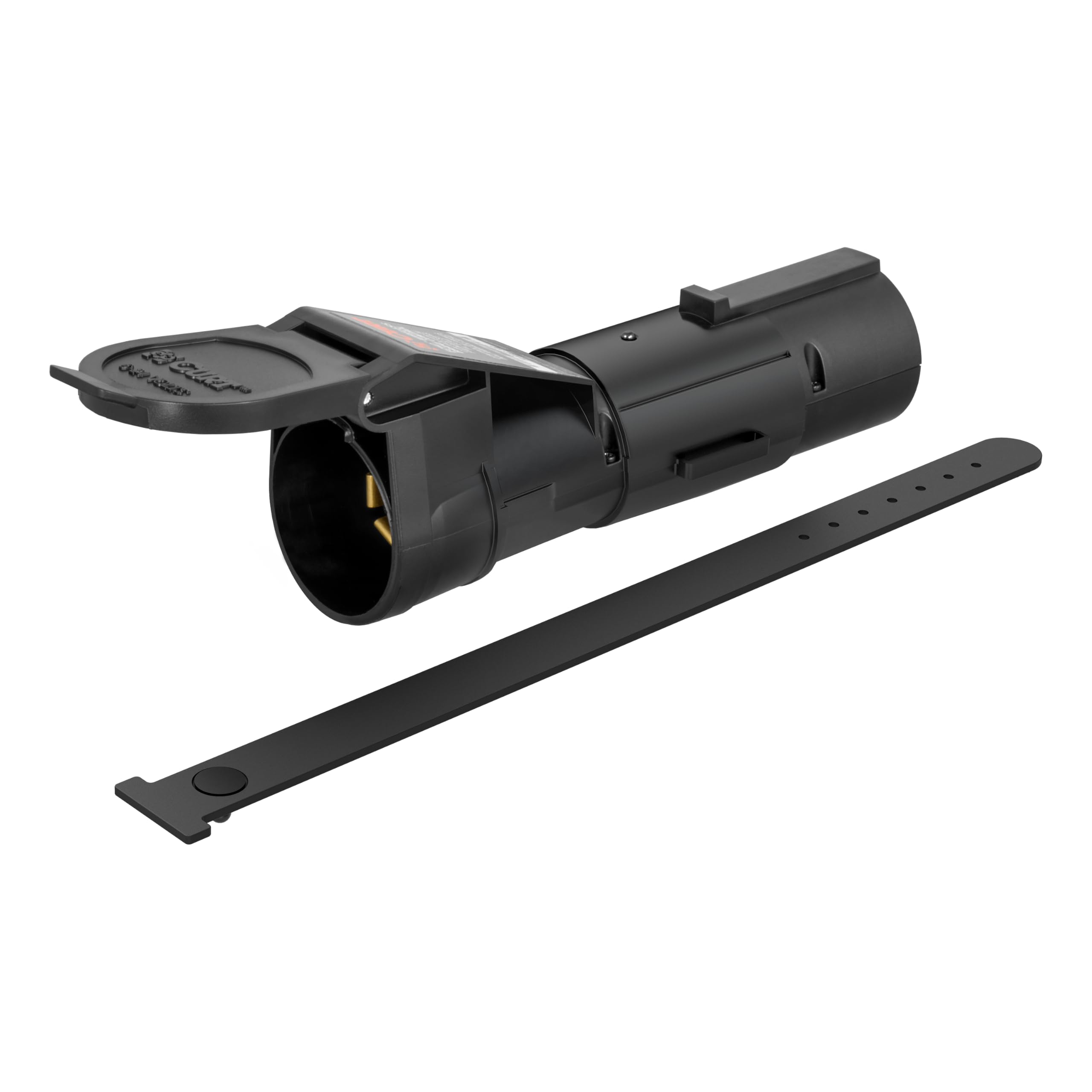

Modernize towing by replacing hardwired under‑dash controllers with a compact, weather‑sealed module that pairs with the OneControl Auto app on iOS or Android. Echo installs between your vehicle and trailer 7‑way connection, supports trailers with one to two axles (2–4 brakes), and uses a tri‑axis accelerometer to deliver smooth, proportional braking without additional wiring harnesses. Its potted enclosure and locking retention strap increase durability and secure the connection during travel.

How does Echo make installation faster than conventional controllers?

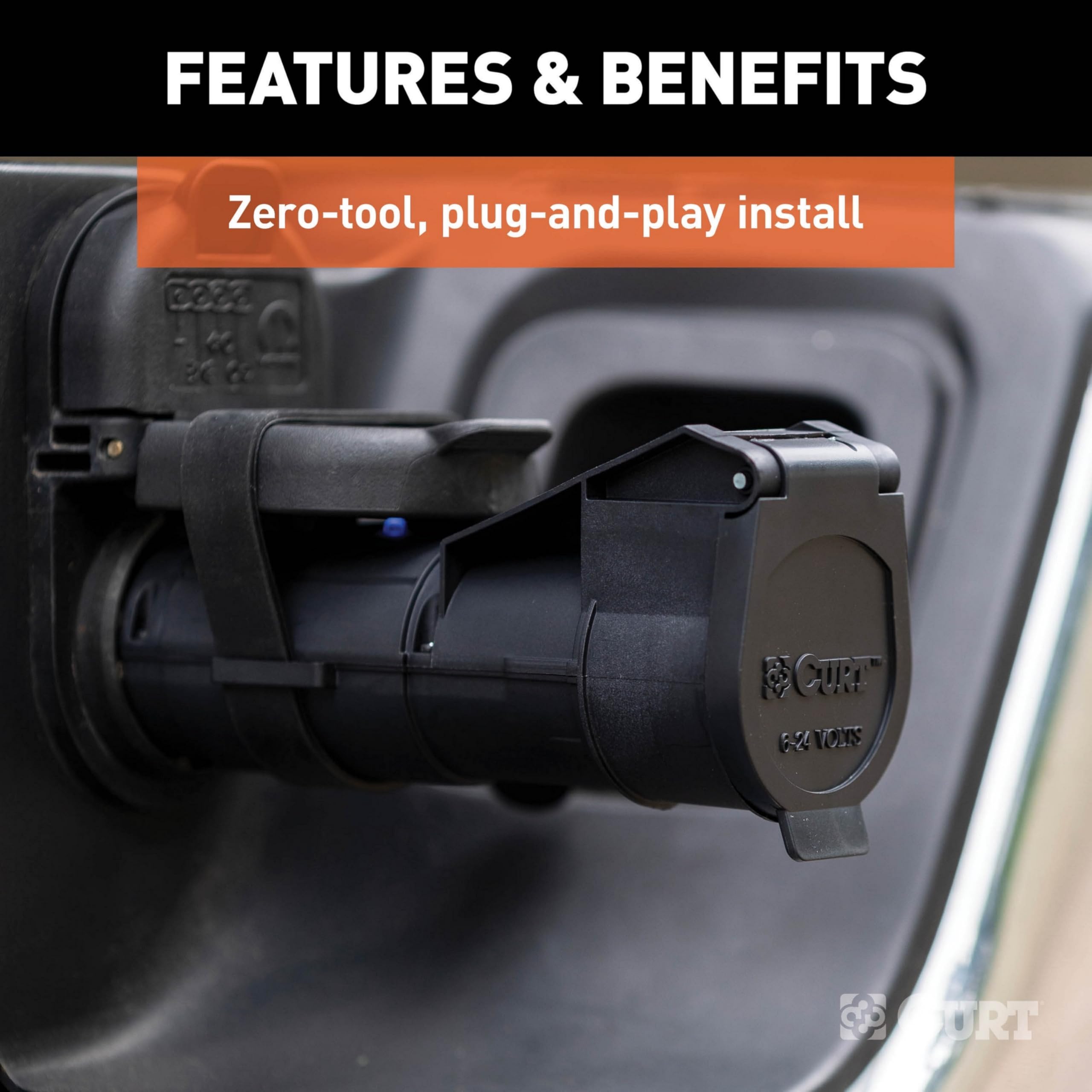

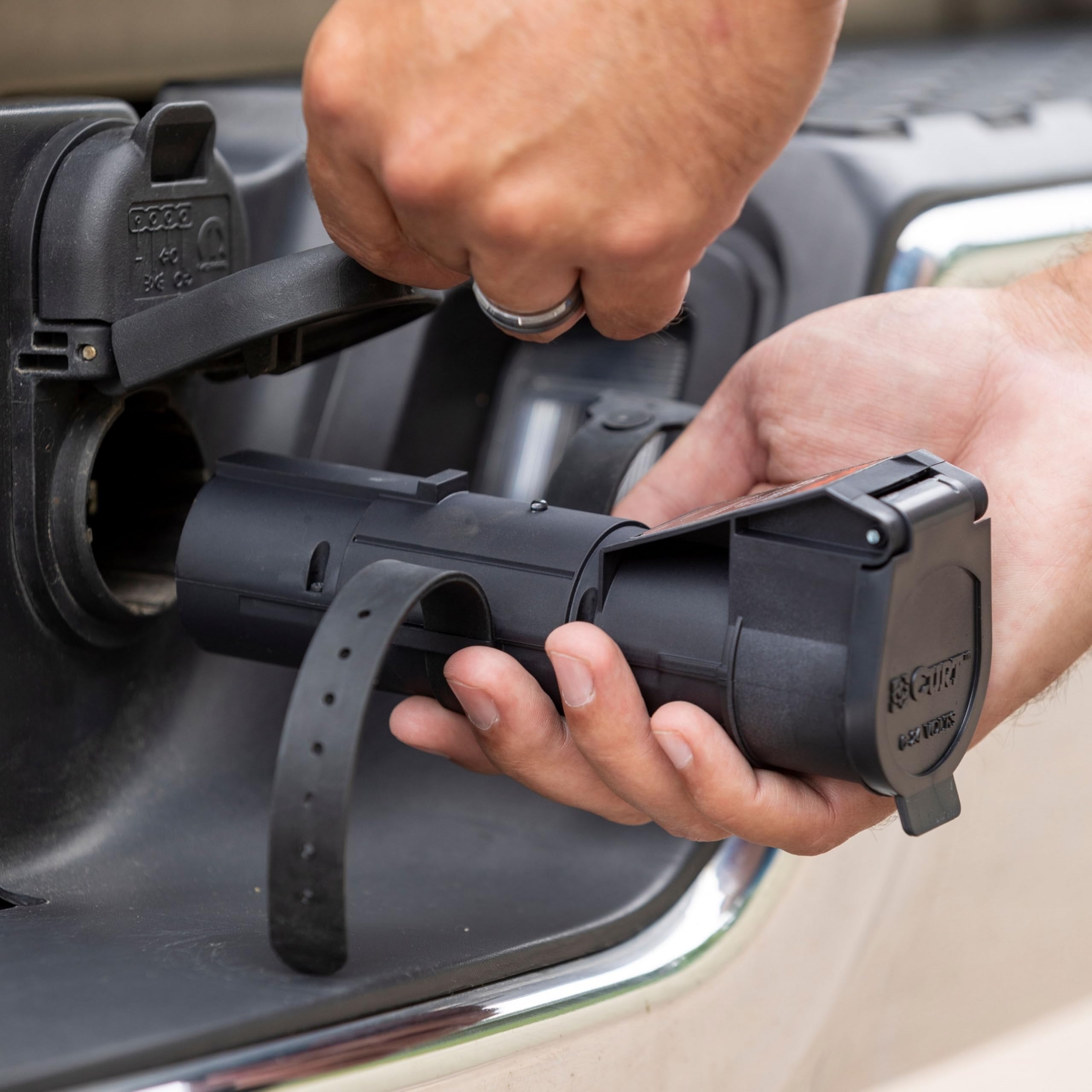

Installation is plug‑and‑play when your vehicle’s 7‑way provides +12V power, ground and turn‑signal circuits — no under‑dash wiring or tools are required. The unit seats into the 7‑way blade plug and is held by a safety retention strap and locking tab, letting you move the controller between vehicles in seconds.

• Plugs directly into industry‑standard 7‑way RV blade socket
• Requires vehicle 7‑way to supply fused +12V, ground and turn signals

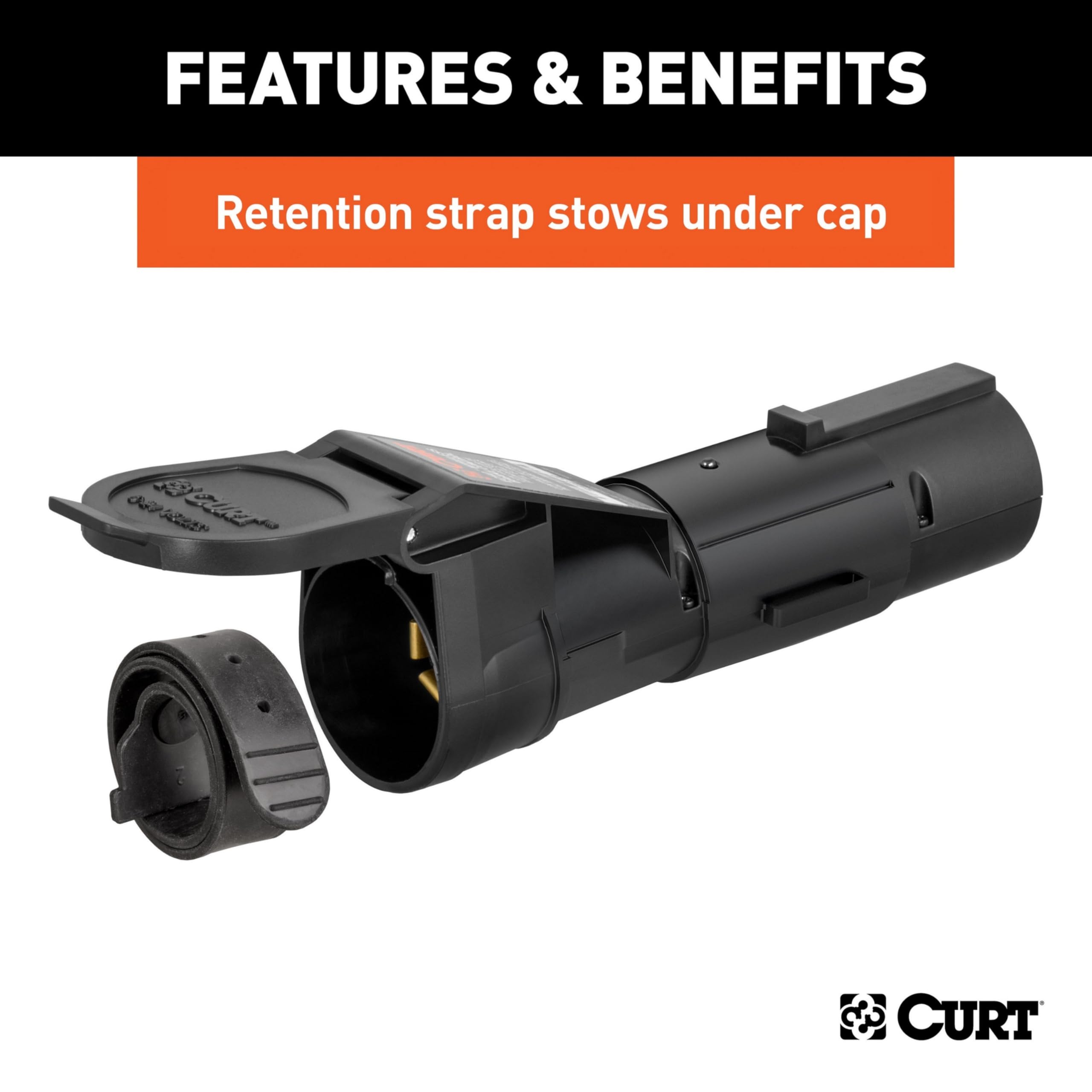

• Stored safety strap in cap installs quickly for a secure fit
• Calibration indicated by flashing yellow, solid green when paired

What smartphone features and app setup are required?

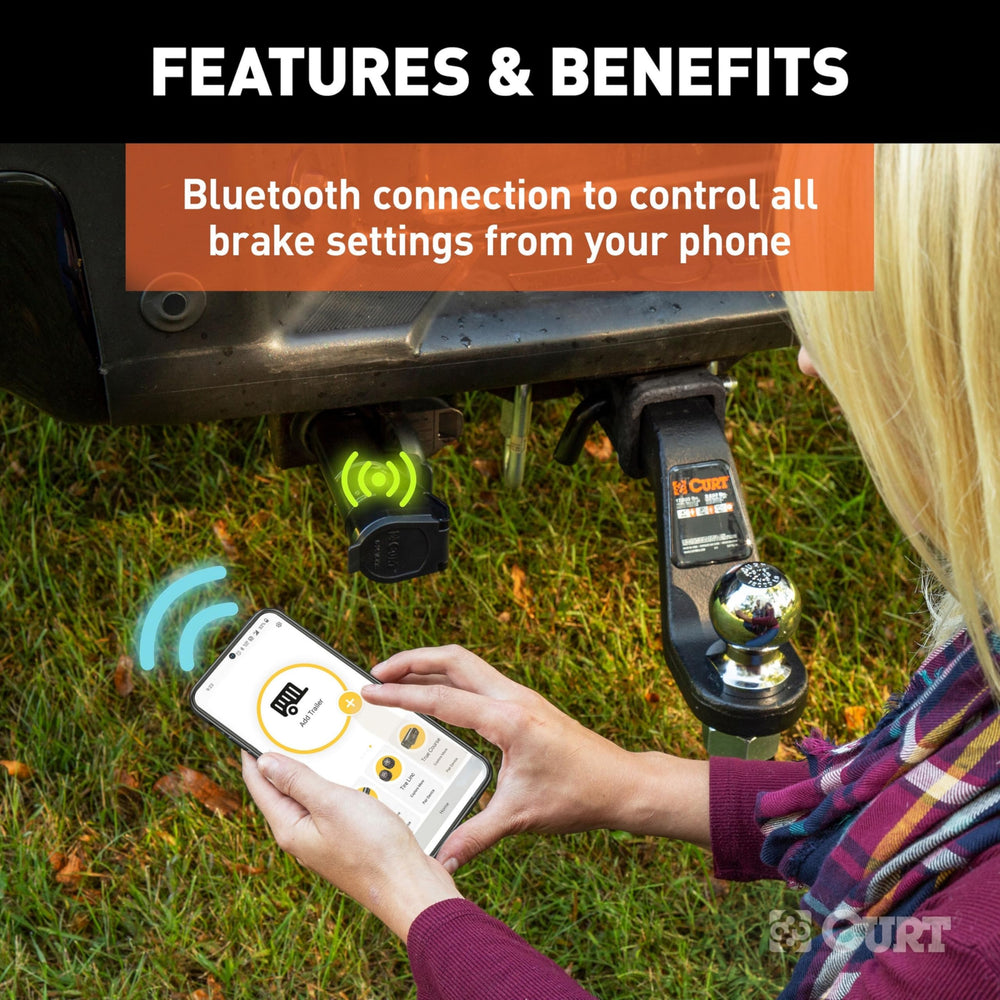

Echo pairs with your phone through the OneControl Auto app (iOS 14+ or Android 9+). Enable Bluetooth and location permissions, then pair inside the app rather than system Bluetooth settings; keep the app foregrounded for prompt manual override control while towing.

• OneControl Auto app handles pairing, vehicle‑trailer profiles and adjustments

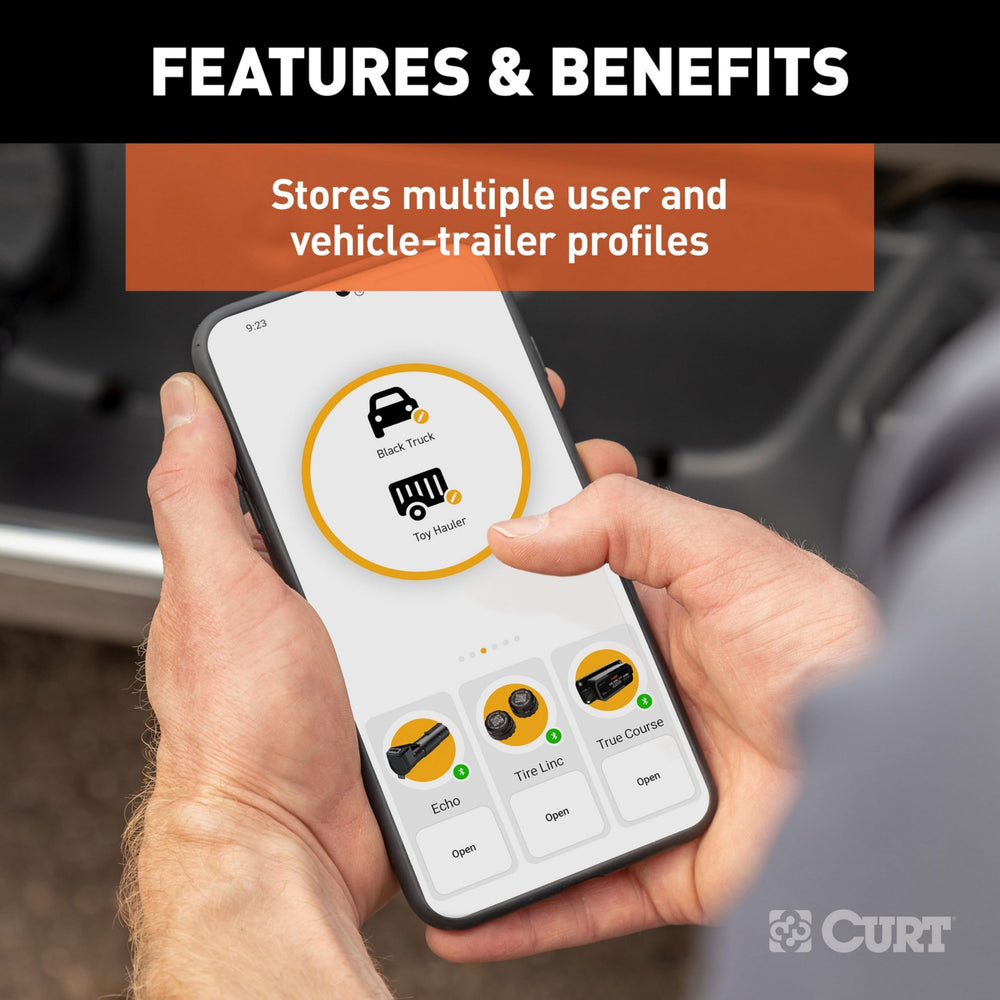

• Supports multiple trailer and vehicle profiles for quick switching
• App controls maximum output, sensitivity and hazard light behavior
• Bluetooth range up to ~50 ft unobstructed; range varies by environment

Will Echo work with modern vehicle safety systems and different trailers?

Yes — Echo is compatible with cruise control and ABS and is designed to function with typical low‑voltage/PWM trailer brake systems. It provides proportional braking using a tri‑axis accelerometer and retains the last programmed settings if Bluetooth communication drops.

• Operates trailers with 1–2 axles (2–4 brakes)
• Tri‑axis circuit smooths stops on inclines and declines
• Compatible with ABS and cruise control systems
• Existing wired brake controller will not function while Echo is connected

How durable and road‑ready is the Echo controller?

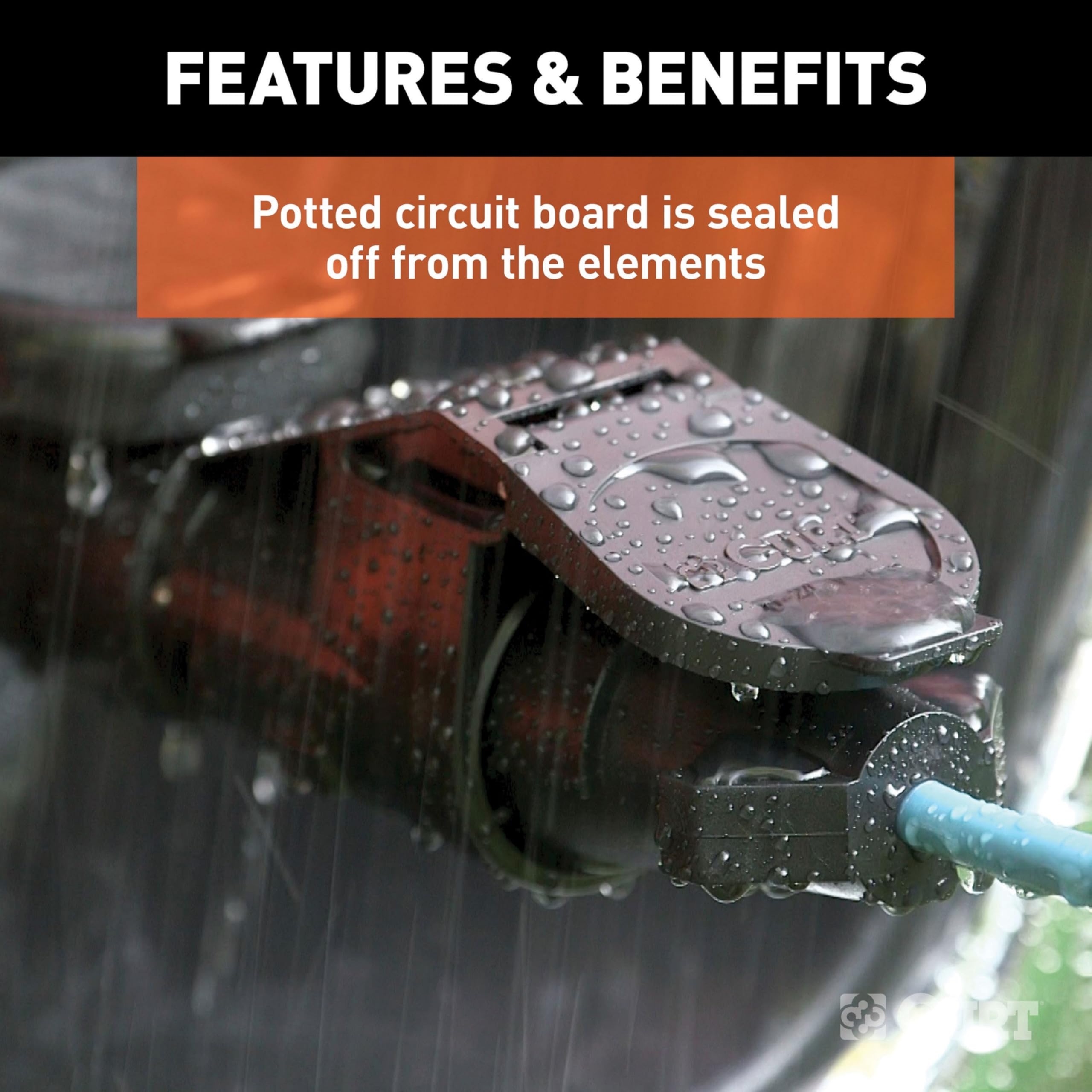

Echo is built for outdoor use with a potted enclosure that fills the interior with epoxy resin to protect electronics from moisture, dirt and vibration. The locking tab and retention strap improve connection security; the rugged design helps the unit withstand rain, snow and highway vibration.

• Potted electronics resist moisture and reduce vibration damage
• Retention strap and locking tab ensure a firm 7‑way connection
• Fused +12V trailer power expectation — vehicle fuse should be 30 A
• Designed for portable use across multiple vehicles or fleet setups

Who is this for: CURT Echo 51180 is aimed at trailer owners who want a no‑fuss, transferable brake controller that avoids under‑dash wiring — ideal for weekend boaters, RV owners, contractors with multiple tow vehicles, and fleet managers. Choose Echo if you need proportional braking for one‑ or two‑axle trailers, value smartphone control and app‑based profile management, and prefer a robust, weather‑protected controller that moves between vehicles with ease.
