Blue Sea Systems 285-Series 40A Surface‑Mount Circuit Breaker — Trip‑Free, Ignition‑Protected

Blue Sea Systems 285-Series 40A is a surface-mount, trip-free circuit breaker that doubles as a switch to protect and control 12V–24V marine equipment like windlasses and electric winches.

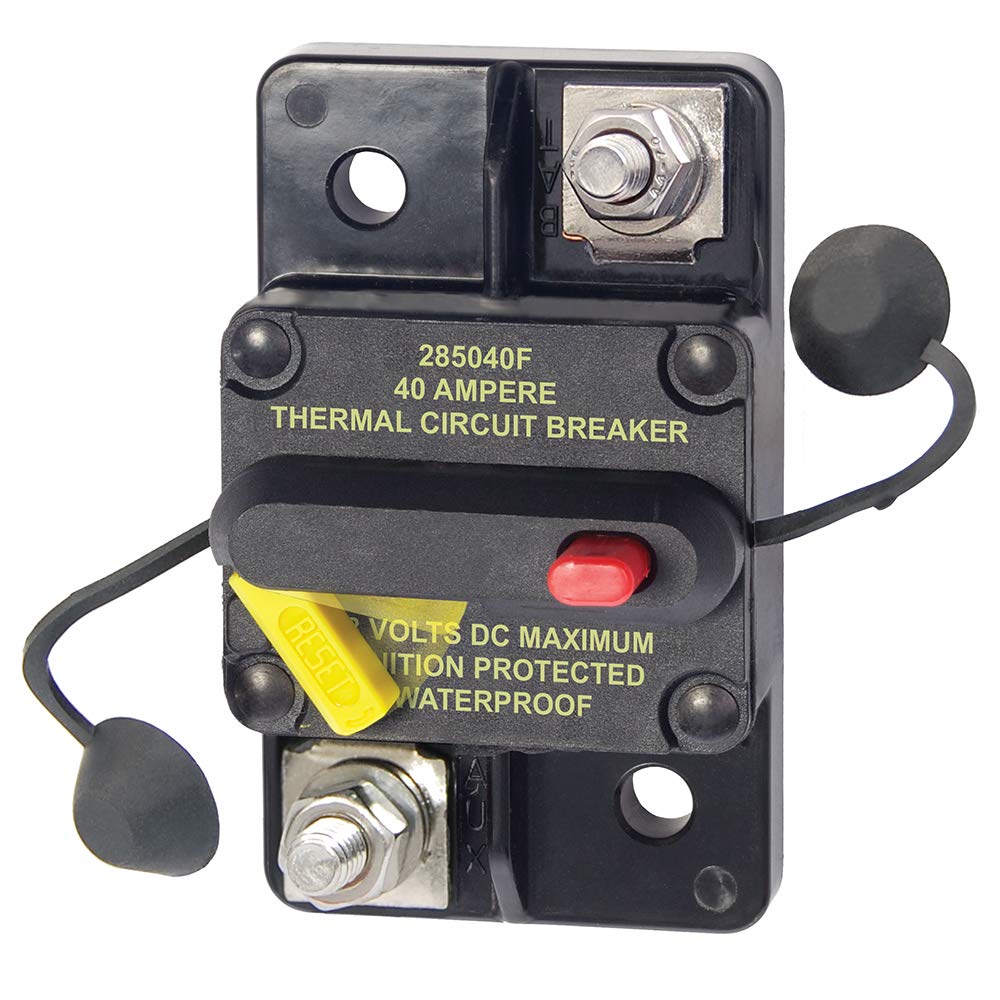

Built for boats and other small-vehicle electrical systems, this medium-duty circuit breaker integrates switching and overcurrent protection in a single, compact package. It features a visible lever that indicates a trip condition, ignition protection for safe engine-room installation, and water resistance for marine environments. Terminal studs are positioned on the face for straightforward wiring, and protective terminal caps reduce the risk of accidental contact and shorting.

How does the 285-Series 40A breaker protect my windlass or winch?

The 285-Series acts as both a switch and a resettable overcurrent protector. If the circuit draws excessive current, the trip-free mechanism forces the breaker to open and prevents holding it closed, which avoids overheating and wiring damage.

• Trip-free design prevents manual overriding during a fault
• Visible lever shows a tripped condition for easy troubleshooting
• 40 amp rating suited to many medium-duty anchor or deck gear
• Resettable on-board — no fuse replacements required

Where can I install this breaker on my boat?

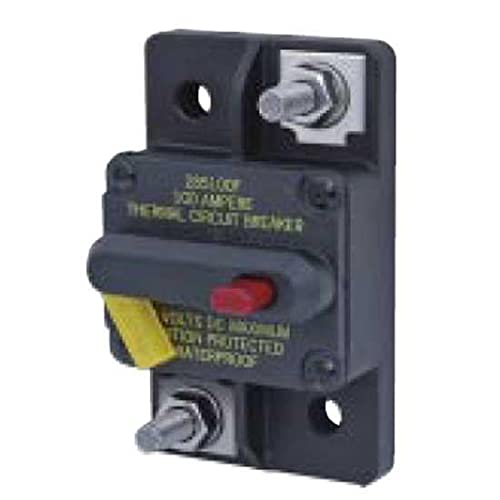

This surface-mount breaker is water resistant and ignition protected, so it can be installed in many onboard locations, including engine compartments of gasoline-powered vessels. Its face-mounted terminal studs and compact footprint make it simple to mount to bulkheads, consoles, or switch panels.

• Approved for engine-room mounting where ignition protection is required
• Surface-mount design fits bulkheads and flat panels
• Terminal caps protect against accidental contact and shorts
• Corrosion-resistant materials suited to marine exposure

How do I wire and maintain the 40A 285-Series breaker?

Wiring is straightforward: secure the positive feed and load to the face-mounted studs, torque per manufacturer specs, and fit the terminal caps. Routine visual checks of the lever, caps, and mounting ensure continued operation; replace if corrosion or mechanical damage appears.

• Face studs simplify cable routing and reduce installation time
• Use appropriate ring terminals and rated cable for 40A circuits
• Inspect lever, caps, and mounting periodically for wear
• Five-year warranty offers long-term coverage against defects

Why choose this model over other circuit protection options?

This breaker replaces conventional fuses and separate switches by combining both functions into a single device, reducing panel complexity. It is a drop-in upgrade from the older 185 series and offers the safety benefit of a trip-free mechanism plus ignition protection for gasoline engine areas.

• Combines switch and circuit protection to streamline installations
• Direct replacement for 185-series breakers for easy upgrades
• Trip-free feature enhances safety under fault conditions
• Ignition-protected for engine-room compatibility on boats

Who is this for: The Blue Sea Systems 285-Series 40A breaker is aimed at boat owners, marine electricians, and installers specifying reliable medium-duty circuit protection for anchor windlasses, electric winches, and similar 12V–24V loads. It suits anyone seeking an integrated switch-and-protection solution with clear trip indication, simple installation, and the durability required for marine environments.
