Chazcool M4 Thread Repair Kit 50pcs M4 x0.7 Stainless Inserts with Tap, Drill & Installation Tool – Restores Stripped Threads

Chazcool M4 x 0.7 Thread Repair Kit is a 50-piece stainless steel insert set with installation tools designed to restore and reinforce stripped M4 threads to like-new strength.

When screws wear out or threads strip in soft metals or composites, replacing the entire part can be costly. This Chazcool kit provides stainless-steel helically formed inserts plus the tap, drill, tang breaker and installation tool needed to rebuild M4 x 0.7 threads to a durable stainless-steel profile. The kit is intended for repair and reinforcement where repeated disassembly, vibration, or load cycling have compromised original threads.

How does the kit restore stripped M4 threads?

The repair process uses a slightly larger drill size, a matching tap, and a coil-style stainless insert that seats into the prepared hole. Once installed the insert forms a new, corrosion-resistant M4 internal thread that accepts standard M4 fasteners.

• Use the included drill bit to open the damaged hole to the correct diameter.
• Cut new mating threads with the dedicated ST4 tap supplied in the kit.

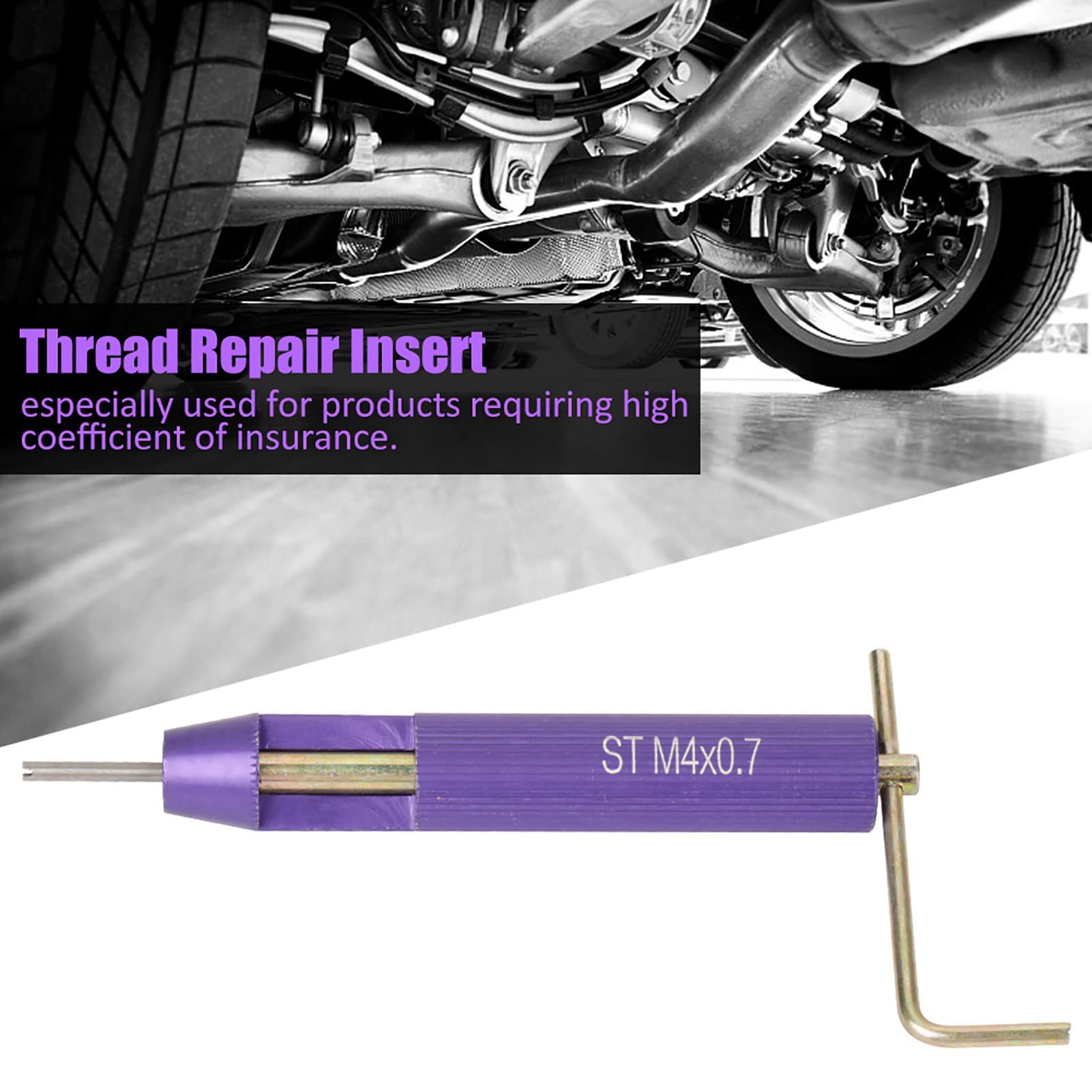

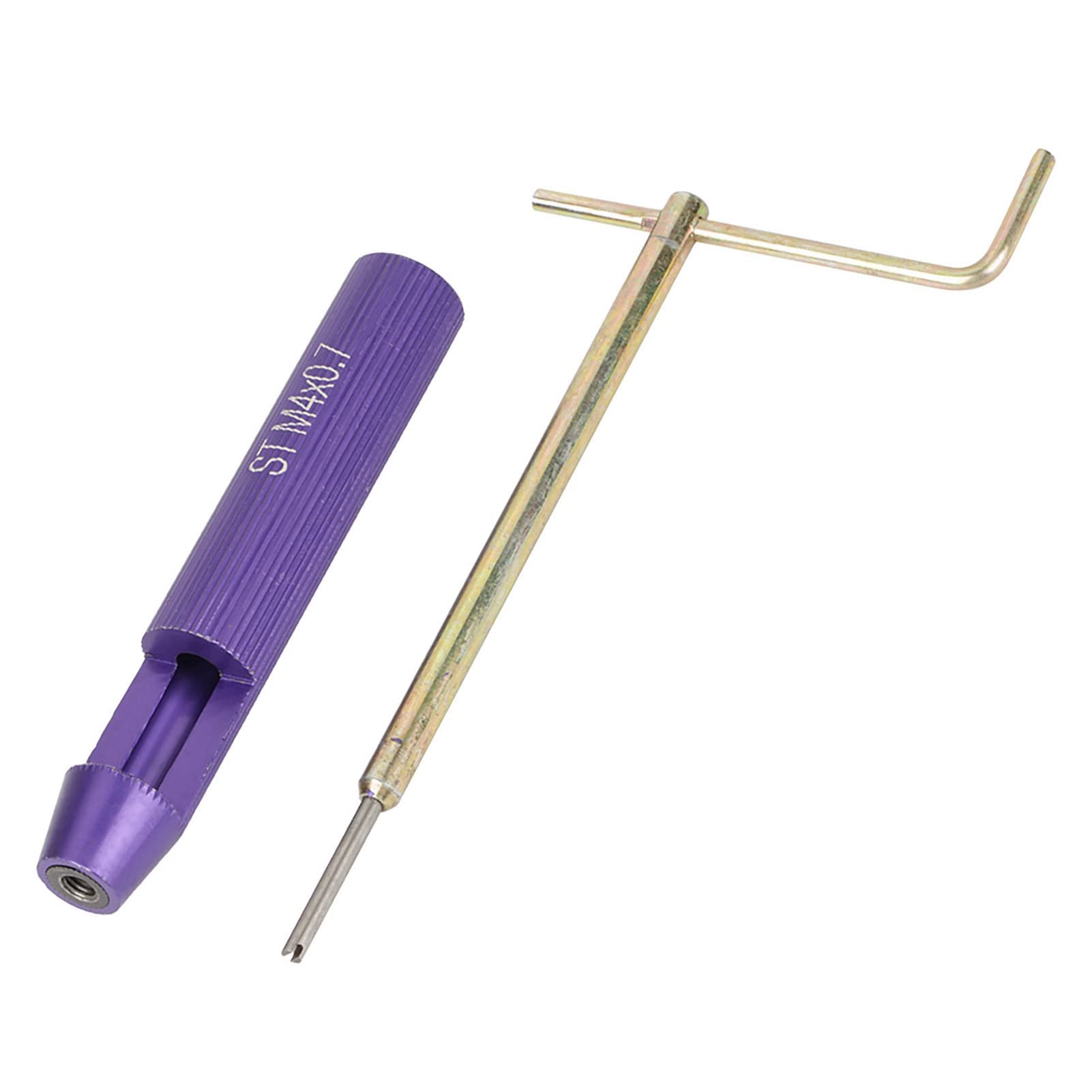

• Wind the stainless insert in with the installation tool until it seats at the specified depth.
• Break off the tang using the tang breaker so the insert is flush and ready for normal M4 screws.

What materials and applications is this best suited for?

These stainless-steel inserts are ideal for soft base materials such as aluminum, magnesium, castings, and many plastics where original threads can easily deform. They are commonly used in electronics enclosures, automotive components, furniture, and machinery parts that see repeated servicing.

• Aluminum and light alloy housings that need stronger screw retention.
• Assemblies requiring frequent teardown for maintenance or upgrades.
• Parts exposed to vibration where thread loosening is a risk.
• Situations needing corrosion resistance from stainless-steel inserts.

What exactly is in the box and how long will it last?

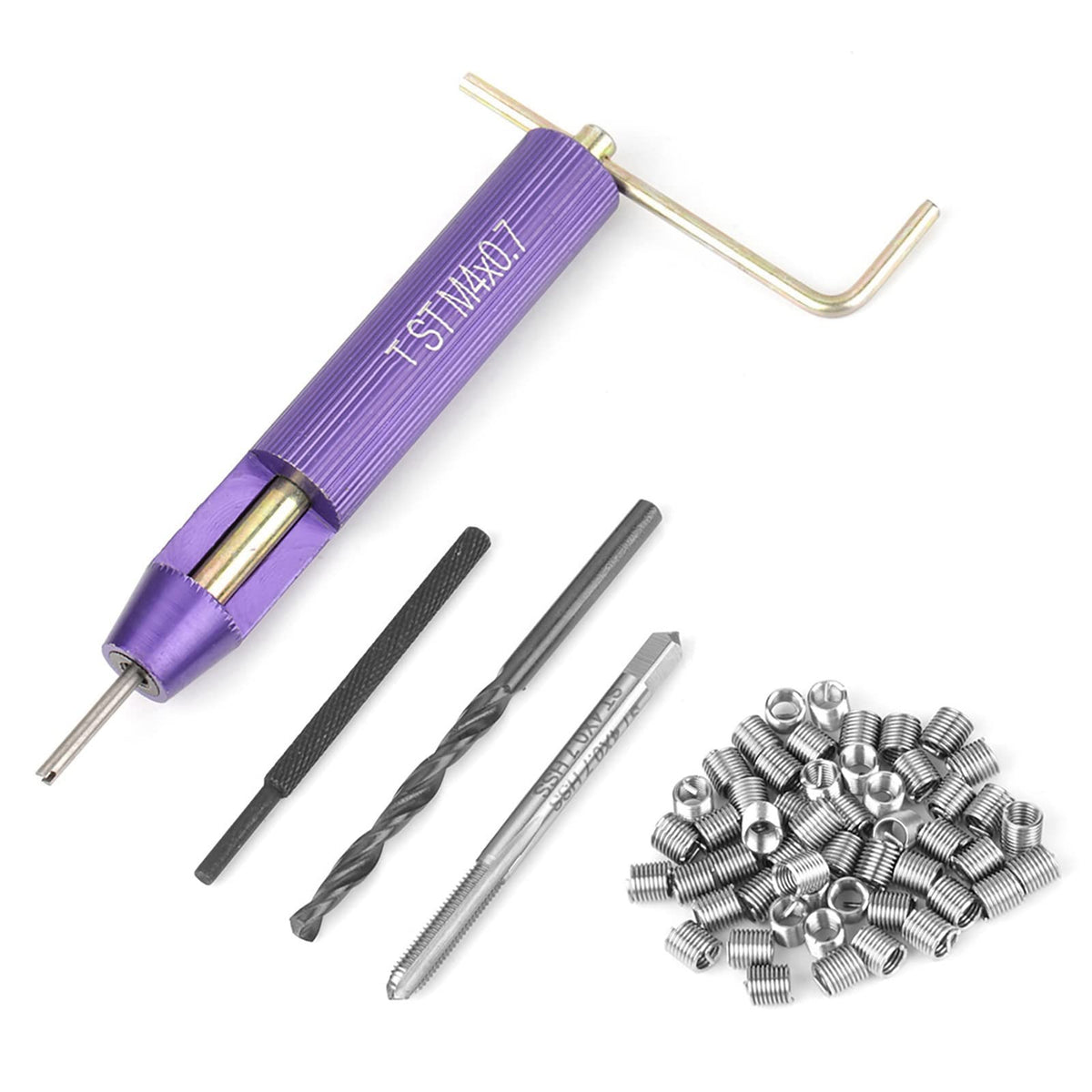

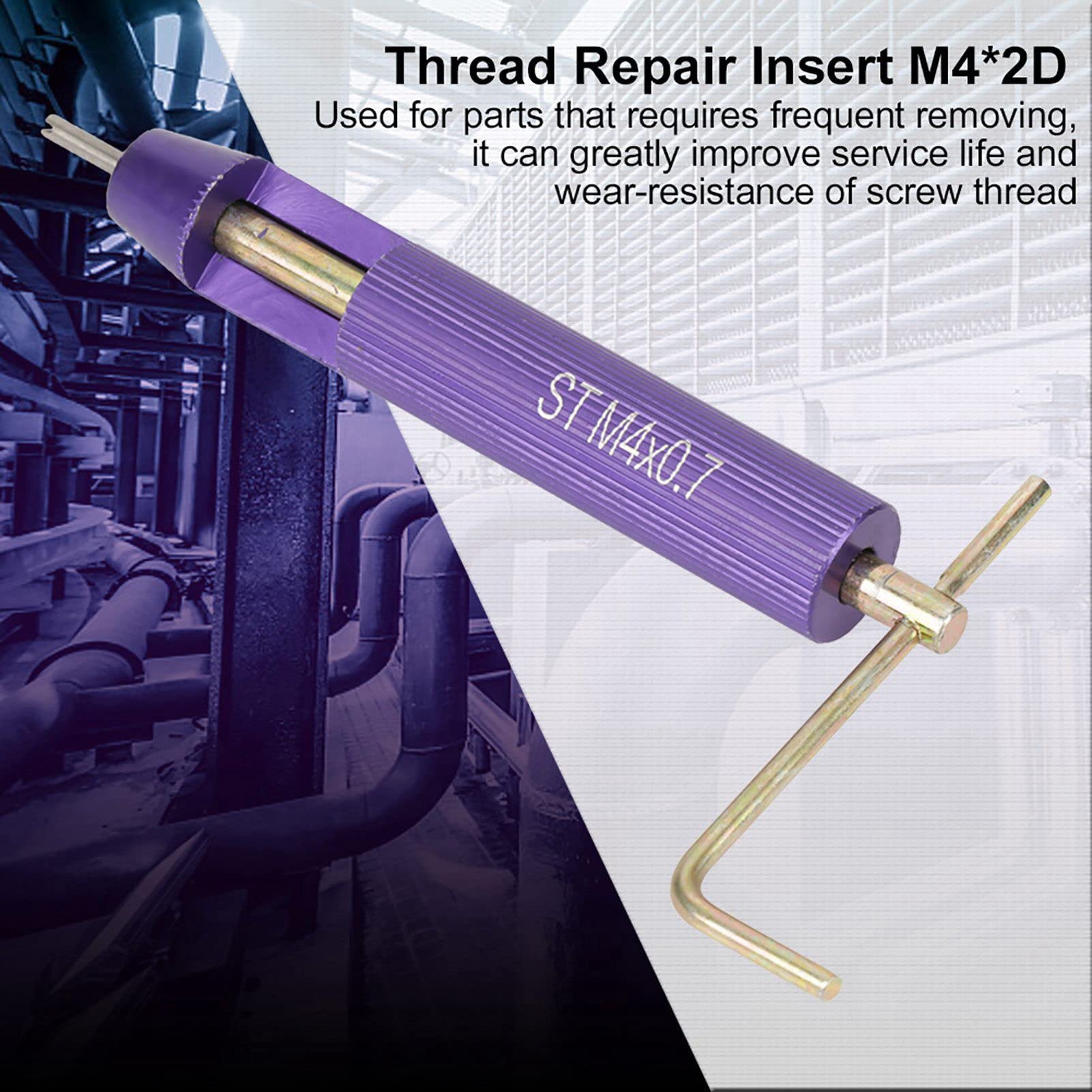

The kit ships with 50 stainless M4x2D inserts (installed length 8mm), an installation tool sized for M4, a dedicated ST4 tap, a tang breaker and one drill bit. Fifty inserts typically cover dozens of repairs depending on application—enough for multiple projects or workshop stock.

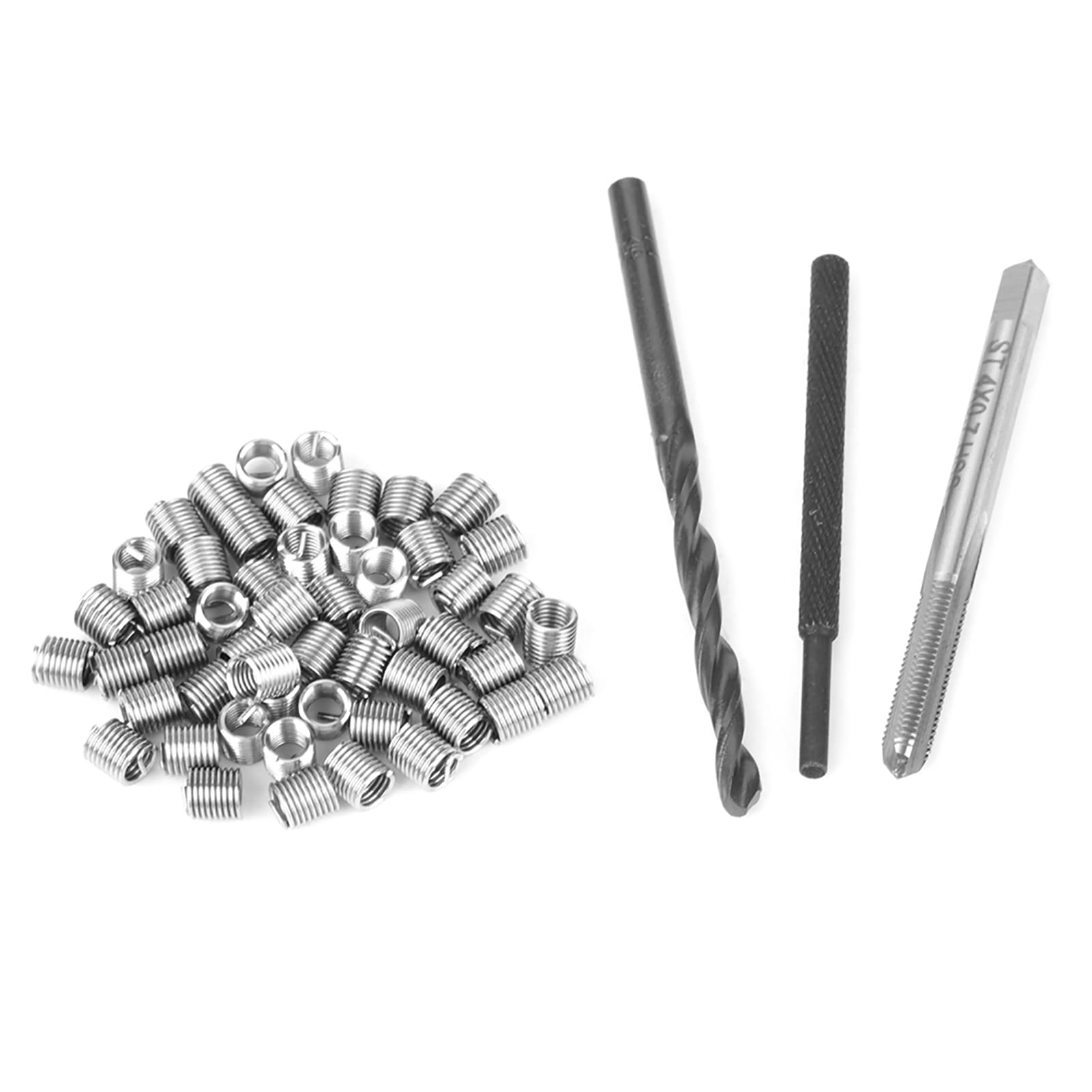

• 50 x M4 x 2D stainless-steel thread inserts (approx. 89 g total kit weight).

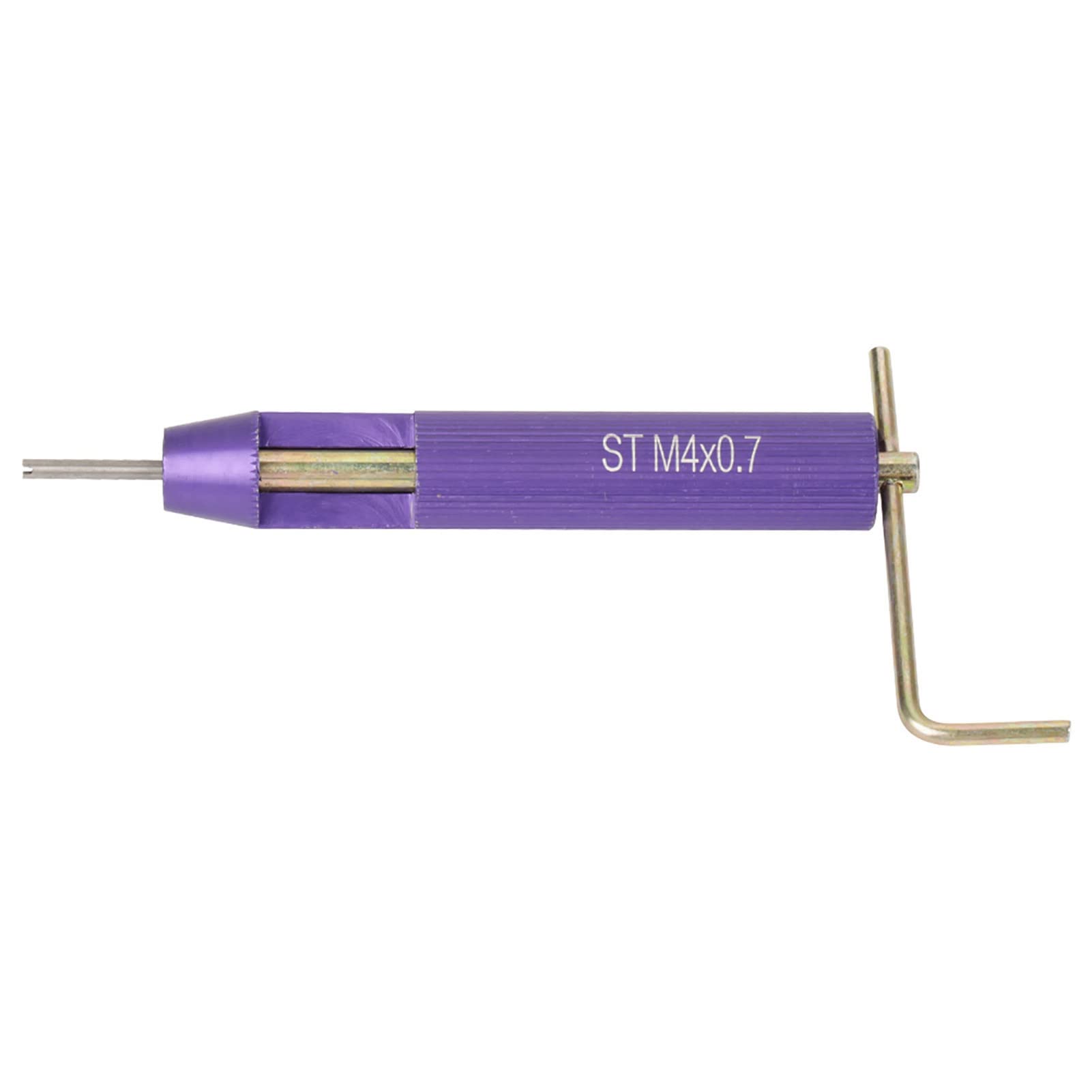

• 1 x installation tool for correct winding and seating of inserts.
• 1 x ST4 dedicated tap to prepare the hole for the insert.
• 1 x tang breaker and 1 x drill bit to complete the installation.

Will installing inserts affect screw fit or alignment?

Properly installed inserts restore thread geometry so standard M4 screws will seat and align as designed. The inserts have enough elasticity to even load distribution, reduce localized wear, absorb minor vibration, and help prevent loosening when applied correctly.

• Elastic coil structure evens the load across mating threads.
• Reduces pitch deviation between screw and hole for smoother engagement.
• Helps resist vibration-related loosening in service applications.
• Replaces damaged threads without changing the external part dimensions.

Who is this for: Engineers, mechanics, DIY enthusiasts, and service technicians who repair or maintain assemblies with M4 fasteners will find this Chazcool kit useful. It’s especially helpful where original threaded holes sit in softer materials, where frequent disassembly or vibration demands a stronger, longer-lasting thread solution. Note: main insert style may ship randomly; confirm you accept variation before ordering.
