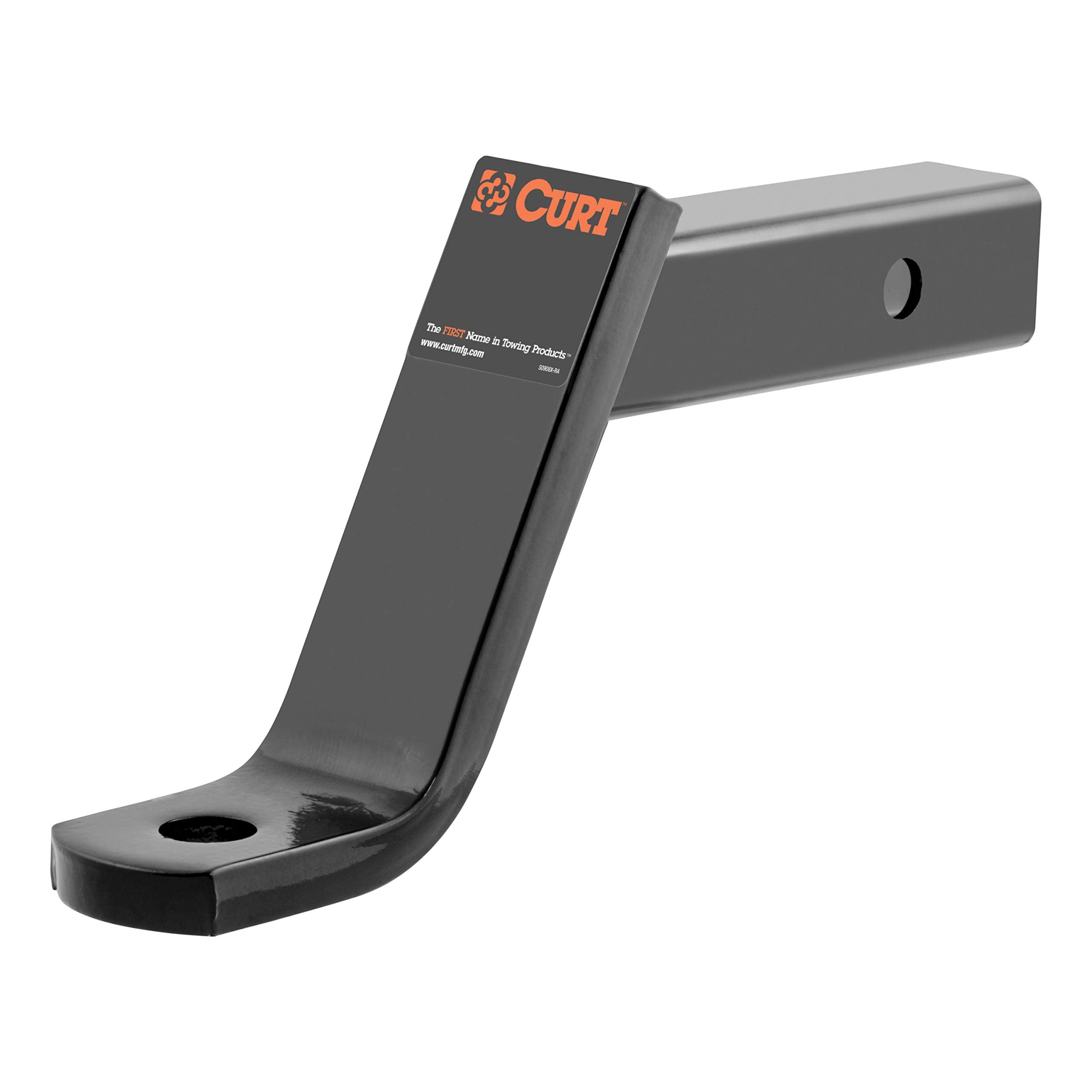

CURT 1" Ball Mount Class III 2" x 2" Shank — 6" Drop / 4" Rise, 7,500 lb GTW, Gloss Black

CURT 45070 is a Class III 1" ball mount with a 2" x 2" shank that offers a 6" drop or 4" rise and is rated up to 7,500 lb gross trailer weight in the drop position.

This precision-formed ball mount from CURT brings durable towing capability to trucks and SUVs equipped with a 2" receiver. CNC-formed and robotically welded for consistent strength, the 45070 balances high load ratings with corrosion resistance thanks to a gloss black powder coat. It accepts a standard 1" diameter trailer ball (sold separately) and installs easily with a hitch pin, making it a straightforward upgrade for heavier trailers like boats, campers, utility trailers and many recreational units.

How much weight can this ball mount safely tow?

The CURT 45070 is rated for two operating positions. In the drop orientation it supports up to 7,500 lb gross trailer weight (GTW) and 750 lb tongue weight (TW); when flipped to the rise orientation the capacities are 6,000 lb GTW and 600 lb TW. Always verify the vehicle, hitch, trailer and any other towing component ratings and never exceed the lowest listed capacity.

• Drop position: 6" drop, 7,500 lb GTW, 750 lb TW
• Rise position: 4" rise, 6,000 lb GTW, 600 lb TW
• Length: 9-1/4" from hitch pin to ball hole center

Will this mount fit my vehicle and trailer ball?

The mount uses a standard 2" x 2" shank, compatible with most Class III 2" hitch receivers on trucks and SUVs. The ball hole is 1" in diameter to accept common trailer balls with a 1" shank; the trailer ball itself is not included. Installation requires a hitch pin or locking pin (sold separately) to secure the mount in the receiver.

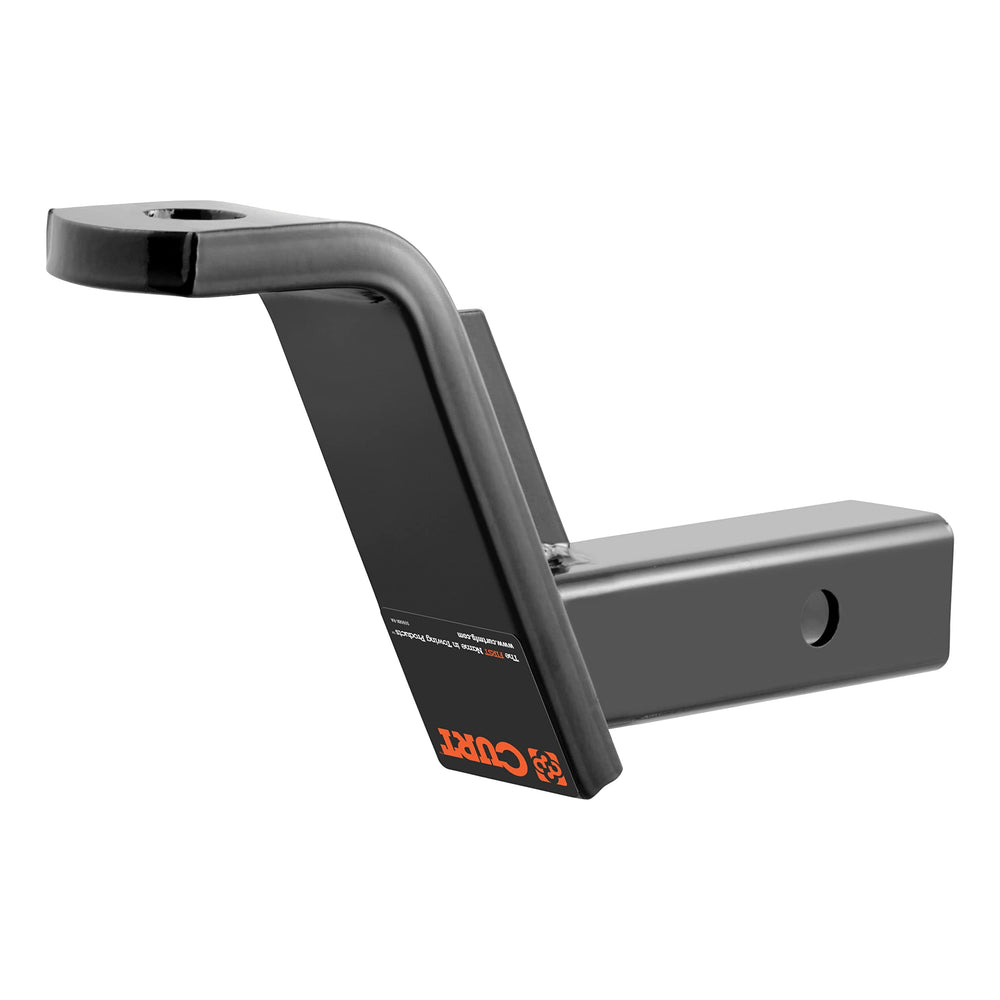

• Shank: 2" x 2" industry-standard fit
• Ball hole: 1" diameter for standard trailer balls
• Fastening: requires 5/8" hitch pin or locking pin (not included)

What materials and finish protect the 45070 from wear and corrosion?

CURT builds this ball mount from high-strength steel, CNC-formed for accurate dimensions and robotically welded for consistent structural integrity. Each unit is mechanically descaled to create a smooth base before receiving a gloss black powder coat that resists rust, chips, UV damage and road debris.

• Construction: high-strength steel with precision forming and welding
• Surface prep: mechanically descaled for long-lasting adhesion
• Finish: gloss black powder coat for corrosion resistance

How easy is it to install and use this ball mount?

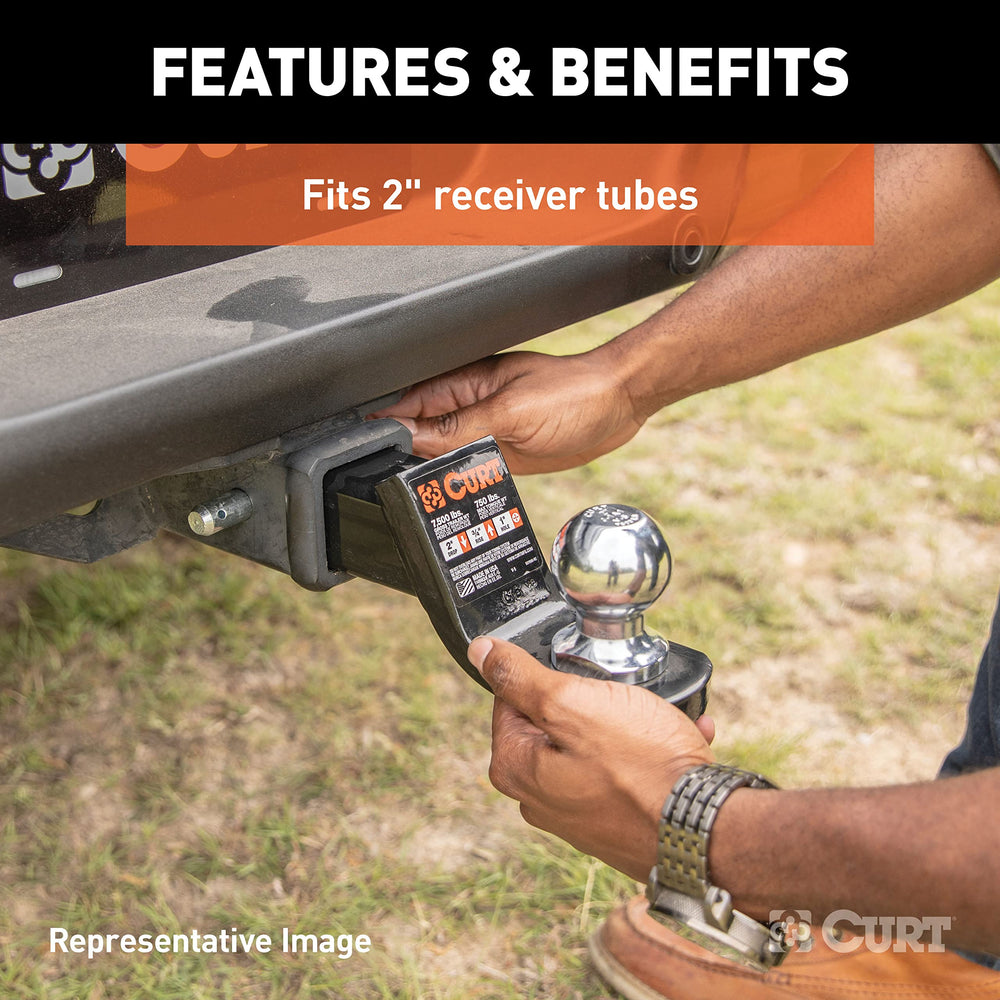

Installation is straightforward: slide the rounded 2" shank into the vehicle's receiver until the hitch pin holes align, then secure with a hitch pin or lock. The mount's clean finish and exacting dimensions make insertion and removal smooth, and flipping between drop and rise positions only requires removing the pin and rotating the mount.

• Quick install: slide into 2" receiver and secure with hitch pin
• Reversible: flip for drop or rise without additional tools
• Ready to pair: accepts 1" trailer ball (ball sold separately)

Who is this for: The CURT 45070 is aimed at truck and SUV owners who tow medium- to heavy-duty trailers and need a reliable, corrosion-resistant Class III ball mount. It’s a fit for boat owners, campers, landscapers, utility haulers and recreational users who want a durable hitch accessory with clear load ratings and versatile rise/drop options.
