CURT 56130 SMT Converter 3-to-2 Wire Trailer Adapter with 4-Way Flat Socket, SMT Durability

The CURT 56130 SMT Converter converts a vehicle's 3-wire taillight system into a standard 2-wire trailer circuit and supplies a 4-way flat connector for safe, legal towing.

If your vehicle lacks a factory trailer connector or a vehicle-specific wiring kit, this compact CURT converter creates the needed trailer output by tapping into your tail light wiring. Built with surface-mount technology (SMT) circuitry, it delivers more robust electrical performance and longer component life than older through-hole designs. The unit is a non-powered 3-to-2-wire converter intended to splice directly into the vehicle’s taillight harness and provide a reliable 4‑pin flat socket for trailer lights, brake lights and turn signals.

How does the CURT 56130 make wiring a trailer easier?

This converter provides a plug-and-play style output where your trailer can attach, avoiding ad hoc splices each time you tow. It’s designed for splicing into factory taillight wires and includes snap-lock connectors and color-coded leads to speed installation and reduce mistakes.

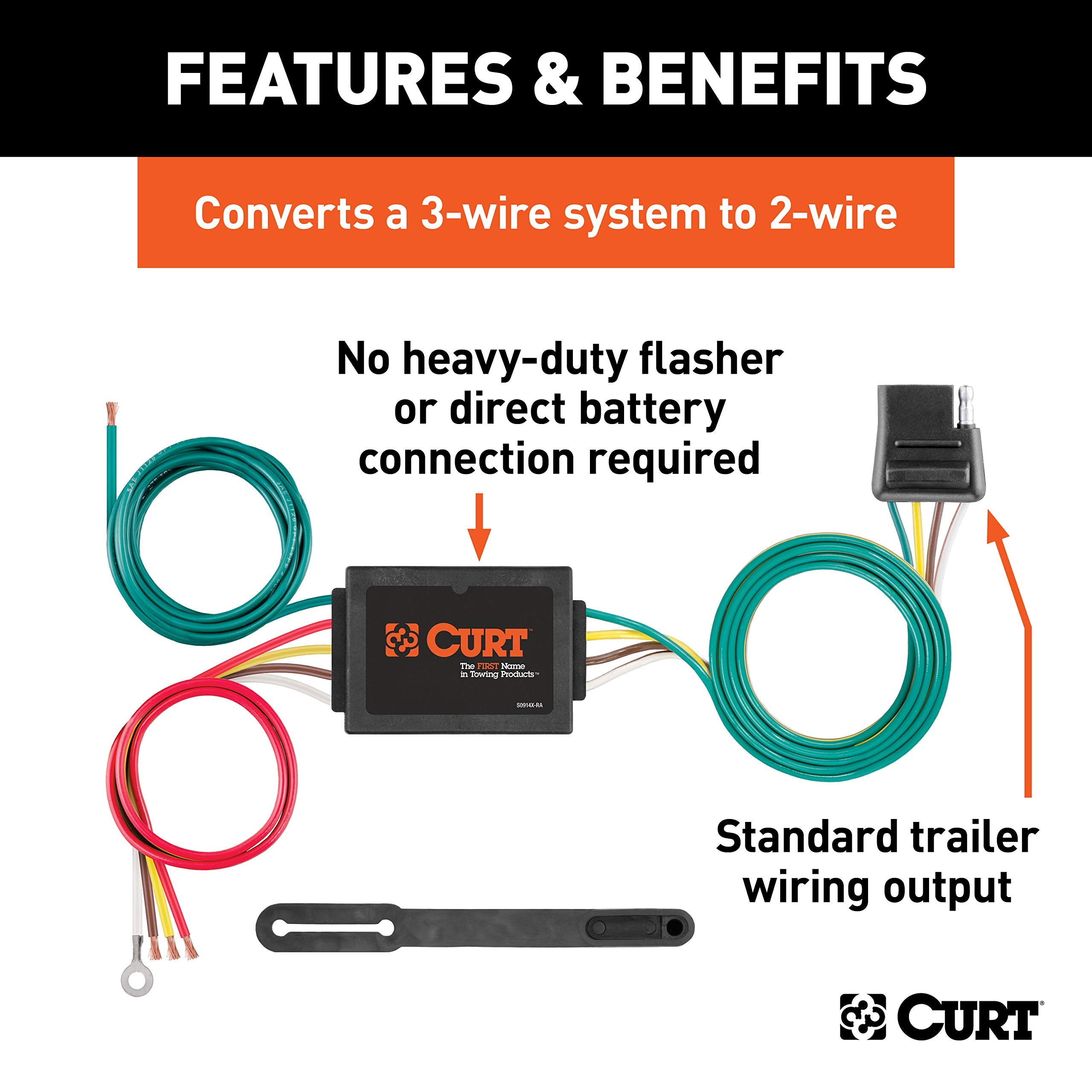

• Color-coded wires for quick identification during install
• Snap-lock terminals to hold splices securely

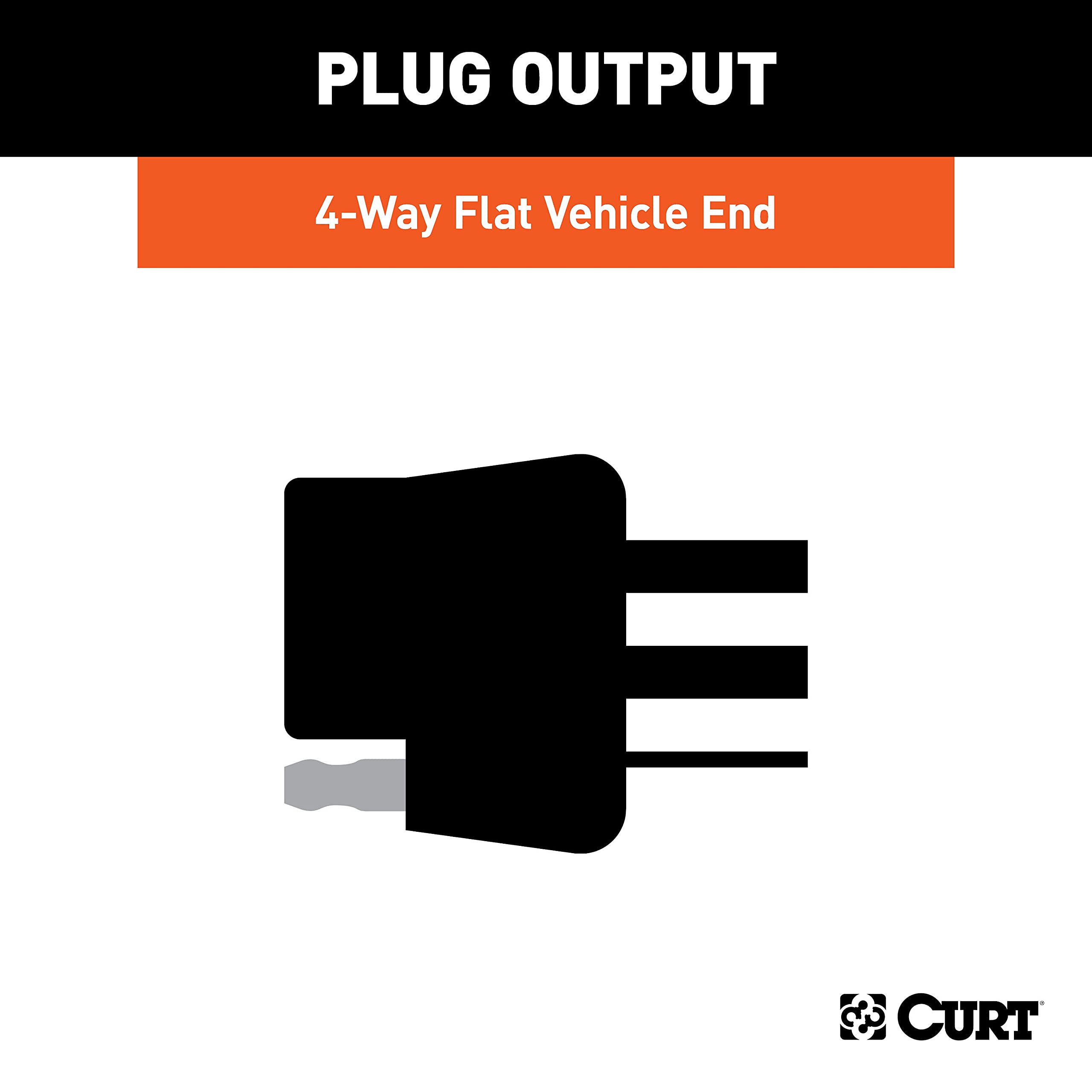

• Standard 4-way flat receptacle for universal trailer plugs
• No bulky external battery or heavy-duty flasher required

What electrical performance and protection does the SMT design provide?

Surface-mount technology places components directly on the circuit board surface, which typically lowers electrical resistance and heat generation. That results in a more durable converter with improved long-term reliability compared with legacy through-hole assemblies.

• Lower resistance for cleaner signal transfer
• Reduced heat output under normal loads
• Improved component longevity and circuit stability

What does this converter actually connect and support?

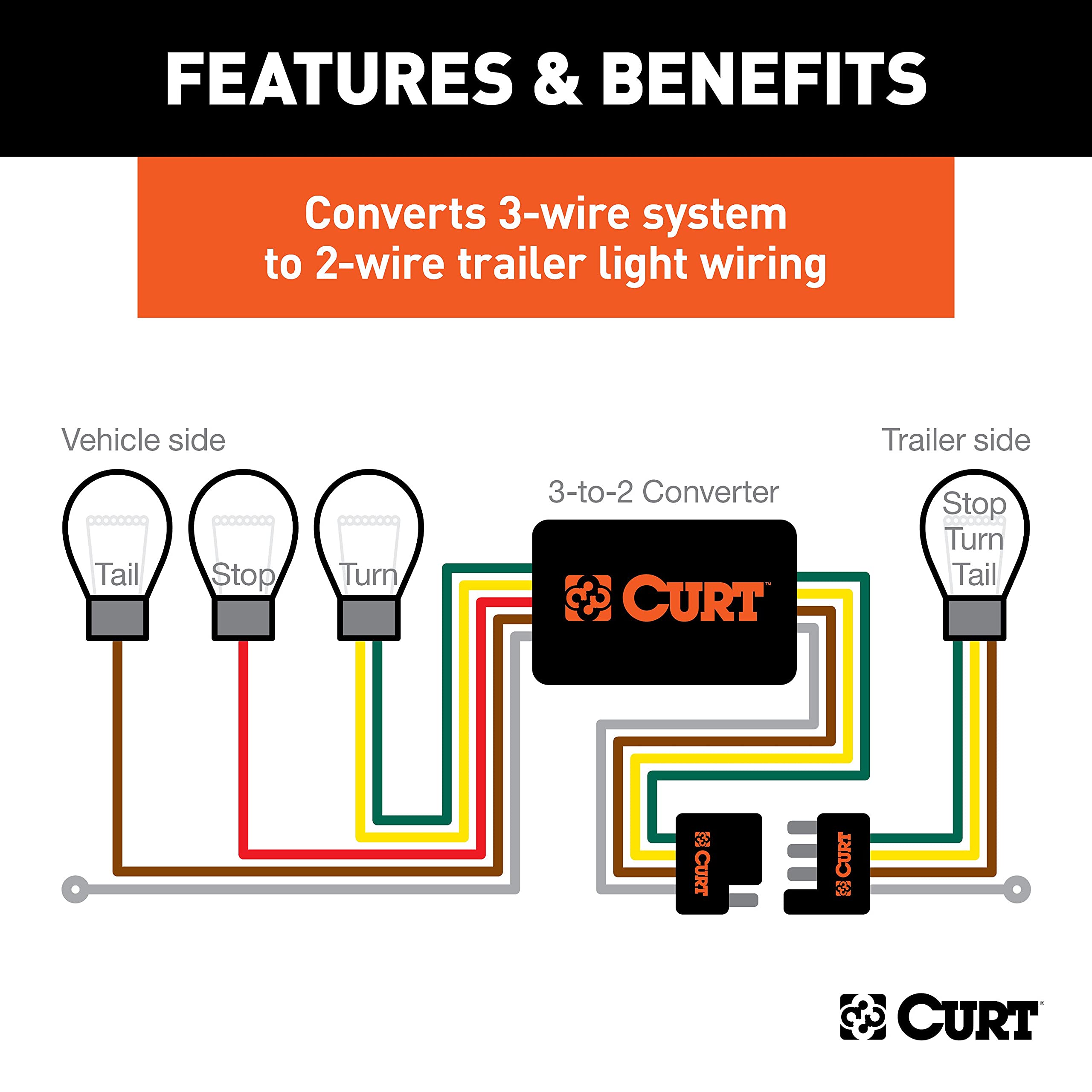

The CURT 56130 adapts a 3-wire vehicle taillight feed into the common 2-wire trailer standard while offering a 4-pin flat socket to connect trailer lighting functions. It handles low-current signal and taillight circuits suitable for typical small trailers and light loads.

• Converts 3-wire vehicle lighting to 2-wire trailer wiring
• Supplies a standard 4-way flat connector for trailers
• Rated for signal and taillight circuits (3.0A signal, 5.0A taillight)
• Includes rubber dust cover to protect the socket from weather

What should I expect during installation and maintenance?

Installation requires splicing into the vehicle’s taillight leads; it’s not a simple plug-in for every vehicle but is straightforward with basic hand tools. The converter arrives ready to install and needs no auxiliary power source—maintenance is minimal, limited mostly to keeping the connector clean and the dust cover in place.

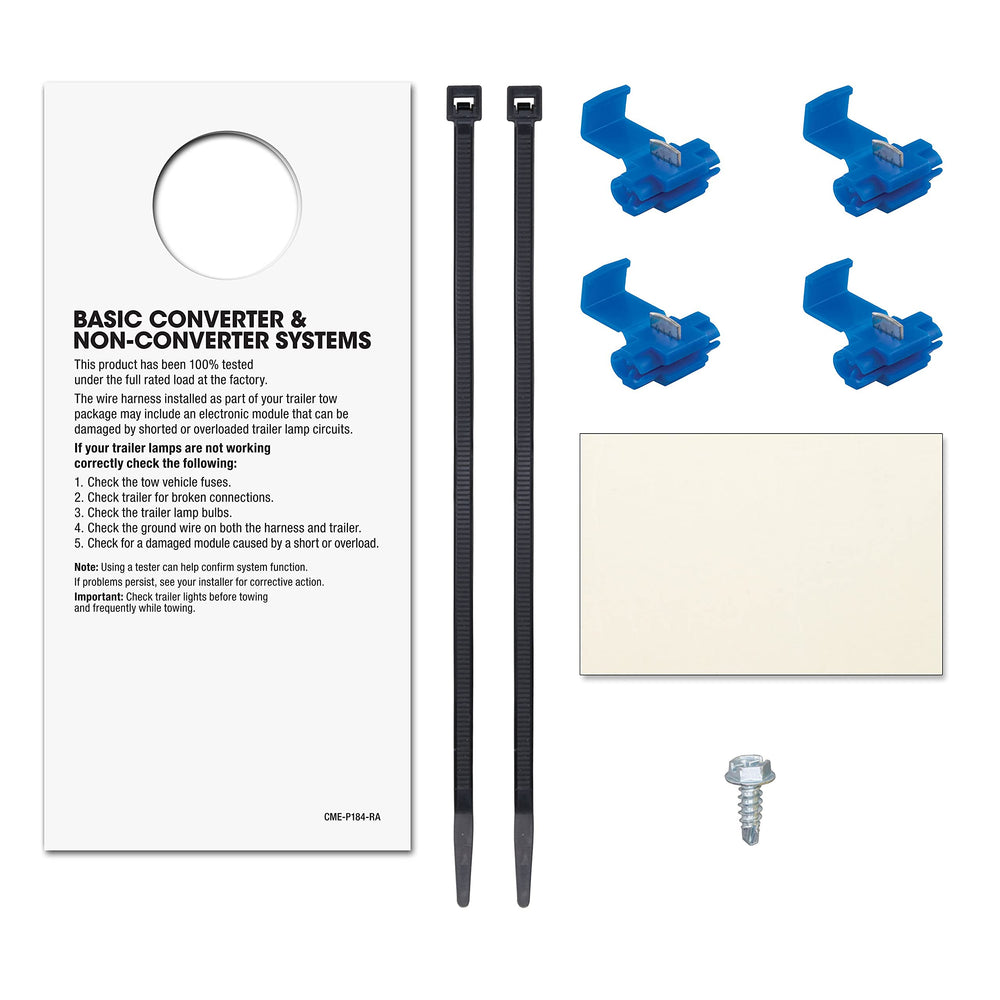

• Ready-to-install with snap-lock splice connectors included
• No added battery or external flasher required for normal operation
• Weather-resistant rubber dust cover for the 4-pin socket
• Inspect connections periodically and replace if corroded

Who this is for: The CURT 56130 SMT Converter is aimed at owners of vehicles without a factory trailer plug who need a dependable, long-lasting 4-way flat connection for small trailers, utility trailers, or light towing tasks. It’s a good fit for DIY installers, fleet managers on a budget, or anyone who prefers splicing into existing taillight wiring instead of routing new dedicated harnesses. If you require higher amperage, powered conversion, or vehicle-specific plug-and-play kits, consider a powered converter or a custom CURT harness instead.
