DDayuanwei Digital Tachometer for Small Engines — Waterproof Clip-On 0–36,000 RPM, Hour Meter

DDayuanwei Small Engine Tachometer is a waterproof, clip-on digital tach gauge that measures 0–36,000 RPM, logs running hours, and triggers an adjustable RPM alarm for gasoline engines.

This compact, rugged instrument combines RPM measurement, hour metering and simple alarm settings into a handheld unit designed for outdoor power equipment. Built to IPX68 water resistance and offering both inductive sensing and clip-on pickup, the meter fits mechanics, landscapers and hobbyists who need quick, reliable engine data without complex wiring. The display features dual backlight colors to improve visibility and warn when RPMs exceed your preset threshold.

How does the tachometer measure engine speed reliably?

The device supports two measurement modes: clamp-on pickup for spark plug wires and inductive sensing from a short distance. It reads between 0 and 36,000 RPM with stated 1% accuracy and refreshes readings every 0.5 seconds, so you get near-real-time feedback on engine performance.

• 0–36,000 RPM measurement range with 1% accuracy.
• Clip-on alligator cable for direct spark plug wire connection.
• Inductive sensing works at an optimal 3–5 cm distance—no electrical contact needed.
• Fast 0.5-second refresh rate for responsive readings.

What maintenance and logging functions are included?

Beyond RPM, the DDayuanwei tachometer tracks total run hours and supports job- or service-specific counters so you can monitor maintenance intervals. Data is retained when the battery is changed, and there are auto-sleep and reset features to conserve power and simplify resets between uses.

• Timing range 1–9,999 hours with 0.1-hour timing resolution.

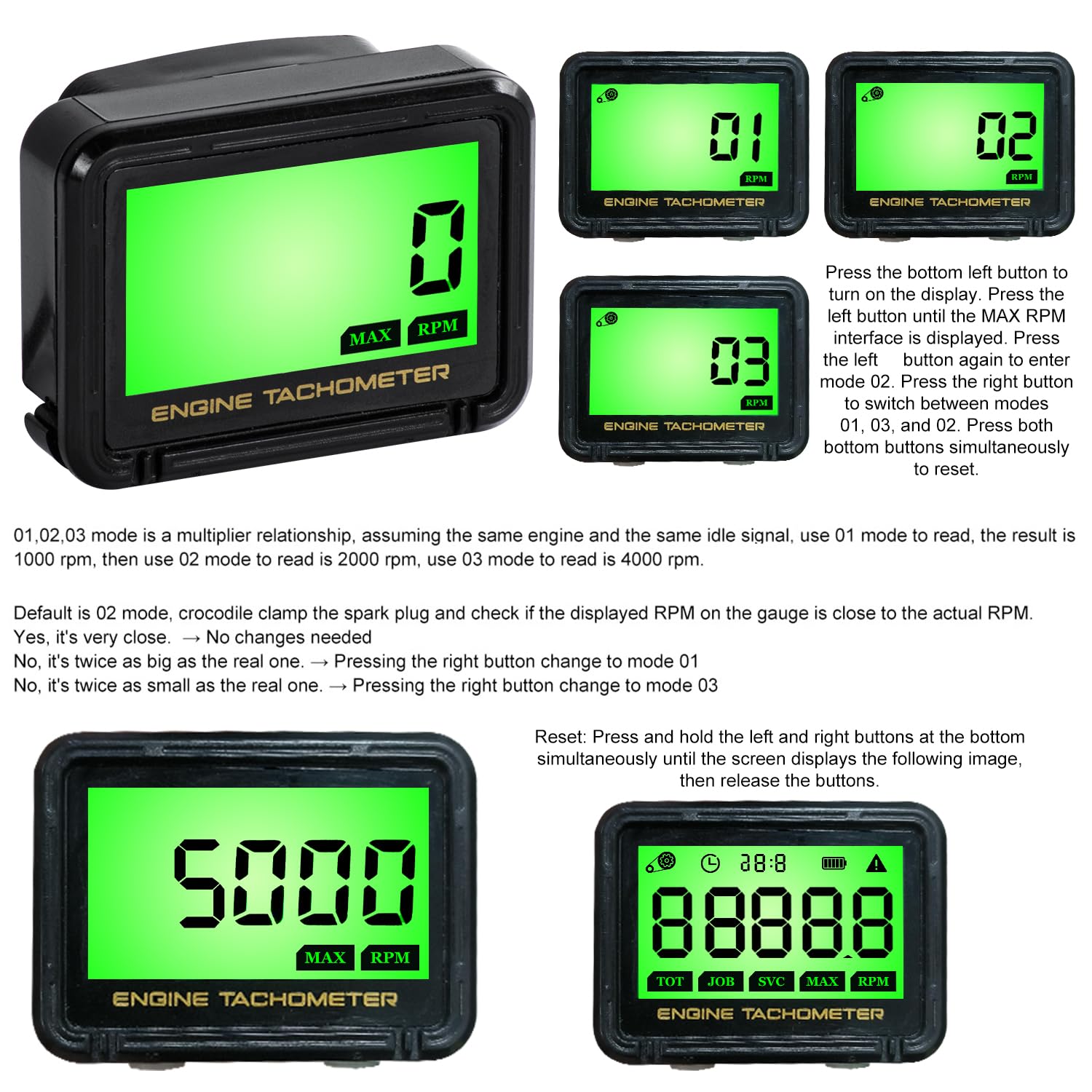

• TOT, JOB, SVC and MAX RPM memory modes for targeted logging.
• Auto-sleep function extends battery life; stored data is preserved during replacement.
• Low-battery indication prompts timely battery swaps.

How does the alarm and backlight help in real-world use?

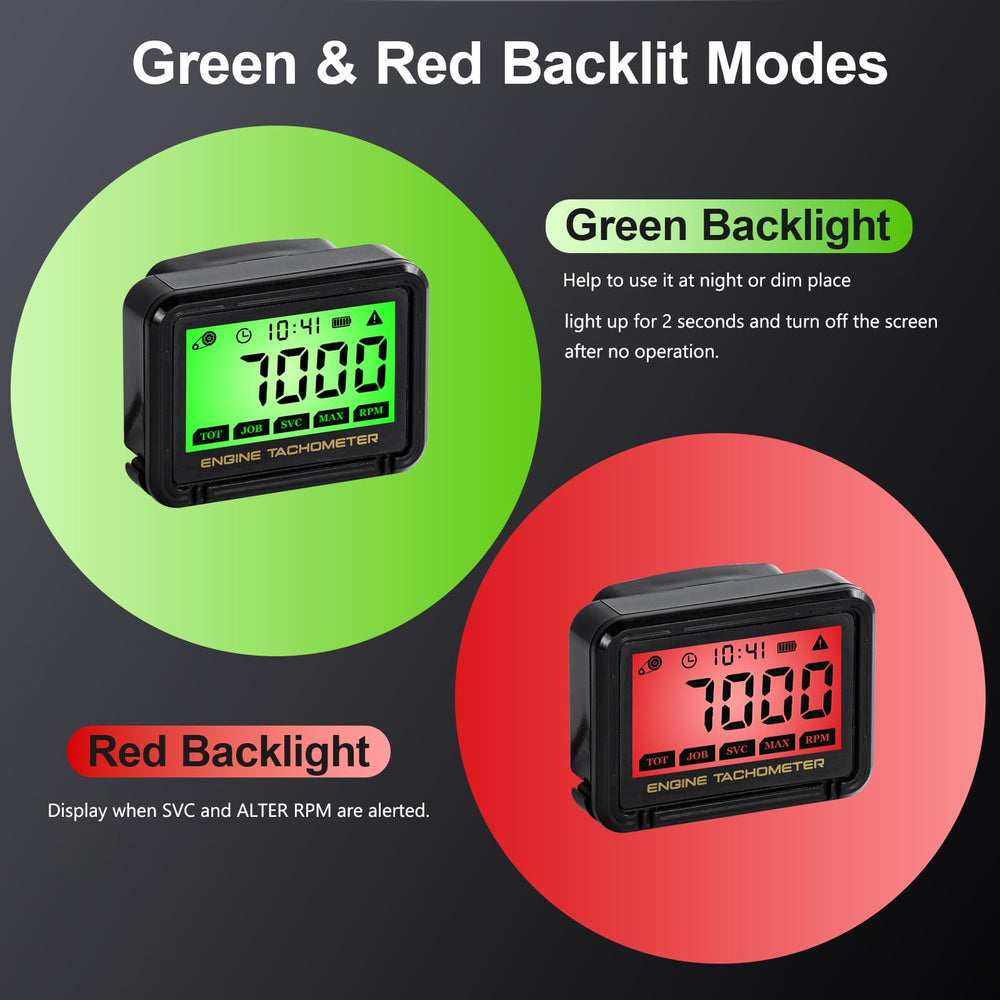

The instrument features two backlight colors: a default green for normal visibility and a red warning light that activates when RPM exceeds a user-programmed alarm value. This makes it easy to spot over-revving at a glance when working in bright sunlight or dim conditions, reducing the need to stare at the screen while operating machinery.

• Green backlight for general visibility in low light.
• Red backlight alerts when RPM surpasses your preset limit.
• Programmable RPM alarm ensures quick visual feedback of abnormal engine speed.
• Compact screen layout shows RPM and hour data clearly while in use.

Which engines and environments can it handle?

Designed for gasoline engines, the tachometer is suitable for chainsaws, mowers, motorcycles, generators and many other small-engine applications. Its IPX68 waterproof rating and simple clip/inductive sensing make it appropriate for outdoor and workshop use where dirt, splash and light exposure are common.

• Compatible with chainsaws, lawn mowers, ATVs, boats, generators, go-karts and more.
• IPX68-rated protection for use in wet or dusty conditions.
• No external power wiring required—convenient for field work.

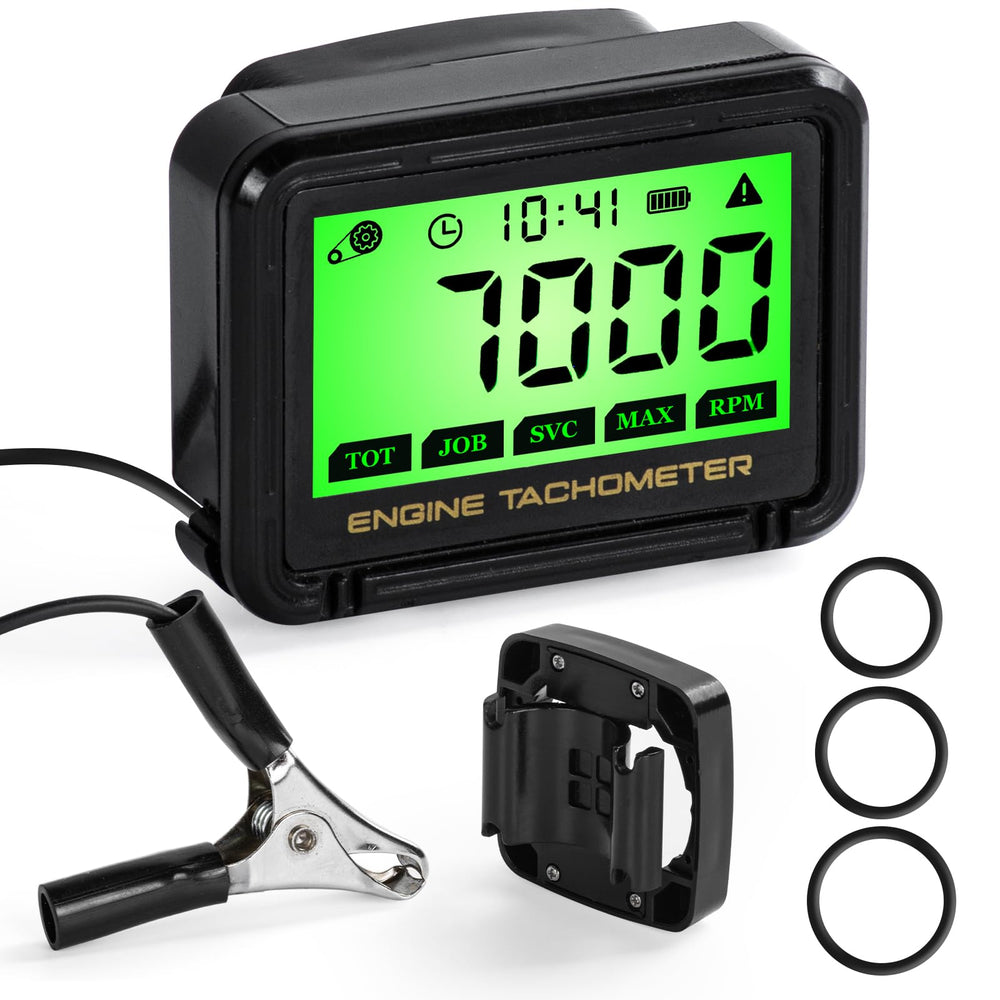

• Includes alligator clip sensing wire, O-rings and user manual for setup.

Who is this for: The DDayuanwei Small Engine Tachometer is ideal for mechanics, landscape professionals, motorsport hobbyists and equipment owners who need a portable, accurate RPM gauge with hour logging and a visible alarm. If you want a durable, easy-to-use instrument that works on a wide range of gasoline engines and survives outdoor conditions, this tachometer is built to fit those needs without complicated installation.
