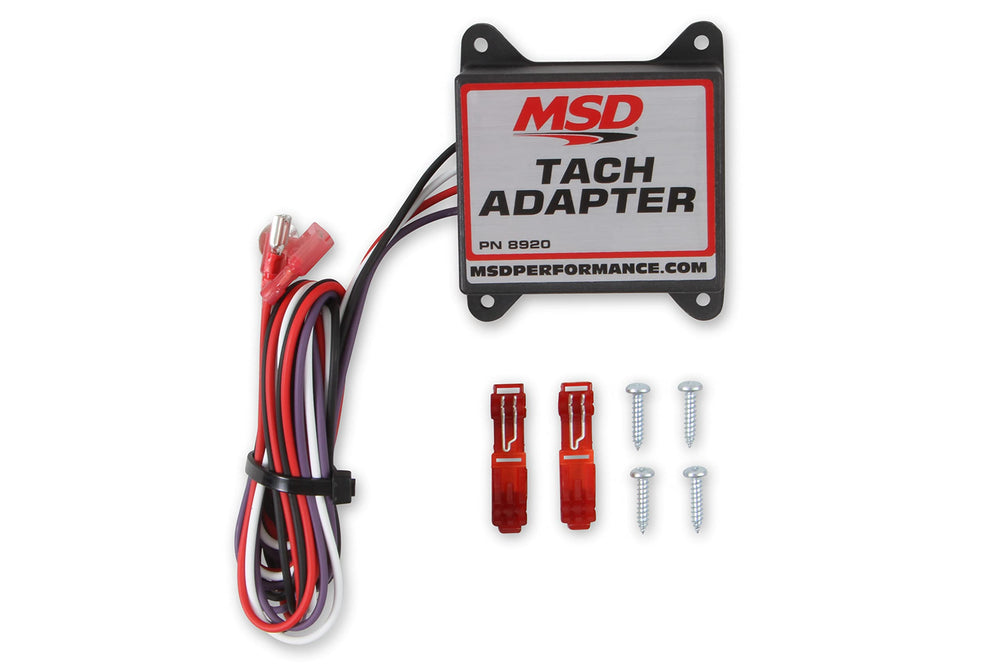

MSD 8920 Tach/Fuel Adapter — Magnetic-Pickup to Stable Square-Wave Tach Signal, Compact Black

The MSD 8920 is a compact magnetic-pickup tachometer and fuel adapter that converts a magnetic pickup signal into a stable tach output for aftermarket tachometers, fuel controllers, and ignition systems.

Designed for performance vehicles and custom ignition installations, the MSD 8920 provides a clean, conditioned tach signal from a magnetic pickup source. Its compact black housing and straightforward wiring make it simple to add to engine bays, distributors, or sensor mounts where a reliable RPM-derived signal is required by aftermarket electronics.

How does the MSD 8920 create a usable tach signal?

The adapter conditions the raw magnetic pickup pulses and outputs a consistent square-wave tach signal that devices expect. It reduces noise and shapes the waveform so tachometers and controllers read RPM accurately across idle to high revs.

• Accepts magnetic pickup input and cleans the waveform
• Outputs a stable square-wave tach-compatible signal
• Works across a wide RPM range for consistent readings
• Small black housing fits tight engine compartments

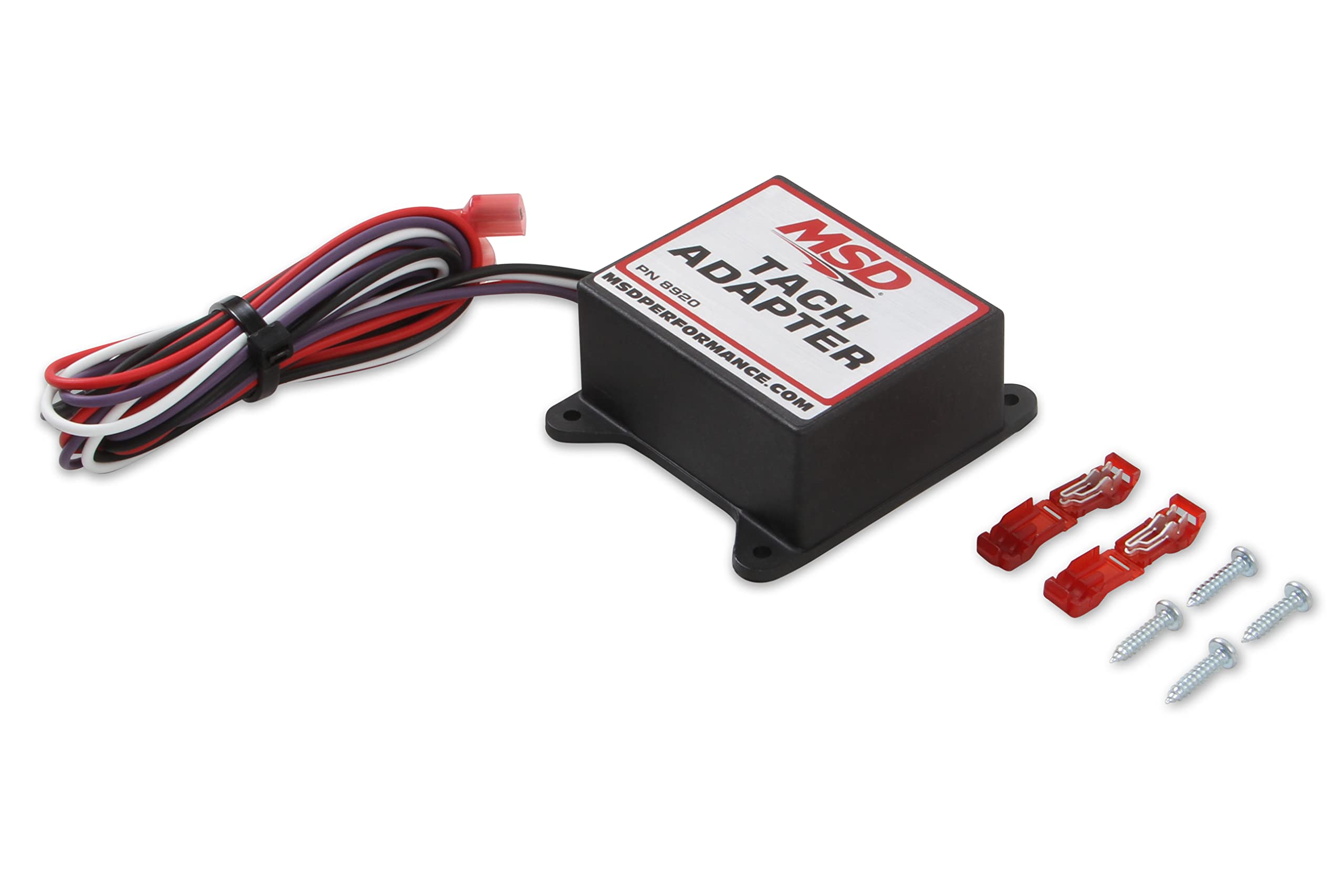

Where should I mount and wire the unit for best results?

Install the adapter near the pickup source or inline with the wiring harness, keeping leads short and away from high-voltage ignition components. Use proper connections and secure mounting to minimize vibration and interference.

• Mount on a grounded metal surface or stable bracket
• Keep input and output wires separated from spark plug wires
• Use corrosion-resistant connectors for reliability in engine bays
• Follow device polarity and grounding instructions for optimal output

Which systems and devices are compatible with this adapter?

The 8920 is intended for aftermarket tachometers, fuel controllers, and ignition modules that accept a tach input from a magnetic pickup. It’s suitable for both mechanical and electronic setups that need a conditioned RPM source.

• Aftermarket dash tachometers and digital RPM displays
• Fuel injection controllers that require RPM input
• Ignition boxes and rev limiters that read tach signals
• Works with common magnetic pickups and trigger coils

What should I expect in terms of durability and maintenance?

The MSD 8920 is built for under-hood environments with a rugged enclosure and sealed connections. Minimal maintenance is required beyond occasional inspection of mounting and wiring for corrosion or mechanical wear.

• Durable molded housing resists heat and vibration
• Low-maintenance electronic conditioning circuitry
• Inspect connectors periodically for tightness and corrosion
• Replace if wiring insulation is damaged or signal degrades

Who is this for: The MSD 8920 Tach/Fuel Adapter is aimed at performance builders, tuners, and DIY mechanics who need a dependable RPM source for aftermarket tachs, fuel controllers, or ignition components. It’s a practical choice when the original pickup signal is noisy, when adapting a magnetic pickup to modern electronics, or when upgrading to precise RPM-driven accessories.
