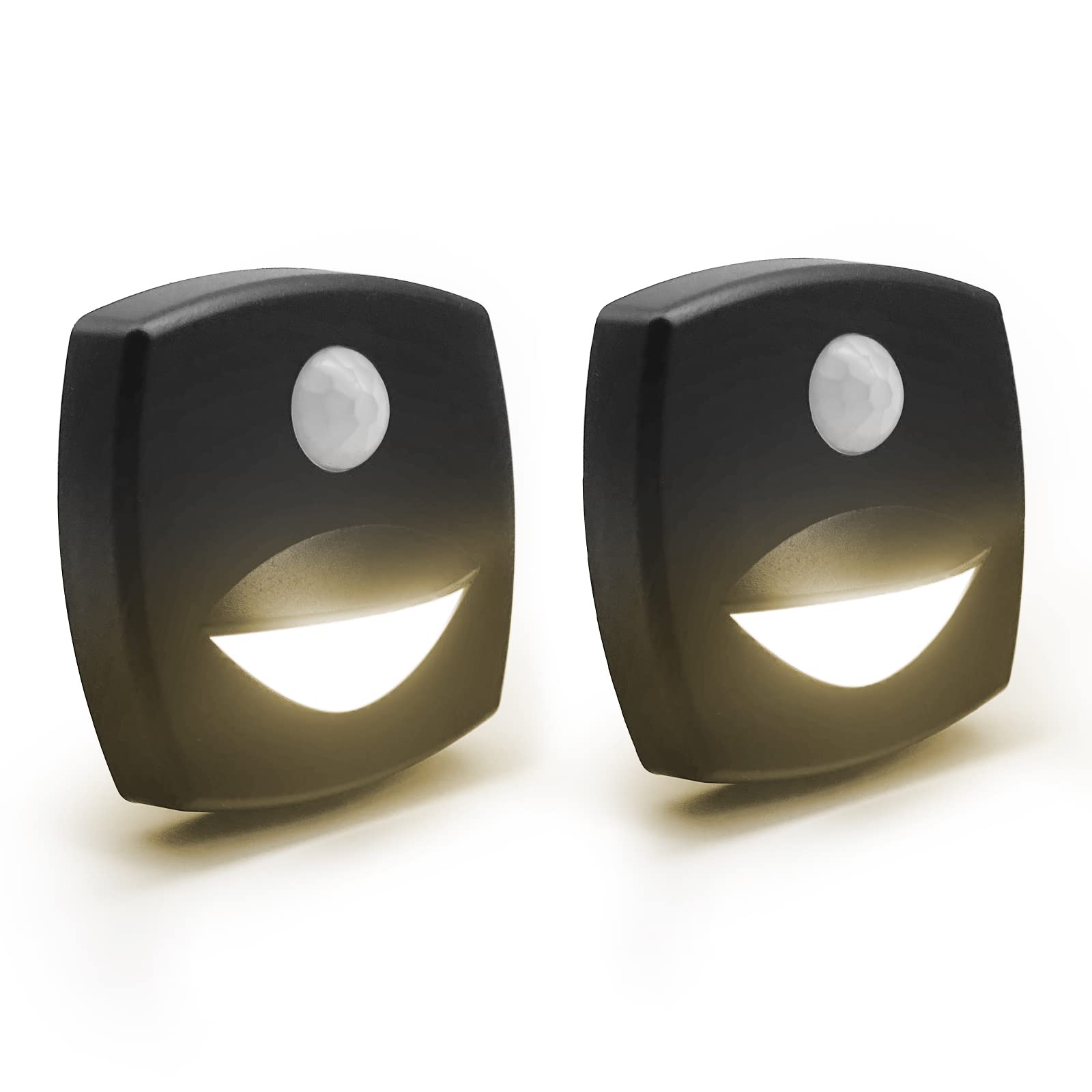

Dream lighting RV Motion Sensor LED Courtesy Light 2.1" 12V 3500K IP44

Dream lighting's 2.1" 12V motion-sensor LED courtesy light is a compact, downward-facing PIR lamp that automatically illuminates small areas in RVs, boats, campervans and trailers when movement is detected.

This low-profile fixture combines a passive infrared detector with a soft 3500K LED to provide directed, glare-free light where you need it most. Designed for 12V DC systems, the unit offers a 13 ft (4 m) motion range, a timed auto-off, and simple surface mounting that fits tight spaces such as entry steps, berths, or storage compartments. Built from UV-resistant plastic with IP44 protection, it’s aimed at indoor marine and vehicle use where small, reliable courtesy lighting is required.

How does the motion sensor work and when will the light turn off?

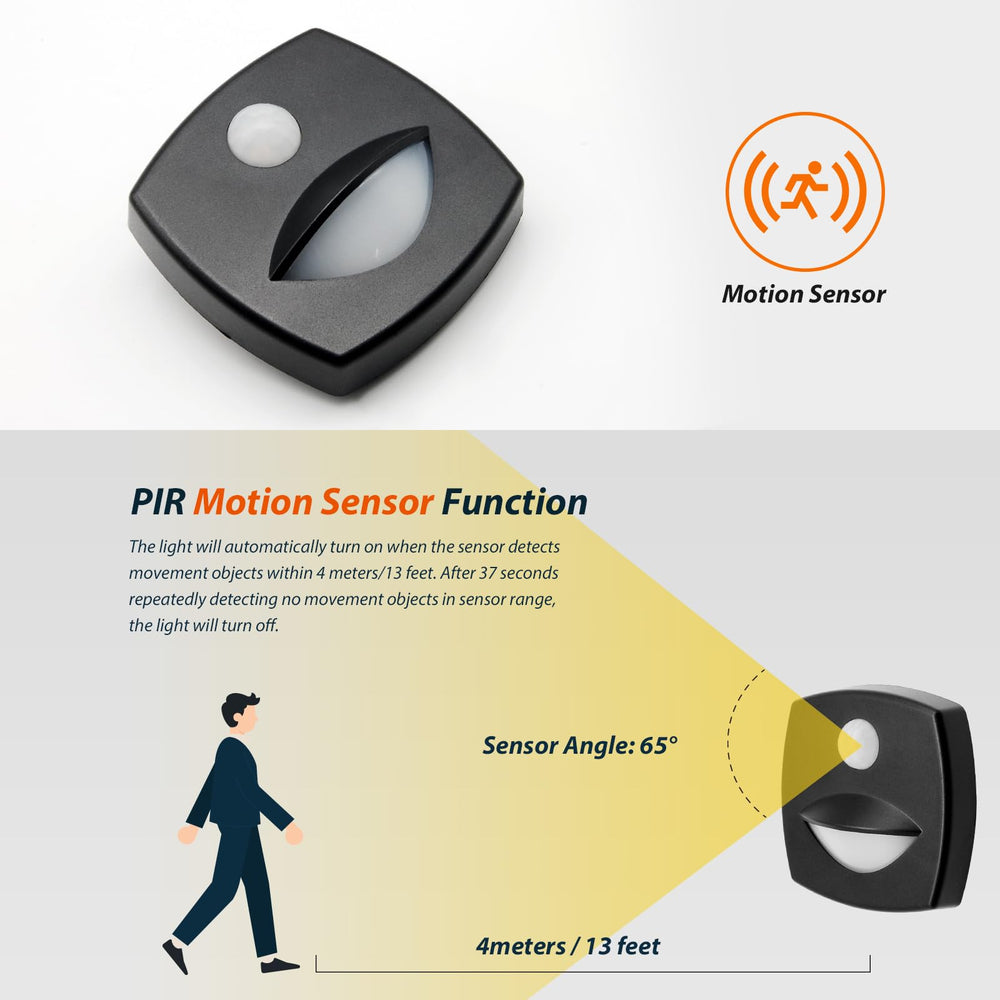

The built-in PIR sensor detects body heat and movement within about 13 feet (4 meters) and switches the lamp on automatically. After motion stops, the light remains on for roughly 37 seconds then turns itself off to conserve power. The sensor runs continuously while powered, and an external switch can be wired to disable daytime activation if preferred.

• Detection range: up to 13 ft (4 m)
• Auto-off delay: ~37 seconds after last motion
• Continuous 24/7 sensing when powered
• Option to add switch to block daytime operation

What kind of light output and durability can I expect?

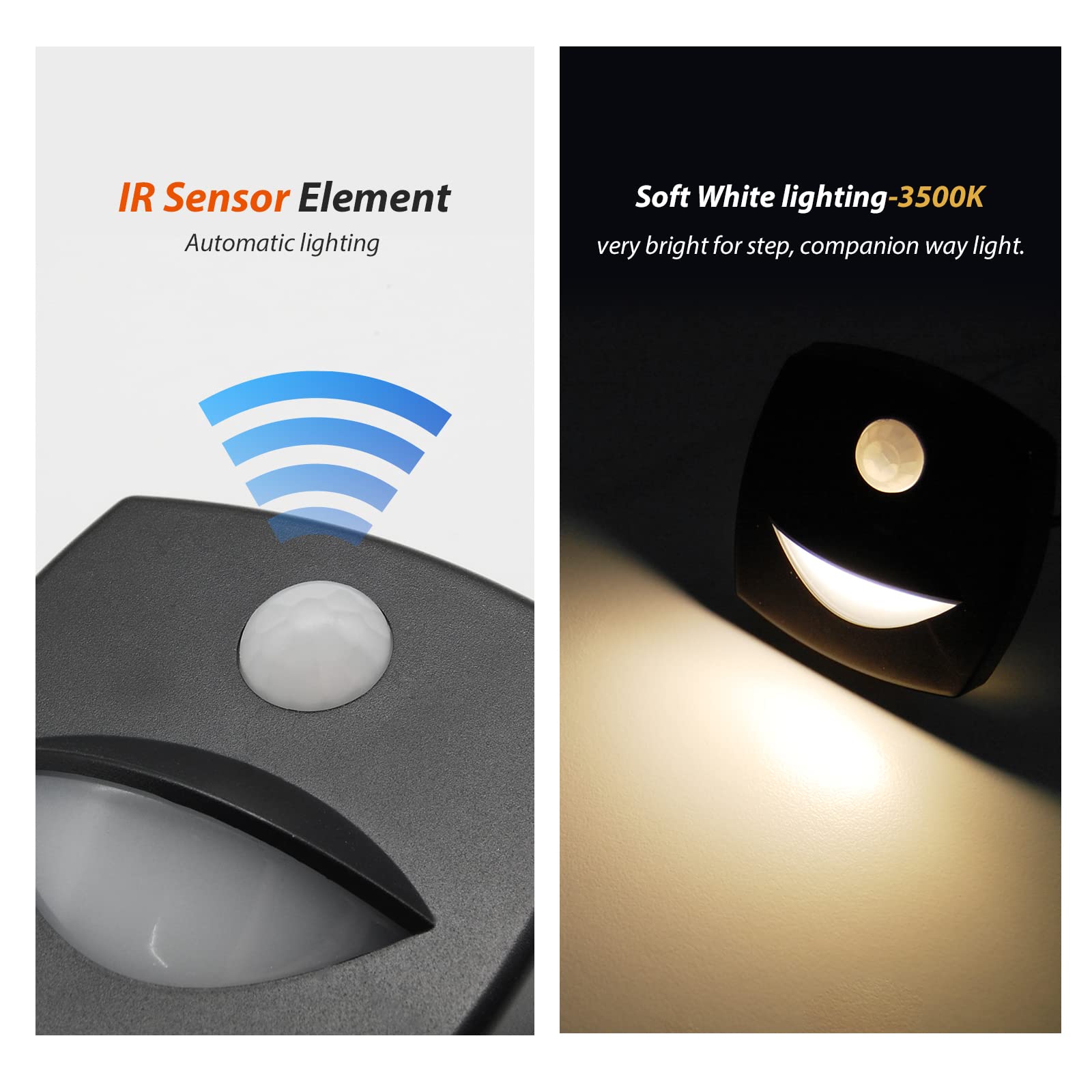

This Dream lighting unit uses an aged-tested LED that emits about 30 lumens of warm soft white light at 3500K, offering enough illumination for steps, entries and small walkways without harsh glare. The housing is made from UV-resistant black plastic and carries an IP44 rating to resist dust and splashing water—appropriate for indoor use in vehicles and boats.

• Light color: 3500K soft white
• Output: approximately 30 lumens
• Housing: UV-resistant black plastic
• Ingress protection: IP44 (dust and splash resistant)

How is the light installed and wired in my RV or boat?

Installation is surface-mount and requires only two screws to secure the fixture; screws are not included. Wiring is straightforward for 12V DC systems: black wire is positive, white wire is negative. No complex cutting or recessing is necessary, making it a practical add-on or replacement for existing courtesy lights.

• Mounting: surface mount with two screws (not included)
• Wiring: black = + (positive), white = - (negative)
• Fits standard 12V DC applications (RV, marine, trailer, bus)
• Comes with a one-year warranty from Dream lighting

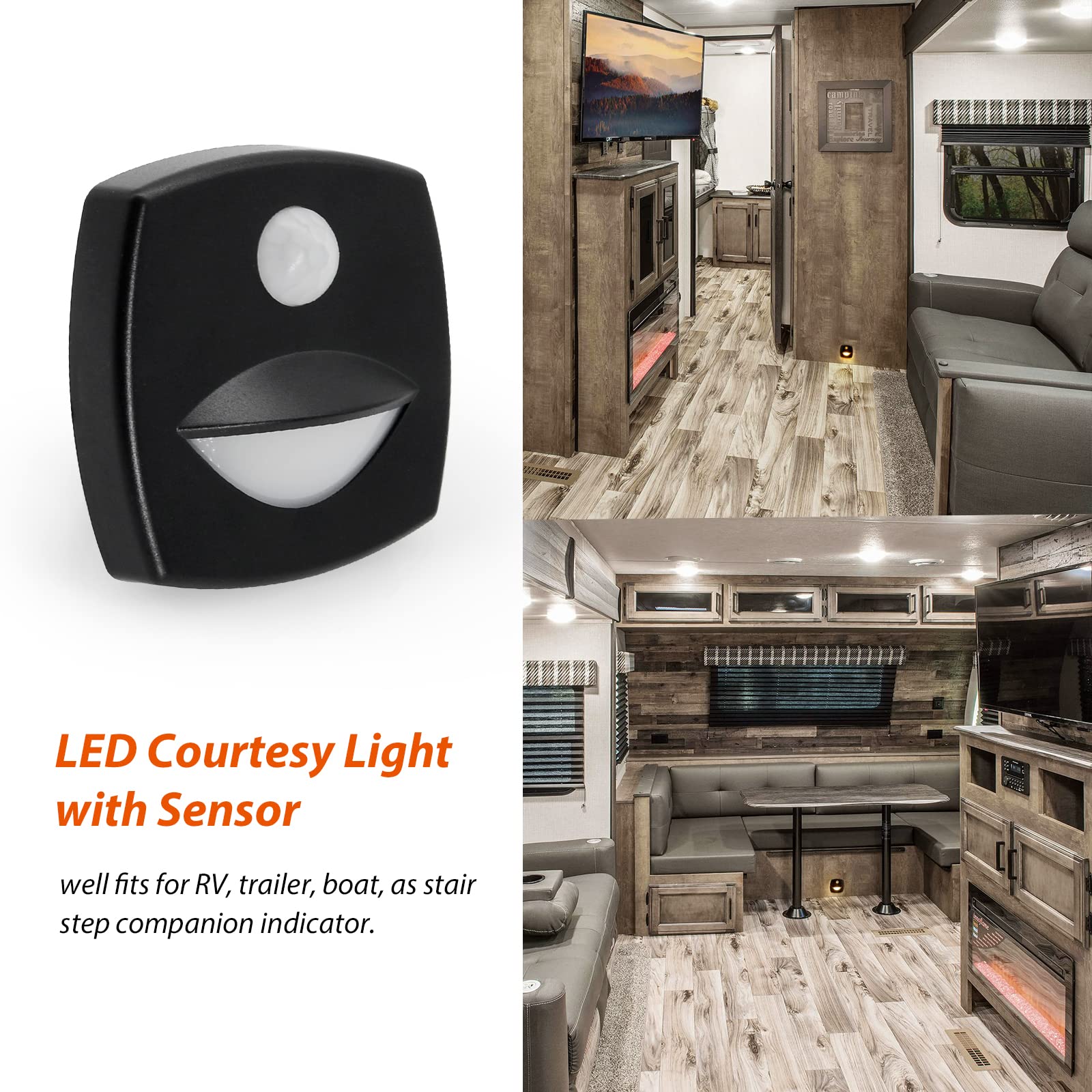

Where is this light best used inside a vehicle or boat?

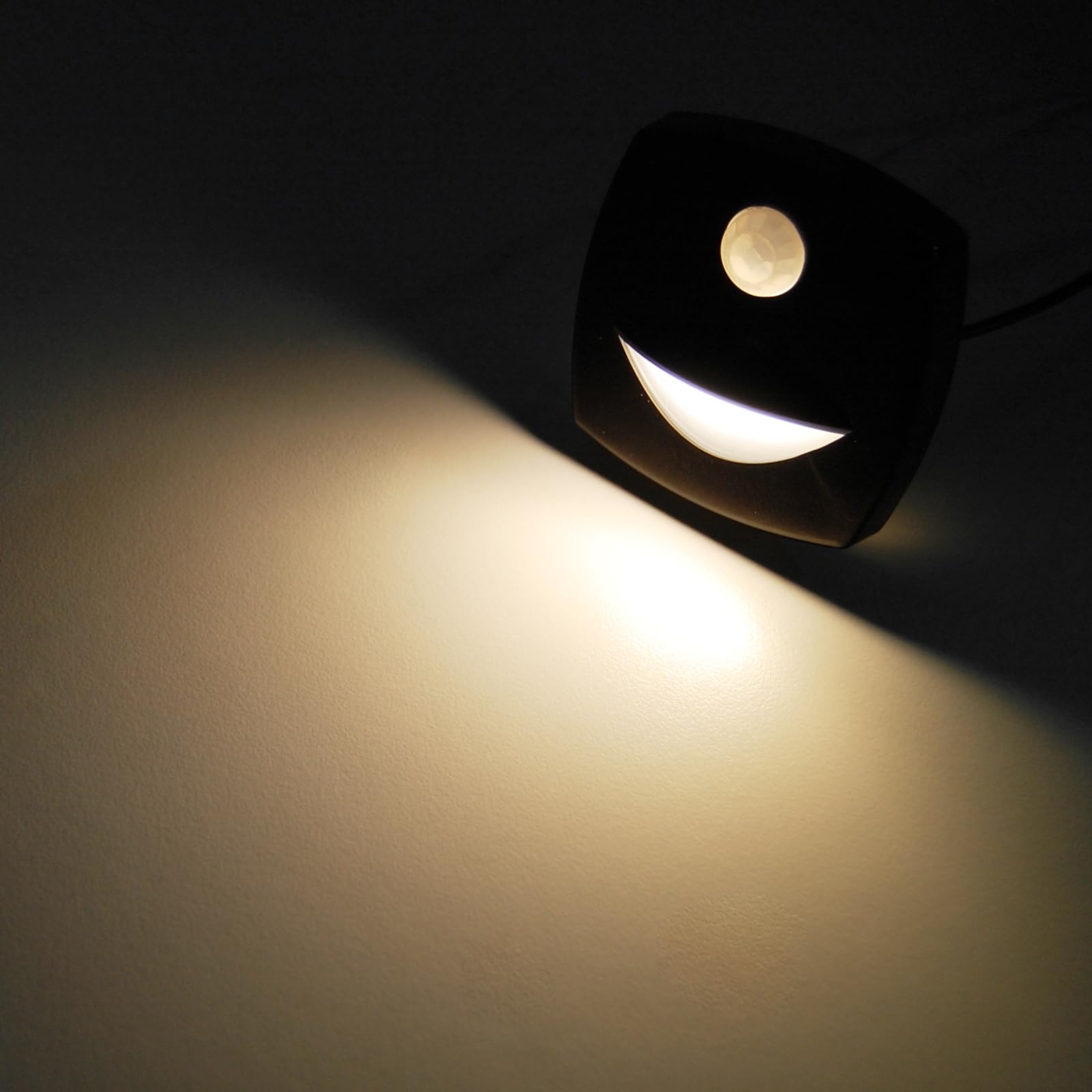

The fixture is designed for downward-directed accent and safety lighting in compact areas. Its focused beam helps illuminate steps, sleeping berths, entryways, closets and under-cabinet zones without lighting the whole interior. The slim profile lets it be placed where larger fixtures won’t fit.

• Ideal for step wells, entry thresholds and berth sides
• Good for closets, galley under-cabinet accents, and bunk areas
• Use in trailers, campervans, buses, and onboard cabins
• Not rated for full exterior immersion or heavy washdown

Who is this for: This Dream lighting courtesy light suits owners and DIY installers of RVs, campervans, boats, trailers and buses needing a compact, automatic low-glare light for movement-activated safety or accent illumination. It’s especially useful when space is limited and simple surface mounting plus 12V compatibility are priorities. If you need brighter flood illumination, outdoor immersion protection, or a different color temperature, consider higher-output or differently rated fixtures instead.
