E-cowlboy Transfer Case Front-Output Seal Install Tool for Chevy & GMC NP246 NP261 NP263 — Delrin Pilot-Aligned

The E-cowlboy front-output seal install tool accurately seats the two-piece transfer case seal on 1998-and-up Chevy and GMC NP246/NP261/NP263 units, protecting the seal and shaft during installation.

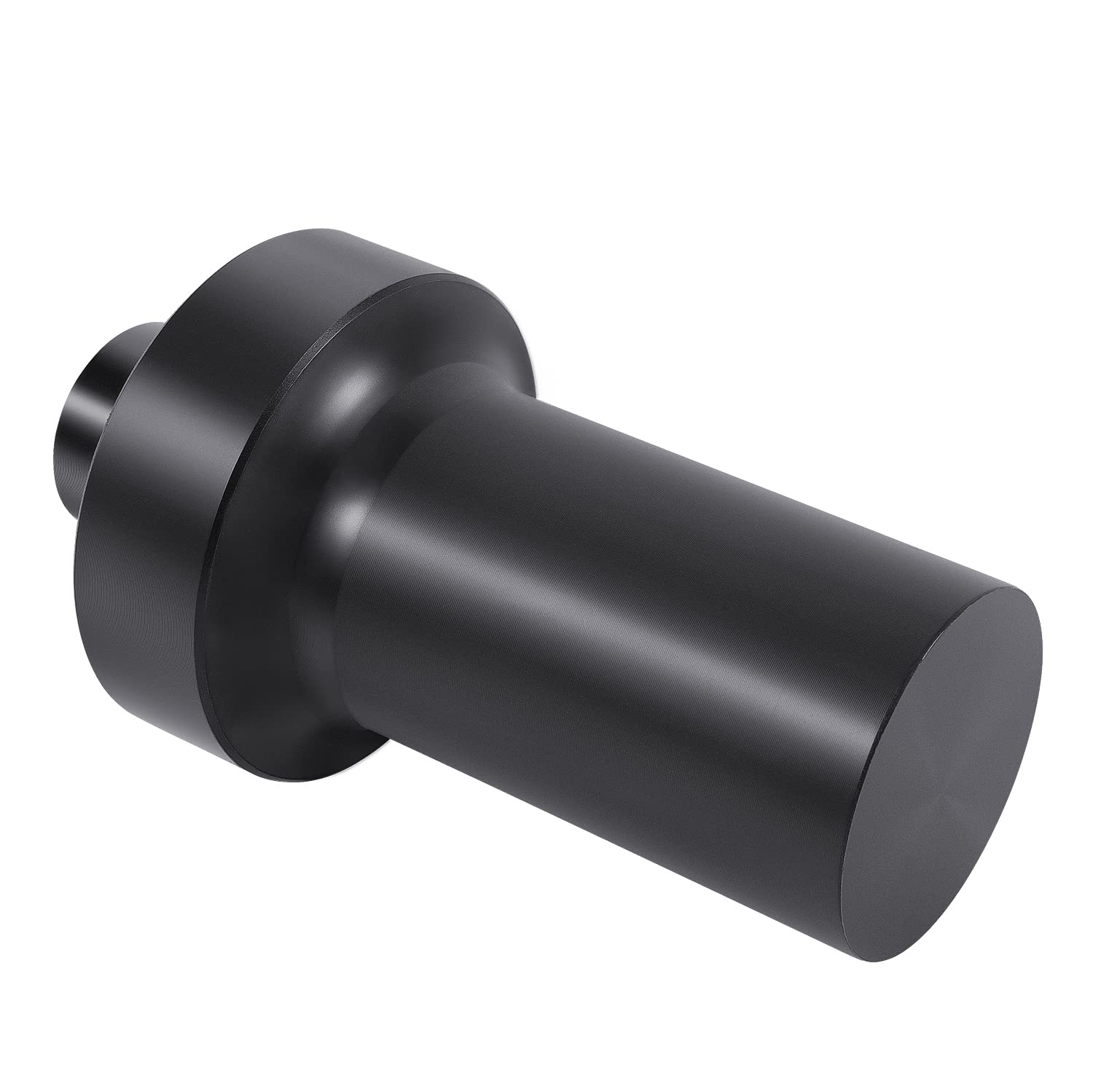

If you service transfer cases on GM trucks, installing the two-piece front-output seal correctly is critical to avoid leaks and premature failure. This purpose-built installer fits the common NP246, NP261, NP261XHD, NP263 and NP263XHD transfer cases used in many Chevy and GMC models from 1998 onward. Machined from DuPont Delrin acetal, the tool’s pilot, outer recess, and raised surface work together to align and drive both the outer case seal and the inner sleeved wiping seal into position without deforming the delicate components.

How does the tool ensure a centered, damage-free seal installation?

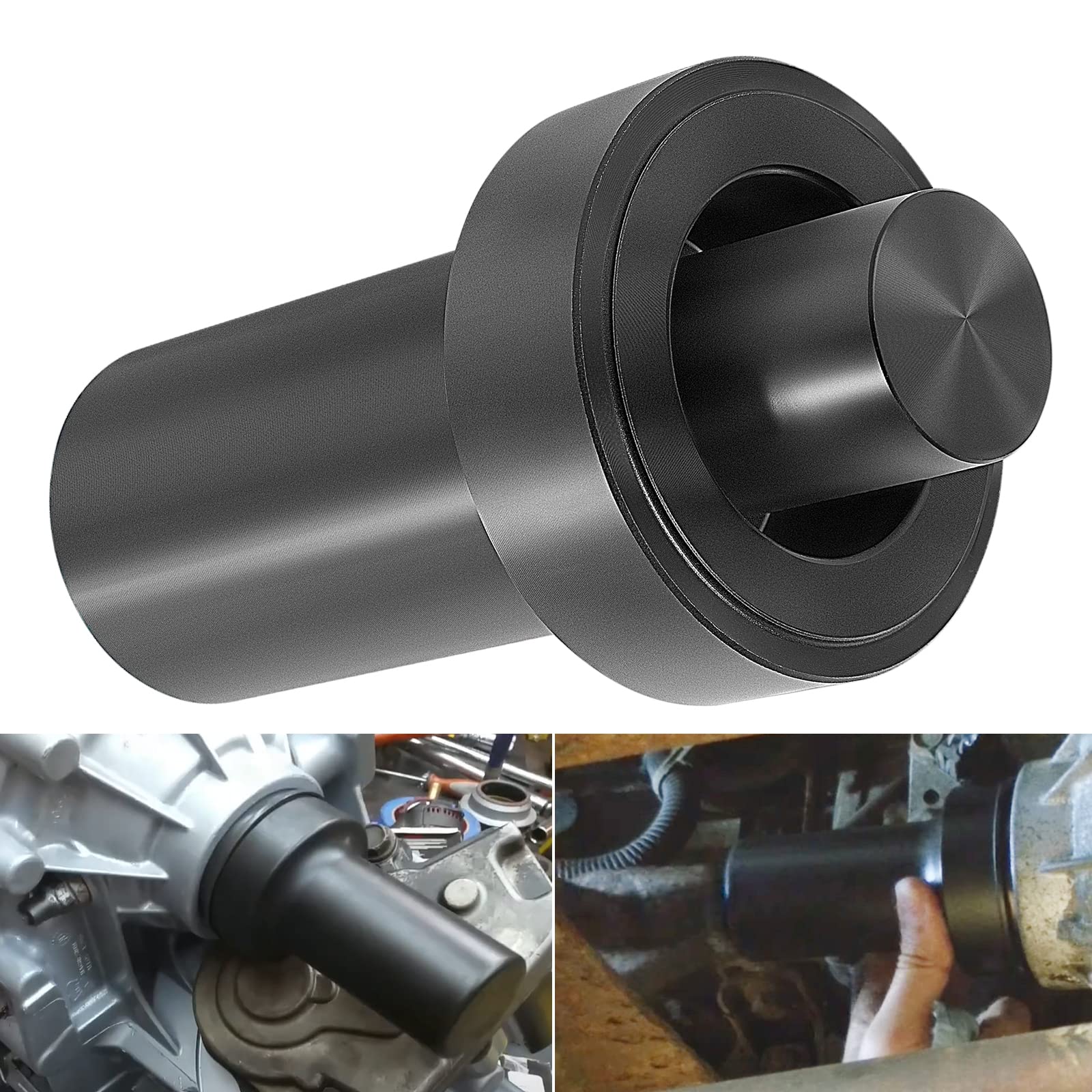

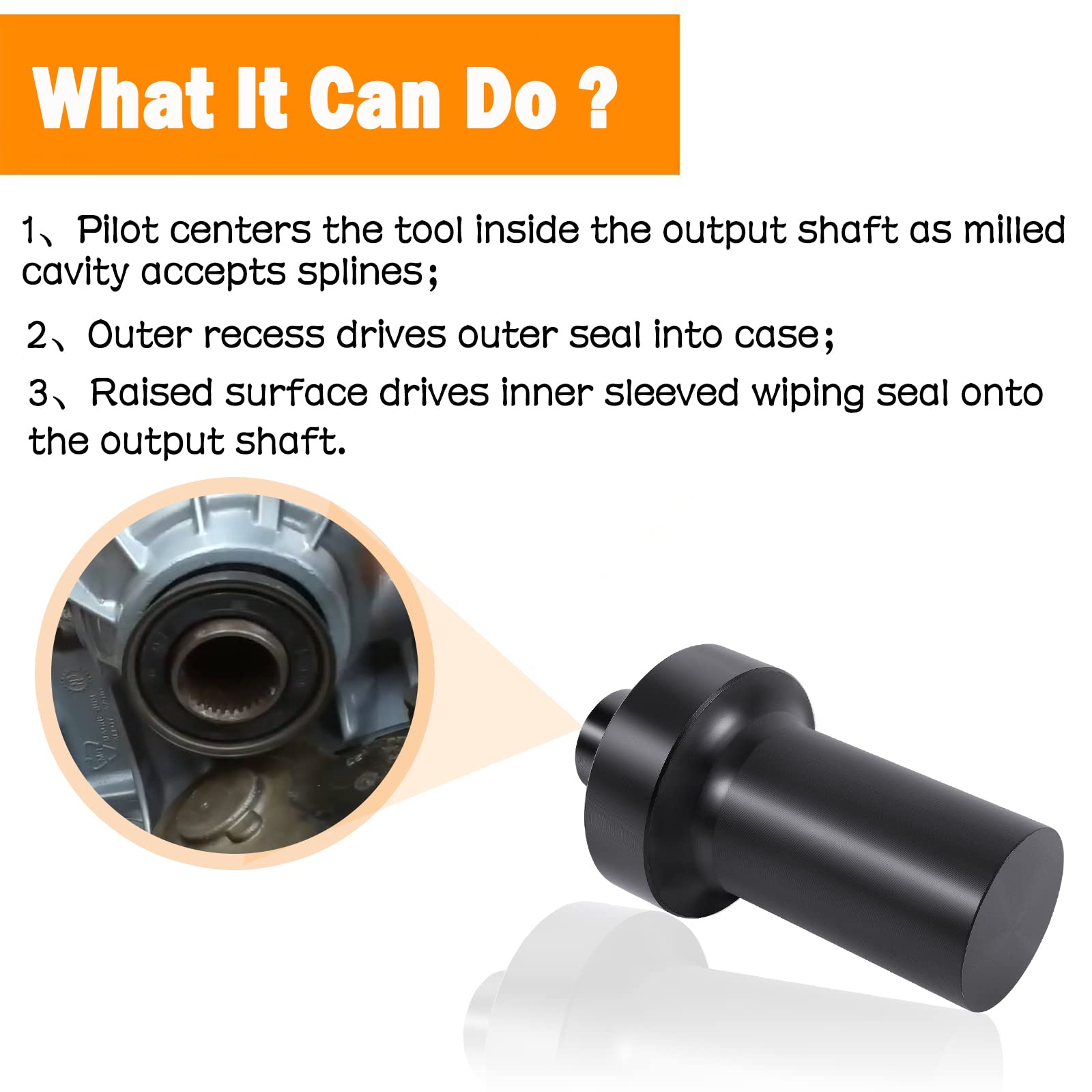

The installer uses a precision pilot that engages the output shaft and a milled cavity that accepts the splines so the driver runs concentric with the shaft. Because the tool aligns the seal before it’s driven, the sleeve and lip surfaces are protected from twisting, nicking or folding. The design removes guesswork and reduces the chance of installing the expensive two-piece seal incorrectly.

• Pilot centers onto the output shaft for true alignment
• Milled cavity accepts splines to prevent off-center seating
• Raised surface pushes the inner sleeved wiping seal evenly
• Outer recess drives the outer case seal without distortion

What transfer cases and vehicles is this compatible with?

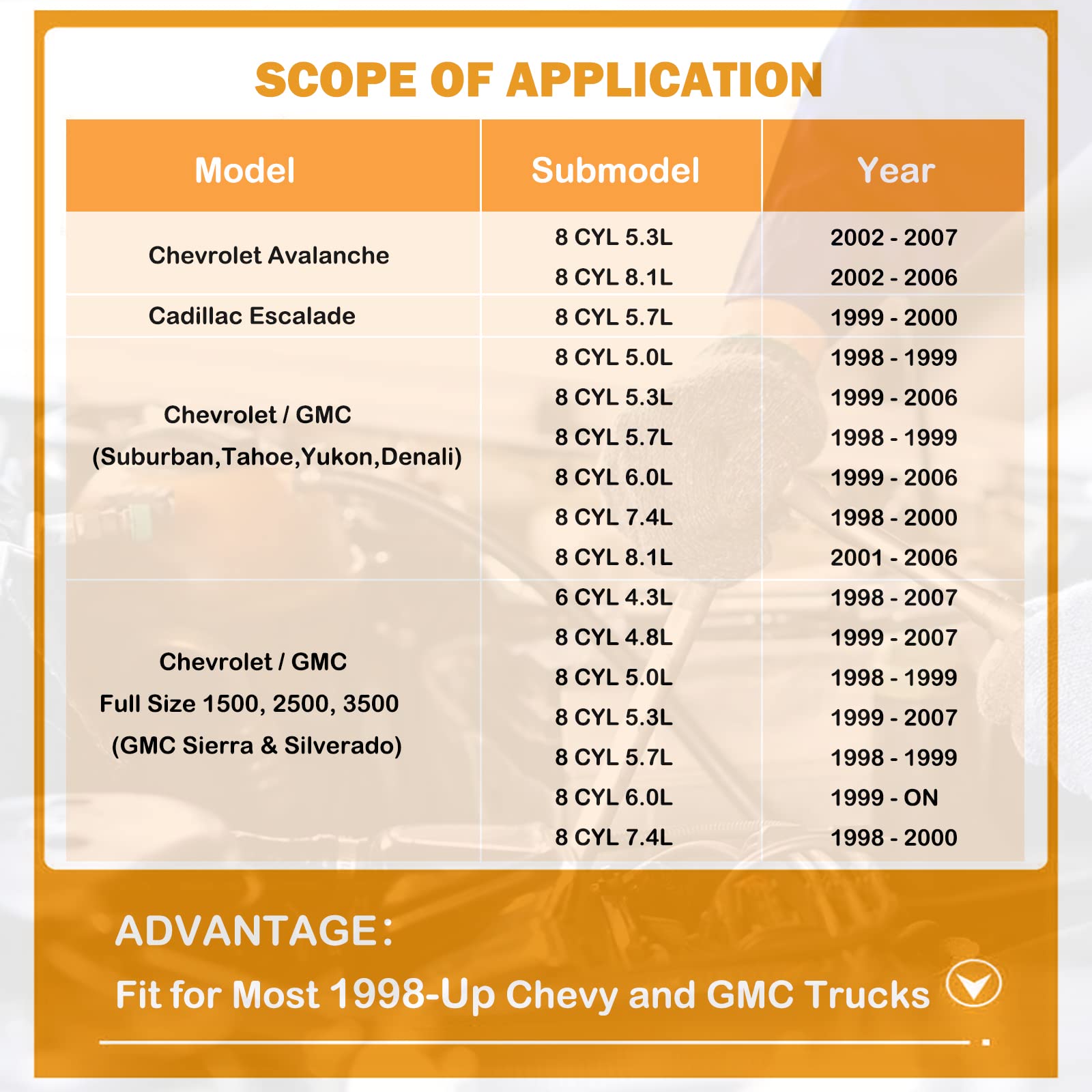

This tool is made for front-output seals used on NP246, NP261, NP261XHD, NP263 and NP263XHD transfer cases found in many Chevy and GMC trucks and SUVs from 1998 and later. It targets the common two-piece seal configuration used on these models, so it’s suitable for both routine service and rebuilds. Confirm compatibility with your specific case model before purchase.

• Fits NP246, NP261, NP261XHD, NP263, NP263XHD designs
• Targets Chevy and GMC trucks and SUVs 1998 and newer
• Designed for two-piece front-output seals
• Works for both service bay and mobile repair use

What material and construction details matter for reliability?

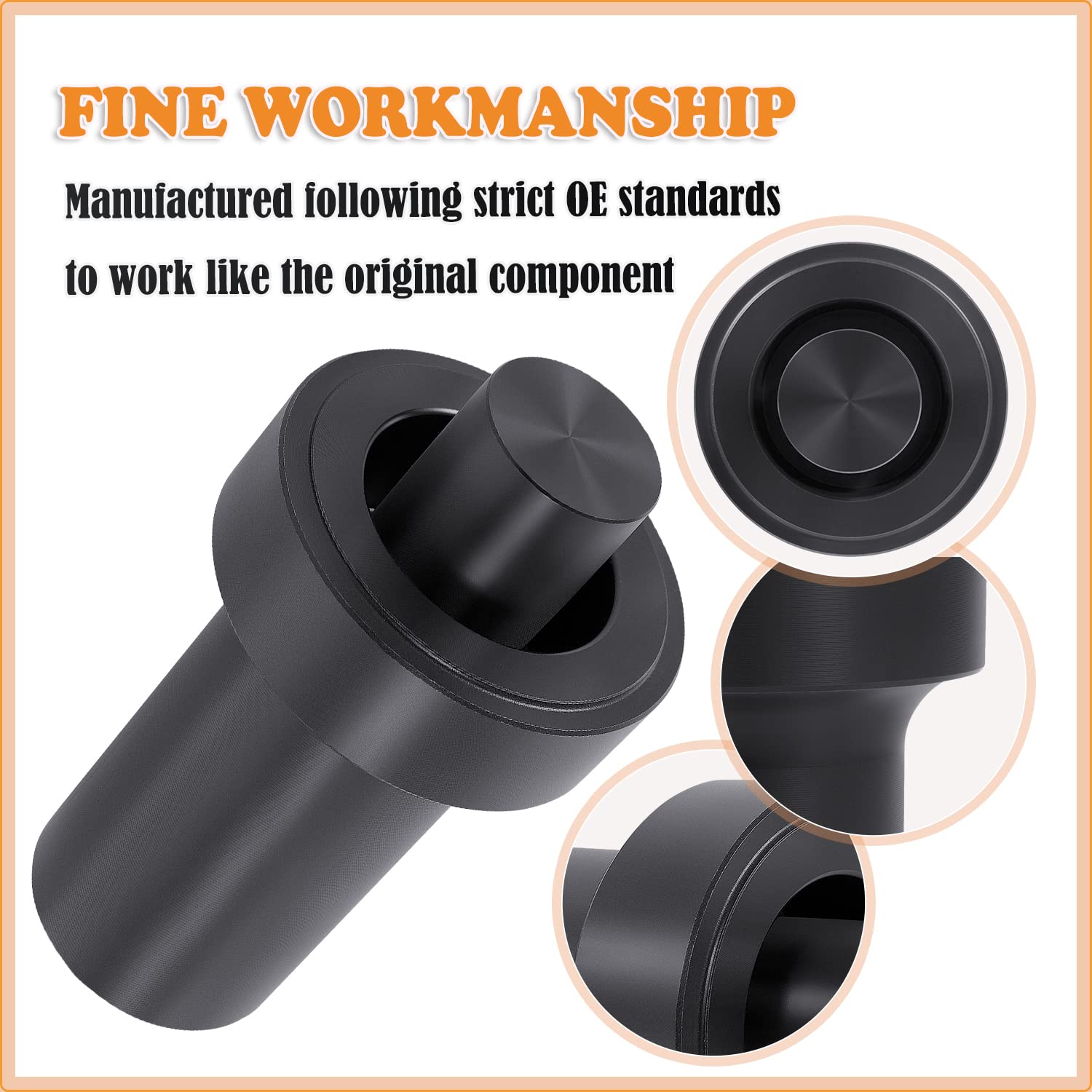

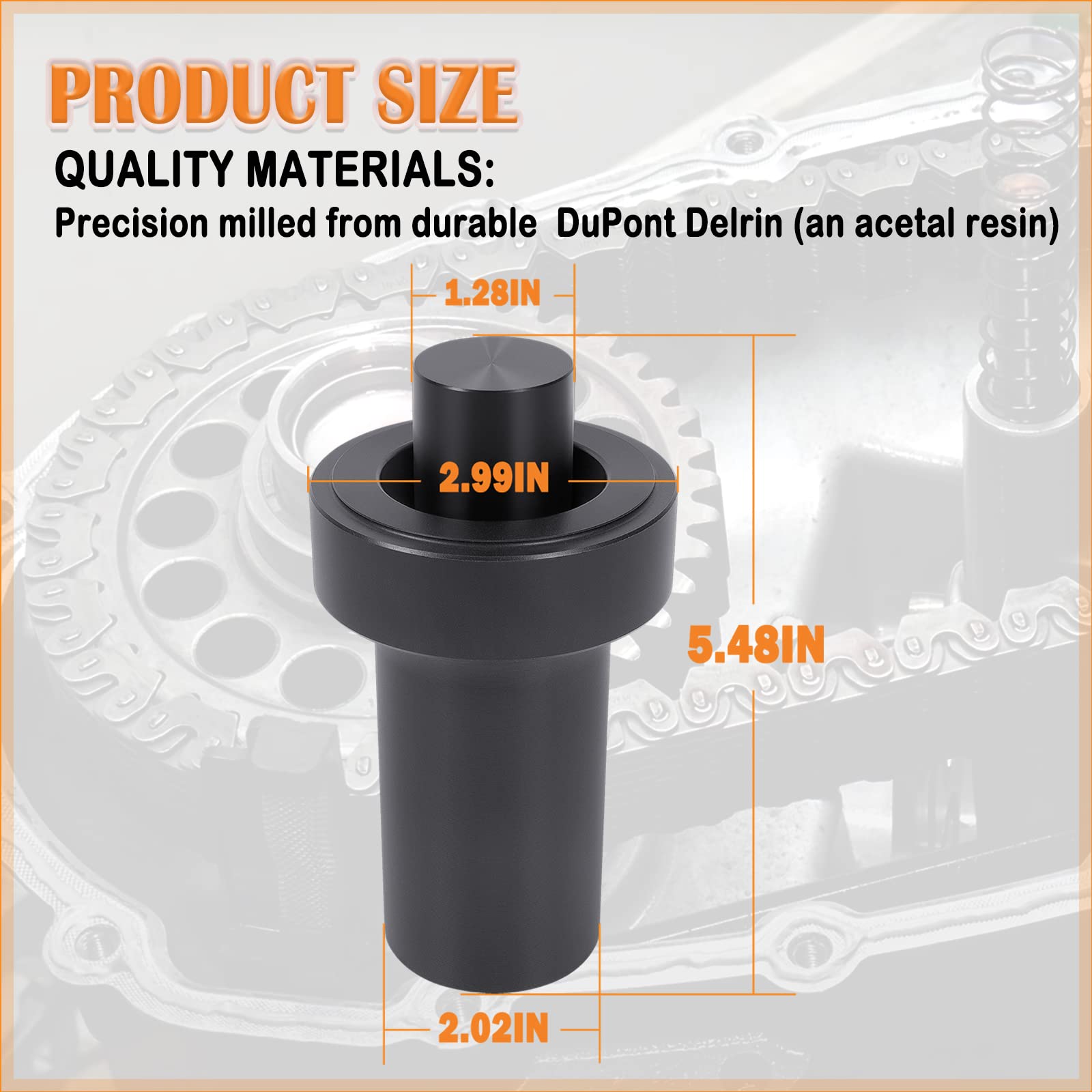

The installer is precision-milled from DuPont Delrin acetal, a robust engineering plastic known for dimensional stability and low friction. Delrin resists wear and won’t score or mar the metal output shaft like some metal drivers can. The combination of tight tolerances and a resilient material ensures repeatable, non-damaging installations over many jobs.

• Made from DuPont Delrin (acetal) for durability and low friction
• Precision milled surfaces for accurate fit and repeatability
• Resists marring and deformation of seal or shaft
• Two-piece-friendly geometry to protect inner sleeve lips

How does this tool change the repair workflow?

Using the dedicated installer reduces installation time and the need for trial-and-error seating with improvised tools. Technicians and DIYers can expect fewer seal replacements and less troubleshooting after reassembly because seals are less likely to be damaged during fitment. The tool's repeatability also helps maintain consistent service quality across multiple vehicles.

• Saves time versus improvised drivers or hammering directly on seals
• Reduces risk of seal damage and rework after installation
• Simple to use in a shop or roadside setting with standard hand tools
• Improves consistency across repeated jobs

Who is this for: This E-cowlboy installer is intended for professional mechanics, independent shops, and competent DIYers who repair or rebuild Chevy and GMC transfer cases from 1998 onward. It's especially useful when replacing the two-piece front-output seal on NP246/NP261/NP263 family units, or when you want a repeatable, non-damaging method to seat delicate sleeve-type seals. The product is backed by a 30-day return policy and a one-year warranty for added confidence.
