Earlyred 12" Marine Fuel Pickup Tube with Strainer — 12in HDPE, Brass Barb Adapter

Earlyred 12-inch marine fuel pickup tube is a corrosion-resistant polyethylene withdrawal line with a built-in strainer and brass barb adapter that replaces part 7-0948 for universal boat fuel tanks.

This pickup tube is engineered for leisure and work boats needing a dependable, corrosion-tolerant fuel withdrawal solution compatible with modern ethanol blends (E10 and E85). Constructed from high-density polyethylene and fitted with a fine gauze at the inlet, it prevents large debris from entering the fuel system while offering multiple thread options and a brass barb for flexible hose connections.

How will this pickup tube integrate with my existing fuel tank?

The Earlyred tube uses a common set of threads to fit many aftermarket and OEM tanks, reducing the need for custom adapters. Its 12-inch length reaches typical tank depths, and the included brass barb adapter lets you connect standard fuel hoses quickly. Because the tube is made of high-density polyethylene, it is resistant to corrosion and degradation from ethanol-blended fuels.

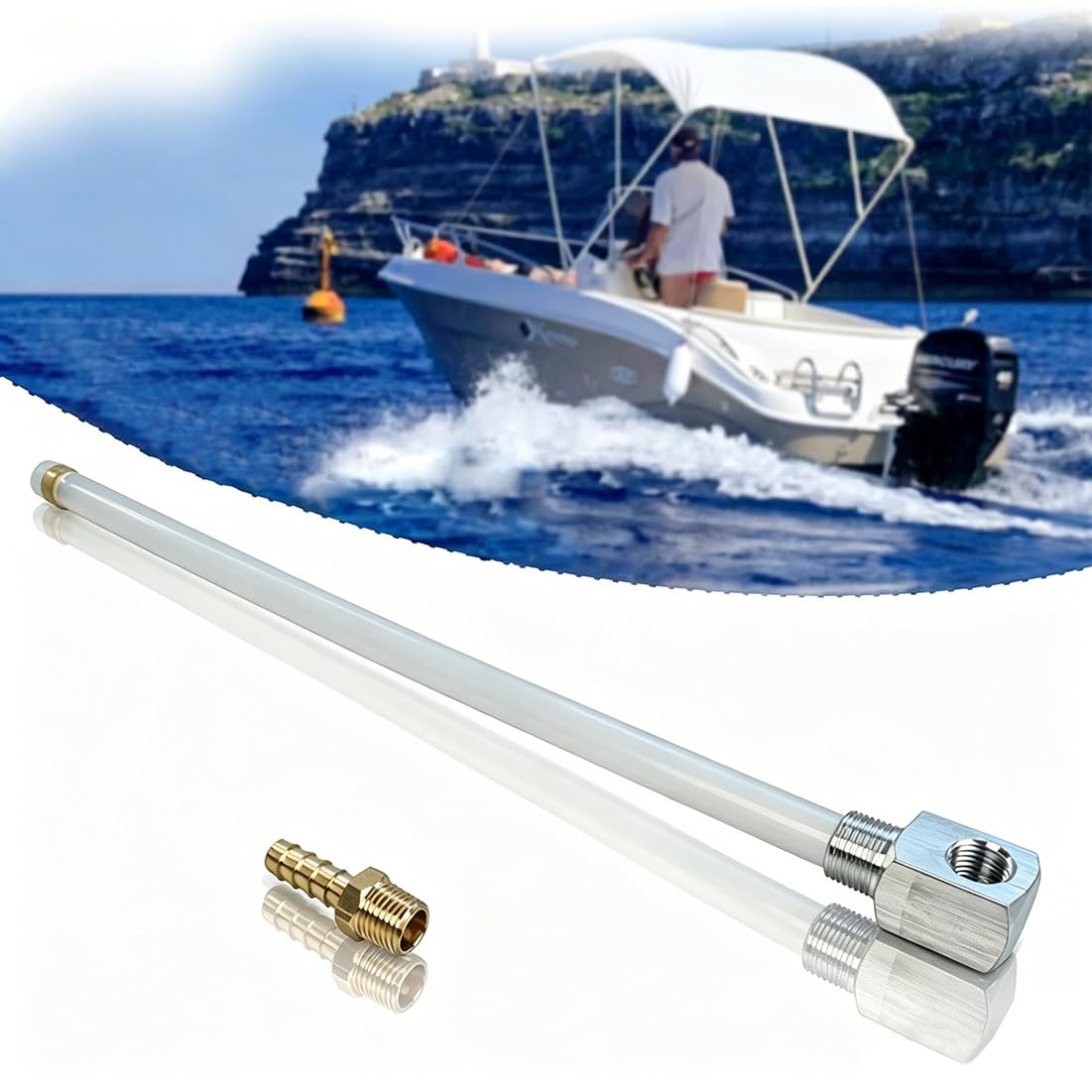

• 12 inches overall length for standard tank depths
• 3/8" NPT external thread and 1/4" NPT internal thread for versatile mounting

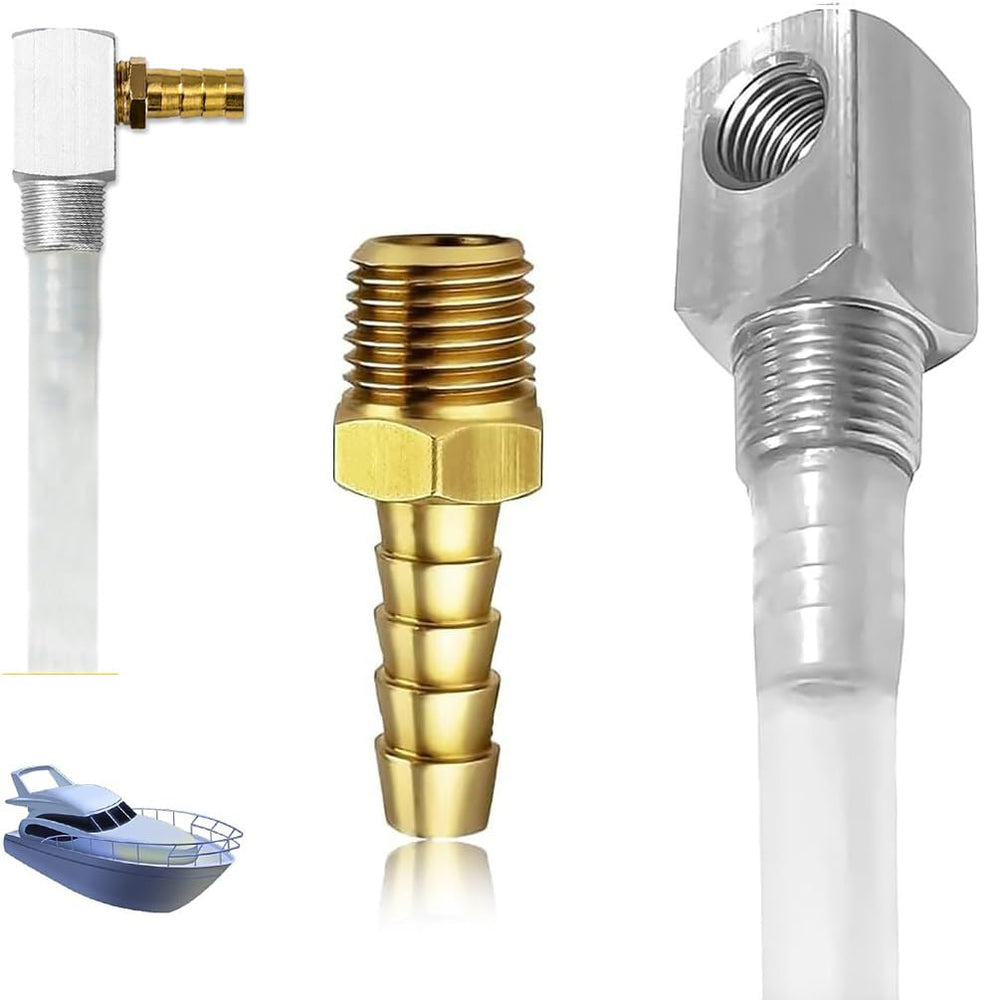

• Includes brass barb adapter with 1/8" NPT thread and 1/4" ID outlet
• High-density polyethylene construction resists E10 and E85

Will the strainer protect my engine from contaminants?

Yes — a filter gauze at the tube base screens out larger particles before fuel reaches the line, helping reduce clogs and protect downstream components. It’s designed for coarse debris prevention rather than microscopic filtration, so pairing it with your engine’s recommended inline filters is still a smart practice.

• Base-mounted gauze traps large particulates and rust flakes
• Prevents immediate debris entry into the pickup line
• Works as first-stage protection before fine inline filters

What connection options and sizes does the tube support?

The pickup tube offers multiple thread configurations to match a wide range of tanks and fittings. It features both external and internal NPT threads and ships with a brass barb adapter that accepts 1/4" ID fuel hose, giving installers straightforward choices for hose routing and secure clamps.

• 3/8" NPT external thread for common tank fittings
• 1/4" NPT internal thread for alternate attachments

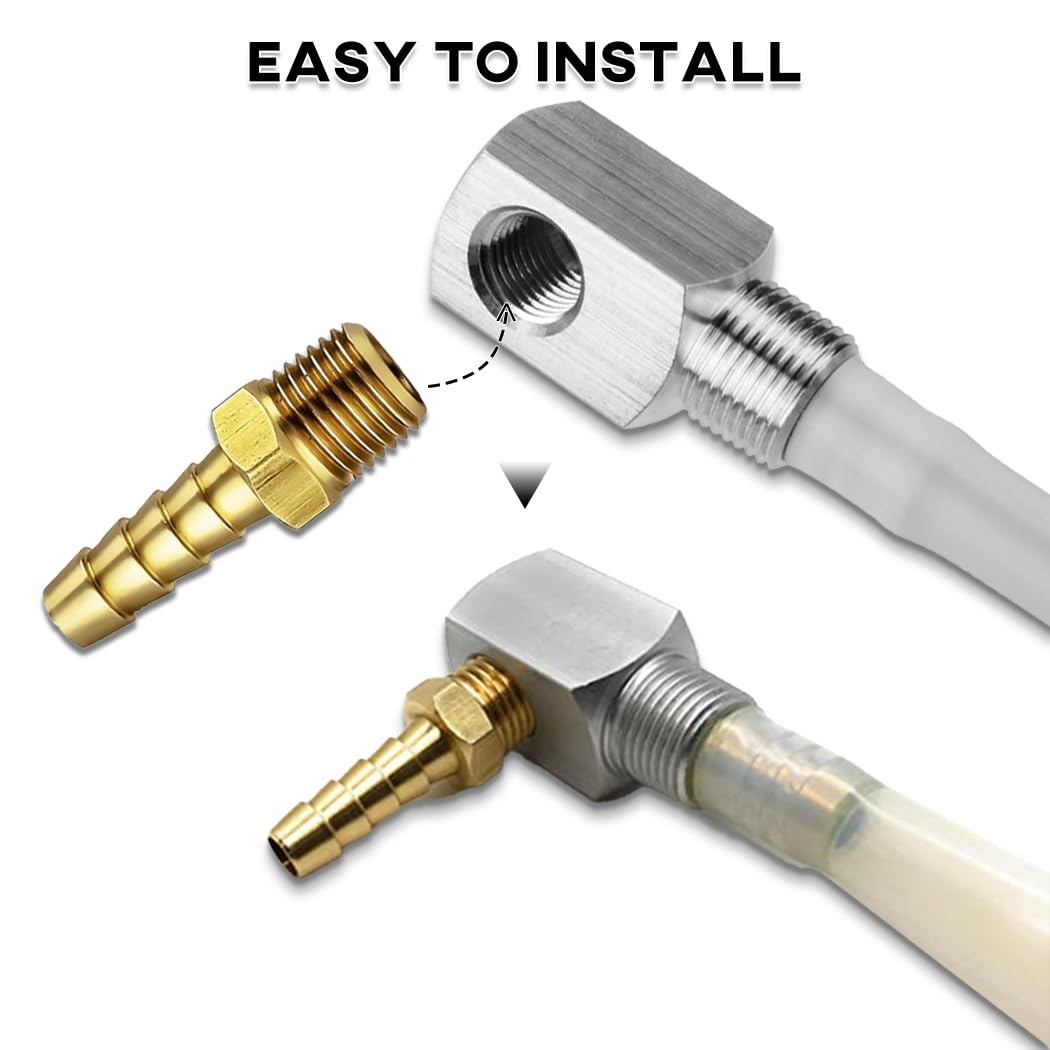

• Brass barb adapter: 1/8" NPT thread with 1/4" ID outlet for hose hookup

How durable is the material for marine use and ethanol fuels?

Manufactured from high-density polyethylene, this pickup tube resists chemical breakdown and corrosion typical in marine environments. The material tolerates modern ethanol-blended fuels (E10 and E85) better than some older plastics, and the brass barb provides a corrosion-resistant hose connection point.

• High-density polyethylene resists marine corrosion and fuel degradation
• Compatible with E10 and E85 ethanol blends
• Brass barb reduces risk of galvanic corrosion at the hose connection

Who this is for: Boat owners, marine technicians, and DIYers who need a reliable, economical replacement pickup tube for small to medium fuel tanks will find this Earlyred unit practical. It’s especially useful for vessels running ethanol-blended fuels that require a non-corroding pickup line with a basic strainer and flexible connection options. If you need deeper reach, finer filtration, or a custom-length assembly, consider combining this tube with engine-recommended inline filters or a tailored hose kit.
