EVIL ENERGY 10AN Fuel Hose 10FT Black — CPE Nylon-Braided AN10, 625 PSI Working Pressure

EVIL ENERGY 10AN fuel line is a 10-foot, nylon-braided AN10 hose built with a CPE inner tube and 304 steel wire braid to handle high-pressure fuel, oil, and fluid routing in performance and industrial applications.

This braided AN10 hose combines a chemically resistant CPE inner layer, a reinforcing 304 stainless wire braid and a durable nylon outer cover to deliver long service life across a wide temperature range. Designed for automotive, marine, and industrial use, the hose accepts standard 10AN swivel fittings and is rated for repeated operation under demanding conditions.

How much pressure and temperature can this AN10 fuel hose handle?

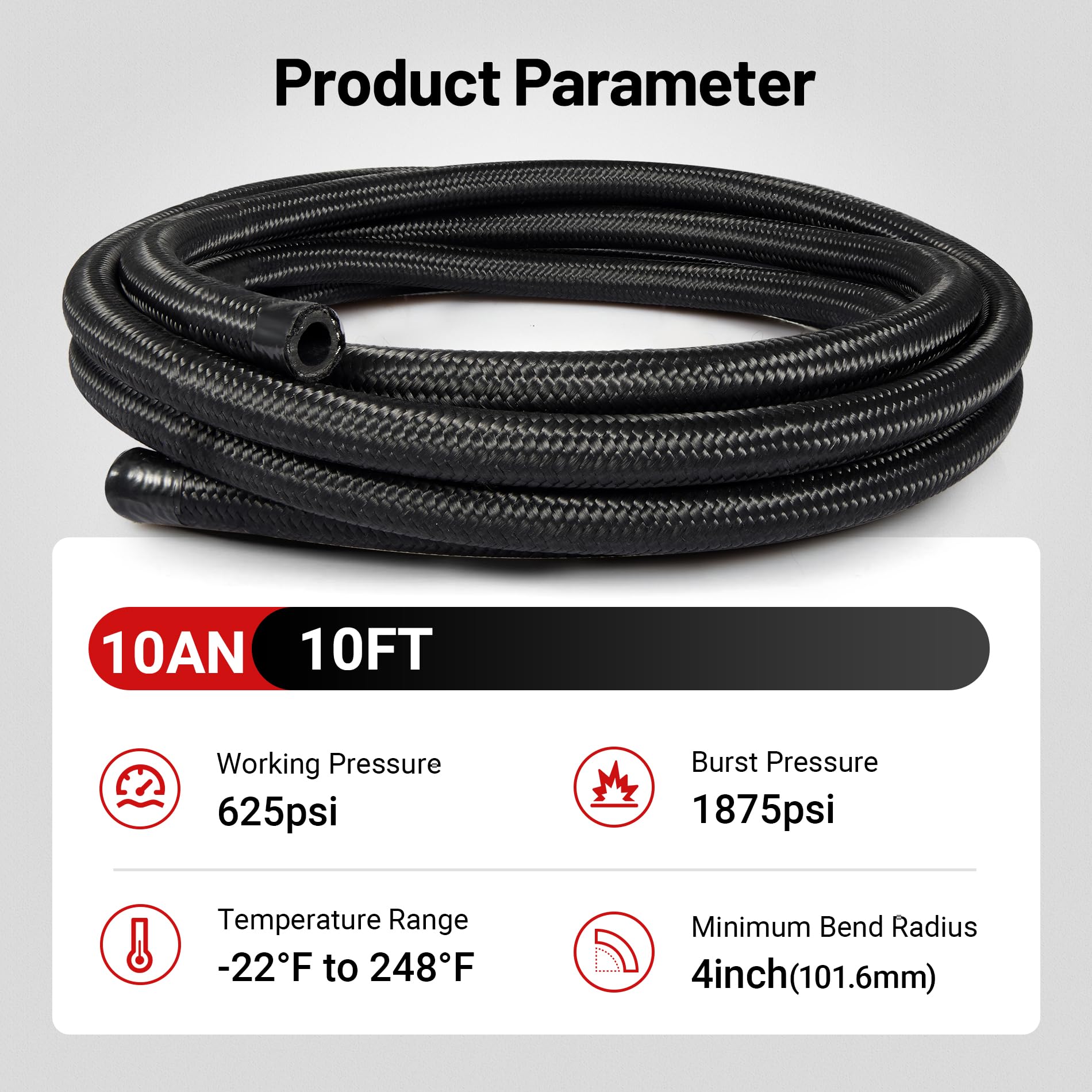

The EVIL ENERGY 10AN hose is engineered for high-pressure environments. It has a maximum working pressure of 625 PSI and a burst pressure rated around 1875 PSI, with an operational temperature window from -22°F to 248°F.

• Working pressure: 625 PSI for continuous service
• Burst pressure: approximately 1875 PSI for safety margin
• Temperature range: -22°F to 248°F for broad climate compatibility
• Suitable for repeated pressurized cycles in performance systems

What materials and construction features make this hose durable?

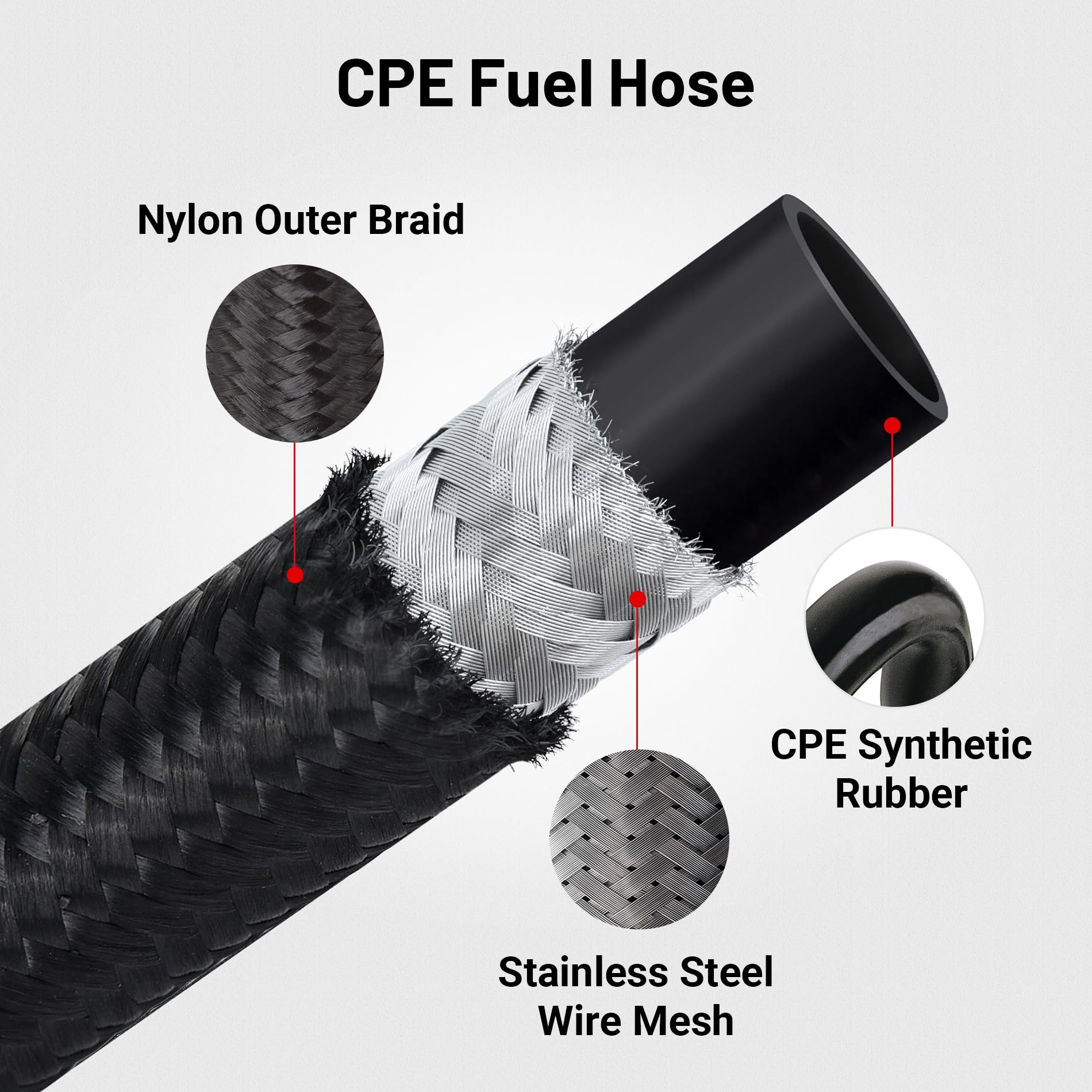

This hose uses a layered build: a chemically resistant CPE inner tube resists fuel and oil, a 304 stainless steel wire braid provides tensile strength, and an outer nylon braid protects against abrasion and UV exposure. The combined construction balances flexibility with reinforcement for routing in tight engine bays.

• Inner: CPE rubber for fuel and solvent resistance
• Reinforcement: 304 stainless wire braid for pressure containment
• Outer: nylon braid for abrasion and weather protection
• Works with standard 10AN swivel hose ends for easy assembly

Which fluids and applications is the EVIL ENERGY 10AN hose compatible with?

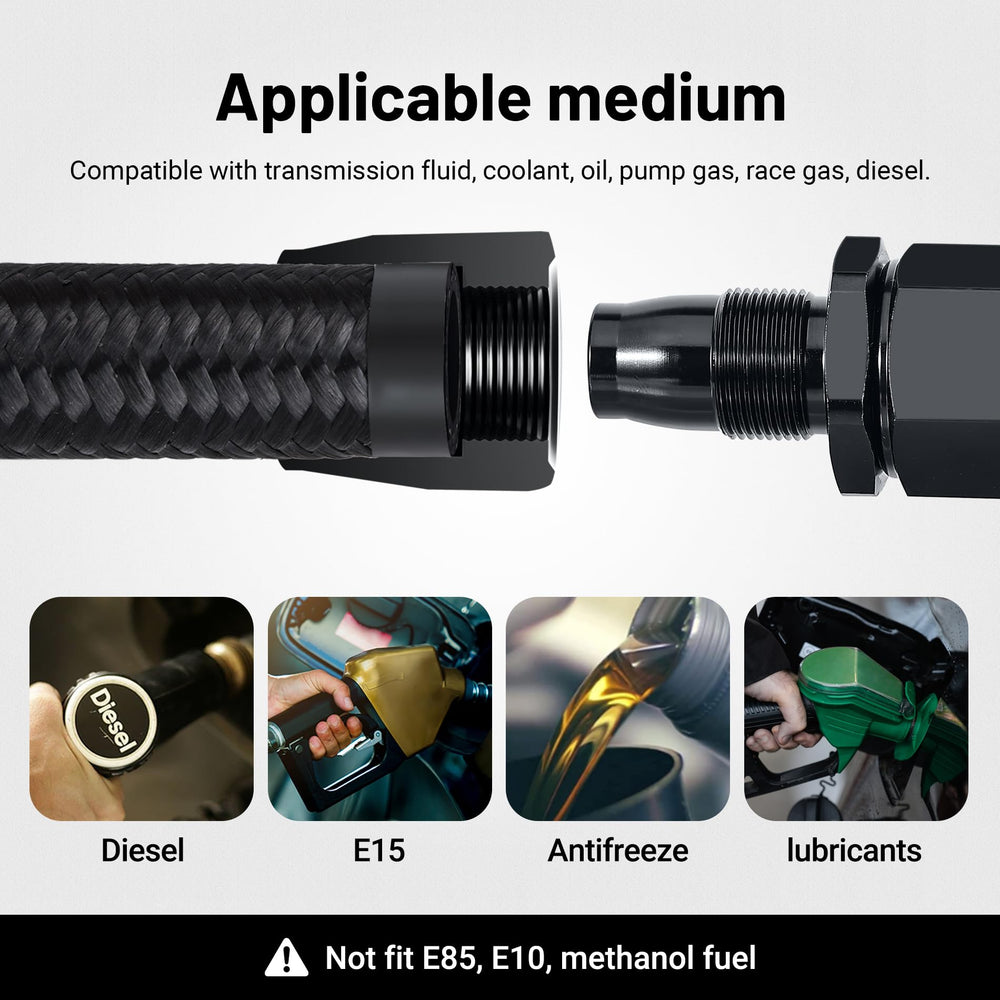

The hose is formulated to accept a wide range of automotive and industrial fluids, including gasoline, diesel, transmission oil, hydraulic fluid, and many synthetic blends. It is well suited for fuel supply and return lines, oil feed lines, turbo cooler plumbing, vacuum lines, and other fluid-transfer tasks where an AN10-sized hose is required.

• Compatible with fuel, race gas, diesel, transmission fluid, and oil

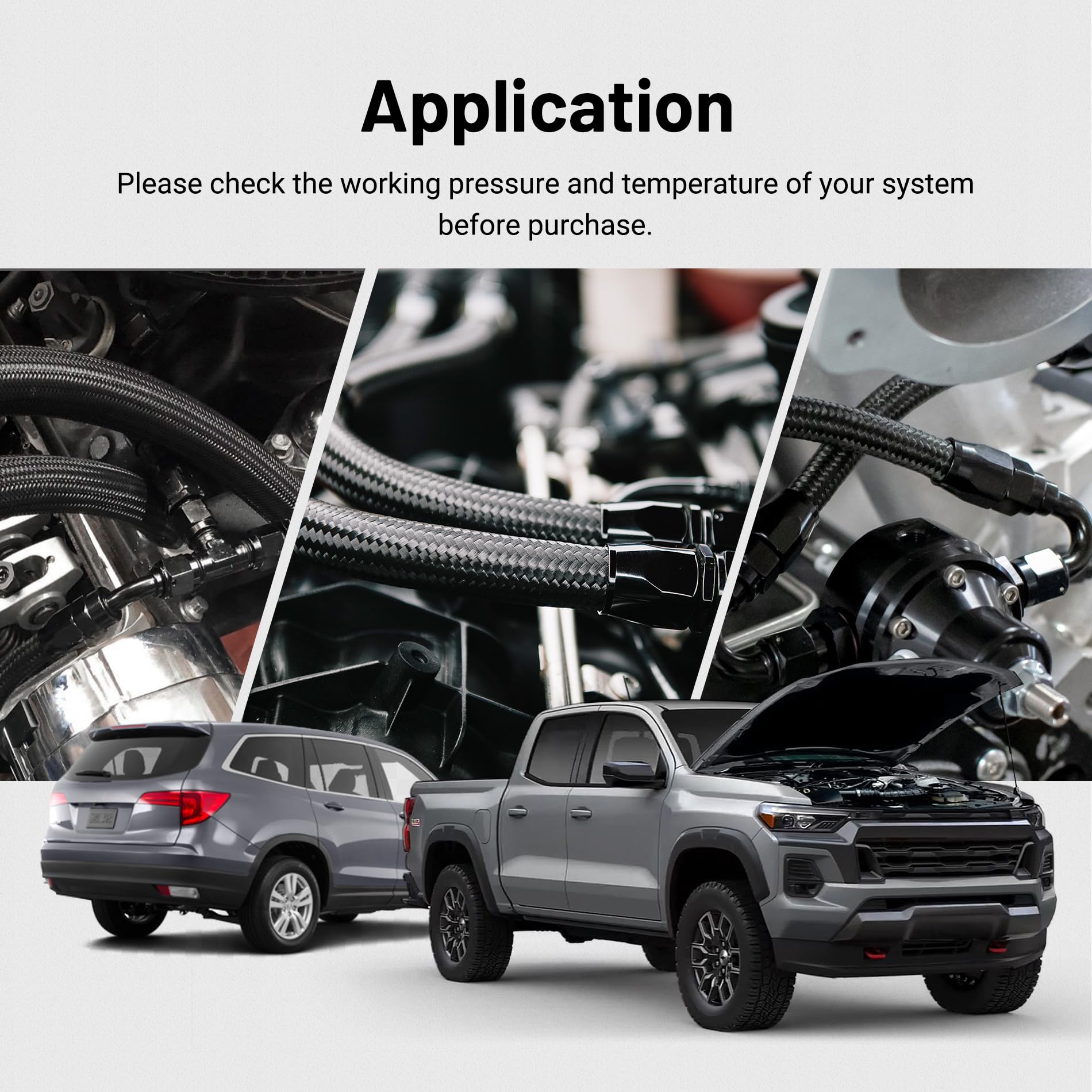

• Common uses: fuel supply/return, oil feed, turbo cooler, vacuum and coolant lines
• Do not use with incompatible chemicals—verify fluid compatibility first
• Intended for mechanical and performance installations, not for potable water

What are the size, fitment, and installation details to know before buying?

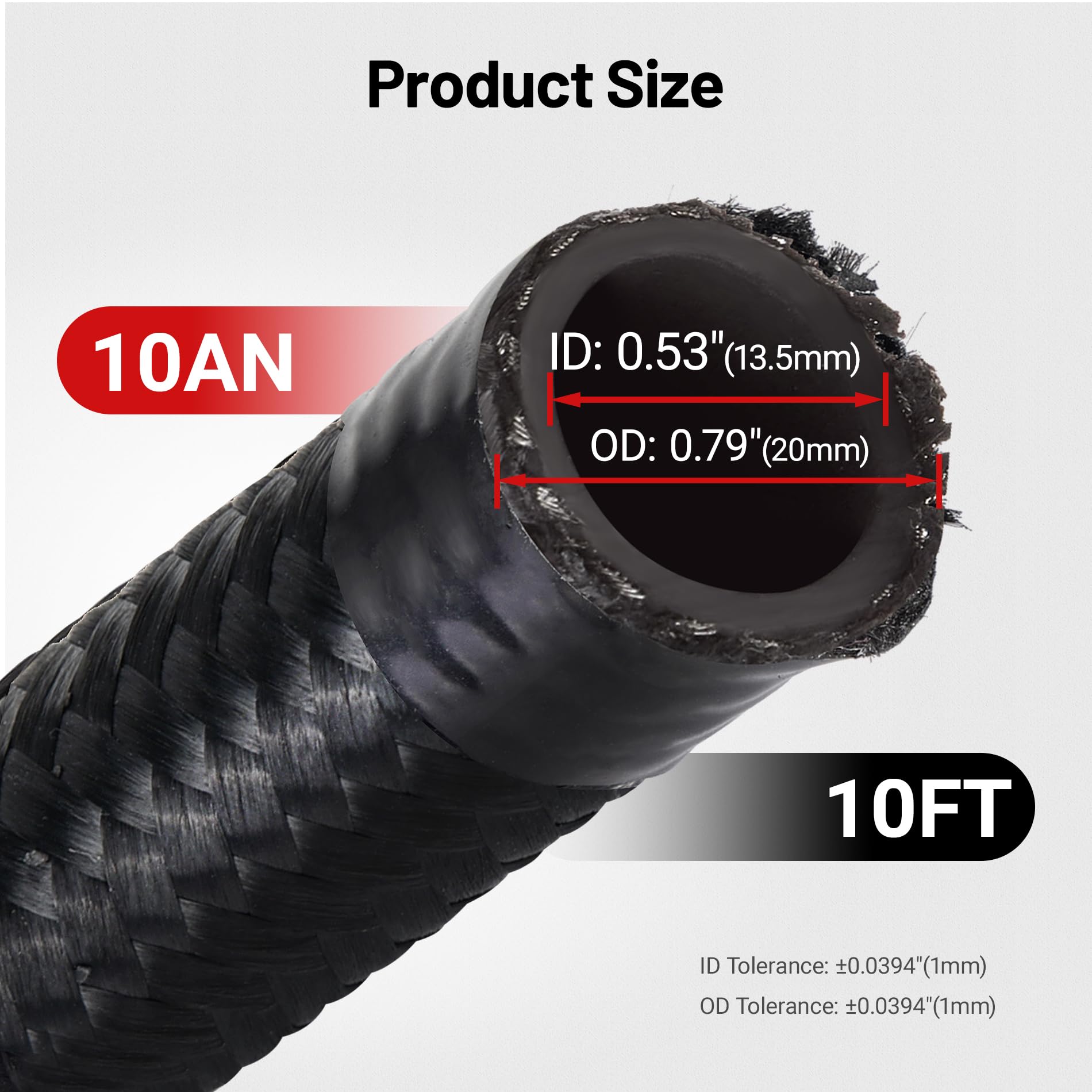

The hose has an inner diameter of 0.53 inches and an outer diameter of 0.79 inches, supplied in a 10-foot length to cut and fit as needed. It requires 10AN swivel hose ends for termination; basic installation instructions are included to help with routing and clamping.

• Hose ID: 0.53 in; OD: 0.79 in; length: 10 ft (factory cut length)
• Works with 10AN swivel hose end fittings only
• Includes installation guidance—use appropriate clamps and fittings
• Cut to length and assemble with compatible AN hardware for leak-free joints

Who is this for? Gearheads, race teams, and mechanics who need a robust AN10 hose that balances pressure capacity, chemical resistance, and flexible routing will appreciate the EVIL ENERGY 10AN braided line. It fits performance fuel and oil systems, turbo plumbing, and many industrial fluid-transfer setups where a reinforced, temperature-tolerant AN10 hose is required. If you need a 10-foot section to custom-cut and terminate with AN fittings for a durable, high-pressure installation, this hose is engineered for that job.
