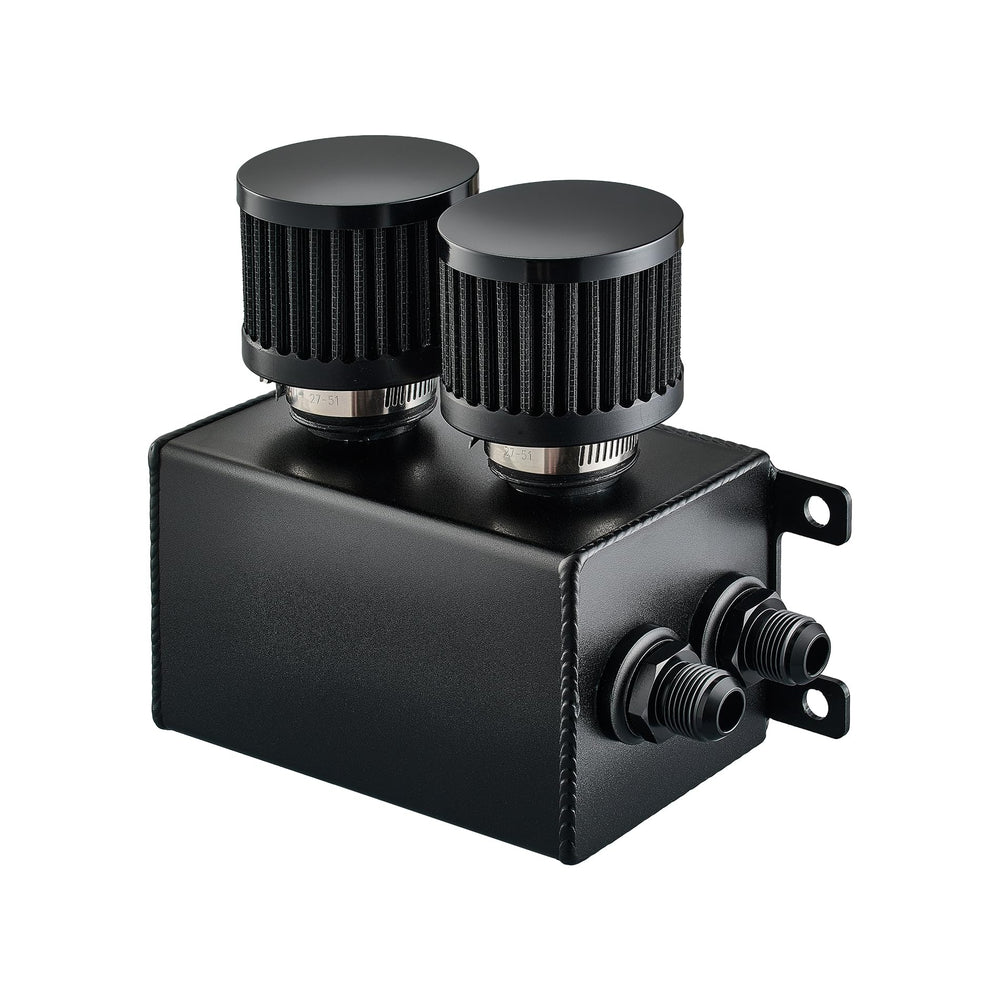

EVIL ENERGY 10AN Oil Catch Can 1.2L — Dual-Breather Aluminum Separator with Drain Valve

EVIL ENERGY 10AN Oil Catch Can 1.2L is a universal, high-capacity aluminum air-oil separator with dual breather filters, internal baffles, and a bottom drain valve designed to capture crankcase oil and moisture before they reach the intake.

This compact oil catch can from EVIL ENERGY is built for enthusiasts and tuners who want a durable, service-friendly solution to reduce oil vapor recirculation into the intake tract. Its 1.2-liter reservoir gives more collection capacity than many standard units, while a pair of breather filters and internal baffles improve separation efficiency. Constructed from TIG-welded aluminum and fitted with 10AN inlet/outlet ports with adapter fittings, the assembly is suitable for most performance and modified engine bays as long as there is adequate installation space.

How does this catch can reduce intake contamination?

The EVIL ENERGY unit channels crankcase vent gases through dual filter elements and a baffled chamber where oil droplets and moisture condense and collect, keeping oily vapors out of the intake and throttle body. That reduces the rate of carbon and sludge accumulation on intake valves and ports.

• Dual breather filters capture and vent vapors while improving flow balance.
• Internal baffling promotes droplet coalescence for more effective separation.
• 1.2L capacity means fewer service intervals before draining.
• Drain valve allows quick oil removal without uninstalling the can.

Will the EVIL ENERGY 10AN fit my vehicle and plumbing setup?

This catch can uses 10AN ports and ships with adapters to M22 x 1.75 fittings, making it compatible with many stock and aftermarket hose connections. However, fitment depends on available space and hose routing in your engine bay, so measure clearance and hose lengths before purchase.

• 10AN inlet/outlet ports with included M22 adapters for flexible plumbing.
• Compact vertical body for tighter engine bay mounting options.
• Universal mount points enable custom bracket or existing strut mounting.
• Confirm clearance for the 1.2L reservoir height and drain valve access.

What materials and maintenance features should I expect?

The catch can is CNC-formed from aluminum alloy with TIG-welded seams for strength and heat resistance in engine compartments. Routine maintenance is straightforward: open the bottom drain valve to empty collected oil and inspect the breather filters and seals periodically.

• Durable aluminum construction resists corrosion and high temperatures.
• TIG-welded joints for reliable, long-term sealing under vibration.
• Bottom drain valve enables quick, tool-free draining during service.
• Replaceable breather filters for ongoing filtration performance.

How does this catch can perform on high-displacement or boosted engines?

The larger 1.2L reservoir and dual-breather design make this model better suited to engines producing higher blow-by volumes, including some modified or boosted setups. While it helps manage oil and moisture carryover, install orientation and hose sizing should be optimized for high-flow applications.

• Greater capacity reduces the frequency of required draining under heavy use.
• Dual breathers help balance flow and relieve crankcase pressure spikes.
• Recommended for high-displacement or performance engines with adequate mounting space.
• Ensure hose diameter and length minimize backpressure and restriction.

Who is this for: The EVIL ENERGY 10AN 1.2L catch can is aimed at car owners, performance tuners, and mechanics looking for a robust, serviceable oil separator that handles higher vapor volumes. It suits drivers running high-displacement, modified, or turbocharged engines who want reduced intake contamination and less frequent maintenance—provided they can accommodate the larger reservoir and plumbing in their engine bay.
