EVIL ENERGY 16-Row Oil Cooler Kit 10AN — 16-row aluminum, compact 12.91"×5.71" for engines/transmissions

EVIL ENERGY’s 16-row 10AN oil cooler kit is a compact, universal aluminum radiator system that lowers engine and transmission oil temperatures while fitting most vehicles with a 330mm bracket.

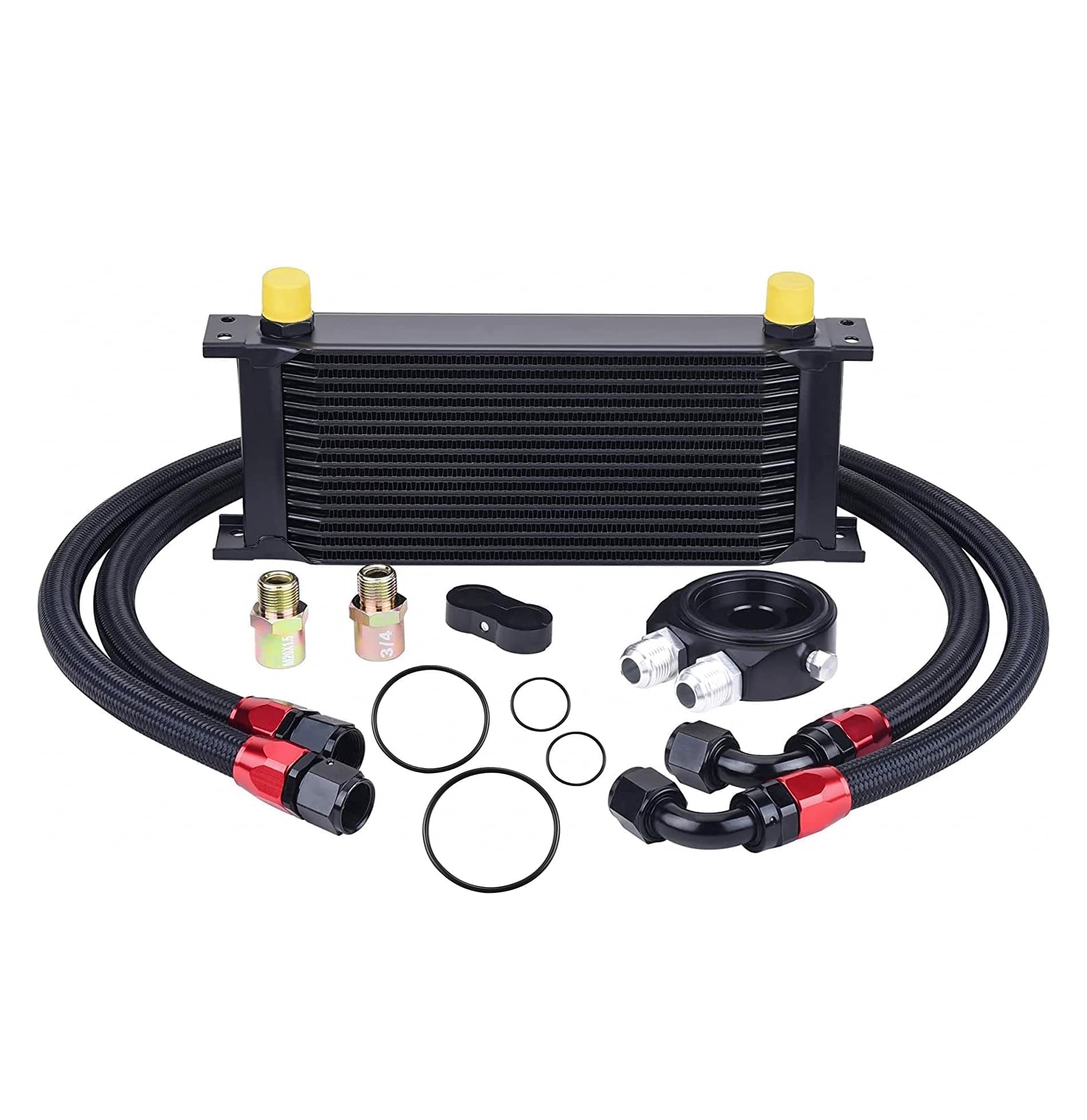

This all-in-one kit pairs a stacked-plate 16-row aluminum cooler with high-pressure 10AN fittings and two nylon-braid hoses, creating a durable oil cooling solution for engines, transmissions, or differentials. The assembly was engineered for high flow and efficient heat transfer: the cooler measures 12.91" × 5.71" × 1.97" and holds 0.39 liters of oil. The included hoses are rated to 500 PSI and wide temperature extremes, and the cooler itself is pressure-tested for reliability.

How does this oil cooler reduce operating temperatures?

The 16-row stacked-plate design increases surface area and channeling to move oil past more cooling surfaces per pass, improving heat dissipation without excessive size. Aluminum construction speeds heat transfer, and the compact profile allows placement in well-ventilated mounting points where airflow is highest.

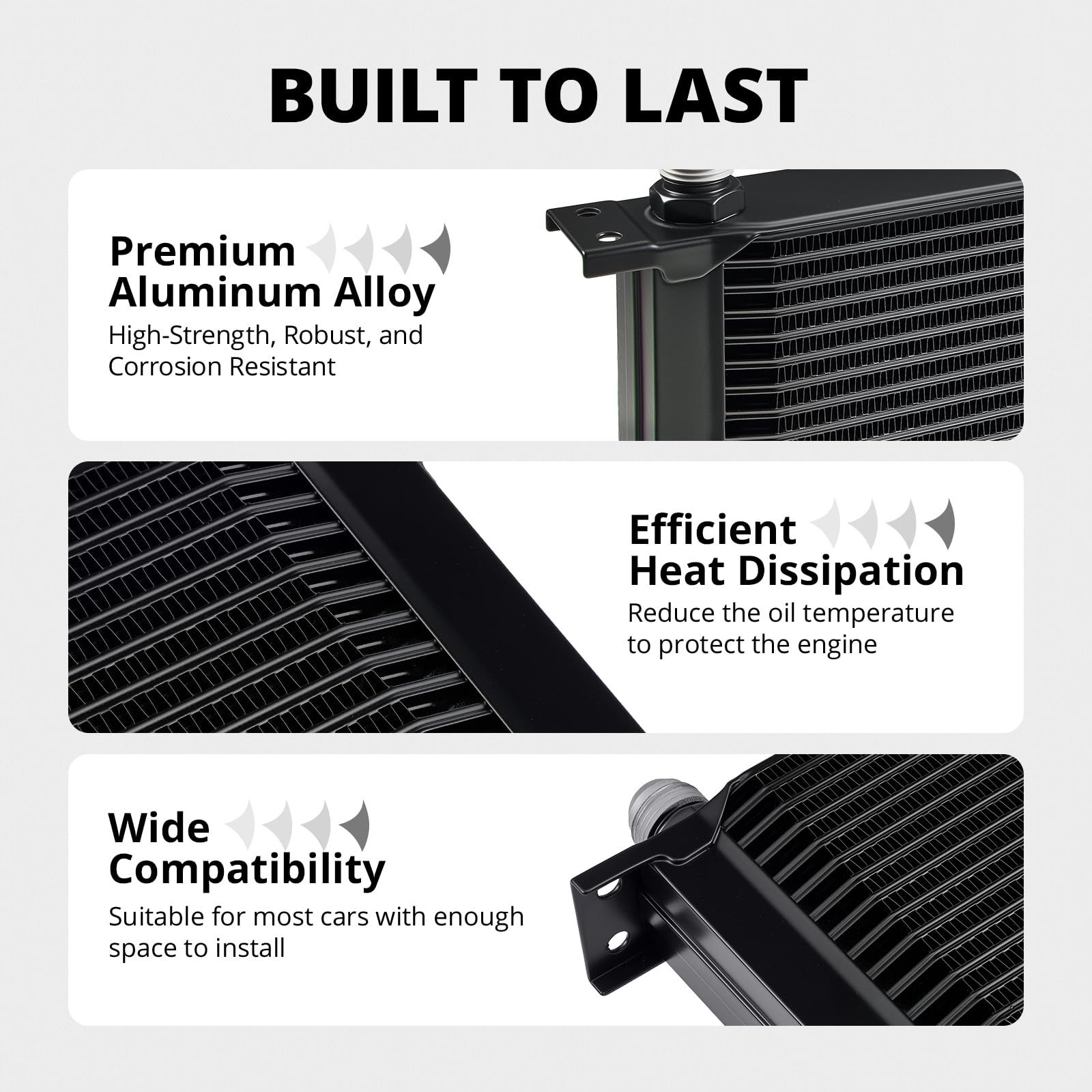

• 16 stacked cooling rows for greater surface area and efficiency
• Aluminum alloy core for fast heat conduction
• Low oil capacity (0.39 L) minimizes added fluid while still providing cooling
• Compact dimensions fit behind bumpers or near radiators with adequate clearance

Will this kit fit my vehicle and how difficult is installation?

The cooler is designed as a universal product intended to work with most vehicles that accept a 330mm bracket; however, clearance and mounting points vary. Measure the available area and confirm it exceeds 12.91" × 5.71" × 1.97" before ordering. Some vehicles may require extra fittings or minor trimming of a bumper or shroud to create proper airflow and clearance.

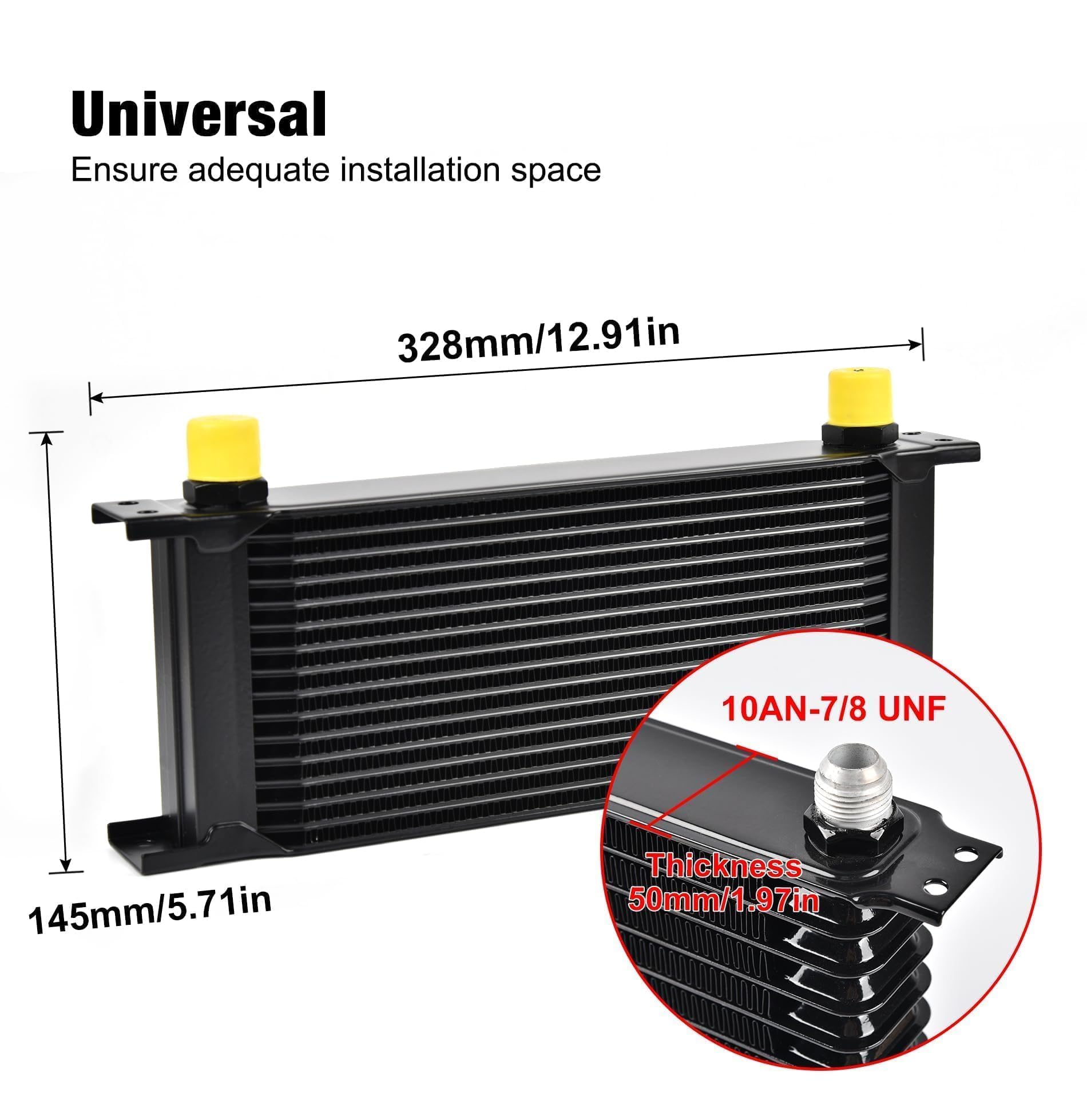

• Confirm installation area larger than 12.91" × 5.71" × 1.97"
• Includes basic installation instructions for guidance
• May need additional fittings or adapters depending on factory lines
• Best mounted where airflow is unobstructed for optimal cooling

What are the durability and pressure specifications?

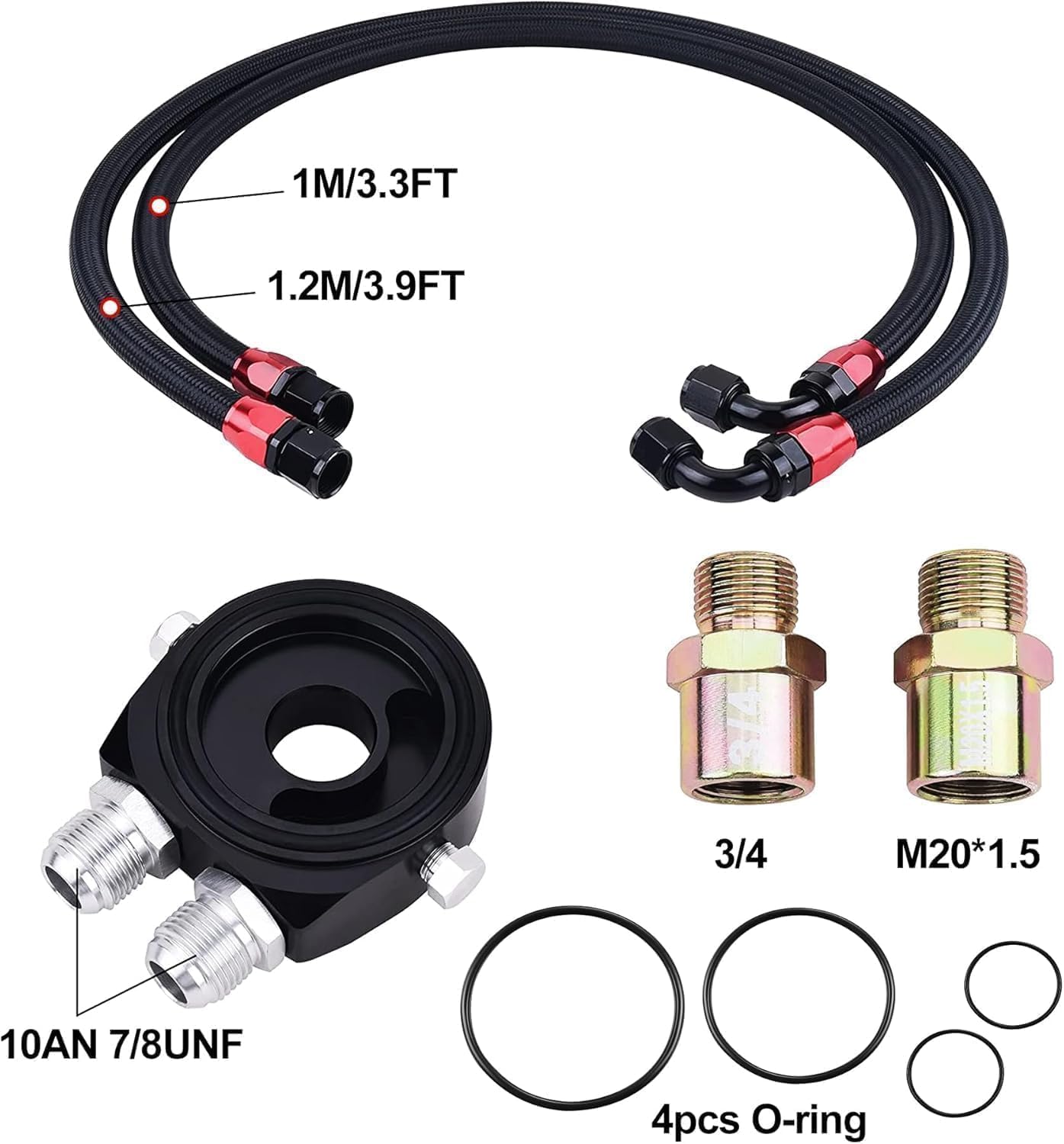

The cooler and hoses are built for demanding environments: the aluminum cooler is pressure-tested to 116 PSI and has a burst pressure of 232 PSI. The supplied nylon-braid hoses feature a CPE inner layer and are rated for 500 PSI working pressure, with operating temperatures from -40°F to 257°F, making them suitable for most road and track conditions.

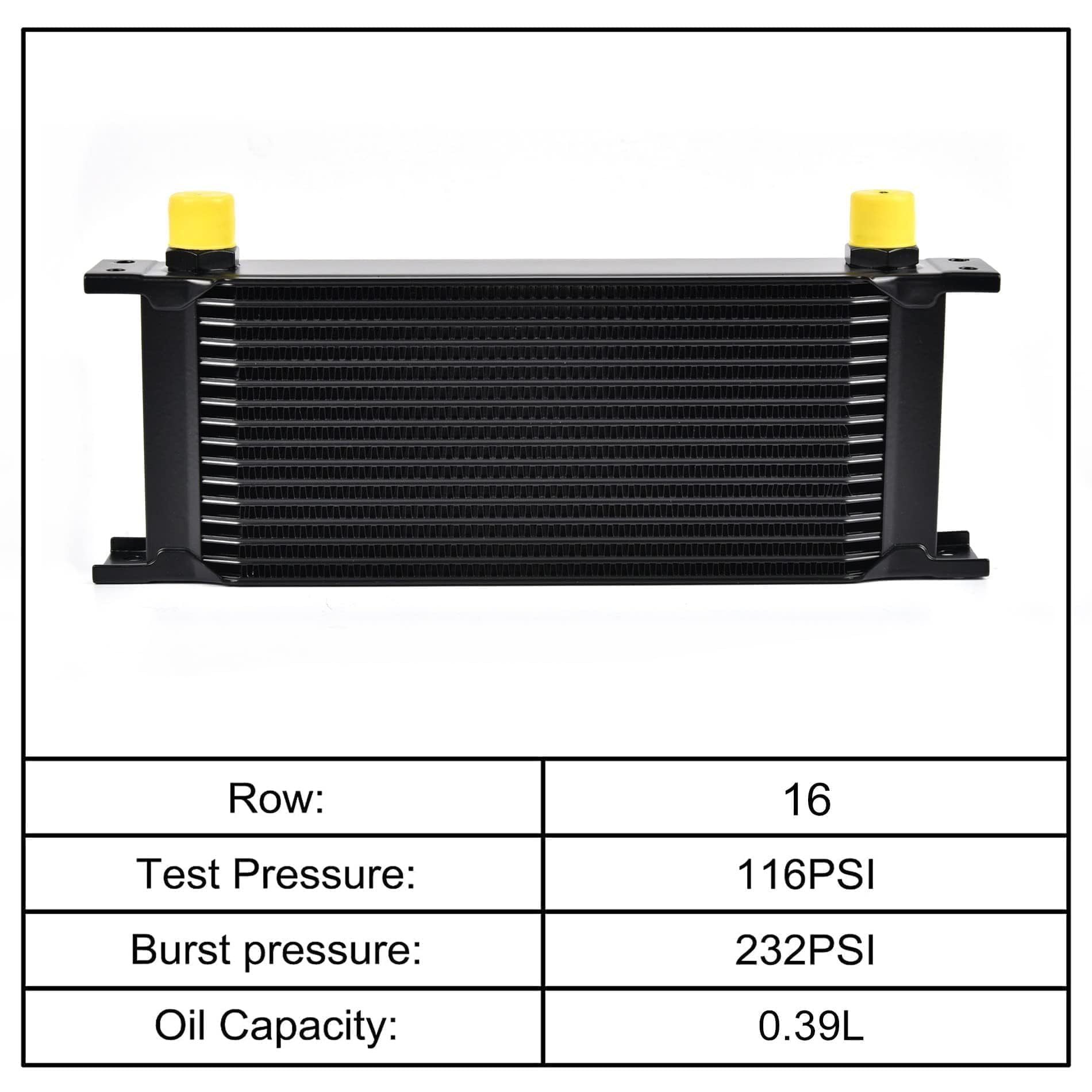

• Cooler test pressure: 116 PSI, burst: 232 PSI
• Hose working pressure: 500 PSI
• Hose temperature range: -40°F to 257°F
• Durable aluminum and reinforced braid construction

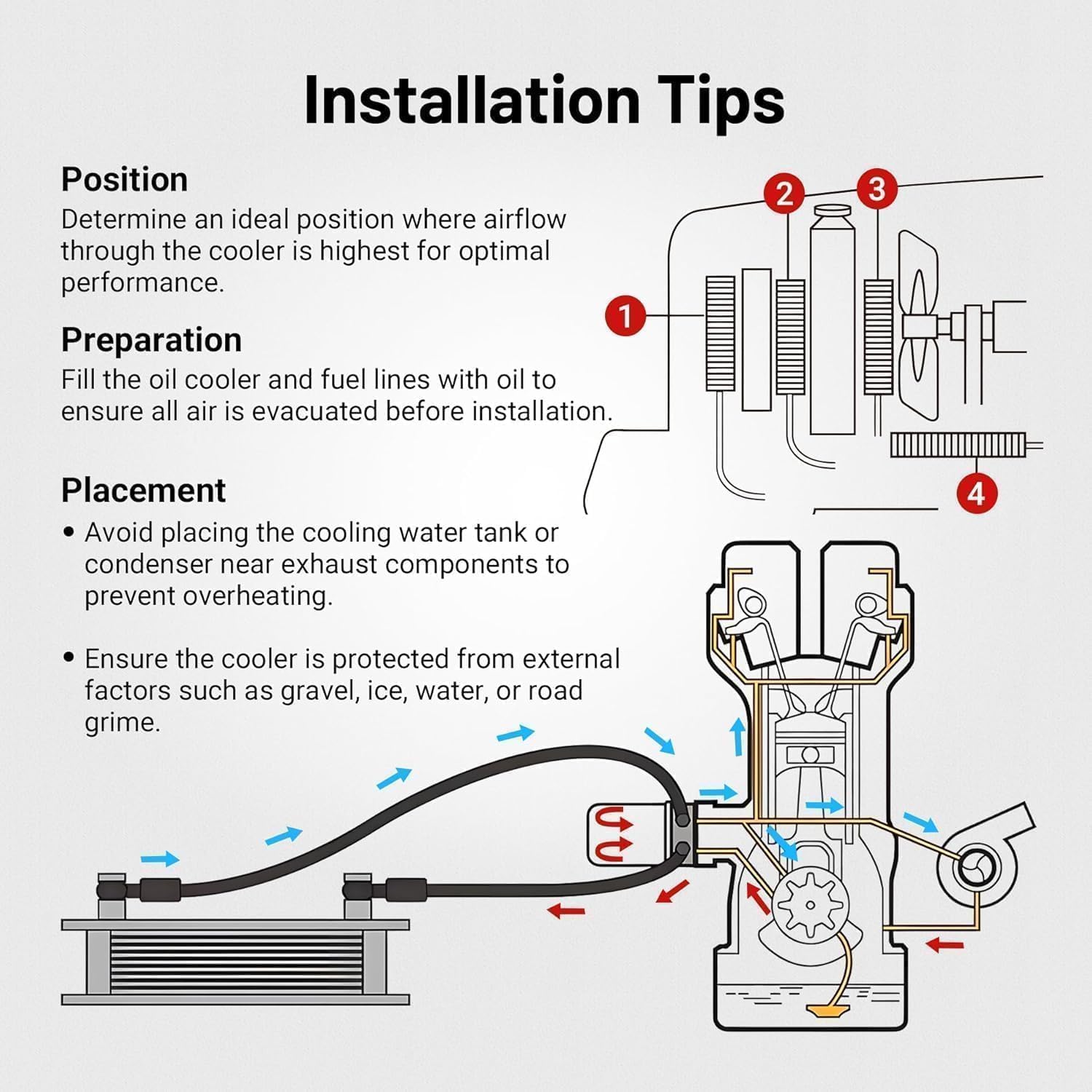

How should I position the cooler for best results?

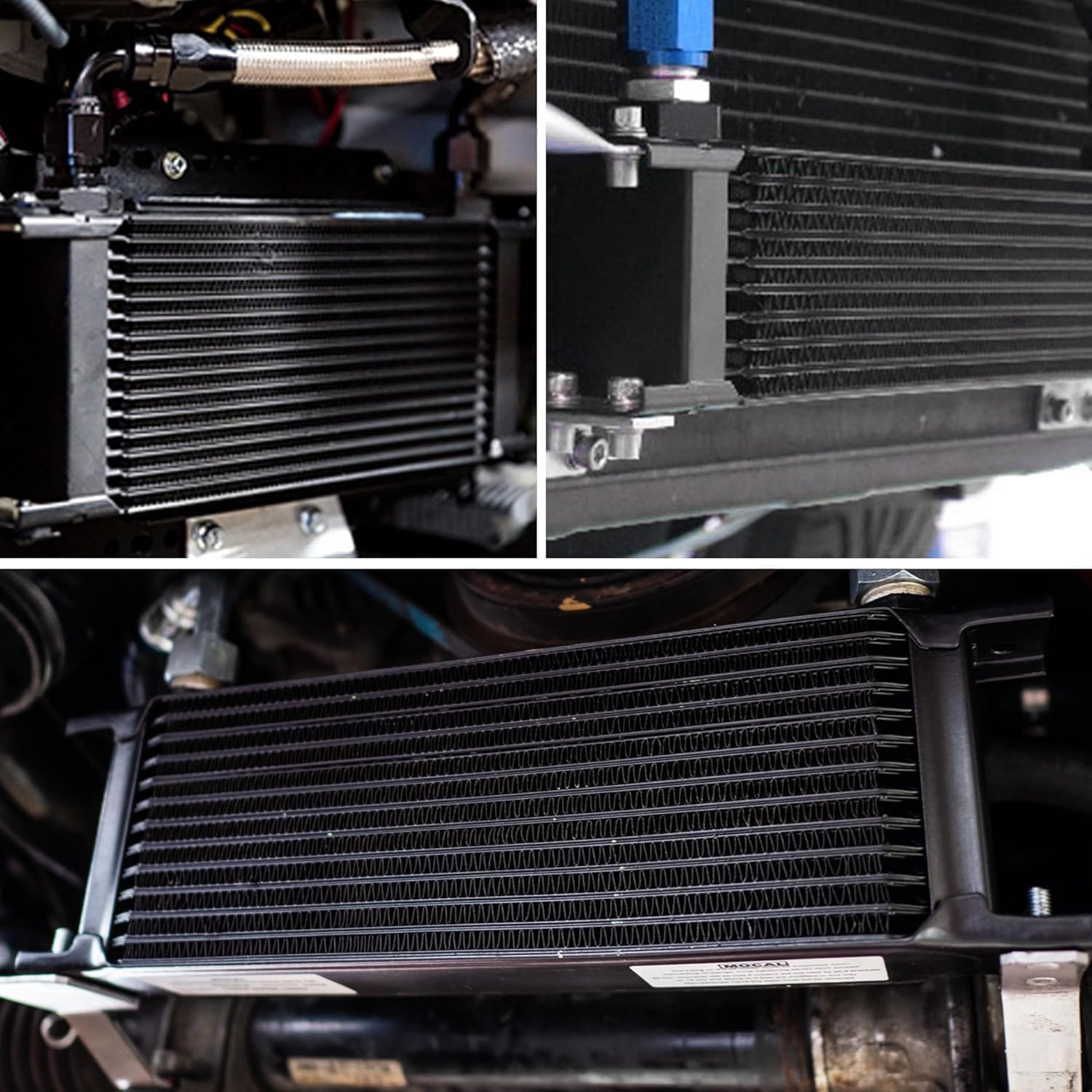

Install the cooler where it receives steady airflow, such as behind a front bumper opening or in front of the radiator, but only after confirming clearance. Avoid enclosed spaces with poor ventilation. Proper placement maximizes heat exchange without risking contact with hot engine components or debris.

• Prefer front-facing, well-ventilated mounting locations
• Verify no interference with factory cooling or steering components
• Keep hoses routed away from sharp edges and extreme heat sources
• Check fittings and torque after initial test drive for leaks

Who is this for: The EVIL ENERGY 16 Row 10AN Oil Cooler Kit suits enthusiasts and technicians who need compact, high-efficiency oil cooling for engines, transmissions, or differentials on street, track, or towing vehicles. It’s a practical upgrade when factory cooling is marginal or when consistent oil temperature control is desired. Buyers should be comfortable measuring fitment, making minor modifications if necessary, and following the included instructions to ensure proper installation and airflow.
