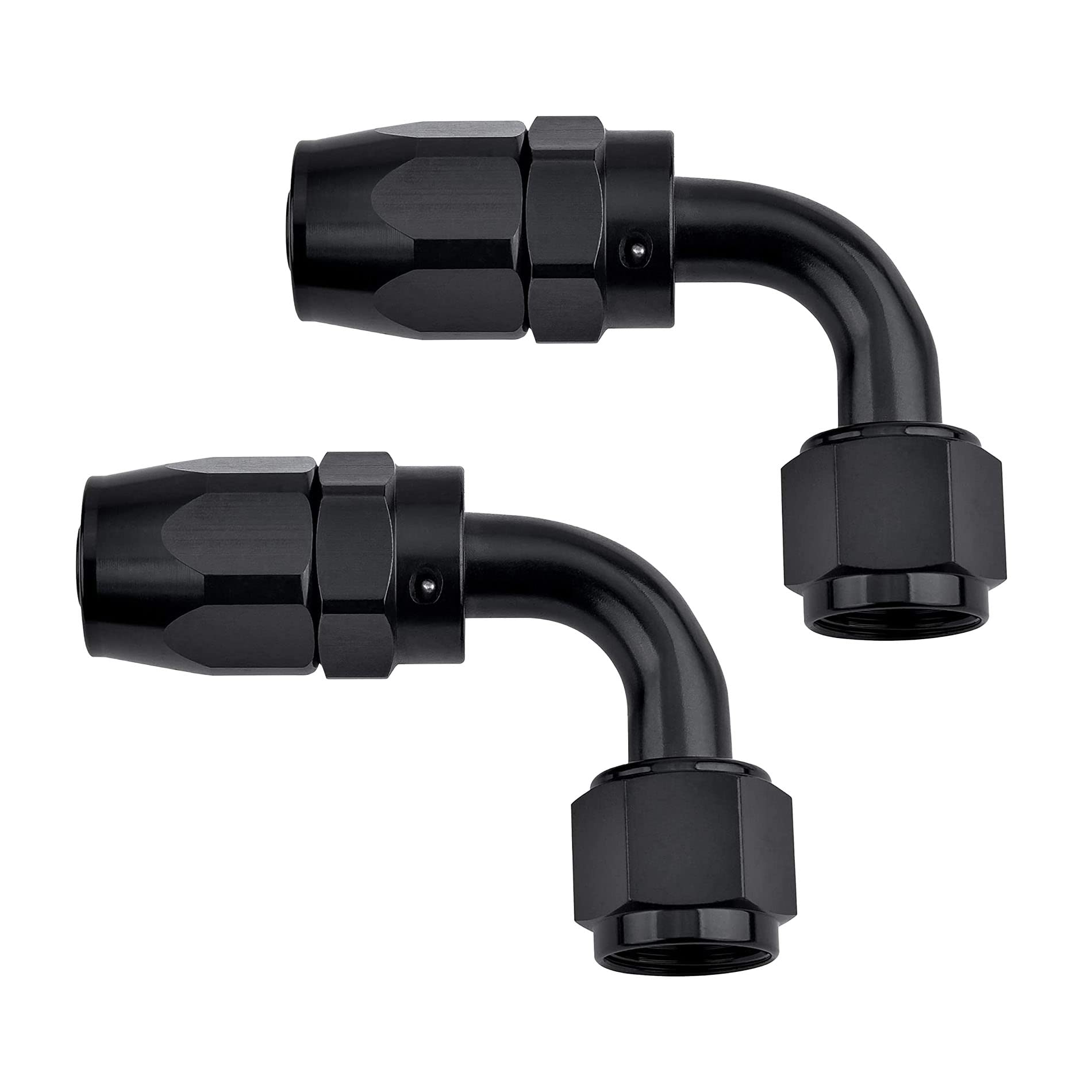

EVIL ENERGY 6AN 90° Hose End Fittings — 2pcs Aluminum 360° Swivel, 9/16-18 UNF Inlet

EVIL ENERGY 6AN 90-degree hose end fittings are compact, reusable aluminum adapters designed to connect 6AN braided fuel hoses with a 9/16-18 UNF threaded port while providing a 360° swivel for easy routing.

These two-piece 6AN 90° fittings from EVIL ENERGY are machined from 6061-T6 aluminum for a lightweight, corrosion-resistant connection on braided fuel or fluid hoses. They use the AN 37° sealing profile and a UNF threaded inlet (9/16-18), and are intended for stainless steel or nylon braided lines. Rated for up to 1,500 PSI and tested across a wide temperature span, they simplify tight-installation routing where a fixed straight fitting would be impractical.

How do these 90° fittings make hose routing easier?

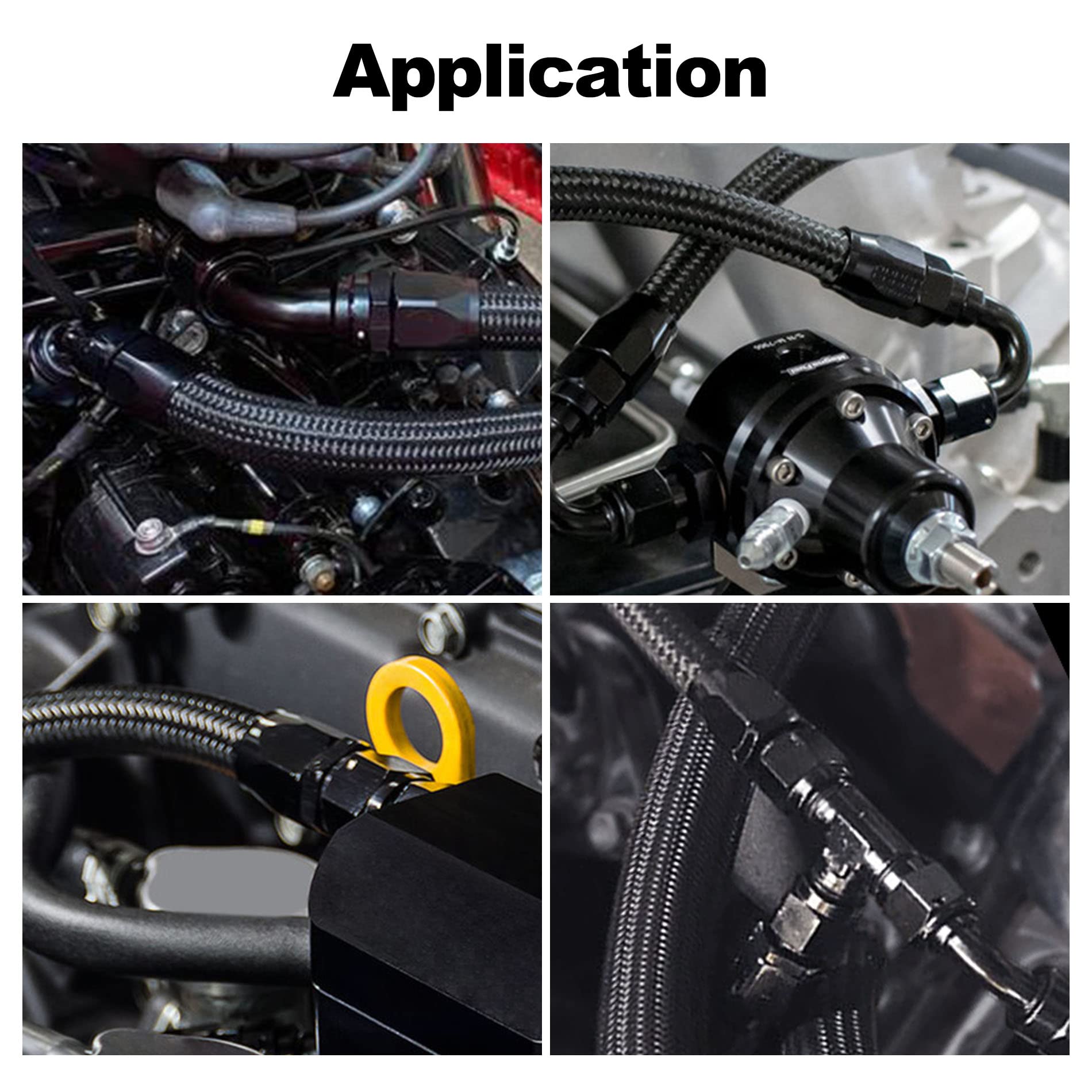

The 90-degree bent outlet keeps hoses close to the connection point and reduces stress on the hose when space is limited. The integrated 360° swivel lets you orient the hose without twisting the entire assembly, cutting installation time and improving fitment in cramped engine bays.

• Right-angle outlet for tight clearance situations
• 360° swivel eliminates hose twisting during assembly
• Compact profile keeps lines neat and out of the way

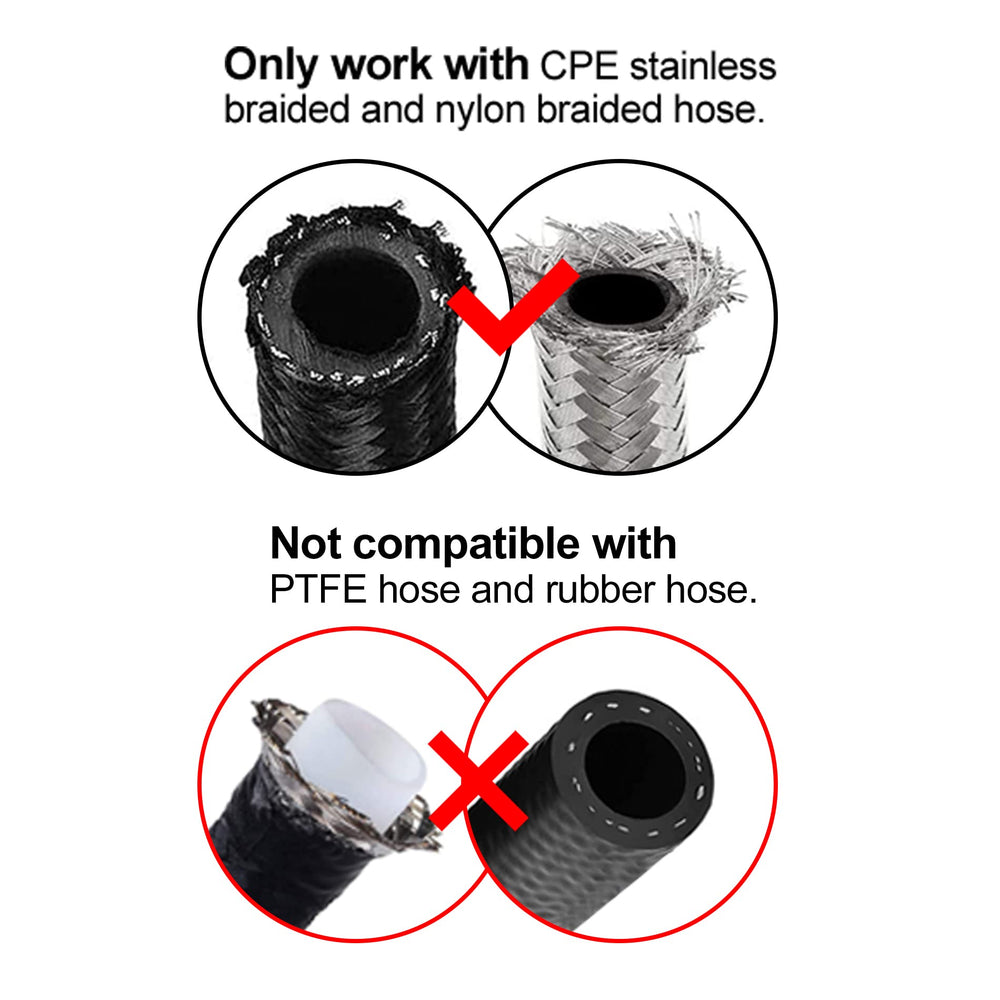

Are these fittings compatible with my braided fuel hose and system?

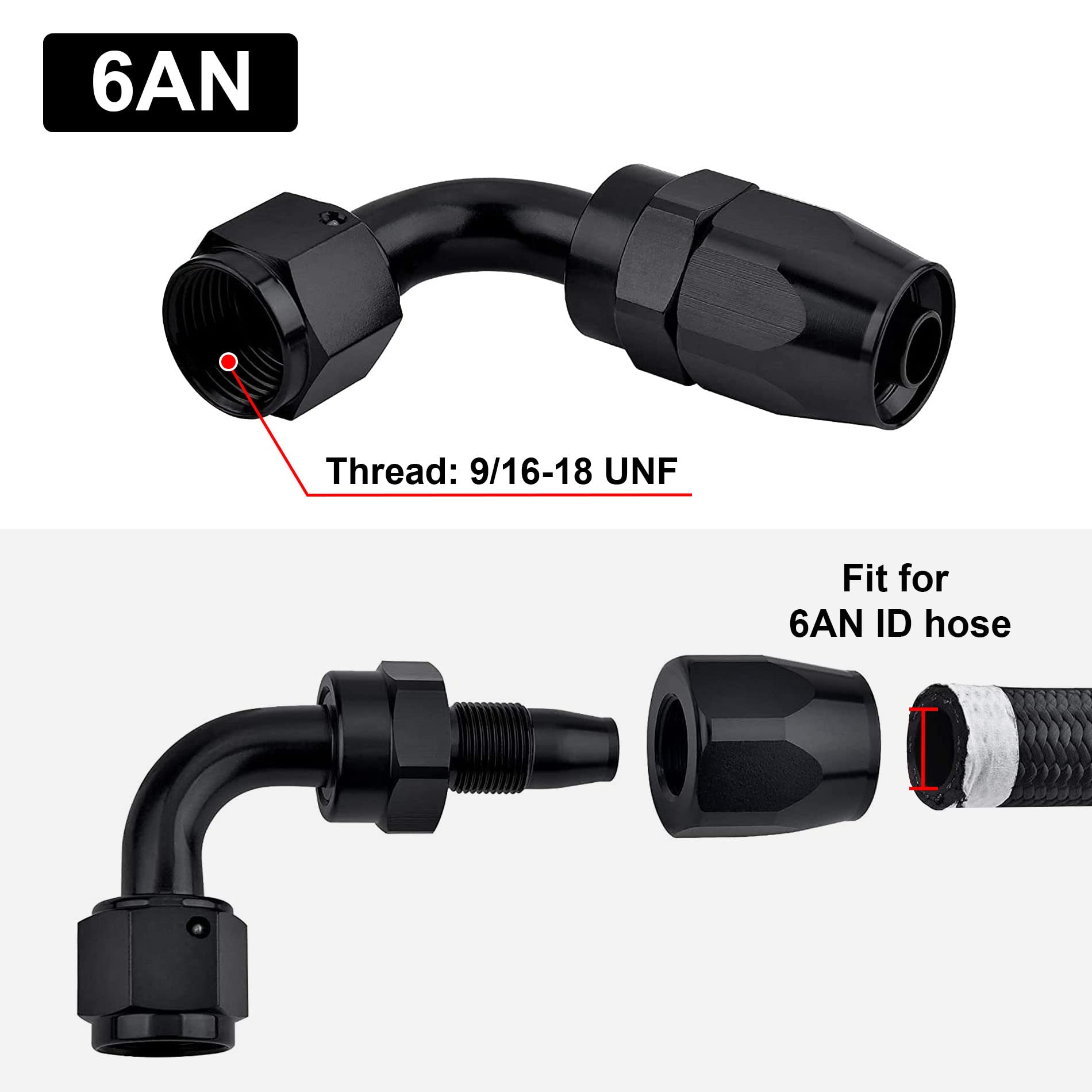

They are built specifically to mate with stainless steel braided and nylon braided hoses designed for 6AN fittings. The threaded inlet is 9/16-18 UNF and the AN side seats with the standard 37° flare, so they pair with common AN-style hose ends and ports that use those dimensions.

• AN side: 37° sealing angle for standard AN connections
• Threaded inlet: 9/16-18 UNF (fits matching ports or adapters)
• Designed for braided stainless or nylon hoses only

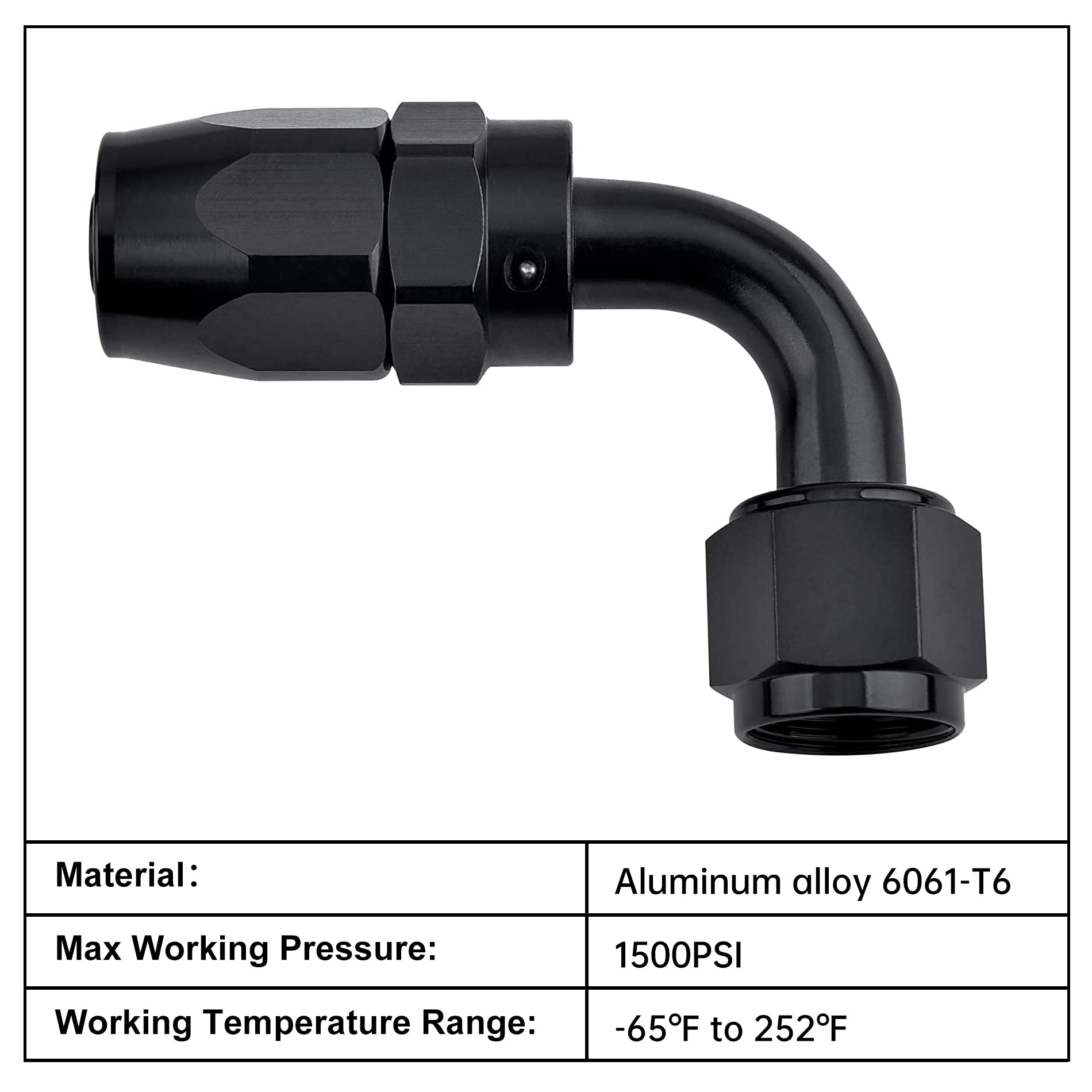

What are the strength and temperature limits of these aluminum fittings?

Manufactured from 6061-T6 aluminum, these fittings balance strength and light weight while resisting corrosion in typical automotive environments. They carry a maximum working pressure rating of 1,500 PSI and perform across a wide temperature range, making them suitable for many automotive, motorsport, and industrial fluid applications.

• Material: durable, aircraft-grade 6061-T6 aluminum
• Maximum working pressure: 1,500 PSI
• Operating temperature: -65°F to 252°F (-53°C to 122°C)

Can I reuse or recycle these hose end fittings?

Yes — the swivel design and aluminum construction make these fittings serviceable and recyclable. When disassembled correctly, the fittings can be reused on compatible hoses and eventually recycled as aluminum at end of life.

• 360° swivel designed for repeated assembly/disassembly
• Reusable on matching 6AN braided hose systems
• 6061-T6 aluminum is recyclable through standard metal recycling streams

Who is this for: These EVIL ENERGY 6AN 90° hose end fittings are intended for automotive enthusiasts, racers, fabricators, and maintenance technicians who work with braided fuel or fluid lines and need a reliable, space-saving swivel connection. Choose them when you require a compact right-angle adapter with standard AN sealing, UNF-thread compatibility, and robust pressure and temperature performance.
