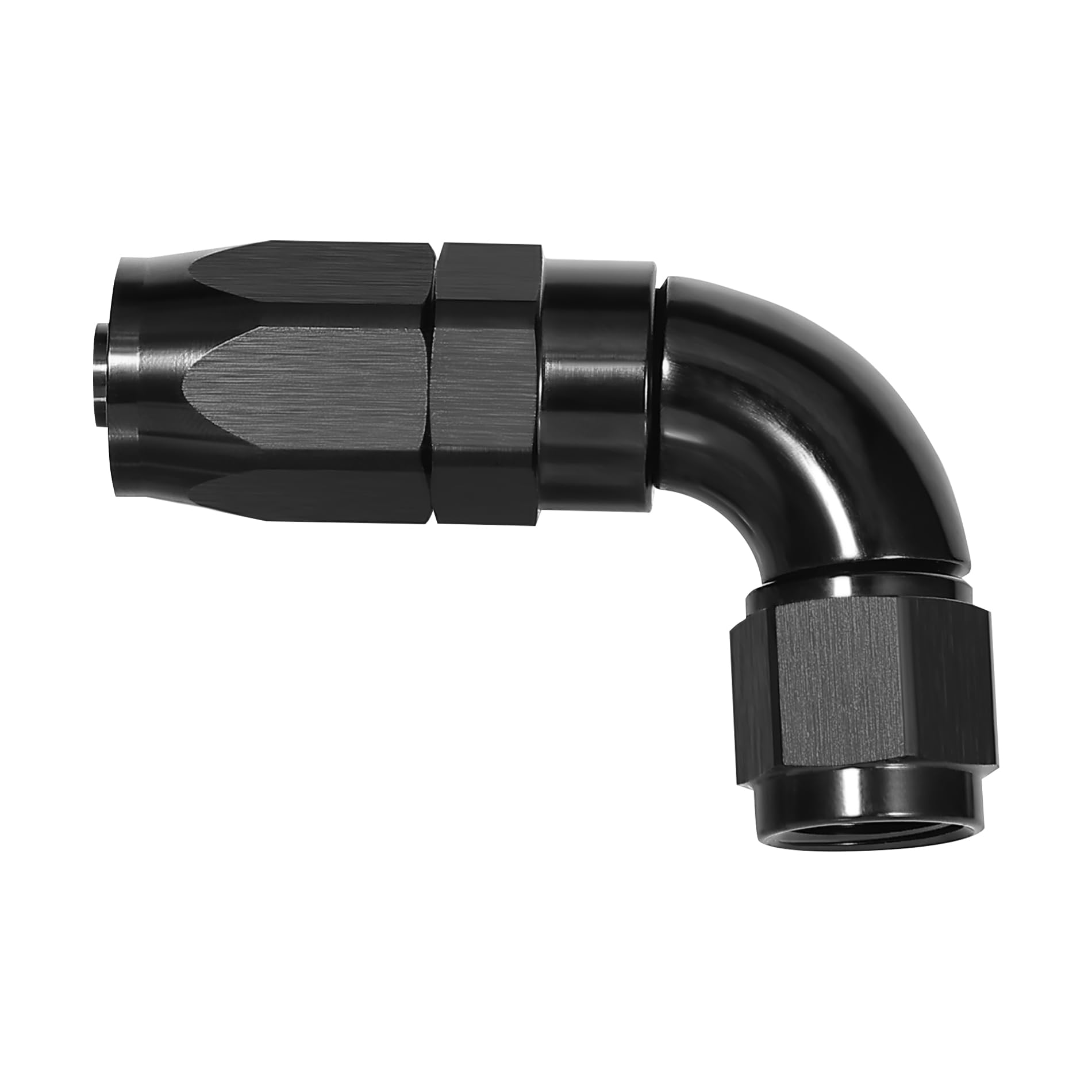

EVIL ENERGY AN10 90° Full-Flow Swivel Hose End for Braided Hose — 7/8-14 UNF, 6061-T6 Aluminum, Low-Restriction

EVIL ENERGY AN10 90° Full Flow Swivel Hose End is a one-piece, full-flow swivel fitting engineered for braided AN10 hoses, offering a 90-degree 37°-sealed swivel with a 7/8-14 UNF thread for reliable, low-restriction fluid routing.

This precision hose end is made from 6061-T6 aluminum for strength and corrosion resistance and is designed specifically for stainless steel and nylon braided AN10 hose assemblies. The fitting combines a sealed 37-degree AN face with a cutter-style entry and full-flow internal profile to minimize pressure drop while delivering a durable swivel connection suited to performance and industrial plumbing applications.

How does this AN10 90° fitting minimize flow restriction?

The EVIL ENERGY fitting uses a one-piece full-flow design and a smooth internal bore to reduce turbulence and pressure loss compared with multi-piece or sharp-corner fittings. The cutter-style hose entry and straight-through flow path maintain higher flow rates for fluids and oils used in performance systems.

• One-piece full-flow internal profile for smoother fluid passage
• Cutter-style hose interface for clean hose seating
• Minimal internal obstructions to lower pressure drop
• Designed for AN10 (10AN) hose capacities

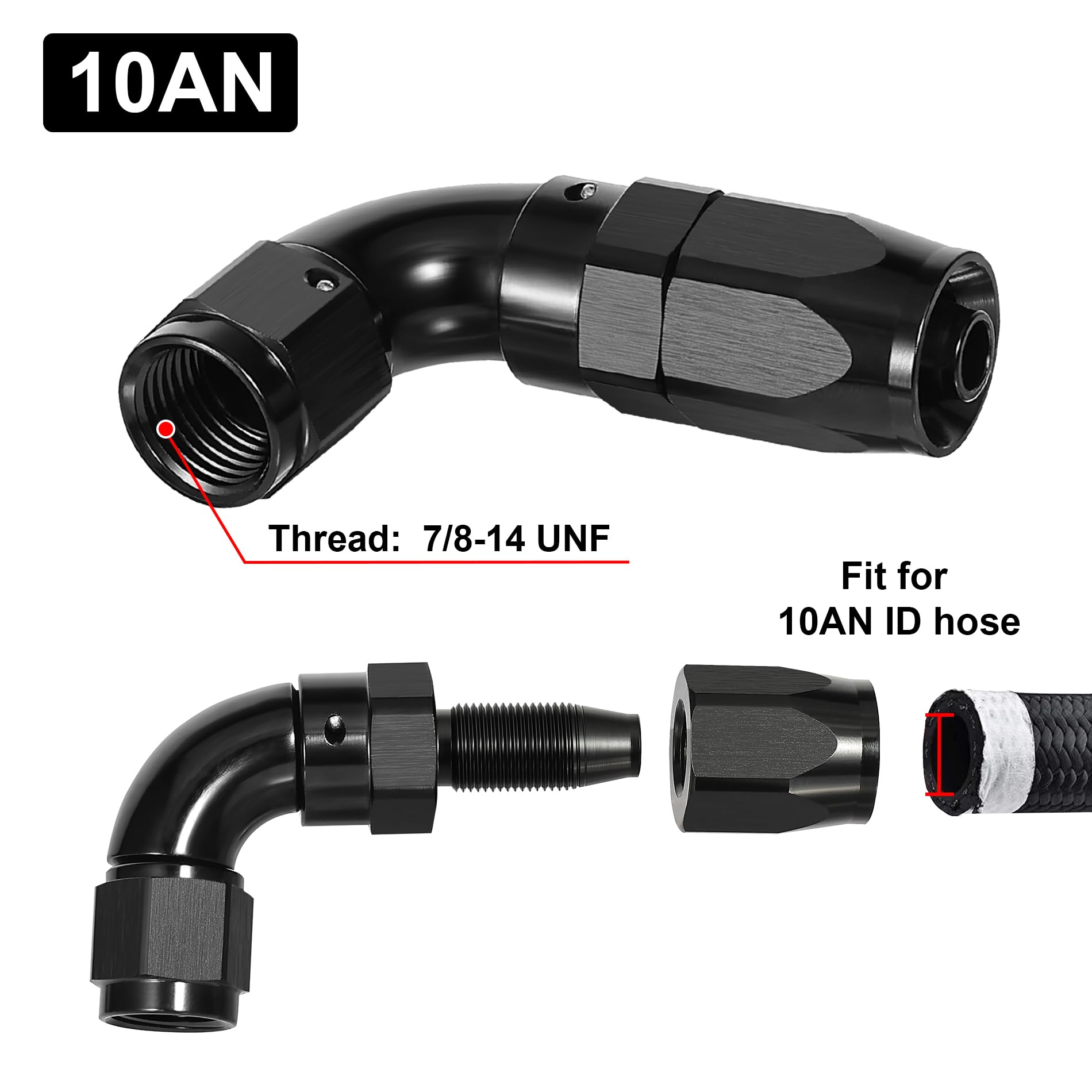

Will this work with my braided hose and standard AN threads?

This hose end fits AN10 braided hoses only and threads into a 7/8-14 UNF port with a 37-degree AN sealing angle. It is not compatible with non-braided hose types or fittings that require different sealing geometries.

• Thread size: 7/8-14 UNF to match standard AN10 ports
• Sealing: 37° AN face for pressure-tight metal-to-metal seal
• Compatible with stainless steel and nylon braided AN10 hose
• Not intended for push-on or barbed hose styles

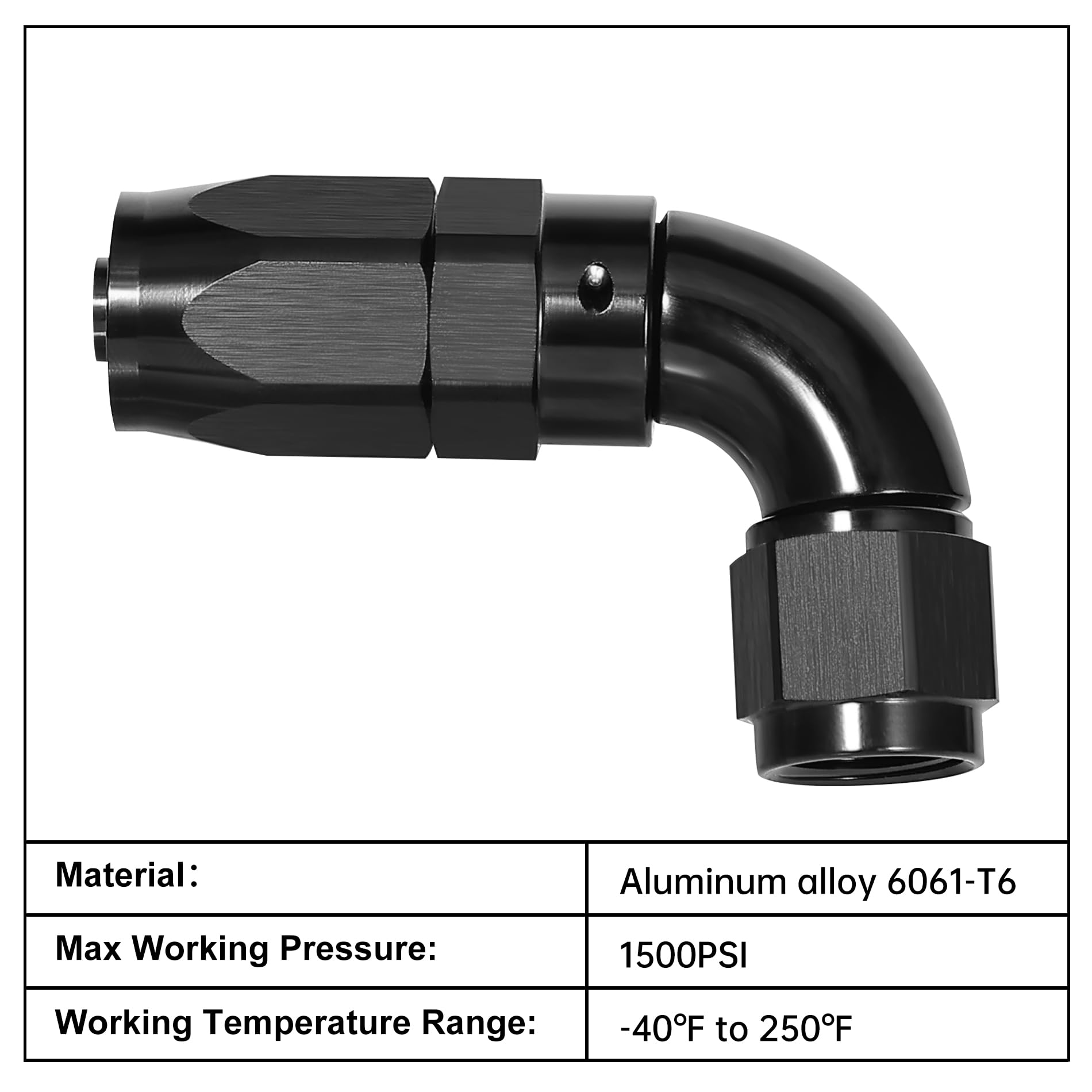

What are the strength and temperature limits of this aluminum fitting?

The body is machined from 6061-T6 aluminum, offering an excellent strength-to-weight ratio and good resistance to corrosion in automotive and industrial environments. The fitting is rated to a maximum working pressure of 1,500 PSI and a service temperature range from -40°F up to 250°F, covering many fluid transfer applications.

• Material: 6061-T6 aluminum alloy for durability
• Maximum working pressure: 1,500 PSI
• Temperature range: -40°F to 250°F
• Suitable for common automotive and industrial fluids

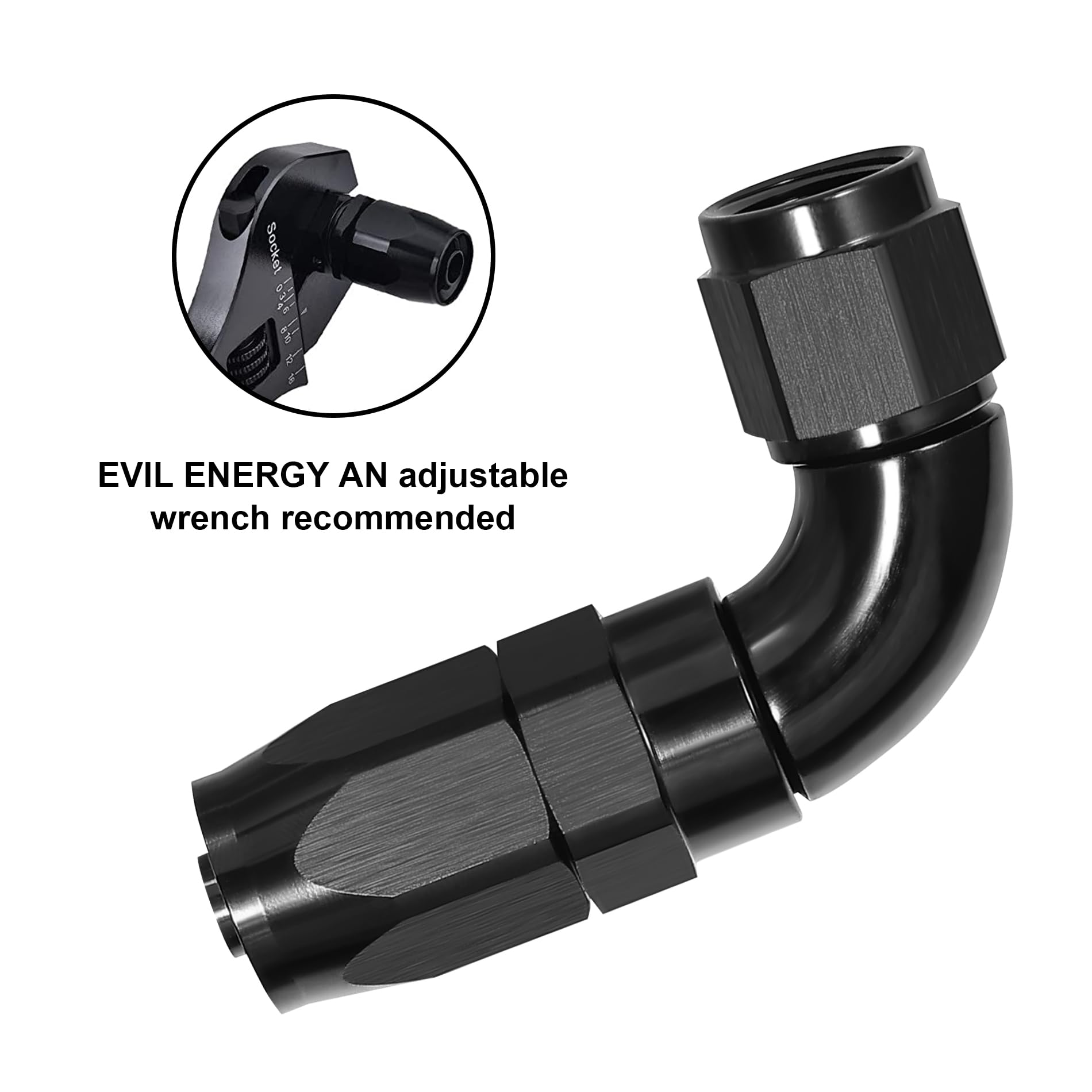

How does the 90-degree swivel help during installation?

The 90-degree orientation lets you route hoses in tight spaces and avoid kinks while preserving the swivel function for alignment during assembly. Because the swivel is full-flow and one-piece, you get both ease of fitment and uninterrupted fluid passage once tightened.

• 90° angle simplifies tight-space hose routing
• Swivel allows final alignment without twisting the hose
• One-piece construction reduces leak points
• Ideal for compact engine bays and confined fittings

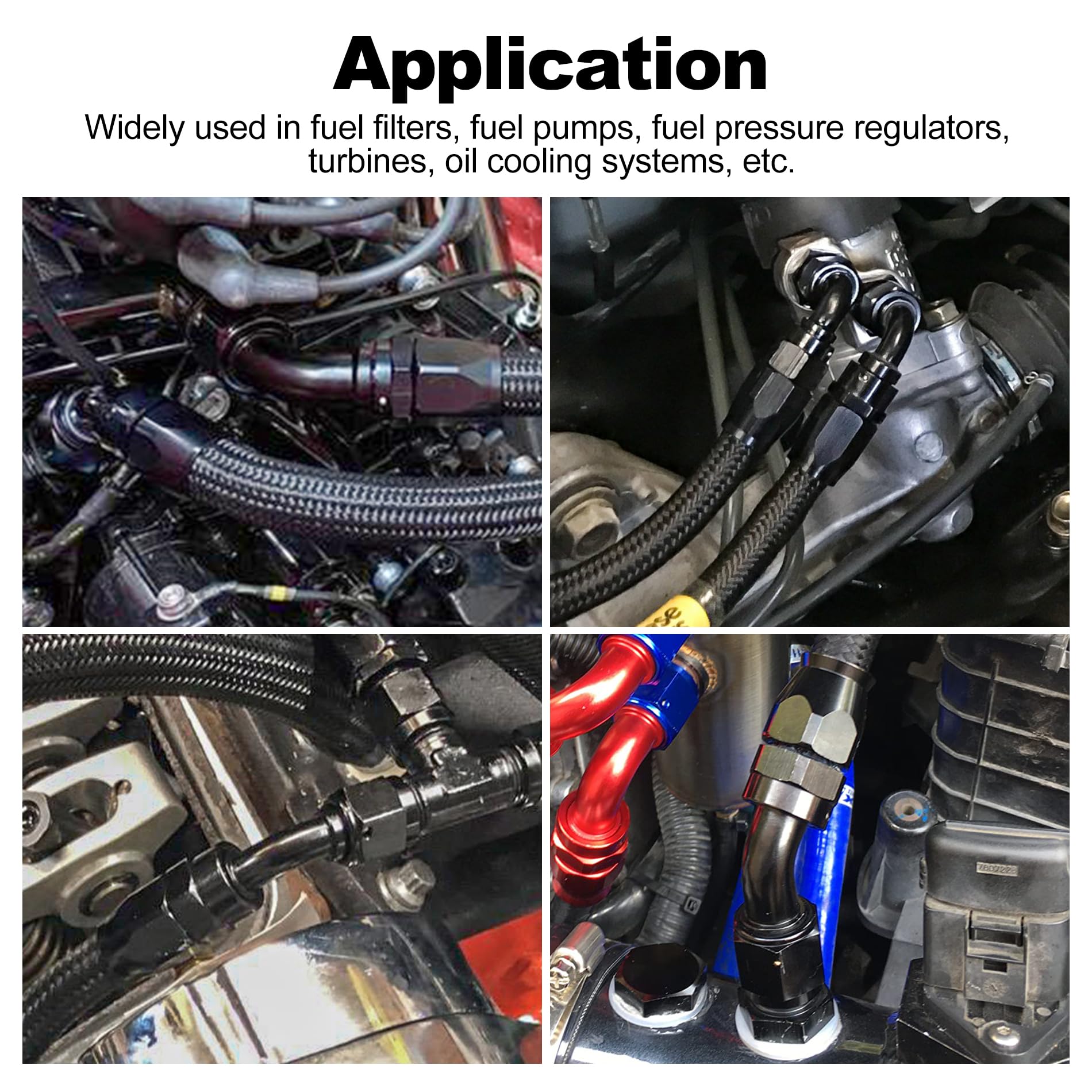

Who is this for: This EVIL ENERGY AN10 90° Full Flow Swivel Hose End is aimed at car builders, tuners, fabricators, and maintenance technicians who need a reliable, low-restriction AN10 braided-hose connection. Choose this fitting when you require a robust aluminum construction, a sealed 37° AN interface, and a compact 90-degree swivel solution for performance, oil, coolant, or hydraulic plumbing projects.
