EVIL ENERGY AN10 Fuel Hose 10ft Black — 10AN CPE Nylon‑Braided, 625psi Working Pressure

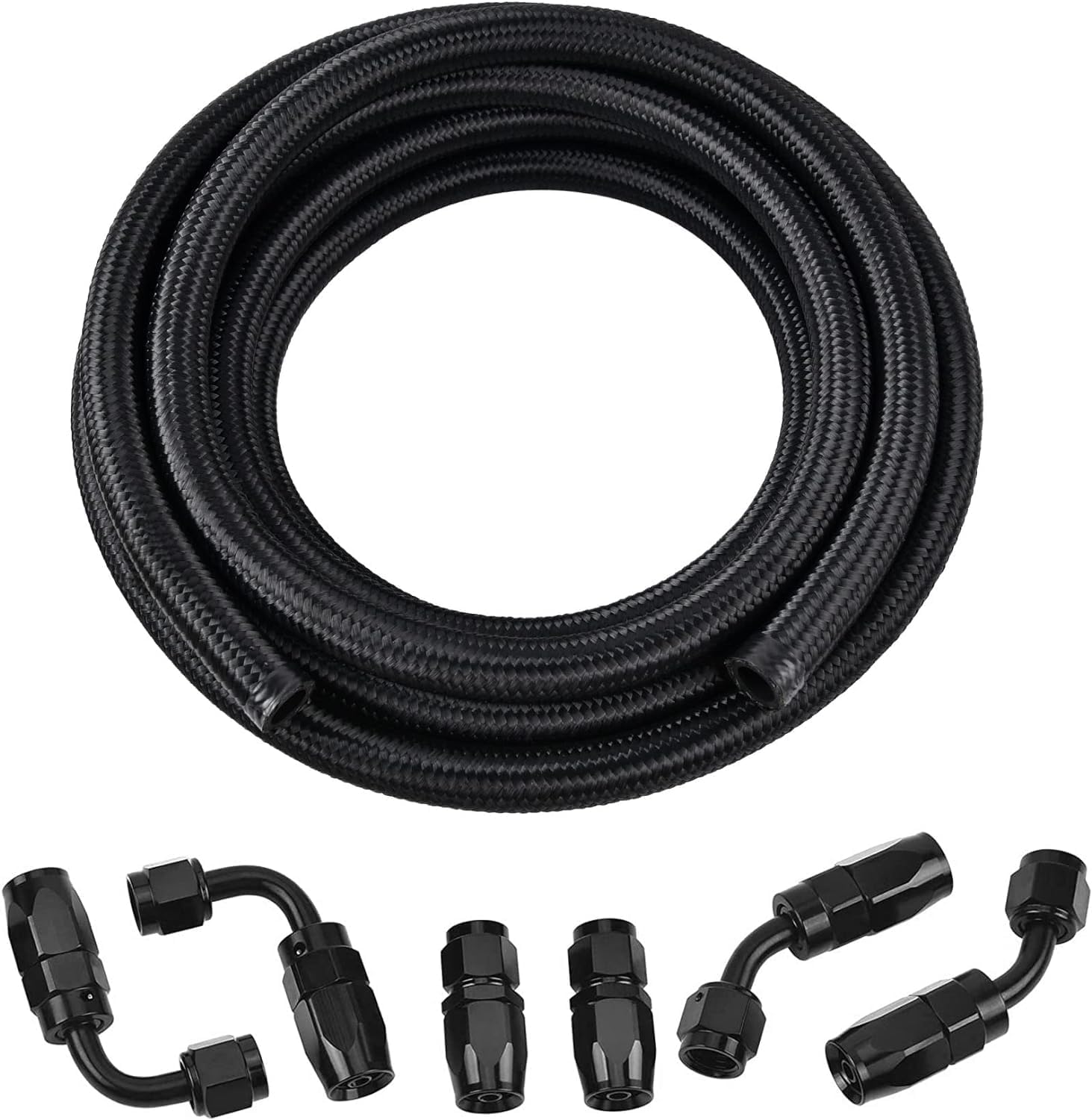

EVIL ENERGY's 10AN Fuel Line Kit is a durable 10-foot CPE inner hose with 304 stainless wire and nylon outer braid engineered for high-pressure fuel, oil, and fluid routing in performance and race applications.

This braided AN10 fuel hose combines a CPE (chlorinated polyethylene) rubber core with a layer of 304 stainless steel wire and a protective nylon outer braid to deliver strength, flexibility, and chemical compatibility. Built to handle demanding temperatures and pressures, the hose is sized for AN10 fittings and supplied in a practical 10-foot length so you can cut and assemble runs for engines, fuel cells, or hydraulic lines. The design balances resistance to fuels and oils with a minimum bend radius that keeps installations tidy in tight engine bays.

What are the key specs and performance limits of this AN10 fuel hose?

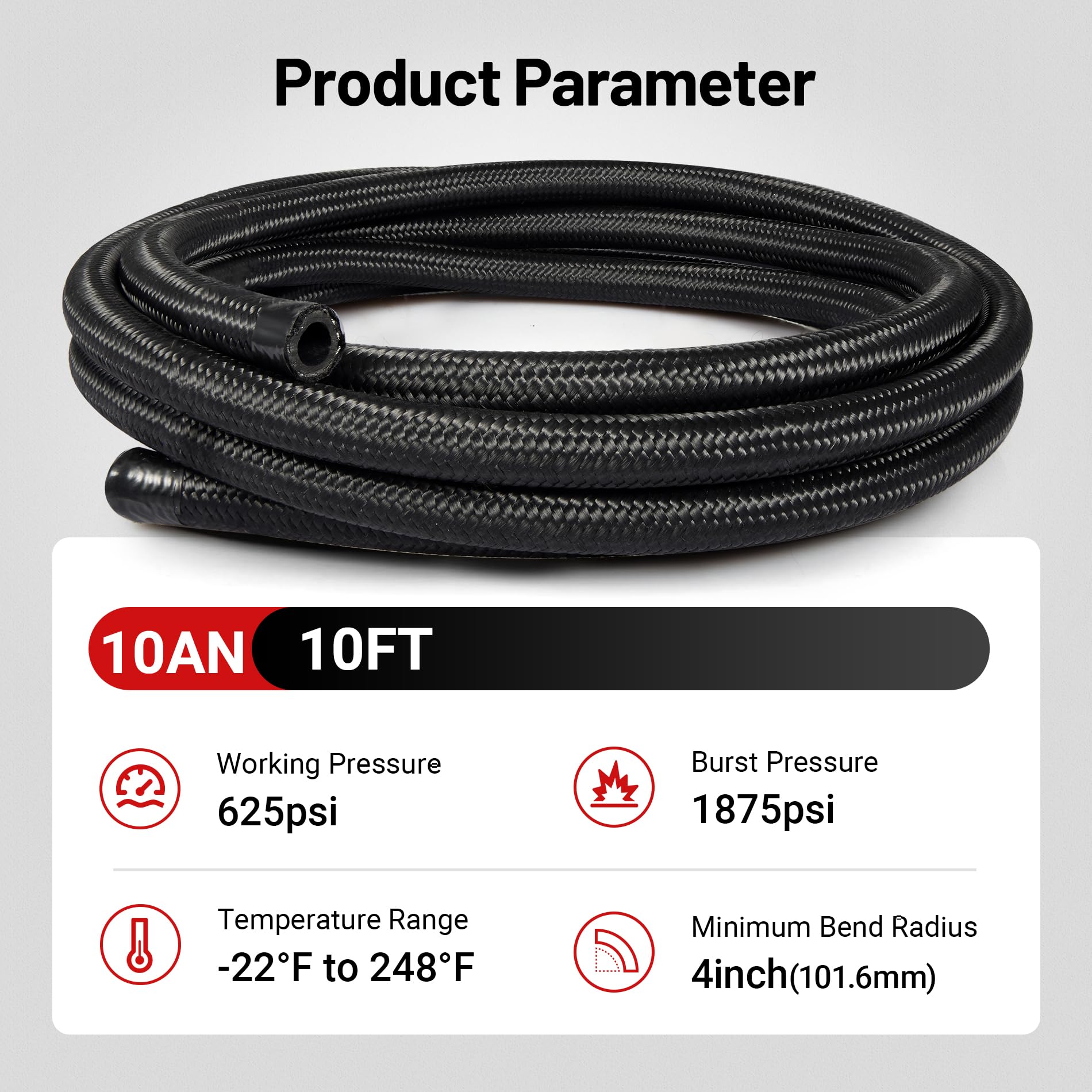

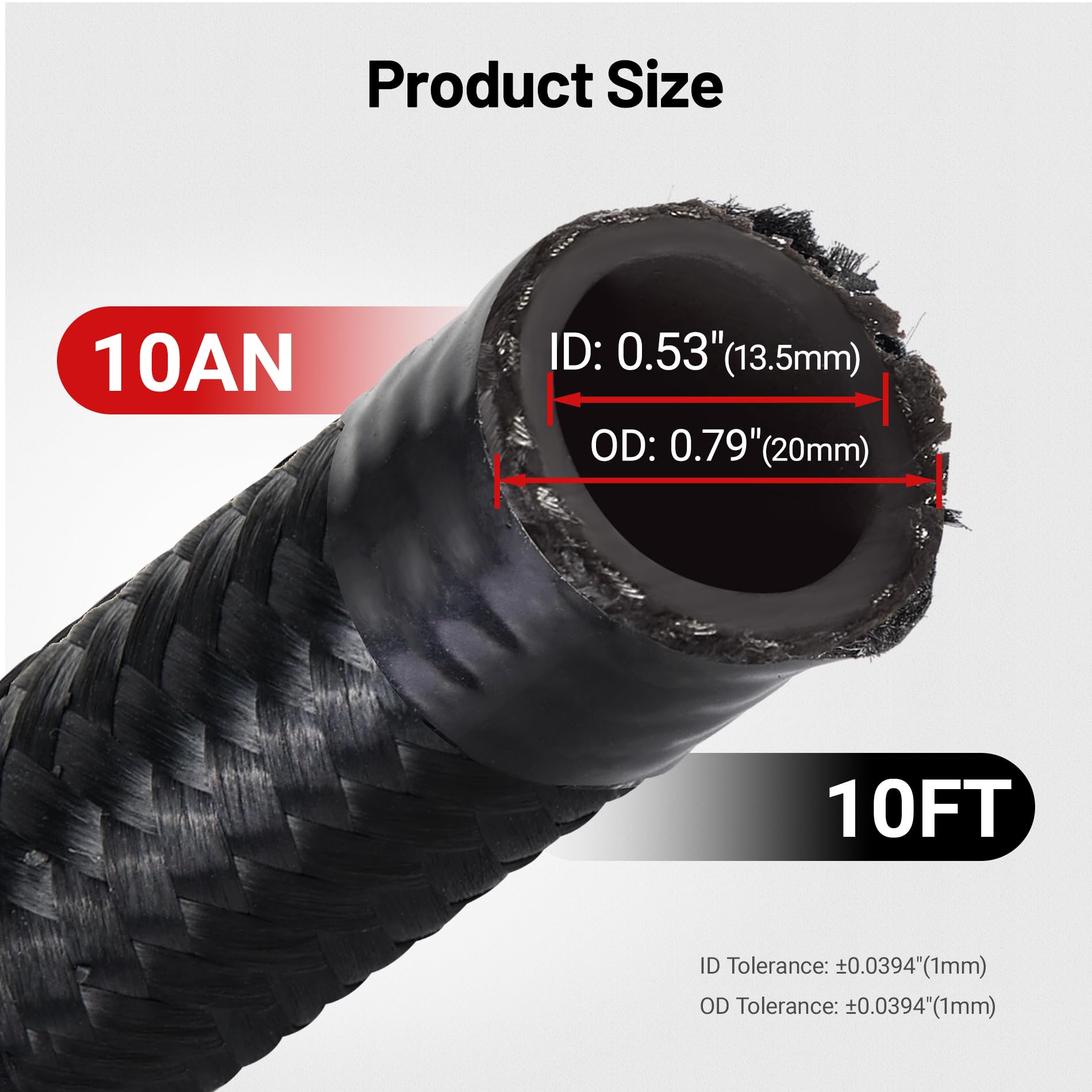

The EVIL ENERGY 10AN hose has a 0.53 inch (13.5 mm) inner diameter and a 0.79 inch (20 mm) outer diameter, supplied in a 10-foot length. It’s rated for a working pressure of 625 psi and a burst pressure of 1875 psi, with an operational temperature window from -22°F to 248°F (-30°C to 120°C).

• Inner diameter: 0.53" (13.5 mm)
• Outer diameter: 0.79" (20 mm)
• Length: 10 ft (approximately 3.05 m)
• Working pressure: 625 psi; burst pressure: 1875 psi
• Temperature range: -22°F to 248°F (-30°C to 120°C)
• Minimum bend radius: 101.6 mm

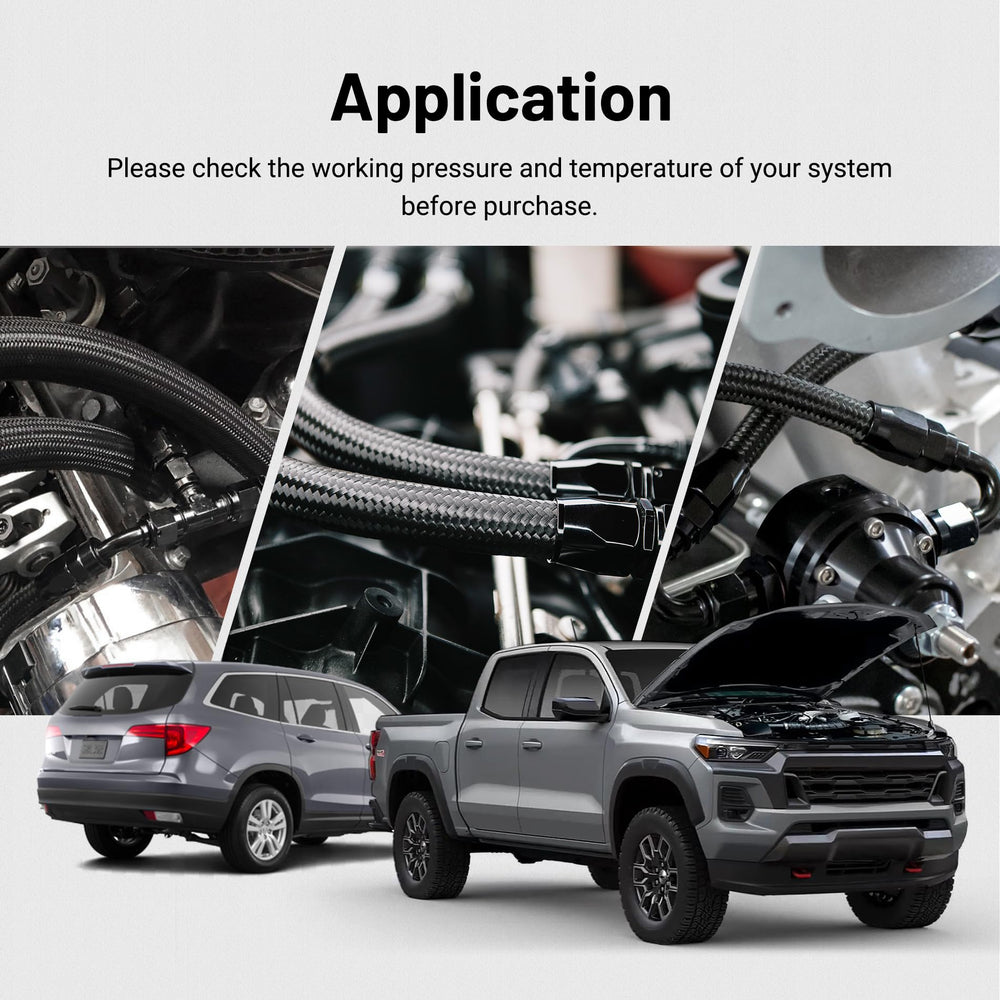

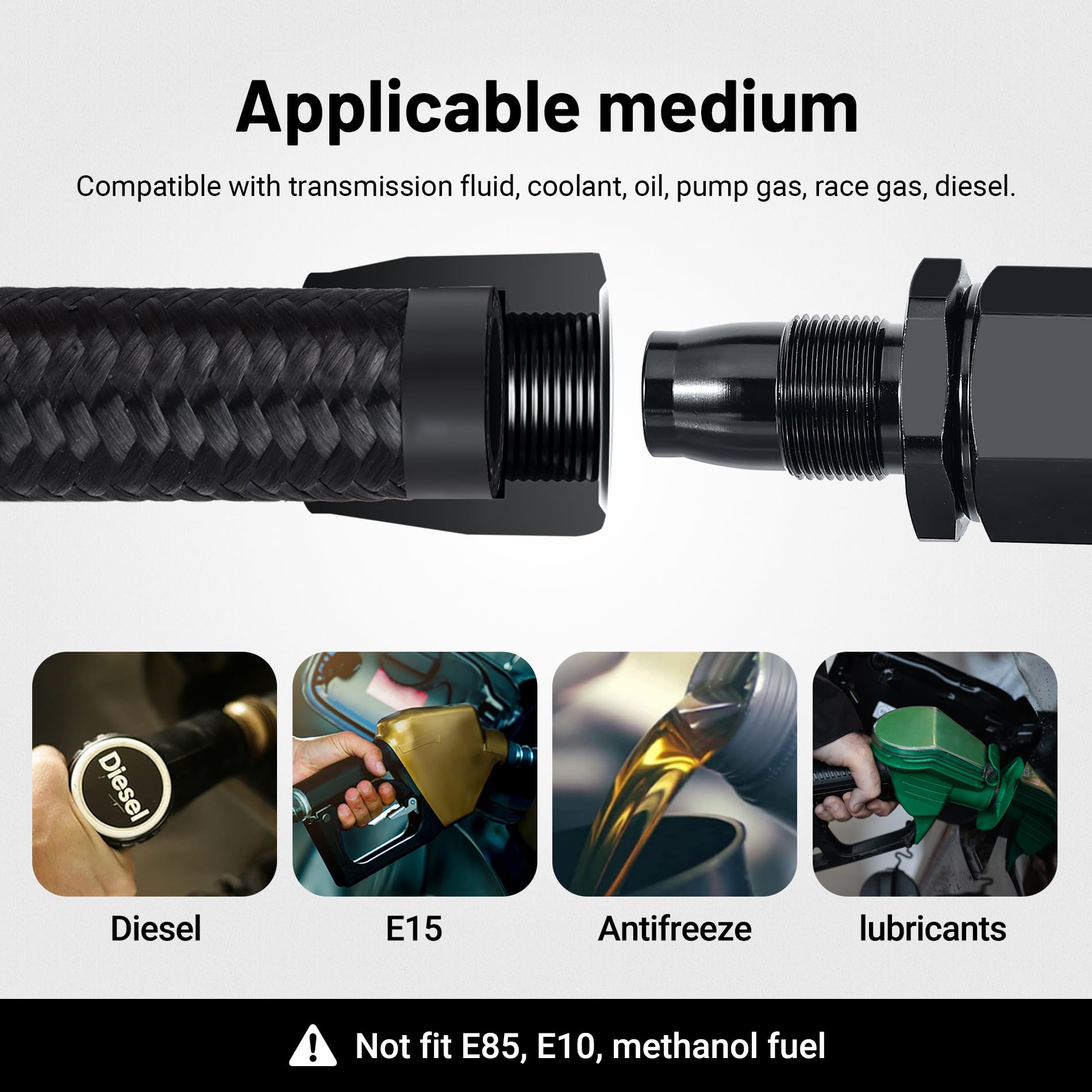

Which fluids and systems is this braided hose compatible with?

The hose’s CPE inner core and stainless-nylon braid make it suitable for a wide range of automotive and racing fluids without rapid degradation. It works with gasoline (including race fuels), diesel, oil, transmission fluid, hydraulic fluid, and vacuum lines—making it a versatile option for fuel systems, return lines, and some hydraulic routing.

• Fuel: pump, return, and race gas uses
• Diesel and biodiesel-compatible applications
• Engine oil and transmission fluid routing
• Hydraulic and vacuum lines within specified pressure/temperature limits

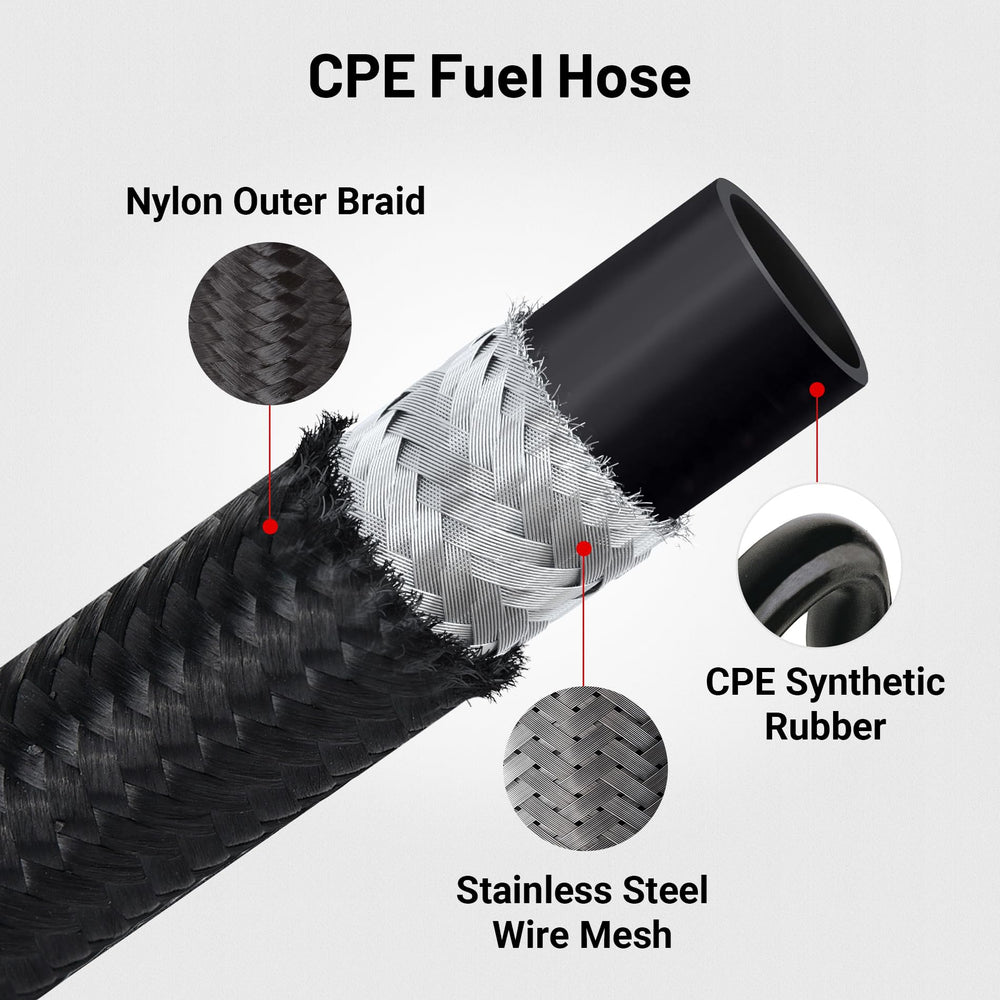

How does construction affect durability and installation ease?

The CPE rubber core resists many petroleum-based fluids while remaining flexible; the 304 stainless steel wire layer provides crush and pressure resistance, and the nylon braid protects against abrasion and UV. This layered build maintains shape under pressure and enables smooth bends within the stated minimum radius, simplifying routing in cramped engine compartments.

• CPE inner core resists fuel and oil deterioration
• 304 stainless wire gives high tensile and burst strength
• Nylon outer braid adds abrasion, UV protection, and clean appearance
• Flexible enough for tight bends while meeting the 101.6 mm minimum radius

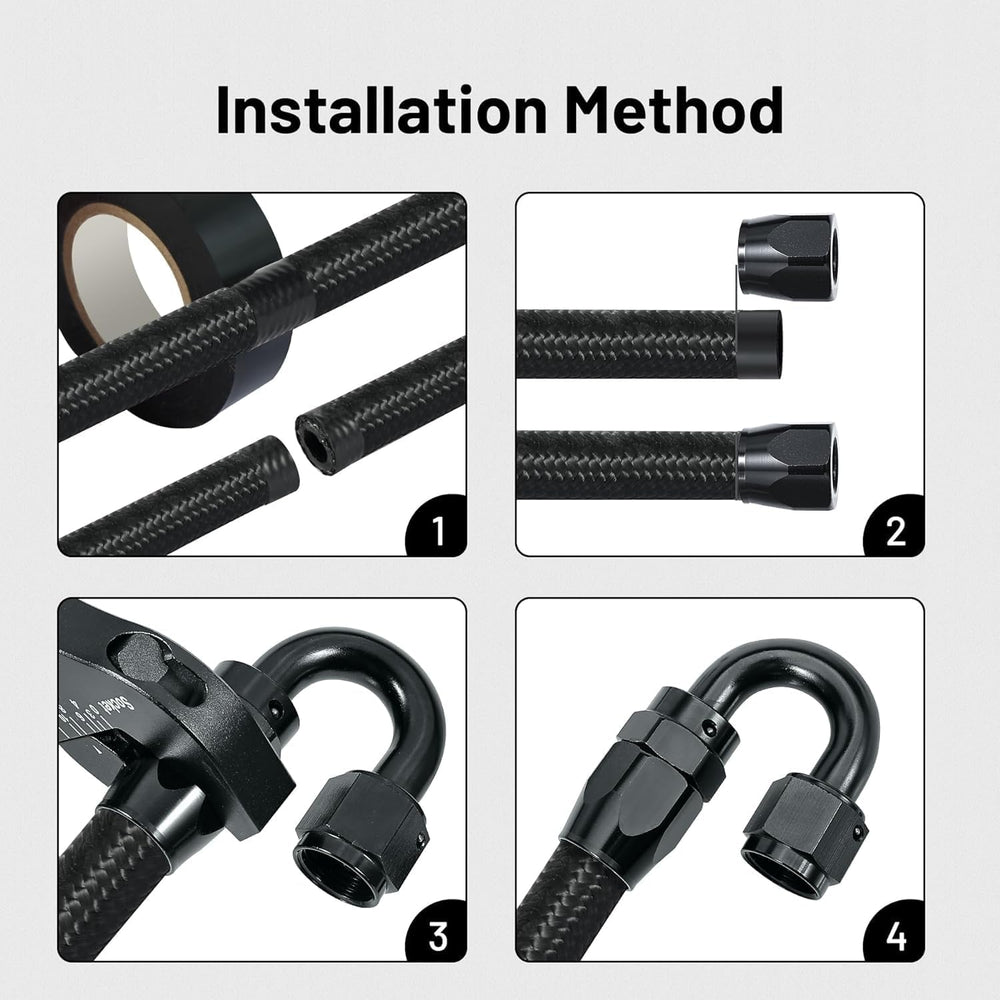

How should I plan fits and fittings for AN10 lines?

Measure the total run and account for bends, clamps, and adapters before cutting the hose to length; a 10-foot kit gives leeway for custom installations. Use properly rated AN10 fittings and clamps designed for braided hose to ensure leak-free connections, and inspect fittings for compatibility with CPE core materials.

• Plan routing and add 10–15% extra length for bends and fittings
• Use AN10 fittings and hose ends sized to the 0.53" ID
• Secure with recommended clamps and avoid sharp bends below the minimum radius
• Leak-test the system at working pressure before regular use

Who is this for: This EVIL ENERGY AN10 braided fuel hose kit is intended for automotive enthusiasts, fabricators, and race teams needing a robust, flexible line for fuel, oil, transmission, or hydraulic routing. It’s suitable for custom plumbing, repairs, and performance upgrades where compatibility with fuels and high pressure/temperature capability matters. Not intended as a replacement for manufacturer-specified OEM lines without verifying compatibility for your exact system and fluids.
