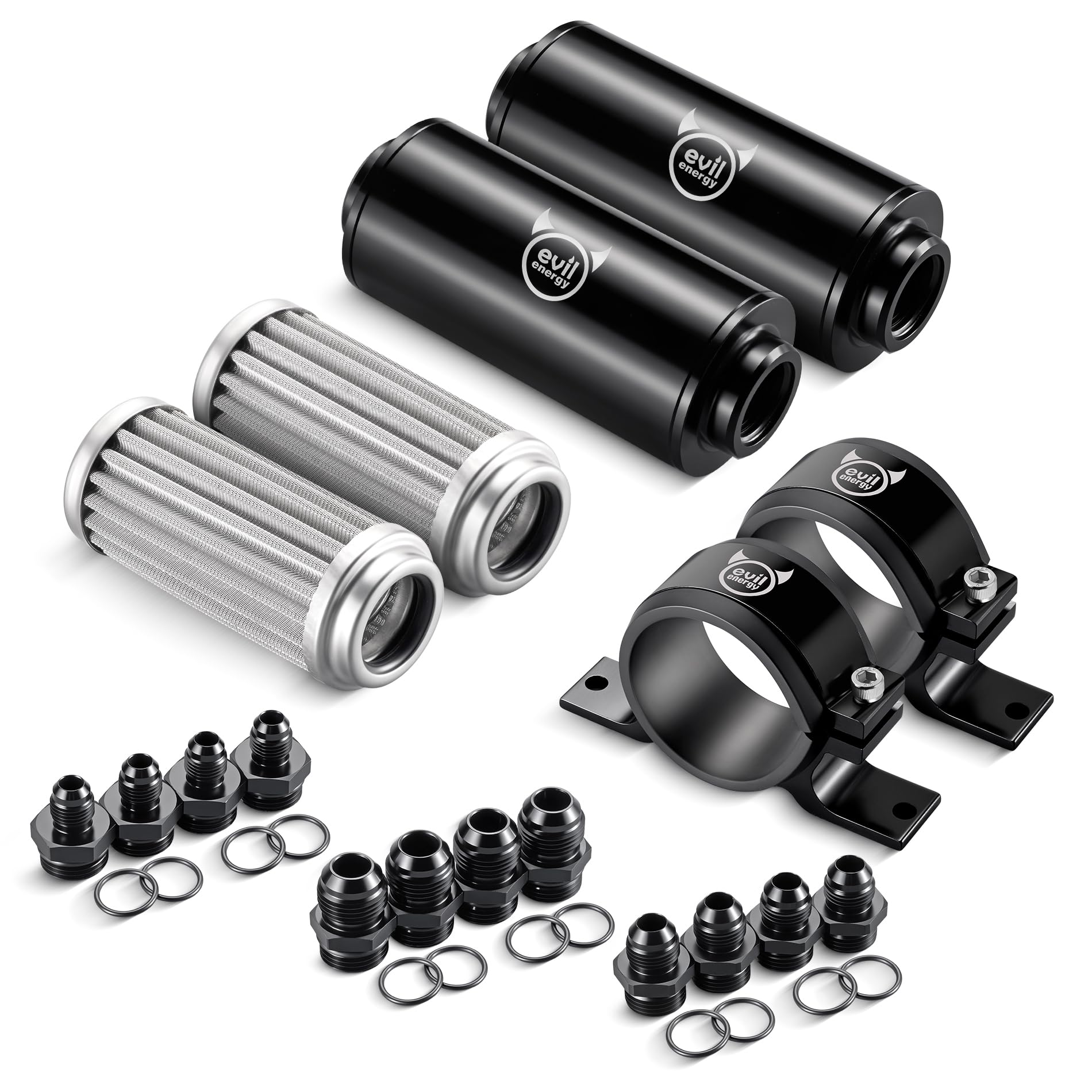

EVIL ENERGY dual inline fuel filter kit — 10µm + 100µm stainless elements, AN6/8/10 fittings, 2x 50mm brackets

EVIL ENERGY's dual inline fuel filter kit pairs a 10‑micron and a 100‑micron stainless element with universal AN fittings and mounting brackets to protect fuel systems from debris and sediment.

This compact kit delivers staged filtration for gasoline and diesel installations where reliable contaminant control matters. It combines a fine 10‑micron element for polishing with a coarser 100‑micron prefilter to catch larger particles, plus a full set of AN adapters and two 50 mm brackets for tidy mounting. The machined aluminum housings, stainless steel elements, and reusable seals are intended to be serviceable so you can clean or replace elements without swapping the entire assembly.

How does this kit improve fuel system protection?

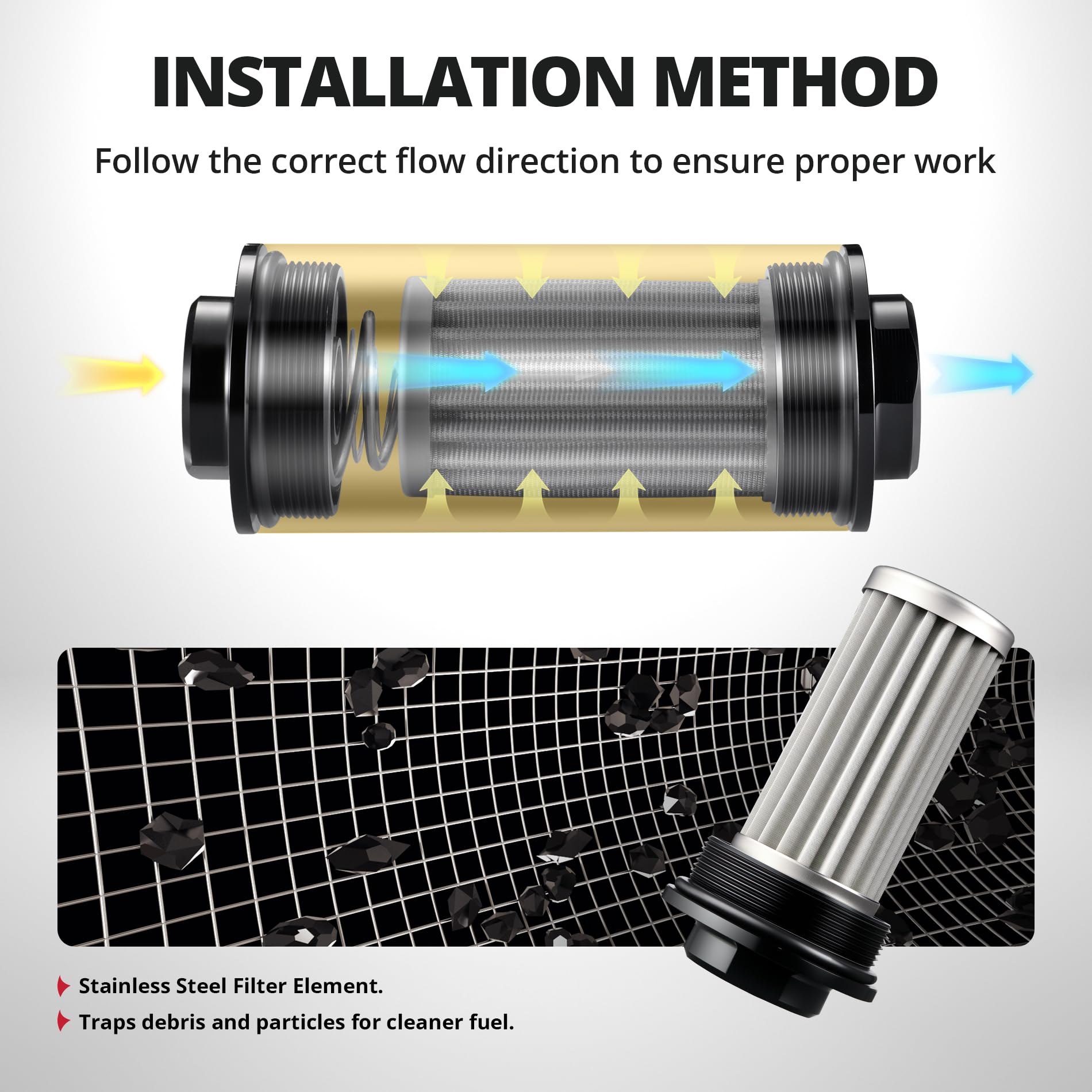

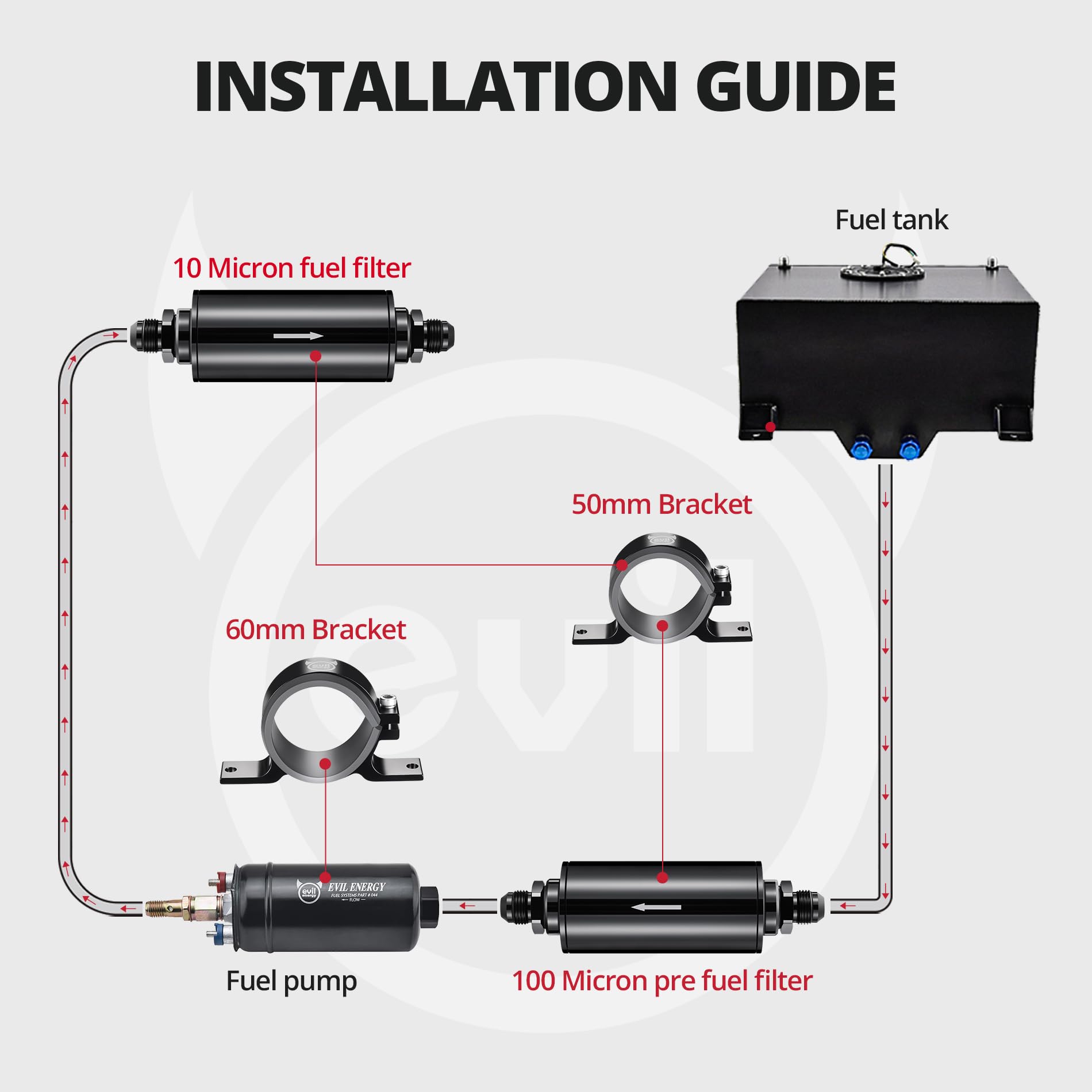

The two filters work in tandem to reduce the load on sensitive components: the 100‑micron unit captures larger debris while the 10‑micron unit removes finer contaminants. That staged approach lowers the chance of injector or carburetor blockages and helps maintain smoother flow when used with compatible fuels.

• Two filtration stages: coarse (100 µm) then fine (10 µm)
• Stainless steel media resists corrosion and is reusable
• Works with gasoline and diesel (not suited for E85)
• Reduces particulate ingress to pumps, regulators, and injectors

What fittings and mounting options are included?

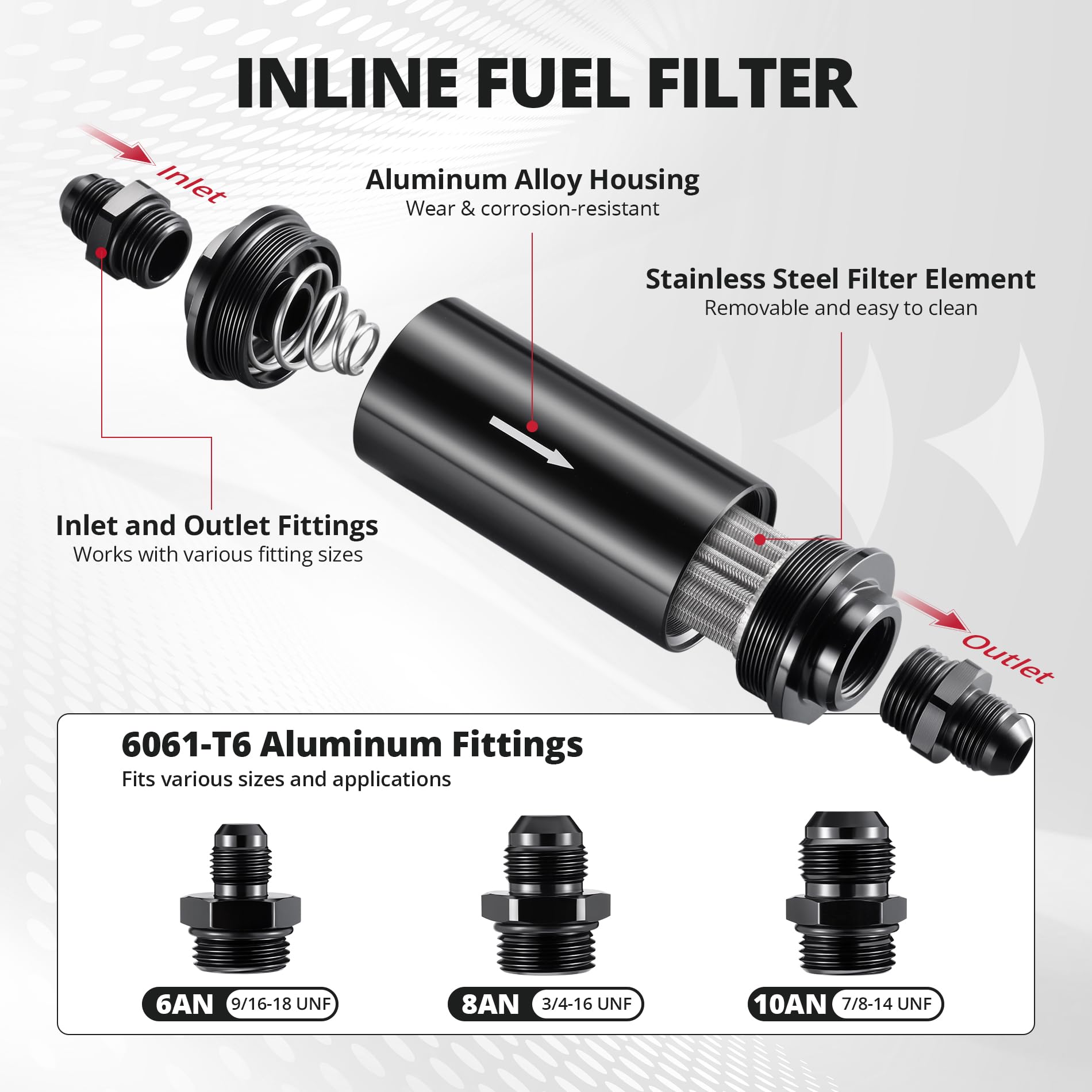

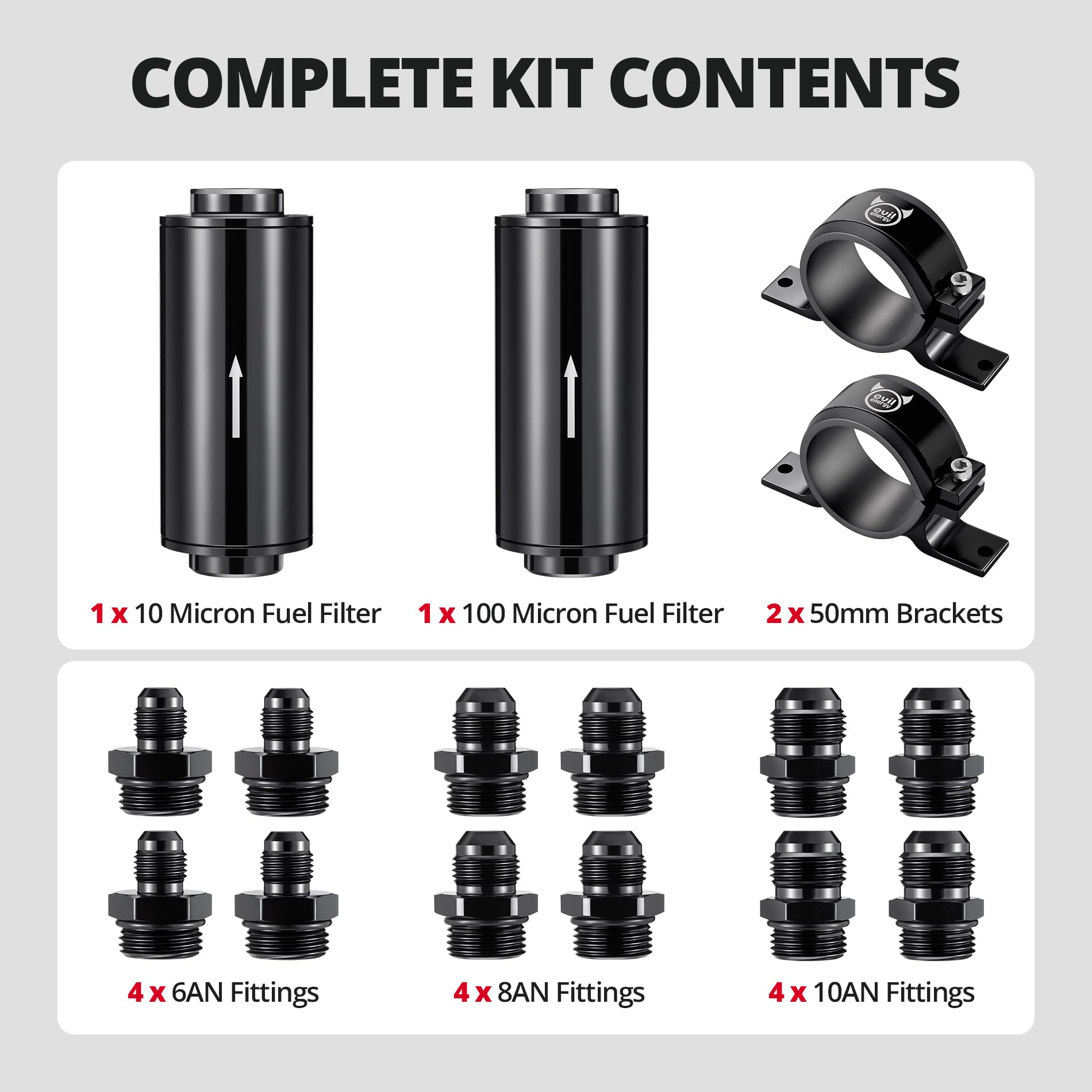

The kit includes AN6, AN8, and AN10 adapters to fit a wide range of hose and hardline setups, plus two 50 mm mounting brackets for secure installation in tight engine bays or along a chassis rail. Threaded O‑ring seals are supplied to create a leak‑resistant joint when assembled correctly.

• AN6, AN8, AN10 adapters for flexible compatibility
• Two 50 mm aluminum brackets for stable mounting
• High‑quality rubber O‑ring for sealing each housing

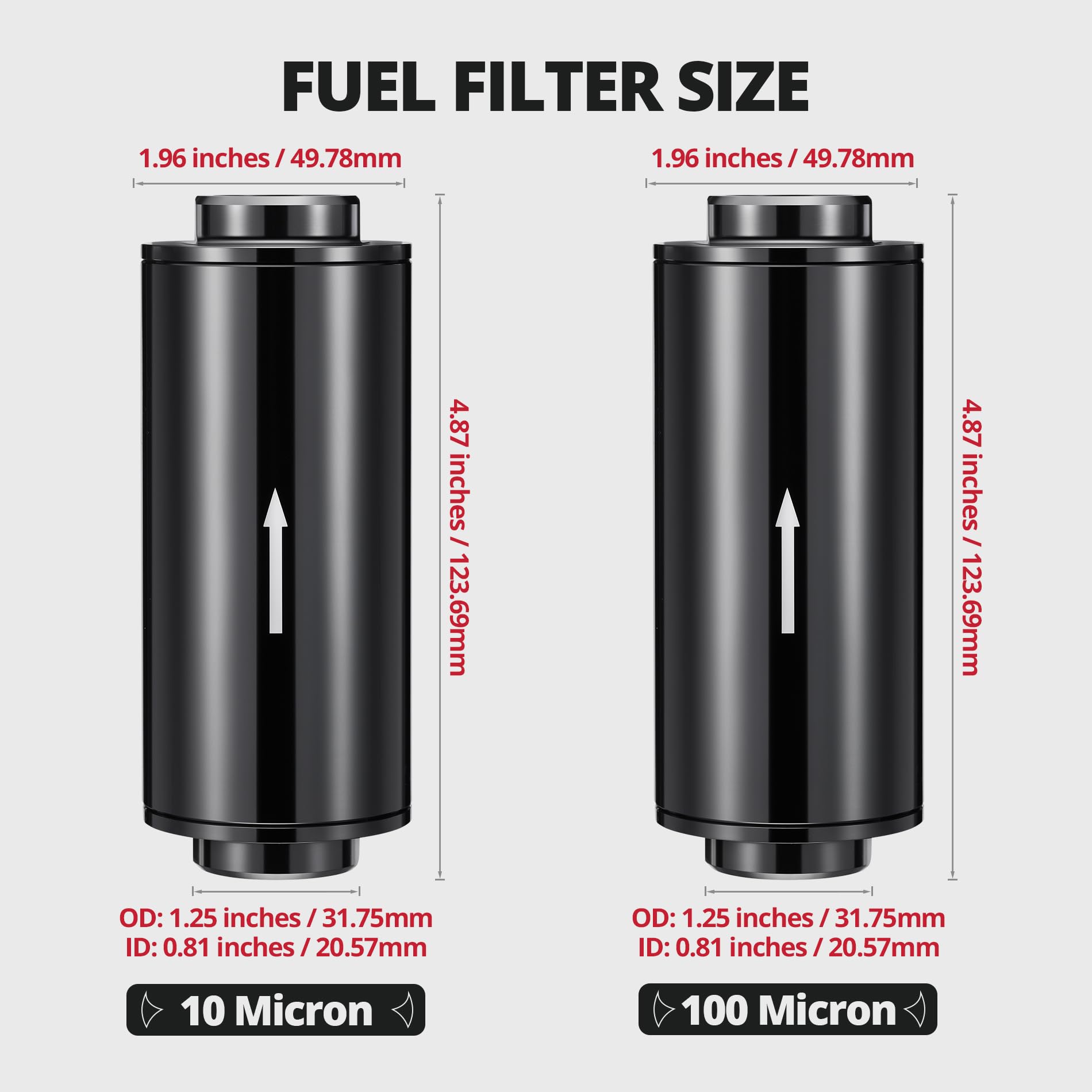

• Compact housings minimize space required for installation

How do you service and maintain the filters?

Both stainless steel filter elements can be removed from the aluminum housings for inspection, cleaning, or replacement. Regular visual checks and periodic cleaning based on fuel condition will keep flow rates steady and prolong the element life.

• Unscrew housings to access stainless elements for cleaning
• Inspect O‑rings and replace if cracked or deformed
• Flush housings with clean fuel or solvent; dry before reassembly
• Replace elements when flow restriction or damage occurs

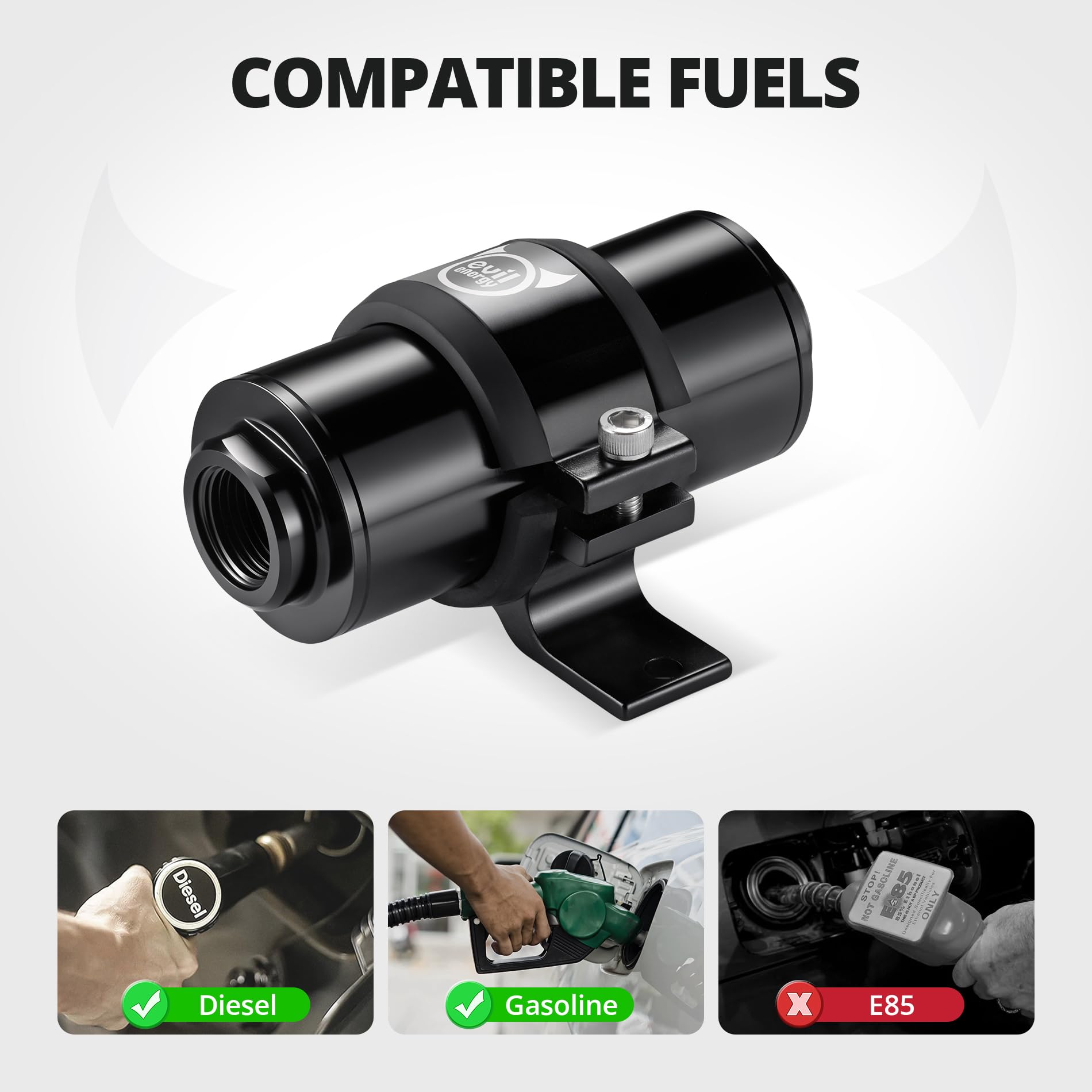

Will this kit work for my engine or fuel type?

The EVIL ENERGY dual inline kit is designed for most gasoline and diesel EFI and carbureted applications, offering broad compatibility through included AN adapters. It is not compatible with ethanol blends like E85; verify pressure and flow needs for high‑output systems before use.

• Suitable for gasoline and diesel fuel systems (not E85)
• Best for street and light performance applications
• Confirm flow and pressure requirements for race or high‑flow pumps
• Universal adapters simplify integration with aftermarket fuel lines

Who is this for: This kit is aimed at DIY mechanics, tuners, and performance enthusiasts who want a reusable, multi‑stage inline filtration solution that fits a variety of lines and mounting locations. It’s useful when upgrading or protecting fuel pumps, regulators, and injectors in street cars, light trucks, and many aftermarket fuel systems—especially where a compact, serviceable filter arrangement is preferred.
