EXERAUO 6" Oval LED Trailer Lights Kit — 6in Waterproof Tail/Stop/Turn Set with 25ft Harness & Mounting Bracket

EXERAUO's 6" Oval LED Trailer Lights Kit is a waterproof, 12V LED tail/stop/turn lighting set that includes mounting brackets, a 25ft harness and all hardware for trailer, truck, RV or boat use.

This complete lighting kit combines bright 3030 SMD LEDs, durable polycarbonate lenses and a watertight 3-pin plug to replace or upgrade your vehicle's rear lights. The kit is designed for straightforward installation into common oval mounting holes and provides multi-function illumination—high-brightness stop/turn/brake output and lower-brightness running/tail light—while protecting electronics with epoxy encapsulation and rubber grommets.

How bright and visible are these 6" oval LEDs?

The lights use ten 3030 SMD LED chips per housing for high lumen output while remaining energy efficient. They produce a vivid red signal that improves visibility in daylight and low light conditions without drawing excessive current.

• 10 SMD 3030 LEDs per light for intense red output

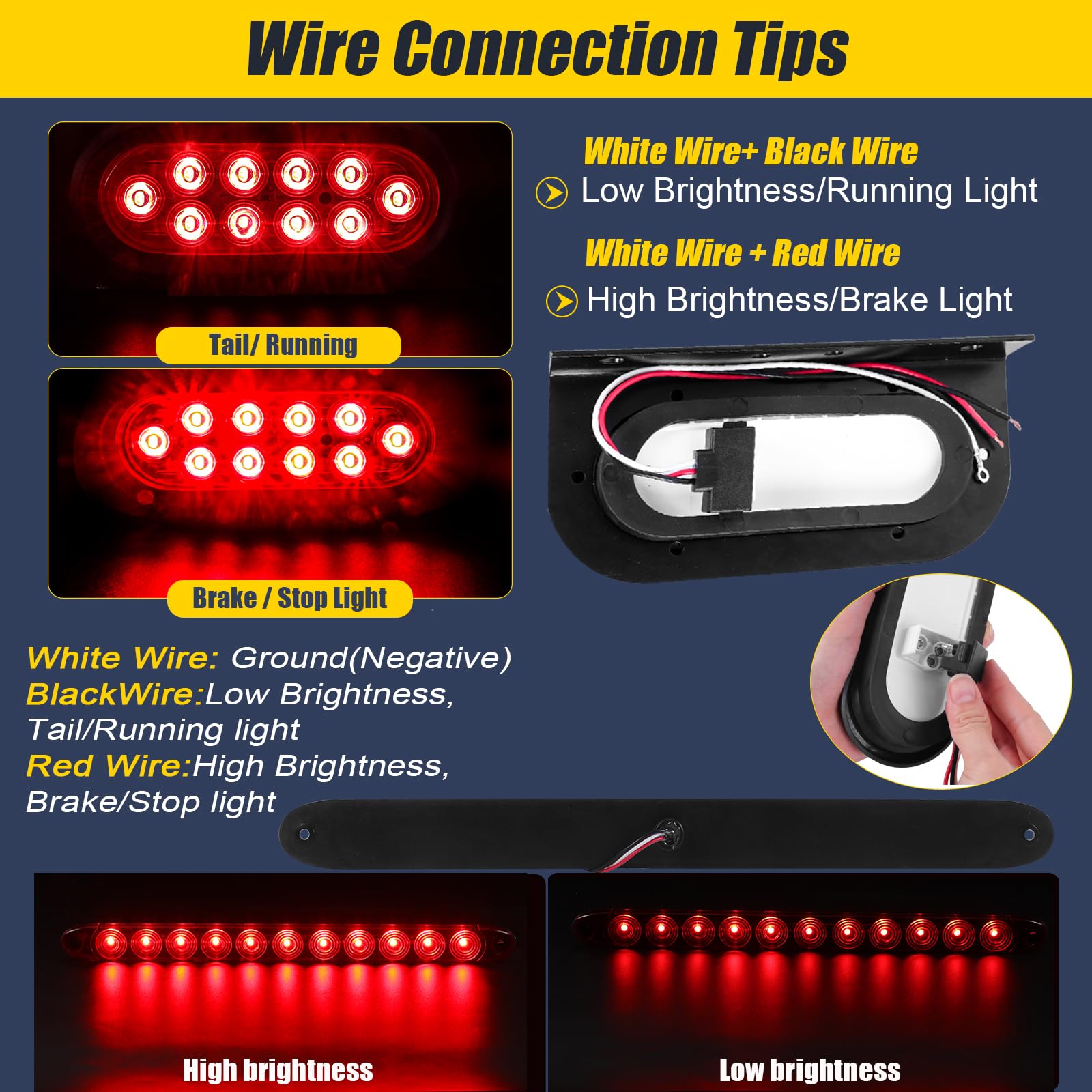

• Dual-brightness wiring: red/white for high output, black/white for low output
• Polycarbonate lens keeps light clarity over time
• Epoxy-sealed electronics resist moisture and vibration

What does installation involve and what hardware is included?

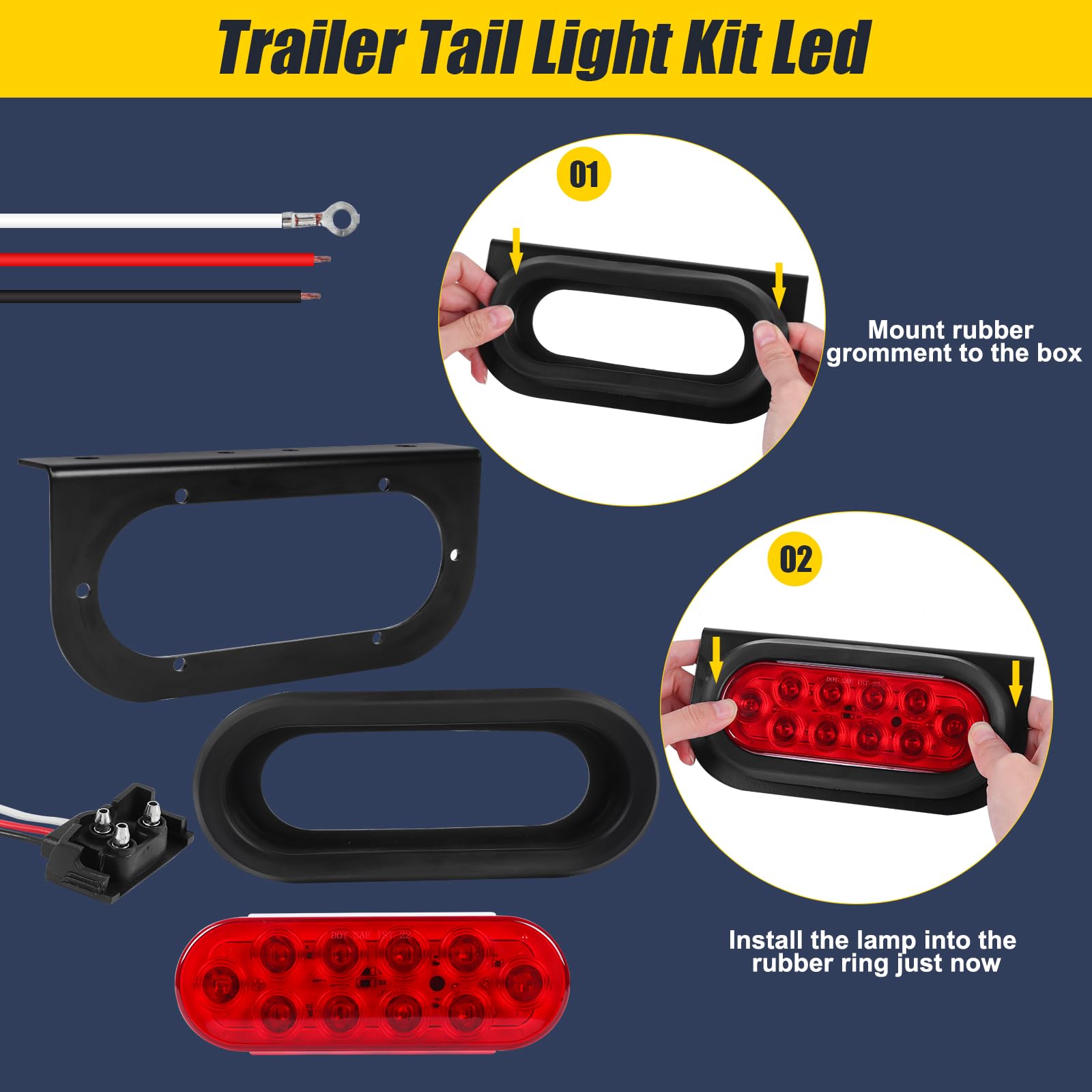

Installation is designed to be accessible for DIYers: fit the rubber grommet, thread the light into the bracket or hole, align and secure with the provided nut and screw, then connect the three wires to your vehicle harness. The kit ships with everything needed to wire and mount both lights and additional markers, reducing the need for separate purchases.

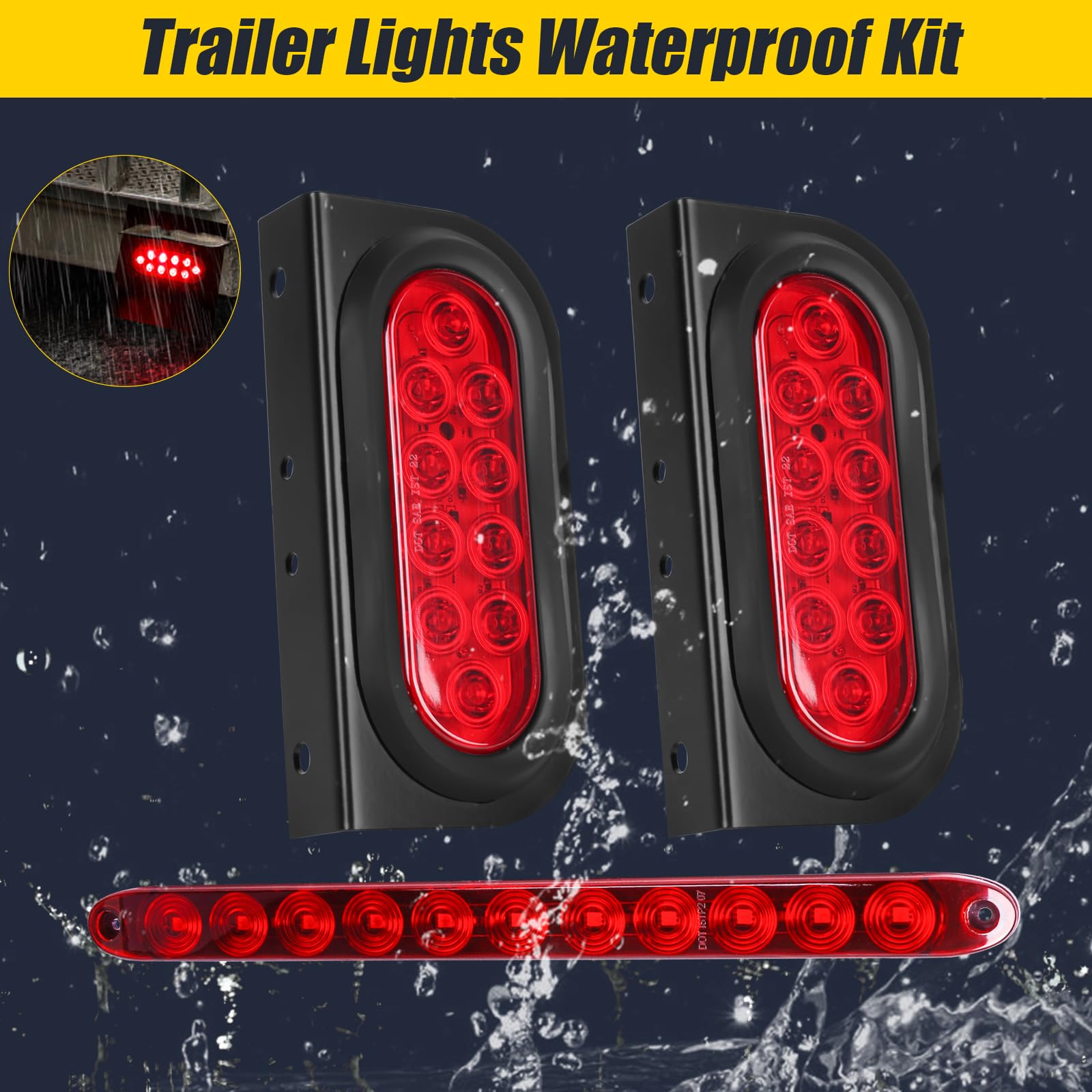

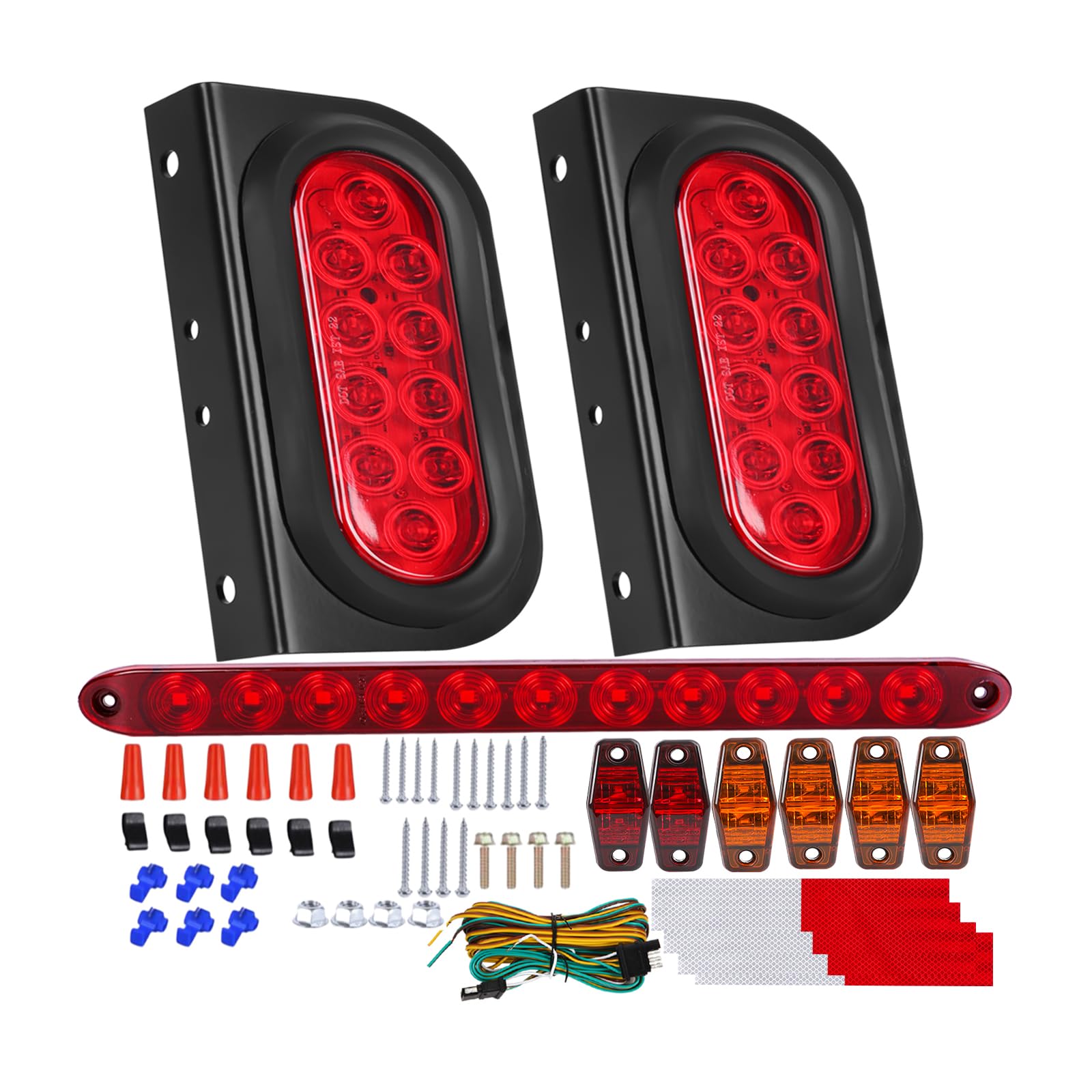

• Two 6" oval LED lights with rubber grommets and 3-pin water-tight plugs
• 25 ft wiring harness and a 15" light bar for centralized wiring
• Six side marker lights (amber and red) and mounting hardware included
• Mounting bracket sized to fit common oval hole patterns (see dimensions)

Are these lights durable and weatherproof for marine or off-road use?

Yes—the housings are polycarbonate with sealed electronics and rubber grommets to block water intrusion. The 3-pin plug and epoxy-encapsulated circuitry help the lights hold up to moisture, road spray and typical vibration from towing or marine environments.

• Polycarbonate lens and housing resist impact and UV haze
• Rubber grommet plus water-tight 3-pin plug prevent leaks
• Epoxy encapsulation secures internal components against corrosion
• Suitable for trailers, trucks, RVs, campers, boats and specialty vehicles

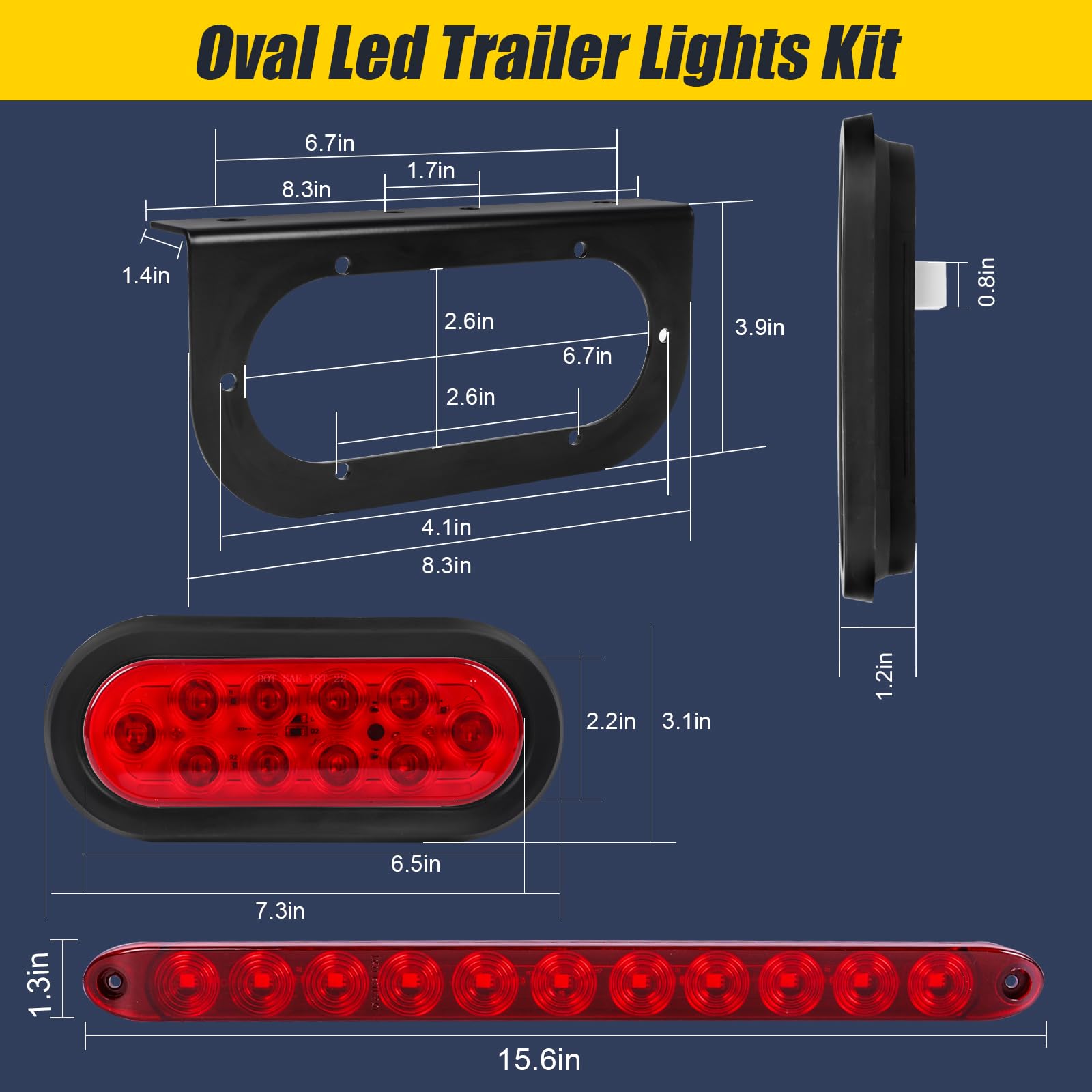

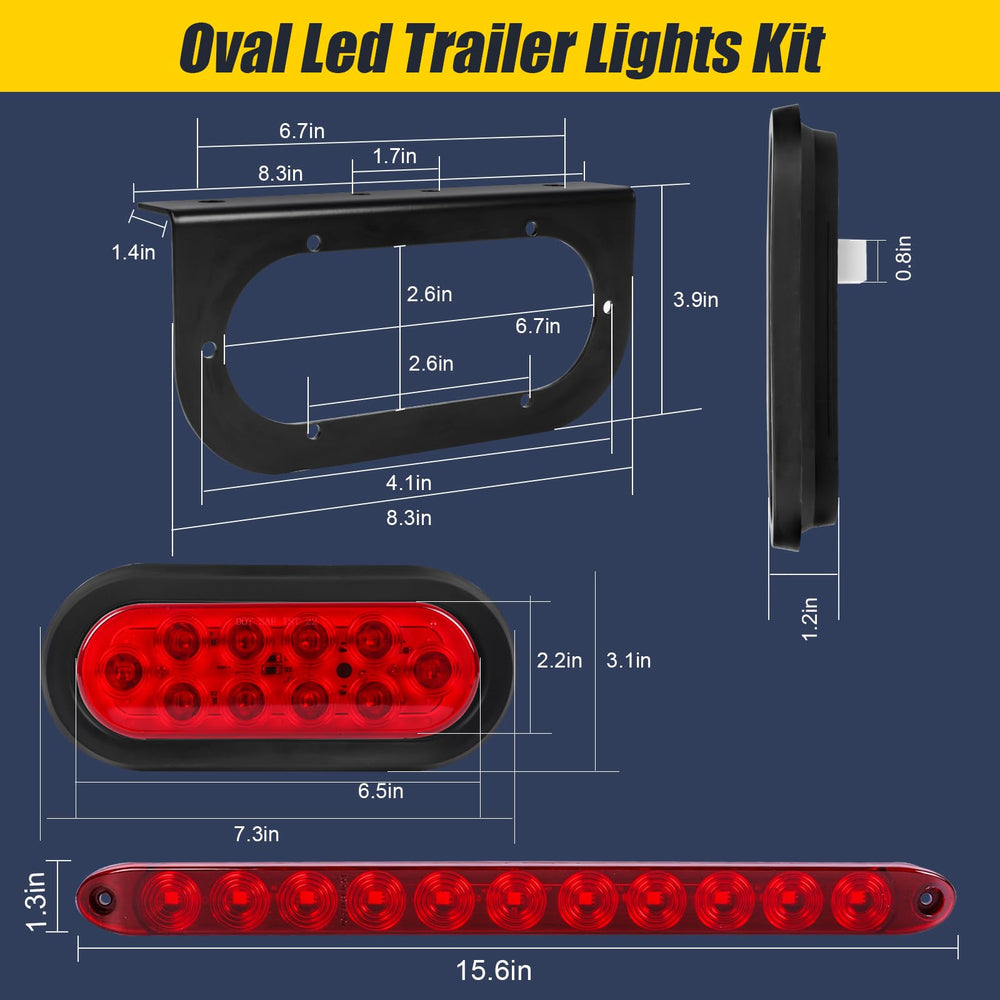

What are the exact sizes and fit considerations?

The lamp body alone measures about 6.5" x 2.2"; with the grommet it’s approximately 7.3" x 3.1" x 1.2". Confirm your vehicle’s mounting hole diameter and available bracket space before ordering to ensure a proper fit.

• Light body: 6.5" x 2.2"; with grommet: 7.3" x 3.1" x 1.2"
• Round mounting hole diameter required: 0.39"
• Bracket inner size: 6.7" x 2.6"; outer size: 8.3" x 3.9"
• 12V rated—confirm vehicle electrical compatibility

Who this kit is for: If you tow trailers, run a small fleet, outfit an RV, or need reliable rear signaling for a boat or specialty vehicle, this EXERAUO kit offers a robust, all-in-one lighting upgrade. It’s aimed at vehicle owners who want brighter LED signals, weather-resistant construction and a bundled harness and hardware set to simplify a retrofit or replacement project.
