EXERAUO 6" Oval LED Trailer Lights Kit with Bracket and 25ft Wiring Harness — Waterproof, Pre-wired

EXERAUO 6 Inch Oval LED Trailer Lights Kit is a complete, waterproof lighting set that supplies stop, turn, brake, tail and running lights with a mounting bracket and 25 ft wiring harness for fast installation.

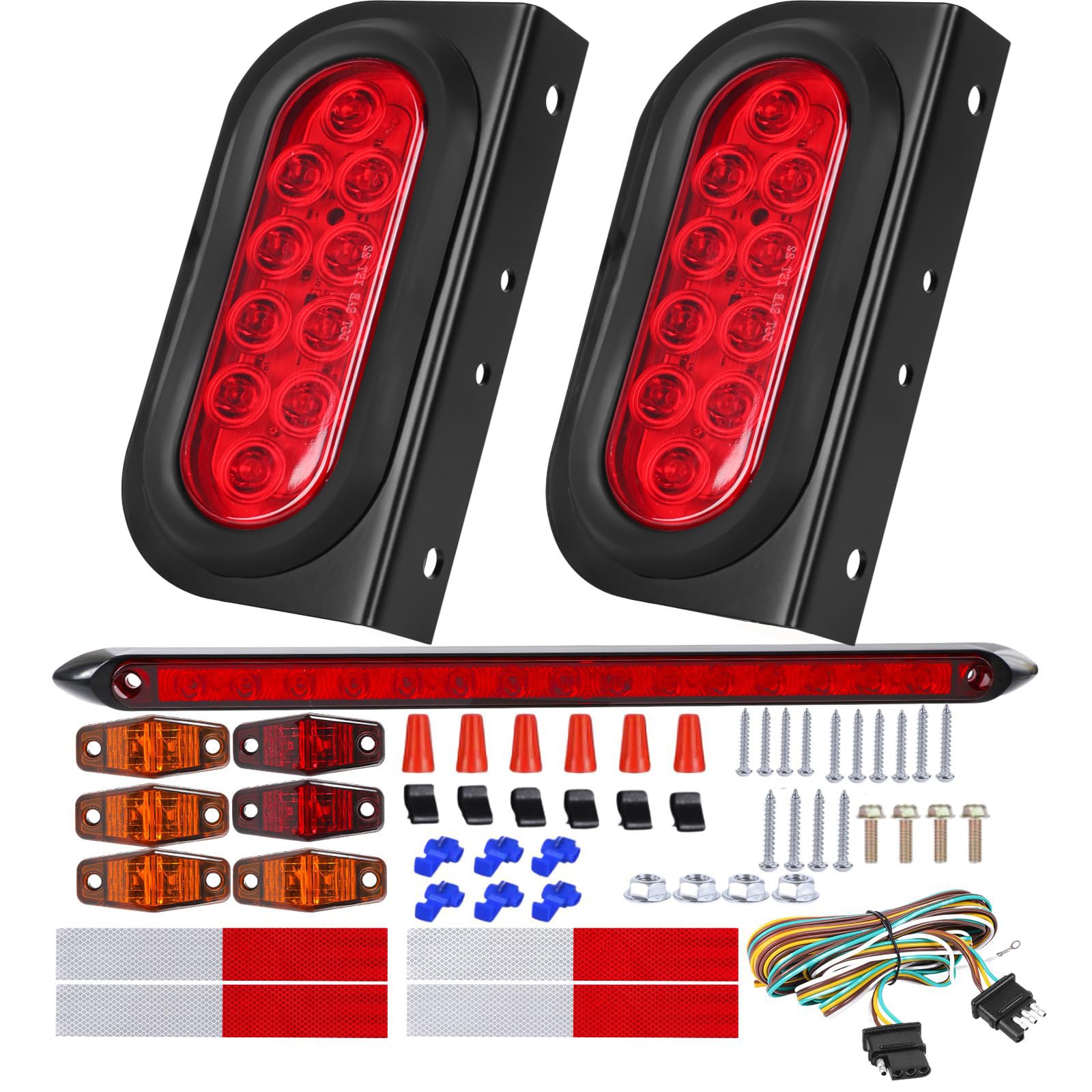

This kit bundles two 6-inch oval LED tail lights, a 13.7-inch light bar, six side marker lights, a 25-foot wiring harness and all required hardware so you get a ready-to-fit lighting solution for trailers, boats, campers and light trucks. Built with polycarbonate lenses, epoxy-sealed electronics and a watertight 3-pin plug, the system is designed to resist moisture and vibration while delivering clear signaling on the road.

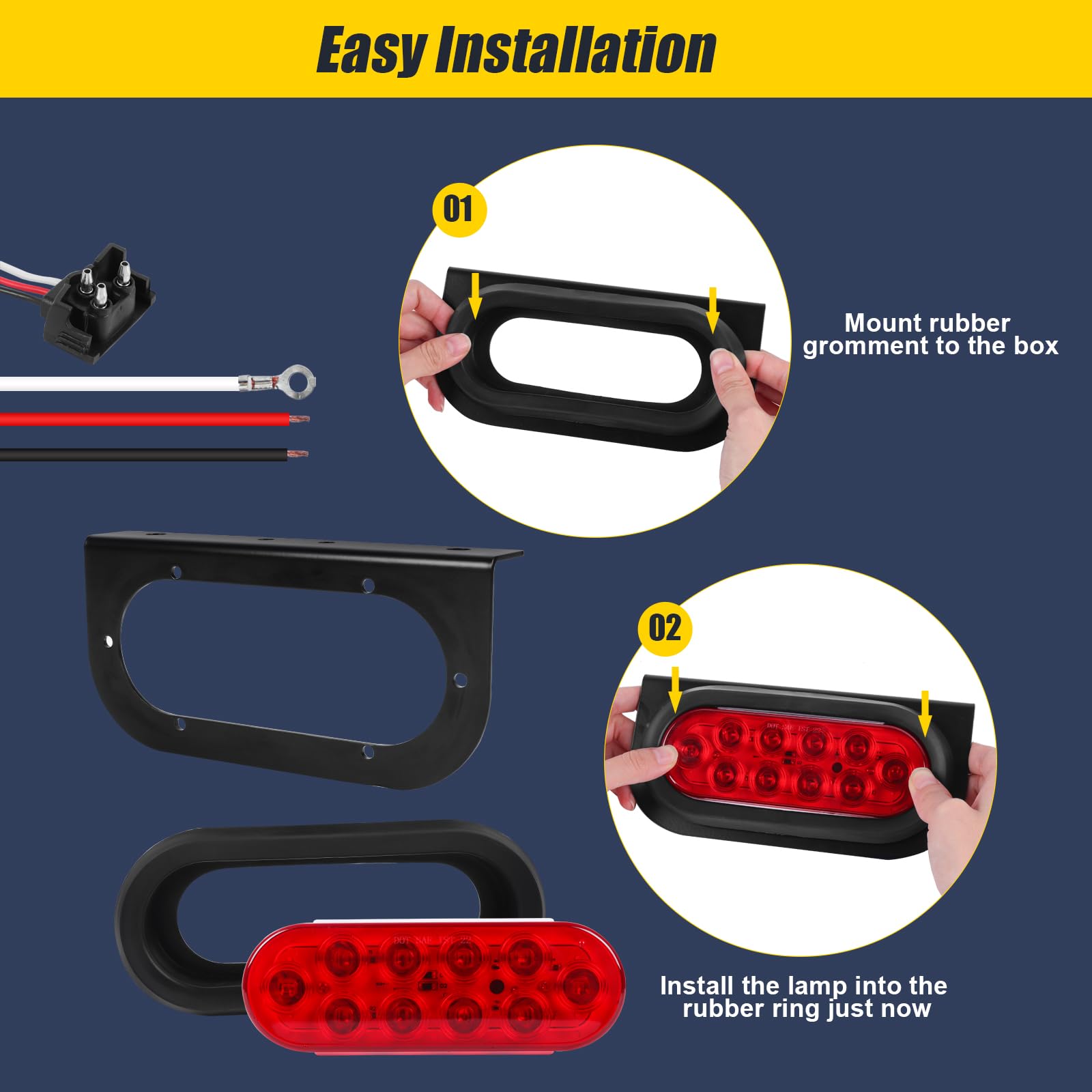

How does the EXERAUO kit simplify installation?

The kit is pre-wired and supplied with a rubber grommet and mounting bracket so you can fit the lights quickly without fabricating parts. Color-coded wires make connections intuitive, and the included hardware matches the bracket holes for straightforward mounting.

• Pre-wired 3-pin plugs for each oval light reduce wiring time.
• 25 ft wiring harness reaches typical trailer lengths without extensions.
• Bracket and grommet alignment fits standard mounting hole patterns.
• Clear wiring colors: red/black/white for brake/turn and tail functions.

What kind of performance and durability can I expect?

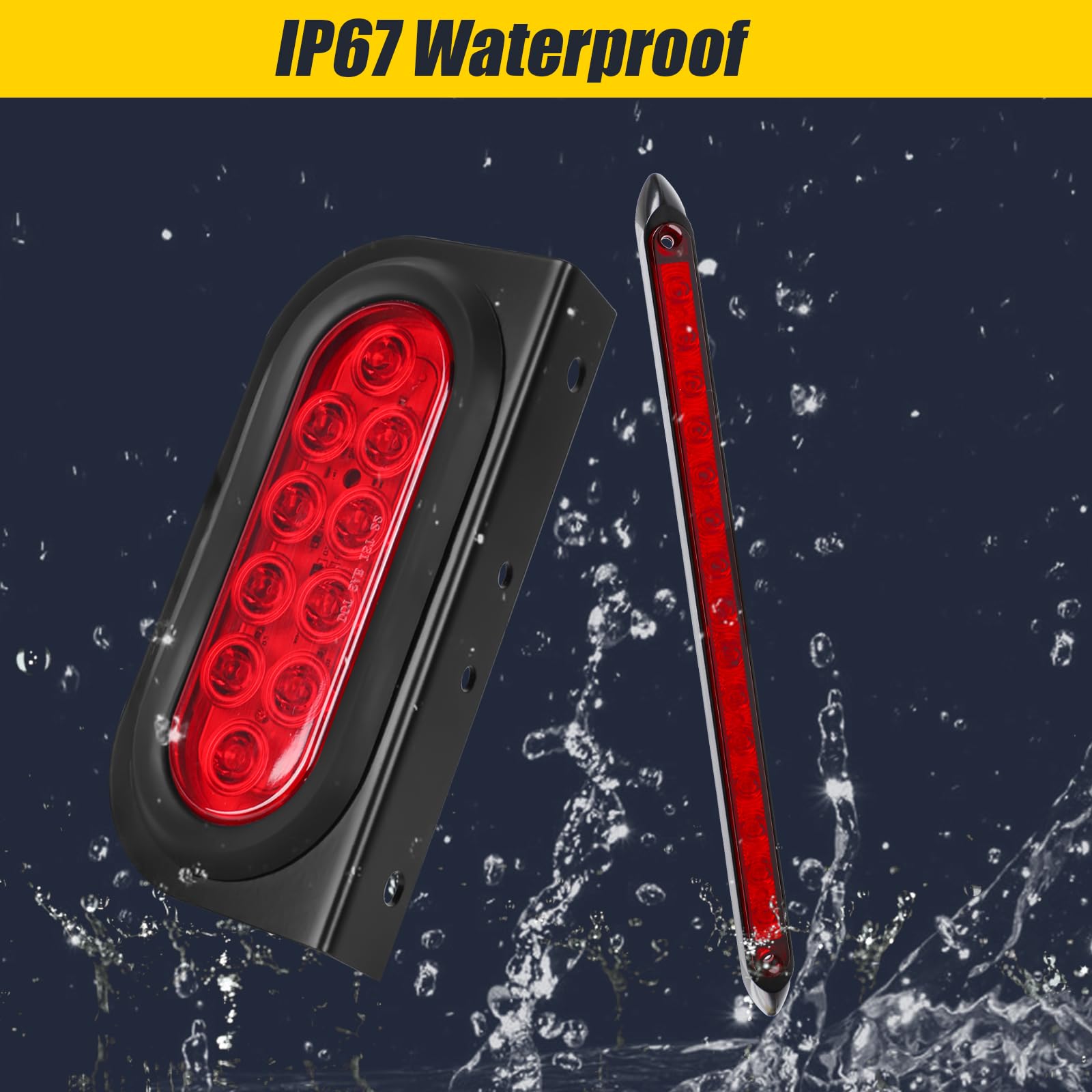

LEDs provide bright, energy-efficient illumination with long service life compared with incandescent bulbs. The lenses are polycarbonate and the internal electronics are epoxy-encapsulated, which helps keep water and road debris from damaging the circuits.

• Waterproof construction with rubber grommet and sealed 3-pin plug.
• Epoxy-encapsulated electronics resist vibration and corrosion.

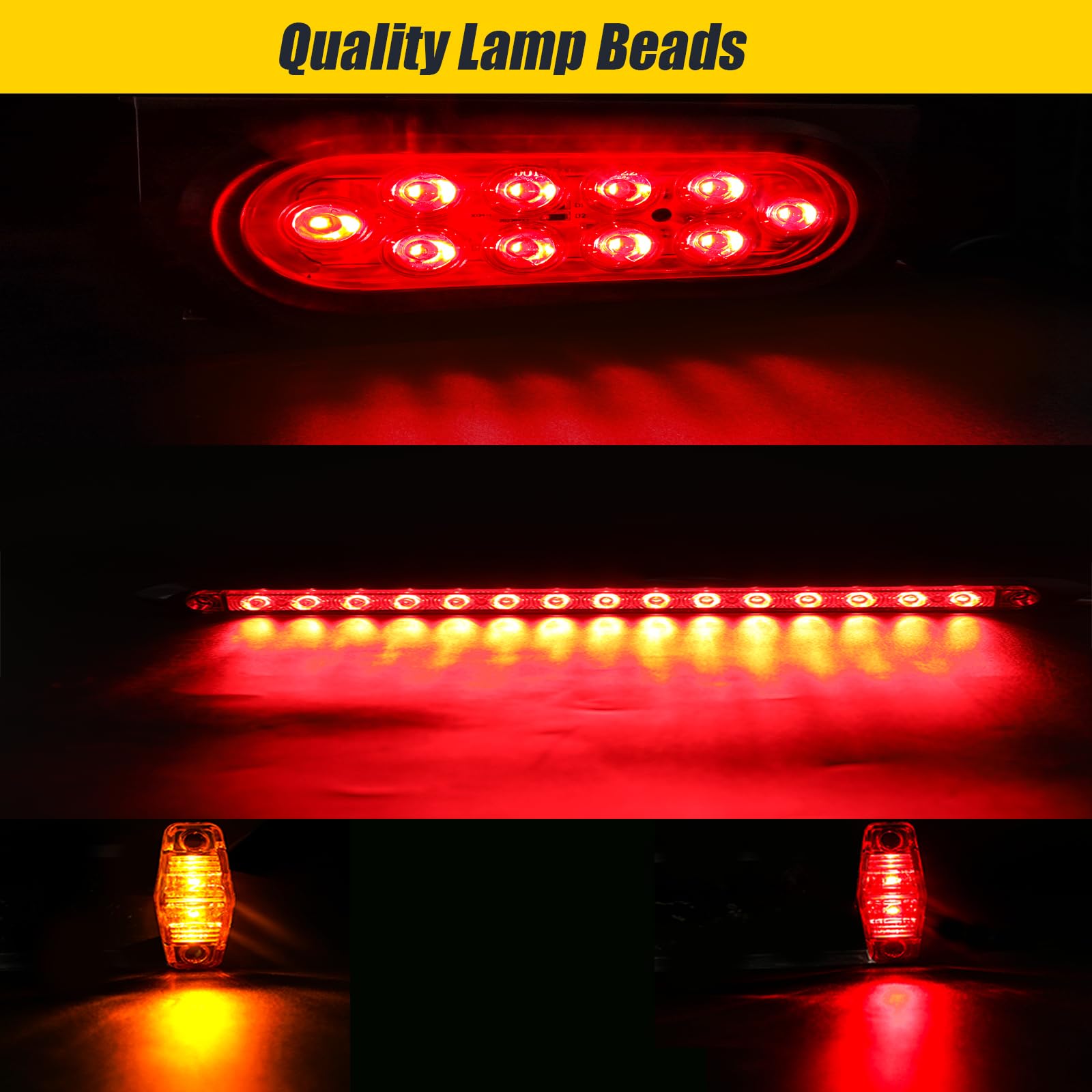

• High-brightness LEDs for clear stop and turn signaling.
• Low-brightness running light mode for tail light visibility.

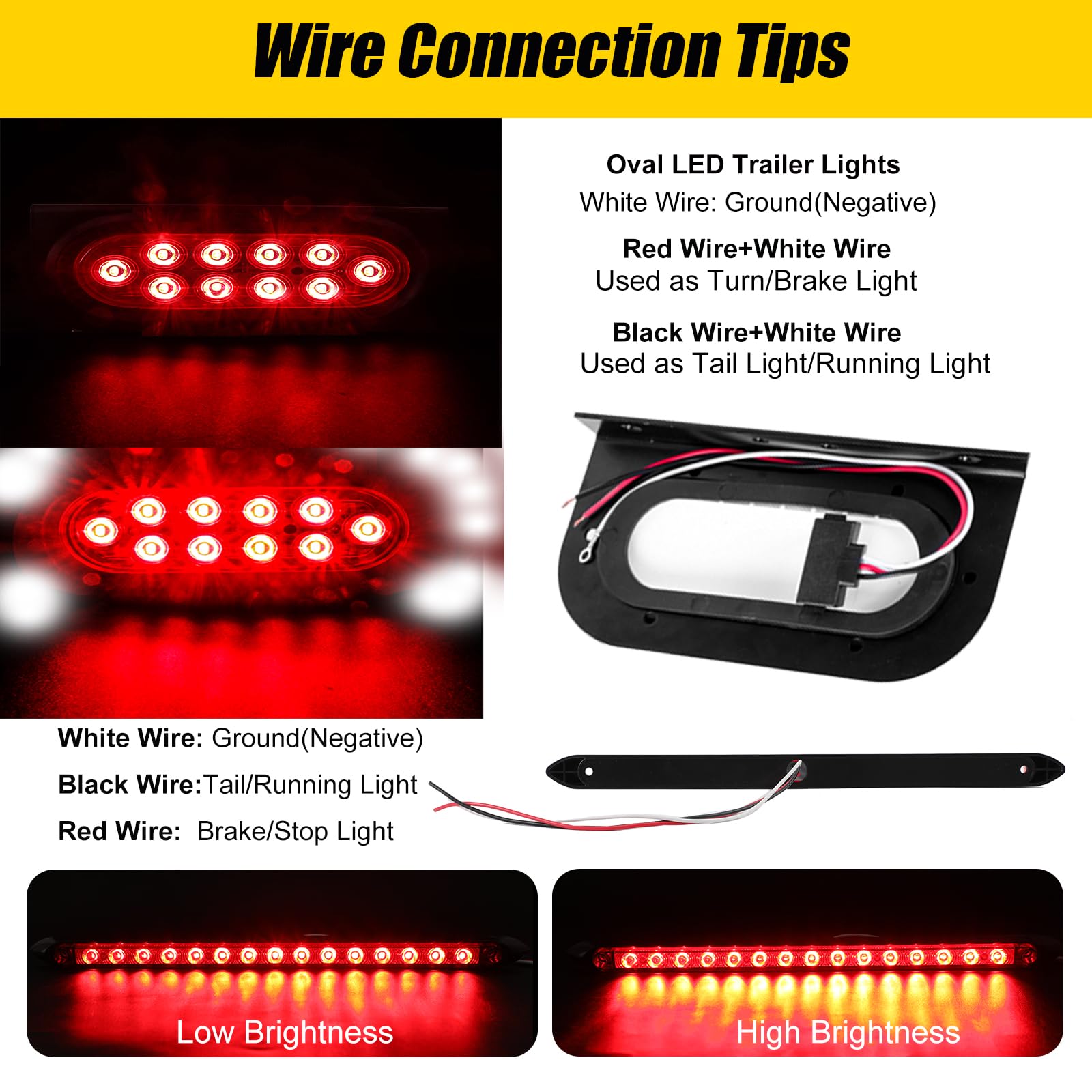

Which wires control which light functions?

The oval light uses separate wires for high- and low-brightness modes so you can get distinct running and braking signals. Properly connecting the color-coded leads ensures the lights behave correctly with your vehicle's lighting circuits.

• Red + white wire: high-brightness mode (brake and turn signal).
• Black + white wire: low-brightness mode (tail/running light).
• 3-pin waterproof plug for secure electrical connection.
• Follow vehicle wiring diagrams or a professional for best results.

How do I know this kit will fit my trailer or vehicle?

The kit includes specific dimensions for the lights and bracket so you can verify compatibility with your existing mounting holes. Measure the mounting hole diameter and compare the bracket inner dimensions against your mounting surface before purchase.

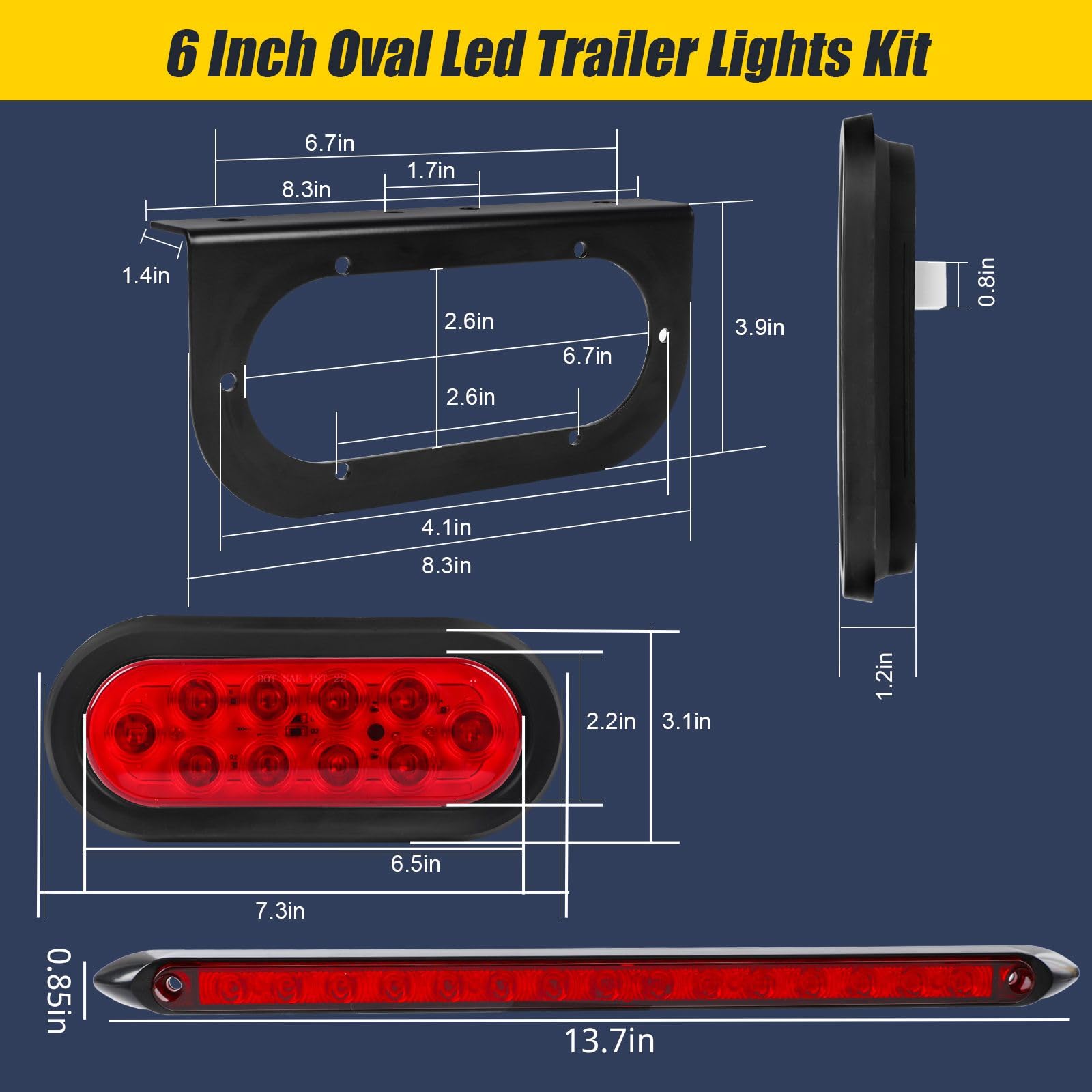

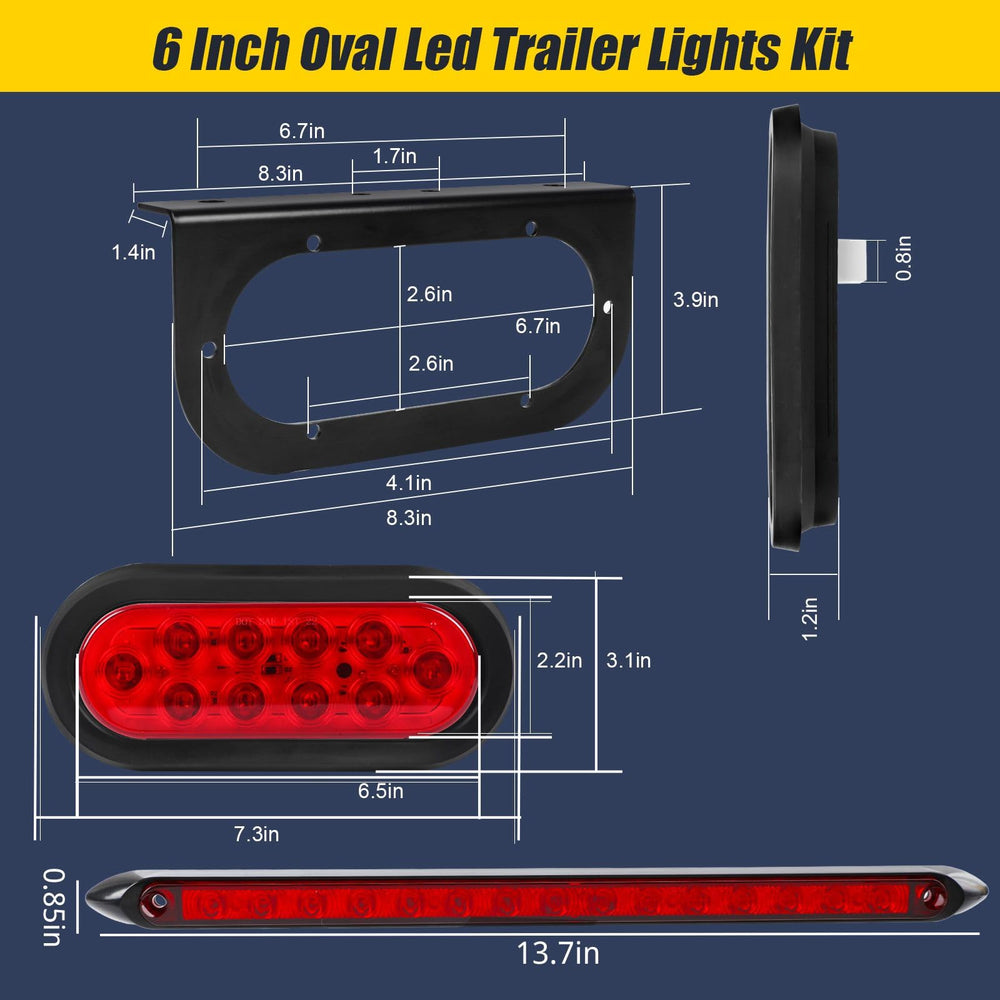

• Light body only: 6.5" x 2.2"; light with grommet: 7.3" x 3.1" x 1.2".
• Round mounting hole diameter: 0.39" (10 mm approximately).
• Bracket inner size: 6.7" x 2.6"; bracket outer size: 8.3" x 3.9".
• Works with trucks, trailers, boats, RVs, campers and pickup beds when holes match.

Who is this for: The EXERAUO 6 Inch Oval LED Trailer Lights Kit is aimed at DIYers, fleet owners and recreational vehicle owners who need a rugged, ready-to-install lighting solution. If you want brighter, longer-lasting signaling than incandescent lights, need waterproof protection for coastal or wet-weather use, and prefer a kit with a harness and brackets included, this set is a practical choice. Measure your mounting openings before buying to ensure a correct fit and consult an installer if you’re unsure about wiring.
